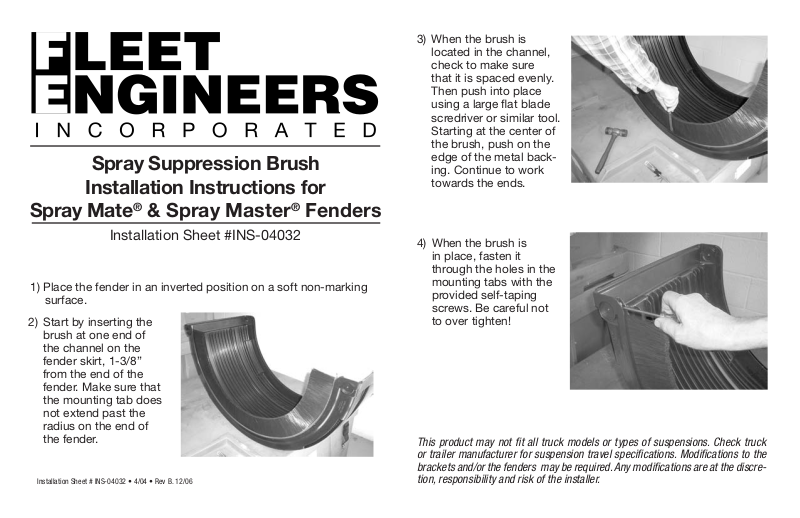

Spray Suppression Brush
Installation Instructions for
Spray Mate® & Spray Master® Fenders
3) When the brush is
located in the channel,
check to make sure
that it is spaced evenly.
Then push into place
using a large flat blade
scredriver or similar tool.
Starting at the center of
the brush, push on the
edge of the metal backing. Continue to work
towards the ends.
Installation Sheet #INS-04032
1) Place the fender in an inverted position on a soft non-marking
surface.
2) Start by inserting the
brush at one end of
the channel on the
fender skirt, 1-3/8”
from the end of the
fender. Make sure that
the mounting tab does
not extend past the
radius on the end of
the fender.
Installation Sheet # INS-04032 • 4/04 • Rev B. 12/06
4) When the brush is
in place, fasten it
through the holes in the
mounting tabs with the
provided self-taping
screws. Be careful not
to over tighten!
This product may not fit all truck models or types of suspensions. Check truck
or trailer manufacturer for suspension travel specifications. Modifications to the
brackets and/or the fenders may be required. Any modifications are at the discretion, responsibility and risk of the installer.
