Spray Mate® Fender
5" Minimum
Spacer
Blocks
Spray
Mate
Spacer
Blocks
Truck
Frame
3" Minimum3" Minimum
Mount Supports Hold Firmly
Mount Supports Hold Firmly

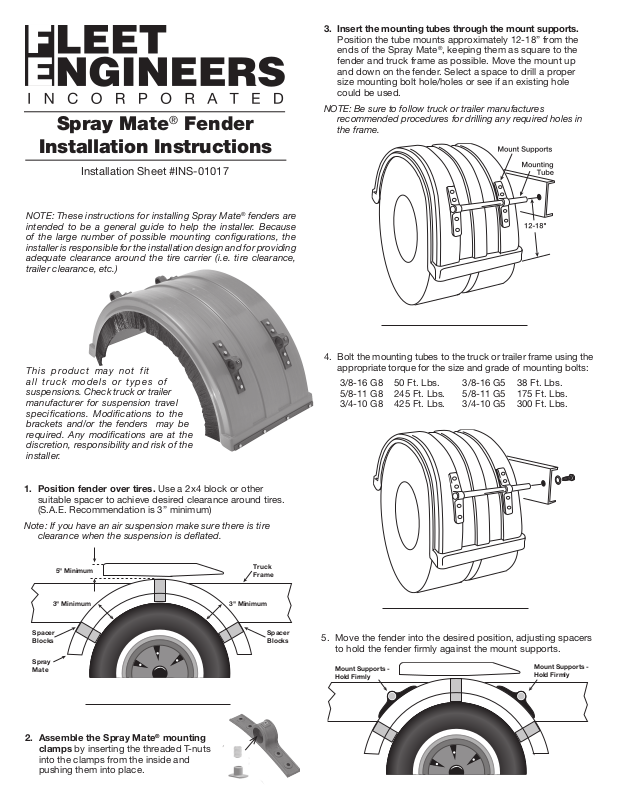

Installation Instructions
Installation Sheet #INS-01017
NOTE: These instructions for installing Spray Mate® fenders are
intended to be a general guide to help the installer. Because
of the large number of possible mounting configurations, the
installer is responsible for the installation design and for providing
adequate clearance around the tire carrier (i.e. tire clearance,
trailer clearance, etc.)
3. Insert the mounting tubes through the mount supports.
Position the tube mounts approximately 12-18” from the
ends of the Spray Mate®, keeping them as square to the
fender and truck frame as possible. Move the mount up
and down on the fender. Select a space to drill a proper
size mounting bolt hole/holes or see if an existing hole
could be used.
NOTE: Be sure to follow truck or trailer manufactures
recommended procedures for drilling any required holes in
the frame.
This product may not fit
all truck models or types of
suspensions. Check truck or trailer
manufacturer for suspension travel
specifications. Modifications to the
brackets and/or the fenders may be
required. Any modifications are at the
discretion, responsibility and risk of the
installer.
1. Position fender over tires. Use a 2x4 block or other
suitable spacer to achieve desired clearance around tires.
(S.A.E. Recommendation is 3” minimum)
Note: If you have an air suspension make sure there is tire
clearance when the suspension is deflated.
4. Bolt the mounting tubes to the truck or trailer frame using the
appropriate torque for the size and grade of mounting bolts:
3/8-16 G8 50 Ft. Lbs. 3/8-16 G5 38 Ft. Lbs.
5/8-11 G8 245 Ft. Lbs. 5/8-11 G5 175 Ft. Lbs.
3/4-10 G8 425 Ft. Lbs. 3/4-10 G5 300 Ft. Lbs.
5. Move the fender into the desired position, adjusting spacers
to hold the fender firmly against the mount supports.
2. Assemble the Spray Mate® mounting
clamps by inserting the threaded T-nuts
into the clamps from the inside and
pushing them into place.
Page 2
6. Slide the mount supports on the mounting tubes so they
3/8-16 S.S. Set Screw
3/8-16 S.S. Bolt
Mounting
Tube
Mount Support
Spray Mate
Fender
Approx. 4-7/8"
3/8 S.S. Flat Washer
Support Strap
3/8 S.S. Flat Washer
3/8-16 S.S. Lock Nut
line up with the support strap that fits between ribs 4 & 5
counting in from the outside edge of the fender (approx.
4-7/8” in from the outside
edge of the fender)
Now tighten the
mount support
set screw to
48 in. lbs.
+/_ 3in. lbs.
or 4 ft. lbs.
CAUTION: Do
not over tighten.
NOTE: the channels
between ribs 4 & 5 is
larger than the other
spaces.
7. Spot the mounting
bolt holes through
the mount
supports. Now drill
13/32 in. dia. holes
through the fender.
8. Fasten the mount support, fender and support strap
together with the supplied hardware.
Please Note:
Flap weights are not recommended
and may void the warranty.
Painting Spray Mate® fenders IS
NOT recommended and may void
the warranty. If painting is desired, a
Flex Agent MUST be added to the
paint!
Packaged Set
Flap
Reinforcing
Strap
part #033-04139
Connector
part #031-00828
