Tighten Nut
Behind Mount
PATENT
#6,471,228

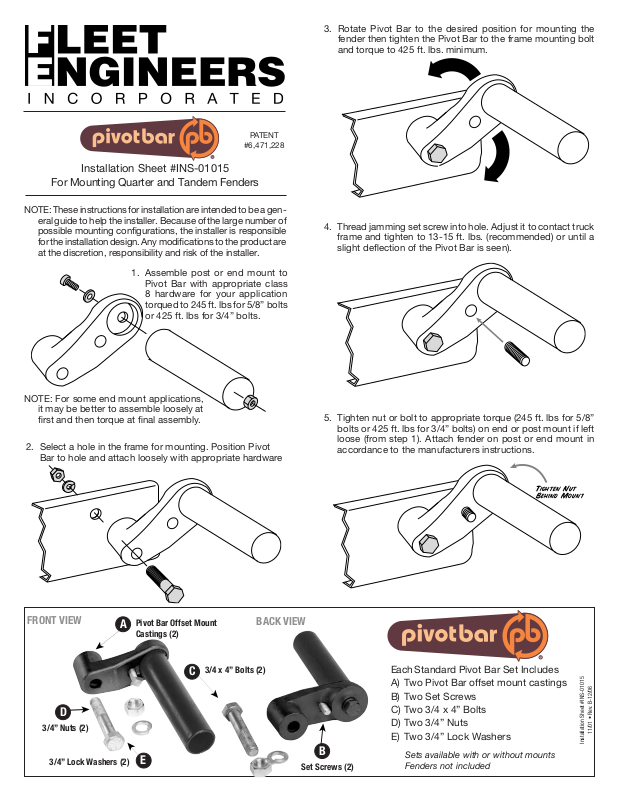

Installation Sheet #INS-01015
For Mounting Quarter and Tandem Fenders
NOTE: These instructions for installation are intended to be a gen-
eral guide to help the installer. Because of the large number of
possible mounting configurations, the installer is responsible
for the installation design. Any modifications to the product are
at the discretion, responsibility and risk of the installer.
1. Assemble post or end mount to
Pivot Bar with appropriate class
8 hardware for your application
torqued to 245 ft. lbs for 5/8” bolts
or 425 ft. lbs for 3/4” bolts.
3. Rotate Pivot Bar to the desired position for mounting the
fender then tighten the Pivot Bar to the frame mounting bolt
and torque to 425 ft. lbs. minimum.
4. Thread jamming set screw into hole. Adjust it to contact truck
frame and tighten to 13-15 ft. lbs. (recommended) or until a
slight deflection of the Pivot Bar is seen).
NOTE: For some end mount applications,
it may be better to assemble loosely at
first and then torque at final assembly.
2. Select a hole in the frame for mounting. Position Pivot
Bar to hole and attach loosely with appropriate hardware
FRONT VIEW
D
3/4” Nuts (2)
3/4” Lock Washers (2)
Pivot Bar Offset Mount
A
Castings (2)
E
3/4 x 4” Bolts (2)
C
BACK VIEW
5. Tighten nut or bolt to appropriate torque (245 ft. lbs for 5/8”
bolts or 425 ft. lbs for 3/4” bolts) on end or post mount if left
loose (from step 1). Attach fender on post or end mount in
accordance to the manufacturers instructions.
Each Standard Pivot Bar Set Includes
A) Two Pivot Bar offset mount castings
B) Two Set Screws
C) Two 3/4 x 4” Bolts
D) Two 3/4” Nuts
E) Two 3/4” Lock Washers
B
Set Screws (2)
Sets available with or without mounts
Fenders not included
11/01 • Rev. B-12/06
Installation Sheet #INS-01015
