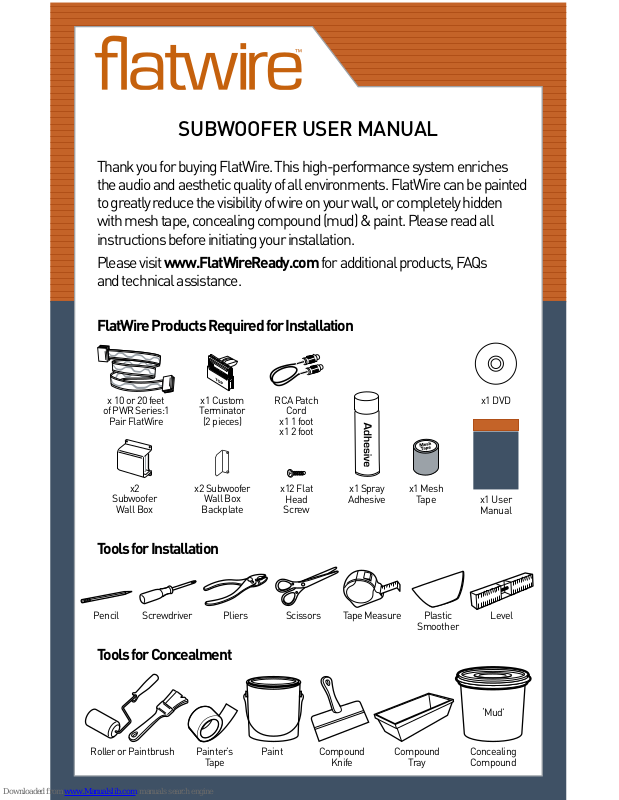

FlatWire Products Required for Installation
Tools for Installation
Tools for Concealment
Roller or Paintbrush Painter’s
Tape
ScissorsPencil Screwdriver Pliers
Paint
Tape Measure
Compound
Knife
Compound
Tray
Plastic
Smoother
Concealing
Compound
‘Mud’
Level
Thank you for buying FlatWire. This high-performance system enriches
the audio and aesthetic quality of all environments. FlatWire can be painted
to greatly reduce the visibility of wire on your wall, or completely hidden
with mesh tape, concealing compound (mud) & paint. Please read all
instructions before initiating your installation.
Please visit www.FlatWireReady.com for additional products, FAQs
and technical assistance.
x 10 or 20 feet
of PWR Series:1
Pair FlatWire
x1 Spray
Adhesive
x2
Subwoofer
Wall Box
x1 Custom
Terminator
(2 pieces)
x1 Mesh
Tape
x12 Flat
Head
Screw
x2 Subwoofer
Wall Box
Backplate
RCA Patch
Cord
x1 1 foot
x1 2 foot
x1 DVD
x1 User
Manual
SUBWOOFER USER MANUAL
2
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY
IMPORTANT SAFETY INSTRUCTIONS
→ Read all instructions.
→ Do not install this surround sound system in a moist or wet location.
Hazards & Warning For FlatWire Ready® Spray Adhesive:
DANGER:
→ EXTREMELY FLAMMABLE
→ LIQUID AND VAPOR.
→ VAPORS MAY CAUSE FLASH FIRES.
→ CONTENTS UNDER PRESSURE.
→ VAPORS HARMFUL. CAUSES EYE IRRITATION.
→ HARMFUL OR FATAL IF SWALLOWED.
→ KEEP OUT OF REACH OF CHILDREN. DO NOT TAKE INTERNALLY
DANGER: CONTAINS HEXANE (110-54-3), ACETONE (67-64-1), XYLENE
(1330-20-7), METHYL ETHYL KETONE (78-93-3), PROPANE (74-98-6) AND
ISOBUTANE (75-28-5). Causes eye, skin, nose, throat and respiratory tract
irritation. Vapor harmful. May affect the brain or nervous system causing
dizziness, headache, nausea or unconsciousness. Prolonged exposure to
skin may cause dermatitis. May be harmful if absorbed through the skin.
Prolonged vapor inhalation may result in severe physical injuries. Hexane
exposure can cause peripheral nerve damage to arms and legs, which may
be permanent. May be toxic to blood, liver, kidneys and reproductive system.
PRECAUTIONARY MEASURES FOR USE, HANDLING, STORAGE AND
DISPOSAL: Vapors may ignite explosively. Vapors may cause a flash fire.
Prevent buildup of vapors by providing fresh air such that chemical odors can
not be detected during use and while drying. Open all windows and doors.
Keep away from heat, sparks and open flames. DO NOT smoke. Vapors may
travel long distances to a source of ignition and flash back. Extinguish all
flames and pilot lights, and turn off stoves, heaters, electric motors, burners
and other sources of ignition and static electricity. Disconnect all appliances
during use and until all vapors are gone. Vapors are heavier than air and will
collect in low areas. Check all low areas (basements, sumps etc.) for vapor
before entering. DO NOT breathe vapors. Odor is not an adequate warning for
hazardous conditions. If you experience eye watering, headache or dizziness
or if air monitoring demonstrates vapor levels that are above applicable
Important Safety Instructions
SAVE THESE INSTRUCTIONS
3
limits, wear an appropriate, properly fitted respirator during use and after
application. Follow respirator manufacturer’s directions for respirator use.
DO NOT get in eyes, on skin or clothing. Wear appropriate gloves to prevent
skin contact (neoprene or nitrile). Wear goggles or protective glasses with
side shields. Wash thoroughly after handling. DO NOT use or store in direct
sunlight. DO NOT expose to heat or store at temperatures above 120ºF. Store
away from stoves and radiators. Exposure to heat or prolonged exposure to
direct sunlight may cause bursting of the can. DO NOT puncture or incinerate
(burn) can. Close container after use. See Material Safety Data Sheet for
additional information. For a Material Safety Data Sheet contact your supplier
or visit www.flatwireready.com.
FIRST AID:
EYE CONTACT: Flush immediately with large amounts of water for at least 15
minutes and get medical attention immediately.
SKIN CONTACT: Wash thoroughly with soap and water.
INHALATION: If you experience difficulty breathing, leave the area to
obtain fresh air. If continued difficulty is experienced, get medical attention
immediately.
INGESTION: DO NOT INDUCE VOMITING. Call physician immediately.
CALL 1-800-327-3874 IF IRRITATION OR COMPLICATIONS ARISE FROM
ANY OF THE ABOVE ROUTES OF EXPOSURE (U.S. and Canada).
CALL 1-800-535-5053 FOR CHEMICAL EMERGENCIES such as SPILLS,
LEAKS, FIRE, EXPOSURE OR ACCIDENT.
FlatWire Ready® Spray Adhesive
Cautionary Information Continued
4
2A
: Connect Subwoofer wire: TOP of
Terminator faces away from surface
Place powered subwoofer in front of electrical
outlet, if possible.
2B
: Connect provided patch cord to Wall
Boxes and your subwoofer
Plan the location of your system elements
1A
: Mark path to Subwoofer
1B
: Measure path to ensure you have
enough FlatWire on hand.
Follow Directions for Use & Cautionary Instructions on Spray Adhesive can.
Installation Instructions
5
Pan Head
Screw
Note: To shorten the wire, follow steps 2.1-2.6. Measure carefully.
2.1
: The Terminator piece printed with
“TOP” must face away from the
existing Terminator , and sit below
the wire. Place the 2nd Terminator
piece above the wire with tab
pointing along wire towards the existing
Terminator .
2.2
: Click top & bottom of
Terminator gently together - do NOT
penetrate wire
B
A
C
C
BA
Pan Head
Screw
New Length
{
B
C
A
B
A
2C
: Test subwoofer FlatWire
2D
: Attach one Wall Box to mounting
surface with 4 screws
2E
: Attach Wall Box backplate to surface
with 2 screws 2F
: Disconnect patch cords and non-
mounted Wall Box
2.4
: Clamp Terminator together with pliers
2.3
: Check that the wire pattern is aligned
through the window of Terminator tab
6
2.5
: Break away tab
2.6
: Trim excess FlatWire
WAIT
SEC
If mudding
then
If painting
then
WAIT
SEC
If mudding
then
If painting
then
Pan Head
Screw
3B
: Spray Adhesive into the folds and wait 60 seconds before completing a folded corner.
Press FlatWire to path with smoothing tools
3A
: Shake can. Spray adhesive to path for concealment with joint compound, or spray
FlatWire directly for concealment with paint. Spray 8’ or less at a time. Wait 60 seconds.
Follow Directions for Use & Cautionary Instructions on Spray Adhesive can.
3D
: Plug in wire and attach 2nd wall box
& backplate to mounting surface3C
: Apply sweeping pressure with plastic
smoother
7
If mudding
then
If painting
then
4C
: Sand uneven or lumpy areas
4A
: Apply mesh tape over FlatWire (do not overlap the mesh tape), or cover with paint if
painting only
3E
: Disconnect & remove subwoofer: Cover
Wall Boxes with painter’s tape
4B
: Apply thin & wide layers of joint
compound
4D
: Apply additional layers of compound
4E
: Sand until blended with surface
8

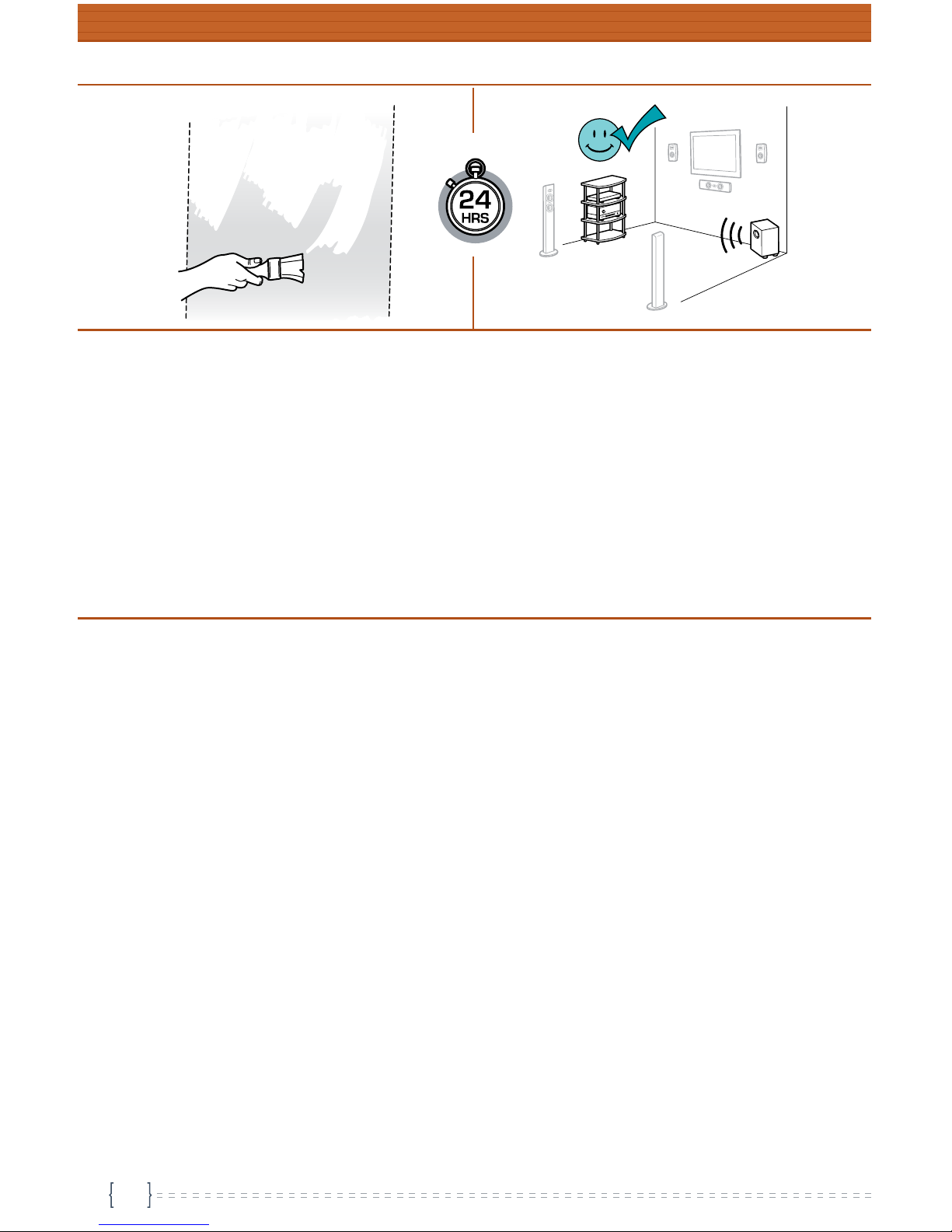

WAIT
Please visit www.FlatWireReady.com for Tips & Tricks as well as FAQs
about the product installation.
4F
: Paint
4G
: Reconnect system elements and enjoy!
9
→ Clean surfaces of dirt and loose particles
→ Work in sections 8 feet or less when adhering FlatWire to surfaces.
→ Minimize folds as possible.
→ Spray adhesive into folds to avoid air bubbles.
→ Don’t install FlatWire where you intend to hang pictures.
→ Run FlatWire adjacent to molding or trim.
→ Insert under chair rail as possible, & when FlatWire runs over chair rail, do not use
compound on the chair rail - only paint the FlatWire.
→ Avoid layering runs of FlatWire, when possible.
→ Consider using textured paint.
→ Use a flexible plastic wallpaper smoothing tool for professional results.
For Further Installation Tips & Tricks or Helpful Suggestions, call:
1-888-FLATWIRE
