1. Introduction:

1.1 About the Product

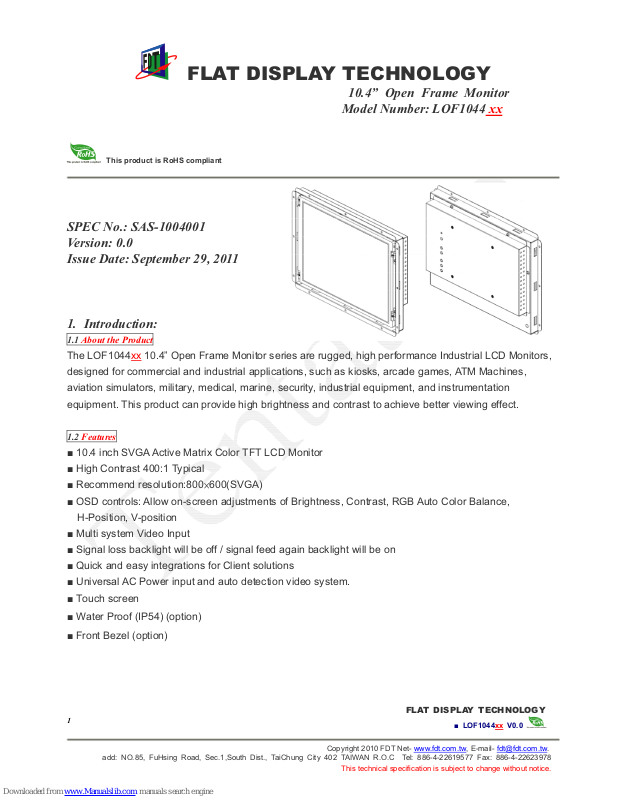

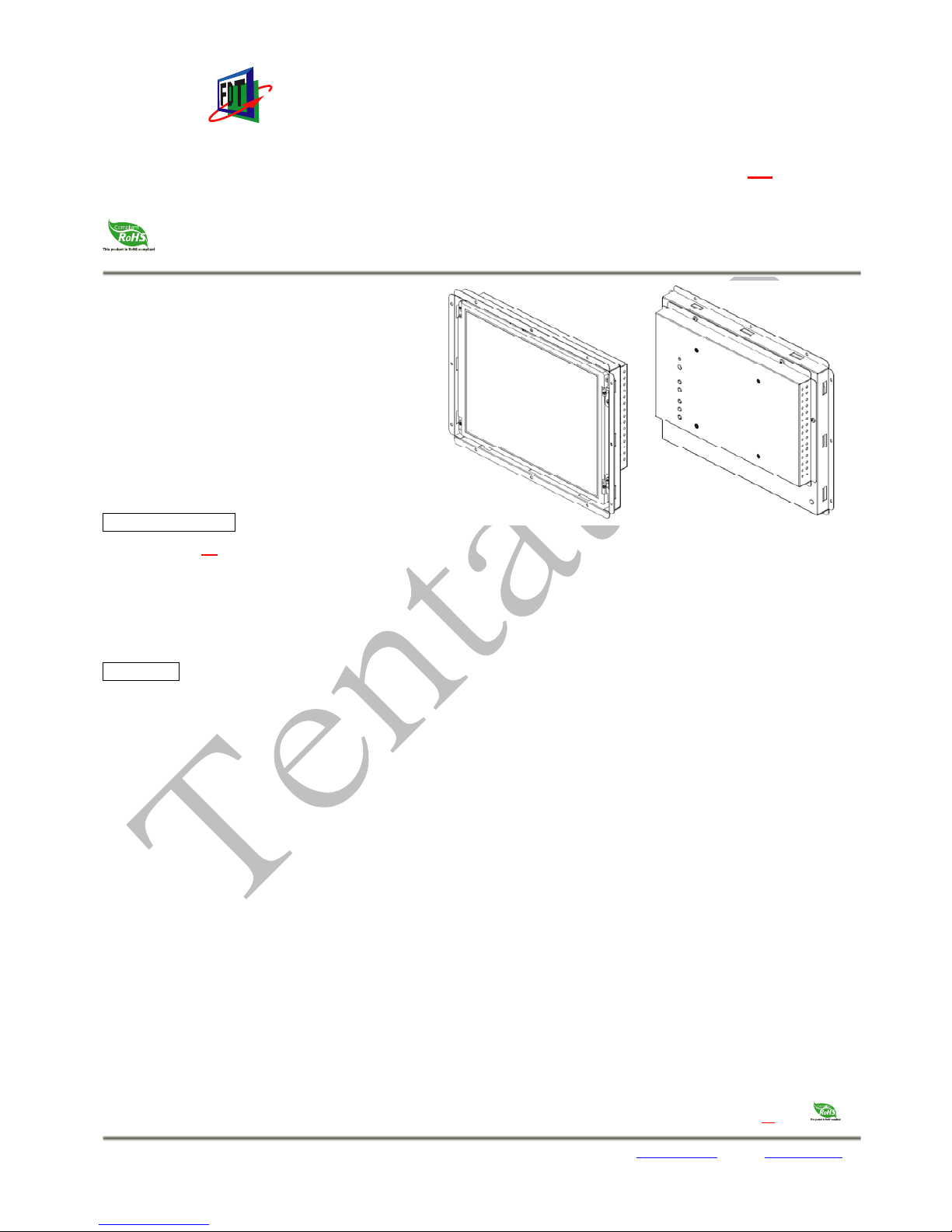

The LOF1044xx 10.4” Open Frame Monitor series are rugged, high performance Industrial LCD Monitors,

designed for commercial and industrial applications, such as kiosks, arcade games, ATM Machines,

aviation simulators, military, medical, marine, security, industrial equipment, and instrumentation

equipment. This product can provide high brightness and contrast to achieve better viewing effect.

1.2 Features

 10.4 inch SVGA Active Matrix Color TFT LCD Monitor

 High Contrast 400:1 Typical

 Recommend resolution:800600(SVGA)

 OSD controls: Allow on-screen adjustments of Brightness, Contrast, RGB Auto Color Balance,

H-Position, V-position

 Multi system Video Input

 Signal loss backlight will be off / signal feed again backlight will be on

 Quick and easy integrations for Client solutions

 Universal AC Power input and auto detection video system.

 Touch screen

 Water Proof (IP54) (option)

 Front Bezel (option)

10.4” Open Frame Monitor

Model Number: LOF1044 xx

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

2

2. Contents

Contents Index Page

1. Introduction…………………………………………………………………………………………………

…

1

1.1 About the product

1

1.2 Features

1

2. Contents.……………………………….……………………………………………………………………..

2

3. Specifications………….……….………………………………………..……………………………………

3

4. Ordering Information…………………………………………………………………………………….….

4-5

5. VGA Input Format…………………………………………………………………….……………………..

6

6. Mechanical Drawing…………………………………………………………………………………….…..

7-18

6.1 LOF104400-K00R

7

6.2 LOF10445A-K00R

8

6.3 LOF10445B-K00R

9

6.4 LOF104400-K10R

10

6.5 LOF10445A-K10R

11

6.6 LOF10445B-K10R

12

6.7 LOF104403-K00R

13

6.8 LOF104403-K10R

14

6.9 LOF10445A-G00R

15

6.10 LOF10445B-G00R

16

6.11 LOF10445A-G10R

17

6.12 LOF10445B-G10R

18

7. Packing List……………………………………………………………………………….……………….…

19

8. Installing the Monitor………………...……………………………………………….…………………….

20

8.1 Power Cable Connection

20

8.2 VGA Signal Cable Connection

20

8.3 Video / S-Video Cable Connection

20

8.4 Switch On The Power

20

9. OSD Control…...…………………………………………………………………….…………………….…

21-24

9.1 Menu Operation

21-23

9.2 Operations

24

10.Trouble Shooting…………...……………………………………………………..……….………………...

25

11. Panel Mount Installation ( Mount Clamp and Screw )(Option)………………………………………….

26

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

3

3. Specifications

Parameter

Specifications Unit Remark

Model Name

LOF1044xx-KxxR

Screen Size

10.4” (diagonal)

inch

Display Format

800 x (R.G.B) x 600

dot

Display Color

262,144 colors

TFT-LCD Active Area

211.2 (H) x 158.4 (V)

mm

Pixel Pitch

0.264 (H) x 0.264 (V)

mm

Contrast Ratio

400:1(Typ.)

Brightness

400(Typ.)

Cd/m³

Viewing Angle

-70~70(H); -60~50(V)(Typ.)

deg

Input/Output Interface

Video and S-video /

D-Sub 15 pin female for VGA /

USB (A Type)or RS-232 (DB9 Female) for Touch Screen Driver

(Option)

Power Source

100-240VAC 50-60Hz, Universal / +12VDC @ 3A

Power Consumption

< 6.9W

Touch Screen Controller

5 wire Resistive Driver USB/ RS232 (Option)

Operating Temperature

-20~70 (With Touch -10~+70)

ʚ

Storage Temperature

-20~80

ʚ

LED Life Time

30000(Typ)

hr

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

4

4. Ordering Information

Parameter

LOF104400-K00R LOF10445A-K00R LOF10445B-K00R Unit

CVBS

1 1 1

S-Video

1 1 1

VGA

SVGA (800x600) SVGA (800x600) SVGA (800x600)

Touch Panel Type

- 5W Resistive 5W Resistive

Touch Screen Interface

- USB RS232

Outline Dimension

266(W) x 204(H) x 39(D) 266(W) x 204(H) x 39(D) 266(W) x 204(H) x 39(D)

Weight (Include Accessory)

2.09(2.89) 2.11(2.91) 2.11(2.91)

Kg

Frame Material (Color)

Iron Iron Iron

Note: Weight  10%

Parameter

LOF104400-K10R LOF10445A-K10R LOF10445B-K10R Unit

CVBS

- - -

S-Video

- - -

VGA

SVGA (800x600) SVGA (800x600) SVGA (800x600)

Touch Panel Type

- 5W Resistive 5W Resistive

Touch Screen Interface

- USB RS232

Outline Dimension

266(W) x 204(H) x 39(D) 266(W) x 204(H) x 39(D) 266(W) x 204(H) x 39(D)

Weight (Include Accessory)

2.09(2.89) 2.11(2.91) 2.11(2.91)

Kg

Frame Material (Color)

Iron Iron Iron

Note: Weight  10%

Parameter

LOF104403-K00R LOF104403-K10R Unit

CVBS

1

-

S-Video

1

-

VGA

SVGA (800x600) SVGA (800x600)

PMMA

Ɉ

Touch Panel Type

- -

Touch Screen Interface

- -

Outline Dimension

266(W) x 204(H) x 39(D) 266(W) x 204(H) x 39(D)

Weight (Include Accessory)

2.09(2.89) 2.09(2.89)

Kg

Frame Material (Color)

Iron Iron

Note: Weight



10%

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

5

Parameter

LOF10445A-G00R LOF10445B-G00R Unit

CVBS

1 1

S-Video

1 1

VGA

SVGA (800x600) SVGA (800x600)

Touch Panel Type

5W Resistive 5W Resistive

Touch Screen Interface

USB RS232

Water Proof (IP54)

Ϩ

Front Bezel

Ϩ Ϩ

Panel Mount

Ϩ

Outline Dimension

292 (W) x 230 (H) x 44(D) 292 (W) x 230 (H) x 44(D)

mm

Weight (Include Accessory)

2.6 (3.4) 2.6 (3.4)

Kg

Frame Material (Color)

Iron Iron

Note: Weight



10%

Parameter

LOF10445A-G10R LOF10445B-G10R Unit

CVBS

- -

S-Video

- -

VGA

SVGA (800x600) SVGA (800x600)

Touch Panel Type

5W Resistive 5W Resistive

Touch Screen Interface

USB RS232

Water Proof (IP54)

Ϩ

Front Bezel

Ϩ Ϩ

Panel Mount

Ϩ

Outline Dimension

292 (W) x 230 (H) x 44(D) 292 (W) x 230 (H) x 44(D)

mm

Weight (Include Accessory)

2.6 (3.4) 2.6 (3.4)

Kg

Frame Material (Color)

Iron Iron

Note: Weight



10%

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

6

5. VGA Input Format

Mode Family Resolution H-Freq. (KHz) V-Freq. (KHz)

1

Mode 3 PC 640x480 31.47

(

Ё

)

59.9

(Ё)

2

Mode 4 VESA 640x480 37.86

(

Ё

)

72.8

(Ё)

3

Mode 5 VESA 640x480 37.50

(

Ё

)

75.0

(Ё)

4

Mode 6 VESA 800x600 35.16

(

Ѐ

)

56.3

(Ѐ)

5

Mode 7 VESA 800x600 37.88

(

Ѐ

)

60.3

(Ѐ)

6

Mode 8 VESA 800x600 48.08

(

Ѐ

)

72.2

(Ѐ)

7

Mode 9 VESA 800x600 46.88

(

Ѐ

)

75.0

(Ѐ)

8

Mode 10 VESA 1024x768 48.36

(

Ё

)

60.0

(Ё)

9

Mode 11 VESA 1024x768 56.48

(

Ё

)

70.1

(Ё)

10

Mode 12 VESA 1024x768 60.02

(

Ѐ

)

75.0

(Ѐ)

11

Mode 13 VESA 1280x1024 63.98

(

Ѐ

)

60.0

(Ѐ)

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

7

6. Mechanical Drawing

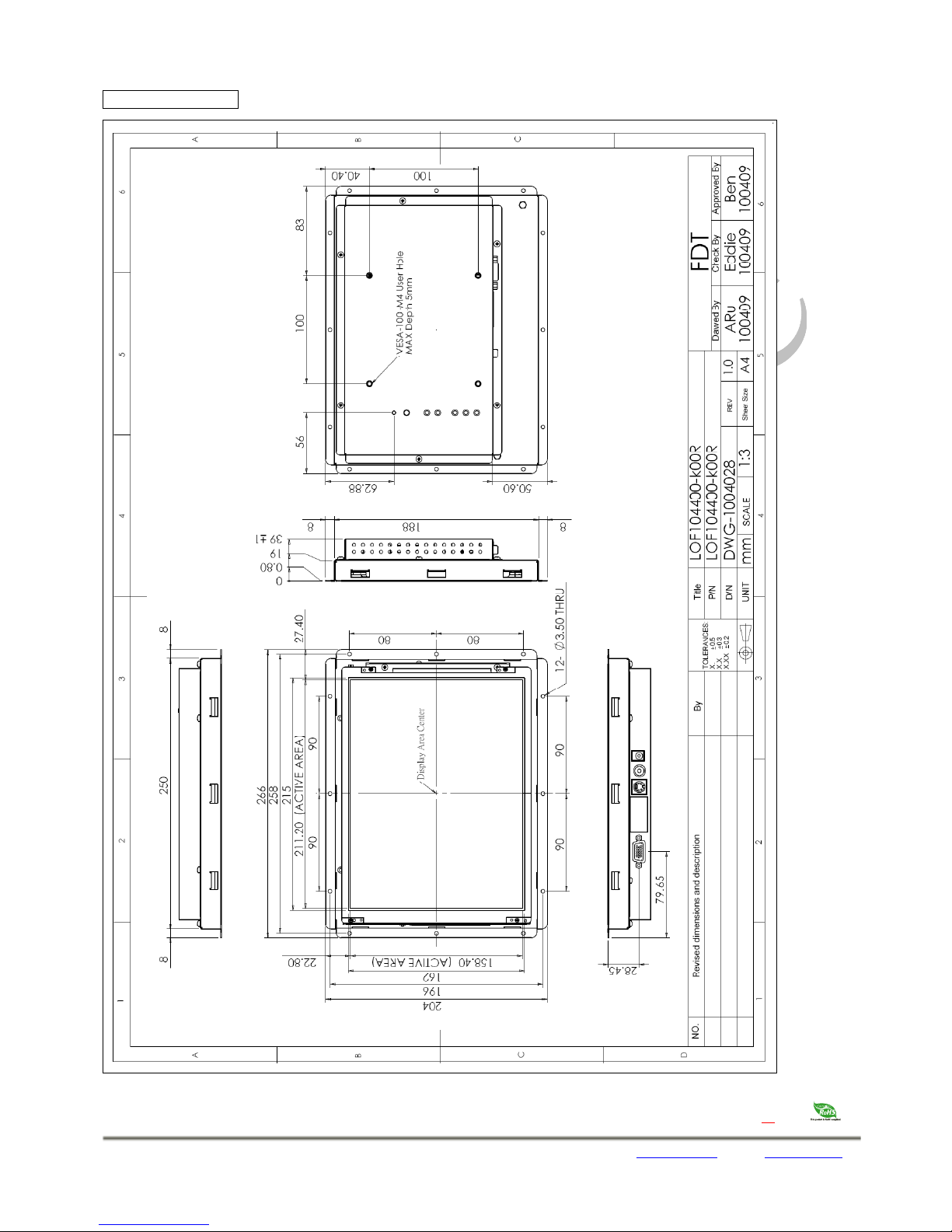

6.1 LOF104400-K00R

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

8

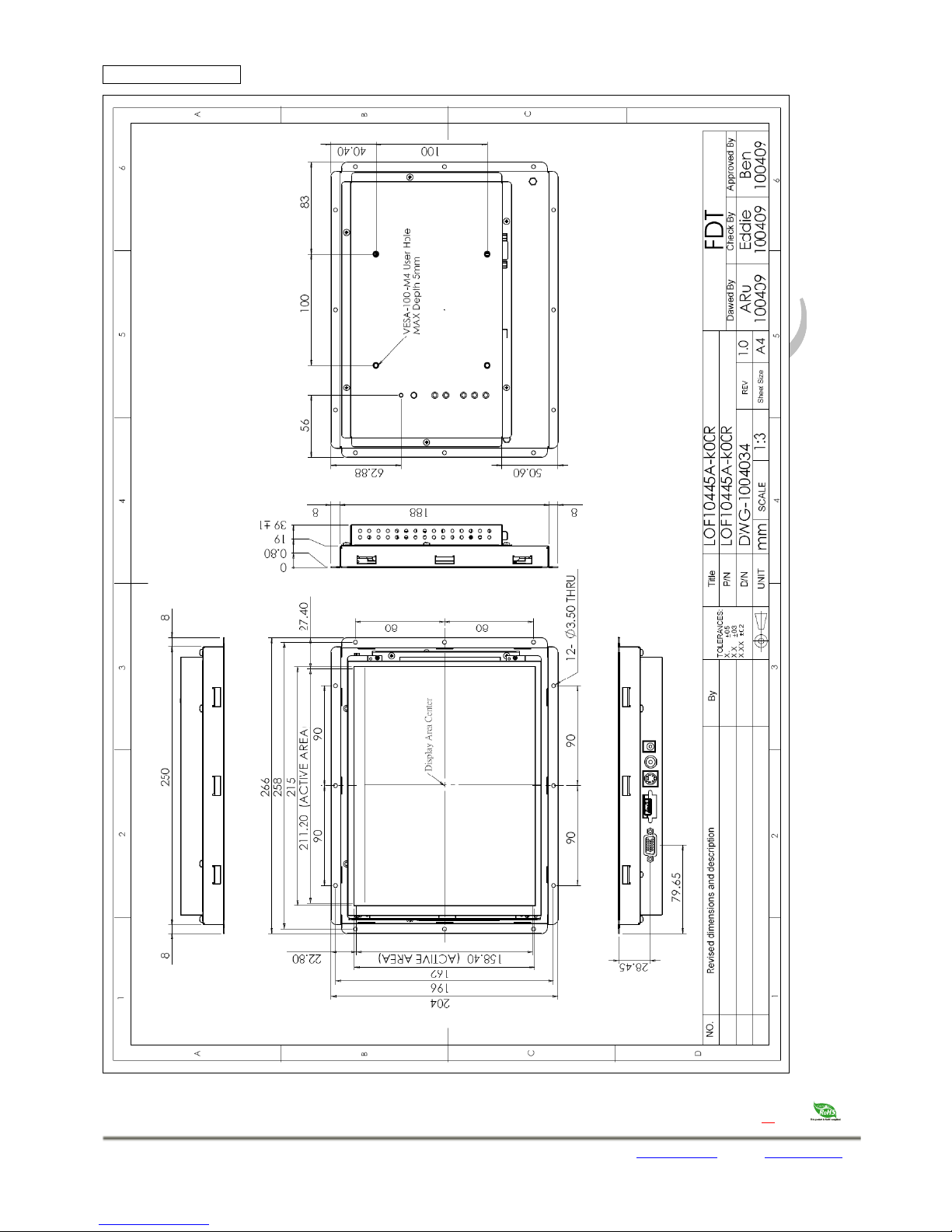

6.2 LOF10445A-K00R

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

9

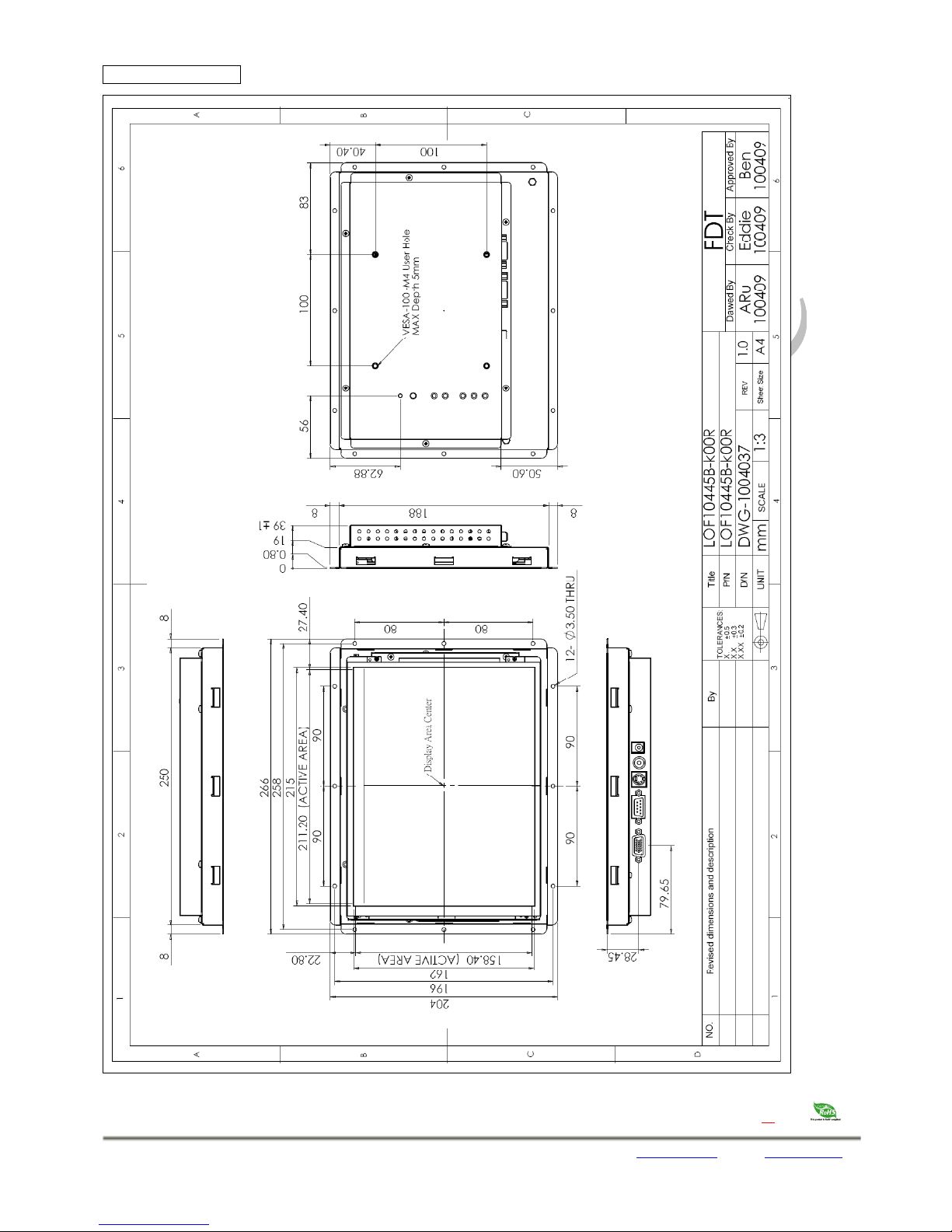

6.3 LOF10445B-K00R

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

10

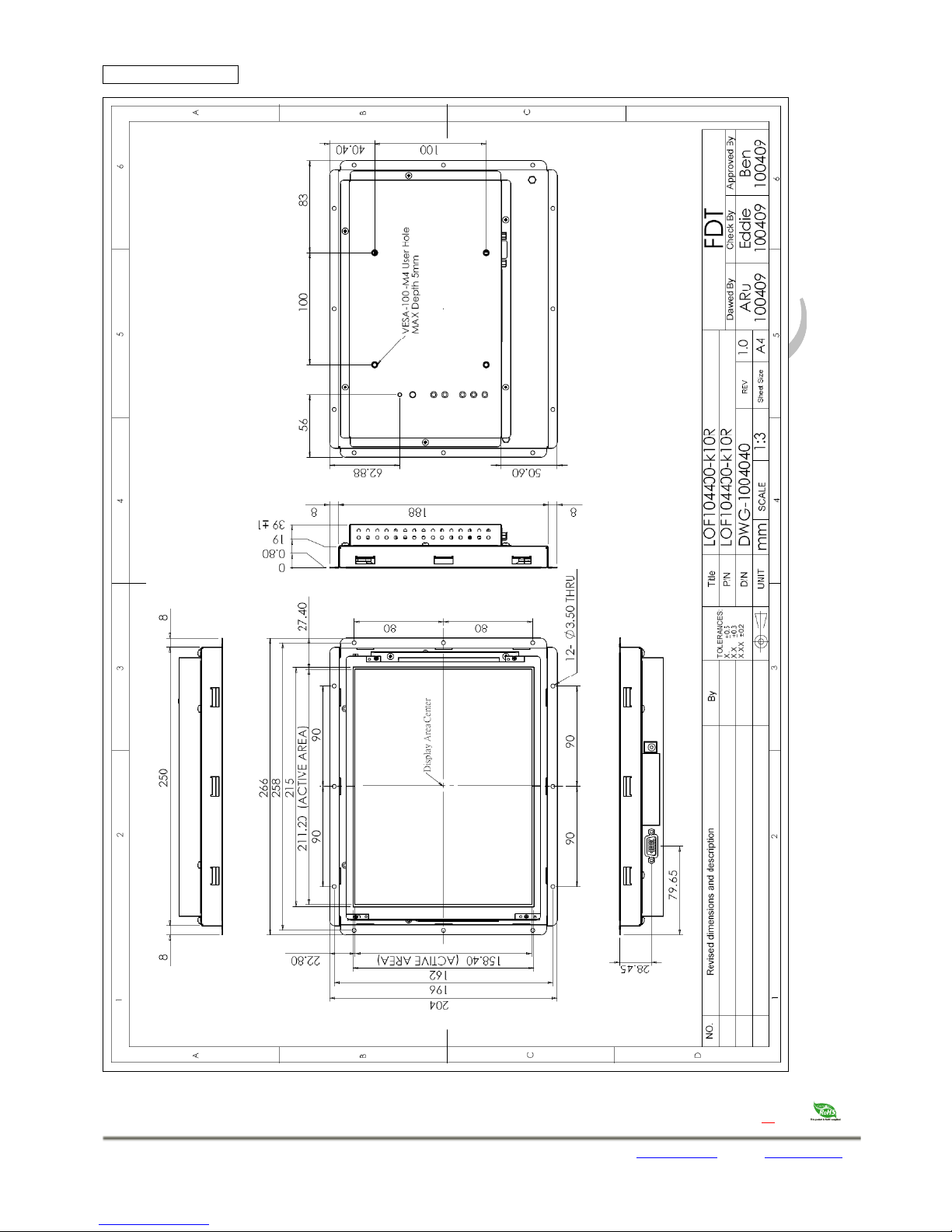

6.4 LOF104400-K10R

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

11

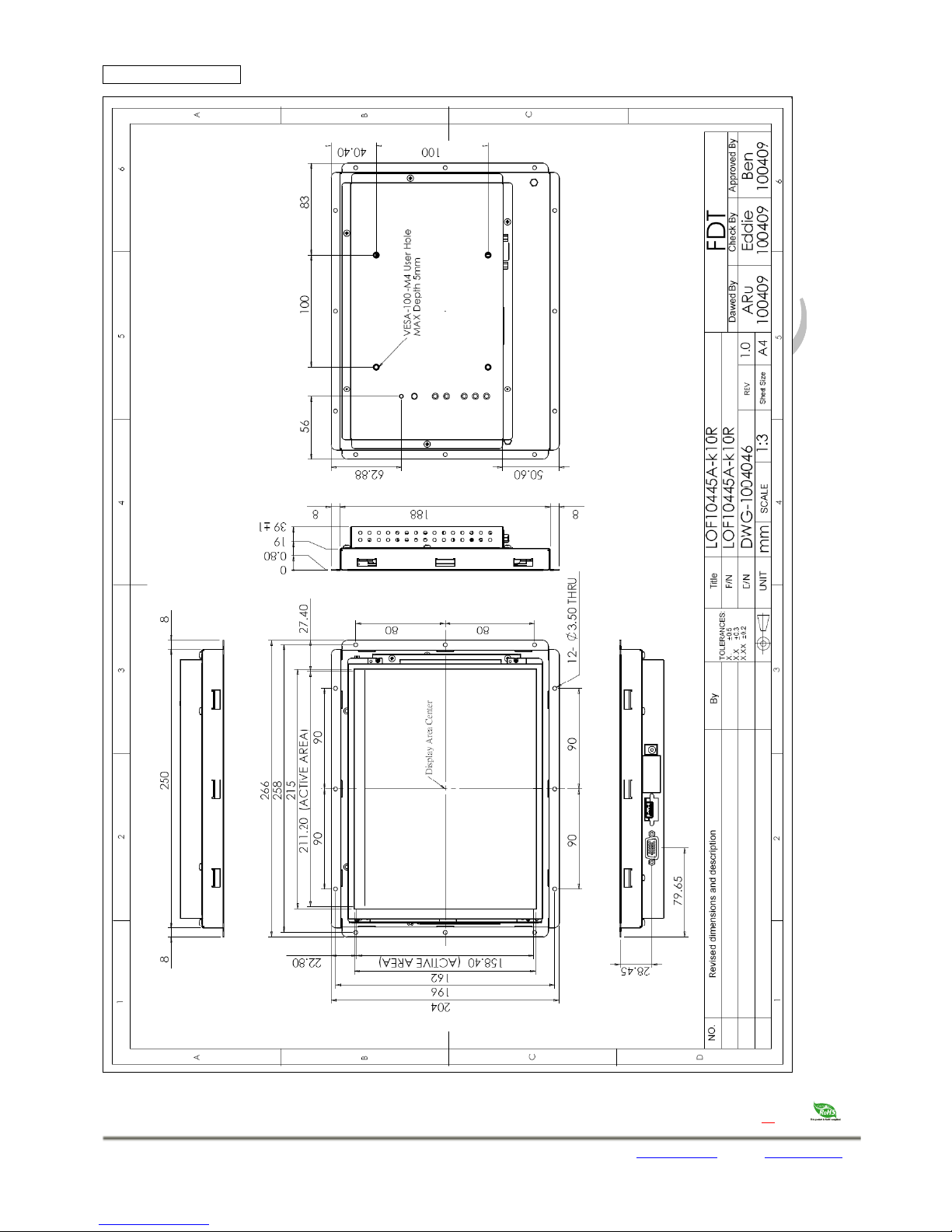

6.5 LOF10445A-K10R

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

12

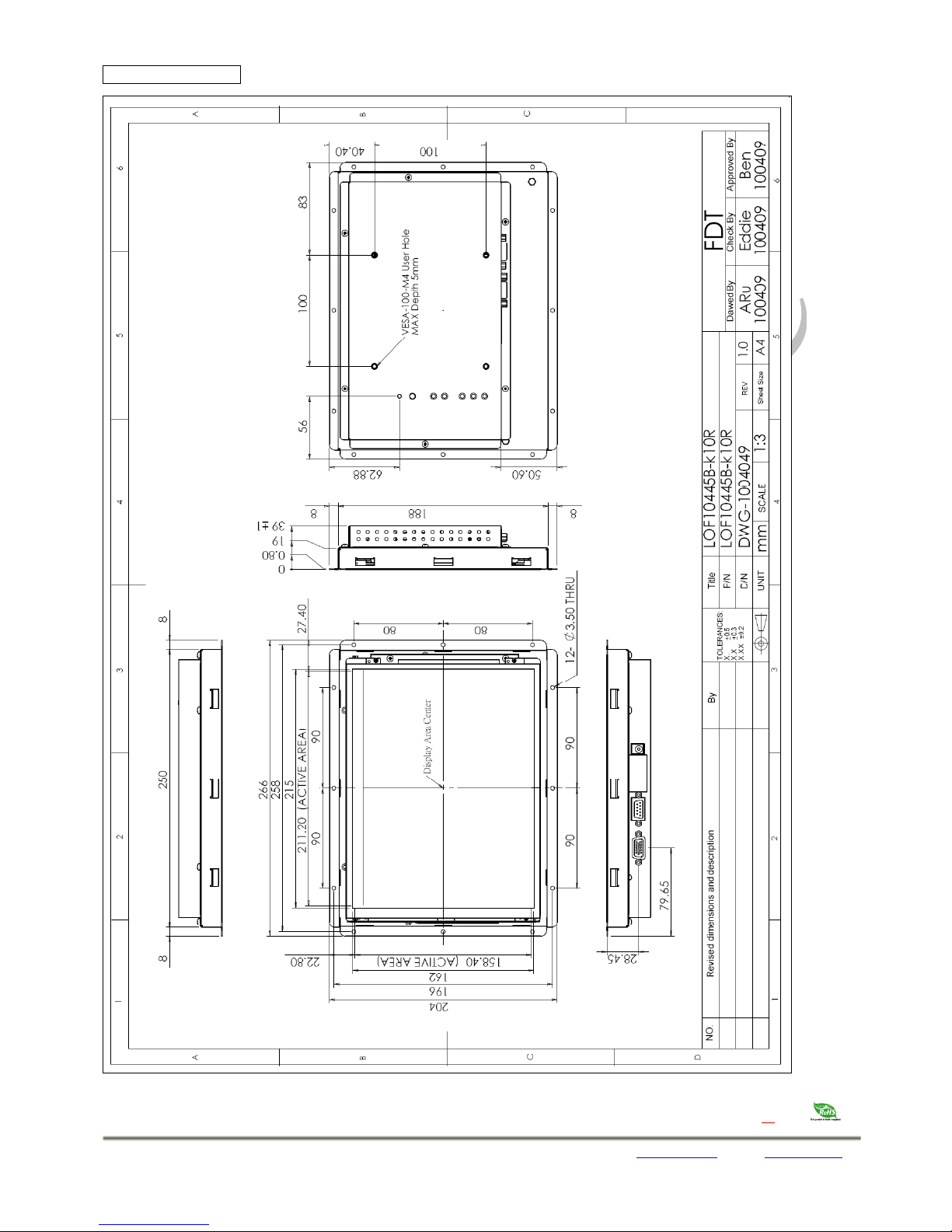

6.6 LOF10445B-K10R

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

13

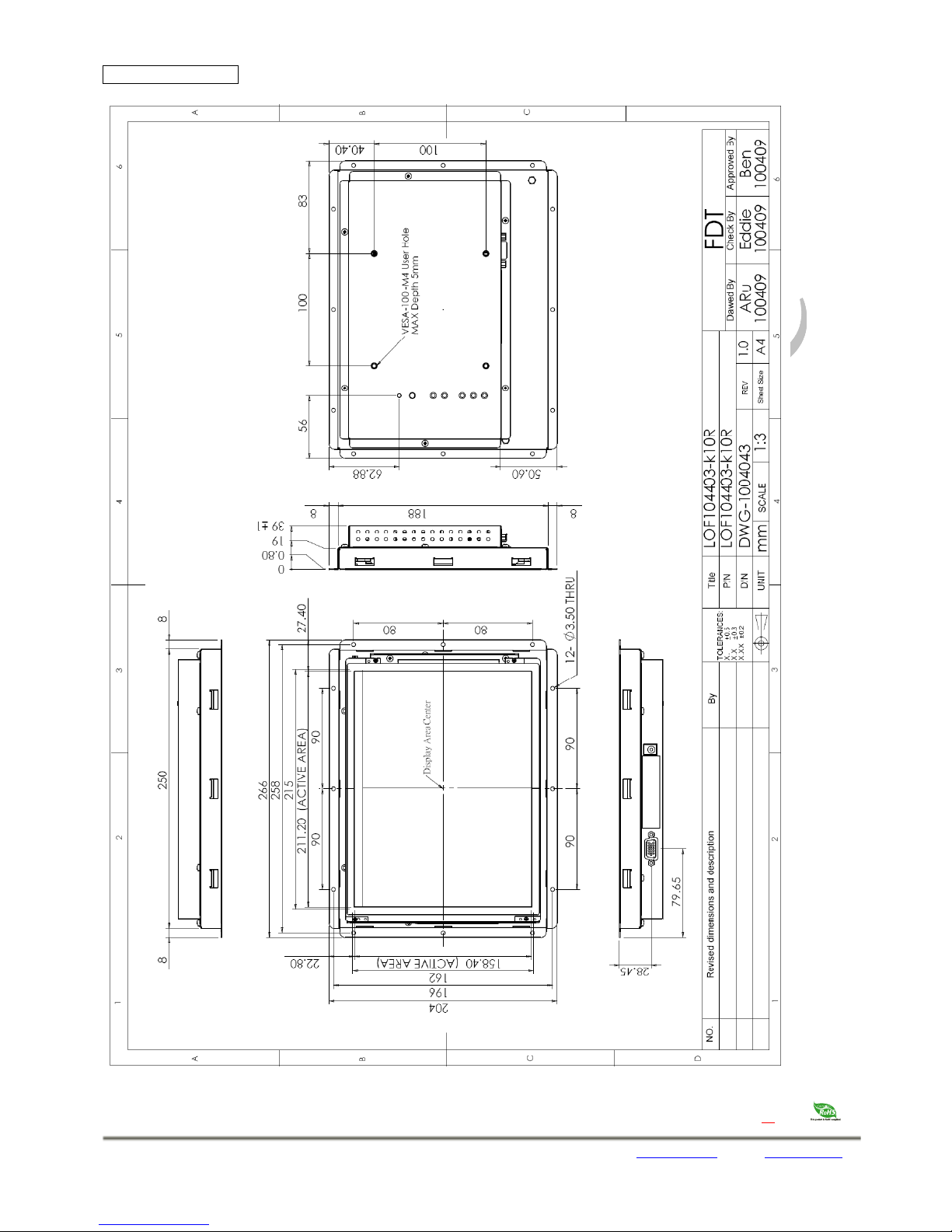

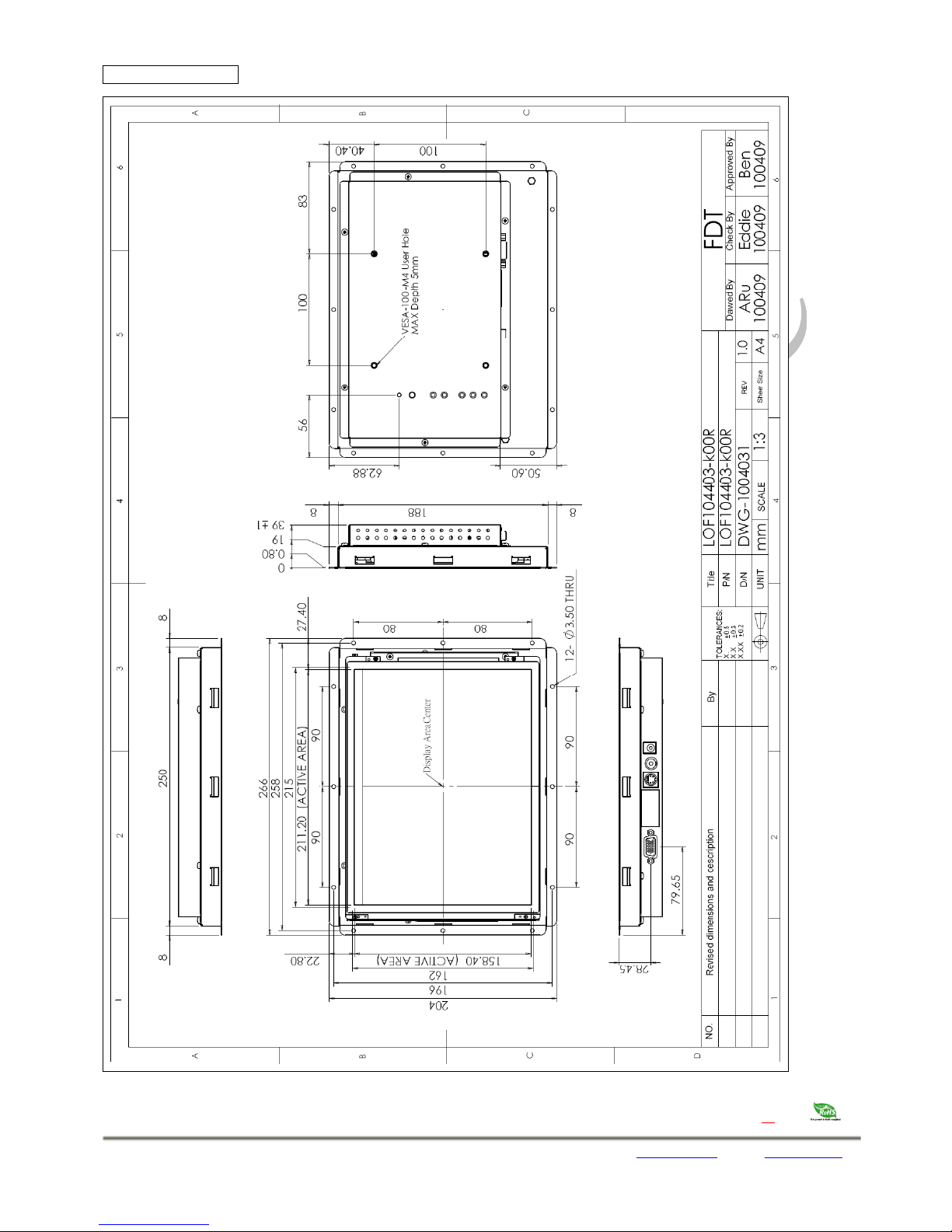

6.7 LOF104403-K00R

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

14

6.8 LOF104403-K10R

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

1

5

6.9 LOF10445A-G00R

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

16

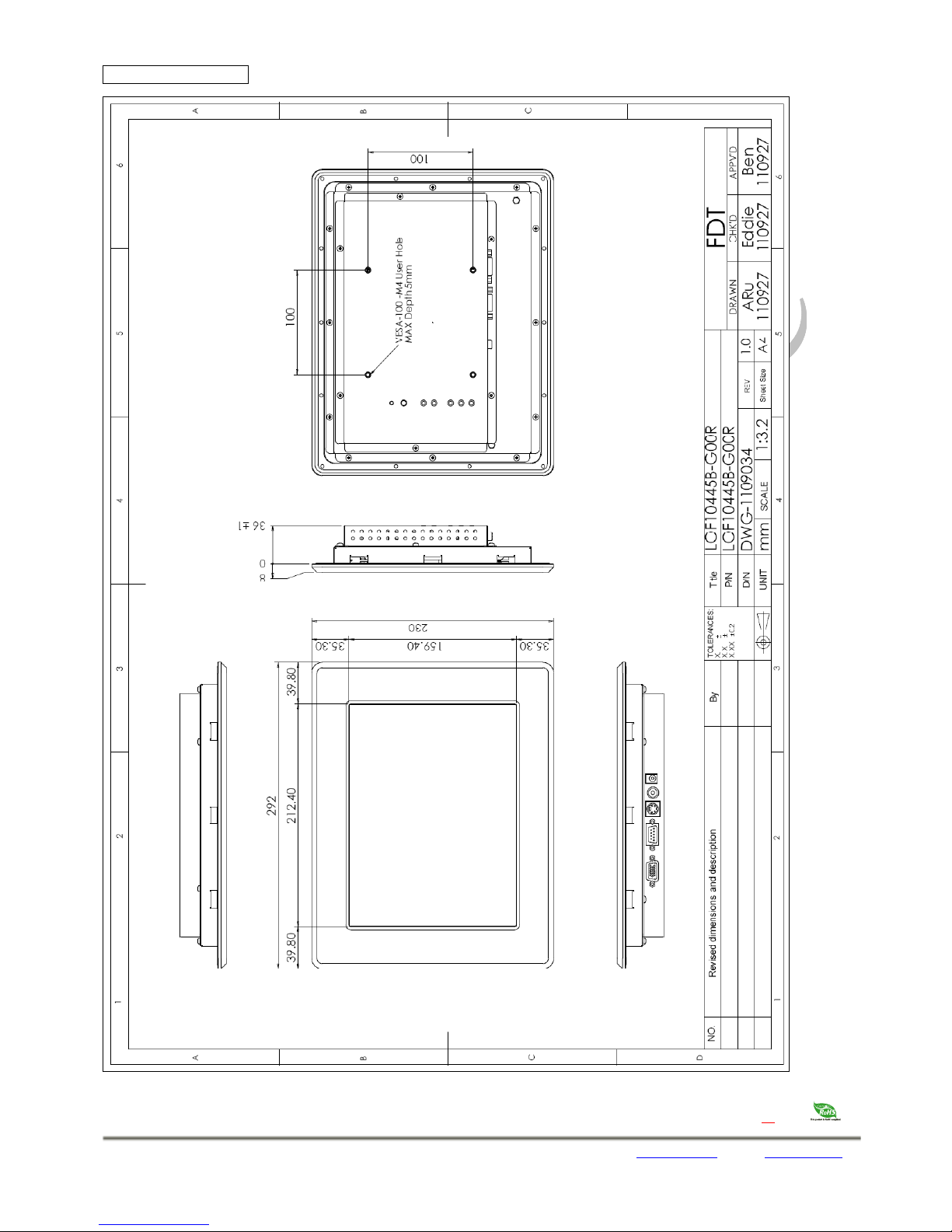

6.10 LOF10445B-G00R

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

17

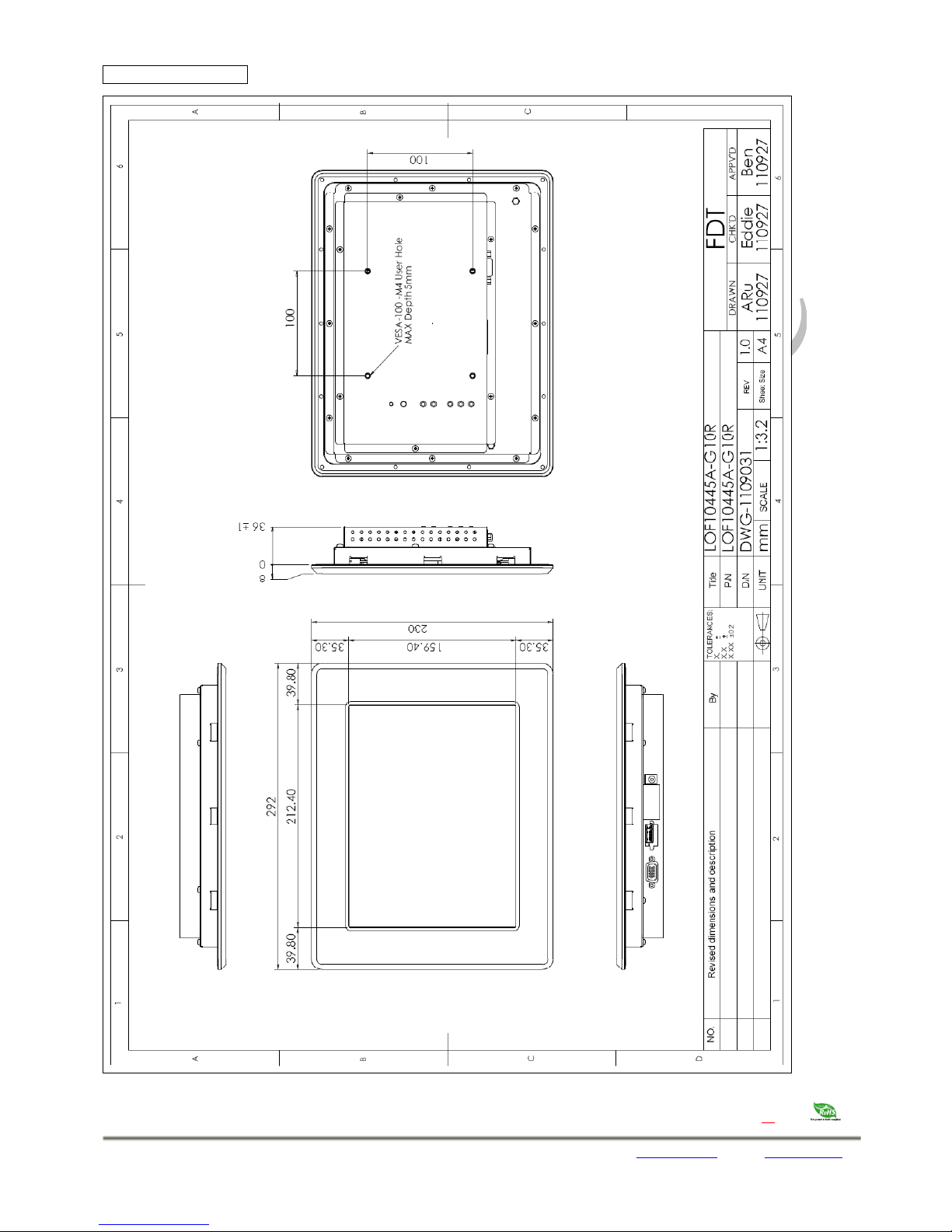

6.11 LOF10445A-G10R

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

18

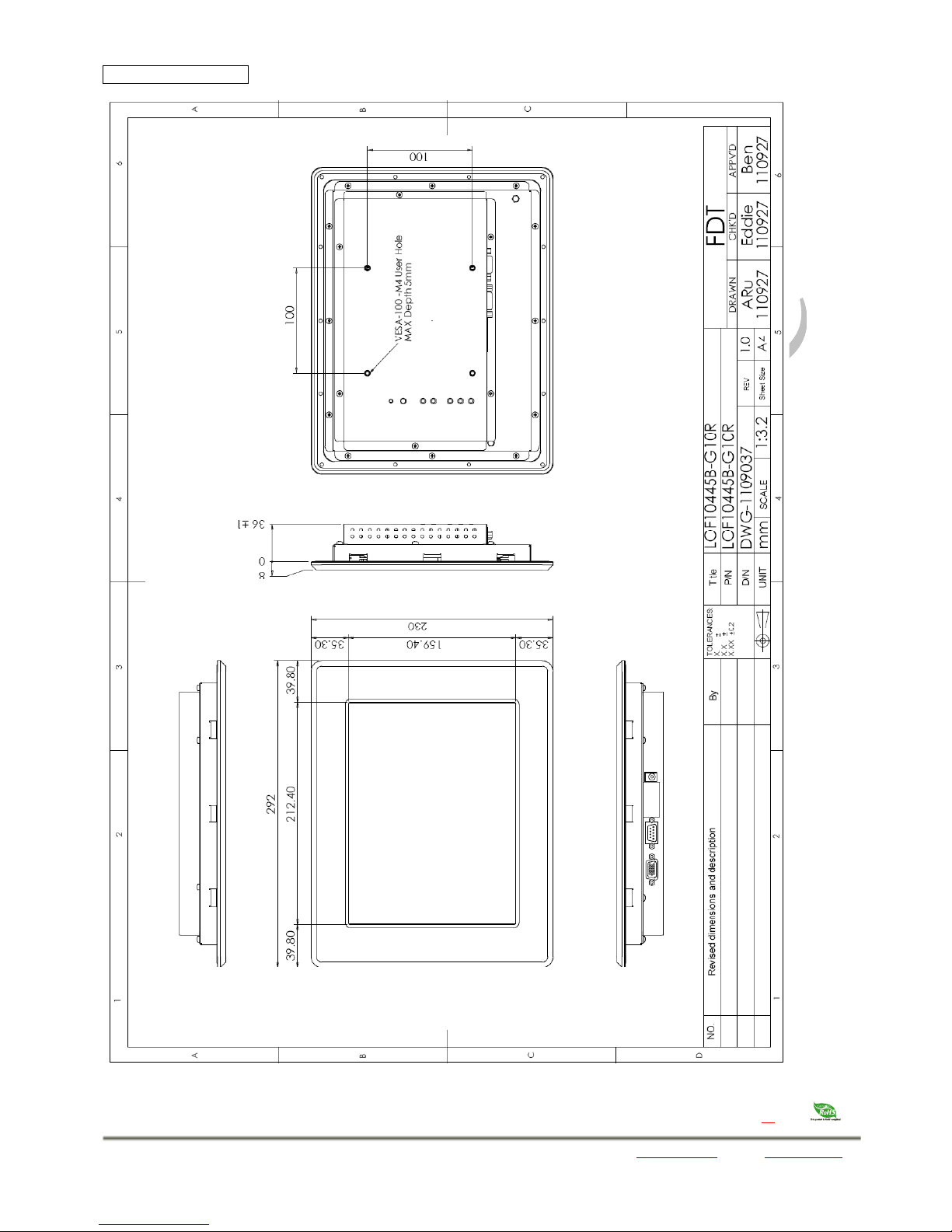

6.12 LOF10445B-G10R

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

19

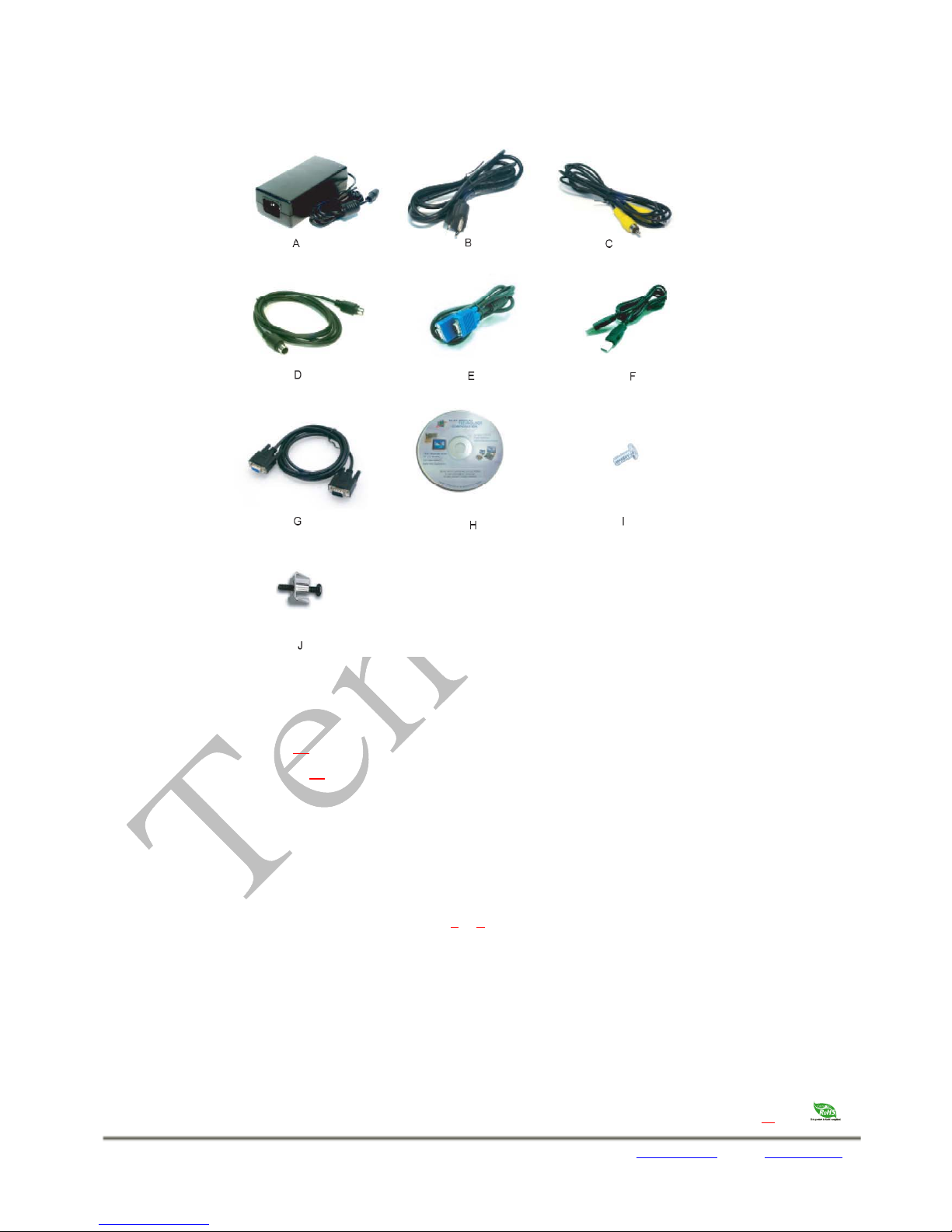

7. Packing List

Before you begin installing the Open Frame Monitor, please make sure that the following materials have

been shipped:

A. AC to DC Adapter (100-240VAC 50-60Hz to +12VDC @ 3A)

B. Power Cord

C. Video Cable (LOF1044xx

-K00R Only)

D. S-Video Cable (LOF1044xx

-K00R Only)

E. VGA Cable

F. USB Cable (LOF10445A Only)

G. RS-232 Cable (LOF10445B Only)

H. Touch Screen Driver CD Disk (LOF10445A & LOF10445B Only) / User Manual

I. M4x8 Screw x4 pcs

J. Mount Clamp and Screw x12 pcs (LOF10445x

-Gx0R Only)

If any of these items are missing or damaged, contact your distributor or sales representative

immediately.

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

20

8. Installing the Monitor

8.1 Power cable connection:

Connect the power cord to the AC outlet, and connect the power to the monitor through the AC/DC

adapter.

8.2 VGA signal cable connection:

Plug one end of the 15-pin signal cable to the VGA connector at the rear of the PC system and the other

end to the Open Frame monitor.

Secure the connectors with the screws on the cable connector at both ends.

8.3 Video / S-Video Cable connection:

If required, connect Video / S-Video Cable from the Open Frame Monitor to the DVD or CCD Camera.

8.4 Switch on the power:

Switch on the power switch on the rear cover of the Open Frame Monitor.

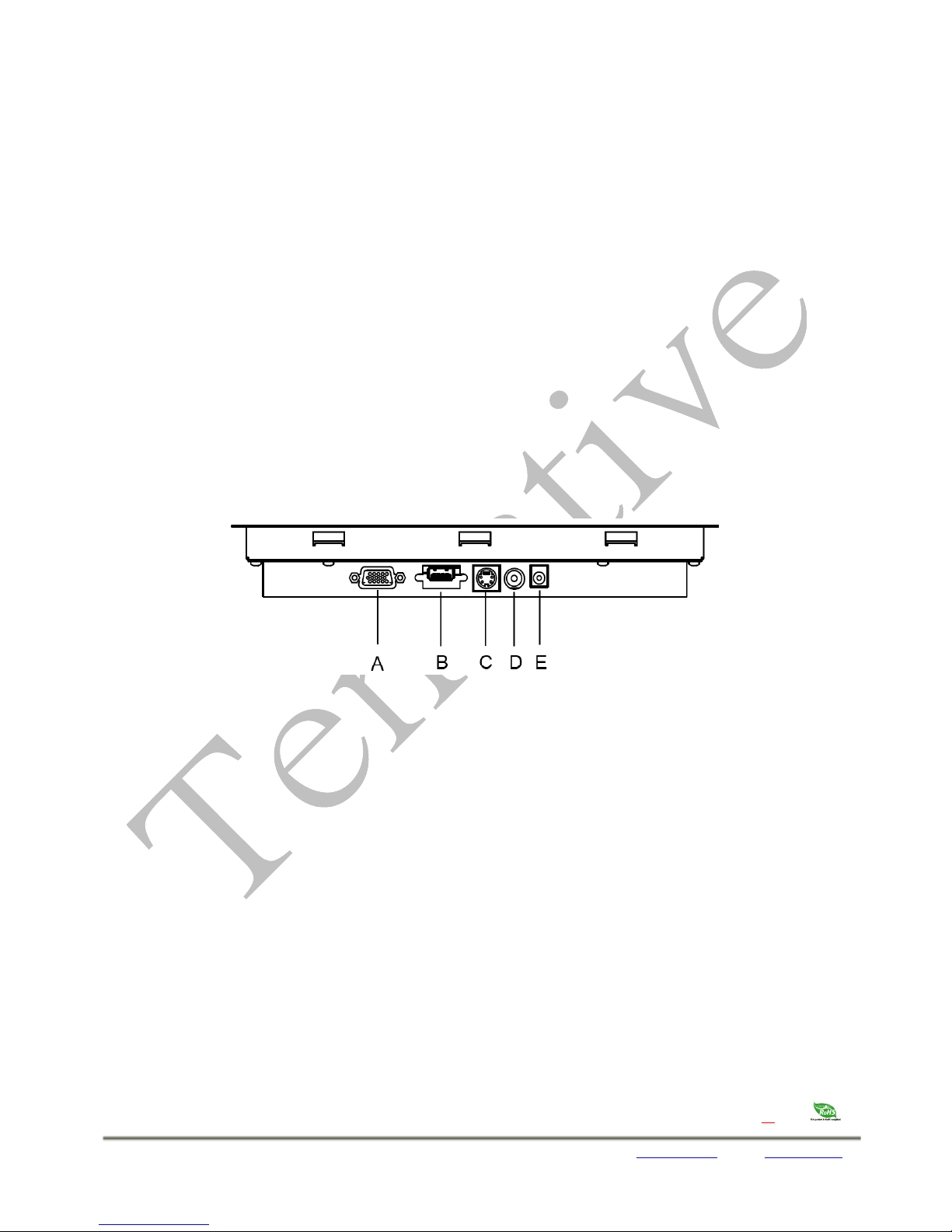

A. VGA D-sub 15 (Female)

B. USB / RS-232 Port (For Controller)

C. S-Video (Y/C Video) In

D. Video (CVBS) In

E. DC-In (+12V

DC

The DC jack core is positive)

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

21

9. Key Function by OSD

9.1 Menu Operation

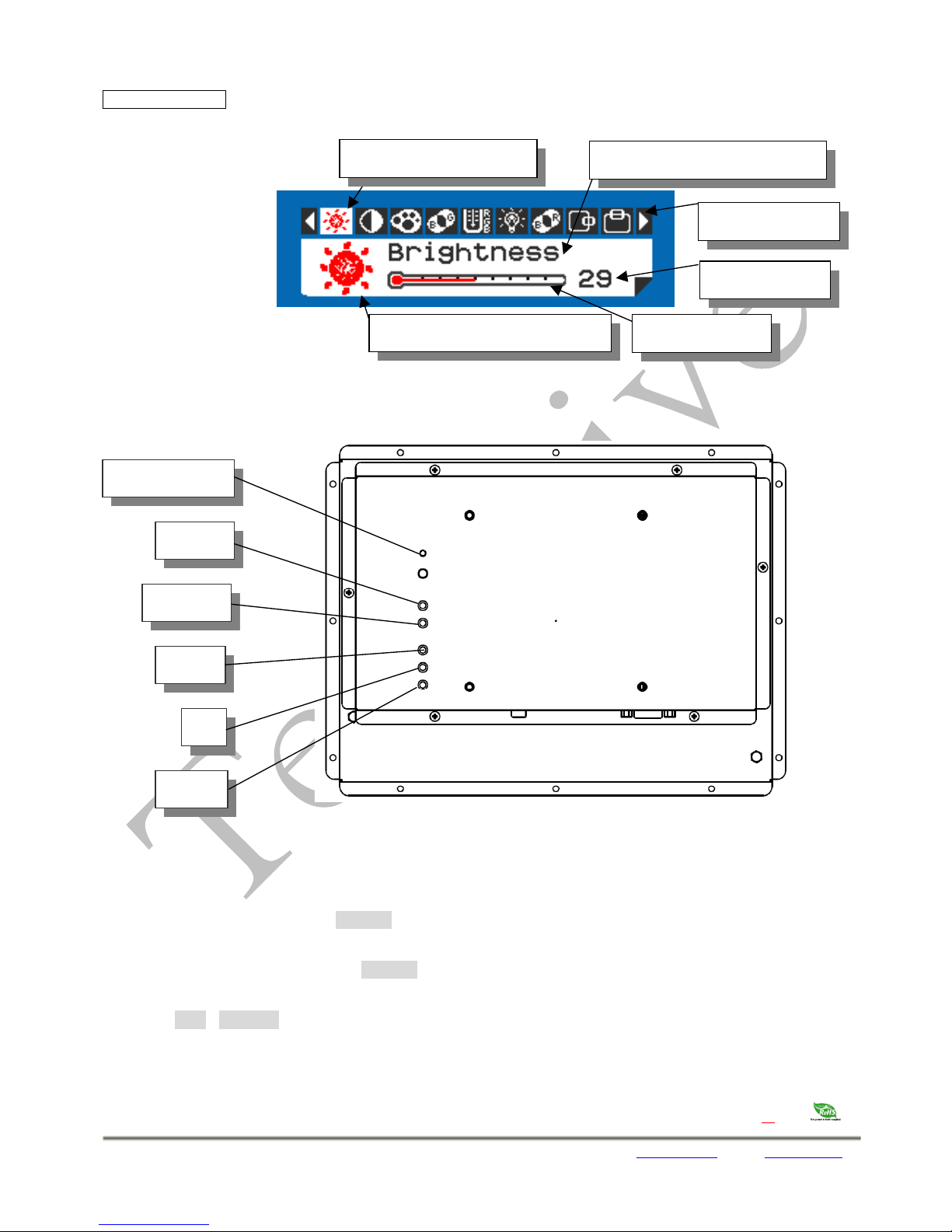

Operations of key board

Κ

1. To navigate the menu, press [MENU]. (Fig.9-1)

2. The indicator lighting up in white color is the selected adjustment item.

3. To Next Item of the menu, press [MENU] again.

4. The operations below are only available when “Menu” is started.

5. Press [UP] / [DOWN] to adjust the value of the selected item.

Other indicators

Current selected indicator

Expand current selected indicator Adjustable range

Current value

Fig.9-1

Meaning of the selected indicato

r

LED Power Light

POWER

SOURCE

MENU

UP

DOWN

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

22

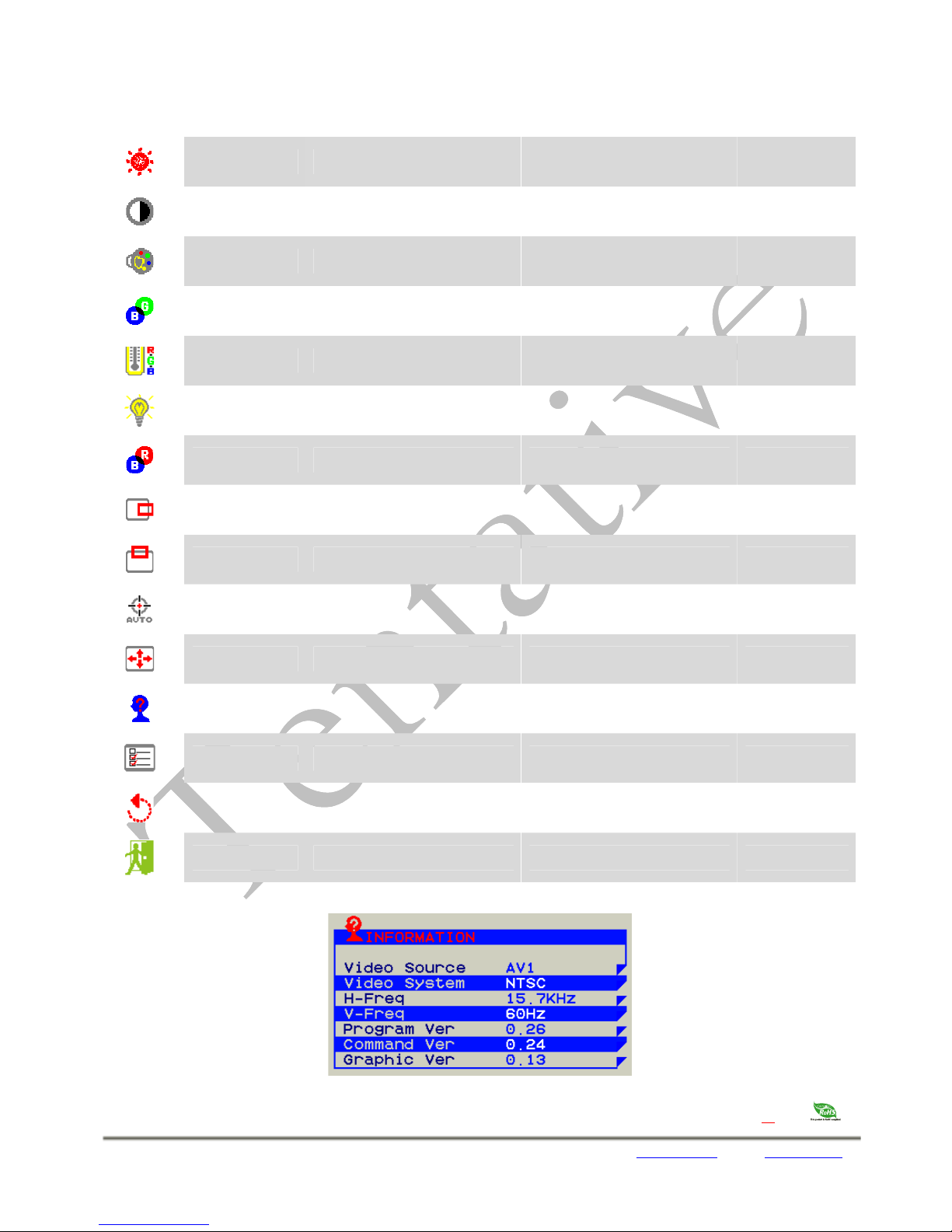

Overview of the menuΚ

Firmware must beЊVER 0.26

Indicator Meaning Adjustable range For Remark

Brightness

0 Д 64

AV / S-Video / VGA Adjust-Bar

Contrast

0 Д 64

AV / S-Video / VGA Adjust-Bar

Color

0 Д 64

AV / S-Video Adjust-Bar

Tint

0 Д 32

AV / S-Video Adjust-Bar

Sharpness

0 Д 16

AV / S-Video Adjust-Bar

Dimmer

0 Д 9

AV / S-Video / VGA

Color Tone Normal / Warm / Cool AV / S-Video / VGA

H-Position

-25 Д +25

AV / S-Video / VGA Balance-Bar

V-Position

-10 Д +10

AV / S-Video / VGA Balance-Bar

Auto VGA

Scan Over Scan / Under Scan AV / S-Video / VGA

Information AV / S-Video / VGA Fig.9-2

Setup AV / S-Video / VGA Fig.9-3

Factory Set AV / S-Video / VGA

Exit AV / S-Video / VGA

Fig.9-2

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

23

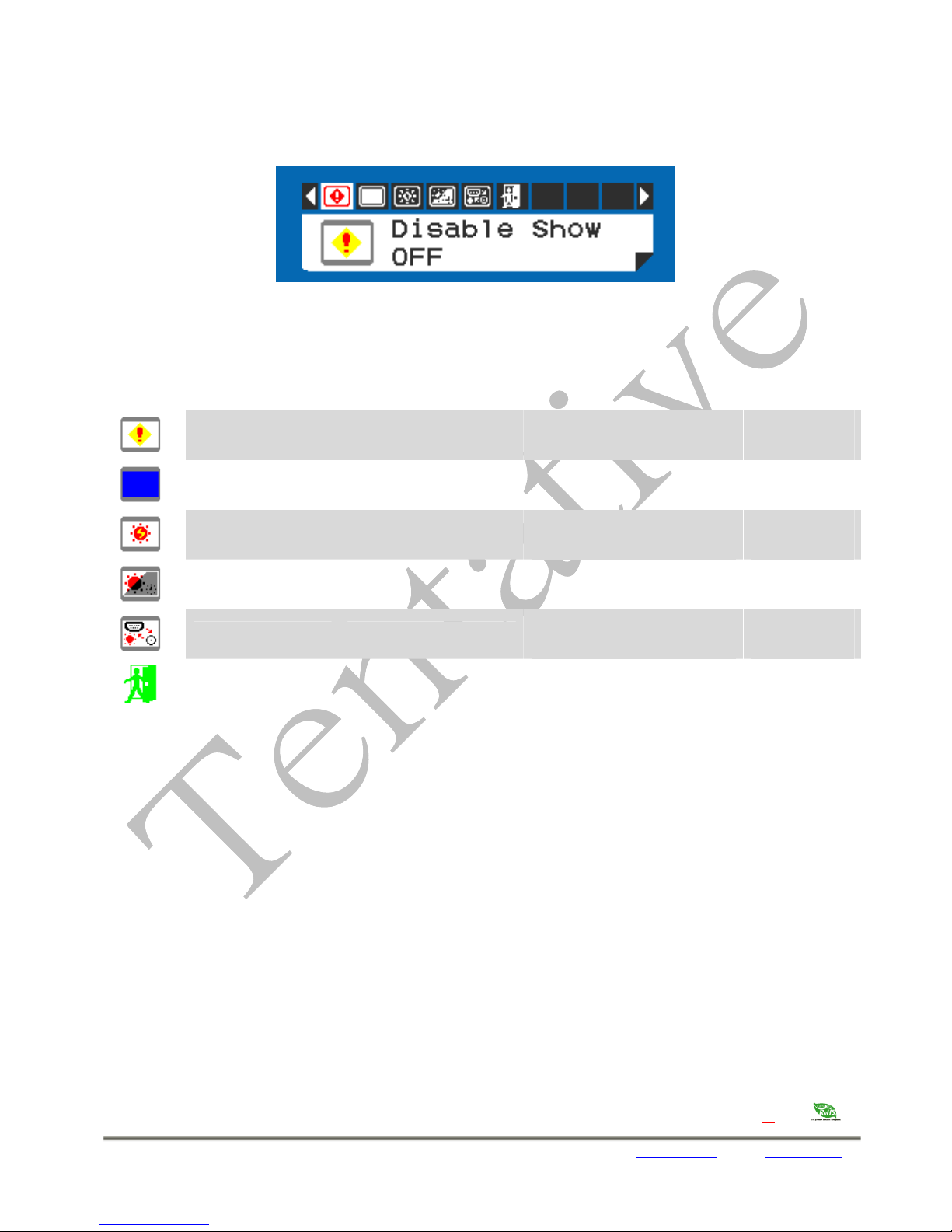

Setup Menu

Κ

Indicator Meaning Adjustable range Function Remark

Show Status ON / OFF

Show signal status.

ON: Show

OFF: Hidden

Blue Screen ON / OFF

Ifʳloss signal will put on the

blue or black screen.

ON: Blue

OFF: Black

Auto Power On ON / OFF

Power input module will be

auto turn on.

ON: Auto

OFF: Manual

Auto Saving

OFF / 3s / 5s / 15s /

30s

If signal lost over setting

times will be power off.

ON: Auto

OFF: Normal

Detect Source ON / OFF

Auto detection which source

is existence and change.

ON: Auto

OFF: Normal

Return

Note : VGA only type don’t have Detect Source function.

Fig.9-3

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

24

9.2 Operations

[Power] ΚMonitor power on / off [Source] Κ Input signal switch

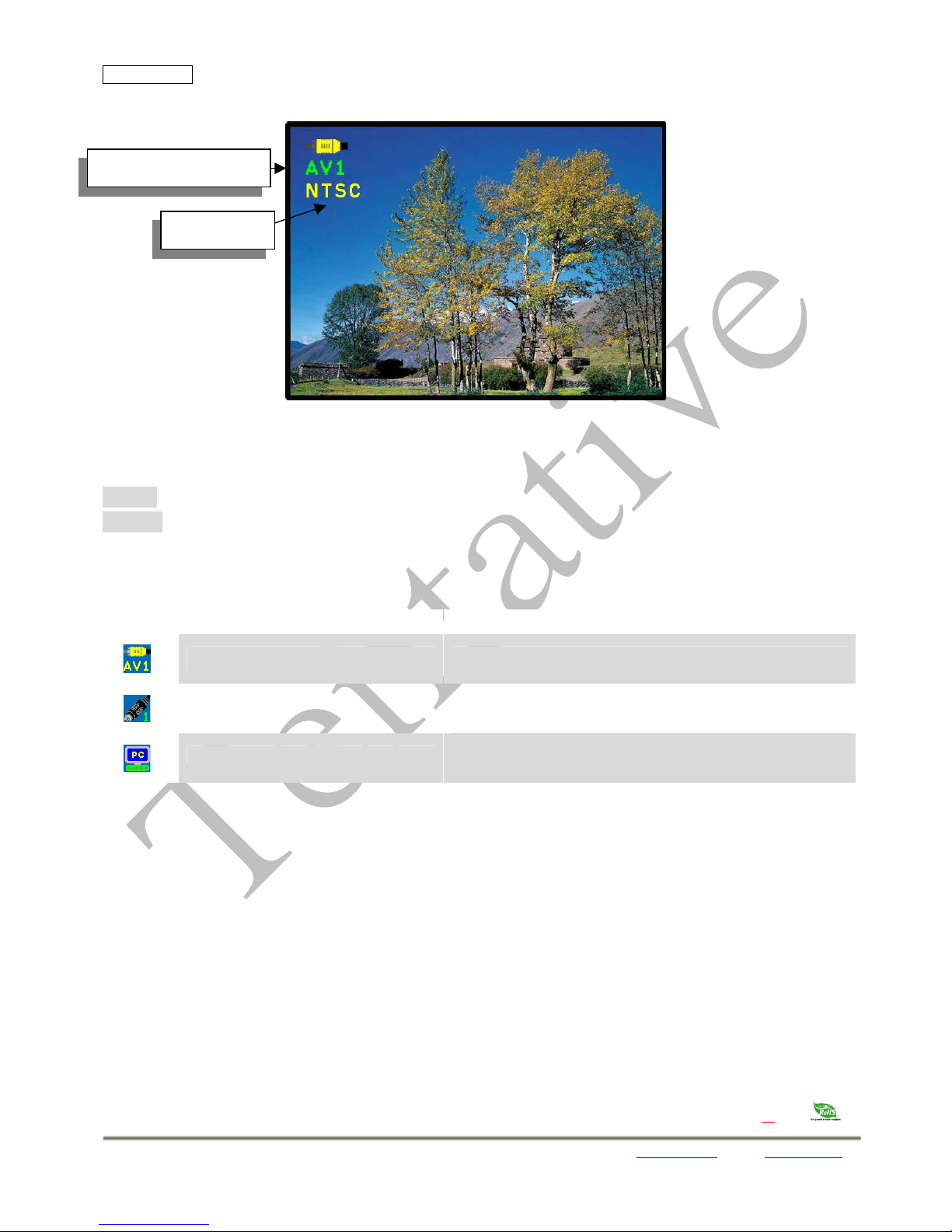

Overview of input signals

Κ

Indicator Input signal Interface Video system

AV1 Composite NTSC / PAL / SECAM

S-Video1 Y/C NTSC / PAL / SECAM

VGA Analog RGB

640x480_60 / 800x600_60 / 1024x768_60 /

1280x1024_60

Fig.9-4

Indicator of input signal

Video system

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

2

5

10. Trouble Shooting

If experiencing trouble with the monitor, or it fails to operate correctly, please refer to the following

instructions before calling for repairs.

Condition Check Point

1. The picture does not appear

ϥʳ Check to see that all the I/O and power cables is firmly seated in the

socket.

ϥʳ Check the Power LED is Lighting When the monitor was turned ON.

ϥʳ Check if the brightness control is at the appropriate position, not at the

minimum.

2. The screen is not

synchronized

ϥʳ Check if the I/O signal cable is firmly seated in the socket.

ϥʳ Check if the output level matches the input level.

ϥʳ Make sure the signal timings of the computer system are within the

specification of the monitor.

3. The position of the screen

is not in the center

ϥʳ Adjust the H-position, and V-position, or perform the auto adjustment

Or Factory Set.

4. The screen is too bright

(too dark).

ϥʳ Check if the brightness or contrast control is at the appropriate

position, not at the Maximum (Minimum).

5. The Screen is shaking or

waving

ϥʳ Press the Auto adjustment control to adjust. Moving all objects which

emit a magnetic field such as motor or transformer, away from the

monitor. Check if the specific voltage is applied.

ϥʳ Check if the signal timing of the computer system is within the

specification of monitor.

If you are unable to correct the fault by using this chart, stop using your monitor and contact us.

FLAT DISPLAY TECHNOLOGY

 LOF1044xx V0.0

add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978

This technical specification is subject to change without notice.

2

6

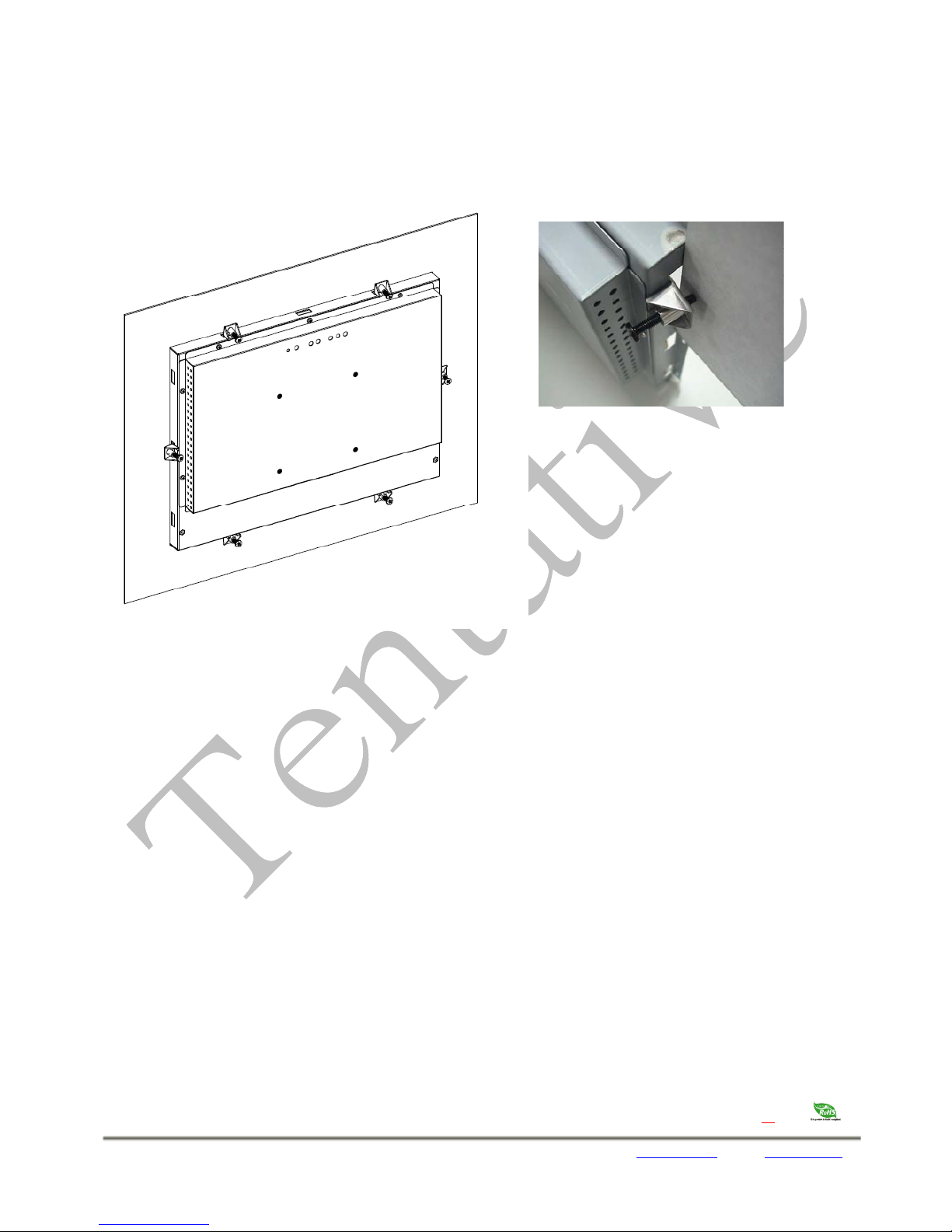

11. Panel Mount Installation ( Mount Clamp and Screw )(Option)

Flat Display Technology LOF1044xx, LOF1044 Series User Manual [en, no]
