Flash professional P7200004 User Manual

LED BLINDER 16X30W 4in1 COB
16 SECTIONS Mk2
P7200004
USER MANUAL / INSTRUKCJA OBSŁUGI
1
Table of contents
1 Introduction ...................................................................................................................................................... 2
2 Safety information ........................................................................................................................................... 2
3 Product information ........................................................................................................................................ 2
3.1 Features ....................................................................................................................................................... 2
3.2 Specification ................................................................................................................................................ 2
4 Installation ........................................................................................................................................................ 3
5 Connections ...................................................................................................................................................... 3
5.1 Connecting DMX signal............................................................................................................................. 3
5.2 Voltage specification .................................................................................................................................. 4
5.3 Connecting power supply ........................................................................................................................ 4
6 Operation manual ............................................................................................................................................ 4
6.1 Control panel .............................................................................................................................................. 4
6.2 DMX channel list ........................................................................................................................................ 5
Spis treści
1 Wprowadzenie ............................................................................................................................................... 14
2 Zasady bezpieczeństwa ................................................................................................................................ 14
3 Informacje o produkcie ................................................................................................................................. 14
3.1 Funkcje ....................................................................................................................................................... 14
3.2 Specyfikacja ............................................................................................................................................... 14
4 Instalacja ......................................................................................................................................................... 15
5 Połączenia ....................................................................................................................................................... 15
5.1 Podłączenie sygnału DMX ...................................................................................................................... 15
5.2 Specyfikacja zasilania ............................................................................................................................... 16
5.3 Podłączanie zasilania ............................................................................................................................... 16
6 Instrukcja użytkowania ................................................................................................................................. 16
6.1 Panel sterowania ...................................................................................................................................... 16
6.2 Lista kanałów DMX.................................................................................................................................. 17
www.flash-butrym.pl
2
1 INTRODUCTION
Thank you for purchasing LED BLINDER 16x30W 4in1 COB 16 sections Mk2. For safety reasons and to ensure the trouble-free operation, carefully read the instructions.
2 SAFETY INFORMATION
1. Installation should be done by qualified personnel in order to minimize the risk of accidental
electric shock
2. Disconnect the power supply before installation.
3. Before connecting the unit to the mains, make sure it is not damaged mechanically. If you
notice any signs of damage you should contact your dealer immediately. Do not connect the device to the mains.
4. Do not use the device in high humidity conditions and at temperatures above 40° C
5. The device must be installed on stable structures
6. Always use steel security cable to attach the device to a stable structure
7. Do not connect power supply to more than 3 devices in series.
3 PRODUCT INFORMATION
3.1 Features
16 sections controlled separately by DMX 16-bit dimming resolution Various dimming curves for smooth dimming in 8-bit mode Dim delay (light bulb simulation) Full DMX signal regeneration Electronic protection against overheating THEATRE or DISCO cooling volume modes. Permanent color correction Native support for optional wireless DMX module
3.2 Specification
Power consumption: 500W Power supply voltage: 100 - 245V Voltage frequency: 50/60Hz Diode type: COB Number of diodes: 16 Diode power: 30W Display: Color LCD Color: RGBW ZOOM: No Beam angle: 50° Dimming: Linear: 0 - 100% FROST filter: No FOCUS: No Number of DMX channels: 30 modes DMX standard: DMX 512 Control interface: 4 buttons
www.flash-butrym.pl
3
Operating modes: DMX512, Auto, Sound-controlled, Manual color Features: 16-bit dimming, various dimming curves, bulb simulation, 16 sections; DMX signal
regeneration; Electronic protection against overheating
AC IN: powerCON AC OUT: powerCON DMX IN: XLR - 3 pin DMX OUT: XLR - 3 pin IP Rating: IP20 Housing made: Aluminium Cooling: Active Height [cm]: 35,5 Width [cm]: 35,5 Depth [cm]: 19 Weight [kg]: 8,6
4 INSTALLATION
After removing the packaging, check if the device was not damaged during transport. Before connecting to the mains, make sure that the device is securely mounted. The manufacturer is not responsible for damage caused by unstable mounting.
CAUTION! Always use steel security cable to attach the device to a stable structure.
Ensure proper connection to the mains and proper grounding. Make sure that the electrical parameters are consistent with device requirements. All activities, including connecting the device to the mains must be performed by qualified personnel.
5 CONNECTIONS
The device is equipped with the following interfaces:
1. DMX (in/out): XLR 3-pin socket
2. Power (in/out): powerCON socket

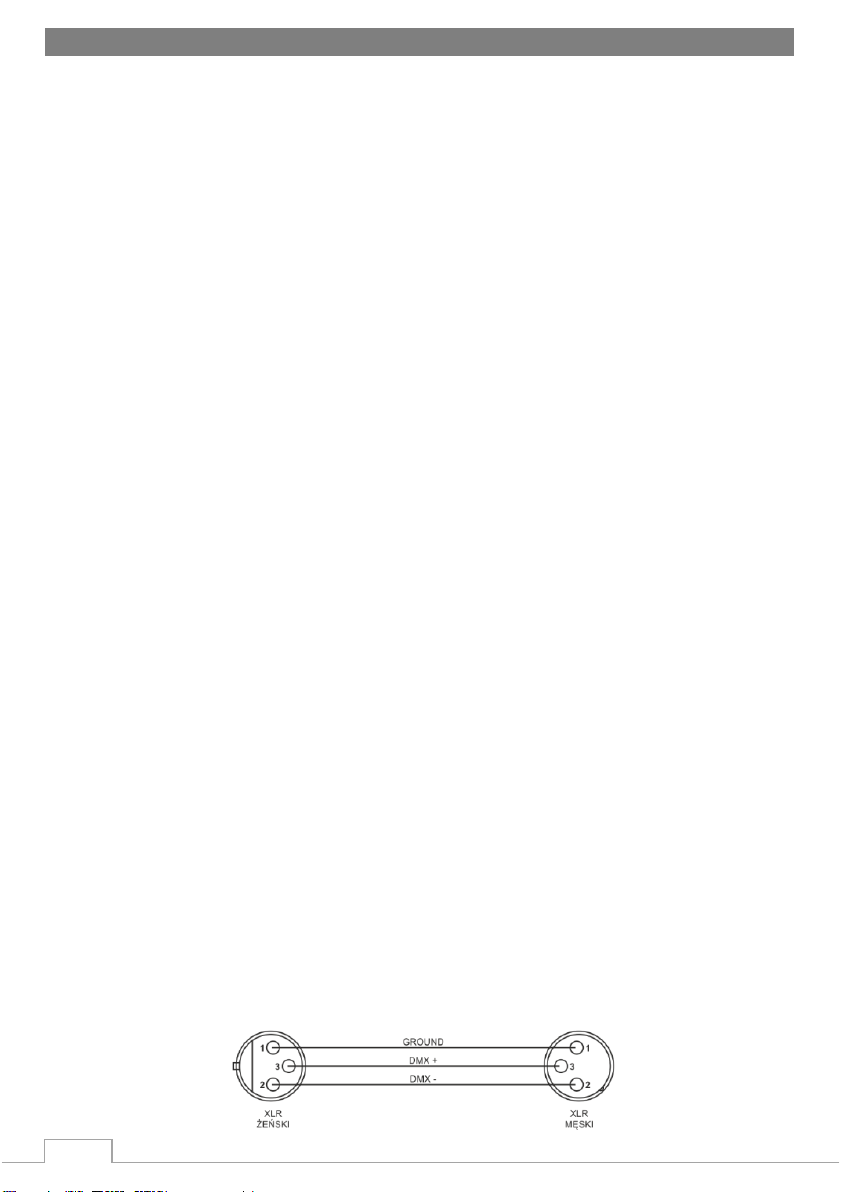

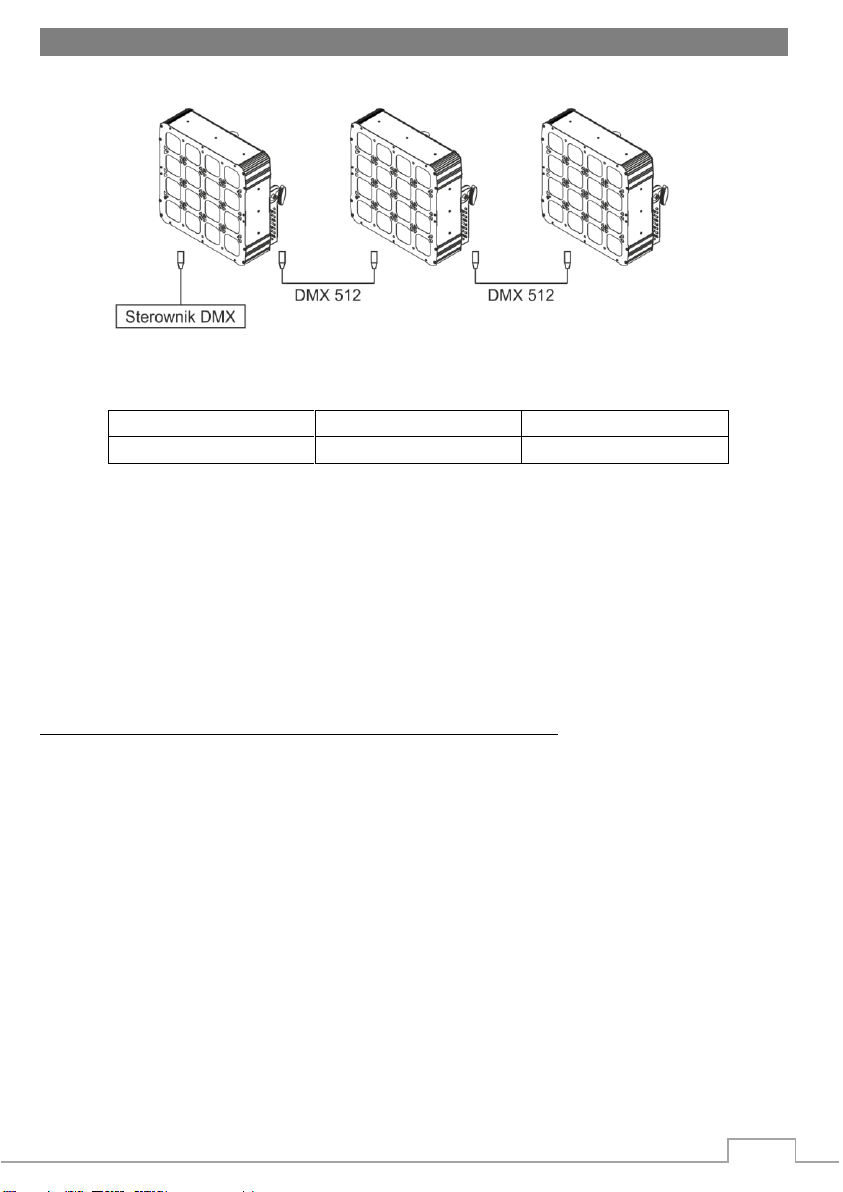

5.1 Connecting DMX signal
The connection is performed using cable with XLR-female -> XLR-Male plugs.
www.flash-butrym.pl
4
Input Voltage
Total Power
Frequency
100~245V
500W
50/60Hz
5.2 Voltage specification
5.3 Connecting power supply
The connection is performed using power cable with PowerCon connector (included). The device must be operated by qualified personnel. Make sure that the power grid supply parameters are
consistent with device parameters and limitations are not exceeded.
CAUTION! In the case of cable damage do not attempt to repair. Replacement or repair can be made only
on the manufacturer or by a person with appropriate permissions. Maximum number of devices connected in series: 3
6 OPERATION MANUAL
6.1 Control panel
The control panel is equipped with LCD display and 4 control buttons with the following functions:
1. ESC – go back from the selected options, go to upper menu, cancel changes
2. DOWN – choose option, edit parameter
3. UP – choose option, edit parameter
4. ENTER edit selected option, confirm changes
www.flash-butrym.pl
5
CH Classic-6 Classic-8 M-Control-10 Pro-6 Pro-7 RGB RGBW RGB 16bit RGBW 16bit Flash A-DMX
1 Dimmer Dimmer Dimmer RED RED RED RED RED RED RED
2 Strobe Strobe Strobe GREEN GREEN GREEN GREEN R fine R fine GREEN
3 RED RED RED BLUE BLUE BLUE BLUE GREEN GREEN BLUE
4 GREEN GREEN GREEN WHITE WHITE White G fine G fine WHITE
5 BLUE BLUE BLUE Dimmer Dimmer BLUE BLUE Dimmer
6 WHITE WHITE WHITE Strobe Dimmer fine B fine B fine EMPTY
7 Macro/Color Macro/Color Strobe White Strobe
8
Speed for
Macro/Pulse
Speed for
Macro/Pulse
White fine Macro/Color
9
Macro
background
color
10
Macro
background
dimmer
1 section
6.2 DMX channel list
www.flash-butrym.pl
6
CH
1 Dimmer Dimmer RED RED RED RED RED RED RED
2 Strobe Strobe GREEN GREEN GREEN GREEN R fine R fine GREEN
3 RED RED RED RED BLUE BLUE BLUE BLUE GREEN GREEN BLUE
4 GREEN GREEN GREEN GREEN WHITE WHITE RED White G fine G fine WHITE
5 BLUE BLUE BLUE BLUE RED Dimmer GREEN RED BLUE BLUE Dimmer
6 WHITE WHITE WHITE WHITE GREEN Dimmer fine BLUE GREEN B fine B fine EMPTY
7 RED Dimmer RED Di mmer BLUE Strobe RED BLUE RED White Strobe
8 GREEN S trobe GREEN St robe WHITE RED GREEN White R fine White fine Macro/Color
9 BLUE RED BLUE RED RED GREEN BLUE RED GREEN RED RED
10 WHITE GREEN WHITE GREEN GREEN BLUE RED GREEN G fine R fine GREEN
11 RED BLUE RED BLUE BLUE WHITE GREEN BLUE BLUE GREEN BLUE
12 GREEN WHITE GREEN WHITE WHITE D immer BLUE White B fine G fine WHITE
13 BLUE Dimmer BLUE Dimmer RED Dimmer fine RED RED BLUE Di mmer
14 WHITE S trobe WHITE S trobe GREEN Strobe GREEN R fine B fine EMPTY
15 RED RED RED RED BLUE RED BLUE GREEN White Strobe
16 GREEN GREEN GREEN GREEN WHITE GREEN White G fine White fine EMPTY
17 BLUE BLUE BLUE BLUE BLUE BLUE RED RED
18 WHITE WHITE WHITE WHITE WHITE B fine R fine GREEN
19 Dimmer Dimmer Dimmer RED GREEN BLUE
20 Strobe Strobe Dimmer fine R fine G fine WHITE
21 RED RED Strobe GREEN BLUE Dimmer
22 GREEN GREEN RED G fine B fine EMPTY
23 BLUE BLUE GREEN BLUE White Strobe
24 WHITE WHITE BLUE B fine White fine EMPTY
25 WHITE RED RED
26 Dimmer R fine GREEN
27 Dimmer fine GREEN BLUE
28 Strobe G fine WHITE
29 BLUE Dimmer
30 B fine EMPTY
31 White Strobe
32 White fine EMPTY
4
4
4
4
4
444
4
4
4
Macro bckg color Macro bckg dimmer3Macro bckg dimmer
Macro/Color Macro bckg color
3
Speed for Macro/Pulse
Dimmer fine
Macro/Color
Strobe
3
Speed for Macro/Pulse
2
2
3
3
3
3
Dimmer
222
232
2
3
3
3
1
1
1
Strobe
Strobe
1
1
2
2
2
4xRGBW 16bit
4xFlashA-DMX
Dimmer
1
Dimmer
1
1
1
1
1
4 sections
Classic-18
4xClassic-6
M-Control-22
M-Control-28
Pro-19
Pro-28
4xRGB
4xRGBW 4xRGB 16bit
www.flash-butrym.pl
7
CH
1 Dimmer Dimmer RED RED RED RED RED
2 Strobe Strobe GREEN GREEN GREEN R fine R fine
3 RED RED RED RED BLUE BLUE BLUE GREEN GREEN
4 GREEN GREEN GREEN GREEN WHITE RED White G fine G fine
5 BLUE BLUE BLUE BLUE RED GREEN RED BLUE BLUE
6 WHITE WHITE WHITE WHITE GREEN BLUE GREEN B fine B fine
7 RED Dimmer RED Dimmer BLUE RED BLUE RED White
8 GREEN S trobe GREEN S trobe WHITE GREEN White R fine White fine
9 BLUE RED BLUE RED RED BLUE RED GREEN RED
10 WHITE GREEN WHITE GREEN GREEN RED GREEN G fine R fine
11 RED BLUE RED BLUE BLUE GREEN BLUE BLUE GREEN
12 GREEN WHITE GREEN WHITE WHITE BLUE White B fine G fine
13 BLUE Dimmer BLUE Dimmer RED RED RED RED BLUE
14 WHITE St robe WHITE Strobe GREEN GREEN GREEN R fine B fine
15 RED RED RED RED BLUE BLUE BLUE GREEN Whit e
16 GREEN GREEN GREEN GREEN WHITE RED White G fine White fine
17 BLUE BLUE BLUE BLUE RED GREEN RED BLUE RED
18 WHITE WHITE WHITE WHITE GREEN BLUE GREEN B fine R fine
19 RED Dimmer RED Dimmer BLUE RED BLUE RED GREEN
20 GREEN Strobe GREEN S trobe WHITE GREEN White R fine G fine
21 BLUE RED BLUE RED RED BLUE RED GREEN BLUE
22 WHITE GREEN WHITE GREEN GREEN RED GREEN G fine B fine
23 RED BLUE RED BLUE BLUE GREEN BLUE BLUE White
24 GREEN WHITE GREEN WHITE WHITE BLUE White B fine White fine
16xRGBW16bit
Dimmer
1
Dimmer
1
111
16 sections (p1)
Classic-66 16xClassic-6
M-Control-70
M-Control-100
Pro-67 16xRGB 16xRGBW
16xRGB 16bit
1
1
Strobe
Strobe
1
122
2
3
2
3
3
3
3
222
2
3
2
3
3345544
4
45678
45645
6
6
6
4
www.flash-butrym.pl
