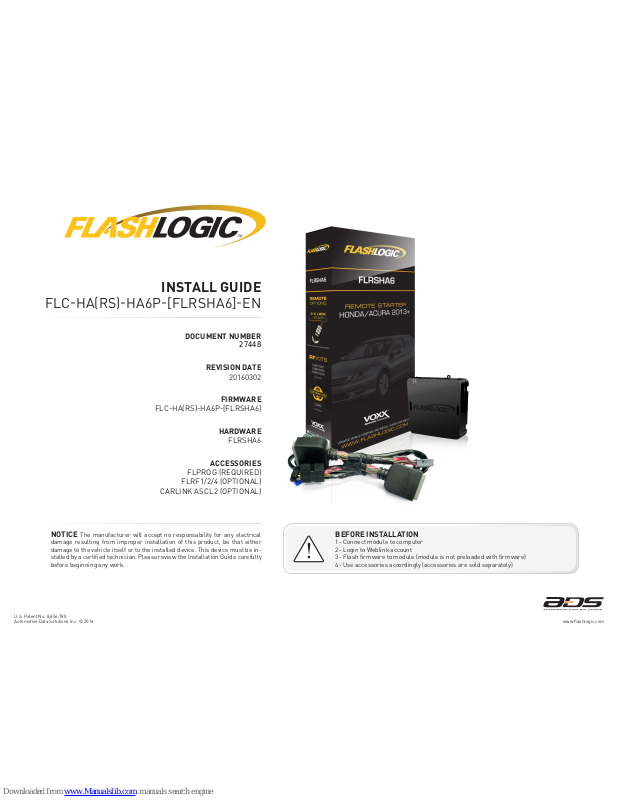

FlashLogic FLRSHA6 Install Manual
REVISION DATE
20160302
DOCUMENT NUMBER
NOTICE The manufacturer will accept no responsability for any electrical
damage resulting from improper installation of this product, be that either
damage to the vehicle itself or to the installed device. This device must be installed by a certified technician. Please review the Installation Guide carefully
before beginning any work.
BEFORE INSTALLATION
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
U.S. Patent No. 8,856,780
INSTALL GUIDE
FLCHARSHA6PFLRSHA6EN
HARDWARE
FLRSHA6
ACCESSORIES
FLPROG REQUIRED
FLRF1/2/4 OPTIONAL
CARLINK ASCL2 OPTIONAL
FIRMWARE
FLCHARSHA6PFLRSHA6
www.flashlogic.comAutomotive Data Solutions Inc. © 2016
27448
U.S. Patent No. 8,856,780
VEHICLE LIST - 1 OF 1
MAKE
MODEL
YEAR
INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS
3X LOCK START/STANDALONE MOD.
ARM OEM ALARM
DISARM OEM ALARM
DOOR LOCK
DOOR UNLOCK
TRUNK/HATCH RELEASE
DOOR STATUS OUTPUT
TRUNK STATUS OUTPUT
HOOD STATUS OUTPUT*
AUTOLIGHT CTRL
TACHOMETER OUTPUT
BRAKE PEDAL STATUS
ACURA
RLX PTS AT* 14-15 1 • • • • • • • • • • • • •
HONDA
Accord PTS AT* 13-16 1 • • • • • • • • • • • • •
Accord Hybrid PTS AT* 13-16 1 • • • • • • • • • • • • •
Civic PTS AT* 14-15 2 • • • • • • • • • • • •
CR-V PTS AT* 15-16 2 • • • • • • • • • • • • •
CR-V Touring PTS AT* 15-16 1 • • • • • • • • • • • • •
Crosstour PTS AT* 13-15 1 • • • • • • • • • • • • •
NOTES
* WARNING:
1- No takeover available.
Upon opening vehicle door engine will shutdown.
2- All doors must be closed to remote start vehicle.
*Available only if vehicle is equipped with factory hood switch.
www.flashlogic.comAutomotive Data Solutions Inc. © 2016 FLCHARSHA6PFLRSHA6EN
PAGE 2 OF 18
• 20160302
DOC.: #27448
U.S. Patent No. 8,856,780
BOX CONTENTS - 1 OF 1
3
6
4
1
2
5
C
B
A
F
G
E
D
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
7
9
3
10
8
11
12
6
4
1
2
5
2
1
3
7
9
3
10
8
6
4
1
2
5
2
1
3
4
2
1
3
4
VS2VS2
VS1VS1
VS4VS4
VS3VS3
MS1MS1
MS2MS2
BOX CONTENTS
T-HARNESS 1
AFTERMARKET HOOD SWITCH AND CABLE
WARNING STICKER
10 PIN CONNECTOR
12 PIN CONNECTOR
BLUE
PROGRAMMING
BUTTON
LED 2
LED 1
MODULE
BLACK
BLACK
BLACK
RF PORT/
WEBLINK PORT
BLACK
BLUE
TELEMATIC
PORT
WHITE
WEBLINK CABLE (required accessory sold separately)
WEBLINK CABLE
COMPUTER
USB PORT
4 PIN BLACK CABLE
MODULE
WEBLINK PORT
www.flashlogic.comAutomotive Data Solutions Inc. © 2016 FLCHARSHA6PFLRSHA6EN
PAGE 3 OF 18
• 20160302
DOC.: #27448
U.S. Patent No. 8,856,780
www.flashlogic.comAutomotive Data Solutions Inc. © 2016 FLCHARSHA6PFLRSHA6EN
PAGE 4 OF 18
• 20160302
COMPATIBLE ACCESSORIES - 1 OF 1
FLRF1/2/4 RF KIT
RF KIT (accessories sold separately)
(NC)
ANTENNA
MODULE
RF PORT
FLHRNTM
TELEMATIC KIT (accessories sold separately)
(NC)
CARLINK
MODULE
TELEMATIC PORT
10 11 12 13 14 15 16
1 2 3 4 5 6 7 8
9
FLHRNTM
TELEMATIC KIT (accessories sold separately)
MODULE
TELEMATIC PORT
CAR CONNECTIONPN 4120260
OBDII CONNECTOR
VEHICLE
OBDII PORT
(NC)
DOC.: #27448
U.S. Patent No. 8,856,780
TYPE 1 - WIRE CHART - 1 OF 1
MAKE
MODEL
YEAR
WIRE
DESCRIPTION
CONNECTOR
NAME
CONNECTOR
COLOR
CONNECTOR
TYPE
POSITION
WIRE
COLOR
POLARITY
MODULE
LOCATION
COMPONENT
LOCATOR
ACURA
RLX
PTS AT
14-15
Parking Light ~ Blue 12 pin 08 Pink (-) Parking light switch (left of steering column) ~
Horn ~ ~ ~ A10 Orange (-) Steering wheel clock spring connector ~
PTS Harness ~ ~ ~ ~ ~ ~ Smart PCU, under dash, left of steering column ~
Ignition Harness ~ ~ ~ ~ ~ ~ Smart PCU, under dash, left of steering column ~
HONDA
Accord
PTS AT
13-16
Parking Light ~ Blue 12 pin 08 Gray (-) Parking light switch (left of steering column) ~
Horn ~ ~ ~ A2 LtBlue (-) Steering wheel clock spring connector ~
PTS Harness ~ ~ ~ ~ ~ ~ Smart PCU, under dash, left of steering column ~
Ignition Harness ~ ~ ~ ~ ~ ~ Smart PCU, under dash, left of steering column ~
Accord Hybrid
PTS AT
13-16
Parking Light ~ Blue 12 pin 08 Gray (-) Parking light switch (left of steering column) ~
Horn ~ ~ ~ A2 LtBlue (-) Steering wheel clock spring connector ~
PTS Harness ~ ~ ~ ~ ~ ~ Smart PCU, under dash, left of steering column ~
Ignition Harness ~ ~ ~ ~ ~ ~ Smart PCU, under dash, left of steering column ~
Crosstour
PTS AT
13-15
Parking Light ~ Blue 12 pin 08 Gray (-) Parking light switch (left of steering column) ~
Horn ~ ~ ~ A2 LtBlue (-) Steering wheel clock spring connector ~
PTS Harness ~ ~ ~ ~ ~ ~ Smart PCU, under dash, left of steering column ~
Ignition Harness ~ ~ ~ ~ ~ ~ Smart PCU, under dash, left of steering column ~
CR-V Touring
PTS AT
15-16
Parking Light ~ Gray 12 pin 08 Blue (-) Parking light switch (left of steering column) ~
Horn ~ ~ ~ ~ ~ ~ ~ ~
PTS Harness ~ ~ ~ ~ ~ ~ Smart PCU, behind glove box ~
Ignition Harness ~ ~ ~ ~ ~ ~ Smart PCU, behind glove box ~
www.flashlogic.comAutomotive Data Solutions Inc. © 2016 FLCHARSHA6PFLRSHA6EN
PAGE 5 OF 18
• 20160302
DOC.: #27448
U.S. Patent No. 8,856,780
A
B
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
3
6
4
1
2
5
C
7
9
3
10
8
11
12
6
4
1
2
5
D
7
9
3
10
8
6
4
1
2
5
C
B
A
F
G
E
D
MS1MS1
MS2MS2
1 2 3 4 5 6
7
8 9 10 11 12
VS2VS2
VS1VS1
VS4VS4
VS3VS3
OPTIONAL
PARKING LIGHT SWITCH (LEFT OF STEERING WHEEL)
HORN (-)

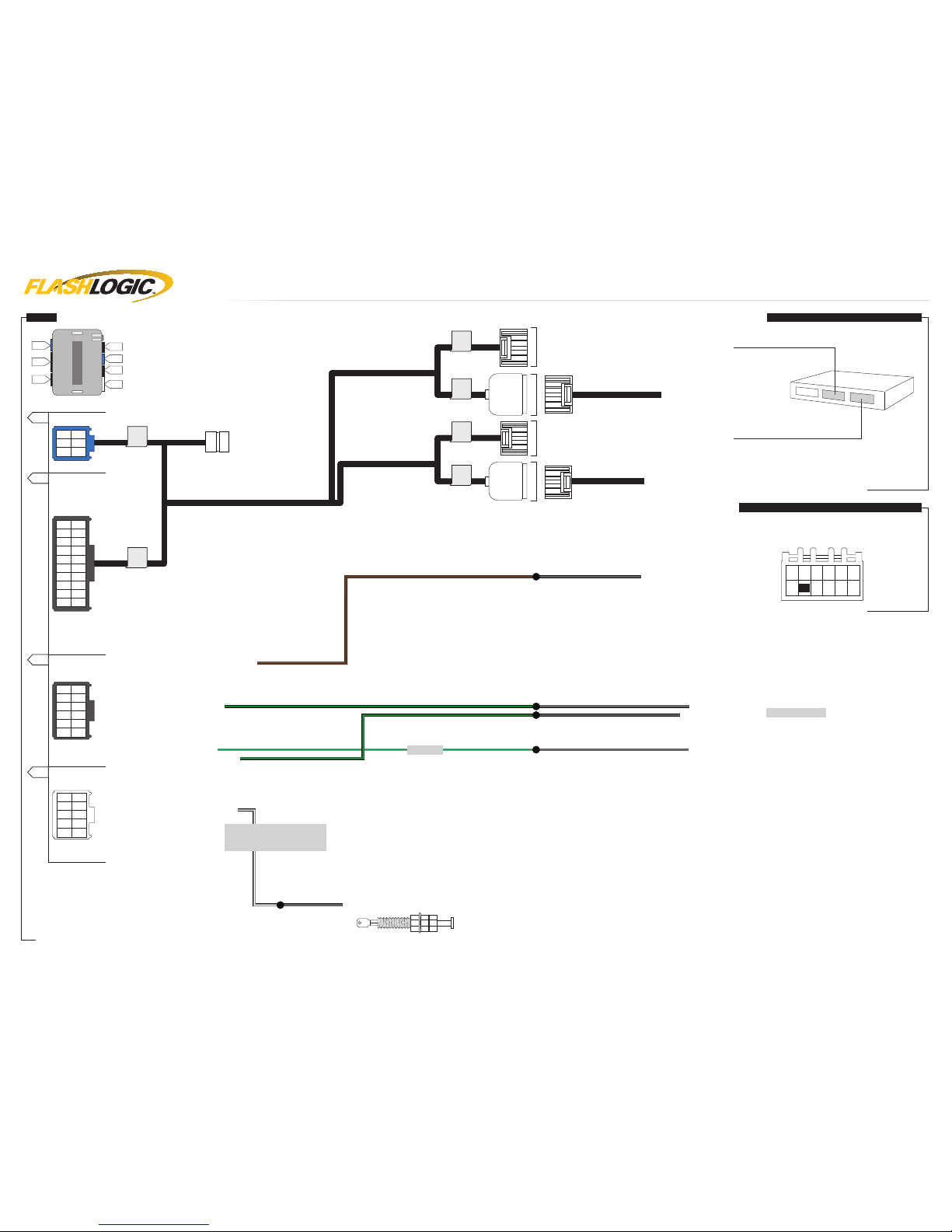

TYPE 1 - WIRING DIAGRAM - 1 OF 1
MODULE
04 GRAY/WHITE - HOOD STATUS (-) INPUT
AFTERMARKET HOOD SWITCH (-)
TELEMATIC PORT
RF PORT/WEBLINK PORT
PARKING LIGHT (-) - 08
28 PIN PTS CONNECTOR
24 PIN IGNITION CONNECTOR
24 PIN IGNITION HARNESS
28 PIN PTS HARNESS
SMART PCU (SEE WIRE CHART FOR LOCATION)
WITHOUT OEM HOOD SWITCH:
INSTALL AND CONNECT TO
AFTERMARKET HOOD SWITCH
RELAY
01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY (NC)
03 EMPTY
04 EMPTY
05 EMPTY
07 EMPTY
09 EMPTY
10 EMPTY
06 PURPLE/GREEN (NC)
08 BLUE/GREEN (NC)
11 GRAY/GREEN - HORN (-) OUTPUT
12 DKGREEN/GREEN (NC)
www.flashlogic.comAutomotive Data Solutions Inc. © 2016 FLCHARSHA6PFLRSHA6EN
PAGE 6 OF 18
• 20160302
DOC.: #27448
