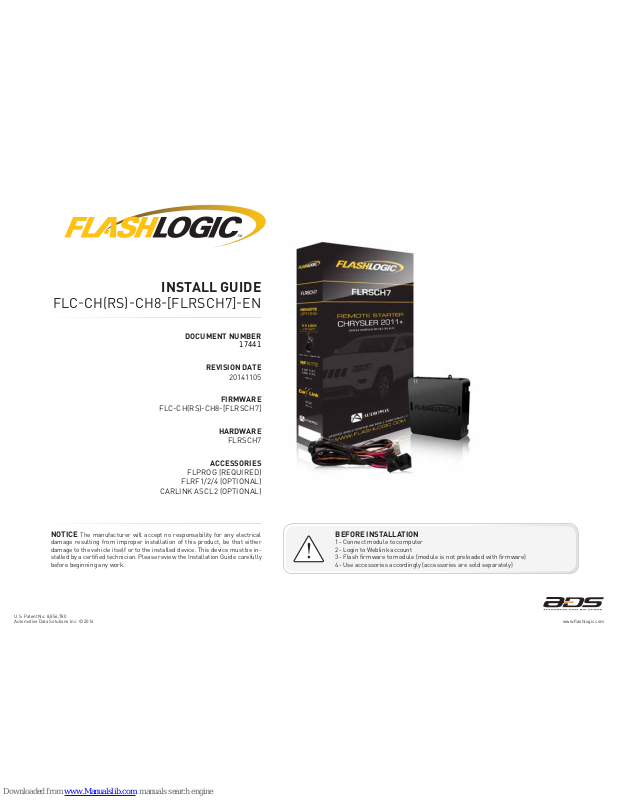

FlashLogic FLRSCH7 Installation Manual

REVISION DATE

20141105

DOCUMENT NUMBER

NOTICE The manufacturer will accept no responsability for any electrical

damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device. This device must be installed by a certiﬁed technician. Please review the Installation Guide carefully before beginning any work.

BEFORE INSTALLATION

1- Connect module to computer 2- Login to Weblink account 3- Flash ﬁrmware to module (module is not preloaded with ﬁrmware) 4- Use accessories accordingly (accessories are sold separately)

U.S. Patent No. 8,856,780

INSTALL GUIDE

FLCCHRSCH8FLRSCH7EN

HARDWARE

FLRSCH7

FIRMWARE

FLCCHRSCH8FLRSCH7

ACCESSORIES

FLPROG REQUIRED

FLRF1/2/4 OPTIONAL

CARLINK ASCL2 OPTIONAL

17441

U.S. Patent No. 8,856,780

VEHICLE LIST - 1 OF 1

MAKE

MODEL

YEAR

INSTALL TYPE

FEATURES

DATA IMMOBILIZER BYPASS

DOOR LOCK

DOOR UNLOCK

ARM OEM ALARM

DISARM OEM ALARM

TRUNK/HATCH RELEASE

DOOR STATUS OUTPUT

TRUNK STATUS OUTPUT

BRAKE PEDAL STATUS OUTPUT

TACHOMETER OUTPUT

SECURE TAKEOVER

GLOW PLUGS STATUS

RAP SHUTDOWN CTRL

DODGE

Dart STD key (Tip-Start) AT (without Autolight) 13 1 • • • • • • • • • • • •

Dart STD key (Tip-Start) AT (with Autolight) 13 2 • • • • • • • • • • • •

RAM

1500 STD key (Tip-Start) AT 13-14 3 • • • • • • • • • • 1500 Diesel STD key (Tip-Start) AT 14 3 • • • • • • • • • • • 2500 / 3500 STD key (Tip-Start) AT 13-14 3 • • • • • • • • • • 2500 / 3500 Diesel STD key (Tip-Start) AT 14 3 • • • • • • • • • • •

NOTE

I WARNING: All vehicle doors must be

closed and locked prior to remote start sequence.

PAGE 2 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

BOX CONTENTS - 1 OF 1

VS2VS2

VS1VS1

MS1MS1

MS2MS2

3

6

4

1

2

5

C

B

A

F

G

E

D

7 9

3

10

8

11 13

14

12

15 17

18

19

20

16

6

4

1

2

5

7 9

3

10

8

11

12

6

4

1

2

5

2 1

3

7

9

3

10

8 6 4

1

2

5

2 1

3

4

2 1

3

4

BOX CONTENTS

T-HARNESS 1

AFTERMARKET HOOD SWITCH AND CABLE

WARNING STICKER

10 PIN CONNECTOR

12 PIN CONNECTOR

BLUE

PROGRAMMING BUTTON

LED 2

LED 1

MODULE

BLACK

BLACK RF PORT/ WEBLINK PORT

BLACK

BLUE TELEMATIC PORT

WHITE

WEBLINK CABLE (required accessory sold separately)

WEBLINK CABLE

COMPUTER

USB PORT

4 PIN BLACK CABLE

MODULE

WEBLINK PORT

PAGE 3 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

PAGE 4 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

COMPATIBLE ACCESSORIES - 1 OF 1

FLRF1/2/4 RF KIT

RF KIT (accessories sold separately)

(NC)

ANTENNA

MODULE RF PORT

FLHRNTM

TELEMATIC KIT (accessories sold separately)

(NC)

CARLINK

MODULE

TELEMATIC PORT

10 11 12 13 14 15 16

1 2 3 4 5 6 7 8

9

FLHRNTM

TELEMATIC KIT (accessories sold separately)

MODULE

TELEMATIC PORT

CAR CONNECTIONPN 4120260

OBDII CONNECTOR

VEHICLE OBDII PORT

(NC)

DOC.: #17441

U.S. Patent No. 8,856,780

TYPE 1 - WIRE CHART - 1 OF 1

MAKE

MODEL

YEAR

WIRE

DESCRIPTION

CONNECTOR

NAME

CONNECTOR

COLOR

CONNECTOR

TYPE

POSITION

WIRE

COLOR

POLARITY

MODULE

LOCATION

COMPONENT

LOCATOR

DODGE

Dart STD key AT (without Autolight)

13

12V ~ White 06 pin 06 Red (+) Ignition connector F Ground ~ White 06 pin 03 Black (-) Ignition connector F Ignition ~ White 06 pin 04 Purple/Brown (+) Ignition connector F Imo Lin ~ White 06 pin 05 White/Green (DATA) Ignition connector F CanH ~ Black 16 pin 06 Gray/White (DATA) OBDII connector ~ CanL ~ Black 16 pin 14 Yellow (DATA) OBDII connector ~ Parking Light ~ Black 06 pin 03 White/Brown (MUX) Parking light switch A Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B

PAGE 5 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

MS1MS1

MS2MS2

A

B

7 9

3

10

8

11 13

14

12

15 17

18

19

20

16

6

4

1

2

5

3

6

4

1

2

5

C

7 9

3

10

8

11

12

6

4

1

2

5

OBDII

C

10 11 12 13 14 15 16

1 2 3 4 5

6 7 8

9

VS2VS2

VS1VS1

A1

A2

B

2 K

12

3456

D

7 9

3

10

8

6

4

1

2

5

C

B

A

F

G

E

D

CANL - 14

PARKING LIGHT (MUX) - 03

RAP SHUTDOWN (-)

HORN (-)

CANH - 06

02 GRAY - RAP SHUTDOWN (-) OUTPUT

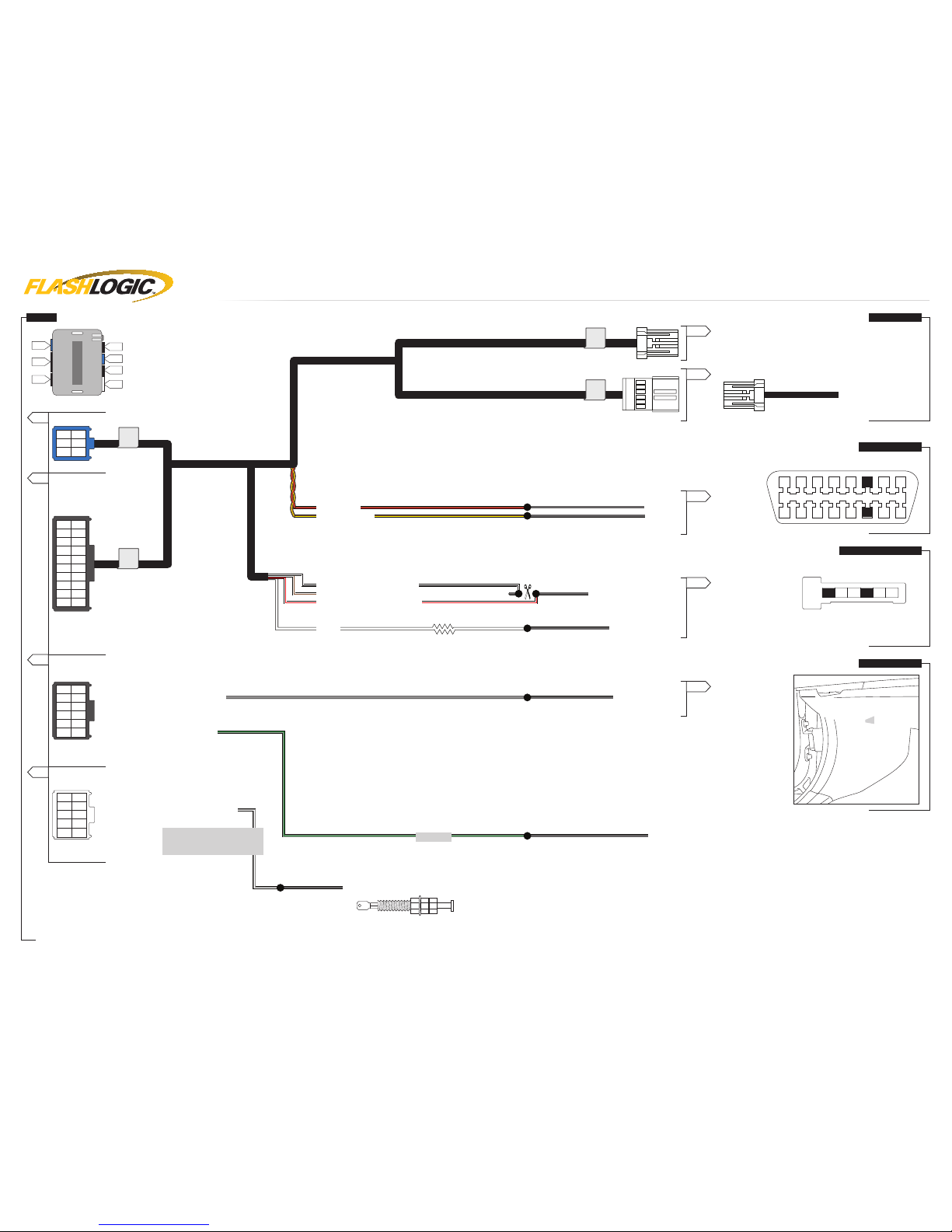

TYPE 1 - WIRING DIAGRAM - 1 OF 1

OBDII CONNECTOR

PARKING LIGHT SWITCHPARKING LIGHT SWITCH

MODULE

11 GRAY/GREEN - HORN (-) OUTPUT

OPTIONAL

BROWN/RED BROWN/YELLOW

WHITE/BLACK - GROUND (-)

WHITE/BROWN (NC) WHITE/RED (NC)

WHITE

DRIVER KICK PANEL

HARNESS

BLACK

IGNITION CONNECTOR

IGNITION HARNESS

IGNITION NODE

AFTERMARKET HOOD SWITCH (-)

04 GRAY/WHITE - HOOD STATUS (-) INPUT

WITHOUT OEM HOOD SWITCH:

INSTALL AND CONNECT TO

AFTERMARKET HOOD SWITCH

TELEMATIC PORT

RF PORT/WEBLINK PORT

PAGE 6 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

TYPE 2 - WIRE CHART - 1 OF 1

MAKE

MODEL

YEAR

WIRE

DESCRIPTION

CONNECTOR

NAME

CONNECTOR

COLOR

CONNECTOR

TYPE

POSITION

WIRE

COLOR

POLARITY

MODULE

LOCATION

COMPONENT

LOCATOR

DODGE

Dart STD key AT (with Autolight)

13

12V ~ White 06 pin 06 Red (+) Ignition connector F Ground ~ White 06 pin 03 Black (-) Ignition connector F Ignition ~ White 06 pin 04 Purple/Brown (+) Ignition connector F Imo Lin ~ White 06 pin 05 White/Green (DATA) Ignition connector F CanH ~ Black 16 pin 06 Gray/White (DATA) OBDII connector ~ CanL ~ Black 16 pin 14 Yellow (DATA) OBDII connector ~ Parking Light ~ Black 06 pin 03 White/Brown (MUX) Parking light switch A Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B Autolight Off ~ Black 06 pin 06 White/Yellow (MUX) Parking light switch A

PAGE 7 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

MS1MS1

MS2MS2

A

B

7 9

3

10

8

11 13

14

12

15 17

18

19

20

16

6

4

1

2

5

3

6

4

1

2

5

C

7 9

3

10

8

11

12

6

4

1

2

5

OBDII

C

10 11 12 13 14 15 16

1 2 3 4 5

6 7 8

9

VS2VS2

VS1VS1

A1

A2

B

1000 OHMS

12

3456

D

7 9

3

10

8

6

4

1

2

5

C

B

A

F

G

E

D

IGNITION CONNECTOR

IGNITION HARNESS

CANL - 14

PARKING LIGHT (MUX) - 03

AUTOLIGHT OFF - 06

RAP SHUTDOWN (-)

HORN (-)

CANH - 06

02 GRAY - RAP SHUTDOWN (-) OUTPUT

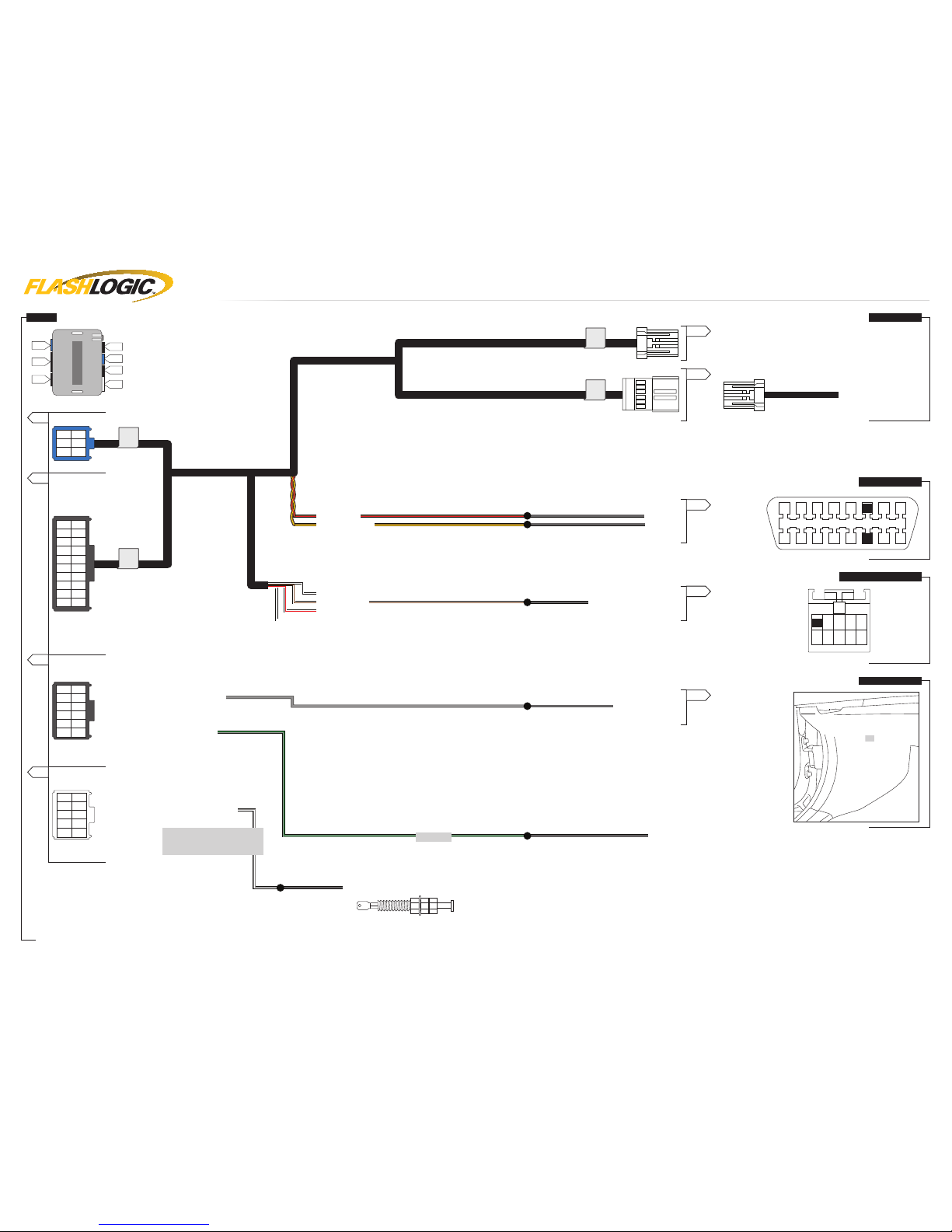

TYPE 2 - WIRING DIAGRAM - 1 OF 1

IGNITION NODE

OBDII CONNECTOR

PARKING LIGHT SWITCHPARKING LIGHT SWITCH

MODULE

11 GRAY/GREEN - HORN (-) OUTPUT

OPTIONAL

BROWN/RED BROWN/YELLOW

WHITE/BLACK - VEHICLE SIDE

WHITE/BROWN (NC)

WHITE/RED - CONNECTOR SIDE

WHITE

DRIVER KICK PANEL

HARNESS

BLACK

AFTERMARKET HOOD SWITCH (-)

04 GRAY/WHITE - HOOD STATUS (-) INPUT

WITHOUT OEM HOOD SWITCH:

INSTALL AND CONNECT TO

AFTERMARKET HOOD SWITCH

TELEMATIC PORT

RF PORT/WEBLINK PORT

PAGE 8 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

TYPE 3 - WIRE CHART - 1 OF 1

MAKE

MODEL

YEAR

WIRE

DESCRIPTION

CONNECTOR

NAME

CONNECTOR

COLOR

CONNECTOR

TYPE

POSITION

WIRE

COLOR

POLARITY

MODULE

LOCATION

COMPONENT

LOCATOR

RAM

1500 / 1500 Diesel STD key AT

13-14

12V D2664A Black 06 pin 06 Red (+) Ignition connector F Ground D2664A Black 06 pin 03 Black (-) Ignition connector F Mux D2664A Black 06 pin 04 Purple/Brown (+) Ignition connector F Ignition ~ Gray 04 pin 02 Pink/Green (+) Trailer pack connector, right of steering ~ Imo Lin D2664A Black 06 pin 05 White/Green (D ATA) Ignition connector F CanH D7405A Black 16 pin 06 Gray/White (D ATA) OBDII connector ~ CanL D7405A Black 16 pin 14 Yellow (DATA) OBDII connector ~ Parking Light D2242A Black 10 pin 01 White/Brown (MUX) Parking light switch A Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B

2500 / 2500 Diesel / 3500 / 3500 Diesel STD key AT

13-14

12V D2664A Black 06 pin 06 Red (+) Ignition connector F Ground D2664A Black 06 pin 03 Black (-) Ignition connector F Mux D2664A Black 06 pin 04 Purple/Brown (+) Ignition connector F Ignition ~ Gray 04 pin 02 Pink/Green (+) Trailer pack connector, right of steering ~ Imo Lin D2664A Black 06 pin 05 White/Green (D ATA) Ignition connector F CanH D7405A Black 16 pin 06 Gray/White (D ATA) OBDII connector ~ CanL D7405A Black 16 pin 14 Yellow (DATA) OBDII connector ~ Parking Light D2242A Black 10 pin 01 White/Brown (MUX) Parking light switch A Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B

PAGE 9 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

MS1MS1

MS2MS2

A

B

7 9

3

10

8

11 13

14

12

15 17

18

19

20

16

6

4

1

2

5

3

6

4

1

2

5

C

7 9

3

10

8

11

12

6

4

1

2

5

OBDII

C

10 11 12 13 14 15 16

1 2 3 4 5

6 7 8

9

VS2VS2

VS1VS1

A1

A2

1 2 3 4 5

6 7 8 9 10

B

D

7 9

3

10

8

6

4

1

2

5

C

B

A

F

G

E

D

CANL - 14

PARKING LIGHT (MUX) - 01

RAP SHUTDOWN (-)

HORN (-)

CANH - 06

02 GRAY - RAP SHUTDOWN (-) OUTPUT

TYPE 3 - WIRING DIAGRAM - 1 OF 1

OBDII CONNECTOR

PARKING LIGHT SWITCHPARKING LIGHT SWITCH

MODULE

11 GRAY/GREEN - HORN (-) OUTPUT

OPTIONAL

BROWN/RED BROWN/YELLOW

WHITE/BLACK (NC)

WHITE/BROWN

WHITE/RED (NC) WHITE (NC)

BLACK

DRIVER KICK PANEL

HARNESS

IGNITION CONNECTOR

IGNITION HARNESS

IGNITION NODE

AFTERMARKET HOOD SWITCH (-)

04 GRAY/WHITE - HOOD STATUS (-) INPUT

WITHOUT OEM HOOD SWITCH:

INSTALL AND CONNECT TO

AFTERMARKET HOOD SWITCH

TELEMATIC PORT

RF PORT/WEBLINK PORT

PAGE 10 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

01

02

03

04

OFF

ACC ON

START

05

06

OFF

ACC ON

START

07

OFF

ACC ON

START

08

OFF

ACC ON

START

09

OFF

ACC ON

START

10

11

OFF

ACC ON

START

12

13

14

15

OFF

ACC ON

START

16

17

OFF

ACC ON

START

18

OFF

ACC ON

START

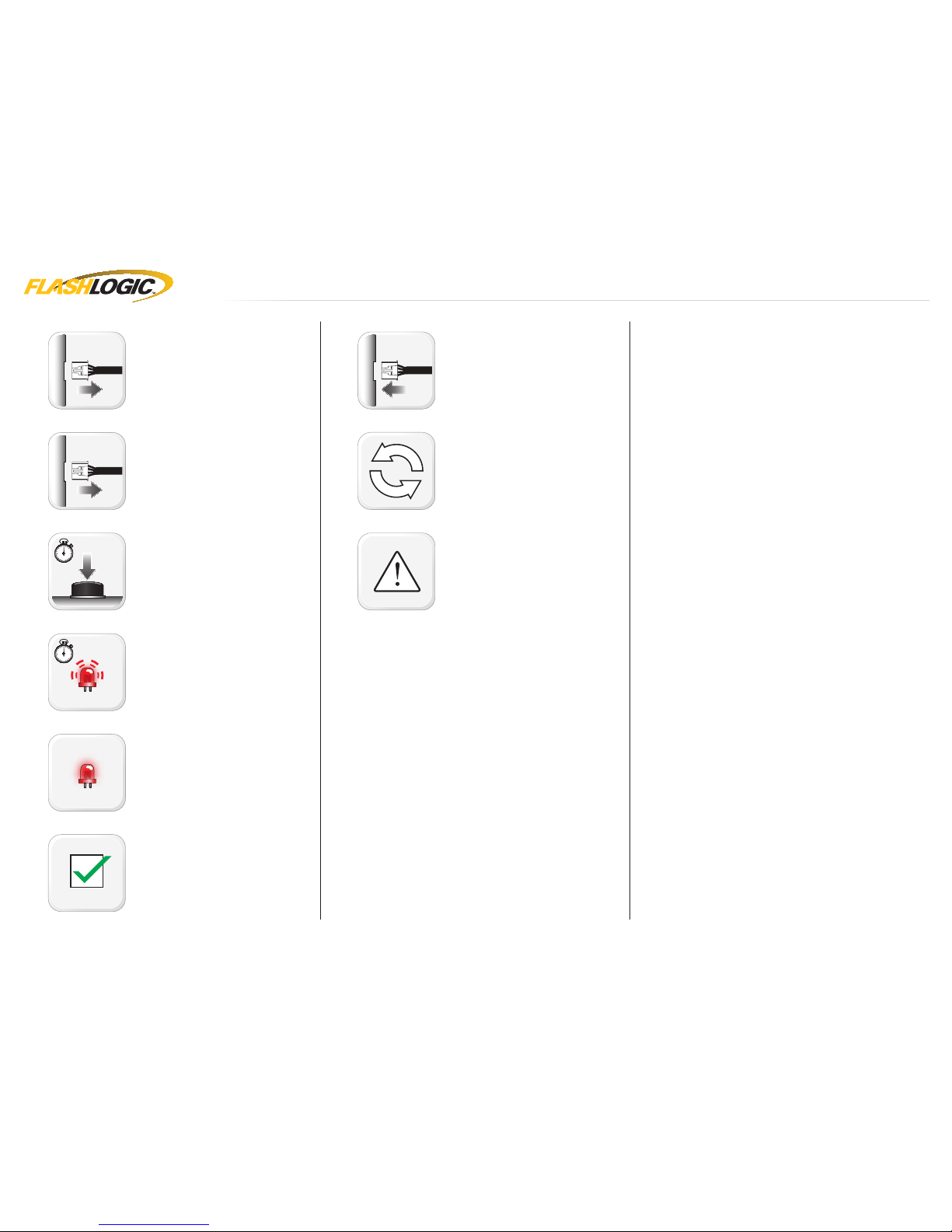

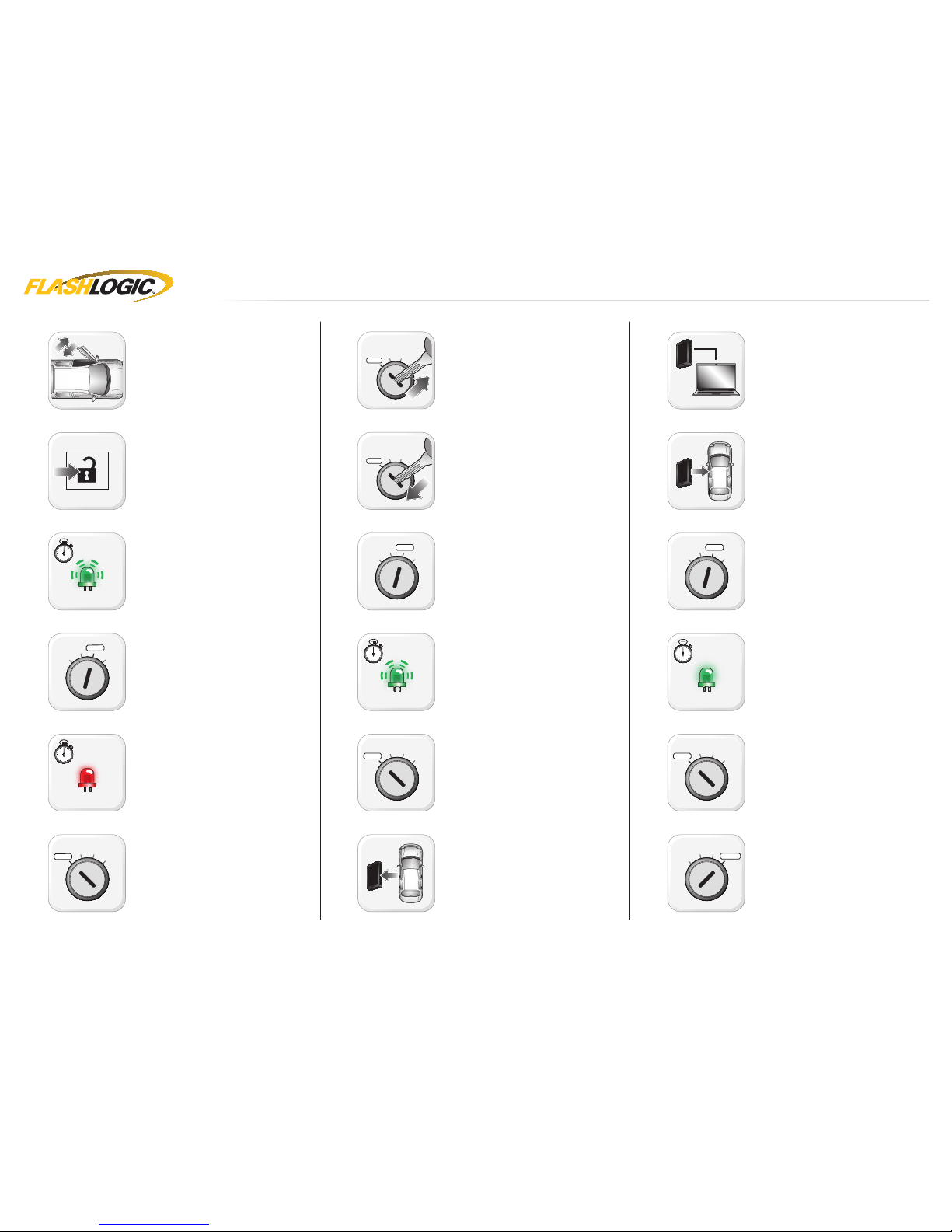

MODULE PROGRAMMING PROCEDURE - 1 OF 2

Close driver door. Re-open driver door to wake up data bus.

Press Unlock on OEM remote. If the vehicle is not equipped with an OEM remote, press the module programming button.

Wait, LED will ﬂ ash GREEN once [1x].

Turn key to ON position.

Wait, LED will turn solid RED.

Turn key to OFF position.

Remove key.

Insert key into ignition.

Turn key to ON position.

Wait, LED will ﬂ ash GREEN.

Turn key to OFF position.

WARNING: Disconnect power last. Disconnect module from vehicle.

Connect module to computer and proceed with extended programming.

WARNING: Do not press module programming button. Connect power ﬁ rst. Connect module to vehicle.

Turn key to ON position.

Wait, LED will turn solid GREEN for 2 seconds.

Turn key to OFF position.

Turn key to START position.

PAGE 11 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

19

OFF

ACC ON

START

20

MODULE PROGRAMMING PROCEDURE - 2 OF 2

Turn key to OFF position.

Module Programming Procedure completed.

PAGE 12 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

>>

01

OFF

ACC ON

START

02

03

OFF

ACC ON

START

OFF

5x

04

05

OFF

ACC ON

START

06

OFF

ACC ON

START

07

>>

VALET MODE PROGRAMMING PROCEDURE - 1 OF 1

NOTE: In Valet Mode, the Remote starter is not functional. Keyless entry, Lock and Unlock will remain functional. See RF kit user manual for alternate valet mode programming.

Insert key into ignition.

Time restriction. Complete next step within 7 seconds.

Turn key to OFF position then to ON position ﬁ ve times [5x] rapidly.

Wait, LED 1 will turn solid RED for 2 seconds.

Turn key to OFF position.

Remove key.

Valet Mode Programming Procedure completed.

To exit valet mode: repeat steps 1 to 6.

PAGE 13 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

AFTERMARKET REMOTE PROGRAMMING - 1 OF 1

AFTERMARKET REMOTE PROGRAMMING:

NOTES

I All aftermarket remotes must be programmed to the

RF-Kit.

Refer to the RF-Kit user guide for aftermarket remote features and programming procedures.

PAGE 14 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

>>

01

OFF

ACC ON

START

02

03

[X]

04

05

[Y]

06

07

[Z]

08

[Z]

09

10

11

[Y]

12

13

14

>>

MODULE NAVIGATION PROCEDURE - 1 OF 1

It is mandatory to exit the Module Navigation at the end of this procedure. Failure to exit the Module Navigation will drain vehicle battery. To exit the Module Navigation at any time: Follow STEP 13.

Module must be programmed to the vehicle.

Use the Module Navigation Chart on the next page.

Set ignition to OFF position.

TO ACCESS THE MENUS: Press and hold programming button until LED 1 turns solid GREEN.

IN THE MENUS: Press the programming button as many times as the menu number indicates. LED 1 will ﬂ ash GREEN an equal amount of times continuously.

TO ACCESS THE OPTIONS: Press and hold programming button until LED 1 turns solid RED.

IN THE OPTIONS: Press the programming button as many times as the option number indicates. LED 1 will ﬂ ash RED an equal amount of times continuously.

TO ACCESS THE SETTINGS: Press and hold programming button until LED 1 turns solid GREEN.

LED 1 will ﬂash GREEN as many times as the current (or default) setting number, continuously.

IN THE SETTINGS: Press the programming button as many times as necessary to access your setting. LED 1 will ﬂ ash GREEN an equal amount of times continuously.

To return to the MENUS: exit the Module Navigation and redo the Module Navigation Procedure.

To save and return to the OPTIONS: Press and hold programming button until LED 1 turns solid RED.

LED 1 will ﬂ ash RED as many times as the current option number continuously.

Conﬁgure every other setting and proceed to step 13.

MANDATORY: EXIT MODULE NAVIGATION. Press and hold programming button for 7 seconds. LED 1 will ﬂ ash RED rapidly. Release programming button. LED 1 will turn OFF.

Module navigation completed.

Failure to exit the Module Navigation will drain vehicle battery.

PAGE 15 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

MODULE NAVIGATION CHART - 1 OF 2

MODULE NAVIGATION CHART:

NOTES

[X] MENUS

[Y] OPTIONS

[Z] SETTINGS

I Default settings are listed in bold.

01 CONFIGURATION

01 DISARM/UNLOCK BEFORE START

01 OFF

II Make sure the option is covered on the vehicle before

attempting to change the setting.

02 ON

02 RELOCK AFTER START

01 OFF

02 ON

03 RELOCK AFTER SHUTDOWN

01 OFF

02 ON

04 FORCE UNLOCK ALL ON FIRST PRESS

01 OFF

02 ON

05 TAKEOVER

01 ENABLE

02 DISABLE* 06 N/A 01 N/A 07 N/A 01 N/A

08 MODULE RUN TIME

01 03 MIN

02 05 MIN

03 10 MIN

04 15 MIN

05 25 MIN

06 30 MIN

07 35 MIN

08 15 MIN

09 WAIT TO START DELAY

01 02 SEC

02 05 SEC

03 08 SEC

04 10 SEC

05 15 SEC

06 20 SEC

07 25 SEC

08 30 SEC 10 N/A 01 N/A 11 N/A 01 N/A 12 N/A 01 N/A 13 N/A 01 N/A

*Vehicle will shutdown when a door is opened.

PAGE 16 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

MODULE NAVIGATION CHART - 2 OF 2

MODULE NAVIGATION CHART:

NOTES

[X] MENUS

[Y] OPTIONS

[Z] SETTINGS

01 CONFIGURATION

14 HORN EVENT TRIGGER

01 DOUBLE LOCK

02 LOCK + UNLOCK

03 LOCK + UNLOCK + START

04 DOUBLE LOCK + START

15 HORN CHIRPS WIDTH

01 30 mSEC

02 15 mSec

03 60 mSec

02-07 Technical Support only 01 N/A 01 N/A

*Vehicle will shutdown when a door is opened.

PAGE 17 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

REMOTE STARTER ERROR CODES - 1 OF 1

REMOTE STARTER ERROR CODES:

NOTES

[X] NUMBER OF

PARKING LIGHT

FLASHES

DIAGNOSTIC

I WARNING: The following applies only when the parking

lights are connected and supported by the system.

03 Foot brake is ON. 04 Hood is open.

II After a remote starter failure, the parking lights will ﬂ ash

[X] number times to indicate an error code. See table.

05 Engine tach signal is lost. 06 System is in Valet Mode. 07 Vehicle is moving (VSS). 08 Glow plug timeout error. 09 RS not synchronized. Start vehicle with OEM key for 15 sec before trying a new RS sequence. 10 N/A 11 N/A 12 N/A 13 N/A 14 N/A 15 N/A 16 CAN communication failure during RS sequence.

PAGE 18 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

MODULE DIAGNOSTICS - 1 OF 1

TEST MODULE

LED 1 STATUS

DIAGNOSTIC

I DURING PROGRAMMING

Flashing RED Missing/wrong information from ﬁ rmware or vehicle. Solid RED Module waiting for more vehicle information. Flashing GREEN Additional steps required to complete module programming. Solid GREEN then OFF Module correctly programmed. OFF No activity or module already programmed.

II DURING REMOTE START

Flashing RED Module incorrectly programmed. Solid RED Module incorrectly programmed. Flashing GREEN Module correctly programmed and operational. Solid GREEN then OFF Reset in progress. OFF Invalid ground when running status from remote starter.

III WITH IGNITION OFF

Flashing RED Module incorrectly programmed or connected. Solid RED Module not programmed. Waiting for more vehicle information. Flashing GREEN False ground when running status from remote starter. Solid GREEN then OFF Reset in progress. OFF Module at rest and ready for a remote start sequence.

PAGE 19 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

01

02

03

04

05

06

07

08

>>

MODULE RESET PROCEDURE - 1 OF 1

Disconnect all connectors from module except the BLACK 20-PIN connector.

Disconnect the BLACK 20-PIN connector.

PRESS AND HOLD programming button while connecting the BLACK 20-PIN connector.

Wait, LED 1 will ﬂash RED. RELEASE programming button.

LED 1 will turn RED for 2 seconds.

Module RESET completed.

Reconnect all connectors.

Repeat programming procedure.

Failure to follow procedure may result with a DTC or a CHECK ENGINE error message.

PAGE 20 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

>>

01

02

OFF

ACC ON

START

03

OFF

ACC ON

START

04

05

>>

TAKEOVER PROCEDURE - STD KEY - 1 OF 1

All vehicle doors must be closed and locked prior to remote start sequence.

Press unlock on OEM or aftermarket remote.

Insert key into ignition.

Turn key to ON position.

Press and release BRAKE pedal.

Take over procedure completed.

Failure to follow procedure will result in vehicle engine shutdown.

PAGE 21 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441

U.S. Patent No. 8,856,780

INSTALLATION CHECKLIST - 1 OF 1

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press the LOCK button once [1x] on the aftermarket keyfob.

¨

Question 1: Do the doors lock? YES: Go to next step.

¨

NO: Verify the remote programming, the RF connections and the wired door lock/unlock connections as illustrated in the wiring diagram, if applicable. Repeat the test and call technical support, if the problem persists.

4 Press the UNLOCK button once [1x] on the aftermarket keyfob.

¨

Question 2: Do the doors unlock? YES: Go to next step.

¨

NO: Verify the remote programming, the RF connections and the wired door lock/unlock connections as illustrated in the wiring diagram, if applicable. Repeat the test and call technical support, if the problem persists.

5 Press the TRUNK release button once [1x] on the aftermarket keyfob if supported.

¨

Question 3: Does the trunk or hatch open/unlock? YES: Close trunk or hatch and go to next step.

¨

NO: Verify the remote programming, the RF connections and the wired trunk/hatch connections as illustrated in the wiring diagram, if applicable. Repeat the test and call technical support, if the problem persists.

6 Press the AUX 1 button once [1x] on the aftermarket keyfob if supported.

¨

Question 4: Does the driver side sliding door open? YES: Press the AUX 1 button once [1x] to close the driver sliding door and go to next step.

¨

NO: Verify the remote programming and the RF connections. Repeat the test and call technical support, if the problem persists.

7 Press the AUX 2 button once [1x] on the aftermarket keyfob if supported.

¨

Question 5: Does the passenger side sliding door open? YES: Press the AUX 2 button once [1x] to close the passenger sliding door and go to next step.

¨

NO: Verify the remote programming and the RF connections. Repeat the test and call technical support, if the problem persists.

8 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.

¨

Question 6: Does the vehicle remote start? YES: Go to next step.

¨

NO: Verify the remote programming, the RF connections and check the remote start error codes. Repeat the test and call technical support, if the problem persists.

9 Press the START/STOP button once [1x] on the aftermarket keyfob to shut down vehicle.

¨

Question 7: Does the vehicle shut down? YES: Go to next step.

¨

NO: Repeat step. If problem persists, press the brake pedal once [1x] to shut down the vehicle and call technical support.

10 RAP and auto light shutdown test

¨

Question 8: Did the radio, interior controls and headlights turn off within 60 seconds after remote start shutdown?

YES: Go to next step.

¨

NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support if the problem persists.

11 Open hood.

12

If not already installed, afﬁ x the mandatory orange warning sticker under the hood and proceed to next step.

13 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.

¨

Question 9: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.

¨

NO: Go to next step. 14 Close hood. 15 Enter vehicle and close the doors. 16 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle. 17 Wait for the vehicle to start. 18 Press brake pedal.

¨

Question 10: Does the vehicle shut down?

YES: Go to next step.

¨

NO: The module does NOT detect the brake pedal signal. Press the START/STOP button once

[1x] on the aftermarket keyfob to shut down vehicle, check connection as illustrated in the

wiring diagram, if applicable, and call technical support.

19 Exit vehicle. 20 Installation checklist completed.

CHECKLIST

PAGE 22 OF 22

• 20141105

FLCCHRSCH8FLRSCH7EN

DOC.: #17441
