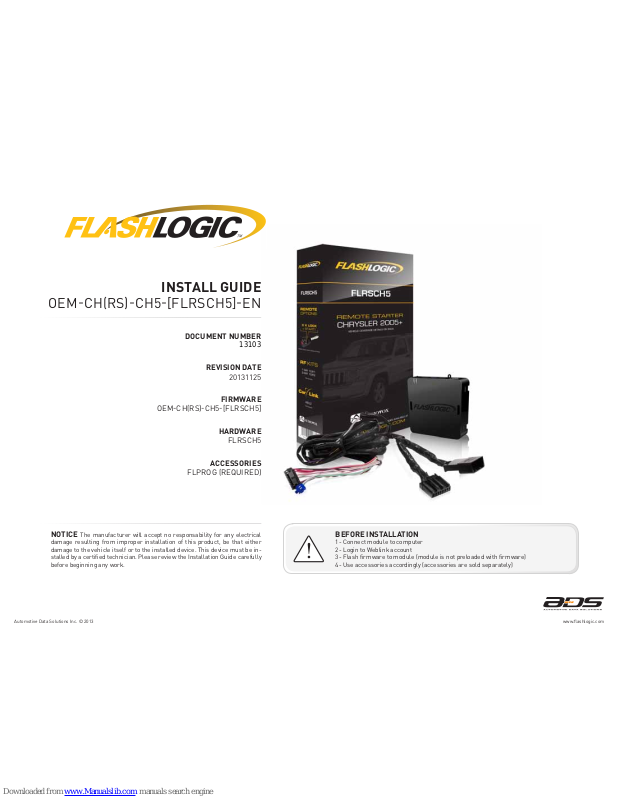

FlashLogic FLRSCH5, FLC-CH(RS)-CH5-[FLRSCH5]-EN Install Manual

REVISION DATE

20131125

DOCUMENT NUMBER

NOTICE The manufacturer will accept no responsability for any electrical

damage resulting from improper installation of this product, be that either
damage to the vehicle itself or to the installed device. This device must be in­stalled by a certified technician. Please review the Installation Guide carefully
before beginning any work.

BEFORE INSTALLATION

1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)

INSTALL GUIDE

OEMCHRSCH5FLRSCH5EN

HARDWARE

FLRSCH5

FIRMWARE

OEMCHRSCH5FLRSCH5

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

ACCESSORIES

FLPROG REQUIRED

13103

VEHICLE LIST - 1 OF 1

MAKE

MODEL

YEAR

INSTALL TYPE

FEATURES

DATA IMMOBILIZER BYPASS

3X LOCK REMOTE START

PRIORITY UNLOCK

DOOR LOCK

DOOR UNLOCK

ARM OEM ALARM

DISARM OEM ALARM

TRUNK/HATCH RELEASE

DATA/MUX STARTER CTRL

DOOR STATUS

BRAKE PEDAL STATUS

TACHOMETER STATUS

PARKING LIGHT CTRL*

RAP SHUTDOWN CTRL

CHRYSLER

200 AT 11-13 2 • • • • • • • • • • • • • •
300 / 300C AT 05-07 1 or 3 • • • • • • • • • • • • • •
Aspen AT 07-10 2 • • • • • • • • • • • • • •
PT Cruiser AT 06-10 1 or 3 • • • • • • • • • • • • • •
Sebring AT 07-10 2 • • • • • • • • • • • • • •

DODGE

Avenger AT 08-13 2 • • • • • • • • • • • • • •
Caliber (with start wire) AT 07 1 or 3 • • • • • • • • • • • • • •
Caliber AT 07-12 2 • • • • • • • • • • • • • •
Charger AT 06-07 1 or 3 • • • • • • • • • • • • • •
Durango AT 07-10 2 • • • • • • • • • • • • • •
Magnum AT 05-07 1 or 3 • • • • • • • • • • • • • •
Nitro AT 07-11 2 • • • • • • • • • • • • •
Ram 1500 AT 07-08 2 • • • • • • • • • • • • •
Ram 2500 AT 07-09 2 • • • • • • • • • • • • •
Ram 3500 AT 07-09 2 • • • • • • • • • • • • •
Ram 3500 chassis cab AT 07-09 2 • • • • • • • • • • • • •
Ram 4500 chassis cab AT 08-10 2 • • • • • • • • • • • • •
Ram 5500 chassis cab AT 08-10 2 • • • • • • • • • • • • •

JEEP

Commander AT 06-07 1 or 3 • • • • • • • • • • • • • •
Compass AT 07-13 2 • • • • • • • • • • • • • •
Grand Cherokee AT 05-07 1 or 3 • • • • • • • • • • • • • •
Liberty AT 08-12 2 • • • • • • • • • • • • •
Patriot AT 07-13 2 • • • • • • • • •

• • • • •

Wrangler AT 07-13 2 • • • • • • • • • • • • •

RAM

4500 chassis cab AT 10 2 • • • • • • • • • • • • •
5500 chassis cab AT 10 2 • • • • • • • • • • • • •

* May require additional parts.

WARNING

I Install Type 1 requires a T-harness manufactured before 2013/11/04

Install Type 3 requires a T-harness manufactured after 2013/11/05

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 2 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

BOX CONTENTS - 1 OF 1

C

B

A

D

E

VS2VS2

VS1VS1

MS1MS1

MS2MS2

F

G

RF PORT/WEBLINK PORT

TELEMATIC PORT

BOX CONTENTS

T-HARNESS 1

AFTERMARKET HOOD SWITCH AND CABLE

WARNING STICKER

10 PIN CONNECTOR

12 PIN CONNECTOR

MODULE

LED 2

LED 1

PROGRAMMING
BUTTON

WEBLINK CABLE (required accessory sold separately)

WEBLINK CABLE

COMPUTER

USB PORT

4 PIN BLACK CABLE

MODULE

WEBLINK PORT

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 3 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

TYPE 1 - WIRE CHART - 1 OF 1

MAKE

MODEL

YEAR

WIRE

DESCRIPTION

CONNECTOR

NAME

CONNECTOR

COLOR

CONNECTOR

TYPE

POSITION

WIRE

COLOR

POLARITY

MODULE

LOCATION

COMPONENT

LOCATOR

CHRYSLER

300/300C 05-07

Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/DkGreen (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

PT Cruiser 06-10

Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/LtBlue (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Brown/Tan (-) Switch ~

DODGE

Caliber
(with start wire)

07

Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/DkGreen (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple/Blue (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ ~ ~ ~ ~

Charger 06-07

Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/DkGreen (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

Magnum 05-07

Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/DkGreen (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

JEEP

Commander 06-07

Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/Orange (+) Ignition switch ~
Parking Light* ~ ~ ~ 85 ~ (-) Parking light relay, engine compartment. ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

Grand Cherokee 05-07

Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/Orange (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple/Blue (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

* Requires additional parts.

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 4 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

86

30

87

87A

85

10 AMPS

A

B

7
9

3

10

8

11
13

14

12

15
17

18

19

20

16

6

4

1

2

5

3

6

4

1

2

5

C

7
9

3

10

8

11

12

6

4

1

2

5

MS1MS1

MS2MS2

B1

A1

B1

12345

24

C

B

A

D

E

VS2VS2

VS1VS1

A1

A2

F

G

D

7
9

3

10

8

6

4

1

2

5

6

2

17
19

NOTE 1

NOTE 2

2013/11/04

DRIVER DOOR PIN (-)

WHITE/BROWN (NC)

PARKING LIGHT (-)

PARKING LIGHT (+)

12V (+)

CONNECT IF VEHICLE

IS EQUIPPED WITH
PARKING LIGHT (-)

CONNECT IF VEHICLE

IS EQUIPPED WITH
PARKING LIGHT (+)

OR

PARKING LIGHT CONNECTION

HORN (-)

OPTIONAL

CONTROL (MUX) - 02

STARTER (+) - 04

WHITE/RED

WHITE/GREEN

WHITE/YELLOW - CONTROL (MUX) OUTPUT

PURPLE - STARTER (+) OUTPUT

CUT AND INSULATE

THE WHITE/YELLOW WIRE

(NEXT TO WHITE/GRAY WIRE)

INSULATE WIRE

REMOVE THE WHITE/GREEN WIRE FROM THE BLUE

CONNECTOR AND RE-INSERT IT IN PIN 6 (AS SHOWN)

(SEE DETAILED INSTRUCTIONS ON THE NEXT PAGE)

CONNECT THE WHITE/GREEN WIRE TO THE PINK WIRE

AND CONNECT THE WHITE/RED WIRE TO THE RED WIRE

(SEE DETAILED INSTRUCTIONS ON THE NEXT PAGE)

01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT

02 WHITE/RED

06 WHITE/GREEN

02 PINK
06 RED

02 GRAY - RAP SHUTDOWN (-) OUTPUT

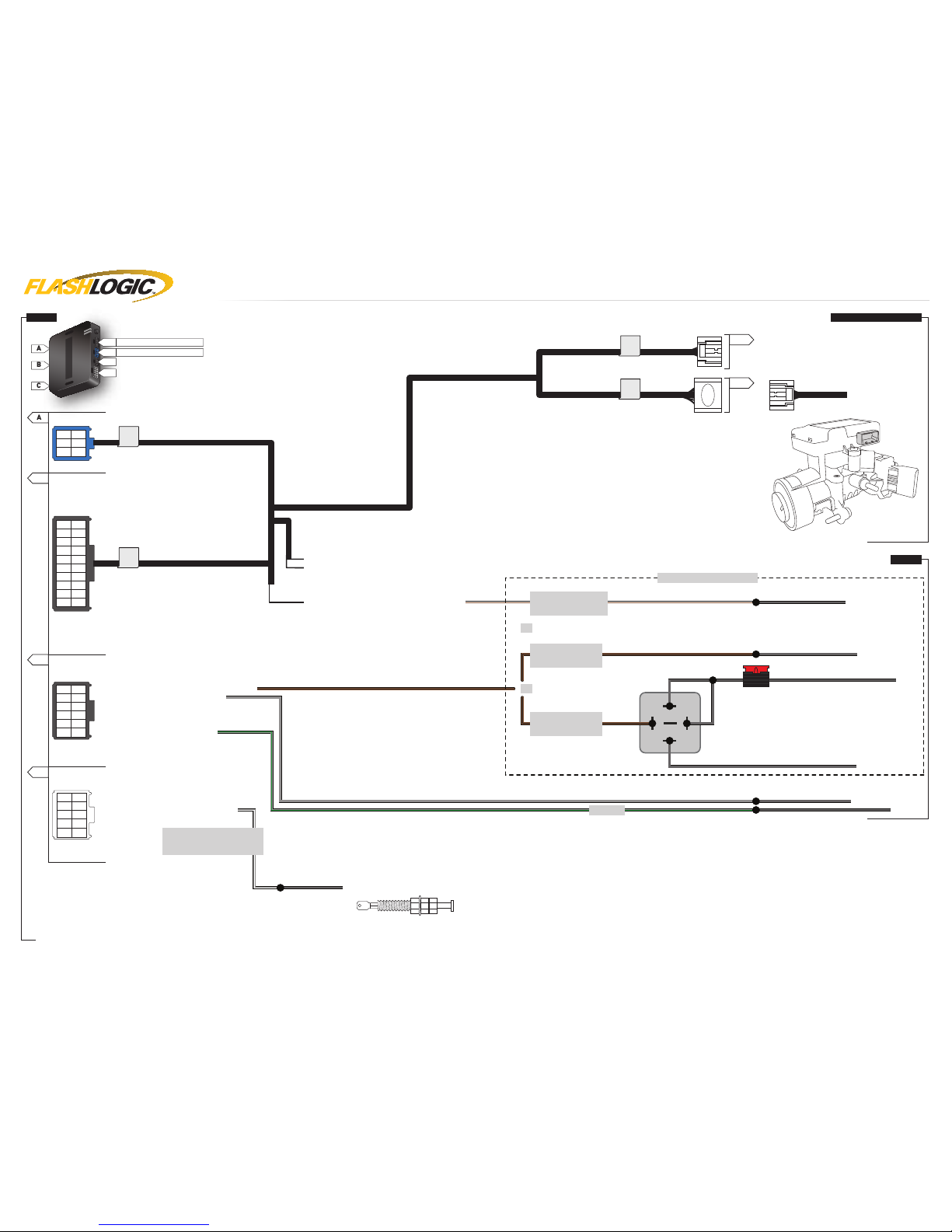

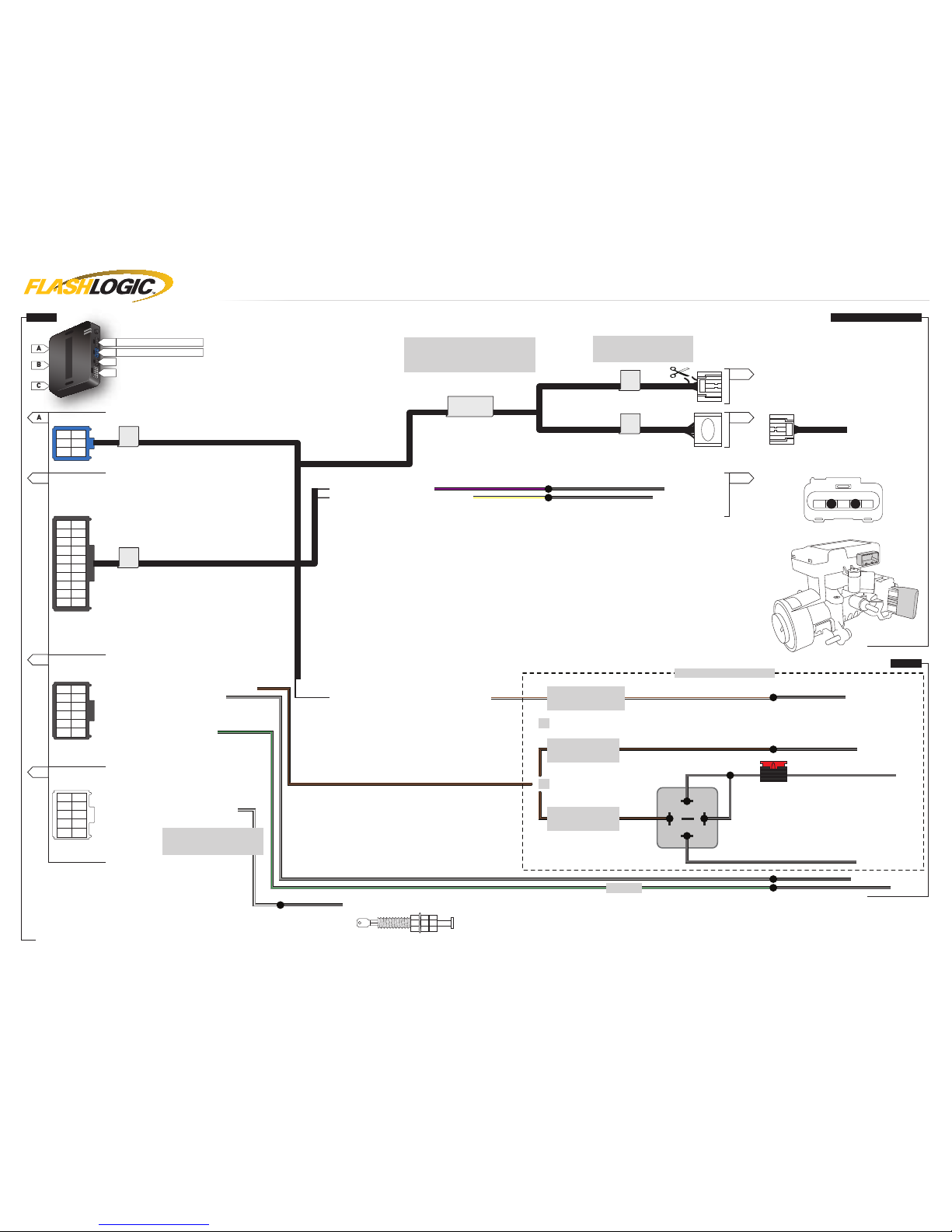

TYPE 1 - WIRING DIAGRAM - 1 OF 2

VEHICLE IGNITION SWITCHMODULE

11 GRAY/GREEN - HORN (-) OUTPUT

VEHICLE

IGNITION CONNECTOR

IGNITION HARNESS

TELEMATIC PORT

RF PORT/WEBLINK PORT

AFTERMARKET HOOD SWITCH (-)

04 GRAY/WHITE - HOOD STATUS (-) INPUT

WITHOUT OEM HOOD SWITCH:

INSTALL AND CONNECT TO

AFTERMARKET HOOD SWITCH

WARNING

THIS WIRING DIAGRAM IS APPLICABLE

ONLY IF THE REVISION DATE

OF THE T-HARSNESS IS BEFORE:

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 5 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

NOTE 1 NOTE 2

3

6 412

5

4 2

3

6 412

5

6 2

WHITE/RED

WHITE/GREEN

WHITE/RED

WHITE/GREEN

STEP 1:

-REMOVE THE WHITE/GREEN WIRE FROM THE BLUE CONNECTOR CAREFULLY.

-USE A UTILITY KNIFE TO PUSH GENTLY AGAINST THE LOCKING TAB.

-DO NOT DAMAGE THE LOCKING TAB IN THE PROCESS.

STEP 1:

-IDENTIFY THE PINK (PIN 17) AND RED (PIN 19) WIRES FROM THE 20 PIN BLACK CONNECTOR OF THE T‐HARNESS.

-CAREFULLY STRIP THE PINK AND RED WIRES USING A WIRE STRIPPER.

-DO NOT CUT THE WIRES IN THE PROCESS.

STEP 2:

-CONNECT AND SOLDER THE WHITE/RED WIRE TO THE RED WIRE.

-CONNECT AND SOLDER THE WHITE/GREEN WIRE TO THE PINK WIRE.

STEP 2:

-USING A UTILITY KNIFE, LIFT THE LOCKING TAB CAREFULLY FOR IT TO BE RE-USED.

STEP 3:

-INSERT THE WIRE IN PIN 6 OF THE CONNECTOR, RIGHT NEXT TO WHERE IT USED TO BE.

STEP 3:

-INSULATE THE CONNECTIONS WITH ELECTRICAL TAPE.

TYPE 1 - WIRING DIAGRAM - 2 OF 2

WARNING

FAILURE TO PROPERLY SOLDER

CAN RESULT IN

FAULTY CONNECTIONS AND

PRODUCT MALFUNCTION

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 6 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

TYPE 2 - WIRE CHART - 1 OF 3

MAKE

MODEL

YEAR

WIRE

DESCRIPTION

CONNECTOR

NAME

CONNECTOR

COLOR

CONNECTOR

TYPE

POSITION

WIRE

COLOR

POLARITY

MODULE

LOCATION

COMPONENT

LOCATOR

CHRYSLER

200 11-13

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

Aspen 07-10

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ Pink/Red (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Violet (-) Driver door module ~
Hood Status ~ ~ ~ ~ Purple/Blue (-) Switch ~

Sebring 07-10

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

DODGE

Avenger 08-13

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ ~ ~ ~ ~

Caliber 07-12

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple/Blue (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

Durango 07-10

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ Pink/Red (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Violet (-) Driver door module ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

DODGE

Nitro 07-11

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple + White/Green (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

* Requires additional parts.

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 7 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

TYPE 2 - WIRE CHART - 2 OF 3

MAKE

MODEL

YEAR

WIRE

DESCRIPTION

CONNECTOR

NAME

CONNECTOR

COLOR

CONNECTOR

TYPE

POSITION

WIRE

COLOR

POLARITY

MODULE

LOCATION

COMPONENT

LOCATOR

DODGE

Ram 1500 07-09

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ White/Green (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

Ram 2500 07-09

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ White/Green (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

Ram 3500 07-09

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ ~ ~ ~ ~
Driver Door Pin ~ ~ ~ ~ ~ ~ ~ ~
Hood Status ~ ~ ~ ~ ~ ~ ~ ~

Ram 4500 08-10

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ White/Green (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

Ram 5500 08-10

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ White/Green (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

JEEP

Compass 07-13

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple/Blue (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/Blue (-) Switch ~

Liberty 08-12

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

* Requires additional parts.

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 8 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

TYPE 2 - WIRE CHART - 3 OF 3

MAKE

MODEL

YEAR

WIRE

DESCRIPTION

CONNECTOR

NAME

CONNECTOR

COLOR

CONNECTOR

TYPE

POSITION

WIRE

COLOR

POLARITY

MODULE

LOCATION

COMPONENT

LOCATOR

JEEP

Patriot 07-13

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple/Blue (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ ~ ~ ~ ~

Wrangler 07-13

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple + White/Orange (+) Passenger kick pad ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

RAM

4500 10

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ White/Green (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

5500 10

Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ White/Green (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

* Requires additional parts.

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 9 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

A

B

7
9

3

10

8

11
13

14

12

15
17

18

19

20

16

6

4

1

2

5

3

6

4

1

2

5

C

7
9

3

10

8

11

12

6

4

1

2

5

VS2VS2

VS1VS1

MS1MS1

MS2MS2

A1

A2

A1

C

B

A

D

E

86

30

87

87A

85

10 AMPS

F

G

D

7
9

3

10

8

6

4

1

2

5

IGNITION CONNECTOR

IGNITION HARNESS

01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY - RAP SHUTDOWN (-) OUTPUT

WHITE/BROWN - PARKING LIGHT (MUX) OUTPUT

WHITE/YELLOW (NC)

PURPLE (NC)

TYPE 2 - WIRING DIAGRAM - 1 OF 1

VEHICLE IGNITION SWITCHMODULE

11 GRAY/GREEN - HORN (-) OUTPUT

VEHICLE

DRIVER DOOR PIN (-)

PARKING LIGHT (MUX)

PARKING LIGHT (-)

PARKING LIGHT (+)

12V (+)

CONNECT IF VEHICLE

IS EQUIPPED WITH

PARKING LIGHT (MUX)

CONNECT IF VEHICLE

IS EQUIPPED WITH
PARKING LIGHT (-)

CONNECT IF VEHICLE

IS EQUIPPED WITH

PARKING LIGHT (+)

OR

OR

PARKING LIGHT CONNECTION

HORN (-)

OPTIONAL

TELEMATIC PORT

RF PORT/WEBLINK PORT

AFTERMARKET HOOD SWITCH (-)

04 GRAY/WHITE - HOOD STATUS (-) INPUT

WITHOUT OEM HOOD SWITCH:

INSTALL AND CONNECT TO

AFTERMARKET HOOD SWITCH

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 10 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

TYPE 3 - WIRE CHART - 1 OF 1

MAKE

MODEL

YEAR

WIRE

DESCRIPTION

CONNECTOR

NAME

CONNECTOR

COLOR

CONNECTOR

TYPE

POSITION

WIRE

COLOR

POLARITY

MODULE

LOCATION

COMPONENT

LOCATOR

CHRYSLER

300/300C 05-07

Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/DkGreen (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

PT Cruiser 06-10

Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/LtBlue (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Brown/Tan (-) Switch ~

DODGE

Caliber
(with start wire)

07

Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/DkGreen (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple/Blue (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ ~ ~ ~ ~

Charger 06-07

Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/DkGreen (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

Magnum 05-07

Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/DkGreen (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

JEEP

Commander 06-07

Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/Orange (+) Ignition switch ~
Parking Light* ~ ~ ~ 85 ~ (-) Parking light relay, engine compartment. ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

Grand Cherokee 05-07

Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/Orange (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple/Blue (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~

* Requires additional parts.

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 11 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

86

30

87

87A

85

10 AMPS

A

B

7
9

3

10

8

11
13

14

12

15
17

18

19

20

16

6

4

1

2

5

3

6

4

1

2

5

C

7
9

3

10

8

11

12

6

4

1

2

5

MS1MS1

MS2MS2

B1

A1

B1

12345

24

C

B

A

D

E

VS2VS2

VS1VS1

A1

A2

F

G

D

7
9

3

10

8

6

4

1

2

5

2013/11/05

DRIVER DOOR PIN (-)

WHITE/BROWN - PARKING LIGHT (MUX) OUTPUT

PARKING LIGHT (MUX)

PARKING LIGHT (-)

PARKING LIGHT (+)

12V (+)

CONNECT IF VEHICLE

IS EQUIPPED WITH

PARKING LIGHT (MUX)

CONNECT IF VEHICLE

IS EQUIPPED WITH
PARKING LIGHT (-)

CONNECT IF VEHICLE

IS EQUIPPED WITH

PARKING LIGHT (+)

OR

OR

PARKING LIGHT CONNECTION

HORN (-)

OPTIONAL

CONTROL (MUX) - 02

STARTER (+) - 04

WHITE/YELLOW - CONTROL (MUX) OUTPUT

PURPLE - STARTER (+) OUTPUT

CUT AND INSULATE

THE WHITE/YELLOW WIRE

(NEXT TO WHITE/GRAY WIRE)

01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY - RAP SHUTDOWN (-) OUTPUT

TYPE 3 - WIRING DIAGRAM - 1 OF 1

VEHICLE IGNITION SWITCHMODULE

11 GRAY/GREEN - HORN (-) OUTPUT

VEHICLE

IGNITION CONNECTOR

IGNITION HARNESS

TELEMATIC PORT

RF PORT/WEBLINK PORT

AFTERMARKET HOOD SWITCH (-)

04 GRAY/WHITE - HOOD STATUS (-) INPUT

WITHOUT OEM HOOD SWITCH:

INSTALL AND CONNECT TO

AFTERMARKET HOOD SWITCH

WARNING

THIS WIRING DIAGRAM IS APPLICABLE

ONLY IF THE REVISION DATE

OF THE T-HARSNESS IS AFTER:

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 12 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

01

02

03

OFF

ACC ON

START

04

OFF

ACC ON

START

05

06

07

OFF

ACC ON

START

08

OFF

ACC ON

START

09

10

11

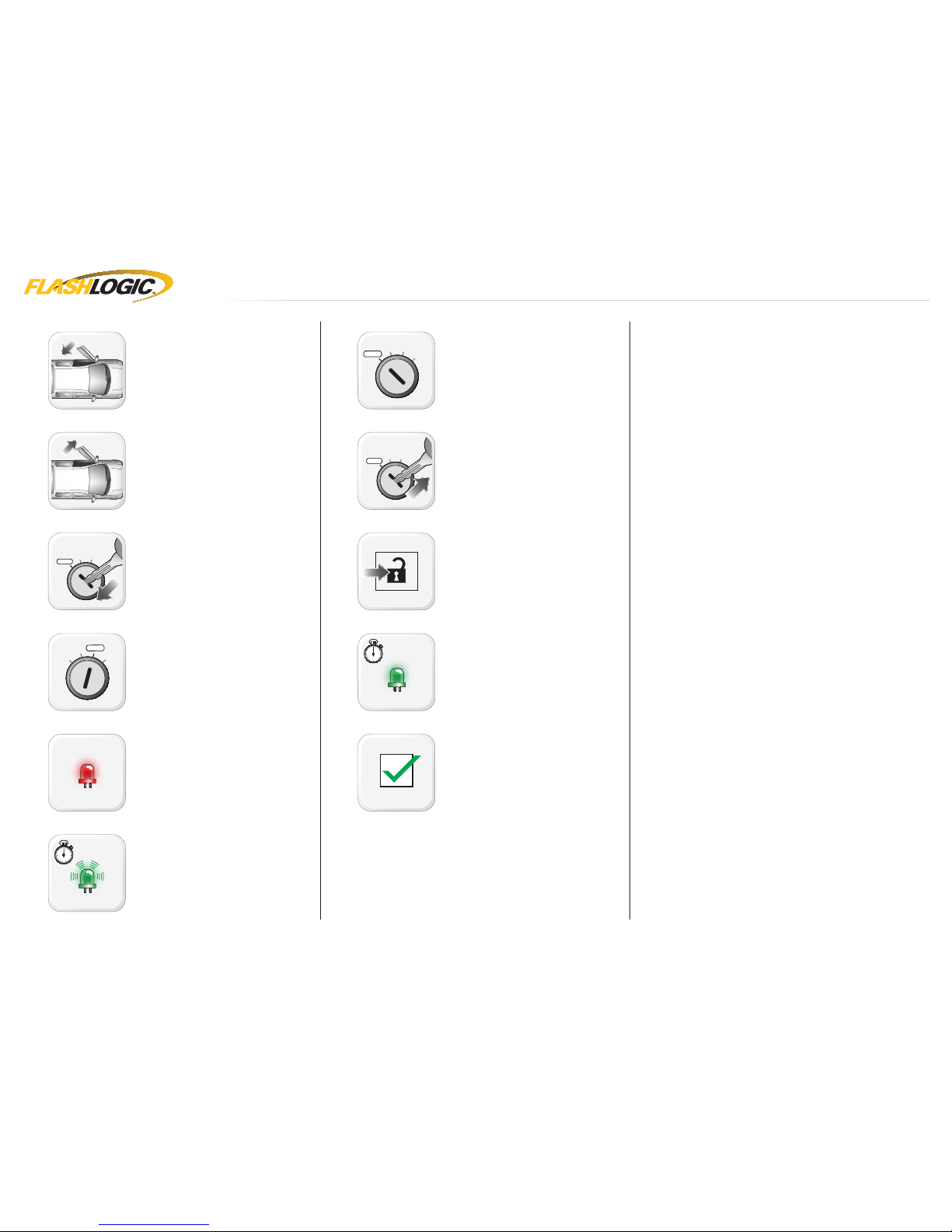

MODULE PROGRAMMING PROCEDURE - STD KEY - 1 OF 1

Close driver door.

Re-open driver door to wake up data bus.

Insert key into ignition.

Turn key to ON position.

LED will turn solid RED.

Within 5 seconds, LED will fl ash GREEN
rapidly.

Turn key to OFF position.

Remove key.

Press UNLOCK on the OEM remote. If vehicle
is not equipped with OEM remote, press
module programming button.

Wait, LED will turn solid GREEN for 2 seconds.

Module Programming Procedure completed.

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 13 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

>>

01

OFF

ACC ON

START

02

03

OFF

ACC ON

START

OFF

5x

04

05

OFF

ACC ON

START

06

OFF

ACC ON

START

07

>>

VALET MODE PROGRAMMING PROCEDURE - 1 OF 1

NOTE: In Valet Mode, the Remote starter is not
functional. Keyless entry, Lock and Unlock will
remain functional. See RF kit user manual for
alternate valet mode programming.

Insert key into ignition.

Time restriction. Complete next step within 7
seconds.

Turn key to OFF position then to ON position
fi ve times [5x] rapidly.

Wait, LED 1 will turn solid RED for 2 seconds.

Turn key to OFF position.

Remove key.

Valet Mode Programming Procedure
completed.

To exit valet mode: repeat steps 1 to 6.

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 14 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

>>

>>

>>

01

OFF

ACC ON

START

02

03

[X]

04

05

[Y]

06

07

[Z]

08

[Z]

09

10

11

[Y]

12

13

14

>>

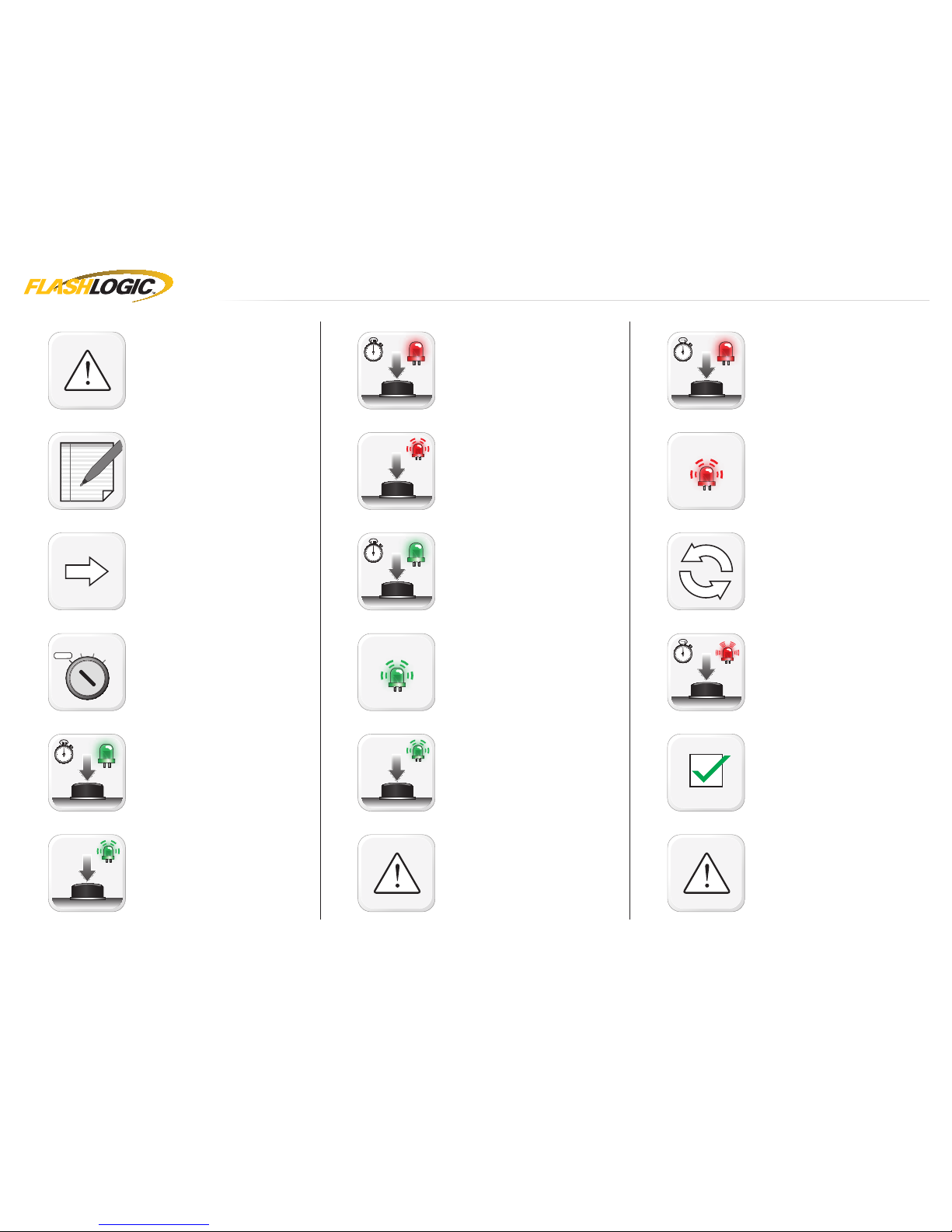

MODULE NAVIGATION PROCEDURE - 1 OF 1

It is mandatory to exit the Module Navigation
at the end of this procedure. Failure to exit the
Module Navigation will drain vehicle battery.
To exit the Module Navigation at any time:
Follow STEP 13.

Module must be programmed to the vehicle.

Use the Module Navigation Chart on the next
page.

Set ignition to OFF position.

TO ACCESS THE MENUS: Press and hold
programming button until LED 1 turns solid
GREEN.

IN THE MENUS: Press the programming
button as many times as the menu number
indicates. LED 1 will fl ash GREEN an equal
amount of times continuously.

TO ACCESS THE OPTIONS: Press and hold
programming button until LED 1 turns solid
RED.

IN THE OPTIONS: Press the programming
button as many times as the option number
indicates. LED 1 will fl ash RED an equal
amount of times continuously.

TO ACCESS THE SETTINGS: Press and hold
programming button until LED 1 turns solid
GREEN.

LED 1 will flash GREEN as many times as
the current (or default) setting number,
continuously.

IN THE SETTINGS: Press the programming
button as many times as necessary to access
your setting. LED 1 will fl ash GREEN an equal
amount of times continuously.

To return to the MENUS: exit the Module
Navigation and redo the Module Navigation
Procedure.

To save and return to the OPTIONS: Press and
hold programming button until LED 1 turns
solid RED.

LED 1 will fl ash RED as many times as the
current option number continuously.

Configure every other setting and proceed to
step 13.

MANDATORY: EXIT MODULE NAVIGATION.
Press and hold programming button for 7
seconds. LED 1 will fl ash RED rapidly. Release
programming button. LED 1 will turn OFF.

Module navigation completed.

Failure to exit the Module Navigation will drain
vehicle battery.

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 15 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

MODULE NAVIGATION CHART - 1 OF 2

MODULE NAVIGATION CHART:

NOTES

[X] MENUS

[Y] OPTIONS

[Z] SETTINGS

I Default settings are listed in bold.

01 CONFIGURATION

01 DISARM/UNLOCK BEFORE START

01 OFF

II Make sure the option is covered on the vehicle before

attempting to change the setting.

02 ON

02 RELOCK AFTER START

01 OFF

02 ON

03 RELOCK AFTER SHUTDOWN

01 OFF

02 ON

04 FORCE UNLOCK ALL ON FIRST PRESS

01 OFF

02 ON

05 TAKEOVER

01 ENABLE

02 DISABLE*

06 N/A 01 N/A

07 FACTORY KEYLESS RS SEQUENCE

01 DISABLE
02 N/A
03 LOCK + UNLOCK + LOCK

04 LOCK + LOCK + LOCK

08 MODULE RUN TIME

01 03 MIN
02 05 MIN
03 10 MIN
04 15 MIN
05 25 MIN
06 30 MIN
07 35 MIN

08 15 MIN

09 WAIT TO START DELAY

01 02 SEC

02 05 SEC
03 08 SEC
04 10 SEC
05 15 SEC
06 20 SEC
07 25 SEC

08 30 SEC
10 N/A 01 N/A
11 N/A 01 N/A
12 N/A 01 N/A
13 N/A 01 N/A

*Vehicle will shutdown when a door is opened.

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 16 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

MODULE NAVIGATION CHART - 2 OF 2

MODULE NAVIGATION CHART:

NOTES

[X] MENUS

[Y] OPTIONS

[Z] SETTINGS

01 CONFIGURATION

14 HORN EVENT TRIGGER

01 DOUBLE LOCK

02 LOCK + UNLOCK

03 LOCK + UNLOCK + START

04 DOUBLE LOCK + START

15 HORN CHIRPS WIDTH

01 30 mSEC

02 15 mSec

03 60 mSec

02-07 Technical Support only 01 N/A 01 N/A

*Vehicle will shutdown when a door is opened.

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 17 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

REMOTE STARTER ERROR CODES - 1 OF 1

REMOTE STARTER ERROR CODES:

NOTES

[X] NUMBER OF

PARKING LIGHT

FLASHES

DIAGNOSTIC

I WARNING: The following applies only when the parking

lights are connected and supported by the system.

03 Foot brake is ON.
04 Hood is open.

II After a remote starter failure, the parking lights will fl ash

[X] number times to indicate an error code. See table.

05 Engine tach signal is lost.
06 System is in Valet Mode.
07 Vehicle is moving (VSS).
08 Glow plug timeout error.
09 RS not synchronized. Start vehicle with OEM key for 15 sec before trying a new RS sequence.
10 N/A
11 N/A
12 N/A
13 N/A
14 N/A
15 N/A
16 CAN communication failure during RS sequence.

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 18 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

MODULE DIAGNOSTICS - 1 OF 1

TEST MODULE

LED 1 STATUS

DIAGNOSTIC

I DURING PROGRAMMING

Flashing RED Missing/wrong information from fi rmware or vehicle.
Solid RED Module waiting for more vehicle information.
Flashing GREEN Additional steps required to complete module programming.
Solid GREEN then OFF Module correctly programmed.
OFF No activity or module already programmed.

II DURING REMOTE START

Flashing RED Module incorrectly programmed.
Solid RED Module incorrectly programmed.
Flashing GREEN Module correctly programmed and operational.
Solid GREEN then OFF Reset in progress.
OFF Invalid ground when running status from remote starter.

III WITH IGNITION OFF

Flashing RED Module incorrectly programmed or connected.
Solid RED Module not programmed. Waiting for more vehicle information.
Flashing GREEN False ground when running status from remote starter.
Solid GREEN then OFF Reset in progress.
OFF Module at rest and ready for a remote start sequence.

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 19 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

01

02

03

04

05

06

07

08

>>

MODULE RESET PROCEDURE - 1 OF 1

Disconnect all connectors from module except
the BLACK 20-PIN connector.

Disconnect the BLACK 20-PIN connector.

PRESS AND HOLD programming button while
connecting the BLACK 20-PIN connector.

Wait, LED 1 will flash RED. RELEASE
programming button.

LED 1 will turn RED for 2 seconds.

Module RESET completed.

Reconnect all connectors.

Repeat programming procedure.

Failure to follow procedure may result with a
DTC or a CHECK ENGINE error message.

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 20 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103

>>

01

02

OFF

ACC ON

START

03

OFF

ACC ON

START

04

05

>>

TAKEOVER PROCEDURE - STD KEY - 1 OF 1

All vehicle doors must be closed and locked
prior to remote start sequence.

Press unlock on OEM or aftermarket remote.

Insert key into ignition.

Turn key to ON position.

Press and release BRAKE pedal.

Take over procedure completed.

Failure to follow procedure will result in
vehicle engine shutdown.

www.flashlogic.comAutomotive Data Solutions Inc. © 2013

PAGE 21 OF 21

• 20131125

OEMCHRSCH5FLRSCH5EN

DOC.: #13103
