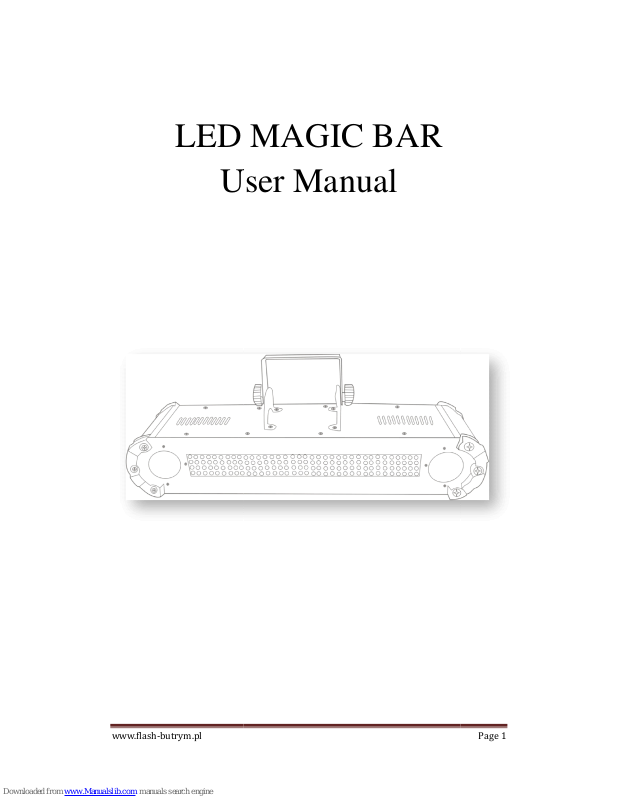

LED
User Manual
MAGIC BAR
www.flash-butrym.pl
Page 1
Page 2
Please read this user manual before using this product.
Safety instruction
Be careful with your operations. With a dangerous voltage you can
suffer a dangerous electric shock when touching the wires！
This device has left our premises in absolutely perfect condition. In order to
maintain this condition and to ensure a safe operation, it is absolutely
necessary for the user to follow the safety instructions and warning notes
written in this manual.
Please note: Every information is subject to change without prior notice.
CAUTION!
Features
• Voltage: 120V 60Hz
• Light source: 144pcs 10mm RGB wash LED+128pcs 5mm RGB amber
LEDs
• Power consumption:40W
• operation modes: Automatic running, DMX, Sound Active, Master/slave
• 3 DMX channels
• Digital display
• Red, Green & Blue LED Wash(white can be chosen),can be used as
Par Cans
• Red, Green, Blue, Amber LED moonflower effect
• In/Out IEC power connections to daisy-chain power
INTRUDCTION
• Thank you for choosing LED magic bar 310, you will see you have
acquired a powerful and versatile device.
www.flash-butrym.pl Page 2
Page 3
DIP function(choose ID)
）
）
Display(first&
Second digit )
ON (Master)
IC
ID - 1 3CH DMX-512 control ID=1
ID - 2 3CH DMX-512 control ID=2
ID - 3 3CH DMX-512 control ID=3
ID - 4 3CH DMX-512 control ID=4
ID - 5 3CH DMX-512 control ID=5
ID - 6 3CH DMX-512 control ID=6
ID - 7 3CH DMX-512 control ID=7
ID - 8 3CH DMX-512 control ID=8
Display(third&
forth digit )
1（Fast）- 8（Slow
1（Fast）- 8（Slow
Function
Auto Run
Sound control(adjustable)
DIP(choose CH)
CH
0 Slave light
DMX Channels
Channel Scale
CH1 0--255 GOBO 1
CH2 0--255 GOBO 2
CH3 0--31
CH3 32--71
CH3 72-106
CH3 107--143
CH3 144--178
CH3 179--215 wash（Red,Blue）
CH3 216--250
CH3 251--255
Control
wash（no）
wash（Red）
wash（Green）
wash（Blue）
wash（Red,Green）
wash（Green,Blue）
wash（RGB）
www.flash-butrym.pl Page 3
Page 4

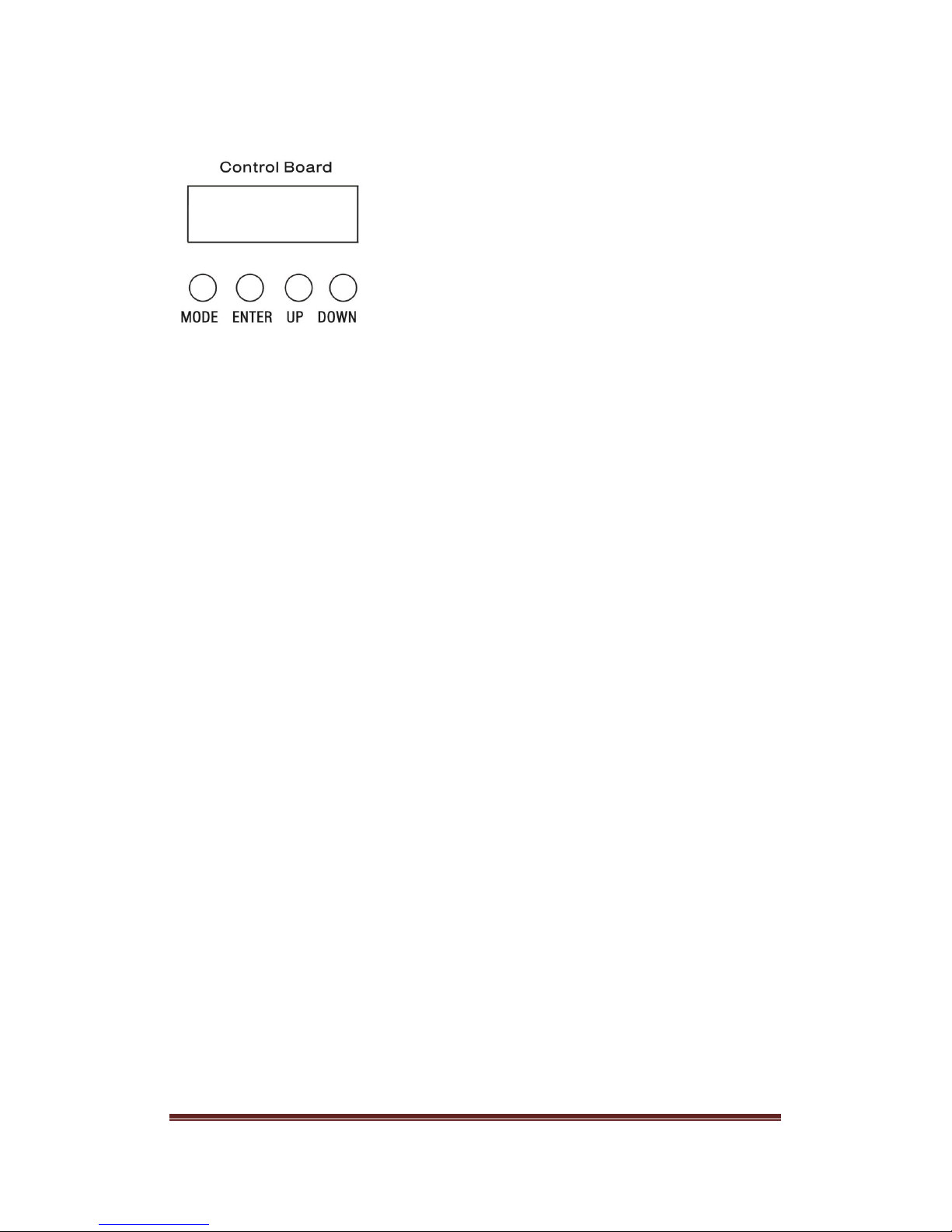

Memory function set
After setting up one mode, please press ENTER button in 1-2 seconds, after
see the display board twinkling one time, then can confirm you has set the
memory function.
www.flash-butrym.pl Page 4
