PAD-1000
Wireless Broadband Modem
Dimenstions: 5.32" long x 3.37" wide x 1.63" high
Copyright
© 2004 Flarion Technologies, Inc. All rights reserved.
Safety and Hazards
Remember to follow any special regulations in force in any area and always power down the
Wireless Broadband Modem whenever radio transmitting devices are forbidden to use it, or when
it may cause interference or danger. When connecting the Wireless Broadband Modem to
another device, read its user’s guide for detailed safety instructions.
Do not operate the Wireless Broadband Modem in near medical equipment, life support
equipment, or any other equipment which may be susceptible to any form of radio interference.
In such areas the Wireless Broadband Modem should be powered off so that the device does not
transmit any radio signals that could interfere with this equipment.
Power down the Wireless Broadband Modem when present in an area of explosive atmosphere
and obey all signs and instructions. Sparks from electronic devices may cause an explosion or
fire resulting in bodily injury or even death. Users are advised to power down all electronic
devices while present at a refueling center.
The driver or operator of any vehicle should not operate the Wireless Broadband Modem while in
control of the vehicle. Operating a vehicle while utilizing the Wireless Broadband Modem may be
in violation of some state regulations.
To avoid a shock hazard:
• Do not connect or disconnect any cables or perform installation, maintenance, or
reconfiguration of this device during an electrical storm.
• The power cord must be connected to a properly wired receptacle.
• Any equipment to which this product will be attached must also be connected to a
properly wired receptacle.
Your Wireless Broadband Modem contains and can be powered from a rechargeable Li-Ion
battery. Never use a charger that is damaged or modified in any way. Use only the charger that
was provided with the device. Battery charging time depends on the remaining battery charge
and the type of battery and charger used. The battery can be charged and discharged hundreds
of times, but the battery charge capacity will gradually degrade over time. If left unused, a fully
charged battery will discharge itself over time. Do not attempt to remove and replace the battery,
contact an authorized service center thru the Technical Support desk. Do not leave the battery
connected to a charger for more than 7 days, since overcharging may shorten its capacity and
operating life. Always try to keep the device at room temperature. A device with a hot or cold
battery may not work correctly, even if the battery is fully charged. CAUTION: Danger of
explosion if modem/battery is used with products/computers not approved by Flarion.
The MODEM must not be co-located or operated in conjunction with any other antenna or
transmitter. Use of this device in any other configuration may exceed the FCC RF exposure
compliance limit. . In order to comply with FCC RF exposure requirements, the EUT must be
installed and operated in such a way that a minimum separation distance of 20cm is maintained
between the antenna and all persons during normal operation.
PAD-1000
Table of Contents
Wireless Broadband Modem BASICS………………………………….. ...........................3
About the Wireless Broadband Modem.......................................................................3
About the Wireless Broadband Modem software........................................................3
What is the Mobility Manager?.....................................................................................3
Package contents.......................................................................................................43
What operating systems are supported?……………………………………………….. 44
What hardware requirements must my host PC have?...............................................4
1. INSTALLATION AND CONFIGURATION ………………………………………………..5
Handling the Wireless Broadband Modem..................................................................5
Step 1: Installing software onto host PC…………………………………………………5
Step 2: Connecting the Wireless Broadband M odem to host PC……………............. 7
Step 3: Connecting to the Wireless Broadband network………………………............9
2. USING THE MODEM……………………………………………………………………... 11
Monitoring the connection using Mobility Manager………………………………… 12
Connection Status and Connection Time……………………………………………. 13
Kilobytes sent or received…………….....……………………………………………. 14
Signal Strength and Signal Quality............................................................................12
Power……………………………………………………………………………………… 16
Close, Exit and End Session……………………………………………………………. 17
Disconnecting the modem………………………………………………………………..18
Uninstalling the software………………………………………………………………….18
3. TROUBLESHOOTNG .................................................................................................. 15
Problems, causes and suggestions...........................................................................15
4. TECHNICAL SPECIFICATIONS ..................................................................................17
5. REGULATORY INFORMATION.................................................................................. 18
Wireless Broadband Modem User Guide Page 1
PAD-1000
About Flarion
Flarion Technologies is mobilizing the Internet with its innovative mobile
communications system - FLASH-OFDM®. The system enables licensed
mobile operators to profitably offer voice and data broadband services. For
mobile operators, Flarion's technology has the lowest cost per broadband
subscriber as compared to any mobile system in the world. Flarion's
RadioRouter® base station product easily overlays onto an operator's
existing network and radio spectrum, and provides a seamless routing
interface to the operator's existing IP network. Flarion's FLASH-OFDM
enabled devices provide people with a true broadband mobile Internet
access experience for voice and data. Flarion Technologies is based in
Bedminster, New Jersey.
Wireless Broadband Modem User Guide Page 2
PAD-1000
Wireless Broadband Modem Basics
About the Wireless Broadband Modem
The Wireless Broadband Modem is a wireless desktop modem that provides
always-on access to the Wireless Broadband network. The modem is designed
for plug-and-play compatibility with desktop PCs, notebook PCs, and other
consumer electronic devices (gaming consoles, web tablets, etc) that have
standard Ethernet or USB connections. Users can utilize the Wireless
Broadband Modem in stationary or mobile environments.
Here are some examples of applications you can use with your modem:
• Email (including large file attachments)
• High-Speed Web Browsing
• Virtual Private Network (VPN) access
• File Transfer
• Online gaming
• Streaming video and audio
About the Wireless Broadband Modem software
The Wireless Broadband Modem comes with the following software:
• Mobility Manager, which allows you to monitor your broadband
connection.
• Driver software (for USB connection only; not required for Ethernet
connection)
What is the Mobility Manager?
The Mobility Manager is a software application that provides the user
with information about a current Wireless Broadband session:
• Connection status
• Connection time
• Kilobytes sent and received
• Signal strength
• Signal quality
Wireless Broadband Modem User Guide Page 3
PAD-1000
Package contents
• Wireless Broadband Modem (with internal battery)
• Antenna
• Installation CD-ROM, including this User Guide
• Power Adapter
• Ethernet Cable
• USB Cable
• Quick Start Guide
Note: Both the Ethernet and USB cables that are provided act as interfaces between
your computer and the cT -1000 device. The Ethernet cable is the one that looks similar
to (thicker than) a standard telephone line.
The power adapter is necessary to charge your mT-1000 device .
What operating systems are supported?
The modem functions with notebook and desktop PCs (and other consumer
devices) that utilize the following operating systems:
Windows® 98SE, ME, 2000, and XP
Note: If your operating system is not listed, this does not mean the modem will not work
on your device. Check Section 3 (Troubleshooting) in this guide for more information.
What hardware requirements must my host PC have?
• USB host or Ethernet host socket connection
• RAM: 128 MB
• Hard Disk Space: 10 MB
• Disk Drive: CD-ROM
• Suggested processor speed: 600Mhz
Wireless Broadband Modem User Guide Page 4
PAD-1000
1. Installation and Configuration
Getting started
General Warning - Do not connect the Wireless Broadband Modem to your PC
before the Mobility Manager software has been installed (Installation CD-ROM).
Otherwise, the application will not work.
BATTERY NOTE: It is recommended that you charge the Wireless Broadband
Modem for a minimum of twelve hours before first use , particularly if you plan on
using it in a portable environment. Otherwise, the battery will not perform as
well. It is highly recommended that you charge the modem for three hours on an
ongoing basis if you consistently require portability. To charge the modem,
simply connect it to a power outlet. The modem does not have to be turned on to
charge. To monitor your battery power, view the battery indicator on the Mobility
Manager (See Section 2- Using the Modem).
Battery Safety - Your Wireless Broadband Modem contains and can be powered
from a rechargeable Li-Ion battery. Never use a charger that is damaged or
modified in any way. Use only the charger that was provided with the device.
Battery charging time depends on the remaining battery charge and the type of
battery and charger used. The battery can be charged and discharged hundreds
of times, but the battery charge capacity will gradually degrade over time. If left
unused, a fully charged battery will discharge itself over time. Do not attempt to
remove and replace the battery, contact an authorized service center thru the
Technical Support desk. Do not leave the battery connected to a charger for
more than 7 days, since overcharging may shorten its capacity and operating life.
Always try to keep the device at room temperature. A device with a hot or cold
battery may not work correctly, even if the battery is fully charged.
Handling the Wireless Broadband Modem
Before doing anything, take note of these guidelines on handling your modem:
1. Keep the antenna pointed upwards to ensure its optimum
performance, but never forcefully bend it.
2. When transporting or storing your modem, remove the antenna and
store it in a safe place.
3. Keep the Modem away from liquids, excessive heat and dust.
4. Keep your battery charged if you consistently require portability.
Step 1: Install the Mobility Manager software onto host PC
1. Make sure your PC is powered up. Close any programs that are
running.
2. Insert the Installation CD-ROM (Mobility Manager software) into CDROM drive.
Wireless Broadband Modem User Guide Page 5
If the CD does not start automaticall
y:
Figure 1, Mobility Manager Software
PAD-1000
3. The CD Launcher Menu should appear. If the Menu does not
appear, see box below.
4. In the CD launcher menu, click “Install Software”
5. Select the option for your operating system to launch the Mobility
Manager wizard. If the Mobility Manager wizard dialog box does not
appear (it may be hidden behind the CD launcher menu), press the
Esc key; it should now be visible. The Mobility Manager wizard guides
you through the installation of the Mobility Manager and the Modem
driver (for USB connections only).
6. Follow the on-screen directions. Click “Next” after each step. Note: at
the software license agreement step, click Next if you wish to accept
the agreement and Cancel if you wish to reject it. Rejecting the
agreement will terminate the installation.
7. Click “Finish” to end the installation. Note: if the CD launcher menu is
still visible, click “Main Menu” and then “Exit Browser.”
8. Remove the CD-ROM
1) Click “Start” then “Run”.
2) In “Open,” type the letter of your CD-ROM drive followed by install.exe
(example - D:\install.exe, where D is the CD-ROM drive), or click
"Browse" to locate and select the install.exe file on your CD-ROM drive.
3) Click “OK” to start the Mobility Manager wizard, which will guide you
through the installation.
ü STEP 1 COMPLETE - YOUR SOFTWARE IS NOW INSTALLED.
Wireless Broadband Modem User Guide Page 6
Antenna

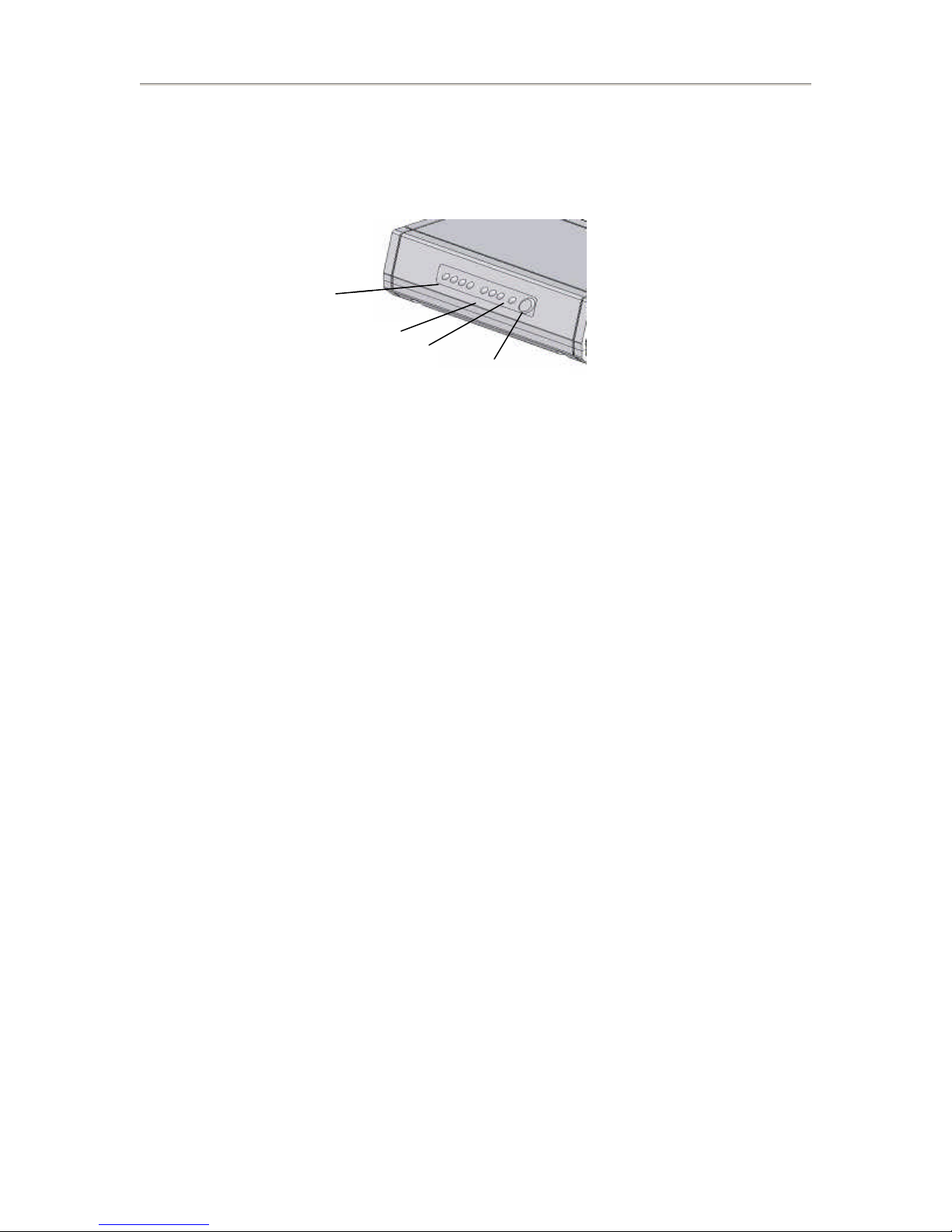

Figure 3, Modem Diagram
PAD-1000
Step 2: Connect the Wireless Broadband Modem to host PC
After successfully installing the software, connect the modem to your PC by
completing the following steps:
1. Click (PRESS FIRMLY ) the antenna into the circular connector on the
side of the modem (opposite side of Ethernet and USB socket). You
should hear a click when inserted correctly. Keep the antenna
pointed up to ensure its optimum performance.
Figure 2, Attachment of the antenna
2. Connect one end of the power adapter (power adapter included) into
a power outlet, and the other end to the side of the modem (same
side as Ethernet and USB sockets). This will also charge the battery.
If you will be using the modem in a portable environment, always
charge your battery beforehand.
3. Insert one end of the Ethernet or USB cable into the appropriate
modem socket, and the other end into your PC socket. Make sure
your PC is on, and Windows is loaded.
4. Press the Power button located on the front of the modem.
Signal Indicators
Signal Indicators
Transmit/Receive/ARQ Indicators
Transmit/Receive/ARQ Indicators
Power (PWR) Indicator
Power (PWR) Indicator
Wireless Broadband Modem User Guide Page 7
Power Button
Power Button
Ethernet Socket
Ethernet Socket
USB Socket
USB Socket
Power Connector
Power Connector
Figure 4, Hardware
PAD-1000
ü STEP 2 COMPLETE (ETH ERNET ONLY)- YOUR MODEM IS NOW
READY TO CONNECT, BU T ONLY THROUGH THE ETHERNET
CABLE. IF YOU WISH TO CONNECT THROUGH THE USB CABLE,
ADDITIONAL STEPS ARE REQUIRED (SEE BELOW).
For USB Connections Only (Ethernet Connections do not apply)
When you first connect using the USB cable, the “Found New Hardware"
message appears as Windows attempts to install the appropriate Drivers (this is
not applicable for Ethernet connections). Each Windows operating system has
slightly different steps for the USB Driver install. For example, you may need to
have your original Windows operating system CD-ROM on hand if you utilize
Windows 98 SE or ME applications.
Windows® 98 SE/Windows ME (through USB cable only)
The wizard detects the modem.
1. When the "Welcome to the Found New Hardware Wizard" appears,
if prompted, insert your original operating system CD-ROM into the
CD-ROM drive. The CD-ROM would have been included in your
original Windows packaging.
2. Select the option to install the software automatically
(recommended) or to install from a specific location (advanced).
Then click “Next.”
3. From the “Completing the Found New Hardware Wizard” page, click
“Finish.” If prompted, restart your PC. The driver installation is now
complete for Windows 98 SE/ ME users.
Windows® 2000/Windows XP (through USB cable only)
The wizard detects the Wireless Broadband Modem.
1. When the “Hardware Installation” page (for XP users) or “Digital
Signature Not Found” page (for 2000 users) appears, click
“Continue Anyway” or “Yes.”
Wireless Broadband Modem User Guide Page 8
Installation (XP)
PAD-1000

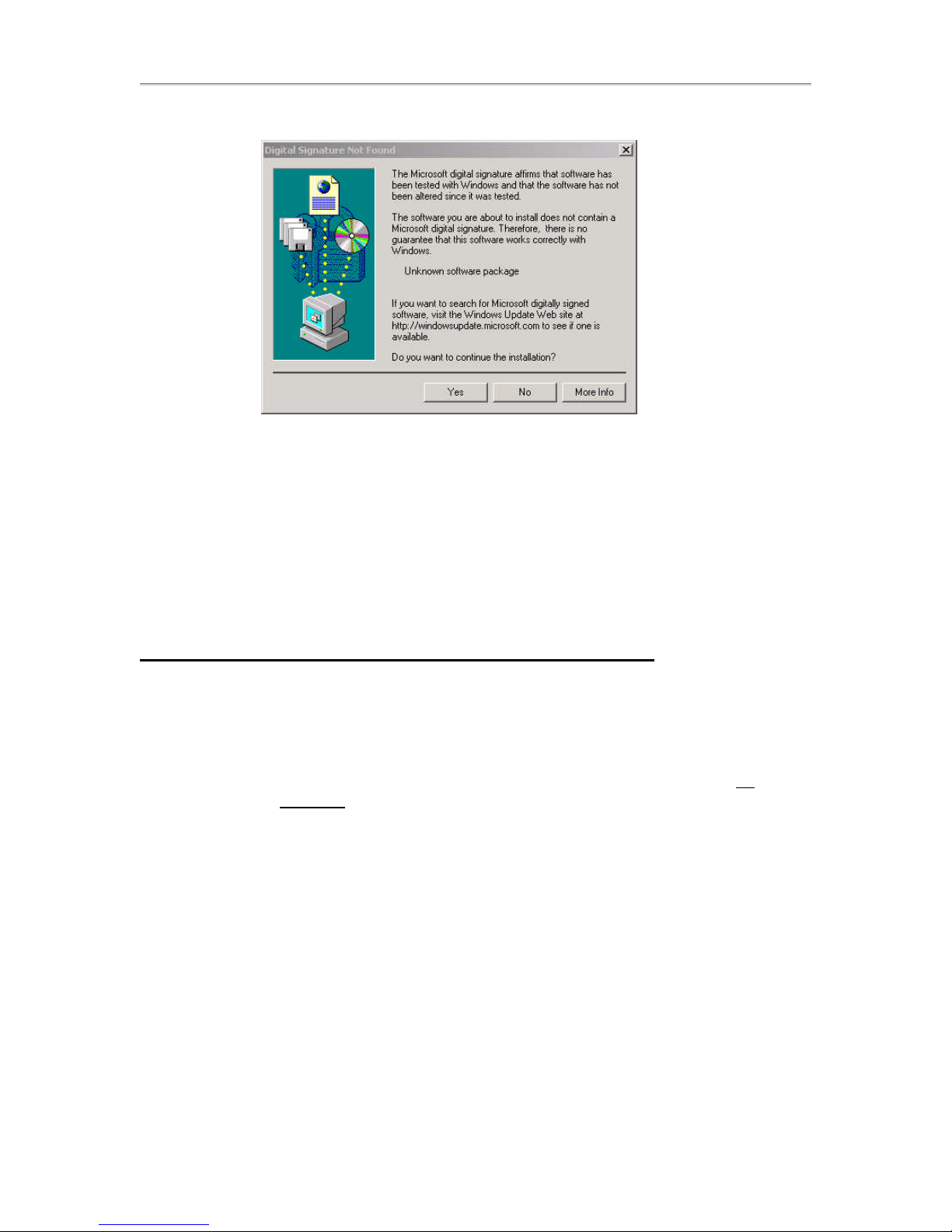

Figure 5, Digital Signature Not Found (2000)
2. From the "Completing the Found New Hardware Wizard" page,
click Finish. The driver installation is now complete for Windows
2000 users. If prompted, restart your PC.
ü STEP 2 COMPLETE (USB)- YOUR MODEM IS NOW READY TO
CONNECT THROUGH THE USB CABLE.
Step 3: Connecting to the Wireless Broadband network
When you press the Wireless Broadband Modem power button, and the Ethernet
or USB cable is attached correctly, the following will occur:
1. All indicators (red and green) on the face of the Wireless Broadband
Modem will illuminate and remain that way for approximately 20
seconds (see Figure 6). At this time, the device is searching for the
network.
2. When the network is found, the signal indicators (four indicators on
the left hand side of the modem face) and the power indicator will be
the only ones illuminated (see Figure 6). Between one and four
indicators of the signal bar will be shown, depending on the strength
of the signal.
ü STEP 3 COMPLETE - YOUR WIRELESS BROADBAND MODEM IS
NOW READY TO USE.
Wireless Broadband Modem User Guide Page 9
PAD-1000
Transmit/ Receive Indicators:
Transmit/ Receive Indicators:
These will illuminate when data is
These will illuminate when data is
being transmitted (sent) or received.
being transmitted (sent) or received.
Signal Indicators
Signal Indicators
Transmit/Receive/ARQ Indicators
Transmit/Receive/ARQ Indicators
Power (PWR) Indicator
Power (PWR) Indicator
Power Button
Power Button
Signal Indicators:
Signal Indicators:
Will show 1-4 indicators illuminated,
Will show 1-4 indicators illuminated,
depending on the signal strength. The
depending on the signal strength. The
higher the strength, the more
higher the strength, the more
indicators are shown. If device cannot
indicators are shown. If device cannot
locate the network, the indicators will
locate the network, the indicators will
“scan” from left to right.
“scan” from left to right.
Power Indicator
Power Indicator
This will illuminate when
This will illuminate when
device is turned on. It will
device is turned on. It will
flash slowly when battery
flash slowly when battery
is low, and quickly when
is low, and quickly when
battery is about to run out.
battery is about to run out.
Figure 6, Modem Indicators
NO SIGNAL: When the network is not found, the signal bar indicators will scan
across from left to right. If this occurs, you may be in an area that does not have
coverage. Please move to another location, or reposition the antenna (See
Section 3- Troubleshooting).
LOW BATTERY: When the battery is running low, the power (PWR) indicator
light will flash slowly. When the battery is about to run out, the power (PWR)
indicator light will flash quickly; you will then have approximately 30 seconds
before power is lost. Charge the modem by connecting it to an electrical outlet.
The amount of battery power remaining will be shown on the Mobility Manager
(See Section 2- Using the Modem).
NOTE: Each time you power up your modem and connect it to your PC:
• the modem icon appears on your screen’s system tray and desktop
• the Mobility Manager software is launched (unless the auto-launch
feature has been disabled)
Wireless Broadband Modem User Guide Page 10
PAD-1000
2. Using the Modem
The Wireless Broadband Modem can be used in stationary or mobile
environments. Once the software has been installed, simply plug the
modem into your laptop or desktop PC using the Ethernet or USB cable
that is included in your packaging. It is recommended that you charge the
modem for three hours on an ongoing basis if you consistently require
portability. To charge the modem, simply connect it to a power outlet.
Monitoring the connection using Mobility Manager
After installation, and each time you connect the powered up Wireless
Broadband Modem to your powered up PC, the Mobility Manager icon
appears on your desktop.
Use the Mobility Manager application to view everything from the signal
strength of your wireless network card, to the number of kilobytes sent
and received during your current session.
Mobility Manager NOTE: if for any reason, the Mobility Manager does not
pop up automatically, click the modem icon on your desktop or system
tray.
Figure 8, Mobility Manager desktop icon
Figure 9, Mobility Manager system tray icon
Check for Upgrades
The Options tab on the Mobility Manager reveals a scroll down me nu.
Click on “Check for Upgrade” to see if an upgrade is available. A
dialog box will appear. Click “Ok” to download upgrade. If an upgrade is
not available, the dialog box will say “No upgrade is available, please try
again later.” Click “Close.”
Wireless Broadband Modem User Guide Page 11
PAD-1000
Connection Status and Connection Time
The Mobility Manager will indicate either “Connected” or “Searching”,
depending on the Connection Status of your Wireless Broadband Modem.
The Connection Time indicator will show you how long you have been
connected to the Wireless Broadband network (for that particular session
only). When you end the session (turn off the computer, unplug the
device, or disable the program), this value is reset to zero.
If it still says “Searching” after the 20 second se arch period, check that (1)
you are in an area that has Wireless Broadband coverage (See Section
3 – Troubleshooting), (2) the antenna is upright and inserted properly,
and (3) the modem is connected properly to the PC. The modem itself
also shows the connection status (see previous section).
Kilobytes sent or received
To monitor the amount of data you have sent or received during your
session, refer to the relevant indicator of the number of kilobytes:
• Received
• Sent
These indicators show the total number of bytes transmitted and received
during your current session. When you end a session (turn the computer
off, unplug the device, or disable the session), these values are both reset
to zero.
Signal Strength and Signal Quality
To monitor the signal strength and quality, refer to the indicators. Signal
Strength shows the power level of the signal you are receiving. When the
signal is strongest, four bars are shown. When it is weakest, one bar is
shown.
Signal Quality measu res the actual quality of the signal (signal in relation
to surrounding noise, etc).
NOTE: The Strength and Quality Bars will scan from left to right while the
card searches for a signal.
Wireless Broadband Modem User Guide Page 12
PAD-1000
Power
When the modem is plugged into an electrical outlet, a lightning bolt icon
appears in the bottom right corner of the Mobility Manager. Your battery
is being charged at the point. When the modem is using battery power,
the battery icon appears instead. You can use this to monitor your
battery power.
Close, Exit, and End Session
• To Close the Mobility Manager window, click the X in the top
right corner. Note that this does not end the session (break
the connection). To bring it back, click the modem icon on the
system tray or desktop.
• To Exit the Mobility Manager program, but keep the modem
session running, click “Options,” then “Exit.” This will remove
the modem icon from the system tray. To re-enter the
program, click the icon on your desktop. The modem window
will pop up again, and the icon will reappear on the system
tray. Note that exiting the Mobility Manager application does
not end your wireless broadband connection or the session.
• To End Session, simply unplug the device, shut down your
PC, or click “Options,” then “Disable.”
• The Disable function is used to quickly end the session without
having to shut down your PC. This is especially practical in
places that allow for electronic devices, but not wireless
communication (airplanes, hospitals). To begin another
session, click “Options,” then “Enable.”
Disconnecting the modem
• If you are connected through the Ethernet cable, simply unplug
the cable from the modem and PC to disconnect the modem.
• If you are connected through the USB cable, disconnect by
following these steps:
1. Click the Unplug or Eject Hardware icon on your system tray.
2. From the options presented, select “Stop FLASH -OFDM NIC”
device. Click “Stop.”
3. A dialog box appears notifying you that it is safe to disconnect the
modem. Unplug the USB cable from the modem and PC device.
Wireless Broadband Modem User Guide Page 13
PAD-1000
Uninstalling the Mobility Manager software
To uninstall the Mobility Manager software, follow these steps:
1. Click the “My Computer” icon on your desktop.
2. Click the “Control Panel” icon in your “My Computer” folder.
3. Click the “Add/Remove Programs” icon.
4. Scroll down to “Mobility Manager” and click it. Then click on
“Change/Remove.” Follow instructions. Click “Next” and then “Finish.”
The software is now uninstalled.
Wireless Broadband Modem User Guide Page 14
PAD-1000
3. Troubleshooting
Problems, causes and suggestions
When properly installed and used, the modem is very reliable.
Problems that arise are likely to be because:
• Wireless Broadband coverage is not available.
• the modem is not compatible with the operating system in your PC.
• other devices are using the system resources that are required for the
modem to function.
• the wrong driver has been installed.
Modem problems Possible Causes Suggestions
Online access is not
available
The Power (PWR)
indicator is blinking
.
The Mobility Manager
icon says “Disabled”
Make sure you waited the full
20 seconds for the modem to
search for and find the
network before connecting
the device to the PC.
Check that the cable is
attached correctly to both
your PC and the modem.
Check to see the signal
indicators on the front of the
modem- if they are “scanning”
back and forth, then you do
not have coverage. If the
indicators are not on, then
press the power button and
wait 20 seconds for the
network to be found.
The modem battery is low
(slow blink) or about to run
out (fast blink).
The Modem is not fully
connected.
The driver is not running
properly.
If you do not have
signal (indicators
scanning from left to
right) contact
Customer Care to
verify that you are in
coverage area, or
move to another
location. If you do
have signal, check to
see that the cable is
inserted properly in
both the modem and
your PC. Reinsert
cable.
Plug modem into
electrical outlet to
charge battery.
Monitor the battery
status through the
Mobility Manager.
Reconnect the Modem
to the PC. The
Ethernet socket light
on the PC will
illuminate. Click on
“Options,” then
“Enable.”
Wireless Broadband Modem User Guide Page 15
PAD-1000
Modem problems Possible Causes Suggestions
Mobility Manager
displays the message:
“Searching”
You are outside the
network coverage area.
Your antenna is not
attached.
Contact Customer
Care to verify that you
are in coverage area.
Move to another
location or reposition
your antenna.
Wireless Broadband Modem User Guide Page 16
PAD-1000
4. Technical Specifications
Environmental Specifications
Operating Temperature -30 to +60 C
Storage Temperature -30 C to +85 C
Humidity 95%
Approvals
FCC Parts 15 and 24
Wireless Broadband Modem User Guide Page 17
PAD-1000
5. Regulatory Information
Manufacturer’s Federal Communication Commission Declaration of
Conformity statement
Model: Wireless Broadband Modem Wireless Broadband Modem
FCC Certification Number: QZX99163001
Manufacturer: Flarion Technologies, Inc.135 Route 202/206 South
Bedminster One Bedminster, NJ 07921
This device complies with FCC Rules Part 15 and Part 24. The modem
has been tested with a typical laptop. The MODEM must not be co located or operated in conjunction with any other antenna or transmitter.
Use of this device in any other configuration may exceed the FCC RF
exposure compliance limit. In order to comply with FCC RF exposure
requirements, the EUT must be installed and operated in such a way that
a minimum separation distance of 20cm is maintained between the
antenna and all persons during normal operation.
Operator is subject to these conditions. This equipment generates,
uses, and radiates radio frequency energy, and if not installed and used
in accordance with the instructions, may cause harmful interference. If
this equipment causes interference to radio or television reception, which
you can check by turning the equipment off and on, try to:
Reorient or relocate the receiving antenna
Increase separation between the equipment and receiver
Connect the equipment to an outlet on a circuit different from which the
receiver is connected
Consult the dealer or an experienced radio/TV technician
Caution
Changes or modification to said product not expressly approved by
Flarion could void the user’s authority to operate this device.
Wireless Broadband Modem User Guide Page 18
Loading...
