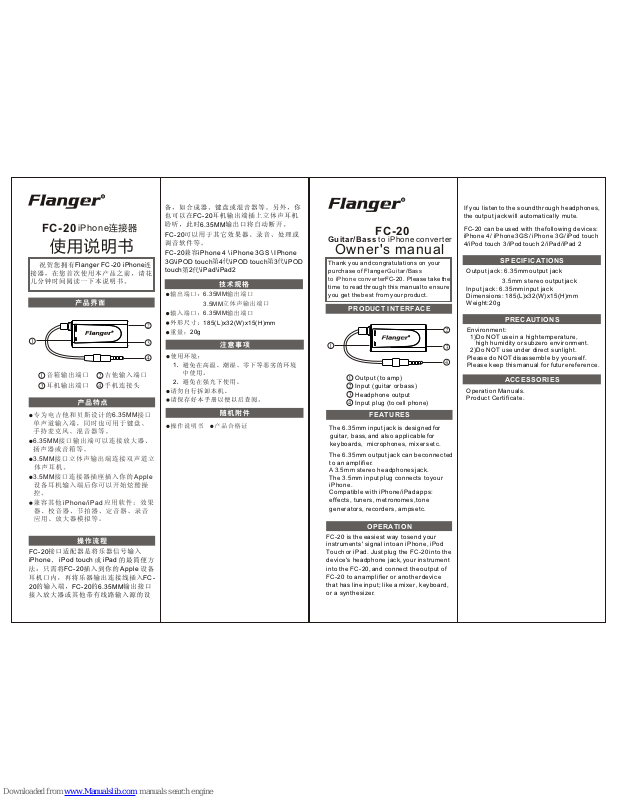

Flanger FC-20 Owner's Manual
1
2
FC-20
iPhone
Flanger FC-20 iPhone
6.35MM
6.35MM
3.5MM
3.5MM Apple
iPhone/iPad
6.35MM
3.5MM
6.35MM
185(L)x32(W)x15(H)mm
20g
FC-20
iPhone iPod touch iPad
FC-20 Apple
FC-
20 FC-20 6.35MM
FC-20
6.35MM
FC-20
FC-20 iPhone 4 \ iPhone 3GS \ IPhone
3G\iPOD touch 4 \iPOD touch 3 \iPOD
touch 2 \iPad\iPad2
FC-20
Guitar/Bass to iPhone converter
Thank you and congratulations on your
purchase of Flanger
FC-20. Please take the
time to read through this manual to ensure
you get the best from your product.
Guitar/Bass
to iPhone converter
Output (to amp)
Input (guitar or bass)
Headphone output
Input plug (to cell phone)
FEATURES
·
·
·A
·
·
The 6.35mm input jack is designed for
guitar, bass, and also applicable for
keyboards, microphones, mixers etc.
The 6.35mm output jack can beconnected
to an amplifier.
3.5mm stereo headphones jack.
The 3.5mm input plug connects to your
iPhone.
Compatible with iPhone/iPad apps:
effects, tuners, metronomes, tone
generators, recorders, amps etc.
OPERATION
SPECIFICATIONS
·
·
·
·
Output jack: 6.35mm output jack
3.5mm stereo output jack
Input jack: 6.35mm input jack
Dimensions: 185(L)x32(W)x15(H)mm
Weight:20g
Owner's manual
PRODUCT INTERFACE
·
·
Operation Manuals.
Product Certificate.
PRECAUTIONS
·
·
·
Environment:
1)Do NOT use in a high temperature,
high humidity or subzero environment.
2)Do NOT use under direct sunlight.
Please do NOT disassemble by yourself.
Please keep this manual for future reference.
ACCESSORIES
FC-20 is the easiest way to send your
instruments' signal into an iPhone, iPod
Touch or iPad. Just plug the FC-20 into the
device's headphone jack, your instrument
into the FC-20, and connect the output of
FC-20 to an amplifier or another device
that has line input; like a mixer, keyboard,
or a synthesizer.
If you listen to the sound through headphones,
the output jack will automatically mute.
FC-20 can be used with the following devices:
iPhone 4/ iPhone 3GS/ iPhone 3G/ iPod touch
4/iPod touch 3/iPod touch 2/iPad/iPad 2
