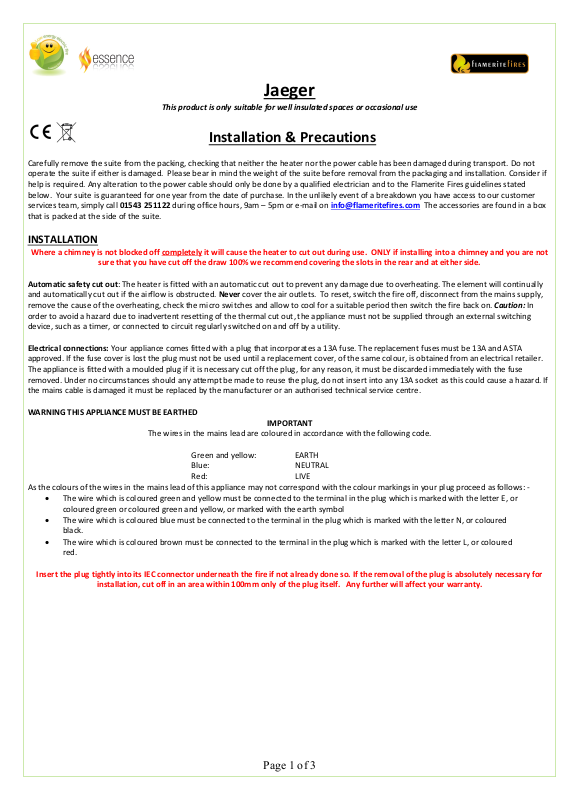

Flamerite Fires Jaeger Installation Precautions

Green and yellow:

EARTH

Blue:

NEUTRAL

Red:

LIVE

Jaeger

This product is only suitable for well insulated spaces or occasional use

Installation & Precautions

Carefully remove the suite from the packing, checking that neither the heater nor the power cable has been damaged during transport. Do not
operate the suite if either is damaged. Please bear in mind the weight of the suite before removal from the packaging and installation. Consider if
help is required. Any alteration to the power cable should only be done by a qualified electrician and to the Flamerite Fires guidelines stated
below. Your suite is guaranteed for one year from the date of purchase. In the unlikely event of a breakdown you have access to our customer
services team, simply call 01543 251122 during office hours, 9am – 5pm or e-mail on [e-mail]
that is packed at the side of the suite.

INSTALLATION

Where a chimney is not blocked off completely it will cause the heater to cut out during use. ONLY if installing into a chimney and you are not

sure that you have cut off the draw 100% we recommend covering the slots in the rear and at either side.

Automatic safety cut out: The heater is fitted with an automatic cut out to prevent any damage due to overheating. The element will continually

and automatically cut out if the airflow is obstructed. Never cover the air outlets. To reset, switch the fire off, disconnect from the mains supply,
remove the cause of the overheating, check the micro switches and allow to cool for a suitable period then switch the fire back on. Caution: In
order to avoid a hazard due to inadvertent resetting of the thermal cut out, the appliance must not be supplied through an external switching
device, such as a timer, or connected to circuit regularly switched on and off by a utility.

Electrical connections: Your appliance comes fitted with a plug that incorporates a 13A fuse. The replacement fuses must be 13A and ASTA
approved. If the fuse cover is lost the plug must not be used until a replacement cover, of the same colour, is obtained from an electrical retailer.
The appliance is fitted with a moulded plug if it is necessary cut off the plug, for any reason, it must be discarded immediately with the fuse
removed. Under no circumstances should any attempt be made to reuse the plug, do not insert into any 13A socket as this could cause a hazard. If
the mains cable is damaged it must be replaced by the manufacturer or an authorised technical service centre.

WARNING THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code.

The accessories are found in a box

As the colours of the wires in the mains lead of this appliance may not correspond with the colour markings in your plug proceed as follows: -

• The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E, or
coloured green or coloured green and yellow, or marked with the earth symbol

• The wire which is coloured blue must be connected to the terminal in the plug which is marked with the letter N, or coloured
black.

• The wire which is coloured brown must be connected to the terminal in the plug which is marked with the letter L, or coloured
red.

Insert the plug tightly into its IEC connector underneath the fire if not already done so. If the removal of the plug is absolutely necessary for

installation, cut off in an area within 100mm only of the plug itself. Any further will affect your warranty.

Page 1 of 3

Using as a Hang on the Wall.

The height at which you may wish to fix the fire to the wall is up to you, though we recommend anywhere from 40-60cm from the floor to the
bottom of the fire. The wall bracket should be fixed to the wall with the highest point of the edge facing forward/upward Fig.1. The corresponding
edge where the fire is to be hung on the wall bracket can be found on the back, at the top, across the fires centre. Once the wall bracket has been
fixed, lift and hook the fire into place. A second bar should then be added to the underside of the fire Fig.2. A channel in the underside of the fire
will be visible, the remaining bracket will slot into this. Again mark off, remove fire and fit the bracket to the wall. Refit the fire, lift and hook onto
the brackets.

Fig. 1 Fig. 2

Fuel Effects

Once the fire has been installed in the correct position unpack the fuel effect from the accessory box. Pebbles (and wood effect/cost
option) maybe arranged in a random formation on top of the fuel bed.

External lighting Remote Control (RGB)

• These lights maybe turned on or off independently from the fire by pressing the buttons marked ON & OFF on the remote
control.

• For the RGB remote to be affective it must be pointed at and upwards towards the top where the RGB lamps are situated. The
working area is in a direct line of sight at the very front of the suite toward the lights. You may, depending on where the remote
is pointed change one lamp at a time or both together.

• There are sixteen individual colours to choose from as well as the ability to mix and match using the pre-set or programmable
fade and strobe functions. A dimmer is also present.

Page 2 of 3
