Flamerite Fires Corello, Yukon Installation Precautions

Where a chimney is not blocked off completely, any draw will cause the heater to cut out during

air vents fully sealed

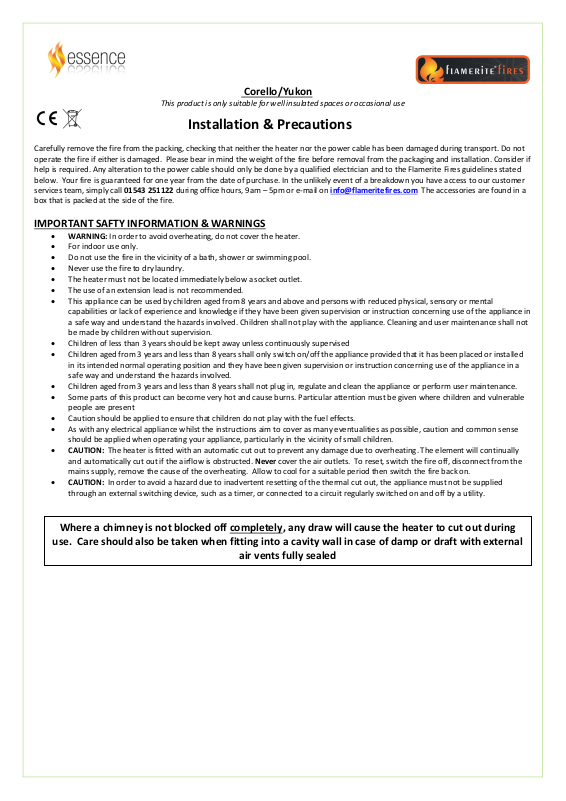

Corello/Yukon

This product is only suitable for well insulated spaces or occasional use

Installation & Precautions

Carefully remove the fire from the packing, checking that neither the heater nor the power cable has been damaged during transport. Do not
operate the fire if either is damaged. Please bear in mind the weight of the fire before removal from the packaging and installation. Consider if
help is required. Any alteration to the power cable should only be done by a qualified electrician and to the Flamerite Fires guidelines stated
below. Your fire is guaranteed for one year from the date of purchase. In the unlikely event of a breakdown you have access to our customer
services team, simply call 01543 251122 during office hours, 9am – 5pm or e-mail on [e-mail]
box that is packed at the side of the fire.

IMPORTANT SAFTY INFORMATION & WARNINGS

• WARNING: In order to avoid overheating, do not cover the heater.

• For indoor use only.

• Do not use the fire in the vicinity of a bath, shower or swimming pool.

• Never use the fire to dry laundry.

• The heater must not be located immediately below a socket outlet.

• The use of an extension lead is not recommended.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.

• Children of less than 3 years should be kept away unless continuously supervised

• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed

in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.

• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Some parts of this product can become very hot and cause burns. Particular attention must be given where children and vulnerable

people are present

• Caution should be applied to ensure that children do not play with the fuel effects.

• As with any electrical appliance whilst the instructions aim to cover as many eventualities as possible, caution and common sense

should be applied when operating your appliance, particularly in the vicinity of small children.

• CAUTION: The heater is fitted with an automatic cut out to prevent any damage due to overheating. The element will continually
and automatically cut out if the airflow is obstructed. Never cover the air outlets. To reset, switch the fire off, disconnect from the
mains supply, remove the cause of the overheating. Allow to cool for a suitable period then switch the fire back on.

• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut out, the appliance must not be supplied
through an external switching device, such as a timer, or connected to a circuit regularly switched on and off by a utility.

The accessories are found in a

use. Care should also be taken when fitting into a cavity wall in case of damp or draft with external

INSTALLATION

Green and yellow:

EARTH

Blue:

NEUTRAL

Red:

LIVE

Electrical connections: Your appliance comes fitted with a plug that incorporates a 13A fuse. The replacement fuses must be 13A and ASTA
approved. If the fuse cover is lost the plug must not be used until a replacement cover, of the same colour, is obtained from an electrical
retailer. The appliance is fitted with a moulded plug if it is necessary cut off the plug, for any reason, it must be discarded immediately with the
fuse removed. Under no circumstances should any attempt be made to reuse the plug, do not insert into any 13A socket as this could cause a
hazard. If the mains cable is damaged it must be replaced by the manufacturer or an authorised technical service centre.

WARNING THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code.

As the colours of the wires in the mains lead of this appliance may not correspond with the colour markings in your plug proceed as follows: -

• The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E,
or coloured green or coloured green and yellow, or marked with the earth symbol

• The wire which is coloured blue must be connected to the terminal in the plug which is marked with the letter N, or coloured
black.

• The wire which is coloured brown must be connected to the terminal in the plug which is marked with the letter L, or
coloured red.

Insert the plug tightly into its IEC connector underneath the fire if not already done so. If the removal of the plug is absolutely necessary for

installation, cut off in an area within 100mm only of the plug itself. Any further will affect your warranty.

Using as a Hole in the Wall:

THE SPACER MUST BE REMOVED (FIG.2)

Removing the decorative front (Fig.1), there are two screws either side of the heater outlet next to the on/off switch and the keypad and two
inside the fire under the fuel bed area beneath the lamps (B). To remove the spacer there are eight screws (A) on the rear of the case (Fig.2).
Four keyhole slots should now be visible, two on each side of the outer return. Place the fire into the hole, mark off at the TOP of the keyhole
slots where the fixing holes are to be drilled. Remove fire and drill the holes. When this is done push the rawl plugs into the drilled holes and
half screw in the fixings. Finally lift and hook the fire back onto the fixings and tighten. The decorative front may be reapplied.

Using as a Hang on the Wall. The rail should be fixed to the wall with the hook facing upward and outward. Once the rail has been fixed in
place, lift and hook the fire onto the rail. Next at the back of the case bottom/centre is a fold out tag. Fold this down as to expose it under the
fire when it is hung in place. Mark off through the hole, remove fire, drill and fit rawl plug. Hang the fire back on the wall and secure in place
using the screw provide.

Fuel effect Pebbles/coal
Once the fire has been installed in the correct position unpack the pebbles/coals from the accessory box and arrange on the fuel bed.

Fig.1 Fig.2
