Flame MONACO FL063 Installation And Operation Manual

US ENVIRONMENTAL PROTECTION

www.flame

-

intl.com

AGENCY PHASE II CERTIFIED WOOD

FIREPLACE

Listed to standards ULC-S610

and UL 127

MONACO FIREPLACE

(FL063 model)

Installation and Operation Manual

250, rue de Copenhague, St-Augustin-de-Desmaures (Quebec) Canada G3A 2H3

This manual is available for free download on the manufacturer’s web site. It is a
copyrighted document. Re-sale is strictly prohibited. The manufacturer may update this
manual from time to time and cannot be responsible for problems, injuries, or damages
arising out of the use of information contained in any manual obtained from unauthorized
sources.

READ AND KEEP THIS MANUAL FOR REFERENCE

45727A
Printed in Canada 31-03-2015

Stove Builder International Inc.

Tel: [phone] Fax: [phone]

Monaco Installation and Operation Manual

THANK YOU FOR CHOOSING THIS FLAME WOOD FIREPLACE
As one of North America’s largest and most respected wood stove and fireplace

manufacturers, Stove Builder International takes pride in the quality and performance of all
its products. We want to help you get maximum satisfaction as you use this product.

In the pages that follow you will find general advice on wood heating, detailed instructions
for safe and effective installation, and guidance on how to get the best performance from
this fireplace as you build and maintain fires, and maintain your wood heating system.

We recommend that our wood burning hearth products be installed and serviced by
professionals who are certified in the United States by NFI (National Fireplace Institute®)
or in Canada by WETT (Wood Energy Technology Transfer) or in Quebec by APC
(Association des Professionnels du Chauffage).

Congratulations on making a wise purchase.

If this fireplace is not properly installed, combustible materials near it may overheat.
To reduce the risk of fire, follow the installation instructions in this manual exactly.
Contact local building or fire officials about restrictions and installation inspection
requirements in your area.

Please read this entire manual before you install and use your new fireplace. You
may need to get a building permit for the installation of this fireplace and the
chimney that it is connected to. Consult your municipal building department or fire
department before installation. We recommend that you also inform your home
insurance company to find out if the installation will affect your policy.

This heating unit is designed to serve as a supplementary heat source. We
recommend that a primary heat source also be available in the home. The
manufacturer cannot be responsible for costs associated with the use of another
heating system.

CAUTION: Do not attempt to modify or alter the construction of the fireplace or its

components. Any modification or alteration of construction may void the warranty, listings
and approvals of this system. In that case, Stove Builder International (SBI) will not be
responsible for damages. Install the fireplace only as described in these instructions.

2

Monaco Installation and Operation Manual

Table of content

PART A - OPERATION AND MAINTENANCE ................................... 6

1 Safety Information................................................................................. 6

1.1

Summary of Operation and Maintenance Cautions and Warnings ......................... 6

2 General Information ............................................................................. 8

2.1

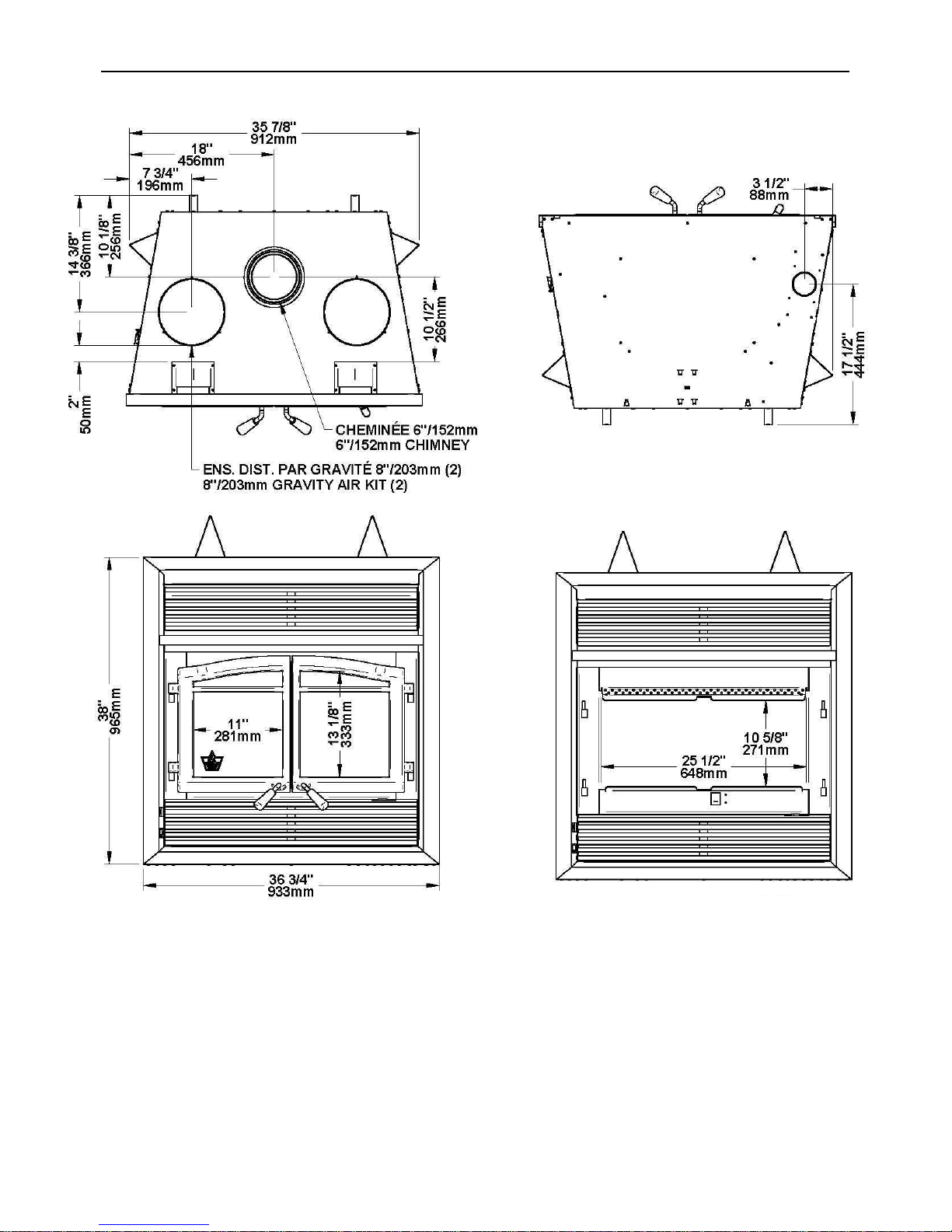

Monaco Specifications ........................................................................................... 8

2.2

Zone Heating and How to Make it Work for You .................................................. 11

2.3

The Benefits of Low Emissions and High Efficiency ............................................. 12

2.4

The SBI Commitment to You and the Environment .............................................. 12

2.4.1 What is Your New Fireplace Made Of? ............................................................. 12

3 Fuel ........................................................................................................ 13

3.1

Materials That Should Not be Burned .................................................................. 13

3.2

How to Prepare or Buy Good Firewood ............................................................... 13

3.2.1 What is Good Firewood? .................................................................................. 13

3.2.2 Tree Species ..................................................................................................... 13

3.2.3 Log Length ........................................................................................................ 14

3.2.4 Piece Size ......................................................................................................... 14

3.2.5 How to Dry Firewood ........................................................................................ 15

3.2.6 Judging Firewood Moisture Content ................................................................. 16

3.3

Manufactured Logs .............................................................................................. 16

4 Operating Your Fireplace................................................................... 17

4.1

The use of a fire screen ....................................................................................... 17

4.2

Your First Fires ..................................................................................................... 17

4.3

Lighting Fires ........................................................................................................ 17

4.3.1 Conventional Fire Starting ................................................................................ 18

4.3.2 The Top Down Fire ........................................................................................... 18

4.3.3 Two Parallel Logs ............................................................................................. 19

4.3.4 Using Fire Starters ............................................................................................ 19

4.4

Maintaining Wood Fires ....................................................................................... 19

4.4.1 General Advice ................................................................................................. 19

4.4.2 Ash Removal..................................................................................................... 20

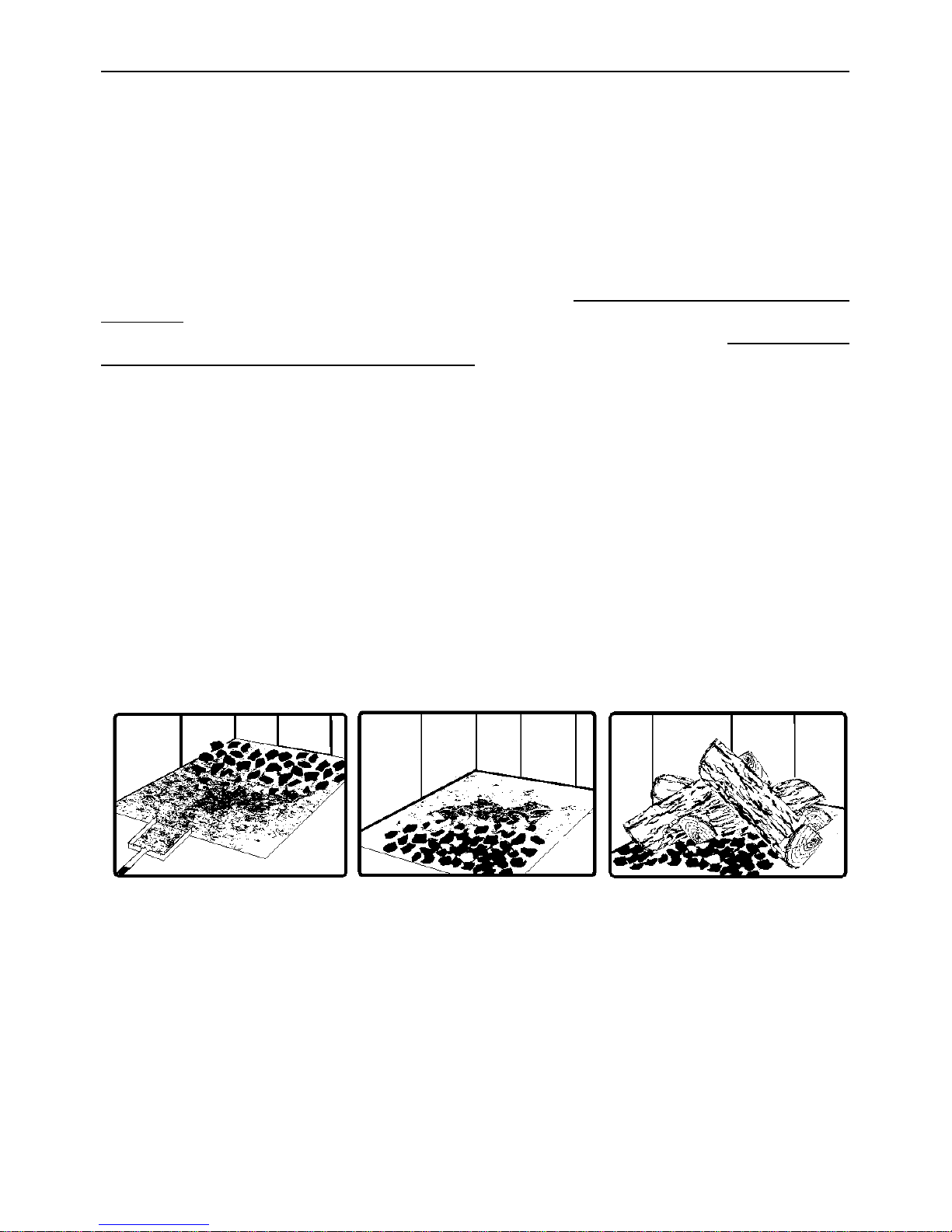

4.4.3 Raking Charcoal ............................................................................................... 20

4.4.4 Firing Each New Load Hot ................................................................................ 21

4.4.5 Turning Down the Air Supply ............................................................................ 21

4.4.6 Building Different Fires for Different Needs ....................................................... 22

3

Monaco Installation and Operation Manual

5 Maintaining Your Wood Heating System ......................................... 25

5.1

Fireplace Maintenance ......................................................................................... 25

5.1.1 Plated Finish Maintenance ................................................................................ 25

5.1.2 Glass Door Cleaning ......................................................................................... 25

5.1.3 Door Adjustment ............................................................................................... 26

5.1.4 Door Alignment ................................................................................................. 27

5.1.5 Replacing the Door Gasket ............................................................................... 28

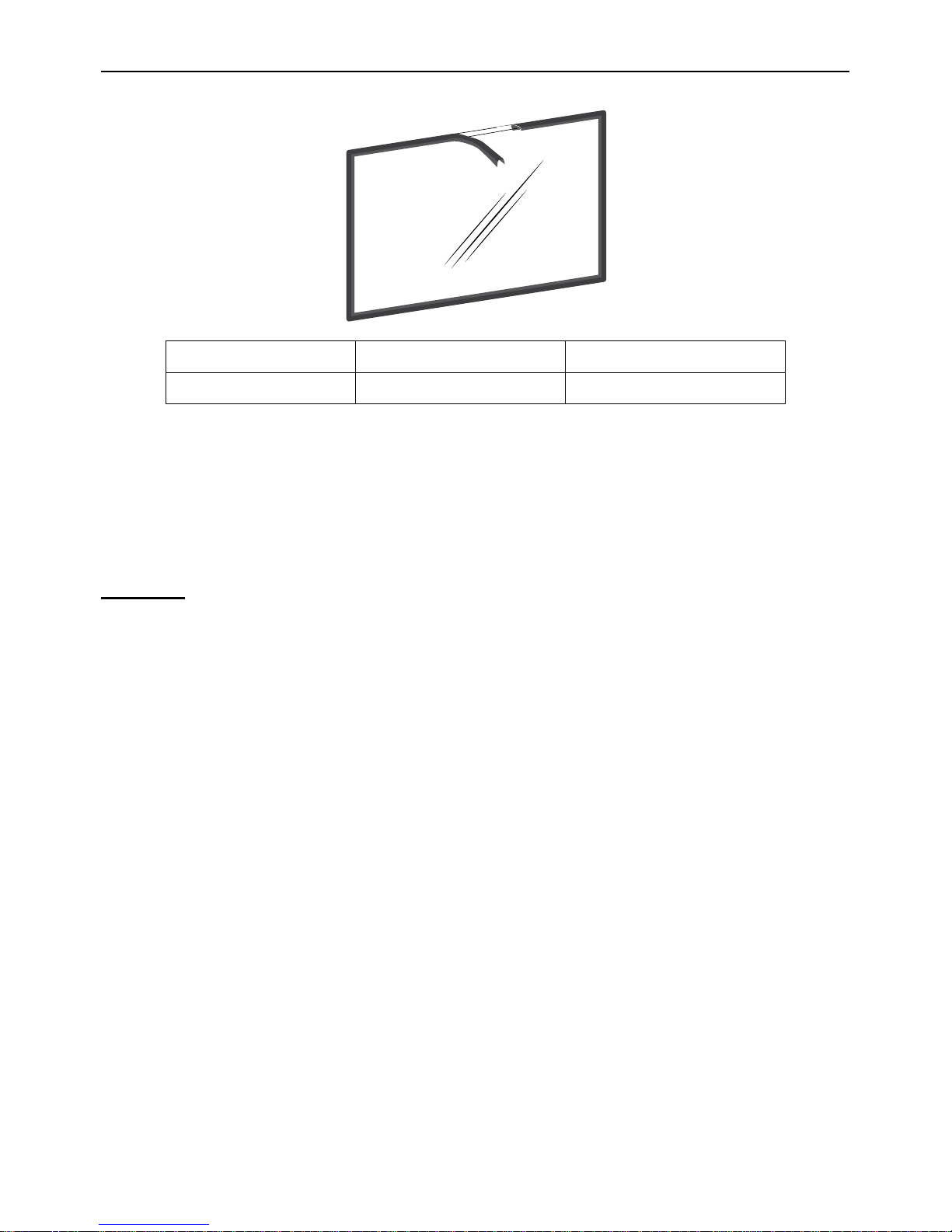

5.1.6 Replacing the Glass Gasket and/or the Glass .................................................. 29

5.1.7 Cleaning and Painting the Fireplace ................................................................. 30

5.2

Chimney and Chimney Liner Maintenance .......................................................... 30

5.2.1 Why Chimney Cleaning is Necessary ............................................................... 30

5.2.2 How Often Should You Clean the Chimney? .................................................... 31

5.2.3 Cleaning the Chimney ....................................................................................... 31

5.2.4 Fire Baffle Removal Prior to Cleaning the Chimney .......................................... 32

5.2.5 Chimney Fire..................................................................................................... 32

PART B – INSTALLATION ................................................................... 33

6 Safety Information............................................................................... 33

6.1

Summary of Installation Cautions and Warnings .................................................. 33

6.2

Regulations Covering Fireplace Installation ......................................................... 34

6.3

Fireplace Installation ............................................................................................ 35

6.3.1 Locating the MONACO ..................................................................................... 35

6.3.2 Minimum Heart Extension Requirements .......................................................... 41

6.3.3 Framing, Facing, Mantel and Combustible Shelf .............................................. 43

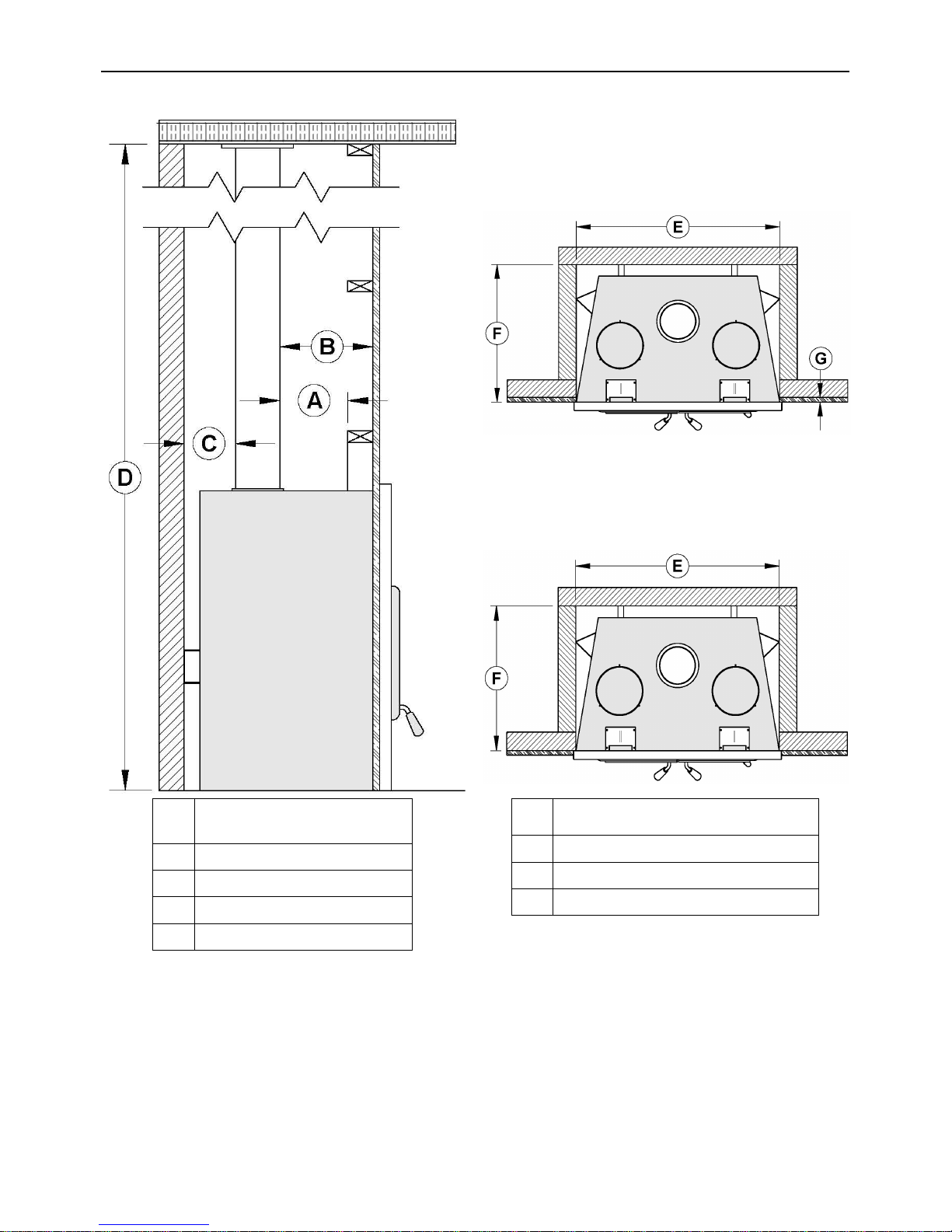

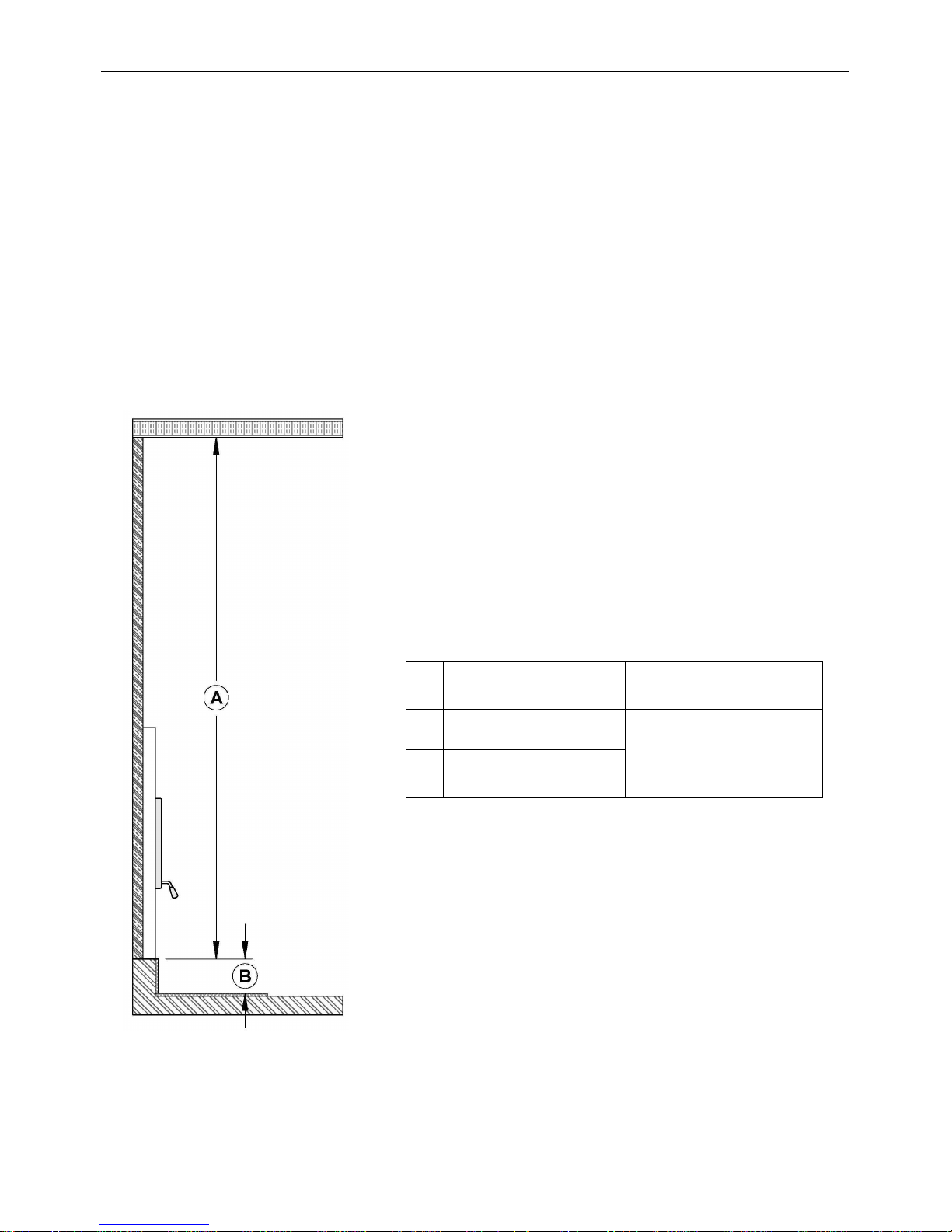

7 Clearances to Combustible Material ................................................. 50

7.1

Locating the Certification Label ............................................................................ 50

8 The Venting System ............................................................................. 51

8.1

General ................................................................................................................ 51

8.2

Suitable Chimneys ............................................................................................... 51

8.3

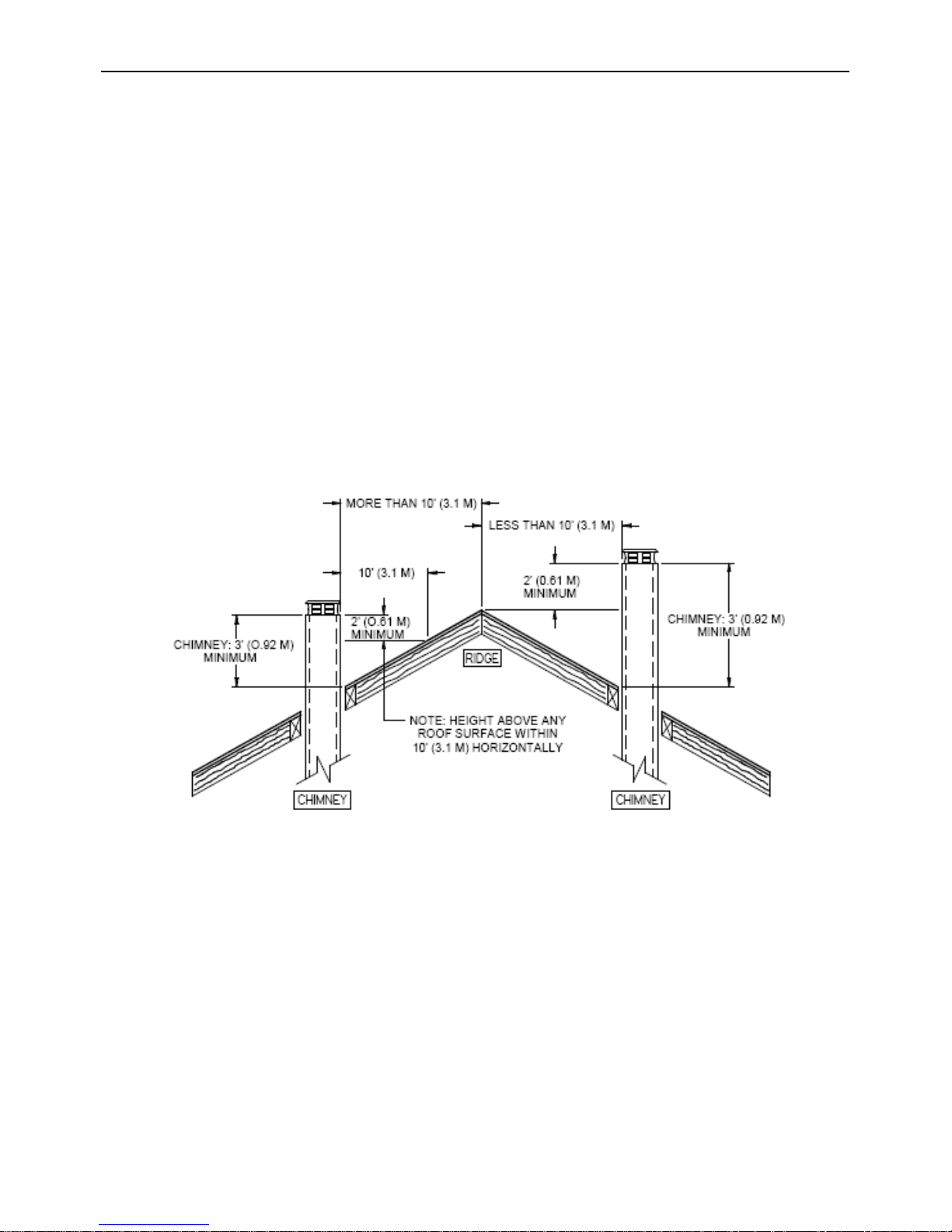

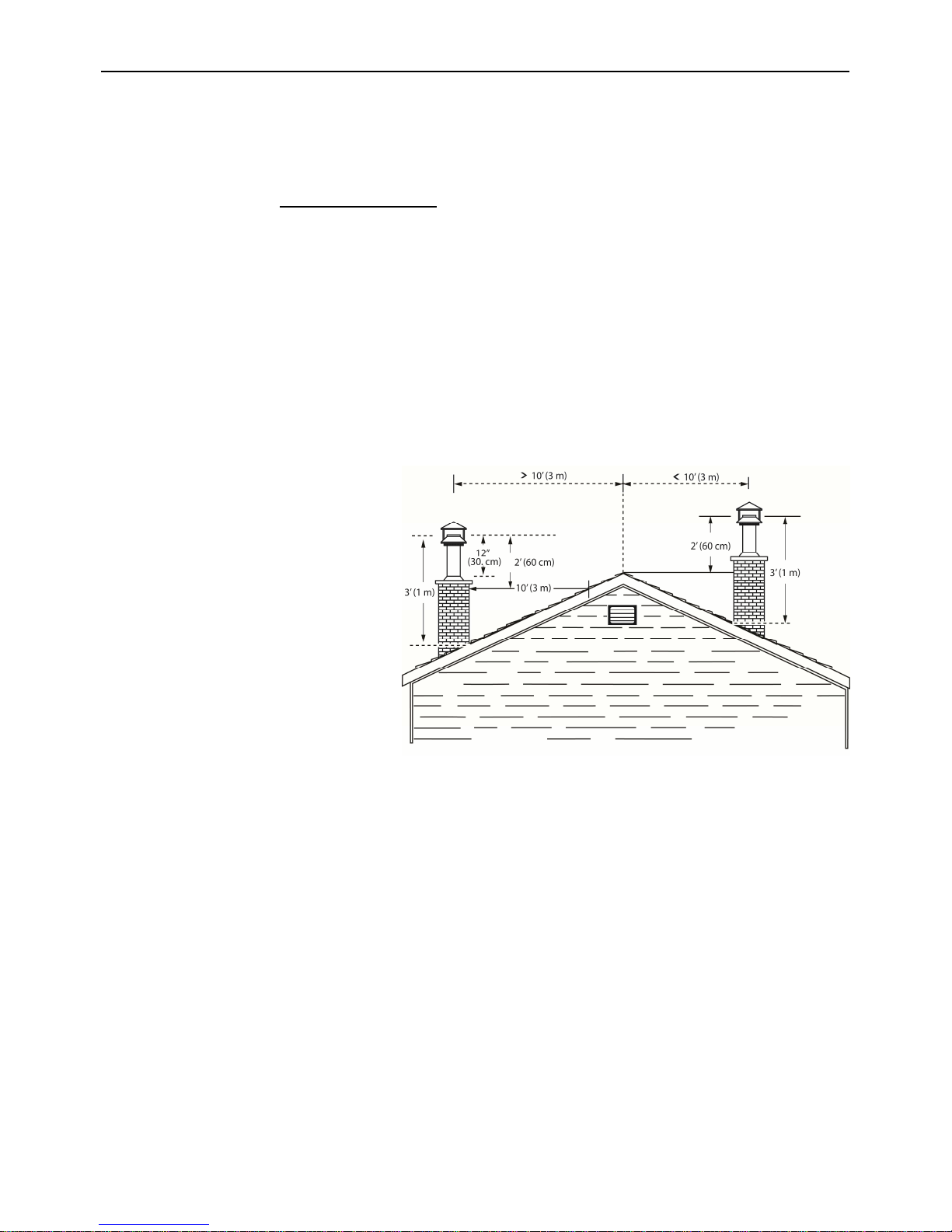

Minimum Chimney Height .................................................................................... 51

8.4

The Relationship Between the Chimney and the House ...................................... 51

8.4.1 Why the chimney should penetrate the highest heated space .......................... 51

8.5

Chimney Installation Notes................................................................................... 52

8.6

Chimney Installation Instructions .......................................................................... 55

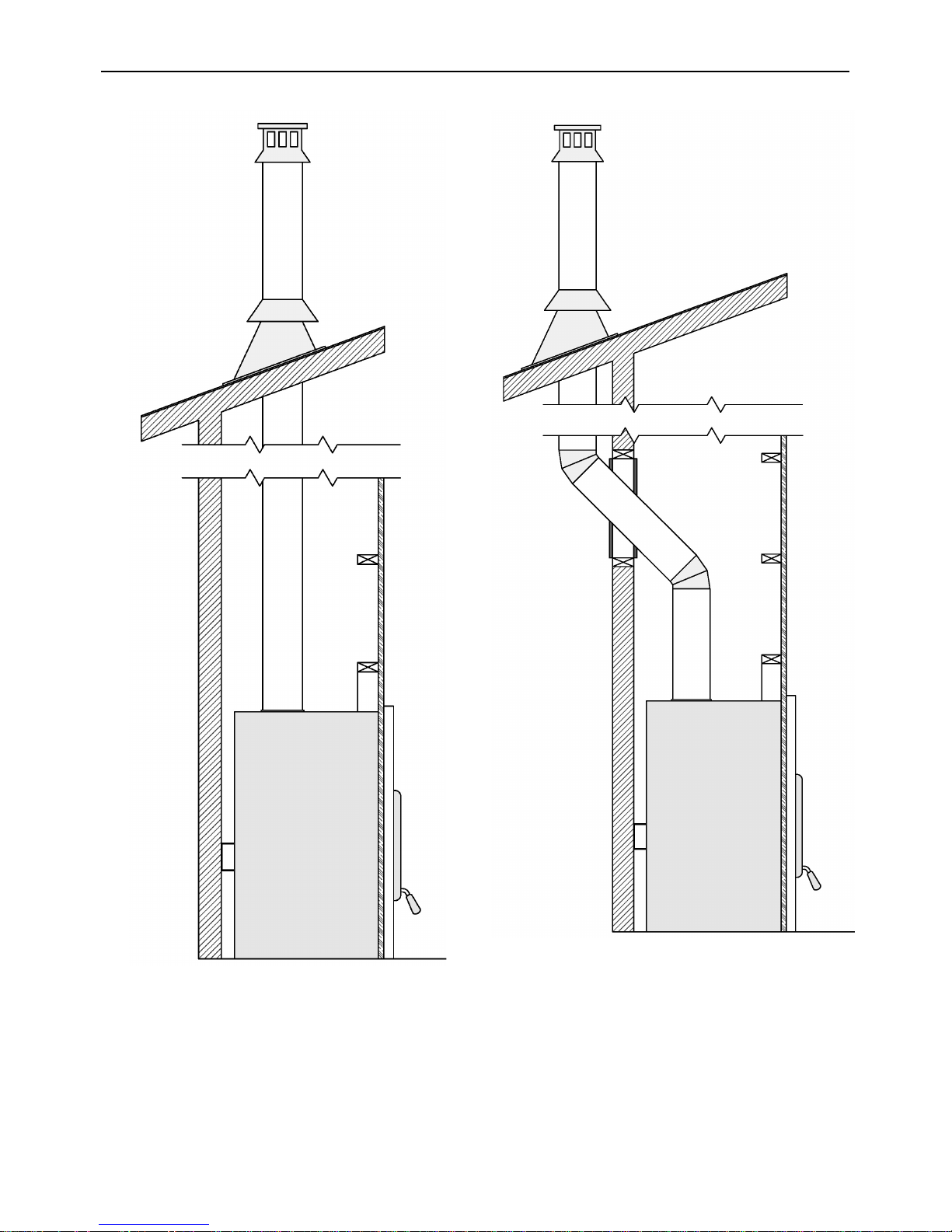

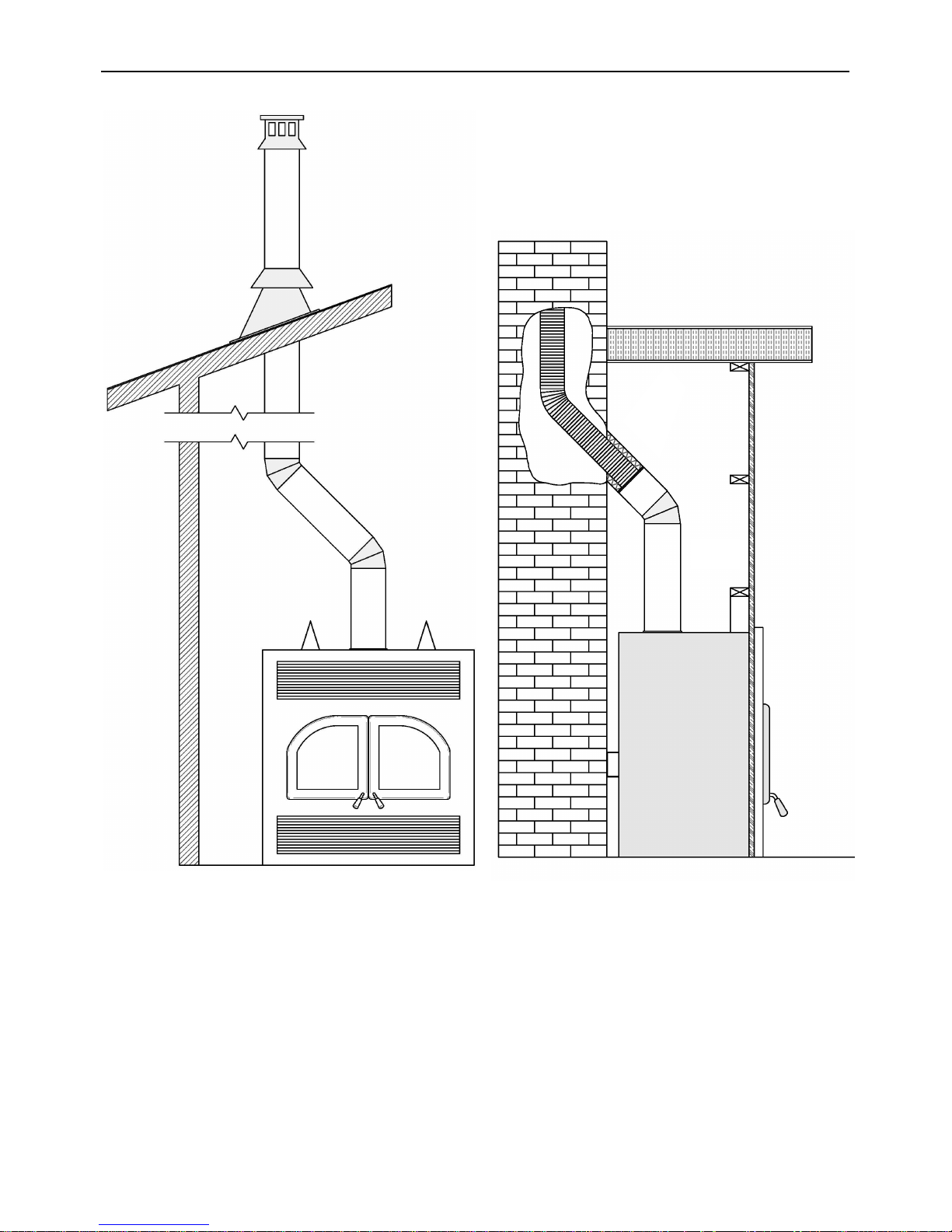

8.6.1 Examples of Typical Chimney Installation ......................................................... 55

8.6.2 Offset Chimney Installation ............................................................................... 60

8.7

Angled Wall Radiation Shield ............................................................................... 64

4

Monaco Installation and Operation Manual

8.8

Chimney Support Installation ............................................................................... 64

8.8.1 Universal Roof Support ..................................................................................... 64

8.8.2 Universal Offset Support ................................................................................... 65

8.9

Installation Instructions for Masonry Application .................................................. 65

8.10 Supply of Combustion Air ..................................................................................... 66

8.10.1 Air Supply in Conventional Houses ................................................................... 67

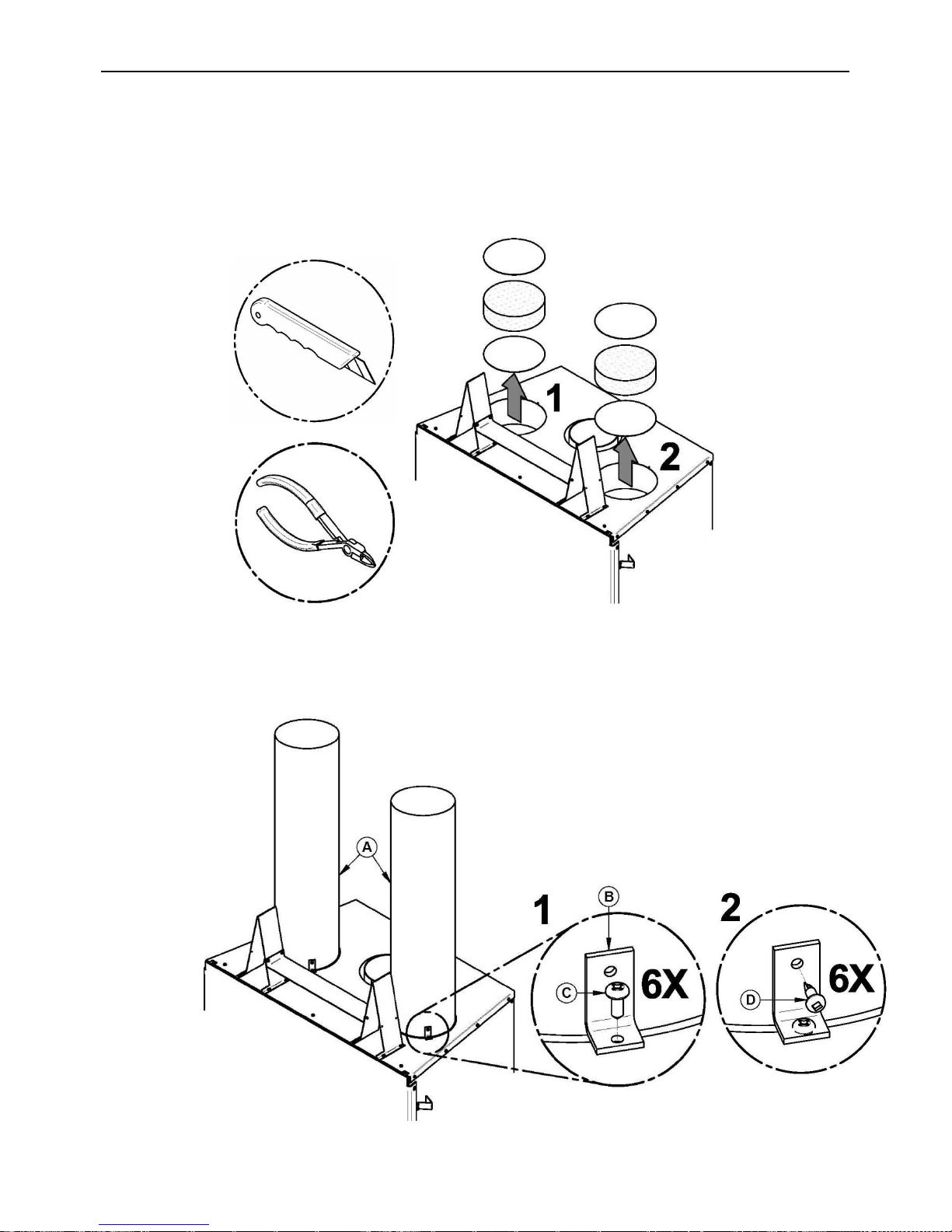

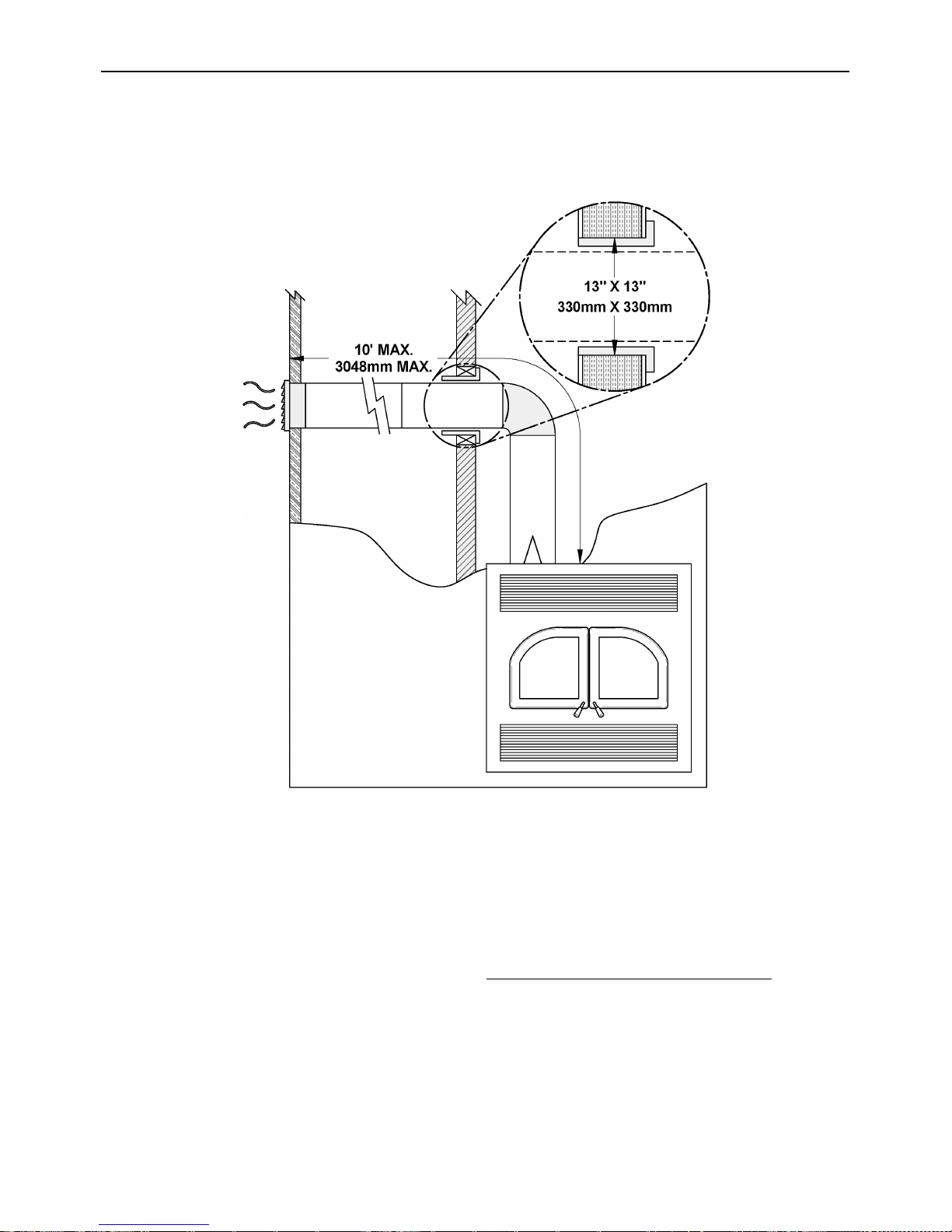

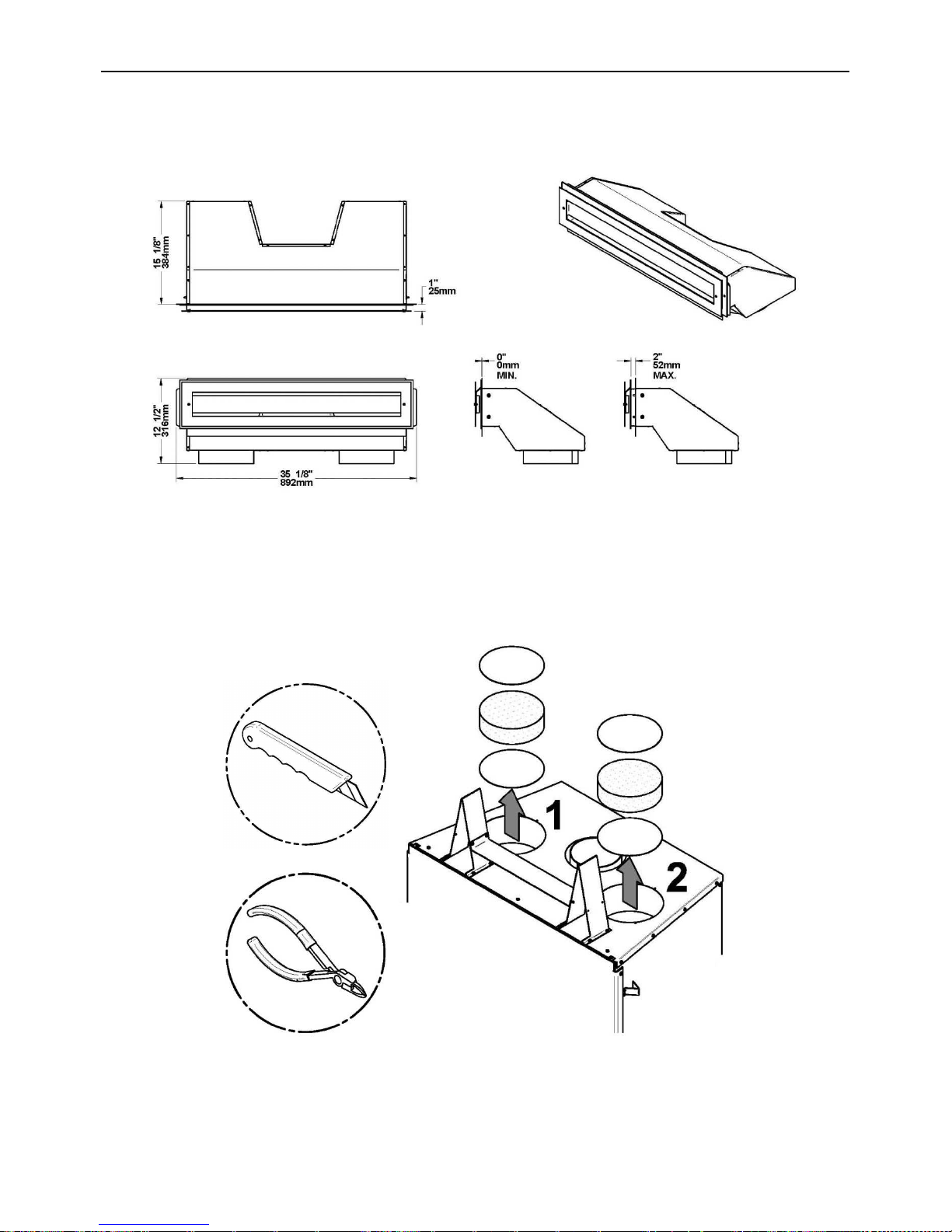

Appendix 1: Optional Heat Distribution Systems Installation ............ 68

Appendix 2: Blower Maintenance or Replacement ............................... 80

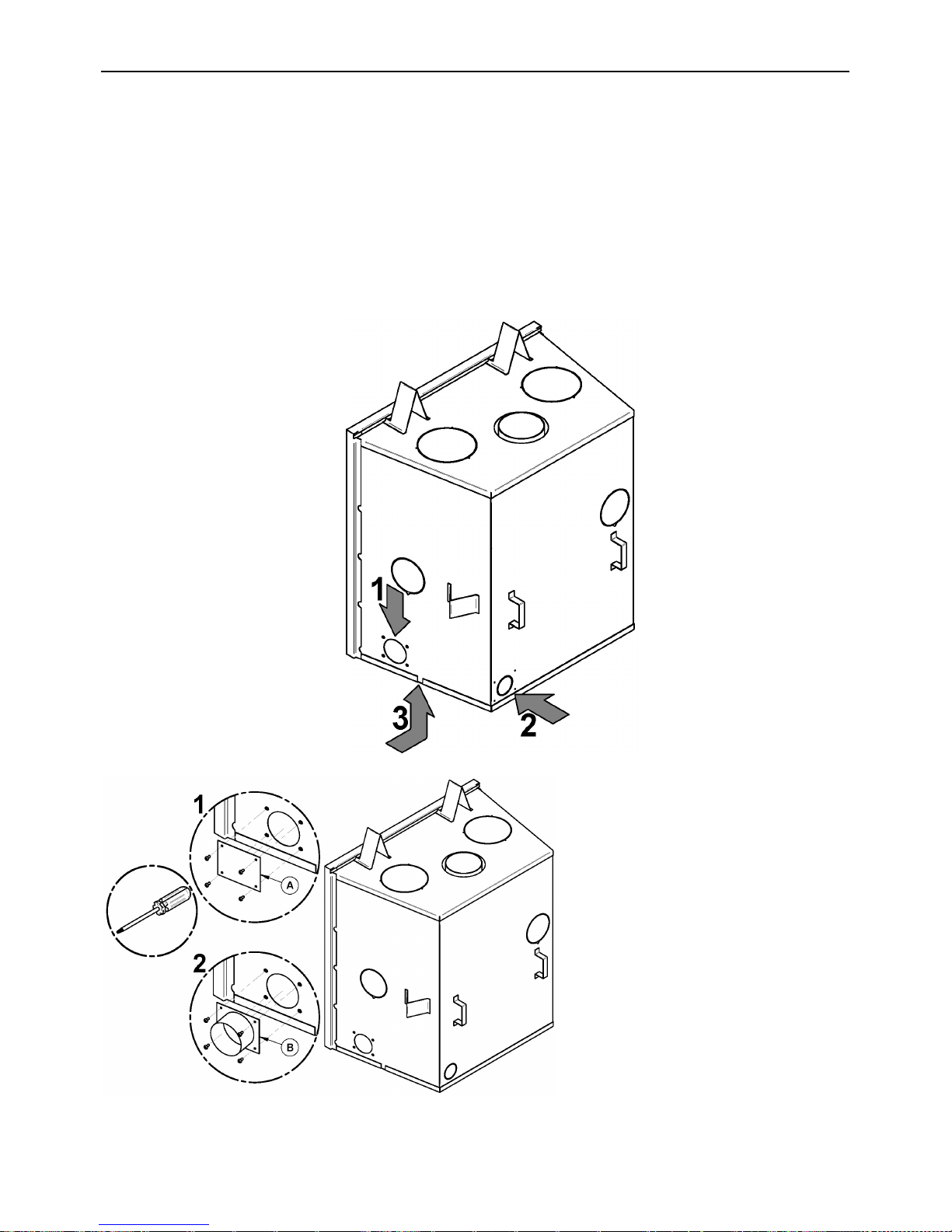

Appendix 3: Installing the Optional Fresh Air Intake Kit (AC03500) 84

Appendix 4: Installing the Optional Fire Screen (AC01560) ............... 88

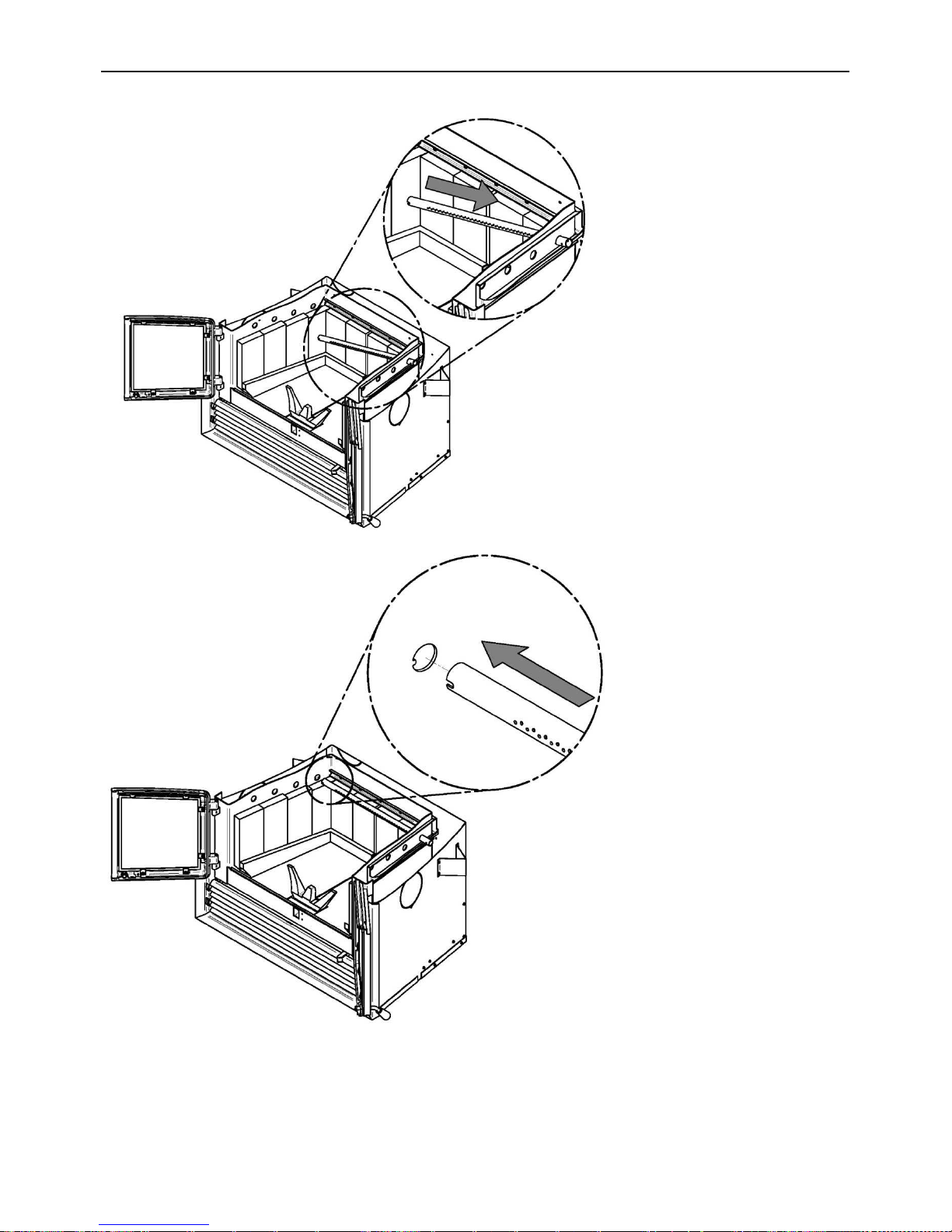

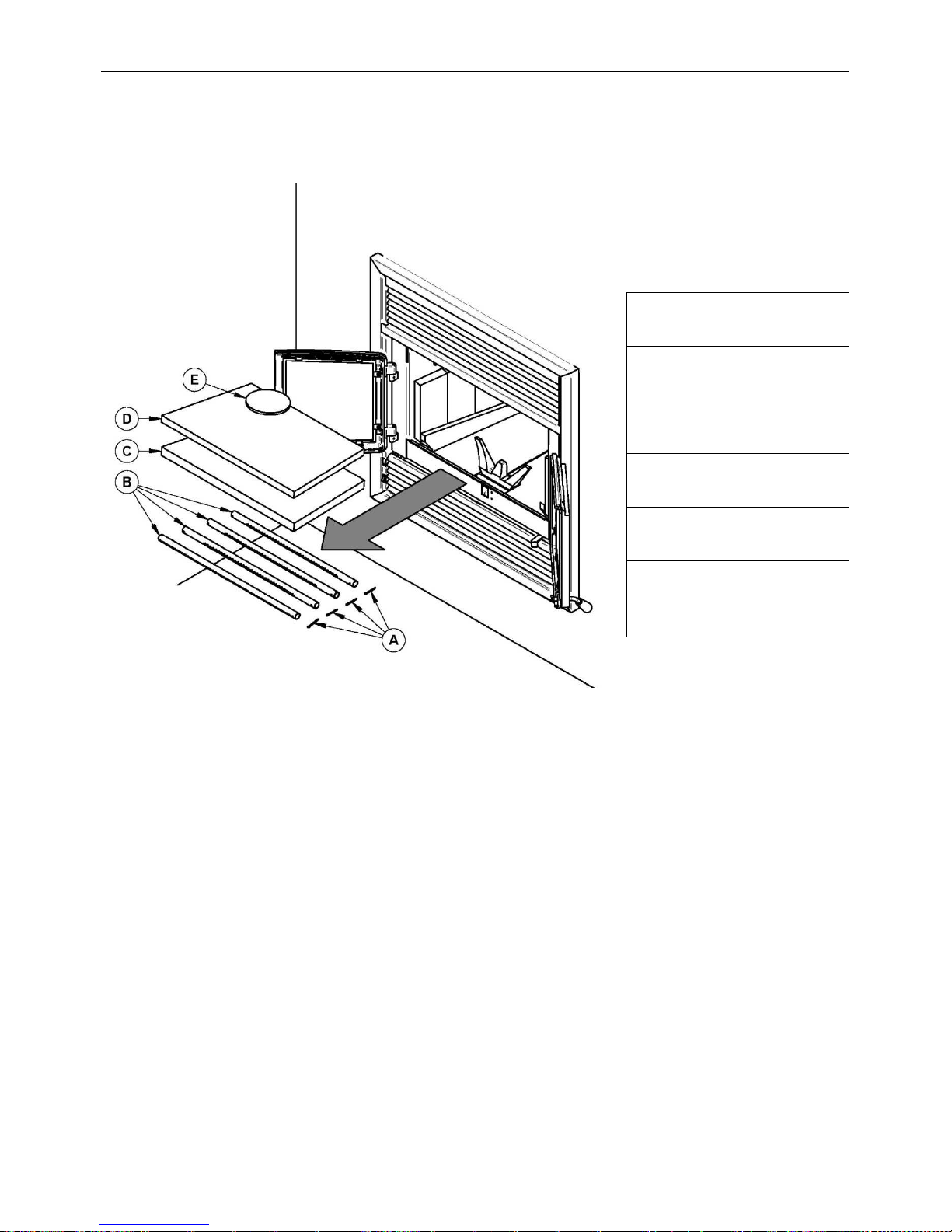

Appendix 5: Installation of Secondary Air Tubes and Baffle .............. 89

Appendix 6: Refractory Replacement..................................................... 92

Appendix 7: Exploded Diagram and Parts List ..................................... 94

FLAME LIMITED LIFETIME WARRANTY ..................................... 97

REGISTER YOUR WARRANTY ONLINE

To receive full warranty coverage, you will need to show

evidence of the date you purchased your stove. Keep your sales

invoice. We also recommend that you register your warranty

online at:

http://www.flame-intl.com/warranty-registration.aspx

Registering your warranty online will help us to quickly track the

information we need about your stove.

5

Monaco Installation and Operation Manual

PART A - OPERATION AND MAINTENANCE

Please see Part B for installation instructions.

1 Safety Information

1.1 Summary of Operation and Maintenance Cautions and Warnings

• HOT WHILE IN OPERATION, KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.

CONTACT MAY CAUSE SKIN BURNS. GLOVES MAY BE NEEDED FOR FIREPLACE
OPERATION.

• USING A FIREPLACE WITH CRACKED OR BROKEN COMPONENTS, SUCH AS GLASS

OR FIREBRICKS OR BAFFLES MAY PRODUCE AN UNSAFE CONDITION AND MAY
DAMAGE THE FIREPLACE.

• OPERATE ONLY WITH DOOR FULLY CLOSED OR FULLY OPEN WITH FIRE SCREEN IN

PLACE. IF DOOR IS LEFT PARTLY OPEN, GAS AND FLAME MAY BE DRAWN OUT OF
THE OPENING, CREATING RISKS FROM BOTH FIRE AND SMOKE.

• OPEN THE AIR CONTROL FULLY BEFORE OPENING THE LOADING DOOR.

• THIS FIREPLACE HAS BEEN TESTED FOR USE WITH AN OPEN DOOR IN

CONJUNCTION WITH A FIRE SCREEN (AC01560, SOLD SEPARATELY). THE DOOR MAY
BE OPEN OR FIRE SCREEN REMOVED ONLY DURING LIGHTING PROCEDURES OR
RELOADING. ALWAYS CLOSE THE DOOR OR PUT BACK THE FIRE SCREEN AFTER
IGNITION. DO NOT LEAVE THE FIREPLACE UNATTENDED WHEN THE DOOR IS
OPENED WITH OR WITHOUT FIRE SCREEN.

• DO NOT INSTALL THE FIREPLACE OUTDOORS.

• THE FIREPLACE AND CHIMNEY MUST BE IN AN ENCLOSURE UP TO THE ATTIC.

• NEVER USE GASOLINE, LANTERN FUEL (NAPHTHA), FUEL OIL, MOTOR OIL,

KEROSENE, CHARCOAL LIGHTER FLUID, OR SIMILAR LIQUIDS OR AEROSOLS TO
START A FIRE IN THIS FIREPLACE. KEEP ALL SUCH LIQUIDS OR AEROSOLS WELL
AWAY FROM THE FIREPLACE WHILE IT IS IN USE.

• DO NOT STORE FUEL WITHIN HEATER MINIMUM INSTALLATION CLEARANCES.

• BURN ONLY SEASONED NATURAL FIREWOOD.

• DO NOT BURN:

o GARBAGE OF ANY KIND,
o COAL OR CHARCOAL,
o TREATED, PAINTED OR COATED WOOD,
o PLYWOOD OR PARTICLE BOARD,
o FINE PAPER, COLORED PAPER OR CARDBOARD,
o SALT WATER DRIFTWOOD,
o MANUFACTURED LOGS CONTAINING WAX OR CHEMICAL ADDITIVES,
o RAILROAD TIES OR
o LIQUIDS SUCH AS KEROSCENE OR DIESEL FUEL TO START A FIRE.

• THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN

ACCORDANCE WITH THESE INSTRUCTIONS.

• DO NOT ELEVATE THE FIRE BY MEANS OF GRATES, AND IRONS OR OTHER MEANS.

6

Monaco Installation and Operation Manual

• THIS FIREPLACE MUST ALWAYS BE USED WITH THE ORIGINAL ANDIRONS (SEE

APPENDIX 7: EXPLODED DIAGRAM AND PARTS LIST FOR REPLACEMENT PARTS).

• SOME JURISDICTIONS IN THE USA REQUIRE A SUPPLY OF OUTDOOR COMBUSTION

AIR FOR THE FIREPLACE. IN CANADA, AN OUTDOOR AIR SUPPLY IS NOT REQUIRED,
IF A CARBON MONOXIDE (CO) DETECTOR/ALARM IS LOCATED IN THE ROOM IN
WHICH THE FIREPLACE IS INSTALLED. THE CO DETECTOR WILL PROVIDE WARNING
IF FOR ANY REASON THE WOOD FIREPLACE FAILS TO FUNCTION CORRECTLY. IF
YOU ARE REQUIRED TO INSTALL AN OUTDOOR AIR SUPPLY, WE RECOMMEND THAT
YOU ALSO INSTALL A CO DETECTOR/ALARM TO PROVIDE WARNING IF SMOKE
SPILLAGE FROM THE FIREPLACE OCCURS.

CAUTION: KEEP COMBUSTIBLE MATERIALS AT LEAST 48 INCHES AWAY FROM THE

FRONT OF THE FIREPLACE OPENING.

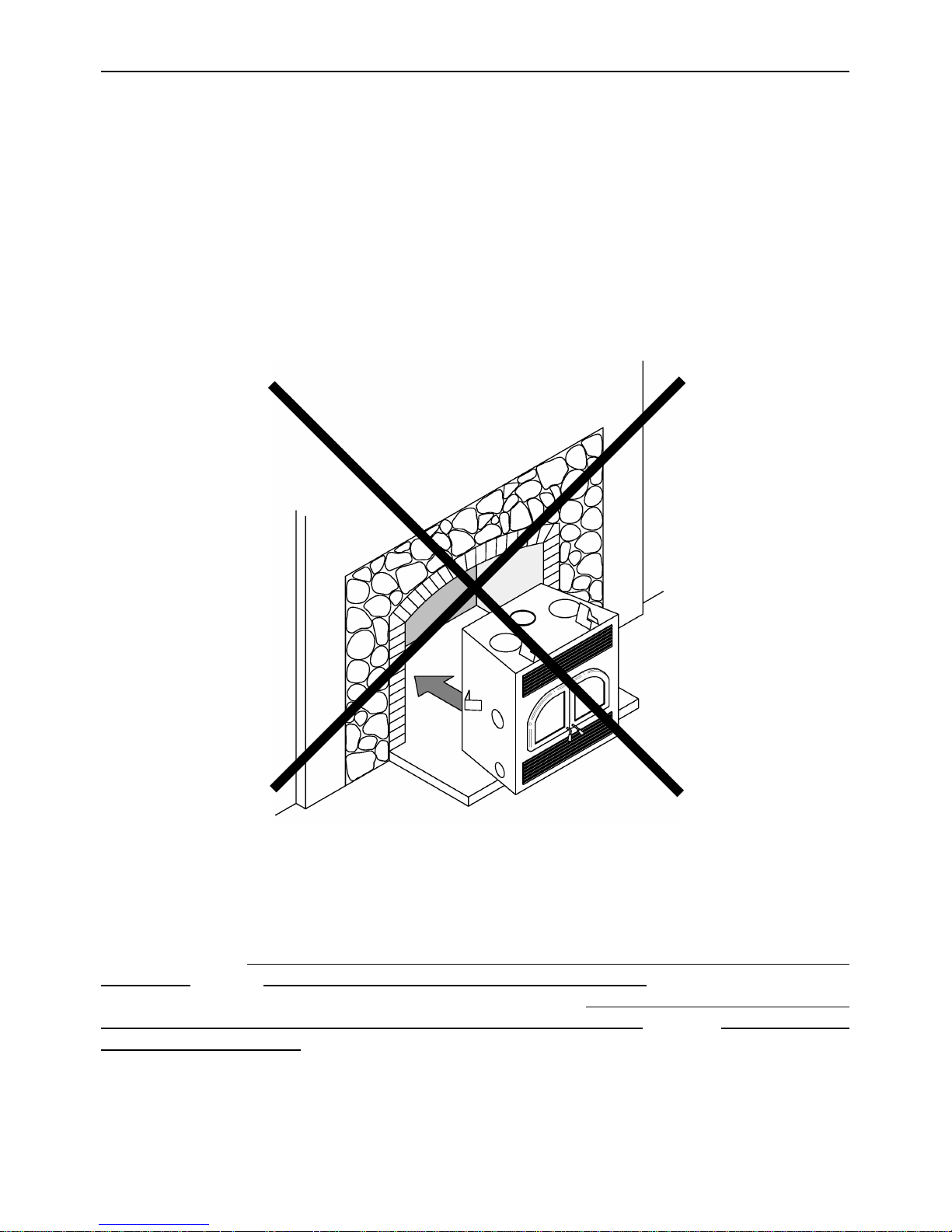

CAUTION: DO NOT USE A FIREPLACE INSERT AND OTHER PRODUCTS NOT SPECIFIED

FOR USE WITH THIS FIREPLACE.

CAUTION: DO NOT OBSTRUCT AIR INTLETS. THIS FIREPLACE NEEDS AIR FOR ITS

GOOD OPERATION.

CAUTION: DO NOT BLOCK THE HOT AIR VENTS TO THE FIREPLACE AS THIS WILL

CAUSE THE FIREPLACE TO OVERHEAT.

WARNING: DO NOT USE MATERIALS OTHER THAN THOSE LISTED IN THE

REPLACEMENT PARTS SECTION DURING INSTALLATION AS THEY MAY BE
SAFETY HAZARDS AND A FIRE COULD RESULT.

WARNING: THIS FIREPLACE HAS NOT BEEN TESTED WITH AN UNVENTED OR VENTED

GAS LOG SET. TO REDUCE RISK OF FIRE OR INJURY, DO NOT INSTALL AN
UNVENTED GAS LOG SET INTO THIS FIREPLACE.

CAUTION: DO NOT INSTALL IN A MOBILE HOME (CANADA) OR MANUFACTURED

HOME* (USA).

* The US department of Housing and Urban Development describes

“manufactured homes” better known as “mobile home” as followed;
Buildings built on fixed wheels and those transported on temporary
wheels/axles and set on a permanent foundation.

PLEASE NOTE THAT THE PICTURES SHOWN IN THIS

MANUAL ARE GENERIC AND MAY NOT MATCH

EXACTLY THE LOOK OF YOUR FIREPLACE.

7

Monaco Installation and Operation Manual

2 General Information

2.1 Monaco Specifications

Fuel Type Cordwood
Test Standards (safety) ULC-S610 and UL 127
Test Standard (emissions) EPA Method 28 (40 CFR Part 60)
Heating capacity range* 500 to 2000 sq. ft. (46.5 to 186 m2)
Maximum heat output**

(EPA test fuel)
Maximum heat output**

(natural hardwood fuel)

30,450 BTU/h (8.9 kW/h)

75,000 BTU/h (22 kW/h)

Optimum efficiency 77 %
Particulate Emissions 4.4 g/h
Approximate Burn Time* 8 to 9 hours
Shipping Weight 438 lb (199 kg)
Firebox Volume 2.5 cu.ft. (0.071 m3)
Maximum Log Length 21" east-west***
Flue Outlet Diameter 6" (150 mm) diameter (vertical)
Baffle Material Vermiculite
Mobile home approved No

* Burn time and heating capacity may vary subject to location in home, chimney draft,
chimney diameter, locality, heat loss factors, climate, fuels and other variables.

** The EPA test fuel is dimensional Douglas fir pieces stapled together into cribs with air
spaces between. We also test using the same procedure except using split hardwood
firewood to reflect real-world heat output. This fireplace is not intended to operate at its
peak heat output continuously.

*** East-west: through the door you see the sides of the logs.

8

Monaco Installation and Operation Manual

9

Monaco Installation and Operation Manual

10

Monaco Installation and Operation Manual

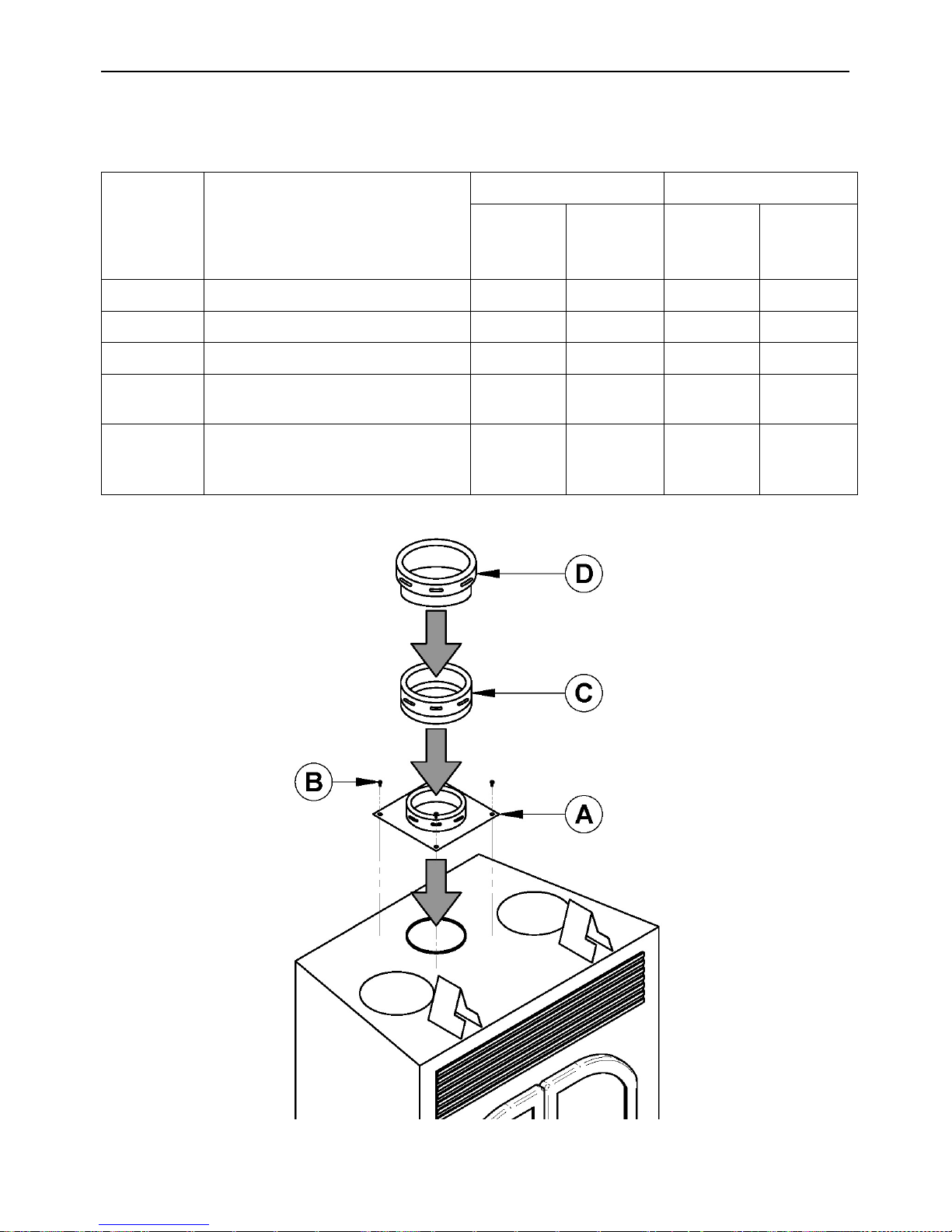

6”/152mm FORCED AIR DISTRIBUTION KIT (3)

2.2 Zone Heating and How to Make it Work for You

Your new Monaco wood fireplace is a space heater, which means it is intended to heat the
area it is installed in, as well as spaces that connect to that area, although to a lower
temperature. This is called zone heating and it is an increasingly popular way to heat
homes or spaces within homes.

Zone heating can be used to supplement another heating system by heating a particular
space within a home, such as a basement family room or an addition that lacks another
heat source.

Houses of moderate size and relatively new construction can be heated with a properly
sized and located wood fireplace. Whole house zone heating works best when the
fireplace is located in the part of the house where the family spends most of its time. This
is normally the main living area where the kitchen, dining and living rooms are located. By
locating the fireplace in this area, you will get the maximum benefit of the heat it produces
and will achieve the highest possible heating efficiency and comfort. The space where you
spend most of your time will be warmest, while bedrooms and basement (if there is one)
will stay cooler. In this way, you will burn less wood than with other forms of heating.

Although the fireplace may be able to heat the main living areas of your house to an
adequate temperature, we strongly recommend that you also have a conventional oil, gas
or electric heating system to provide backup heating.

Your success with zone heating will depend on several factors, including the correct sizing
and location of the fireplace, the size, layout and age of your home and your climate zone.
Three-season vacation homes can usually be heated with smaller fireplaces than houses
that are heated all winter.

11

Monaco Installation and Operation Manual

2.3 The Benefits of Low Emissions and High Efficiency

The low smoke emissions produced by the special features inside the Monaco firebox
mean that your household will release up to 90 percent less smoke into the outside
environment than if you used an older conventional stove. But there is more to the
emission control technologies than protecting the environment.

The smoke released from wood when it is heated contains about half of the energy
content of the fuel. By burning the wood completely, your fireplace releases all the heat
energy from the wood instead of wasting it as smoke up the chimney. Also, the features
inside the firebox allow you to reduce the air supply to control heat output, while
maintaining clean and efficient flaming combustion, which boosts the efficient delivery of
heat to your home.

The emission control and advanced combustion features of your fireplace can only work
properly if your fuel is in the correct moisture content range of 15 to 20 percent. See
Section 3: Fuel of this manual for suggestions on preparing fuelwood and judging its
moisture.

2.4 The SBI Commitment to You and the Environment

The SBI team is committed to protecting the environment, so we do everything we can to
use only materials in our products that will have no lasting negative impact on the
environment.

2.4.1 What is Your New Fireplace Made Of?

The body of your fireplace, which is most of its weight, is carbon steel. Should it ever
become necessary many years in the future, almost the entire fireplace can be recycled
into new products, thus eliminating the need to mine new materials.

The paint coating on your fireplace is very thin. Its VOC content (Volatile Organic
Compounds) is very low. VOCs can be responsible for smog, so all the paint used during
the manufacturing process meets the latest air quality requirements regarding VOC
reduction or elimination.

The air tubes are stainless steel, which can also be recycled.
Vermiculite is used for the baffle or refractory panels. Vermiculite is a mineral. Large

commercial mines exist in China, Russia, South Africa, and Brazil. Potassium silicate is
used as binder to form a rigid board. Vermiculite can withstand temperatures above 2,000
°F. It is not considered hazardous waste. Disposal at a landfill is recommended.

Firebrick is mainly composed of silicon dioxide, also known as silica, a product processed
from a mined mineral. It is most commonly found in nature in the form of sand and clay.
Disposal at a landfill is recommended.

Moulded refractory bricks are mainly composed of silicon dioxide, also known as silica, a
product processed from a mined mineral. It is most commonly found in nature in the form
of sand and clay. Disposal at a landfill is recommended. The steel mesh contained in
some refractory bricks can be recycled.

The door and glass gaskets are fibreglass which is spun from melted sand. Black gaskets
have been dipped into a solvent-free solution. Disposal at a landfill is recommended.

12

Monaco Installation and Operation Manual

The door glasses are a 5 mm thick ceramic material that contains no toxic chemicals. They
are made of natural raw materials such as sand and quartz that are combined in such a
way to form a high temperature glass. Ceramic glass cannot be recycled in the same way
as normal glass, so it should not be disposed of with your regular household products.
Disposal at a landfill is recommended.

3 Fuel

3.1 Materials That Should Not be Burned

•

GARBAGE OF ANY KIND,

•

COAL OR CHARCOAL,

•

TREATED, PAINTED OR COATED WOOD,

•

PLYWOOD OR PARTICLE BOARD,

•

FINE PAPER, COLORED PAPER OR CARDBOARD,

•

SALT WATER DRIFTWOOD,

•

MANUFACTURED LOGS CONTAINING WAX OR CHEMICAL ADDITIVES,

•

RAILROAD TIES,

•

LIQUIDS SUCH AS KEROSENE OR DIESEL FUEL TO START A FIRE.

WARNING: DO NOT POKE OR STIR THE LOGS WHILE THEY ARE BURNING. USE

ONLY FIRELOGS THAT HAVE BEEN TESTED FOR USE IN FIREPLACES
(SEE ULC/ORD-C127, COMPOSITE FIRELOGS) AND PRIOR TO USE,
REFER TO FIRELOG WARNINGS AND CAUTIONS MARKINGS ON
PACKAGING.

3.2 How to Prepare or Buy Good Firewood

3.2.1 What is Good Firewood?

Good firewood has been cut to the correct length for the fireplace, split to a range of sizes
and stacked in the open until its moisture content is reduced to 15 to 20 per cent.

3.2.2 Tree Species

The tree species the firewood is produced from is less important than its moisture content.
The main difference in firewood from various tree species is the density of the wood.
Hardwoods are denser than softwoods. People who live in the coldest regions of North
America usually have only spruce, birch and poplar, other low-density species to burn and
yet they can heat their homes successfully.

13

Monaco Installation and Operation Manual

Homeowners with access to both hardwood and softwood fuel sometimes use both types
for different purposes. For example, softer woods make good fuel for relatively mild
weather in spring and fall because they light quickly and produce less heat Softwoods are
not as dense as hardwoods so a given volume of wood contains less energy. Using
softwoods avoids overheating the house, which can be a common problem with wood
heating in moderate weather. Harder woods are best for colder winter weather when more
heat and longer burn cycles are desirable.

Note that hardwood trees like oak, maple, ash and beech are slower growing and longer
lived than softer woods like poplar and birch. That makes hardwood trees more valuable.
The advice that only hardwoods are good to burn is outdated. Old, leaky cast iron stoves
wouldn’t hold a fire overnight unless they were fed large pieces of hardwood. That is no
longer true. You can successfully heat your home by using the less desirable tree species
and give the forest a break at the same time.

3.2.3 Log Length

Logs should be cut at least 1” (25 mm) shorter than the firebox so they fit in easily. Pieces
that are even slightly too long make loading the fireplace very difficult. The most common
standard length of firewood is 16” (400 mm).

The pieces should be a consistent length, with a maximum of 1” (25 mm) variation from
piece to piece.

3.2.4 Piece Size

Firewood dries more quickly when it is split. Large unsplit rounds can take years to dry
enough to burn. Even when dried, unsplit logs are difficult to ignite because they don’t
have the sharp edges where the flames first catch. Logs as small as 3” (75 mm) should be
split to encourage drying.

14

Monaco Installation and Operation Manual

Wood should be split to a range of sizes, from about 3” to 6” (75 mm to 150 mm) in cross
section. Having a range of sizes makes starting and rekindling fires much easier. Often,
the firewood purchased from commercial suppliers is not split finely enough for convenient
stoking. It is sometimes advisable to resplit the wood before stacking to dry.

3.2.5 How to Dry Firewood

Firewood that is not dry enough to burn is the cause of most complaints about wood
fireplaces. Continually burning green or unseasoned wood produces more creosote and
involves lack of heat and dirty glass door. See Section 5: Maintaining your wood
heating system for concerns about creosote.

Here are some things to consider in estimating drying time:

•

firewood takes a long time to dry

•

firewood bought from a dealer is rarely dry enough to burn, so it is advisable to buy the
wood in spring and dry it yourself

•

drying happens faster in dry weather than in damp, maritime climates

•

drying happens faster in warm summer weather than in winter weather

•

small pieces dry more quickly than large pieces

•

split pieces dry more quickly than unsplit rounds

•

softwoods take less time to dry than hardwoods

•

softwoods like pine, spruce, and poplar/aspen can be dry enough to burn after being
stacked in the open for only the summer months

15

Monaco Installation and Operation Manual

•

hardwoods like oak, maple and ash can take one, or even two years to dry fully,
especially if the pieces are big

•

firewood dries more quickly when stacked in the open where it is exposed to sun and
wind; it takes much longer to dry when stacked in a wood shed

•

firewood that is ready to burn has a moisture content between15 and 20% by weight
and will allow your fireplace to produce its highest possible efficiency

3.2.6 Judging Firewood Moisture Content

You can find out if some firewood is dry enough to burn by using these guidelines:

•

cracks form at the ends of logs as they dry

•

as it dries in the sun, the wood turns from white or cream colored to grey or yellow,

•

bang two pieces of wood together; seasoned wood sounds hollow and wet wood
sounds dull,

•

dry wood is much lighter in weight than wet wood,

•

split a piece, and if the fresh face feels warm and dry it is dry enough to burn; if it feels
damp, it is too wet,

•

burn a piece; wet wood hisses and sizzles in the fire and dry wood does not.

3.3 Manufactured Logs

Do not burn manufactured logs made
of wax impregnated sawdust or logs
with any chemical additives.
Manufactured logs made of 100%
compressed sawdust can be burned,
but use caution in the number of these
logs burned at one time. Start with
one manufactured log and see how
the fireplace reacts. Never use more
than two manufactured logs at a time.

You could buy a wood moisture meter to
test your firewood.

16

Monaco Installation and Operation Manual

4 Operating Your Fireplace

4.1 The use of a fire screen

This fireplace has been tested for use with an open door in conjunction with a fire screen
(AC01560, sold separately). Make sure the fire screen is properly secured on the fireplace
to avoid any risk of sparks damaging your flooring. When the fire screen is in use, do not
leave the fireplace unattended so that you can respond promptly in the event of smoke
spillage into the room. Potential causes of smoke spillage are described in Section 8: The
Venting System of this manual. See Appendix 4: Installing the Fire Screen (AC01560)
for installation instructions.

OPERATING WITH THE FIRE SCREEN INCREASES THE POSSIBILITY OF
GENERATING CARBON MONOXIDE. CARBON MONOXIDE IS AN ODOURLESS GAS
THAT IS HIGHLY TOXIC AND WHICH CAN CAUSE DEATH AT HIGH
CONCENTRATION IN AIR.

4.2 Your First Fires

Two things will happen as you burn your first few fires; the paint cures and the internal
components of the fireplace are conditioned.

As the paint cures, some of the chemicals vaporize. The vapors are not poisonous, but
they do smell bad. Fresh paint fumes can also cause false alarms in smoke detectors. So,
when you first light your fireplace, be prepared by opening doors and/or windows to
ventilate the house. As you burn hotter and hotter fires, more of the painted surfaces reach
the curing temperature of the paint. The smell of curing paint does not disappear until you
have burned one or two very hot fires.

Burn one or two small fires to begin the curing and conditioning process. Then build bigger
and hotter fires until there is no longer any paint smell from the fireplace. Once the paint
smell disappears, your fireplace is ready for serious heating.

4.3 Lighting Fires

Each person who heats with wood develops their own favorite way to light fires. Whatever
method you choose, your goal should be to get a hot fire burning quickly. A fire that starts
fast produces less smoke and deposits less creosote in the chimney. Here are three
popular and effective ways to start wood fires.

17

Monaco Installation and Operation Manual

4.3.1 Conventional Fire Starting

The conventional way to build a wood
fire is to bunch up 5 to 10 sheets of
plain newspaper and place them in the
firebox. Next, place 10 or so pieces of
fine kindling on the newspaper. This
kindling should be very thin; less than
1” (25 mm). Next, place some larger
kindling pieces on the fine kindling.
Open the air control fully and light the
newspaper. If you have a tall, straight
venting system you should be able to
close the door immediately and the fire
will ignite. Once the fire has ignited,
close the door and leave the air control
fully open.

A conventional kindling fire with paper

under finely split wood.

DO NOT LEAVE THE FIREPLACE UNATTENDED WHEN THE DOOR IS SLIGHTLY
OPENED. ALWAYS CLOSE AND LATCH THE DOOR AFTER THE FIRE IGNITES.

After the kindling fire has mostly burned, you can add standard firewood pieces until you
have a fire of the right size for the conditions.

CAUTION: PLACE THE WOOD LOGS FAR ENOUGH FROM THE GLASS TO ALLOW
PROPER PRIMARY AIR FLOW

4.3.2 The Top Down Fire

The top down fire starting method solves two problems with the conventional method: first,
it does not collapse and smother itself as it burns; and second, it is not necessary to build
up the fire gradually because the firebox is loaded before the fire is lit. A top down fire can
provide up to two hours of heating or more. The top down method only works properly if
the wood is well-seasoned.

Start by placing three or four full-sized split pieces of dry firewood in the firebox. Next,
place 4 or 5 more finely split pieces of firewood (2” to 3” [50 mm to 75 mm] in dia.) on the
base logs at right angles (log cabin style). Now place about 10 pieces of finely split
kindling on the second layer at right angles.

The fire is topped with about 5 sheets of newspaper. You can just bunch them up and stuff
them in between the kindling and the underside of the baffle. Or you can make newspaper
knots by rolling up single sheets corner to corner and tying a knot in them. The advantage
of knots is that they don’t roll off the fire as they burn. Light the newspaper and watch as
the fire burns from top to bottom.

18

Monaco Installation and Operation Manual

4.3.3 Two Parallel Logs

Place two spit logs in the firebox. Place a few sheets of twisted newspaper between the
logs. Now place some fine kindling across the two logs and some larger kindling across
those, log cabin style. Light the newspaper.

4.3.4 Using Fire Starters

Many people like to use commercial fire starters instead of newspaper. Some of these
starters are made of sawdust and wax and others are specialized flammable solid
chemicals. Follow the package directions for use.

Gel starter may be used but only if there are no hot embers present. Use only in a cold
firebox to start a fire.

DO NOT USE FLAMMABLE LIQUIDS SUCH AS GASOLINE, NAPHTHA, FUEL OIL,
MOTOR OIL, OR AEROSOLS TO START OR REKINDLE THE FIRE.

4.4 Maintaining Wood Fires

4.4.1 General Advice

Wood heating with a space heater is very different than other forms of heating. There will
be variations in the temperature in different parts of the house and there will be variations
in temperature throughout the day and night. This is normal, and for experienced wood
burners these are advantages of zone heating with wood.

Do not expect steady heat output from your fireplace. It is normal for its surface
temperature to rise after a new load of wood is ignited and for its temperature to gradually
decline as the fire progresses. This rising and falling of temperature can be matched to
your household routines. For example, the area temperature can be cooler when you are
active, such as when doing housework or cooking, and it can be warmer when you are
inactive, such as when reading or watching television.

Wood burns best in cycles. A cycle starts when a new load of wood is ignited by hot coals
and ends when that load has been consumed down to a bed of charcoal about the same
size as it was when the wood was loaded. Do not attempt to produce a steady heat output
by placing a single log on the fire at regular intervals. Always place at least three, and
preferably more, pieces on the fire at a time so that the heat radiated from one piece helps
to ignite the pieces next to it. Each load of wood should provide several hours of heating.
The size of each load can be matched to the amount of heat needed.

When you burn in cycles, you rarely need to open the fireplace’s loading door while the
wood is flaming. This is an advantage because there is more chance that smoke will leak
from the fireplace when the door is opened as a full fire is burning.

IF YOU MUST OPEN THE DOOR WHILE THE FUEL IS FLAMING, OPEN THE AIR
CONTROL FULLY FOR A FEW MINUTES, THEN UNLATCH AND OPEN THE DOOR
SLOWLY.

19

Monaco Installation and Operation Manual

4.4.2 Ash Removal

Ash should be removed from the firebox every two or three days of full time heating. Do
not let the ash build up in the firebox because it will interfere with proper fire management.

The best time to remove ash is after an overnight fire when the fireplace is relatively cool,
but there is still some chimney draft to draw the ash dust into the fireplace and prevent it
from coming into the room.

After ashes have been removed from the fireplace and placed in a tightly covered metal
container, they should be taken outside immediately. The closed container of ashes
should be placed on a non-combustible floor or on the ground well away from all
combustible materials pending final disposal. Ashes normally contain some live charcoal
that can stay hot for several days. If the ashes are disposed of by burial in soil or otherwise
locally dispersed, they should be retained in the closed container until all cinders have
thoroughly cooled. Other waste should not be placed in this container.

NEVER STORE ASHES INDOORS OR IN A NON-METALIC CONTAINER OR ON A
WOODEN DECK.

4.4.3 Raking Charcoal

Rekindle the fire when you notice that the room temperature has fallen. You will find most
of the remaining charcoal at the back of the firebox, furthest from the door. Rake these
coals towards the door before loading. There are two reasons for this raking of the coals.
First, it concentrates them near where most of the combustion air enters the firebox and
where they can ignite the new load quickly, and second, the charcoal will not be
smothered by the new load of wood. If you were to simply spread the charcoal out, the
new load will smoulder for a long time before igniting.

Remove ash first, and then rake charcoal towards the front of the firebox before loading so
that it will ignite the new load.

20

Monaco Installation and Operation Manual

4.4.4 Firing Each New Load Hot

Place the new load of wood on and behind the charcoal, and not too close to the glass.
Close the door and open the air control fully. Leave the air control fully open until the
firebox is full of flames, the wood has charred to black and its edges are glowing red.
Firing each load of wood hot accomplishes a few things:

•

drives the surface moisture from the wood,

•

creates a layer of char on the wood, which slows down its release of smoke,

•

heats the firebox components so they reflect heat back to the fire, and

•

heats the chimney so it can produce strong, steady draft for the rest of the cycle.

Although it is important to fire each new load hot to prepare for a clean burn, do not allow
the fire to burn at full intensity for more than a few minutes.

DO NOT LEAVE THE FIREPLACE UNATTENDED WHILE A NEW LOAD IS BEING
FIRED HOT.

DO NOT OVERFIRE.

When you burn a new load of wood hot to heat up the wood, the fireplace and the
chimney, the result will be a surge of heat from the fireplace. This heat surge is welcome
when the room temperature is a little lower than desirable, but not welcome if the space is
already warm. Therefore, allow each load of wood to burn down so that the space begins
to cool off a little before loading. Letting the space cool before loading is one of the secrets
to clean burning and effective zone heating.

4.4.5 Turning Down the Air Supply

Once the firewood, firebox and chimney are hot, you can begin to reduce the air supply for
a steady burn.

As you reduce the air supply to the fire, two important things happen. First, the firing rate
slows down to spread the heat energy in the fuel over a longer period of time. Second, the
flow rate of exhaust through the fireplace and flue pipe slows down, which gives more time
for the transfer of heat from the exhaust. You will notice that as you reduce the air setting,
the flames slow down. This is your indication that the fireplace is burning at its peak
efficiency.

If the flames get small and almost disappear when you turn down the air, you have turned
down the air too early, or your firewood is wetter than it should be. With good fuel and
correct air control use, the flames should slow down, but should stay large and steady,
even as the air supply is reduced.

21

Monaco Installation and Operation Manual

4.4.6 Building Different Fires for Different Needs

Using the air control is not the only way to match the fireplace’s heat output to the heat
demand. Your house will need far less heat in October than in January to be kept at a
comfortable temperature. If you fill the firebox full in fall weather, you will either overheat
the space or turn the fireplace down so much that the fire will be smoky and inefficient.
Here are some suggestions for building fires to match different heat demand.

4.4.6.1 Small Fires to Take the Chill Off the House

To build a small fire that will produce a low heat output, use small pieces of firewood and
load them crisscross in the firebox. The pieces should be only 3” to 4” in diameter. After
raking the coals, you can lay two pieces parallel to each other corner to corner in the
firebox and lay two more across them in the other direction. Open the air control fully and
only reduce the air after the wood is fully flaming. This kind of fire is good for mild weather
when you are around to tend the fireplace and should provide enough heat for four hours
or more. Small fires like this are a good time to use softer wood species so there will be
less chance of overheating the house.

22

Monaco Installation and Operation Manual

MAXIMUM

4.4.6.2 Long Lasting Low Output Fires

Sometimes you will want to build a fire to last up to eight hours, but don’t need intense
heat. In this case use soft wood species and place the logs compactly in the firebox so the
pieces are packed tightly together. You will need to fire the load hot for long enough to
fully char the log surfaces before you can turn the air down. Make sure the fire is flaming
brightly before leaving the fire to burn.

4.4.6.3 High Output Fires for Cold Weather

When the heat demand is high during cold weather, you’ll need a fire that burns steadily
and brightly. This is the time to use larger pieces of hardwood fuel if you have it. Put the
biggest pieces at the back of the firebox and place the rest of the pieces compactly. A
densely built fire like this will produce the longest burn your fireplace is capable of.

You will need to be cautious when building fires like this because if the air is turned down
too much, the fire could smoulder. Make sure the wood is flaming brightly before leaving
the fire to burn.

4.4.6.4 Maximum Burn Cycle Times

The burn cycle time is the period between loading wood on a coal bed and the
consumption of that wood back to a coal bed of the same size. The flaming phase of the
fire lasts for roughly the first half of the burn cycle and the second half is the coal bed
phase during which there is little or no flame. The length of burn you can expect from your
fireplace, including both the flaming and coal bed phases, will be affected by a number of
things, such as:

•

firebox size,

•

the amount of wood loaded,

•

the species of wood you burn,

•

the wood moisture content,

•

the size of the space to be heated,

•

the climate zone you live in, and

•

the time of year.

The table below provides a very general indication of the maximum burn cycle times you
are likely to experience, based on firebox volume.

FIREBOX VOLUME

BURN TIME

<1.5 cubic feet 3 to 5 hours

1.5 c.f. to 2.0 c.f 5 to 6 hours

2.0 c.f. to 2.5 c.f. 6 to 8 hours

2.5 c.f. to 3.0 c.f. 8 to 9 hours
>3.0 c.f. 9 to 10 hours

23

Monaco Installation and Operation Manual

Long burn times are not necessarily an indication of efficient fireplace operation. When
you are home during the day and able to tend the fire, it is preferable to build a smaller fire
that might provide three or four hours of heating than to fully load the firebox for a much
longer burn. Shorter burn cycles make it easier to match the heat output of the fireplace to
the heat demand of the space.

4.4.6.5 How to place the logs

In fireboxes that are roughly square, wood can be loaded so that looking through the glass
door you see the ends of the logs (north-south) or the sides of the logs (east-west). In all
cases, wood should always be placed behind the andirons.

East-west loads that are built compactly break down slowly when heated, but the amount
of wood you can load is limited because if you put in too many pieces, one may fall against
the glass. East-west loads are excellent for long, low output fires for relatively mild
weather.

North-south loads break down more quickly, but much more wood can be loaded at a time.
This makes north-south loading good for high output, long lasting fires for cold weather.

24

Monaco Installation and Operation Manual

5 Maintaining Your Wood Heating System

5.1 Fireplace Maintenance

Your new fireplace will give many years of reliable service if you use and maintain it
correctly. Some of the internal components of the firebox, such as firebricks, baffles and
air tubes, will wear over time under intense heat. You should always replace defective
parts with original parts (see Appendix 7: Exploded Diagram and Parts List). Firing
each load hot to begin a cycle as described above will not cause premature deterioration
of the fireplace. However, letting the fireplace run with the air control fully open for the
entire burn cycles can cause damage over time. The hotter you run the fireplace
throughout burn cycles, the more quickly its components will deteriorate. For that reason,

never leave the fireplace unattended while a new load is being fired hot.

5.1.1 Plated Finish Maintenance

If your appliance has a plated finish, use a metal polish and a soft cloth to clean it. Do not
use abrasives such as steel wool, steel pads or an abrasive cleaner for they may scratch
the finish.

5.1.2 Glass Door Cleaning

Under normal conditions, your door glass should stay relatively clear. If your firewood is
dry enough and you follow the operating instructions in this manual, a whitish, dusty
deposit will form on the inside of the glass after a week or so of use. This is normal and
can be easily removed when the fireplace is cool by wiping with a damp cloth or paper
towel and then drying. Never try to clean the glass when the fireplace is hot.

In spring and fall when the fireplace is run at lower temperatures, you may see some light
brown stains forming, especially at the lower corners of the glass. This indicates that the
fire has been smoky and some of the smoke has condensed on the glass. When the
weather is mild, you may find that letting the fire go out is better than trying to maintain a
continuous fire. Use the technique described above for building a fire to take the chill off
the house.

If you do get brown stains on the glass you can remove them with special cleaners for
wood heater glass doors. Do not use abrasives to clean your fireplace’s door glass.

The deposits that form on the glass are the best indication of the quality of your fuel and
how well you are doing in operating the fireplace. Your goal should be clear glass with no
brown stains. If you continue to see brown stains on the glass, something about your fuel
and operating procedure needs to be changed. Stains on the glass indicate incomplete
combustion of the wood, which also means more smoke emissions and faster formation of
creosote in the chimney.

If you see brown streaks coming from the edge of the glass, it is time to replace the gasket
around the glass. Visit your fireplace retailer to get the self-adhesive glass gasket and
follow the instructions below for installation.

25

Monaco Installation and Operation Manual

Do not abuse the glass door by striking or slamming shut. Do not use the fireplace
if the glass is broken.

5.1.3 Door Adjustment

In order for your fireplace to burn at its best efficiency, the door must provide a perfect seal
with the firebox. Therefore, the gasket should be inspected periodically to check for a good
seal. The gasket seal may be improved with a simple latch mechanism adjustment. To
adjust:

1. Remove the split pin by pulling and
turning it using pliers.

2. Turn the handle counter clock wise
one turn to increase pressure. To
reduce the pressure, when
installing a new gasket for
example, turn clock wise.

3. Re-install the split pin with a small
hammer.

26

Monaco Installation and Operation Manual

5.1.4 Door Alignment

To align, open the fireplace’s doors and
loosen the pressures screws located on the
lower and upper hinges of each door using
a 3/32” Allen key to free the adjustable
hinge rods.

Using a flat screwdriver, turn the adjustable hinge rods in the direction shown to adjust the
doors. Tighten all door hinge pressure screws when they are at the desired positions.

27

Monaco Installation and Operation Manual

5.1.5 Replacing the Door Gasket

It is important to maintain the gasket in good condition. After a year or more of use, the
door gasket will compress and become hard, which may allow air to leak past it. You can
test the condition of the door gasket by closing and latching the door on a strip of paper.
Test all around the door. If the paper slips out easily anywhere, it is time to replace the
gasket.

28

Monaco Installation and Operation Manual

Use the correct replacement gasket that you can purchase from your retailer. The
diameter and density of the gasket is important to getting a good seal.

Place the door face-down on something soft like a cushion of rags or piece of carpet.
Remove the old gasket from the door by pulling and prying it out with an old screw driver.
Then use the screwdriver to scrape the old gasket adhesive from the door. Now run a 1/4”
(6 mm) bead of high temperature silicone in the door gasket groove. Starting from the
middle of the hinge side, press the gasket into the groove. Do not stretch the gasket as
you place it. Leave the gasket about 1/2” long when you cut it and press the end into the
groove. Tuck any loose fibres under the gasket and into the silicone. Close the door and
do not use the fireplace for 24 hours.

Location Length Dimensions

On each door frame 51 3/4" (132 cm) Flat 1/4’’ x ½” (6 x 12mm
Center door gasket 15 ½’’ (39 cm) Flat 1/4’’ x ½” (6 x 12mm)

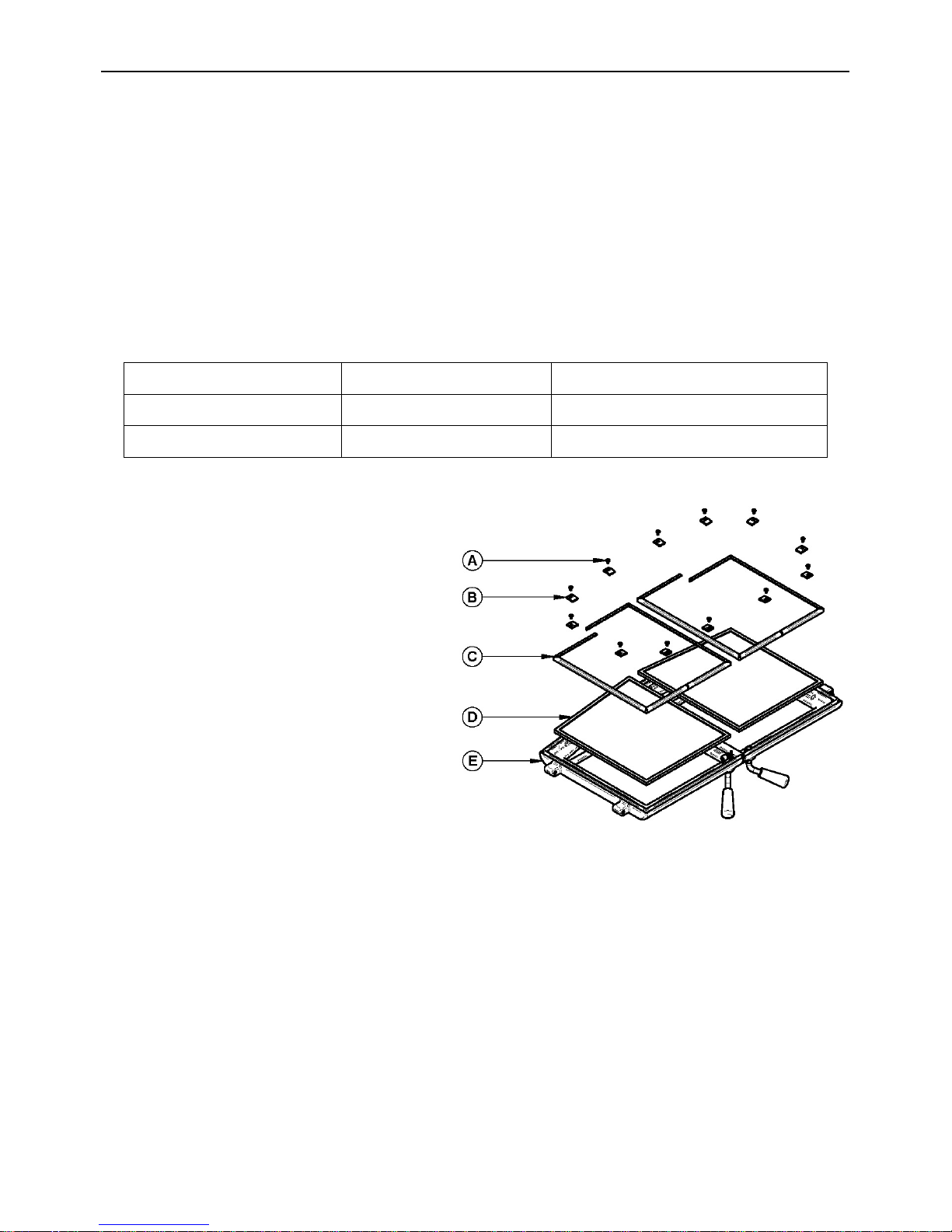

5.1.6 Replacing the Glass Gasket

and/or the Glass

It is a good idea to replace the glass
gasket when the door gasket is
replaced. The gasket is flat, adhesive­backed, woven fibreglass. Remove the
glass retaining screws (A) and clips (B)
then the metal frames (C) that hold the
glass (D) to the door frame (E). Lift out
the glass (D) and pull off the old gasket.
Do the same for the other door. This is a
good time to clean the glass thoroughly.

The gasket must be centred on the edge of the glass. To do this easily, peel back a
section of the paper covering the adhesive and place the gasket on a table with the
adhesive side up. Stick the end of the gasket to the middle of one edge, then press the
edge of the glass down onto the gasket, taking care that it is perfectly centred on the
gasket. Peel off more of the backing and rotate the glass and press the next section onto
the gasket. Do not stretch the gasket as you place it. Continue until you get to the start
and trim the gasket to length. Now pinch the gasket to the glass in a U shape, all around
the glass. Reinstall the glass, being careful to centre the glass carefully in the door. Do not
over-tighten the screws. Note that the two main causes of broken door glass are uneven
placement in the door and over-tightening of retaining screws.

29

Monaco Installation and Operation Manual

Location Length Dimensions

Around each glass 51 3/4" (132 cm) “U” shaped

Do not abuse the glass door by striking or slamming shut. Do not use the fireplace if the
glass is broken. To change the glass, perform the same operation described above.

Both glasses used in the MONACO are 5 mm thick of dimension: 12’’ x 14 1/2’’ and tested
to reach temperatures up to 1400º F. If the glass breaks, it must be replaced with one
having the same specification. Contact your FLAME dealer to obtain a genuine
replacement part (see “Part List”, in appendix to get the proper part number).

WARNING: TEMPERED GLASS OR ORDINARY GLASS WILL NOT WITHSTAND THE HIGH

TEMPERATURES OF THE MONACO.

5.1.7 Cleaning and Painting the Fireplace

Do not attempt to clean or paint the fireplace when the unit is hot. Painted surfaces

can be wiped down with a damp cloth. Plated surfaces may be scratched by abrasive
cleaners. To maintain the finish at its original brilliance, use only a damp soft cloth to clean
plated surfaces.

If the paint becomes scratched or damaged, you can give your wood fireplace a brand
new look by repainting it with heat-resistant paint. Before painting, roughen the surface
with fine sand paper, wipe it down to remove dust, and apply two thin coats of paint. For
best results, use the same paint that was originally used on the fireplace, which is
available in spray cans. See your dealer for details.

5.2 Chimney and Chimney Liner Maintenance

5.2.1 Why Chimney Cleaning is Necessary

Wood smoke can condense inside the chimney liner and chimney, forming a combustible
deposit called creosote. If creosote is allowed to build up in the venting system it can ignite
when a hot fire is burned in the fireplace and a very hot fire can progress to the top of the
chimney. Severe chimney fires can damage even the best chimneys. Smouldering, smoky
fires can quickly cause a thick layer of creosote to form. When you avoid smouldering so
the exhaust from the chimney is mostly clear, creosote builds up more slowly. Your new
fireplace has the right characteristics to help you to burn clean fires with little or no smoke,
resulting in less creosote in the chimney.

30

Monaco Installation and Operation Manual

up.

5.2.2 How Often Should You Clean the Chimney?

It is not possible to predict how much or how quickly creosote will form in your chimney. It
is important, therefore, to check the build-up in your chimney monthly when getting used to
the new fireplace until you determine the rate of creosote formation. Even if creosote forms
slowly in your system, the chimney should be cleaned and inspected at least once each
year. Do not allow more than 1/8″ (3 mm) creosote buildup in the chimney.

It is recommended to clean thoroughly the chimney system at the end of every heating
season. During summer, the air is damper and with minimal air circulation within the stove
or furnace, it can mix with creosote and/or sooth deposits in the chimney system to form
an acid that could accelerate the corrosion process and induce premature decay of the
steel. Corrosion damages are not covered under warranty. Have your chimney system
cleaned by a professional chimney sweep. Use a plastic or steel brush.

Contact your local municipal or provincial fire authority for information on how to handle a
chimney fire. Have a clearly understood plan to handle a chimney fire.

5.2.3 Cleaning the Chimney

Chimney cleaning can be a difficult and
dangerous job. If you don’t have
experience cleaning chimneys, you
might want to hire a professional
chimney sweep to clean and inspect
the system for the first time. After
having seen the cleaning process, you
can decide if it is a job you would like to
take on.

The most common equipment used are
fibreglass rods with threaded fittings
and stiff plastic brushes. The brush is
forced up and down inside the chimney
flue to scrub off the creosote.

The chimney should be checked
regularly for creosote build­Inspection and cleaning of the chimney
can be facilitated by removing the
baffle.

Do not expect chemical cleaners to
keep your chimney clean.

The rain cap can be removed for inspection and/or cleaning of the chimney.

31

Monaco Installation and Operation Manual

The chimney should be swept following these steps:

1) Remove the fire baffle and air tubes.

2) Remove the rain cap.

3) Sweep the chimney.

4) Clean the inside of the firebox.

5) Re-install the baffle, the air tubes and the rain cap.

CAUTION: OPERATION OF YOUR MONACO WITHOUT THE BAFFLE MAY CAUSE

UNSAFE AND HAZARDOUS TEMPERATURE CONDITIONS AND WILL
VOID THE WARRANTY.

5.2.4 Fire Baffle Removal Prior to Cleaning the Chimney

Before starting to clean your chimney, we recommend that you remove the fire baffle to
avoid creosote dust collection on top of the baffle. Follow the steps below to remove the
fire baffle:

1. Remove the front air tube by pulling out the cutter pin on the side of the tube. They are
located at the top, underneath the baffle.

2. Lift the baffle assembly and slide it out of the fireplace. You now have access to the
chimney.

See Appendix 5: Installation of Secondary Air Tubes and Baffle for details.

5.2.5 Chimney Fire

Regular chimney maintenance and inspection can prevent chimney fires. If you have a
chimney fire, follow these steps:

1. Close the fireplace door and the air intake controls;

2. Alert your family of the possible danger;

3. If you require assistance, alert your fire department;

4. If possible, use a dry chemical fire extinguisher, baking soda or sand to control the fire.
Do not use water as it may cause a dangerous steam explosion;

5. Check outside to ensure that sparks and hot embers coming out of the chimney are not
igniting the roof;

6. Do not use the fireplace again until your chimney and fireplace have been inspected by
a qualified chimney sweep or a Fire Department Inspector;

32

Monaco Installation and Operation Manual

PART B – INSTALLATION

Install the fireplace only as described in these instructions and using only components
from the chimney manufacturers listed in table 2.

Parts Required

• MONACO Fireplace

• Insulated chimney made by the manufacturers listed in table 2, with the corresponding

specifications :

− Chimney lengths

− Elbows (where necessary)

− Associated components as per these installation instructions.

Additional Equipment (optional)

• Forced Air Distribution Kit

• Hot Air Gravity Distribution Kit

• Fresh Air Intake Kit

• Fire Screen

6 Safety Information

6.1 Summary of Installation Cautions and Warnings

•

THE INFORMATION GIVEN ON THE CERTIFICATION LABEL AFFIXED TO THE
APPLIANCE ALWAYS OVERRIDES THE INFORMATION PUBLISHED, IN ANY
OTHER MEDIA (OWNER’S MANUAL, CATALOGUES, FLYERS, MAGAZINES
AND/OR WEB SITES).

•

MIXING OF APPLIANCE COMPONENTS FROM DIFFERENT SOURCES OR
MODIFYING COMPONENTS MAY RESULT IN HAZARDOUS CONDTIONS. WHERE
ANY SUCH CHANGES ARE PLANNED, STOVE BUILDER INTERNATIONAL INC.
SHOULD BE CONTACTED IN ADVANCE.

•

ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN
WRITING BY THE TESTING AUTHORITY VIOLATES CSA B365 (CANADA), AND
ANSI NFPA 211 (USA).

•

CONNECTION BETWEEN A 2100 INSULATED CHIMNEY AND A LISTED
STAINLESS STEEL CHIMNEY LINER IS ALLOWED IF A LISTED CONNECTOR IS
USED. FOLLOW INSTRUCTIONS IN SECTION 8.9 FOR THAT KIND OF
INSTALLATION.

33

Monaco Installation and Operation Manual

•

IF REQUIRED, A SUPPLY OF COMBUSTION AIR SHALL BE PROVIDED TO THE
ROOM.

•

DO NOT CONNECT TO OR USE IN CONJUNCTION WITH ANY AIR DISTRIBUTION
DUCTWORK UNLESS SPECIFICALLY APPROVED FOR SUCH INSTALLATION.

•

DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER
APPLIANCE.

•

THIS FIREPLACE HAS NOT BEEN TESTED TO BE INSTALLED IN A MOBILE
HOME.

•

THIS FIREPLACE HAS NOT BEEN TESTED TO BE INSTALLED INSIDE A
MASONRY CHIMNEY.

6.2 Regulations Covering Fireplace Installation

When installed and operated as described in these instructions, the Monaco wood
fireplace is suitable for use in residential installations. The Monaco wood fireplace is not
intended for installation in a bedroom of a mobile home.

In Canada, the CSA B365 Installation Code for Solid Fuel Burning Appliances and
Equipment and the CSA C22.1 Canadian National Electrical Code are to be followed in the
absence of local code requirements. In the USA, the ANSI NFPA 211 Standard for
Chimneys, Fireplaces, Vents and Solid Fuel-Burning Appliances and the ANSI NFPA 70
National Electrical Code are to be followed in the absence of local code requirements.

NOTE: The Fireplace is not approved for use with a so-called “positive flue connection” to

the clay tile of a masonry chimney.

34

Monaco Installation and Operation Manual

6.3 Fireplace Installation

BEFORE INSTALLING YOUR FIREPLACE, YOU MUST INSTALL THE FOUR
SPACERS ON TOP AND ON THE BACK OF THE FIREPLACE.

The spacers are in the firebox of the fireplace and the screws are with the manual kit.
Using the screws provided, install the two spacers (A) on top of the fireplace and the two
spacers (C) on the back of it.

6.3.1 Locating the MONACO

A. The best location to install your fireplace is determined by considering the location of

windows, doors, and the traffic flow in the room. Figure some space in front of the unit
for the heart extension and the mantel and taking into consideration the location of the
heat distribution systems (optional), fresh air intake kit and chimney. If possible, you
should choose a location where the chimney will pass through the house without
cutting floor or roof rafters.

B. Usually, no additional floor support is needed for the fireplace. The adequacy of the

floor can be checked by first estimating the weight of the fireplace system. Weight is
given in Section 2.1: Monaco Specifications. Next, measure the area occupied by
the fireplace, note the floor construction and consult your local building code to
determine if additional support is needed.

35

Monaco Installation and Operation Manual

MINIMUM

6.3.1.1 Raised base installation of more than 4" (R value for the hearth extension

not required)

The MONACO may be installed directly on the floor or on a raised combustible or non
combustible base. If the fireplace is elevated more than 4" (B), an R value for the hearth
extension is not required. However, the upper and lower angle, for the full width of the floor
protection, must be protected 2" horizontally and vertically (E) by a non-combustible
material. For example, a sheet metal (not included). Apart from these two corners, the
sheet metal does not have to cover the rest of the wall between the base of the fireplace
and the floor.

Note that the non-combustible hearth extension floor area must extend at least 16" (41
cm) in front of the hearth as shown in Section 6.3.2: Minimum Heart Extension
Requirements.

CLEARANCES

MEASUREMENTS

A 80" (2032 mm)

E 2" (51 mm)

B

4" (102 mm)

minimum

36

Monaco Installation and Operation Manual

37

Monaco Installation and Operation Manual

In the case where (F) would be equal to 4", it is suggested that the sheet metal between
the base of the fireplace and floor be in one piece.

38

Monaco Installation and Operation Manual

E

6.3.1.2 On the floor or on a raised base of less than 4" installation (R value for the

hearth extension required)

In the case where the fireplace is installed directly on the floor or on a raised base of less
than 4", an R value for the hearth extension is required. In these case also, the joint
between the hearth extension and the fireplace (E) must be protected by a non­combustible material. For example, a sheet metal (not included).

Note that the floor under of the fireplace should match or exceed the height of the floor
protection.

MINIMUM MEASUREMENT

2" (51 mm)

39

Monaco Installation and Operation Manual

Example:

Example:

A noncombustible floor protection with R value insulation equal to or greater than 1.00
must be installed in front of the unit. For more details see Section 6.3.2: Minimum Heart
Extension Requirements. The use of an R value is convenient when more than one
material is going to be used in the hearth extension to cover the combustible surface. This
is because R values are additive, whereas K values are not. To find the corresponding R
factor to use for some selected materials, please see Thermal Characteristics of

Common Floor Protection Materials table.
CAUTION: DO NOT LEAVE CARPET UNDER THE FLOOR PROTECTION IN FRONT

OF THE FIREPLACE

6.3.1.3 R Calculations

There are two ways to calculate the R factor of the floor protection. First, by adding the R­values of the proposed materials or if some K and thickness values are given, by
converting them to R values.

To calculate the R factor for a composite floor protection made of a combination of
alternative materials, simply add the R-values of those materials. If the result is equal to or
larger than the required R value, the combination is acceptable. For R-values of some
selected materials, see Appendix section.

Required floor protection R of 1.00. Proposed materials: four inches of brick and one
inch of Durock® board:

Four inches of brick

(R = 4 x 0,2 = 0,8) plus 1 inch of Durock® (R = 1 x 0.52 = 0.52).

0.8 + 0.52 = 1.32.

This R value is larger than the required 1.00 and is therefore acceptable

In the case of a known K and thickness of alternative materials to be used in combination,
convert all K values to R by dividing the thickness of each material by its K value. Add the
R values of your proposed materials as shown in the previous example.

K value = 0.75
Thickness = 1
R value = Thickness/K = 1/0.75 = 1.33

40

Monaco Installation and Operation Manual

MATERIAL

CONDUCTIVITY (k)

RESISTANCE (R) PER INCH

Thermal Characteristics of Common Floor Protection Materials*

PER INCH

THICKNESS

Micore® 160 0.39 2.54
Micore® 300 0.49 2.06
Durock® 1.92 0.52
Hardibacker® 1.95 0.51
Hardibacker® 500 2.3 0.44
Wonderboard® 3.23 0.31
Cement mortar 5.00 0.2
Common brick 5.00 0.2
Face brick 9.00 0.11
Marble 14.3 – 20.00 0.07 – 0.05
Ceramic tile 12.5 0.008
Concrete 1.050 0.950
Mineral wool insulation 0.320 3.120
Limestone 6.5 0.153
Ceramic board (Fibremax) 0.450 2.2
Horizontal still air** (1/8") 0.135 0,920**

* Information as reported by manufacturers and other resources
** For a 1/8" thickness. You cannot «stack» horizontal still air to accumulate R-values; you

must separate each layer of horizontal still air with another non-combustible material.

6.3.2 Minimum Heart Extension Requirements

The hearth extension floor area must extend at least 16" (41 cm) in front of the hearth (A)
and at least 8" (20 cm) on each side of the door opening (D). The joint between the hearth
extension and the fireplace hearth needs to be made of non-combustible material such as
sheet metal (not included).

41

Monaco Installation and Operation Manual

A

B

C

42

CLEARANCES

16" (406 mm)

41.5" (1054 mm)
8" (203 mm)

Monaco Installation and Operation Manual

6.3.3 Framing, Facing, Mantel and Combustible Shelf

6.3.3.1 Framing

The construction of the framing, facing, and mantel must be in accordance with the
standards and the following illustrations:

A. Frame the sides and back of the fireplace using 2" × 3" (5 cm x 8 cm) or heavier

lumber. However, the front studs as well as headers on top of the fireplace must be of
a depth no more than the depth of the top standoffs.

WARNING: COMBUSTIBLE FRAMING MATERIAL CANNOT BE USED IN THE SPACE

DIRECTLY ABOVE THE FIREPLACE, EXCEPT FOR THE STUDS ABOVE
THE FACING THAT SUPPORT THE FACING MATERIAL AND MANTEL.
THIS AREA MUST REMAIN EMPTY FOR A HEIGHT OF 80” (2.03 M)
MEASURED FROM THE BASE OF THE APPLIANCE.

B. Frame the fireplace with vertical studs at the sides of the fireplace running from floor to

ceiling. Position the studs back from the front edge of the fireplace, a space the
thickness of the facing material so that the facing can be installed flush with the
fireplace facing. Frame headers between the vertical studs only as follows:

− Place the front facing headers in 2" × 3" or of a depth no more than the depth of the
top standoffs. Do not put wood or any material within the area above the fireplace
except what’s necessary to support the front facing.

− Place headers only as required to support the facing and mantel.

WARNING: DO NOT PACK REQUIRED AIR SPACES INSIDE THE CHASE WITH

INSULATION OR OTHER MATERIALS.

WARNING: THE FIREPLACE MUST NOT BE IN CONTACT WITH ANY INSULATION

OR LOOSE FILLING MATERIAL. FOR THIS PURPOSE, COVER THE
INSULATION WITH DRYWALL PANELS OR ANY OTHER FINISHING
MATERIAL INSIDE THE CHASE AROUND THE FIREPLACE.

43

Monaco Installation and Operation Manual

A

B*

C*

D*

E*

F*

G

Wall finish behind the fireplace’s

faceplate installation

Wall finish adjacent to the fireplace’s

faceplate installation

CLEARANCES

5 5/16" (135 mm)
8 7/16" (215 mm)

5" (127 mm)

80" (2032 mm)

*When drywall panels or any other finishing material inside the chase around the fireplace
is to be used, add its thickness to the measurement.

44

MEASUREMENTS

35 7/8" (911 mm)
24 1/2" (622 mm)

7/8" (22 mm) MAX

Monaco Installation and Operation Manual

MINIMUM

J*

H*

See Appendixes for fresh air kit (L) and forced air kit (K) installation.

Fresh air intake kit or forced air distribution kit installation

MINIMUM

MEASUREMENTS FOR

FRESH AIR INTAKE KIT**

MEASUREMENTS FOR

FORCED AIR

DISTRIBUTION KIT**

12" (305 mm) 18" (457 mm)
12" (305 mm) 18" (457 mm)

*When drywall panels or any other finishing material inside the chase around the fireplace
is to be used, add its thickness to the measurement.

** The fresh air intake kit and the forced air distribution kit may be installed either on the
sides or on the back.

45

Monaco Installation and Operation Manual

Wall finish behind the fireplace’s faceplate installation

F*

G

I*

Wall finish adjacent to the fireplace’s faceplate installation

M**

N**

MEASUREMENTS

36 1/2" (927 mm)

7/8" (22 mm) MAX

18” (457 mm)

MEASUREMENTS

51 5/8" (1311 mm)

73" (1854 mm)

*When drywall panels or any other finishing material inside the chase around the fireplace is to be
used, add its thickness to the measurement.

**Values M and N are minimum measurements. They may need to be increased to alloy
installation of a Fresh air intake kit or forced air distribution kit, or depending on the finish
material used.

46

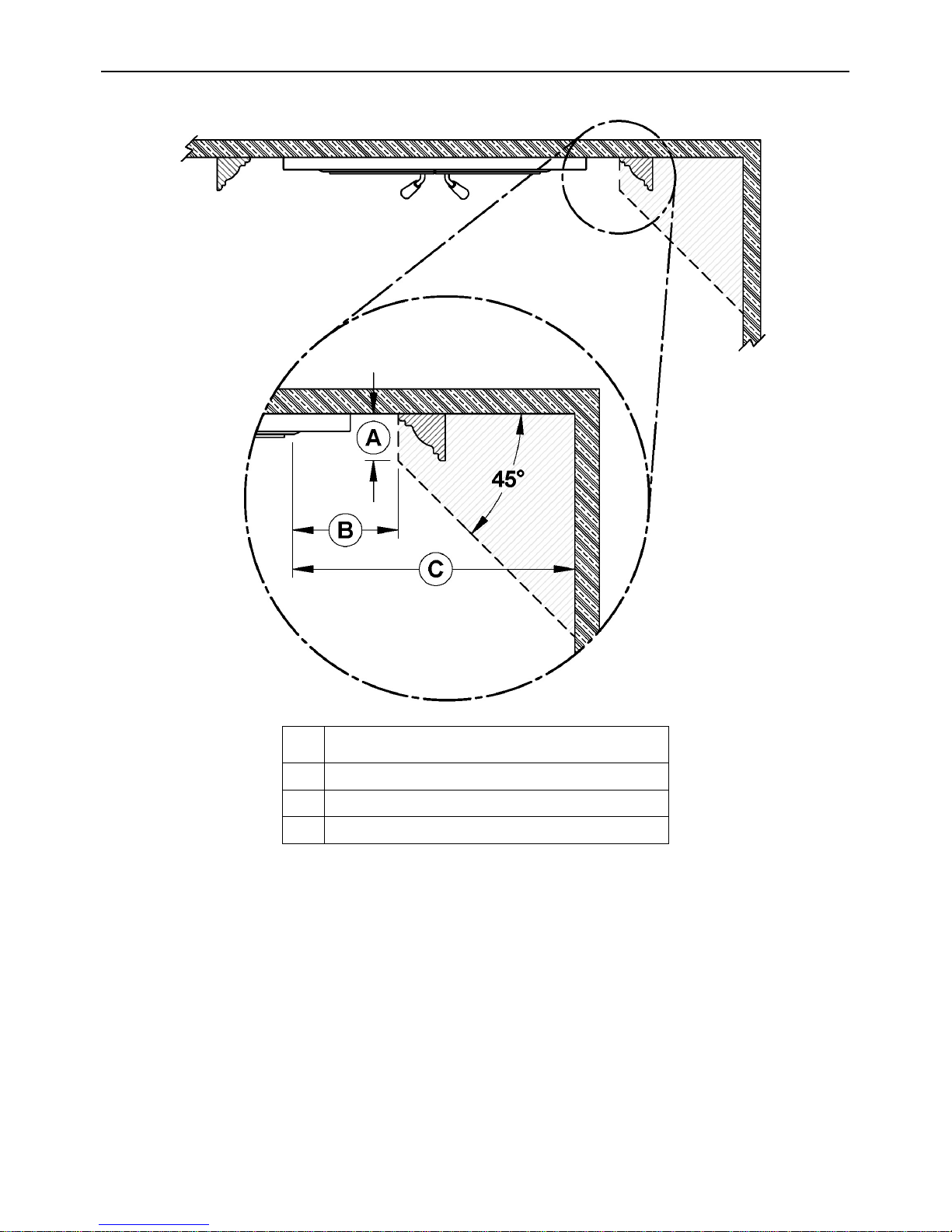

Monaco Installation and Operation Manual

A

B

C

CLEARANCES

3" (76 mm) maximum

5 5/8" (143 mm) minimum

17" (432 mm) minimum

47

Monaco Installation and Operation Manual

6.3.3.2 Facing

Materials directly in contact with the faceplate of the fireplace may be combustible.
Non-combustible material such as brick, stone or ceramic tile may be in contact with the

fireplace decorative frame. Note that if you ever needed to remove the decorative frame, it
might be wise not to seal between the faceplate and finishing material.

LEGEND

Combustible material allowed in

this area

6.3.3.3 Compliance of a Combustible Mantel Shelf

To ensure compliance of an existing mantel shelf or to install a combustible mantel shelf,
refer to table and figure below. For example, a mantel shelf with a 6’’ depth (152 mm) ((C)
value) must be installed at least 50" (1270 mm) ((B) value) above the bottom of the
fireplace (see figure below). Different mantel shelf dimensions are listed in the following
table. However, no combustible mantel shelf can be installed at less than 50" (1270 mm)
above the bottom of the fireplace. If the depth of the mantel shelf is not listed in the table
below, add 44" (1118 mm) to the depth of your mantel shelf to obtain the safe positioning
of your mantel shelf. For example, for a 9" (229 mm) mantel shelf, the safe positioning

would be 53" (1346 mm) above the bottom of the fireplace 44" (1118 mm) + 9" (229 mm)).

48

Monaco Installation and Operation Manual

CLEARANCES

A 80" (2032 mm)

SHELF POSITIONING
B C

50" (1270 mm) 6" (152 mm)
52" (1321 mm) 8" (203 mm)
54" (1372 mm) 10" (254 mm)
56" (1422 mm) 12" (305 mm)

49

Monaco Installation and Operation Manual

7 Clearances to Combustible Material

The clearances shown in this section have been determined by test according to
procedures set out in safety standards ULC S610 (Canada) and UL127 (U.S.A.). When the
fireplace is installed so that its surfaces are at or beyond the minimum clearances
specified, combustible surfaces will not overheat under normal and even abnormal
operating conditions.

No part of the fireplace may be located closer to combustibles than the minimum
clearance figures given.

The following clearances meet the minimum requirements for a safe installation.

Side wall: 17" (43 cm) measured from the door opening.
Side mantle: 3" minimum
Wall in front of fireplace: 48"
Ceiling: 80 in. (2.03 m) measured from the base of the fireplace.
Fireplace enclosure:

Back wall: 0"
Sides: 0"
Floor (under the fireplace): 0"
Chimney: 2" (50 mm)
Combustible shelf:
50" (127 cm) measured from the base of the fireplace for a shelf with a depth of 6"

(15 cm) or less.

56" (142 cm) measured from the base of the fireplace for a shelf with a depth of more

than 12" (30 cm).

7.1 Locating the Certification Label

Since the information given on the certification label attached to the appliance always
overrides the information published in any other media (owner’s manual, catalogues,
flyers, magazines and/or web sites), it is important to refer to it in order to have a safe and
compliant installation. In addition, you will find information about your fireplace (model,
serial number, etc.). You can find the certification label under the fireplace, behind the
bottom louver.

50

Monaco Installation and Operation Manual

8 The Venting System

8.1 General

The venting system, acts as the engine that drives your wood heating system. Even the
best fireplace will not function safely and efficiently as intended if it is not connected to a
suitable chimney.

The heat in the flue gases that pass from the fireplace into the chimney is not waste heat.
This heat is what the chimney uses to make the draft that draws in combustion air, keeps
smoke inside the fireplace and safely vents exhaust to outside. You can think of heat in
the flue gas as the fuel the chimney uses to make draft.

8.2 Suitable Chimneys

Your wood fireplace will provide optimum efficiency and performance when connected to a
6-inch diameter chimney.

8.3 Minimum Chimney
Height

The top of the chimney should be
tall enough to be above the air
turbulence caused when wind
blows against the house and its
roof. The chimney must extend at
least 1 m (3 ft.) above the highest
point of contact with the roof, and
at least 60 cm (2 ft.) higher than
any roof line or obstacle within a
horizontal distance of 3 m (10 ft.).

8.4 The Relationship Between the Chimney and the House

Because the venting system is the engine that drives the wood heating system, it must
have the right characteristics. The signs of bad system design are cold backdrafting when
there is no fire in the fireplace, slow kindling of new fires, and smoke roll-out when the door
is opened for loading.

8.4.1 Why the chimney should penetrate the highest heated space

When it is cold outside, the warm air in the house is buoyant so it tends to rise. This
tendency of warm air to rise creates a slight pressure difference in the house. Called ‘stack
effect’, it produces a slightly negative pressure low in the house (relative to outside) and a
slightly positive pressure zone high in the house. If there is no fire burning in a heater
connected to a chimney that is shorter than the warm space inside the house, the slight
negative pressure low in the house will compete against the desired upward flow in the
chimney.

51

Monaco Installation and Operation Manual

There are two reasons why the
chimney in the house at right will cold
backdraft when it is cold outside and
there is no fire burning in the
fireplace. First, the chimney runs up
the outside of the house, so the air in
it is colder and denser than the warm
air in the house. And second, the
chimney is shorter than the heated
space of the house, meaning the
negative pressure low in the house
will pull outside air down the chimney,
through the fireplace and into the
room. Even the finest fireplace will not
work well when connected to this
chimney.

8.5 Chimney Installation Notes

1. If possible, install an interior chimney as it will provide better performance. In areas with

continuous temperatures below −18° C (0° F), the use of an exterior chimney increases
the likelihood of operating problems such as low draft, high rate of creosoting, and poor
start-up characteristics. Exterior chimneys are also prone to down-drafting and flow
reversal. Installations, which are located on lower floors in the house, such as in a
basement, in combination with outside chimney, are especially prone to flow reversal.

2. The MONACO is listed only with chimney systems described in TABLE 2 - LISTED

CHIMNEYS FOR YOUR MONACO.

3. A chimney venting a fireplace shall not vent any other appliance.

4. The minimum chimney system height for a straight installation is 15 ft. (4,6 m).

5. All chimney installations must include at least one support. Reducing the amount of

chimney weight on the fireplace will help avoid the noise created when the fireplace
expands. This can be achieved by having the chimney supported by the supports. The
maximum chimney length that should be supported by the fireplace is 9 ft. (2.75 m) for
2" Solid Pack Chimney and 12 ft. (3.7 m) for 1" Solid Pack Chimney.

6. The chimney must extend at least 3 ft. (92 cm) above its point of contact with the roof

and at least 2 ft. (61 cm) higher than any wall, roof or building within 10 ft. (3.1 m) of it.
See the figures on point 11 bellow to determine the configuration that applies to your
roof (flat or sloped roof and the distance between the chimney and the highest point of
the roof and/or the nearest chimney).

52

Monaco Installation and Operation Manual

7. Deviations should be avoided whenever possible, especially the most pronounced.

Each deviation adds some restriction to the chimney system and may lead to draft
problems.

8. If the chimney extends higher than 5 ft. (1.5 m) above its point of contact with the roof,

it must be secured using a roof brace.

9. A rain cap must be installed on top of the chimney. Failure to install a rain cap may

cause corrosion problems.

10. Cut and frame square holes in all floors, ceilings, and roof that the chimney will go

through to provide a 2" (50 mm) minimum clearance between the chimney and any
combustible materials. Do not fill this 2″ space with insulation or any other combustible

material.

11. Portions of the chimney which may extend through accessible spaces must be

enclosed to avoid contact with combustible materials or damage the chimney.

53

Monaco Installation and Operation Manual

12. For installations where more than one chimney is located in the same non-chase or

within the same area, we suggest that their terminations be separated by at least 16"
(410 mm) horizontally, and 18" (460 mm) vertically. This separation is to prevent
smoke migrating from one chimney to another.

18"

457.2mm

16"

406.4mm

18"

457.2mm

16"

406.4mm

18"

457.21mm

54

Monaco Installation and Operation Manual

8.6 Chimney Installation Instructions

Always refer to the chimney manufacturer’s Installation manual to ensure a safe
installation. Some non-illustrated parts may be required.

8.6.1 Examples of Typical Chimney Installation

To insure a good draft, it is
recommended to have a length of 18

A

inches from the top of the unit to the
first offset. However, starting using a
30° or 45° elbow is also approved.

Mandatory measure of 15 ft. from

B

the bottom of the fireplace to the top
of the outside chimney.

55

Monaco Installation and Operation Manual

Direct installation

Exterior offset installation

56

Monaco Installation and Operation Manual

Interior

offset installation

Connection to a masonry chimney

57

Monaco Installation and Operation Manual

1. Cut and frame the holes in the ceiling, floor and roof where the chimney will pass. Use

a plumb bob to line up the center of the holes. Make sure that the size of the floor and
ceiling holes are in accordance with the chimney manufacturer’s instructions.

2. From below, install a firestop (B) supplied by the chimney manufacturer in each

ceiling/floor separation through which the chimney will pass. At the attic level, install a
radiation shield from above (D).

3. Follow the chimney’s manufacturers’ instructions and place the first chimney length on

the fireplace. For all chimneys, you must use an anchor plate (A) supplied by the
chimney manufacturer before installing the first chimney length. Continue installing
chimney lengths making sure to lock each length in place.

4. Every time the chimney passes through a ceiling or a wall, install the appropriate

firestop. When you reach the desired height, install the roof support (not illustrated).
(Refer to instructions included with the support).

5. Then, put the roof flashing (E) in place and seal the joint between the roof and the

flashing with roofing pitch. For sloping roofs, place the flashing under the upper
shingles and on top of the lower shingles. Nail the flashing to the roof, using roofing
nails.

6. Place the storm collar (F) over the flashing, and tighten it with the bolt supplied. Finally,

seal the joint between the storm collar and the chimney, using silicone caulking.

7. Install the chimney cap (G).

8. When a ventilated roof flashing is installed, precautions are to be taken not to caulk or

seal the ventilating openings.

58

Monaco Installation and Operation Manual

**

THE STRUCTURAL INTEGRITY OF THE FLOOR, WALL, AND CEILING/ROOF

MUST BE MAINTAINED

NOTE: THE FLOOR AND WALLS BELOW THE ATTIC MUST BE INSULATED USING
THE SAME INSULATION..

59

Monaco Installation and Operation Manual

8.6.2 Offset Chimney Installation

Table 1 - The minimum system height when using elbows is:

Fireplace model MONACO

Chimney model All models
Vertical installation 15 ft. (4.6 m)
Two (2) elbows 15 ft. (4.6 m)
Four (4) elbows 17 ft. (5.2 m)

After reaching the location requiring the elbow, proceed as follows:

1. Install the first elbow; turn it in the required direction. Secure it to the chimney

according to the chimney manufacturer’s instructions. In many cases, it is
recommended to secure connections with three (3) ½" (12 mm) metal screws.

2. Install the necessary chimney lengths to achieve the required offset. Lock the chimney

lengths together according to the chimney manufacturer’s instructions. In many cases,
it is recommended to use three (3) ½" (12 mm) screws. If the offset length is made of
two (2) chimney lengths or more, many chimney manufacturers may require that you
use an offset or roof support halfway up the offset. If penetrating a wall, install a wall
radiation shield supplied by the chimney manufacturer.

3. Use another elbow to turn the chimney vertically. Secure the elbow.

4. Use a plumb bob to line up the centre of the hole. Cut a hole for the chimney in the

ceiling/floor. Frame this hole as described previously.

5. From below, install a firestop supplied by the chimney manufacturer (see preceding

figure).

6. A support must be used on the first 15' section (4.6 m).

7. Continue with the regular installation.

60

Monaco Installation and Operation Manual

TABLE 2 - LISTED CHIMNEYS FOR YOUR MONACO

CHIMNEY

MANUFACTURER

BRAND TYPE INNER DIAMETER

Selkirk Ultra-Temp (UT) 1” Solid Pack 6" (15 cm)
Selkirk Super Pro (SPR) 1” Solid Pack 6" (15 cm)
Selkirk Super Vent (JSC) 1” Solid Pack 6" (15 cm)
Selkirk Hart & Cooley (TLC) 1” Solid Pack 6" (15 cm)
Selkirk Sure-Temp (ST) 1” Solid Pack 6" (15 cm)
Selkirk CF Sentinel (CF) 2” Solid Pack 6" (15 cm)

Selkirk
Selkirk

Super Pro 2100
(ALT)
Super Vent 2100
(JM)

2” Solid Pack 6" (15 cm)
2” Solid Pack 6" (15 cm)

Selkirk UltimateOne 1” Solid Pack 6" (15 cm)
Security Chimney ASHT+ 1” Solid Pack 6" or 7" (15 or 18 cm)*
Security Chimney S-2100 + 2” Solid Pack 6" or 7" (15 or 18 cm)*

Simpson Dura
Vent
Simpson Dura
Vent
Simpson Dura
Vent

Dura Tech 1” Solid Pack 6" (15 cm)
Dura Plus HTC 2” Solid Pack 6" (15 cm)
Dura Plus AC Triple Wall 6" (15 cm)

ICC Excel 2100 1” Solid Pack 6" (15 cm)
Metal Fab Temp Guard 1” Solid Pack 6" (15 cm)
American Metal HSS AC Triple Wall 6" (15 cm)
American Metal HS AC Triple Wall 6" (15 cm)
Olympia Chimney Ventis 1” Solid Pack 6" (15 cm)
FMI (U.S.A. only) AC AC Triple Wall 6" (15 cm)

WARNING: IN EVERY CASE, THE CHIMNEY MUST START WITH A 6'' DIAMETER
ANCHOR PLATE SECURED TO THE FIREPLACE.

*This fireplace may be installed with a 7-inch chimney from “Security Chimney” as
indicated it the table above.

61

Monaco Installation and Operation Manual

Refer to the following table to determine the parts you will need depending on the type of
fireplace used: (R: Required, NR: Not Required).

Inner diameter 6″ Inner diameter 7″

1″

insulation

(ASHT+)

2″
insulation
(S2100+)

1″

insulation

(ASHT+)

Reference

in figure

bellow.

Parts required. (The numbers

in brackets are the parts

numbers used by Security

Chimneys)

A Anchor Plate (6SP) R NR R R
A Anchor Plate (6XSP) NR R NR NR
B Screws R R R R

C

6″ à 7″ Chimney adaptor
(6AW7)

NR NR R R

7″Chimney adaptor, 1″

D

insulation to 2″ insulation

NR NR NR R

(7UCA)

2″
insulation
(S2100+)

62

Monaco Installation and Operation Manual

the chimney is

shield unless chimney is

10.44”

5.126”

1.530”

.512”

TABLE 3 – LIST OF MANDATORY COMPONENTS

CHIMNEY

MANUFACTURER

Selkirk

Security Chimney

MANDATORY COMPONENTS TYPE/BRAND

• Ventilated roof flashing.

• Must have rafter protectors at

the roof level if
enclosed at the attic level.

Ultra-Temp (UT), Super
Pro (SPR), Super vent
(JSC), Hart & Cooley (TLC),
Sure-Temp (ST)

• Rafter protector at the roof level
if chimney is enclosed at the
attic level.

• Requires insulated attic radiation
enclosed at the attic level.

• Requires the use of a 6AW7

1" Solid Pack: ASHT+,

2" Solid Pack : S-2100
(Solid pack 1") adapter for a
ASHT+ of 7".

• Requires the use of a 6AW7 and
a 7UCA adapter for the S-2100
of 7".

• Ventilated roof flashing.

Simpson Dura-Vent

• Rafter protector at the roof level
is chimney is enclosed at the
attic level.

• Ventilated roof flashing.

ICC

• Rafter protector at the roof level
if chimney is enclosed at the
attic level.

American Metal

• Chimney cannot be enclosed at
the attic level.

*You can get a kit of four (4) rafter protector (AC03510)
from your dealer. Each rafter is made of 22GA galvanized
steel (10.44”W x 5.126”H).

1" Solid Pack : Dura Tech

Excel 2100

AC Triple wall HS,
AC Triple wall HSS

63

Monaco Installation and Operation Manual

8.7 Angled Wall Radiation Shield

When passing through a combustible wall with the chimney at a 30° or 45° angle (30° or
45° in Canada and 30° only in the USA), an angled firestop or wall radiation shield
provided by the chimney manufacturer must be installed. Only one is required. Follow the
chimney manufacturer’s installation instructions.

In cold climate locations, it is recommended that you use the insulated wall radiation shield
since it will maintain the home’s thermal barrier.

A INSULATED WALL RADIATION SHIELD
B GYPROK
C INSULATED WALL

8.8 Chimney Support Installation

8.8.1 Universal Roof Support

This support has three possible uses:

1. It must be used on a roof to support the chimney.

2. It may be used on a floor, ceiling or roof above an offset to support the chimney above
the offset.

3. It may be used on a floor, ceiling or roof as a supplementary support.

For roof support installation, refer to the instructions provided with the support by the
chimney manufacturer. Many manufacturers will provide the maximum height of chimney
that can be supported by the support. Make sure you respect those parameters.

64

Monaco Installation and Operation Manual

8.8.2 Universal Offset Support

This support is used to support the chimney above an offset. When the chimney offset is
used to pass through a wall, this support may be used on the wall to support the chimney.
For offset support installation, refer to the instructions provided with the support by the
chimney manufacturer. Many manufacturers will provide the maximum height of chimney
that can be supported by the support. Make sure you respect those parameters.

8.9 Installation Instructions for Masonry Application

WARNING: BEFORE STARTING THE INSTALLATION, THE MASONRY CHIMNEY
MUST BE INSPECTED BY A QUALIFIED SWEEP.

The following requirements must be respected:

1. The chimney must be absolutely clear of any soot residue or creosote. Check for
cracks, loose or missing bricks that could inhibit correct installation of the liner.

2. The clearance to combustible must be a minimum of 1" between the outside of the
masonry and any wood framing or loose insulation.

3. The chimney must be built in accordance with the current building code.

4. No other appliance can be connected to the same chimney.

Installation:
The chimney must be relined with a stainless steel liner of the same diameter as the

outlet of the fireplace. For connection at 30° or 45° angle, a special connector (B)
must be used to connect the liner (C) to the insulated chimney (A). Verify availability
and installation instructions for this connector with the chimney manufacturer.

65

Monaco Installation and Operation Manual

Follow these steps:

1. Position the fireplace in its location.
Temporarily install the elbow or
chimney section (A) on the top of
the fireplace and, using a level,
mark with an oval the location
where the flue liner will enter the
masonry chimney.

2. In the middle of the oval, drill a
hole in the masonry chimney at 45°
or 30°.

3. Increase the size of the hole until a
45° or 30° insulated liner adapter

(B) can be easily slipped through.

4. Slide the liner (C) down from the
top of the masonry chimney until
you reach the hole level.

5. Slip through the hole a 45° or 30°
insulated liner adapter and connect
it to the liner.

6. Seal the opening around the liner
with high temperature refractory
cement.

7. Then, follow the chimney
manufacturer’s instructions to
connect the extended liner section
to the special chimney connector.

Note: Make sure the liner exceeds at least 12” (30 cm) the top of masonry chimney.

8.10 Supply of Combustion Air

In Canada, wood fireplaces are not required to have a supply of combustion air from
outdoors because research has shown that these supplies do not give protection against
house depressurization and may fail to supply combustion air during windy weather.
However, to protect against the risk of smoke spillage due to house depressurization, a
carbon monoxide (CO) detector/alarm is required in the room in which the fireplace is
installed. The CO detector will provide warning if for any reason the wood fireplace fails to
function correctly.

66

Monaco Installation and Operation Manual

8.10.1 Air Supply in Conventional Houses

The safest and most reliable supply of combustion air for your wood fireplace is from the
room in which it is installed. Room air is already preheated so it will not chill the fire, and its
availability is not affected by wind pressures on the house. Contrary to commonly
expressed concerns, almost all tightly-sealed new houses have enough natural leakage to
provide the small amount of air needed by the fireplace. The only case in which the wood
fireplace may not have adequate access to combustion air is if the operation of a powerful
exhaust device (such as a kitchen range exhaust) causes the pressure in the house to
become negative relative to outdoors.

If you do install an air supply through the wall of the house, be aware that its pressure can
be affected during windy weather. If you notice changes in wood fireplace performance in
windy weather, and in particular if smoke puffs from the fireplace, you should disconnect
the outdoor air duct from the fireplace and remove the duct. In some windy conditions,
negative pressure at the duct weatherhood outside the house wall may draw hot exhaust
gases from the fireplace backwards through the duct to outdoors. Check the outdoor air
duct for soot deposits when the full system is cleaned and inspected at least once each
year.

67

Monaco Installation and Operation Manual

Appendix 1: Optional Heat Distribution Systems Installation

Different heat distribution systems can be installed with the Monaco:

• Hot air gravity distribution kit - Traditional style (AC01375)

• Hot air gravity distribution kit - Modern style (AC01385)

• Forced air distribution kit (AC01340)

Hot air gravity distribution kit - Traditional style (AC01375)

The kit includes:

- 2x hot air outlets (grilles (A) and frames (B));

- 2x 90

- 6x steel brackets (D) with fastening screws (E) and self-tapping screws (F)

Parts not included in the kit:

- 2x 8” rigid ducting (G)

o

elbows (C);

68

Monaco Installation and Operation Manual

DIMENSIONS OF HOT AIR OUTLET FRAME WITH ELBOW

DIMENSIONS OF HOT AIR OUTLET DECORATIVE GRILLE WITH ELBOW

69

Monaco Installation and Operation Manual

The safety rules and installation procedures for both hot air gravity distribution kits (AC01375,
AC01385) are the following:

Minimum height*: 68" (1.7 m)
Minimum distance from ceiling: 12’’ (30 cm)
Maximum length: 10' (3m)

*The minimum height of the hot air ducting must be measured from the floor to the top of the hot
air grilles.

The hot air grilles can be installed in
the same room as the fireplace, or
one or both of the grilles can be
installed in adjacent or upper rooms.
Installing the ducts at different
elevations will tend to exhaust more
heat out of the higher grilles.

70

Monaco Installation and Operation Manual

This hot air gravity distribution kit must be installed respecting the following:

1. It is recommended to wear gloves to perform this procedure. Remove the plates closing up the

8" dia. holes on top of the fireplace. Then, cut and remove the insulation in order to obtain
two 8" dia. openings. Then, remove the plates closing up the 8" dia. holes inside the fireplace.

2. Secure the 6 steel brackets (B) with 6 screws provided (C) on top of the fireplace (3 for each

ducting). Insert the ducting (A) (not provided) into each opening and secure it in place using
the steel brackets (B) installed previously with 6 other self-tapping screws provided (C).

71

Monaco Installation and Operation Manual

3. Secure the ducting (A) to the 90° elbows (E) with self-tapping screws (3 per elbow). Insert the

hot air outlets (F) in the elbow (E). Set hot air outlets frames behind the non-combustible
materiel and secure to the wall with screws. Secure hot air outlets (F) to the elbows (E) with 3
self-tapping screws each. Secure the hot air outlets grilles to the frames with screws.

4. Maintain at least a 2" (50 mm) clearance between the ducts and the firestop; the required hole

size for the hot air grilles (outlet) is 8¼" × 8¼" (210 mm × 210 mm).

5. The maximum number of elbows in a run of duct is two.

6. Maintain at least 10" (254 mm) clearance from the outlet grille framing to a combustible

ceiling, side wall or mantel.

72

Monaco Installation and Operation Manual

7. When passing through a combustible wall or floor, a firestop must be installed at the wall or

floor penetration. The hole size must be in accordance with the duct manufacturer’s
instructions.

8. Do not connect the hot air ducts to a central heating system. Malfunction of the heating

system’s blower will cause the fireplace to overheat.

9. Do not use insulated flexible ducts as they may overheat.

10. Do not use tees or any other components than the ones specifically listed here.

11. All ducts must extend upwards or horizontally. Never route the ducting downwards.

12. The hot air outlet grilles must be installed with the louvers pointing downwards in order to

prevent overheating adjacent ceilings.

13. Always install the two outlet grilles when using the hot air gravity distribution kit and blocking

the upper louver of the fireplace.

73

Monaco Installation and Operation Manual

Hot air gravity distribution kit - Modern style (AC01385)

The kit includes:

- Decorative plate (A)

- Adjustable frame (B)

- Heat distribution box (C)

- 6x steel brackets (D) with fastening screws (E) and 12x self-tapping screws (F)

Parts not included in the kit:

- 2x 8” rigid ducting (G)

74

Monaco Installation and Operation Manual

DIMENSIONS OF HEAT DISTRIBUTION BOX:

DIMENSIONS OF ASSEMBELED DECORATIVE PLATE:

75

Monaco Installation and Operation Manual

DIMENSIONS OF ASSEMBELED HEAT DISTRIBUTION HOUSING AND ADJUSTABLE DECORATIVE
PLATE:

This hot air gravity distribution kit must be installed respecting the following:

1. It is recommended to wear gloves to perform this procedure. Remove the plates closing up the

8" dia. holes on top of the fireplace. Then, cut and remove the insulation in order to obtain
two 8" dia. openings. Then, remove the plates closing up the 8" dia. holes inside the fireplace.

76

Monaco Installation and Operation Manual

2. Secure the 6 steel brackets (B) with 6 screws provided (C) on top of the fireplace (3 for each

ducting). Insert the ducting (A) (not provided) into each opening and secure it in place using
the steel brackets (B) installed previously with 6 other self-tapping screws provided (C).

3. Secure the ducting (G) to the

heat distribution box (C) with
self-tapping screws (3 per
ducting). Insert the adjustable
frame (B) in the heat
distribution box, press it
against the finishing material
and secure with 4 screws into
the heat distribution box. Set
the decorative plate (A) to the

adjustable frame (B).

77

Monaco Installation and Operation Manual

The duct system must be installed respecting the following:

1. Remove the plates closing up the 8" dia. holes on top of the fireplace. Then, cut the

insulation in order to obtain two 8" dia. openings. Insert the ducting into each opening
and fix it in place using the 6 steel brackets supplied (3 for each duct).

2. Maintain at least a 2" (50 mm) clearance between the ducts and the firestop; the

required hole size for the hot air grilles (outlet) is 8¼" × 8¼" (210 mm × 210 mm).

3. The maximum number of elbows in a run of duct is two.

4. Maintain at least 10" (254 mm) clearance from the outlet grille framing to a

combustible ceiling, side wall or mantel.

5. When passing through a combustible wall or floor, a firestop must be installed at the

wall or floor penetration. The hole size must be in accordance with the duct
manufacturer’s instructions.

6. Do not connect the hot air ducts to a central heating system. Malfunction of the

heating system’s blower will cause the fireplace to overheat.

7. Do not use insulated flexible ducts as they may overheat.

8. Do not use tees or any other components than the ones specifically listed here.

9. All ducts must extend upwards or horizontally. Never route the ducting

downwards.

10. The hot air outlet grilles must be installed with the louvers pointing downwards in

order to prevent overheating adjacent ceilings.

11. Always install the two outlet grilles when using the hot air gravity distribution kit and

blocking the upper louver of the fireplace.

78

Monaco Installation and Operation Manual

Forced Air distribution Kit (not tested to EPA Standards) (AC01340)

It is possible to connect a forced air distribution kit (AC01340) on the right side (1), on the back (2)
on the left side (3) of the Monaco. This kit allows distributing heat to another room up to 50 feet
(15 m) of the fireplace. The insulated flexible pipe (not included in the kit) must be HVAC type pipe
and must comply with ULC S110 and/or UL 181, Class 0 or Class 1 Standards and must withstand
temperatures up to 250 °F.

For the complete installation procedure, see the installation manual provided with the kit.
You can also download this manual at www.flame-intl.com.

79

Monaco Installation and Operation Manual

Appendix 2: Blower Maintenance or Replacement

1. Remove the bottom louver
(A).

2. With a short square head
screwdriver, remove the 4
screws (C) holding in
place the heat shield (B).

80

Monaco Installation and Operation Manual

3. Remove and keep the
heat shield (B) and the 4
screws (C).

4. Cut the Tie wrap (D)

81

Monaco Installation and Operation Manual

5. Unplug the blower’s
electric wires (F) and (G).

6. Lift the blower (E) located
under the firebox towards
the back.

7. Turn 90° to pull out.

Repeat the steps in reverse
order to reinstall the blower.

82

Monaco Installation and Operation Manual

Blower connection

Have the wiring installed by a qualified electrician. Connect the wires from the power outlet
to the terminal block, making sure that the white wire matches the white wire on the
terminal. Connect the black wire with the black wire of the terminal block. The ground
(green or skinned wire) must be attached to the fireplace metal frame.

83

Monaco Installation and Operation Manual

Appendix 3: Installing the Optional Fresh Air Intake Kit
(AC03500)

During operation, the fireplace requires fresh air for combustion and draws air out of the
house. It may starve other fuel burning appliances such as gas or oil furnaces. As well,
exhaust blowers may compete for air, causing negative pressure in the house, resulting in
smoke entering the house from the fireplace. This situation is aggravated in modern
airtight houses. To overcome this problem, we strongly recommend that you bring fresh air
to the fireplace. Check with local authorities having jurisdiction in your area, it may
be mandatory.

If more fresh air is needed (airtight house or conduit exceeding 10 ft or 3 m), two intakes
may be installed, providing twice the quantity of incoming fresh air; you may also increase
both conduits to 4 inches, with the use of a 3 to 4 inch adaptor, again increasing
substantially the quantity of incoming fresh air.

THE INSULATED FLEXIBLE PIPE LENGTH SHOULD BE SUFFICIENT AND HAVE A
CONFIGURATION TO AVOID CONDENSATION.

THE OUTSIDE WALL TERMINATION MUST NOT BE INSTALLED AT MORE THAN
50% OF THE TOTAL HIGHT OF THE CHIMNEY AND AT THE MOST 10 FT. (3 M)
ABOVE THE BASE OF THE FIREPLACE.

THE FRESH AIR MUST COME FROM OUTSIDE THE HOUSE. THE AIR INTAKE MUST
NOT DRAW AIR FROM THE ATTIC, FROM THE BASEMENT, OR FROM A GARAGE.

THE OUTSIDE WALL TERMINATION SHOULD BE INSTALLED WHERE IT IS NOT
LIKELY TO BE BLOCKED BY SNOW OR EXPOSED TO EXTREME WIND AND AWAY
FROM AUTOMOBILE EXHAUST FUMES, GAS METER AND OTHER VENTS.

The fresh air intake kit contains the following components:

a. One (1) 3" adaptor;
b. One (1) air inlet block-off plate;
c. Six (6) screws;
d. One (1) 3” to 4” adaptor;
e. The outside air inlet cap;
f. The 2 adjustable straps.

The following component is not included:

a. A 3” or 4” insulated flexible pipe (This HVAC type pipe must comply to ULC S110

and/or UL 181, Class 0 or Class 1 Standards and must withstand temperatures up
to 250 °F.

84

Monaco Installation and Operation Manual

(1)

Note: Only remove the knock-out that will be connected to the fresh air inlet.

To install a fresh air intake kit to the fireplace, the purchase of accessory AC03500 is
required (sold separately).

The fresh air intake kit may be installed on three different places on the fireplace.

1- On the right side of the appliance (most common).
2- On the right side, at the back of the appliance.
3- On the right side under the appliance.

Using a Philips screwdriver,
remove the four screws
holding the rectangular plate
(A) on the right of the
fireplace jacket. If the location
2 or 3 has been chosen, use
pliers to remove the knock­out.

(2) Secure the fresh air intake kit

adapter (B) on the fireplace
jacket using the 4 screws
provided with the kit.

85

Monaco Installation and Operation Manual

(D)

Remove the fireplace’s lower
decorative louver. Install the
blocking plate (F) included in the
kit, on the front opening of the air
control housing. Using a
screwdriver, secure with two
screws.

Then, install the flexible pipe*
(not supplied) to the fresh air
intake adapter (B) using one of
the adjustable pipe clamps (C).
Secure the other end of the pipe
to the outside wall termination (E)
using the second adjustable pipe
clamp (C). The outside wall
termination (E) must be installed
outside of the building.

*Use the length required for your
installation while respecting the
maximum length of 30 ft (9 m).
To avoid condensation, it is
recommended to use an
insulated pipe long enough and
containing a "P-Trap" loop. This
configuration can be found inside
the chase, but must at all times
maintain clearances to
combustibles.

86

Monaco Installation and Operation Manual

To complete the installation, make a hole of1/4" to 1/2" (6 mm à 13 mm) bigger than the
insulate pipe diameter in the outside wall of the house at the chosen location. From
outside, place the outside air inlet cap in the hole (open side down) and fasten the register
to the wall, with screws as shown bellow. Place the insulated pipe over the register tube
and over the fireplace outside air connector. At each end, carefully pull back the insulation
and plastic cover, exposing the flexible pipe. Attach the flexible pipe using pipe clamps.
For a better seal, you may also use aluminum tape. Wrap the tape around the joint
between the flexible pipe and the air inlets. Carefully push the insulation and plastic cover
back over the pipe. Fix the plastic in place using aluminum tape.

87

Monaco Installation and Operation Manual

Appendix 4: Installing the Optional Fire Screen (AC01560)

Open the doors.

Hold the fire screen by the two
handles and bring it close to the
door opening.

Lean the upper part of the fire
screen against the top door
opening making sure to insert the
top fire screen bracket behind the
primary air deflector as in (DETAIL
A).

Lift the fire screen upwards and
push the bottom part towards the
stove then let the fire screen rest
on the bottom of the door opening.

Warning: Never leave the stove unattended while in use with the fire screen.

88

Monaco Installation and Operation Manual

Appendix 5: Installation of Secondary Air Tubes and Baffle

REMOVABLE PARTS

A

B

C

D

Cotter pins

(x4)

Air tubes

(x4)

vermiculite baffle

(x1)

Baffle insulation

(x1)

Baffle insulation

E

weight

(x1)

89

Monaco Installation and Operation Manual

1. Starting with the rear
tube, lean and insert
the right end of the
secondary air tube into
the rear right channel
hole. Then, lift and
push the tube towards
the right inside the hole
in the right channel.

2. Align the notch in the
left end of the tube with
the tab of the left air
channel hole.

90

Monaco Installation and Operation Manual

3. Insert a cotter pin in the
last hole on the right
side of the tube. Then
bend the tabs on the
pin to keep in place.

4. Repeat steps 1, 2 and
3 for the two tubes in
the back then install
the baffle. Then, install
the two front tubes.

5. To remove the tubes
use the above steps in
reverse order.

Note that secondary air tubes can be replaced without removing the baffle board.

Important Notes:

The air tubes are identified for placement as follows:

Model Type of tube

MONACO fireplace Front ► 95 holes of 0.141"

Middle front ► 67 holes of 0.125’’

Middle rear ► 67 holes of 0.109’’

Rear ► 67 holes of 0.101’’

91

Monaco Installation and Operation Manual

Appendix 6: Refractory Replacement

The intense heat of the fire will normally cause hairline cracks in the refractory. These
cracks can be minimized by proper curing as described in “First Fires”. They will not
normally diminish the effectiveness of the refractory. If large cracks develop, then the
refractory should be replaced. To replace the refractory bricks, follow these steps:

1. Remove all bricks (A) surrounding
the combustion chamber.

2. Remove brick (D) and the andiron
(C) held in place by the two torx
screws (B). Use a ratchet and a T­30 socket.

92

Monaco Installation and Operation Manual

3. Remove the floor bricks (E) & (F).

To install the new bricks, follow the
above steps in reverse.

93

Monaco Installation and Operation Manual

Appendix 7: Exploded Diagram and Parts List

94

Monaco Installation and Operation Manual

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your stove, please provide the model number and the serial number. We reserve
the right to change parts due to technology upgrade or availability. Contact an authorized
dealer to obtain any of these parts. Never use substitute materials. Use of non-approved
parts can result in poor performance and safety hazards.

# Item Description Qty

1 AC01560 FIRE SCREEN 1
2 SE24154 LEFT DOOR WITH HANDLE AND GASKET 1
3 AC06200 BLACK GASKET AND SILICONE KIT 1/4'' X 1/2'' X11' 2
4 AC09193 LH SIDE BENT HANDLE REPLACEMENT KIT 1
5 30039 NUT 1/2-20 1
6 SE24155 RIGHT DOOR WITH HANDLE AND GASKET 1
7 30101 SPRING TENSION PIN 5/32" DIA X 1 1/2" LONG 1
8 AC09192 RH SIDE BENT HANDLE AND LATCH REPLACEMENT KIT 1

9 30569 ROUND WOODEN HANDLE BLACK 2
10 AC09195 DOOR LATCH KIT 1
11 SE53074 RIGHT REMPLACEMENT GLASS WITH GASKET 12" X 13 3/16" X 14 1/2" 1
12 SE53075 LEFT REMPLACEMENT GLASS WITH GASKET 12" X 13 3/16" X 14 1/2" 1
13 AC06400 BLACK SELF-ADHESIVE GLASS GASKET KIT (6') 2
14 PL53098 INNER GLASS RETAINER FRAME 2
15 PL53097 OUTER GLASS RETAINER FRAME 2
16 SE53585 GLASS RETAINER KIT WITH SCREWS (10 PER KIT) 1
17 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 1
18 30185 17/64" "AA" TYPE WASHER 1
19 30187 ZINC WASHER ID 17/64" x OD 1/2" 1
20 30556 AIR CONTROL FINISHING TIP 1
21 PL63866 AIR CONTROL MECHANISM 1
22 30117 SOCKET SET SCREW #10-32 X 1/4" 4
23 30579 ADJUSTABLE HINGE PIN 3/8'' - 5/16'' DIA X 1 63/64'' LONG 4
24 OA10605 GOLD PLATED TRIM KIT 1
24 OA10606 NICKEL TRIM KIT 1
24 OA10604 BLACK TRIM KIT 1
25 AC01375 HOT AIR GRAVITY DISTRIBUTION KIT – TRADITIONAL STYLE 1
26 49066 90 DEGREE X 8" 26Ga. GALVANISED ELBOW 2
27 30640 GAKLVANISED BOX FOR HOT AIR GRAVITY DISTRIBUTION KIT 8" 2
28 30540 HOT AIR GRAVITY DISTRIBUTION KIT GRILL 2
29 PL53064 TOP SPACER 2
30 PL53139 FACEPLATE TOP 1
31 PL53153 RH SIDE OF FACEPLATE 1
32 PL53154 BOTTOM OF FACEPLATE 1
33 PL53152 LH SIDE OF FACEPLATE 1

95

Monaco Installation and Operation Manual

# Item Description Qty

34 44046 THERMODISC F110-20F 1
35 99999 BUILD TO ORDER 1
36 44084 RHEOSTAT WITH NUT 1
37 44087 RHEOSTAT NUT 1
38 44085 RHEOSTAT KNOB 1
39 44091 ROCKER SWITCH 2 POSITION MSR-8 1
40 44122 DOUBLE CAGE BLOWER 150 CFM 1
41 SE45727 MONACO INSTRUCTION MANUAL KIT 1
42 AC05959 METALLIC BLACK STOVE PAINT-342G AEROSOL 1
43 AC01340 FORCED AIR DISTRIBUTION KIT 1
44 44125 FORCED AIR DISTRIBUTION KIT PC CARD 1
45 44142 BLOWER 6'' 300 CFM 1
46 PL53066 SIDE SPACER 2
47 PL53065 REAR SPACER 2
48 29020 4 1/2'' X 9'' X 1 1/4'' REFRACTORY BRICK HD 12
49 21147 FRONT FLOOR REFRACTORY 5 1/2'' X 1 1/4'' X 1 1/4'' 1
50 22122 LEFT FLOOR REFRACTORY SLAB 1
51 22123 RIGHT FLOOR REFRACTORY SLAB 1
52 PL53144 LOG HOLDER 1
53 30506 SCREW PAN TORX TYPE F 1/4-20 X 1" BLACK 2
54 PL53132 FRONT SECONDARY AIR TUBE 1
55 PL53133 FRONT CENTER SECONDARY AIR TUBE 1
56 PL53134 REAR CENTER SECONDARY AIR TUBE 1
57 PL53135 REAR SECONDARY AIR TUBE 1
58 30068 STAINLESS STEEL COTTER PIN 1/8" X 1 1/2" 4
59 30026 THREAD CUTTING SCREW 10-24 F 5/8" HEX WASHER HEAD 5
60 PL53041 REAR REINFORCEMENT 1
61 21134 VERMICULITE BAFFLE 24 3/16'' X 14 25/32'' X 1 1/4'' 1
62 21148 BAFFLE INSULATION 24 3/16" x 20 5/8" x 14 3/4" x 1" 1
63 PL34026 BAFFLE INSULATION WEIGHT 1
64 AC01385 HOT AIR GRAVITY DISTRIBUTION KIT – MODERN STYLE 1

96

Monaco Installation and Operation Manual

FLAME LIMITED LIFETIME WARRANTY

The warranty of the manufacturer extends only to the original consumer purchaser and is not transferable. This warranty covers brand
new products only, which have not been altered, modified nor repaired since shipment from factory. Proof of purchase (dated bill of
sale), model name and serial number must be supplied when making any warranty claim to your FLAME dealer.

This warranty applies to normal residential use only. Damages caused by misuse, abuse, improper installation, lack of
maintenance, over firing, negligence or accident during transportation, power failures, downdrafts, venting problems or
under-estimated heating area are not covered by this warranty. The heated area indicated for a given appliance is defined by
the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power
failure.

This warranty does not cover any scratch, corrosion, distortion, or discoloration. Any defect or damage caused by the use of
unauthorized parts or others than original parts void this warranty. An authorized qualified technician must perform the installation in
accordance with the instructions supplied with this product and all local and national building codes. Any service call related to an
improper installation is not covered by this warranty.

The manufacturer may require that defective products be returned or that digital pictures be provided to support the claim. Returned
products are to be shipped prepaid to the manufacturer for investigation. If a product is found to be defective, the manufacturer will
repair or replace such defect. Transportation fees to ship the product back to the purchaser will be paid by the manufacturer. Repair
work covered by the warranty, executed at the purchaser’s domicile by an authorized qualified technician requires the prior approval of
the manufacturer. All parts and labour costs covered by this warranty are limited according to the table below.

The manufacturer at its discretion may decide to repair or replace any part or unit after inspection and investigation of the defect. The
manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding the wholesale price of any
warranted but defective parts. The manufacturer shall in no event be responsible for any special, indirect, consequential damages of any
nature, which are in excess of the original purchase price of the product. A one-time replacement limit applies to all parts benefiting
from a lifetime coverage. This warranty applies to products purchased after March 1st, 2015.

WARRANTY APPLICATION

DESCRIPTION

Combustion chamber (welds only) and castings.
Surrounds, heat shields, ash drawer, steel legs, pedestal, trims (aluminum

extrusions), plating* (defective manufacture), and convector air-mate.
Removable stainless steel components, secondary air tubes*, deflectors and

supports.

PARTS LABOUR

Lifetime

3 years

5 years 3 years

5 years n/a

Glass retainers, handle assembly and air control mechanism. 3 years 1 year
Carbon steel firebox components, glass retainers, C-Cast baffle* and vermiculite

baffle*.

2 years n/a

Standard blowers, heat sensors, switches, rheostat, wiring, and other controls. 1 year 1 year
Optional blowers, ceramic glass (thermal breakage only*), paint (peeling),

gaskets, insulation, and ceramic fibre blankets.
Firebrick

1 year

n/a

n/a
n/a

All parts replaced under the warranty. 90 days n/a

*Pictures required.

Labour cost and repair work to the account of the manufacturer are based on predetermined rate schedule and must not exceed the
wholesale price of the replacement part.

Shall your unit or a components be defective, contact immediately your FLAME dealer. Prior to your call make sure you have the
following information necessary to your warranty claim treatment:

• Your name, address and telephone number;

• Bill of sale and dealer’s name;

Before shipping your unit or defective component to our plant, you must obtain from your FLAME dealer an Authorization Number.
Any merchandise shipped to our plant without authorization will be refused automatically and returned to sender

• Serial number and model name as indicated on the

nameplate fixed to the back of your unit;

• Nature of the defect and any relevant information.

.

97
