Page 1
AIR TREATMENT
HOUSING VENTILATION
AIR COMFORT
» Technical Manual
COOKER HOOD CPD
Page 2
Cooker hood CPD Technical manual
2
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice
CONTENT
WARNING! THE DEVICE CAN BE USED BY CHILDREN FROM 8 YEARS UPWARDS AND PEOPLE (INCLUDING
CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPA BILITIES, OR LACK OF EXPERIENCE AND
KNOWLEDGE UNLESS THEY HAVE RECEIVED GUIDANCE OR INFORMATION ON HOW TO USE THE DEVICE SAFELY
AND UNDERSTAND THE RISKS THAT CAN OCCUR. CHILDREN SHOULD NOT PLAY WITH THE APPLIANCE. CLEANING
AND MAINTENANCE IS NOT CARRIED OUT BY CHILDREN WITHOUT SUPERVISION.
MAINTENANCE (FOR THE USER)
Cleaning .......................................................................................................... 3
Replacing of the low energy lamp ....................................................... 3
General ............................................................................................................ 3
Operating of CPDA and CPDJ ...................................................................4
Operating of CPDB, CPDC, CPDG, CPDH, CPDK .............................. 5
INSTALLATION (FOR INSTALLERS AND SERVICE PERSONNEL)
Installation height ...................................................................................... 6
Main supply .................................................................................................. 6
General ............................................................................................................ 6
CPDA .................................................................................................................7
CPDB ................................................................................................................. 8
CPDC ............................................................................................................... 8
CPDG ............................................................................................................... 9
CPDH ............................................................................................................. 10
CPDK ............................................................................................................. 10
CPDJ ................................................................................................................ 11
ELECTRICAL CONNECTIONS (FOR INSTALLERS AND SERVICE PERSONNEL)
CPDG ........................................................................................................................12
ADJUSTMENT, COMMISSIONING (FOR INSTALLERS AND SERVICE PERSONNEL)
CPD(A, B, C, G) - Basic ventilation .....................................................13
CPD(A, B, C, G) - Forced ventilation ..................................................14
CPD(H, K) - Basic ventilation ................................................................15
CPD(H, J, K,) - Forced ventilation ....................................................... 16
GENERAL

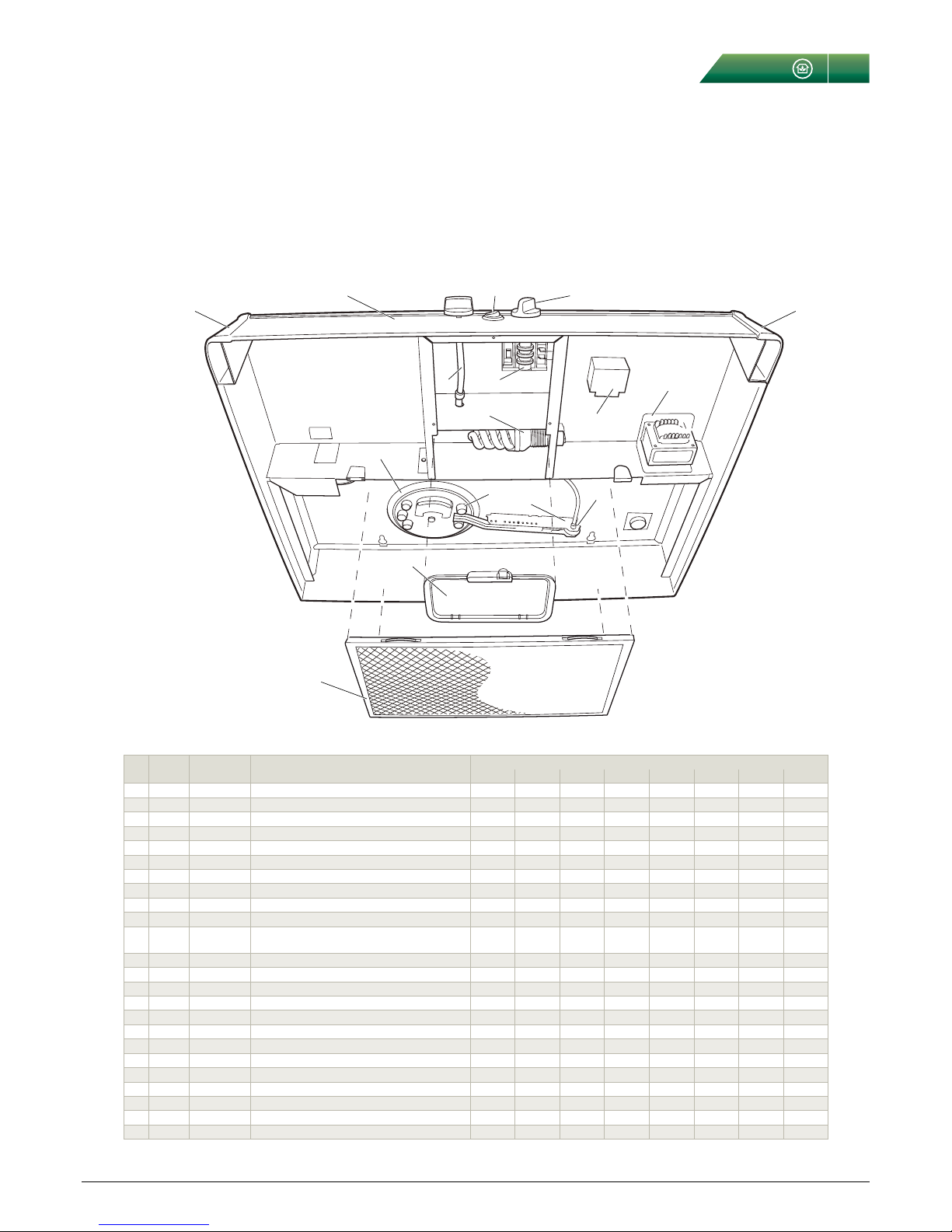

Spare parts CPD(A, B, C, G, H, J, K) .............................................................17
Declaration of conformity ................................................................................18
Disposal of product and packaging materials ...................................... 19
Cooker hoods CPDD and CPDL, see separate instruction.
Page 3
Technical manual Cooker hood CPD
3
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice
MAINTENANCE
CLEANING OF COOKER HOOD
Do not use abrasive sponge or cloth.
alt.
1
2
33
CLEANING OF GREASE FILTER
REPLACING OF THE LOW ENERGY LAMP
Check the grease filter every week.
Clean if needed.
Note! Do not use the cooker hood
without grease filter fitted.
GENERAL
There is a fire risk if cleaning is not carried
out in accordance with the instructions.
Accessible parts may become hot when
used with cooking appliances.
Do not flambé under the cooker hood.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified per
-
sons in order to avoid hazard.
11 W/E14
Page 4
Cooker hood CPD Technical manual
4
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice
MAINTENANCE
OPERATING OF CPDA AND CPDJ
Handle for boosting Lighting
Page 5
Technical manual Cooker hood CPD
5
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice
NORMAL
MIN
MAX
MIN
1
2
MIN
1
2
MIN
1
2
MAINTENANCE
OPERATING OF CPDB, CPDC, CPDG, CPDH AND CPDK
Handle for boosting Lighting Handle for fan speed
MIN
1
2
Page 6
Cooker hood CPD Technical manual
6
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice
INSTALLATION (FOR INSTALLERS AND SERVICE PERSONNEL)
INSTALLATION HEIGHT MAIN SUPPLY
min 400 mm
All cooker hoods has to be connected directly or indirectly via the
heat recovery unit/exhaust fan to earth.
If the supply cord is damaged, it must be replaced by the manu
facturer, its service agent or similarly qualified persons in order to
avoid hazard.
The distance between the stove and the lower edge of the cooker
hood has to be at least 400 mm, recommended distance 500 mm.
When the cooker hood is located above a gas appliance, this dis
tance shall be at least 650 mm. If the instructions for installation
of the gas hob specify a greater distance, this has to be taken
into account.
GENERAL
The air must not be discharged into a flue that
is used for exhausting fumes from appliances
burning gas or other fuels.
Regulations concerning the discharge of air
have to be fulfilled.
Page 7
Technical manual Cooker hood CPD
7
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice
min 500 mm
2
3
1
max
300 mm
1
2
3
5
4
max
300 mm
12mm
Ø 50
160
100
a
min 500 mm
a =700
a =600
a =500
200
100
100
415
365
365
255
205
205

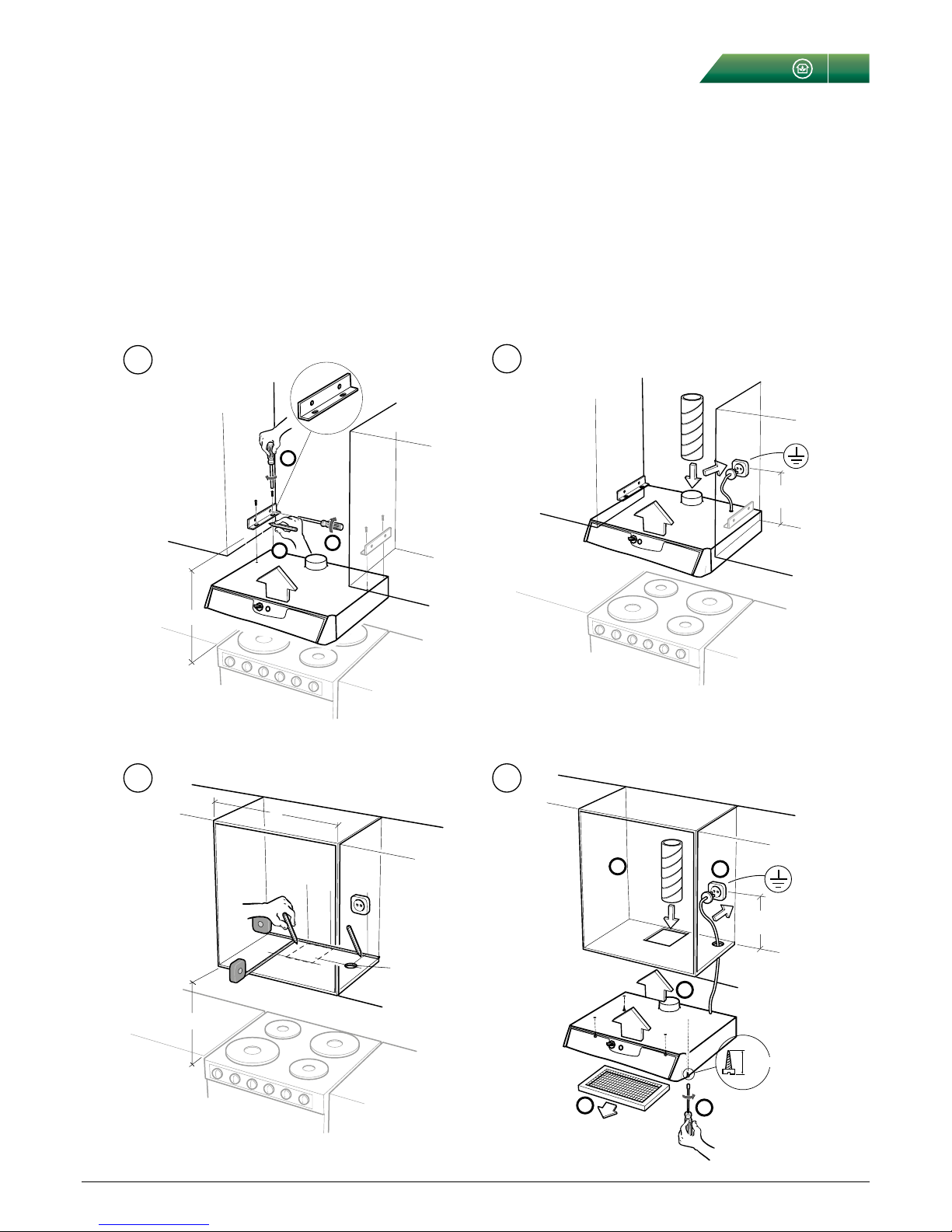

INSTALLATION (FOR INSTALLERS AND SERVICE PERSONNEL)
CPDA
Intended for multiple-unit dwellings with a central extract air fan or a heat recovery unit.
Suitable for both new production and replacement of older cooker hoods.
INSTALLATION BENEATH KITCHEN CABINETS
a
a
b
b
INSTALLATION BETWEEN KITCHEN CABINETS
Page 8
Cooker hood CPD Technical manual
8
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice
INSTALLATION (FOR INSTALLERS AND SERVICE PERSONNEL)
CPDB
Replacement hood for older exhaust air fan JBDD-aa with capacitor box, manufactured before 2007.
JBDD-aa
(earlier version)
CPCB
JBDD-aa
(earlier version)
a
a
b
b

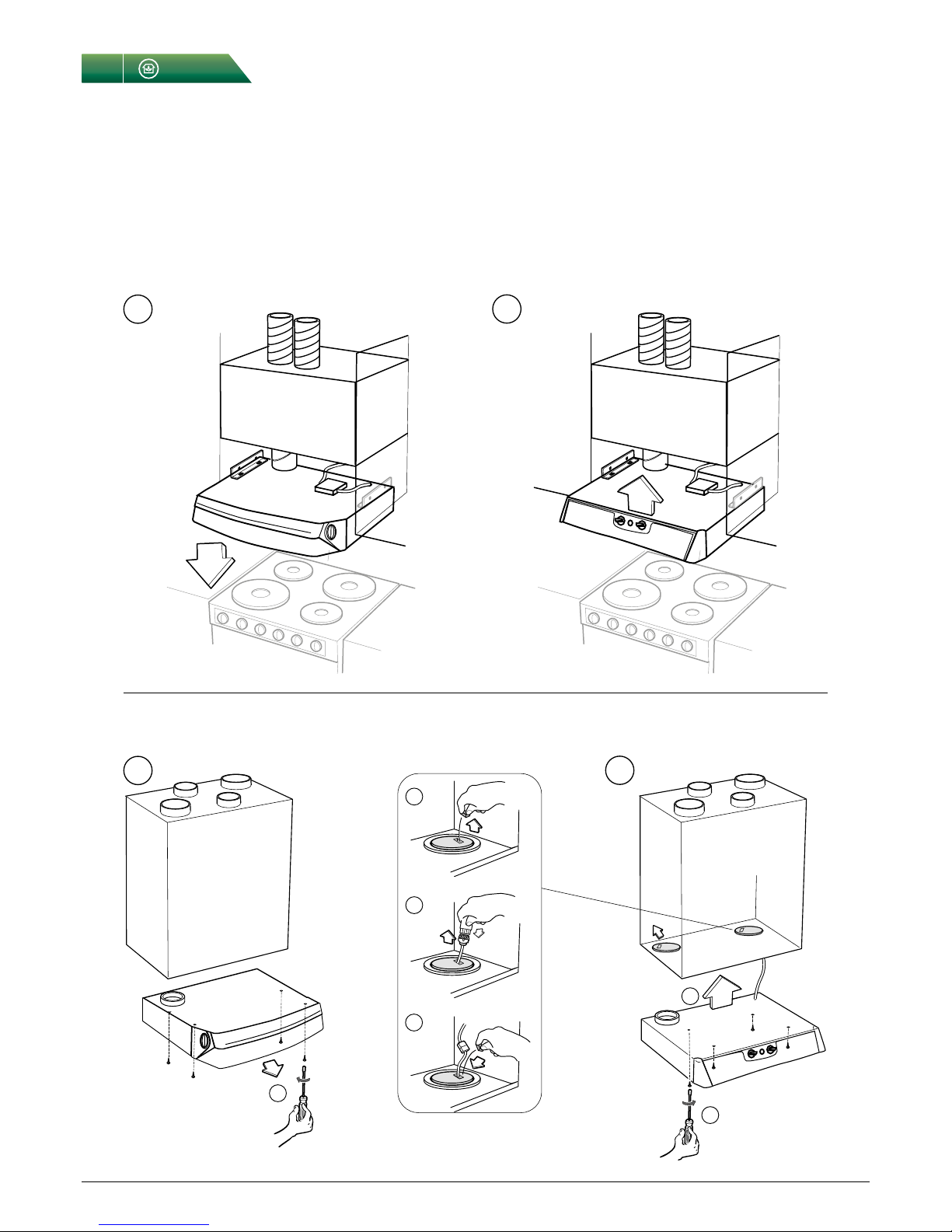

CPDC
Replacement hood for older heat recovery unit RDKG without bypass (fits RDKG-a-1-c-d-1).
1
5
6
2
3
4
3.1 3.2
Remove the old
cooker hood.
It is important to seal the grommet by putting
back the small piece of sealing material.
Remove the old cooker hood.
Page 9
Technical manual Cooker hood CPD
9
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice

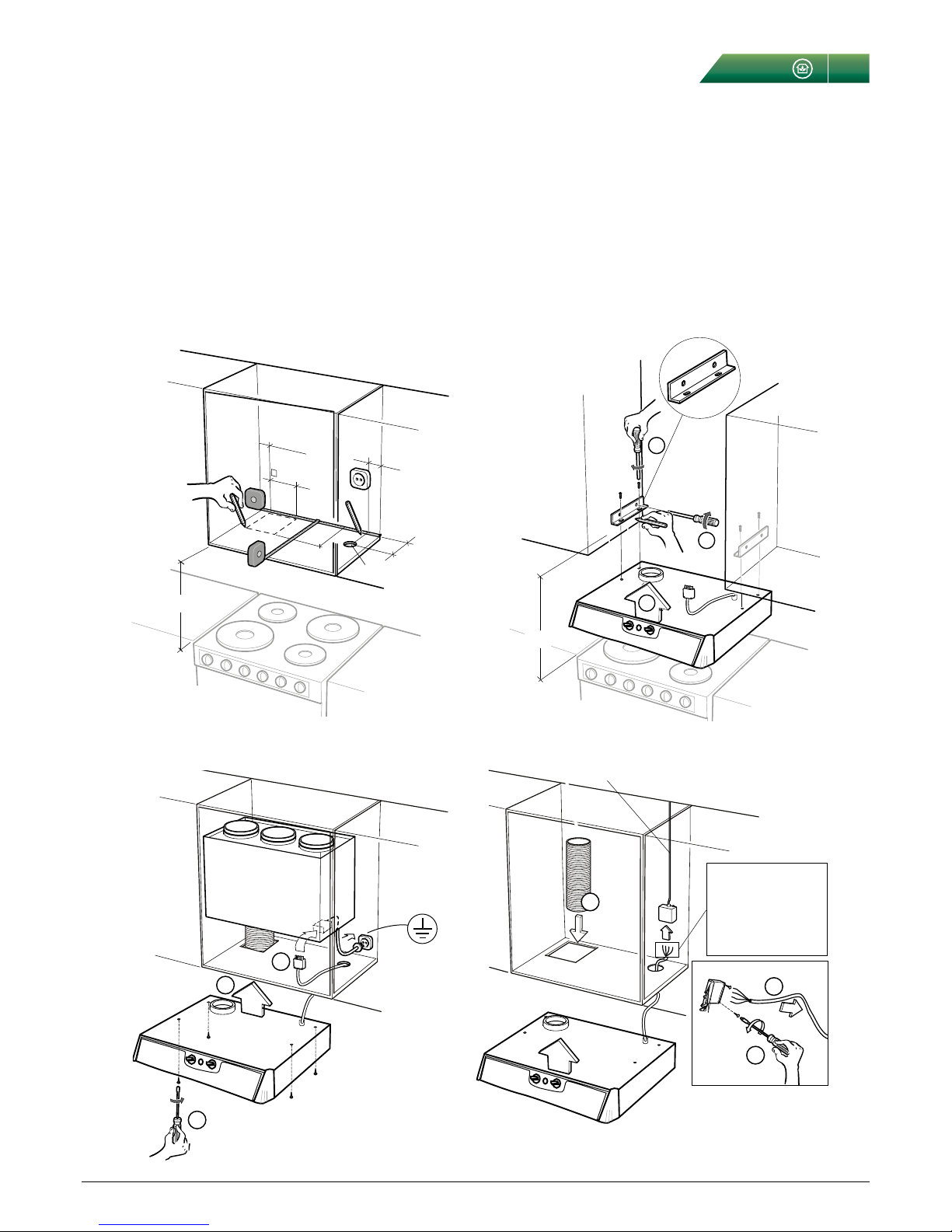

CPDG
With transformer, fits for example the new JBDD and JBFG. (Fits JBDD-aa-1-2 but also as replacement
cooker hood for controlling older exhaust air fans and units, for example JBDB, JBDC and RDAA.)
INSTALLATION (FOR INSTALLERS AND SERVICE PERSONNEL)
Ø50
176
115
33
96
min 500 mm
160
2
3
1
JBDD
1
2
1 = Orange - Supply
voltage
to fan
2 = Blue - Neutral
3 = Black - Phase
4 = Yellow/Green - Ground
3
2
3
1
min 500 mm
CONNECTION TO EXHAUST FAN JBDD, GENERATION 2
INSTALLATION BETWEEN KITCHEN CABINETS
CONNECTION TO OTHER FANS
For electrical installation, see wiring examples on page 12.
INSTALLATION BENEATH KITCHEN CABINETS
Page 10
Cooker hood CPD Technical manual
10
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice

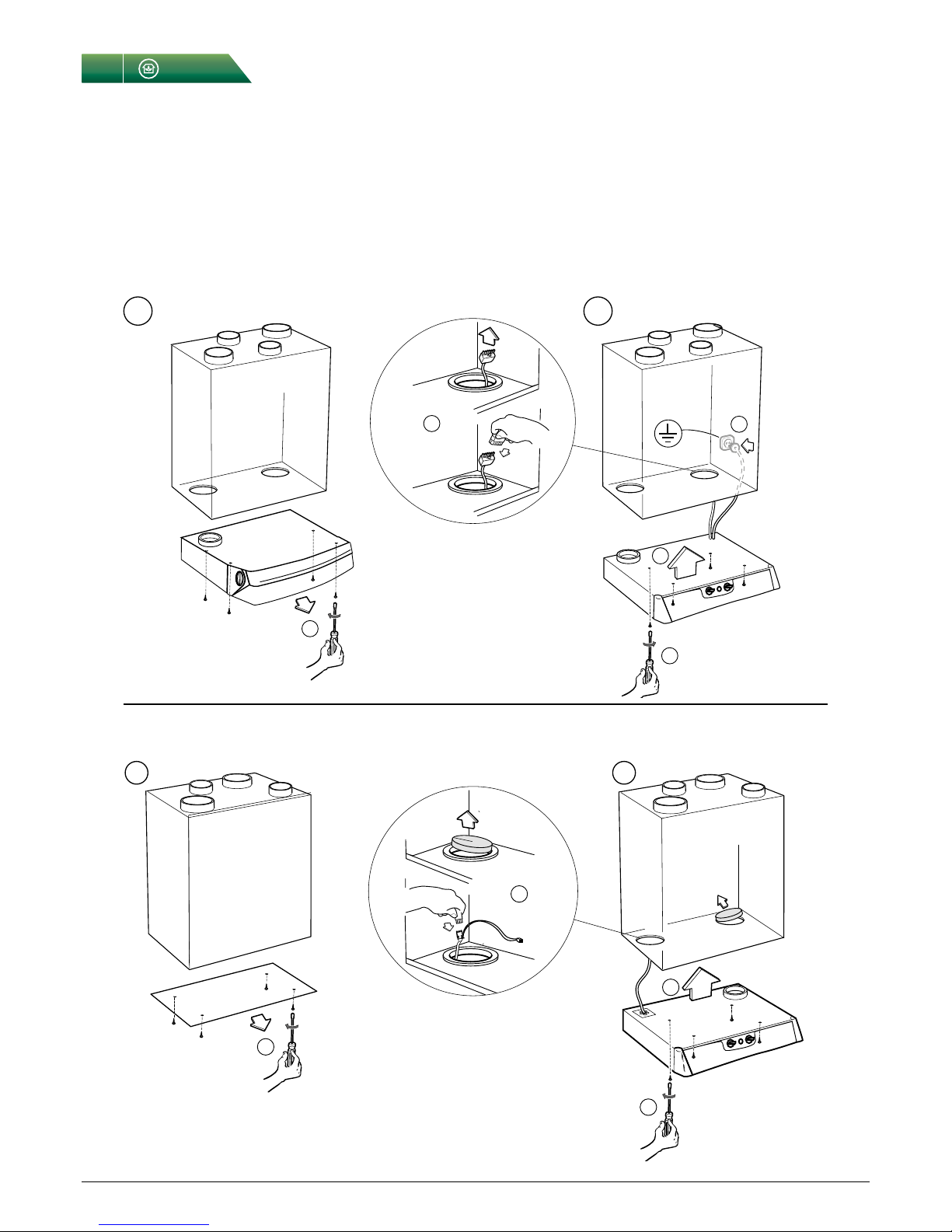

CPDH
Replacement hood for older heat recovery units RDKG with bypass. (Fits RDKG-a-2-c-d-1).
a
b
CPDK
For heat recovery unit RDKG. (Fits RDKG-a-b-c-d-2).
a
b
INSTALLATION (FOR INSTALLERS AND SERVICE PERSONNEL)
1
4
5
3
2
Remove the old cooker hood.
2
1
3
4
Page 11
Technical manual Cooker hood CPD
11
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice
INSTALLATION (FOR INSTALLERS AND SERVICE PERSONNEL)

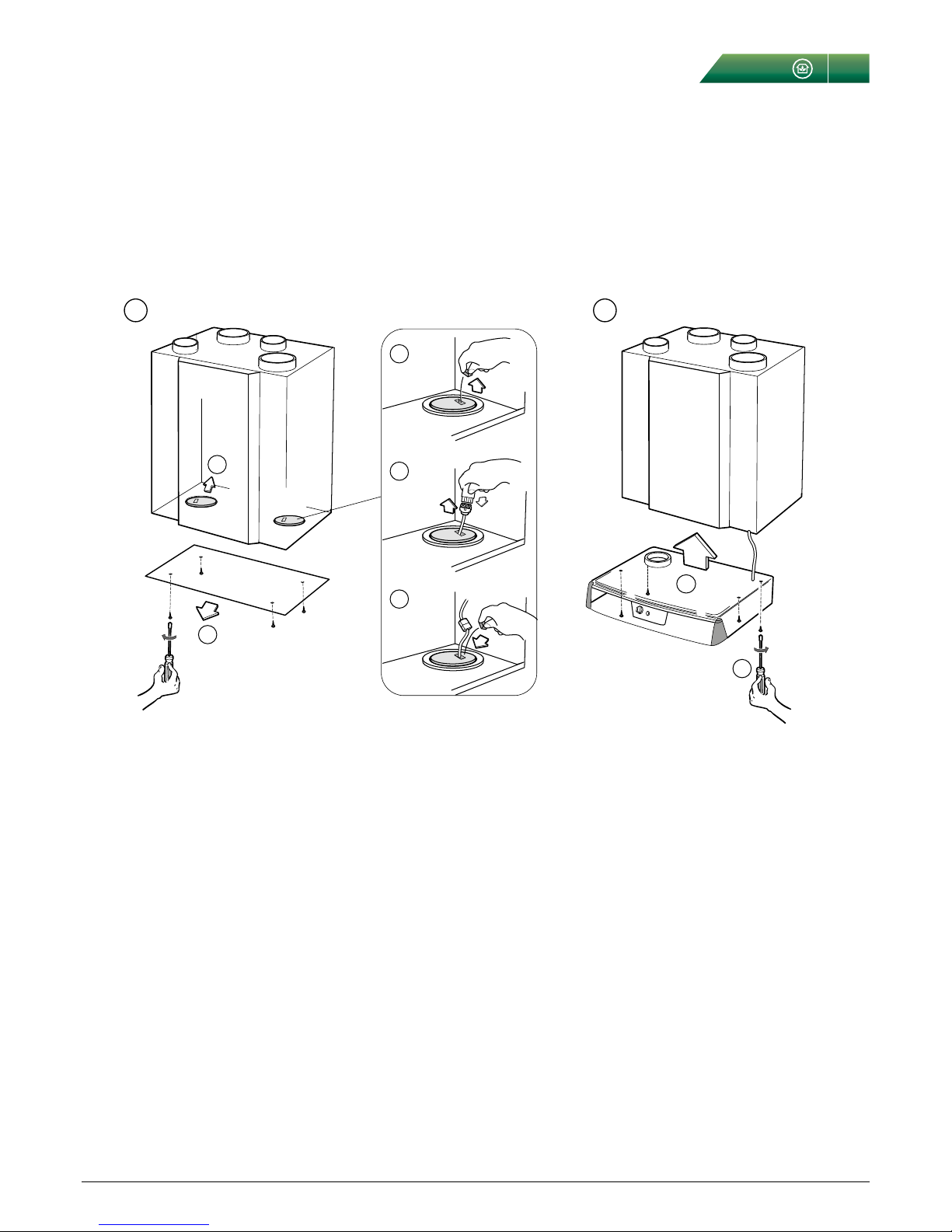

CPDJ
For heat recovery unit RDKR or RDKS.
a
b
3
2
1
RDKS
RDKS
4
5
4.1
4.2
7
6
It is important to seal the grommet by putting
back the small piece of sealing material.
The picture illustrates a right hand unit.
Page 12
Cooker hood CPD Technical manual
12
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice

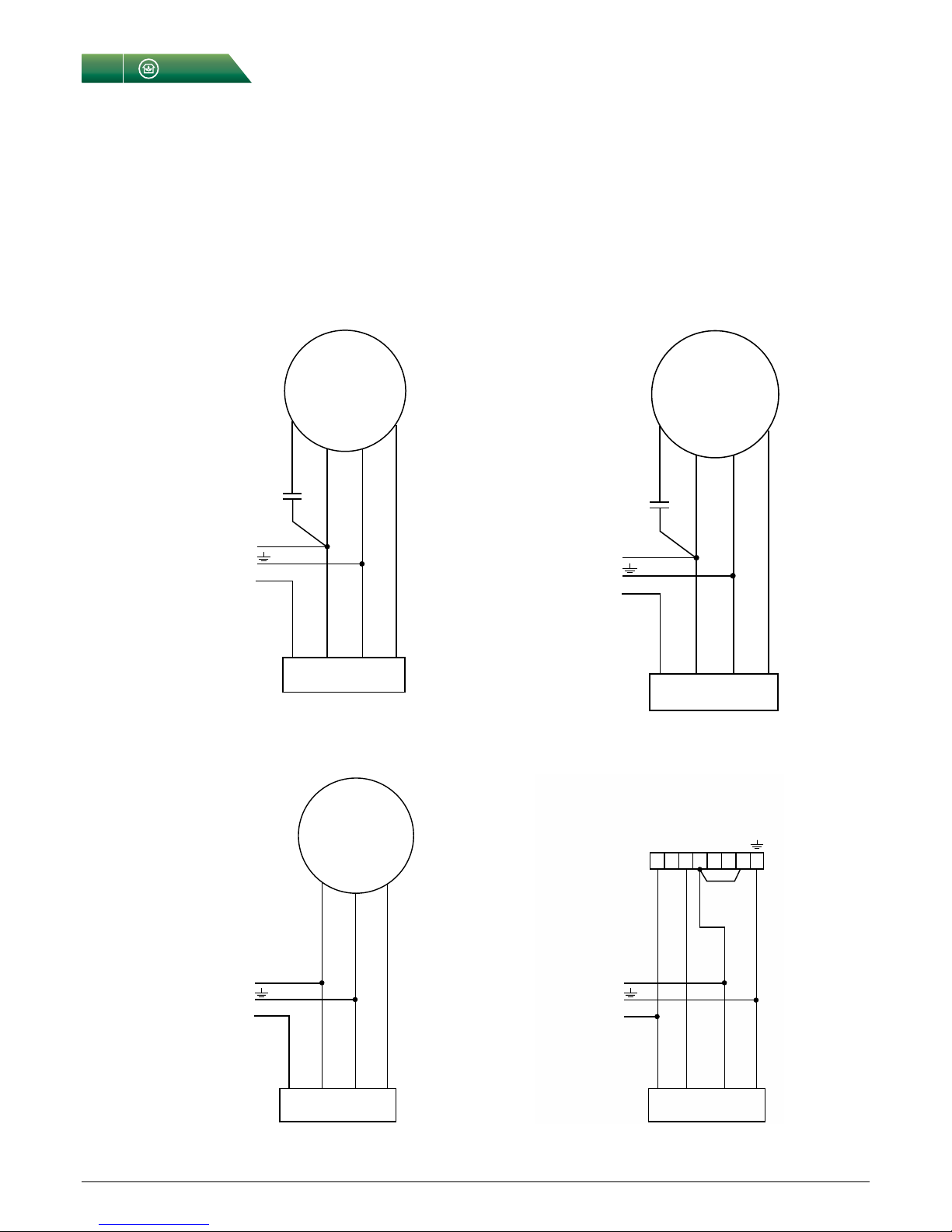

ELECTRICAL CONNECTIONS (FOR INSTALLERS AND SERVICE PERSONNEL)
Note! Electrical connections have to be made by authorized personnel.
EXHAUST FAN JBDB EXHAUST FAN JBDC
ROOF FAN JBFG HEAT RECOVERY UNIT RDAA
1)
Not for
conversion kit
JBDB-99-05-0
JBDB
1)
CPDG/CPTG
Supply 230V
JBDA-99-031
2µF, not included
N
L
Blue
Blue
White
Black
Black
Yellow/Green Yellow/Green
Orange
JBFG
CPDG/CPTG
Supply 230V
N
L
Blue Blue
Brown
Black
Yellow/GreenYellow/Green
Orange
JBDC
1)
CPDG/CPTG
N
L
1)
Also for
conversion kit
JBDB-99-05-0
Supply 230V
JBDA-99-031
2µF, not included
Brown
Blue
Black
Blue
Black
Yellow/Green Yellow/Green
Orange
RDAA
CPDG/CPTG
Supply 230V
N
2 4 5 6 731
L
Orange
Black
Blue
Yellow/Green
CPDG
Page 13
Technical manual Cooker hood CPD
13
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice

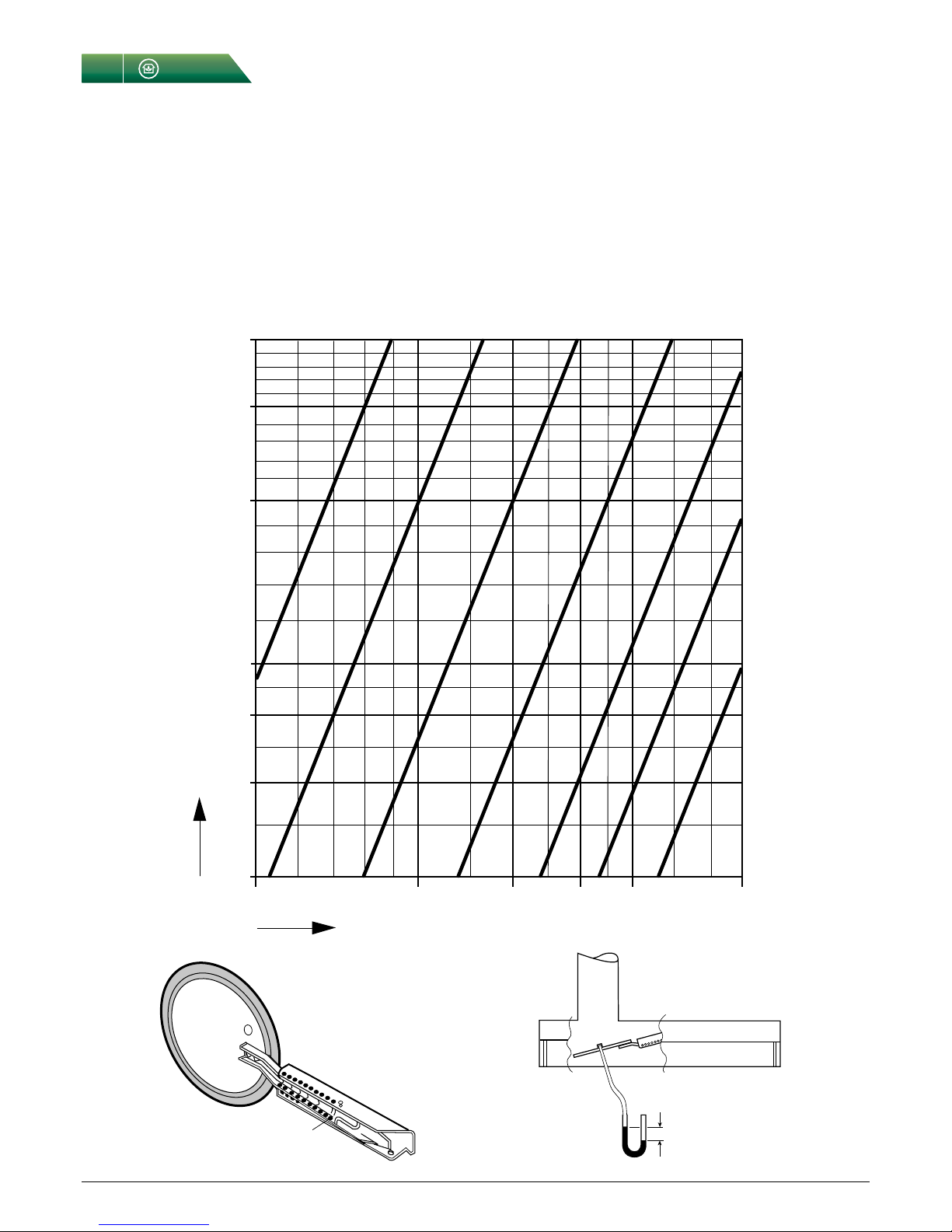

ADJUSTMENT
b
c
a
Pa a =
7,5 10 12,5 15 20 25
250
200
100
50
40
30
5
6
7
8
9
10 12
15
20
30
Air flow q l/s
Measuring pressure ∆p
m
, Pa
30
30 + 1xC
30 + 4xC
30 + 2xC

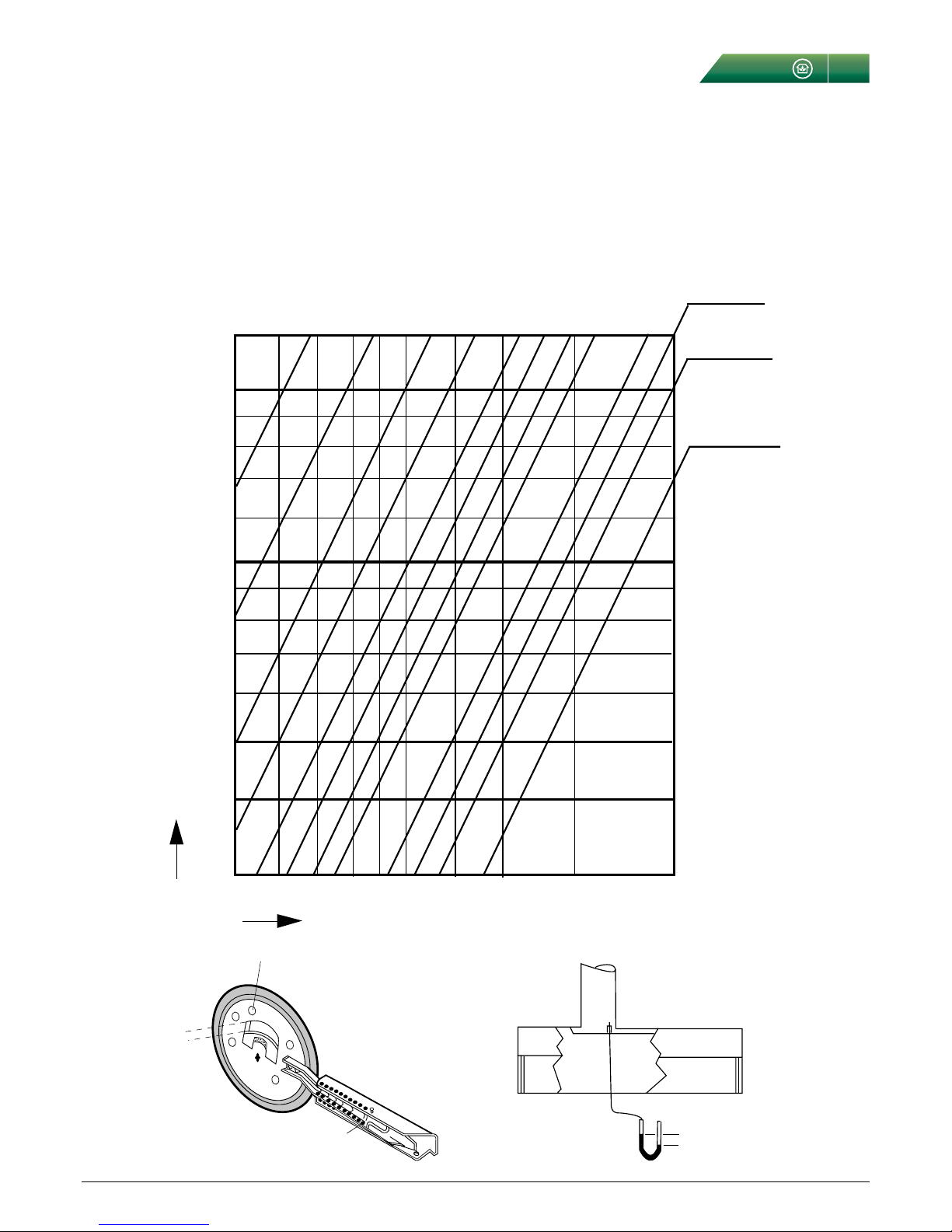

CPDA, CPDB, CPDC AND CPDG – BASICVENTILATION
∆p
Page 14
Cooker hood CPD Technical manual
14
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice

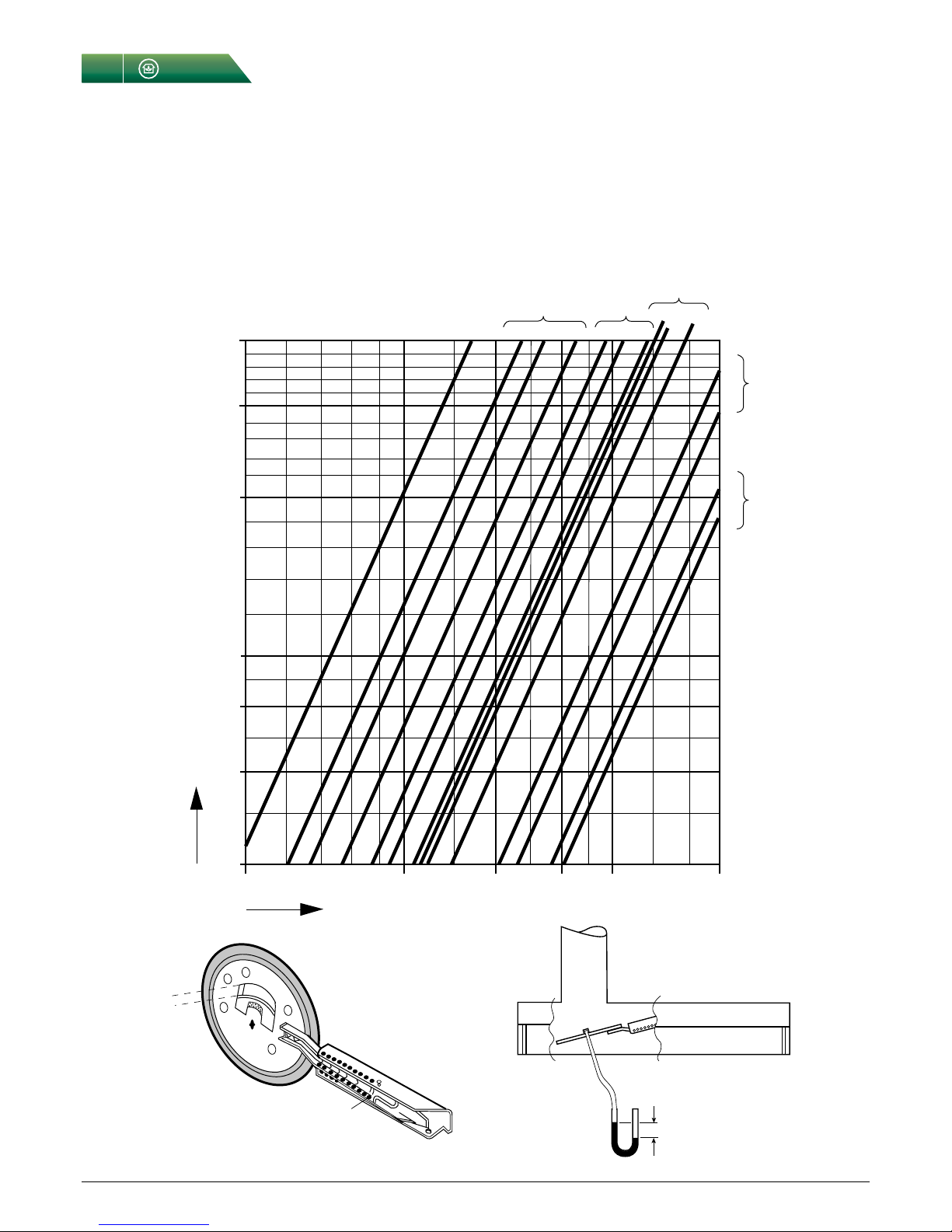

CPDA, CPDB, CPDC AND CPDG – FORCED VENTILATION
When adjusting the forced air flow the fan speed must be increased up to the forced flow.
10
20
30
40
50
100
200
150
20 30 40 50 80
Air flow q, l/s
Measuring pressure ∆p
m
, Pa
b = 5
a = 25 10
10
10
13
25
1015 15
15
25 25
25
7 9
11
a b
10
14
25
a
b
a
∆p
ADJUSTMENT
Page 15
Technical manual Cooker hood CPD
15
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice

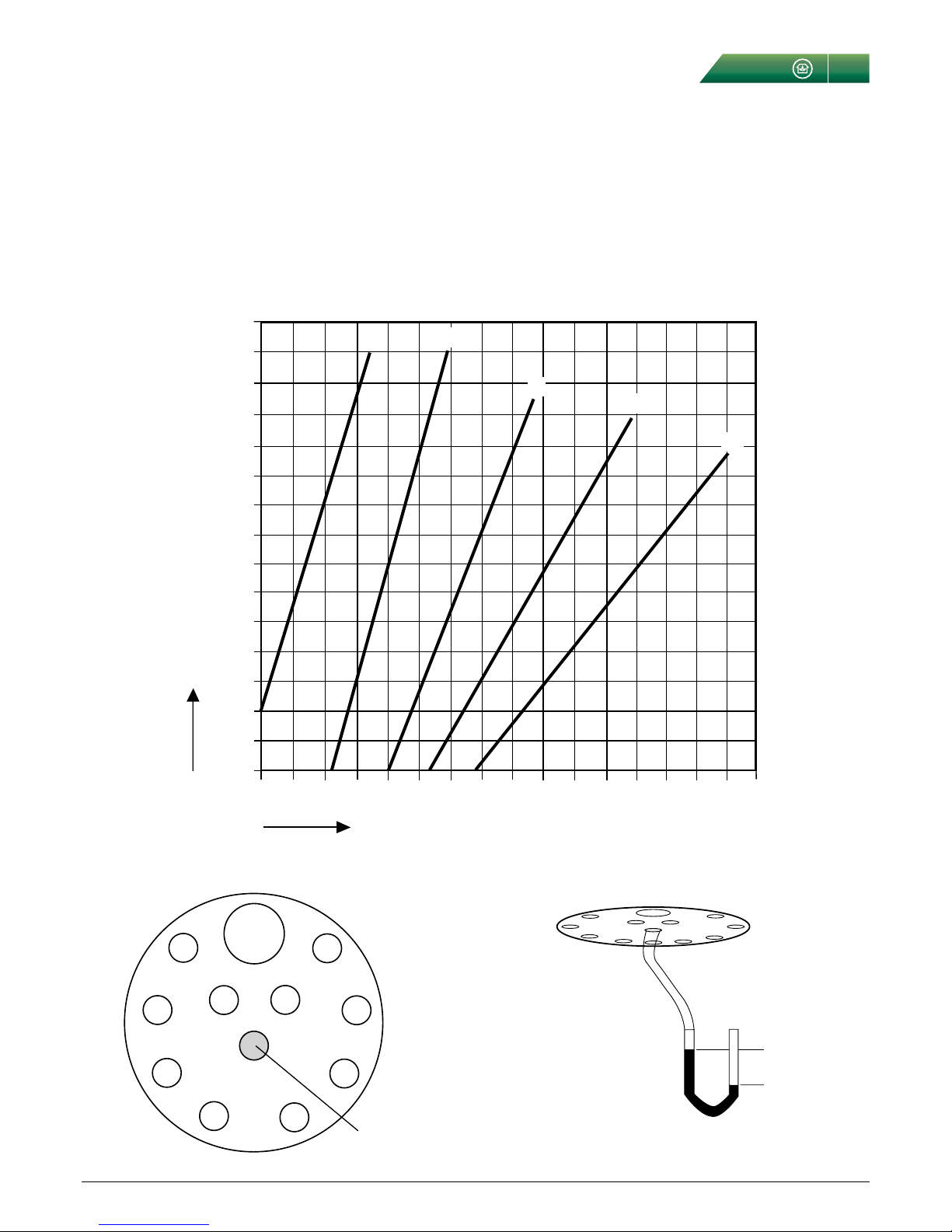

CPDH AND CPDK – BASIC VENTILATION
The basic air flow in the hood is adjusted by removing any number of plugs in the cover plate.
1
2
3
4
5
6
7
8
9
10
∆p
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
30
10
8
6
4
2
Air flow q, l/s
Measuring pressure ∆p
m
, Pa
2, 4, 6, 8 och 10 = number of open holes in the cover plate.
Connection of the
measuring tube
ADJUSTMENT
When forcing the air stream must be mea sured at both measurement points (basic flow and forced flow).
Page 16
Cooker hood CPD Technical manual
16
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice
CPDH AND CPDK - FORCED VENTILATION
Damper blade without basic flow valve (sealed damper blade)
When adjusting the forced air flow the fan speed must be increased up to the forced flow.
ADJUSTMENT
10
20
30
40
50
100
200
150
20 30 40 50 80
Air flow q, l/s
Measuring pressure ∆p
m
, Pa
b = 7
13
14
15
8 9 11
∆p
b
Page 17
Technical manual Cooker hood CPD
17
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice
CPDA, CPDB, CPDC, CPDG, CPDH, CPDJ AND CPDK
SPARE PARTS
Pos No. Designation Description
Intended for CPD...
A B C G H J K M
1 25 CPDA-99-01 Handle x x x x x x x x
2 10 CPDA-99-02 Lightning switch x x x x x x x x
3 1 CPDA-99-03 Front board 1-handle, 500 mm x
3 1 CPDA-99-04 Front board 1-handle, 600 mm x x
3 1 CPDA-99-05 Front board 1-handle, 700 mm x x
3 1 CPDC-99-02 Front board 2-handles, 500 mm x x
3 1 CPDC-99-03 Front board 2-handles, 600 mm x x x x x x
3 1 CPDC-99-04 Front board 2-handles, 700 mm x x x
4 10+10 CPDA-99-07 Black plastic corners, right and left x x x x x x x x
5 1 CPCA-99-15 Timer with shaft: 600 mm (R, L), 700 mm (R) x x x x x x x
5 1 CPDA-99-10
Timer with shaft: 500 mm (M), 600 mm (M), 700
mm (M, L)
x x x
5 1 CPDJ-99-01 Timer w. shaft: 600, 700 mm (w. contact function) x
6 10 CPCA-99-09 Lamp socket x x x x x x x
6 10 CPDA-99-12 Lamp socket, transverse light x x x x x x x x
7 1 CPCA-99-12 Throttling device, complete x x x x
7 1 CPDH-99-02 Throttling device, complete (without basic flow) x x x x
8 25 BHGA-99-48 Plastic plugs x x x x x x
9 10 CPDA-99-06 Lamp protecting glass x x x x x x x x
10 1 CPCA-99-13 Grease filter x x x x x x x x
11 5 CPDC-99-01 Switch x x x x x x
12 1 CPDG-99-01 Transformer x x
13 1 CPDH-99-01 Time relay x
14 10 CPDA-99-15 Damper eccentric, 10-pack x x x x x x x x
15 10 CPDA-99-13 Damper gasket, 10-pack x x x x x x x x
1
2
3
6
12
13
9
4
4
8
14
15
7
10
5
11
Pos 5. R = Rght, M = Middle, L = Left
Cut the power before start working with the unit. All work has to be carried out by qualified personnel in order to avoid hazard.
Page 18
Cooker hood CPD Technical manual
18
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice
DECLARATION OF CONFORMITY
Bilaga II A
Fläkt Woods AB
Postal Address Street Address Telephone Telefax Reg. no:
Fläkt Woods AB Fläktgatan 1 Nat 036 - 19 30 00 Nat 036 - 19 31 40 556239-2463
S-551 84 Jönköping Int +46 36 19 30 00 Int +46 36 19 31 40 Reg. office:
Sweden Jönköping
8364GB_CPD Declaration of conformity(2A)201512
Declaration of Conformity
In accordance with:
EU Directive for Machinery, 2006/42/EC
EU EMC Directive, 2004/108/EC
EU Low voltage Directive, LVD 2006/95/EC
Manufacturer Fläkt Woods AB
Fläktgatan 1
551 84 Jönköping
Herewith declares that:
Product Type: Cooker Hood
Manufacturer: Fläkt Woods AB
Commercial name: CPD/A/B/C/D/G/H/J/K/L ( several versions / variants)
The machine is designed and manufactured in accordance with the following standards, in relevant parts.
EN ISO 12100 Safety of machinery – General principles for design- Risk assessment and risk reduction
EN 60204-1 Safety of machinery; electrical equipment of machines; general requirements
EN 60335-1 Household and similar electrical appliances - Safety - Part 1: General requirements
EN 60335-2-31 Household and similar electrical appliances - S afety - Part 2: Partic ular requirements
EN 61000-6-1 Electromagnetic compatibility (EMC) - Part 6-1: Generic standards - Immunity for
residential, commercial and light-indus trial environments
EN 61000-6-3 Emission standard for residential, commercial and light-industrial environments.
EN 50106:2008 Safety of household and similar electrical appliances - Particular rules for routine tests
referring to appliances under the scope of EN 60335-1
EN 62233:2008 Measurement methods for electromagnetic fields of hous ehold appliances and
similar
apparatus with regard to human exposure
A risk analysis has been m ade according to requirements of the Directive for Machinery.
Authorized To prepare tec hnical documentation:
Ann-Sofie Andersson
Design- R&D
Fläk t Woods AB, Housing
Gesäl lgatan 17
745 39 Enk öping
The declaration applies only to the installation made according to Fläkt Woods instructions and assum ing no
changes made to the unit.
Enköping 2015-12-15
Matthias Junker, Produktionschef Fläkt Woods AB, Enköping
Page 19
Technical manual Cooker hood CPD
19
Fläkt Woods 8757 GB 2016.12.05
Specifications are subject to alteration without notice
DISPOSAL OF PRODUCT AND PACKAGING MATERIALS
Recycling should be made in accordance with local regulations. When the
product is scrapped the following parts/
components/materials shall be sorted.
Depending on what product it is may not
all parts/components/materials be rep
-
resented.
– Printed circuit boards, cables, batteries, motors, sensors etc.
– Filters, except made of pure metal (in cooker hoods).
– Packaging materials, such as cardboard, plastic and
styrofoam.
– The units casing may contain condense- or mineral wool
insulation sandwiched between the inner and outer shell.
– The remaining parts shall be sorted as metallic.
– Lamps and fluorescent lights.
See www.flaktwoods.com/ecodesign for recycling instructions.
Page 20
FWG-CPD Technical manual-SE-2016.12.05 8757GB © Copyright 2016 Fläkt Woods Group
WWW.FLAKTWOODS.COM CPD | 8757GB | 20161205
We bring
BETTER AIR
®
to life
» To learn more about our offering and get in contact with your
nearest sales representative please visit www.flaktwoods.com
With over a century of innovation and expertise to share with our
customers, Fläkt Woods is a global leader in Air Technology products
and solutions. We specialize in the design and manufacturing of a
wide range of products and solutions for Air Movement, Air Treatment,
Air Distribution, Air Management and Air Diffusion with focus on two
major benefits – Air Comfort and Fire Safety. With market presence
in 65 countries we are in a unique position to be a local supplier
and an international partner in our customer’s projects.
Our product brands such as SEMCO
®
, eQ®, eQ Prime®, JM Aerofoil®,
Econet
®
, Veloduct®, Optivent®, Optimix®, Econovent® and Cleanvent® are well-known and trusted by customers all over the world
to deliver high quality and energy efficient solutions.
Loading...
