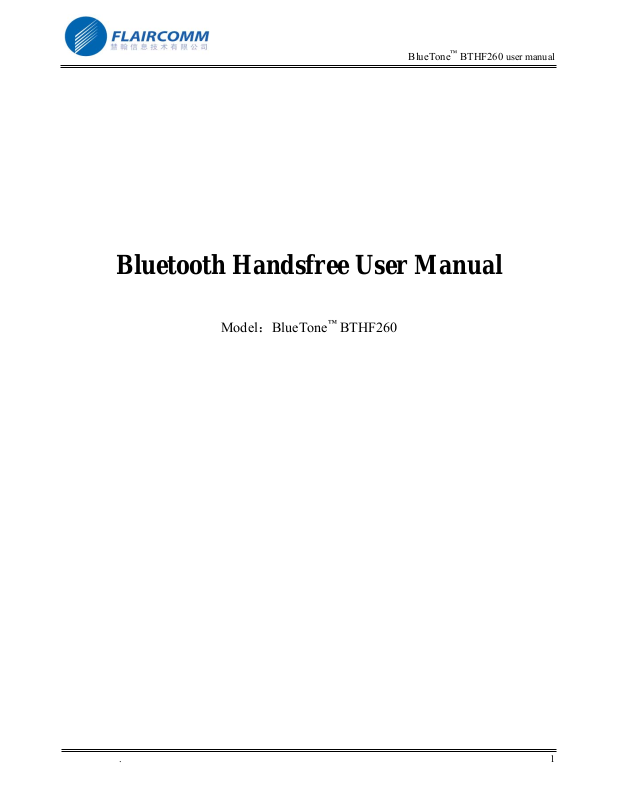

BlueTone
™
BTHF260 user manual
Bluetooth Handsfree User Manual
Model：BlueTone™ BTHF260
. 1
BlueTone
™
BTHF260 user manual
Declaration:
Without written permission from original manufacturer, reproduction, transfer, distribution or storage of
part or all of the contents in this document in any form is prohibited.
The company reserves rights to make any changes and improvements to the product described in this
document without prior notice.
Notice ：
Please make sure your mobile phone supports Bluetooth profiles and network operator supports the
functions described in this manual, otherwise the relative functions cannot be realized on this Handsfree
device.
Safety
Use the charger that comes with package.
Check the laws and regulations on the use of mobile phones and handsfree equipment in the areas where you
drive. Always give full attention to driving and pull off the road and park before making or answering a call if
driving conditions require.
Do not allow children to play with your Bluetooth Handsfree Speaker since it contains small parts that could
become detached and create a choking hazard.
This device contains a Li-polymer battery. Please keep it away from fire anytime (including discarding the
device) or the battery may explode.
The Handsfree Speaker, especially the embedded battery must be properly disposed or may be recycled,
contacts your local recycling centers for disposal methods.
. 2
BlueTone
™
BTHF260 user manual
Certification and Safety Approvals
This product has been tested and found to comply with Bluetooth BQB requirements, part 15 of FCC rules,
R&TTE Directive（99/5/EC） or CE marked requirements.
Warning：Users should not make changes or modify the device in any way. Changes or modifications
without expressly approved by the party responsible for compliance could void the user’s authority to
operate the device.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
RF exposure warning ·
The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment.
The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.
CE command：
EN 301 489-17 v1.2.1: 2002
ETSI EN 300 328 v1.6.1:2004
IEC 60950-1:2001 / EN 60950-1:2001
. 3
BlueTone
™
BTHF260 user manual
1. INTRODUCTION.................................................................................................................................6
1.1 BLUETOOTH TECHNOLOGY ..................................................................................................................6
1.2 PRODUCT FEATURES ............................................................................................................................6
1.3 PACKAGE CONTENT .............................................................................................................................7
1.4 OVERVIEW ...........................................................................................................................................7
1.5 ICON.....................................................................................................................................................7
2. USING YOUR HANDSFREE..............................................................................................................9
2.1 BATTERY CHARGING AND USAGE ........................................................................................................9
2.1.1 Battery Charging .........................................................................................................................9
2.1.2 Battery Information .....................................................................................................................9
2.2 MOUNTING THE HANDSFREE ................................................................................................................9
2.3 SWITCHING ON AND OFF .....................................................................................................................10
2.4 MENU OPERATION .............................................................................................................................10
2.4.1 Enter the menu...........................................................................................................................10
2.4.2 Executing the menu item or Entering the submenu ...................................................................11
2.4.3 Exiting the menu........................................................................................................................11
2.5 PAIRING AND CONNECTION ................................................................................................................11
2.5.1 Pairing the Handsfree with bluetooth handset ...........................................................................11
2.5.2 Delete Paired Information..........................................................................................................11
2.5.3 Quit pairing with Bluetooth Equipment.....................................................................................11
2.5.4 Connecting/Disconnecting your Handsfree with Bluetooth Equipment....................................12
2.6 CALL FUNCTIONS ...............................................................................................................................12
2.6.1 Call ............................................................................................................................................12
2.6.2 Adjusting Volume......................................................................................................................12
2.6.3 Muting an active call .................................................................................................................12
2.6.4 Transferring the Call between Handset and handsfree ..............................................................12
2.6.5 Voice Dialing (when supported by the phone) ..........................................................................12
2.6.6 Advanced Call Functions...........................................................................................................13
2.7 AV MODE FUNCTIONS .......................................................................................................................13
2.7.1 Using the AV music player mode in the handset.......................................................................13
2.7.2 AV Mode Operations.................................................................................................................13
2.8 PAIRING/CONNECTING WITH OTHER BLUETOOTH EQUIPMENT ..........................................................14
2.8.1 Pairing the Handsfree with Other Bluetooth Equipment...........................................................14
2.8.2 Connecting your Handsfree with USB Dongle..........................................................................14
2.8.3 Connecting with two Bluetooth Equipments together...............................................................15
3. PHONE BOOK OPERATIONS.........................................................................................................16
3.1 DOWNLOAD THE PHONE BOOK ...........................................................................................................16
3.1.1 Download the phone book from the handset .............................................................................16
3.1.2 Send the phone book to the handsfree .......................................................................................16
3.2 DELETE THE PHONE BOOK ..................................................................................................................17
3.3 PHONE BOOK ......................................................................................................................................17
4. SETTING THE DEVICE...................................................................................................................18
4.1 BACKLIGHT ........................................................................................................................................18
4.2 BRIGHTNESS.......................................................................................................................................18
4.3 DEVICE FIRMWARE UPGRADE ............................................................................................................18
4.4 LANGUAGE.........................................................................................................................................19
5. TWO-LINK OPERATION (OPTIONAL)........................................................................................20
5.1 CONNECTION......................................................................................................................................20
5.2 SETUP PRIMARY DEVICE ....................................................................................................................20
5.3 CONVERSATION..................................................................................................................................20
6. QUICK USER GUIDE........................................................................................................................21
. 4
BlueTone
™
BTHF260 user manual
7. IMPORTANT MESSAGES AND FREQUENTLY ASKED QUESTIONS...................................24
8. MAINTENANCE................................................................................................................................25
. 5
BlueTone
™
BTHF260 user manual
1. Introduction
1.1 Bluetooth Technology
Bluetooth is an internationally standardized technology supporting short distance wireless communications. Any
two Bluetooth-compatible equipments, such as mobile phone, PDA、PC, headset, mouse, keyboards, printer, etc.
can wirelessly communicate with each other via Bluetooth connection. To ensure worldwide compatibility,
Bluetooth operates on the globally available ISM (Industrial Scientific and Medical) frequency band. Within 2.4
GHz and 2.48 GHz, Bluetooth transmits data up to either 10 meters (CLASS II mode) or 100 meters (CLASS I
mode) using 79 frequency hopping channels.
Though line-of-sight is not required, Bluetooth connections could be subject to interferences from obstructions such
as walls, human bodies, and other electronic devices. In addition, due to variations on product implementation, it is
likely that Bluetooth equipments from different manufactures have interoperability issues. In that case, you may
consult with manufactures to check product compatibility.
Note that, there could be some restrictions imposing on using Bluetooth devices in some countries. Please check
with your local authorities.
1.2 Product Features
Bluetooth v 1.2 compliant, interference-tolerable with WLAN devices
Class II, operating range up to 10 meters
An OLED screen displays phone status, battery capacity, call progress information, caller’s ID and Phonebook
User friendly menu design ideal for car drivers to make/receive calls and operating the device
With Phonebook, users can originate calls from Phonebooks, and sync Phonebook with mobile phones.
Support A2DP, AVRCP, HS/HF,OBEX and OPP profiles
Software upgradeable via USB port
Data rate up to 723 Kbps
Compatible with most Bluetooth-enabled devices such as cellular phones, PDAs, computers, MP3, MP4, iPOD,
and other multimedia players
Support up to 8 handset pairing information simultaneously
Best-in-class voice quality ensured by cutting-edge noise suppression and echo cancellation techniques
Voice dialing and user friendly operation keys ideal for car drivers to make/receive calls
Support Call Waiting and Conference functions
Support advanced features such as Two-Link and Multi-language display (optional)
Voice security ensured by using 128-bit encryption
Audio output up to 115 dB
Better portability with internal rechargeable Lithium Polymer battery
3.5mm standard Line-out connector for voice privacy
Low power consumption, up to 6 hours talk time and 550 hours standby time with the internal battery
Easy-to-mount with Sun-visor Clip and Vent Mount Clip
Robust performance, fast connection, accurate and sensible search of devices in range
. 6
BlueTone
Stylish, portable, lightweight, mini-sized, suitable for vehicle and office environment
1.3 Package Content
™
BTHF260 user manual
BlueTone™ BTHF260
Mounting dock Set (Optional)
Sun-visor Clip (Optional)
Car Charger Set（or Traveling Charger，Optional）
User Manual
1.4 Overview
8
7
6
5
9
11
Figure 1 Overview
1
1
1
1
1
2
3
4
10
1
1. “ ”: Power button. Switch the device on/off.
2. “
”: Call button. Answer a call; end a call; select menu items; transfer call between the handsfree and a
phone; play AV; or pause play.
3. “╋”: Volume up, page up, redial.
4. “━”: Volume down, page down, or voice dialing.
5. “
6. “
”: Menu button. Enter the menu, exit the menu, mute, or stop play.
”: Phone book button. Sync Phonebook with a handset, and display the phonebook.
7. OLED Screen: Displays phone status, battery capacity, call progress information, caller’s ID and phone
books.
8. Microphone: Picking up the voice
9. “
”: Earphone jack. Connect external earphone.
10. Speaker: Transmits the voice.
11. “
”: Charging Port. Connects to the travel (or car) charger to charge the battery of device.
1.5 Icon
At the top of the screen, there has a series of icons to display the phone status.
”: Mute, when muting it will be displayed.
“
. 7
BlueTone
™
BTHF260 user manual
“ ”: Notice, it will be displayed when a message can not be displayed in time on the screen..
”: Sync Phonebook, when transmit the Phonebook with handset it will be displayed.
“
”: Pairing, it will be displayed when enter the pairing mode.
“
”: During the connecting, it will be displayed.
“
”: After connecting, it will be displayed to replace the icon .
“
”: If the connection of AV service is available, it will be displayed.
“
”: Battery information, it has 5 grades , , , , , and will be displayed according to the battery capacity.
“
. 8
BlueTone
t
™
BTHF260 user manual
2. Using Your Handsfree
2.1 Battery Charging and Usage
2.1.1 Battery Charging
This device contains a rechargeable Li-Polymer battery. First-time charging time is about 4 hours. Later-on
recharging time is around 2-3 hours. Detailed charging procedures as follows:
1. Connect the car charger to the cigarette lighter.
2. Plug the connector of the charger to handsfree’s charging port to start charging. In screen the icon “ ” will
blink during charging. Once the icon turns to “
disconnect the charger from the handsfree and the power outlet.
You can also use the removable USB charging cable for charging the Handsfree speaker from your PC.
”, it indicates the battery is fully charged and you should
2.1.2 Battery Information
1. Once fully charged, the battery for handsfree supports continuous talk time up to 6 hours and standby time
about 550 hours.
2. When the battery is low, the device beeps once every 20 seconds and there is “Low Power” display in the
screen, charge the battery as described above.
Note that, over-charging will reduce battery life. If a fully charged battery is left unused, it will lose power over
time. Extreme temperature (either too hot or too cold) will also affect its ability to charge, capacity, and lifetime.
2.2 Mounting the Handsfree
It is easily to use Sun-visor Clip to fix the Handsfree device on the sun-visor over driver’s seat, or insert the vent
mount clip in the vent in the car. It can be more flexible to use the Handsfree in the car or carry out to the office
and home.
There are two magnets on the backside of the device, and you can attract the Sun-visor Clip or the Vent Mount to
them. In order to fix the Handsfree device on the sun-visor better, please clip the sun-visor to the sun visor in your
vehicle first, then attract the Sun-visor Clip to the backside of the device.
Note that, the microphone of the Handsfree must aim at the sound bearing.
Sun-visor Clip
magne
Figure 2 Fixing the Sun-visor Clip
. 9
BlueTone
Vent Mount Clip
Figure 2 Fixing the Vent Mount Clip
™
BTHF260 user manual
2.3 Switching on and off
Switching on: Press and hold the button for 3 seconds until the name “BTHF260” display in the screen and you
will hear 2 power-up tones. This indicates the handsfree is power on.
Switching off: Press and hold the
button for 3 seconds until the screen is off, and you will hear 2 power-down
tones. This indicates the handsfree is power off.
2.4 Menu Operation
2.4.1 Enter the menu
When the device is standby, press the button to enter the menu, and the menu list will display in the screen.
Details are as follows:
Enter Pairing Mode
Delete Paired Info
Delete Phonebook
Sync Phonebook (It will be displayed after the handsfree connection between the handset and the handsfree)
Primary Device (It’s only for Two-link version, and will be displayed after the handsfree connection between
the handset and the handsfree)
Backlight Time
10 Sec
20 Sec
60 Sec
Always On
Brightness
Brightness
SW Version
SW Version
20060908
Select language
. 10
English
BlueTone
™
BTHF260 user manual
Press the
╋ button or the ━ button can make page up and page down and to choose one menu item.
2.4.2 Executing the menu item or Entering the submenu
In menu, choose one menu item and press the button to select the menu item or enter the submenu.
2.4.3 Exiting the menu
In submenu, press the button can back to the main menu. If it is already the main menu, press the button can
back to standby status.
2.5 Pairing and Connection
2.5.1 Pairing the Handsfree with bluetooth handset
Before making and answering calls, you must pair your handsfree and phone. Paring sets up a unique relationship
between your handsfree and your handset. The handset will memorize the handsfree’s unique ID (or passkey). This
ensures that a unique and encrypted wireless link between your handsfree and handset will be used during calls.
Detailed operation procedures are as follows:
1. Place your handsfree close to your Bluetooth handset, and ensure your handsfree and your handset is power
on.
2. Press the
button to enter the menu. Choose “Enter Pairing Mode” and press the button, you will hear 2
power-up tones and the icon
entered the paring mode.
3. Following your phone user guide to active Bluetooth device search on the phone side, on your phone screen
you will see a list of Bluetooth equipment found by the phone at the end of the searching process.
4. Select this Bluetooth Handsfree ‘BTHF260’ from the list and initiate pairing following handset’s on-screen
prompts. Then enter passkey “0000”and confirm to pair the handsfree with your handset. Once the pairing
procedure is completed, you will hear a connecting tone. It indicates that the handsfree device and the
handset are paired.
Note
：
The handsfree will remain in the pairing mode for about 2 minutes. If paring cannot be finished within 2
minutes, the handsfree will enter into the standby mode and the icon
above steps 2-5 to restart the pairing process.
will display in the screen. This indicates the handsfree has successfully
will disappear. You need to repeat the
2.5.2 Delete Paired Information
This handsfree can paired with up to 8 Bluetooth equipments. Press the button to enter the menu, choose ‘Delete
Paired Info’ then press the
button; all paired information has been deleted.
2.5.3 Quit pairing with Bluetooth Equipment
When the handsfree in the pairing mode, press the ╋ button or the ━ button, it will quit from pairing mode and the
icon
will disappear.
. 11
BlueTone
™
BTHF260 user manual
2.5.4 Connecting/Disconnecting your Handsfree with Bluetooth Equipment
When the handsfree communicates with a Bluetooth equipment with Handsfree Profile, the Bluetooth connection
between two equipments shall be established in advance. If two Bluetooth equipments have been paired recently,
you can simply reconnect them.
Connecting your Handsfree with Bluetooth Handset：
If the handsfree and the handset have been paired, in order to connect two devices, you can either press the
button on the Handsfree to initiate a connection request or follow the handset user guide to find the handsfree and
send a connection request. During the connecting, the connecting icon
connecting, you will hear a connecting tone, and the icon
connecting icon
Disconnecting your Handsfree with Bluetooth Handset:
When a Handsfree connected with a Bluetooth handset, you can press and hold the
the connection. Or you can refer to the handset’s manual to disconnect from the handset side.
After disconnecting, you will hear a disconnecting tone, and the icon
.
will be displayed on the screen that replaces the
will be displayed on the screen. After
button for 3 seconds to drop
will disappear.
2.6 Call Functions
2.6.1 Call
Answer Call: Press the button.
Reject Call: Press and hold the
End Call: Press the
Redial: Press and hold the
Note
：
For the product with Two-link version, it must setup the primary device first before redial the call. And the
redialed operation is only for the primary device. (Please refer section 5.2 for details)
button.
━ button for 3 seconds.
╋ button for 3 seconds.
2.6.2 Adjusting Volume
In the talking mode, you can adjust the volume by press the ╋ and ━ button respectively. Meanwhile, the volume
setting will be displayed on the screen for about 2 seconds.
2.6.3 Muting an active call
You can mute or unmute the Handsfree during an ongoing call by press the button, and then the icon will be
displayed on the screen.
2.6.4 Transferring the Call between Handset and handsfree
Press and hold the button for 3 seconds to transfer an active call from the handsfree to handset.
Press the
button to transfer an active call from the handset to handsfree.
2.6.5 Voice Dialing (when supported by the phone)
Press and hold the ━ button for 3 seconds to activate the voice dialing feature of your handset, then follow your
handset user guide to complete voice dialing.
. 12
BlueTone
™
BTHF260 user manual
Press the ━ button to cancel the voice dialing during the voice dialing mode.
Please refer to your handset’s user guide for additional details, especially as some phone models do not support
voice dialing.
Note
：
For the product with Two-link version, it must setup the primary device first before making the voice dialing.
And the voice dialing operation is only for the primary device. (Please refer section 5.2 for details)
2.6.6 Advanced Call Functions
If your mobile phone has call waiting/conference functions, this Bluetooth Handsfree supports advanced call
features with following operations:
1. A new call comes in, While you are in talk:
1) Press and hold the
2) Press the
3) Press the
button, to end active call and answer new call.
button, to reject the new call
╋ button for 3 seconds, to hold active call and accept incoming call.
2. When two calls in progress, one is active and the other is on hold:
1) Press and hold the
2) Press the
button, to end active call and accept hold call.
3) Press and hold the
╋ button for 3 seconds, to toggle hold call and active call.
━ button for 3 seconds, to make conference.
2.7 AV Mode Functions
This product supports AV Mode Functions. Connecting with a Bluetooth-enabled multimedia/music player, the
product allows users to enjoy stereo music.
2.7.1 Using the AV music player mode in the handset
If your Bluetooth handset with mp3 functionality (the handset must supports AV profile), after paired and
connected (please refer section 2.5 for details), the handset can be connected to the Handsfree devices with AV
service.
Sometimes the connection can happen automatically. If the connection is successful, it will display the icon
the screen. Now, simply start the Media Player in your handset to enjoy stereo music.
If the handset can not connect AV service automatically, then you must follow your handset’s user guide to
complete the AV connection when using Media Player.
on
2.7.2 AV Mode Operations
Detailed operation procedures are as follows:
Play：Press the
Pause：Press the
Stop： Press the
Volume up：Press the
Volume down：Press the
button.
button.
button.
╋ button.
━ button.
. 13
BlueTone
Forward：Press and hold the ━ button for 3 seconds.
™
BTHF260 user manual
Backward：Press and hold the
╋ button for 3 seconds.
2.8 Pairing/Connecting with Other Bluetooth Equipment
2.8.1 Pairing the Handsfree with Other Bluetooth Equipment
In addition to Bluetooth phone, your Handsfree can also pair with other Bluetooth equipment for realizing short
distance wireless communications. Similar pairing procedures described in the previous Section can be used. You
can follow the user guide of the Bluetooth equipment to complete paring operations on the equipment side.
This Handsfree can be paired with up to 8 Bluetooth equipments (including mobile handsets). The corresponding 8
sets of pairing information are recorded by the Handsfree. Each paired equipment can wireless communicated with
the Handsfree after setting up a Bluetooth connection. Please check Section 2.5.3 on procedures to set up a
Bluetooth connection.
2.8.2 Connecting your Handsfree with USB Dongle
Before pairing and connecting, you must ensure the USB Dongle has already connected with PC, and IVT
BlueSoleil driver has been installed in PC.
Detailed operation procedures are as follows:
1. Press the
power-up tones and the icon
entered the paring mode.
2. Start “IVT BlueSoleil”. Click “My Bluetooth—>Bluetooth Device Discovery” on main menu, to search the
Bluetooth device in range.
3. In the result of search, right click “BTHF260”, and choose “Pair Device”.
4. Enter passkey ’0000’ and confirm to pair the Handsfree with your computer.
5. After paired, a red “√” will be placed before “BTHF260”. IVT and Handsfree will connect “Bluetooth AV
Service” automatically.
6. After connected, Start “Windows Media Player” and configure the speaker interface to be “Bluetooth AV/HS
Audio”.
7. Restart “Windows Media Player” and you can listen to the music with Handsfree. At the same time, you can
press the button of Handsfree to control “play”,” pause”, choose music and Volume control. (Please refer
section 2.7.2 for details )
8. If you want to use microphone which is in Handsfree, you must disconnect “Bluetooth AV Service”, and
connect “Bluetooth Headset Service”. Right click “BTHF260”, and choose “Disconnect—>Bluetooth AV
Service”.
9. After disconnected, right click “BTHF260”, and choose “Connect—>Bluetooth Headset Service”.
10. When connecting, you will hear indicating tones on the Handsfree, then press the
connection.
11. After connected, in “Control Panel”，Start “Volume and Audio Device” and configure the record default
device to be “Bluetooth AV/HS Audio”. Then you can use Handsfree’s microphone now.
button to enter the menu. Choose “Enter Pairing Mode” and press the button, you will hear 2
will display in the screen. This indicates the handsfree has successfully
button to make the
. 14
BlueTone
™
BTHF260 user manual
Notice: When connecting with “Bluetooth AV Service”, you can use Handsfree’s buttons to control the remote
device, such as “play”,” pause”, select music, and control Volume up and down; but the microphone can not be
used. When connecting with “Bluetooth Headset Service”, you can listen to the music and use microphone together,
but Handsfree’s buttons can not be used to control the remote device..
2.8.3 Connecting with two Bluetooth Equipments together
This product can connect with AV player and Bluetooth handset together; you can receive and make phone calls
while listening to music
Detailed operation procedures are as follows:
1. Pairing and connecting Handsfree with the handset (please refer section 2.5 for details), and the pairing
information of the handset are recorded by the Handsfree.
2. Disconnect Handsfree and handset.
3. Pairing and connecting Handsfree with AV player (please refer section 2.8.1, 2.8.2 for details), start to use
AV mode functions.
4. Refer to handset’s manual to initiate the connection from the handset side (please refer section 2.5.3 for
details).
While listening to music, the product will notify the user an incoming call. The on-playing music can be paused if
the call is accepted and resumed after call termination. If you want to make a phone call, you can dial a number
immediately, and it will switch to call function automatically.
. 15
BlueTone
™
BTHF260 user manual
3. Phone book Operations
3.1 Download the phone book
3.1.1 Download the phone book from the handset
Press the button to enter the menu, and then choose ‘Sync Phonebook’. After press the button, the Handsfree
will try to download the phone book from the handset. If the handset supports downloading, it will delete the phone
book which has downloaded formerly first, and then begin to download the new phone book. At the same time, the
icon
will display in the screen till the end of downloading. If the handset does not support downloading, it will
display ‘Sync Failed！Unsupported Phone’ in the screen. During downloading, it will end the downloading when
the space is full, and display ‘Phonebook Full!’ in the screen simultaneity. (Correlative operation please refers
section 2.4 for details.) Because of the different mobile phone model, the support of phone book downloading is
also different For example:（Here only a partial listing of mobile phone model）
The different situation of phone book downloading
(Here only a partial listing of mobile phone model)
Model Download
Sony Ericsson W800
Sony Ericsson K750
Sony Ericsson K700c
Nokia 7370
available
available
available
available
Note：For the product with Two-link version, it must setup the primary device first before downloading the phone
book. And the operation of downloading the phone book is only for the primary device. (Please refer section 5.2 for
details)
3.1.2 Send the phone book to the handsfree
Please follow your phone’s user guide to send the phone book to Handsfree. During downloading, the icon will
display in the screen till the end. Because of the different mobile phone model, the support of phone book
transmission is also different For example: （Here only a partial listing of mobile phone model）
The different situation of phone book transmission（Here only a partial listing of mobile phone model）
Model Send one by one Send all
Sony Ericsson W800
Sony Ericsson K750
Sony Ericsson K700c
SAMSUNG D608
SAMSUNG D508
NOKIA 6600
NOKIA N-Gage QD
Moto E680
available available
available available
available available
available available
available unavailable
available unavailable
available unavailable
available unavailable
Notes:
1. Most of synced phone numbers are ME numbers; not the numbers from the SIM card.
. 16
BlueTone
™
BTHF260 user manual
2. SAMSUNG D508 and D608 can sync phone numbers from the SIM card.
3. The phone with multi-connections support, such as W800, K750, D608, can sync phone numbers on the
connecting mode. Otherwise the phone must be disconnected first and then sync phone numbers over OPPS.
3.2 Delete the phone book
Enter the menu, and choose ‘Delete Phonebook’. Then press the button to delete the phone book. (Correlative
operation please refers section 2.4 for details.)
Note
：
For the product with Two-link version, it must setup the primary device first before deleting the phone book.
And the operation of deleting the phone book is only for the primary device. (Please refer section 5.2 for details)
3.3 Phone book
In standby mode, press the button to enter the phone book. If there is nothing in the phone book, it will display
‘Phonebook is Empty!’ in the screen. Otherwise, it will display the first information of the phone book. Press the
or
━ button to make the page up or down. After choosing an entry, press the button to dial the number.
Note:
1. For the product without Two-link version, if the handsfree has not connected with the handset, you can
examine the phone book which had already been downloaded for the last time. If the handsfree has
connected with the handset, you can examine the phone book for the handset which has connected currently.
2. For the product with Two-link version, it must setup the primary device first before examining the phone
book. It is only for the primary device to examine the phone book, and initiate the call. (Please refer section
5.2 for details)
╋
. 17
BlueTone
™
BTHF260 user manual
4. Setting the device
4.1 Backlight
Press the button to enter the menu. Choose ‘Backlight Time’, and press the button, it will enter the submenu,
contents as follows:
10 Sec
20 Sec
60 Sec
Always On
You can press the
corresponding operations, please refer section 2.4 for details.)
╋ or ━ button to choose the right backlight what you need, then press the button. (For
4.2 Brightness
Press the button to enter the menu. Choose ‘Brightness’ then press the button to enter the submenu. Contents
as follows:
Brightness
You can press the
operations, please refer section 2.4 for details.)
Vote, you can adjust the right brightness according to the appropriate environment.
╋ or ━ button to adjust the right brightness, then press the or button. (For Corresponding
4.3 Device Firmware Upgrade
This device has the feature of software upgrade. It allows users to upgrade BTHF260 software via USB port.
Detailed operation procedures are as follows:
1. Please download the tool which is ‘CSR DFU Wizad’ of PC terminal from our website, and then install it
in your PC.
2. Please download the driver of USB and the latest software of BTHF260 from our website.
3. Using the USB cable to connect the handsfree with PC.
4. Operate the menu of BTHF260 to enter the submenu of ‘SW_Version’, then press the ‘
‘
━’‘ ’button in turn to enter the DFU mode, the ‘DFU…’ will be displayed on the screen. (If enter the
DFU mode by misoperation, you can double press the
5. Install the driver of USB in PC after entering the DFU mode.
6. After finish the operation, you can update the software of BTHF260 via ‘CSR DFU Wizad’ which has
been installed in PC.
Note that, in the process of updating software, the update can not be interrupted, otherwise, it could cause
equipment failure at work.
button to exit the DFU mode. )
╋’‘╋’‘━’
. 18
BlueTone
™
BTHF260 user manual
4.4 Language
Press the button to enter the menu. Choose ‘Language’ then press the button to enter the submenu. Contents as
follows:
English
You can press the
╋ or ━ button to choose the right language what you need, then press the button. (For
Corresponding operations, please refer section 2.4 for details.)
The Bluetooth Handsfree device’s advanced features supports multi-language display. The displayed language can
be selected by a user. However, currently only English is supported.
. 19
BlueTone
™
BTHF260 user manual
5. Two-Link Operation (Optional)
The Bluetooth Handsfree advanced features support two-link operation that allows two mobile phones to be
connected to the Handsfree at a same time. By defining a primary device, the user can easily pair and connect two
mobile phones to the Handsfree. Then the operation of the Handsfree is similar to the normal operation with a
single mobile phone.
5.1 Connection
Initiate a connection from the Handsfree: Press the button to connect most current connected devices
Initiate a connection from a handset: Please follow the menu on the handset. Don’t initiate connections from two
handset at the same time.
5.2 Setup Primary Device
When a handset and the Handsfree device connected with handsfree profile, “Primary Device” option will be
displayed on the Handsfree device’s menu. By selecting the menu item and press the
currently connected to the Handsfree will be listed. Using the
button to set that device to be a primary device. Press the
previous menu. Please refer to the menu operation section for details.
Once a primary device is selected, the phonebook in the primary device can be downloaded and viewed as defined
in Chapter 3. Meanwhile, all primary functions initiated from the Handsfree, such as Make a Call, Redial, Voice
Dialing, Dial from the phonebook, etc., are performed on the primary device. If the primary device does not
connect to the Handsfree, but the secondary handset connects to the Handsfree, these primary functions will not
work on the secondary handset. In order to make these primary functions work on the secondary phone, you have
followed the above procedure to set the secondary handset to be a primary device. Please refer to related sections
for operating of these primary functions.
╋ or ━ button to select a device name, press the
button does not select the primary device but returns to
button, device names that
5.3 Conversation
When two handsets (two-link) are connected to the Handsfree:
1. If one handset is in conversation, all operations will be the same as a single handset connected.
2. If both handsets are in conversation, the handset that gets into the conversation the last will not be controlled
by the Handsfree. Then the voice for this last conversation handset will stay on the handset instead of the
Handsfree. The operations on the Handsfree will affect only the handset that establishes the conversation first.
Once the first conversation handset is terminated, the Handsfree could gain the control of the remaining
handset that is in conversation. Such as you can press the
to Handsfree, and etc.
. 20
button to transfer an active call from the handset
BlueTone
™
BTHF260 user manual
6. Quick User Guide
You can follow the instructions listed in Table 1-7 below to operate your handsfree devices. (Please refer section
1.4 and 1.5 for details of key and key press duration definitions.)
Note: your handsfree devices can only talk to paired Bluetooth handsets. For handsets supporting HFP only, you
also need to establish Bluetooth connection between your handsfree and your phone before making and answering
calls.
Table 1: Power on/off
FUNCTION
CURRENT STATUS HANDSFREE INDICATOR
OPERATION
HANDSET HF
Turn On Power Off Press and hold the
button for 3 seconds
Turn Off Standby Press and hold the
button for 3 seconds
Table 2: Pairing/Connections
FUNCTION
Enter
pairing
mode
CURRENT STATUS HANDSFREE INDICATOR
HANDSET HF
Standby Press the button to enter
OPERATION
the menu. Choose “Enter
Pairing Mode” and press the
button
Quit pairing
mode
Delete all
paired info
Pair
handsfree
with handset
Pairing mode
Standby
Press the ╋ or ━ button
Press the button to enter
the menu, choose ‘Delete
Paired Info’ then press the
button.
Power on Pairing mode Follows your handset user
guide to complete pairing
procedure.
Passkey is “0000”
Connect
(handsfree
with
Standby
(disconnecte
d)
Standby
(disconnected)
Press the
connection from the handset
button or set up
handset)
Disconnect Standby
(connect)
Standby
(connect)
Press and hold the button
for 3 seconds refer to
handset’s manual to initiate
the connection from the
handset side.
. 21
AUDIO TONE OLED INDICATOR
2 power-up tones
2 power-down
Display ‘BTHF260’
in the screen
The screen is off
tones
AUDIO TONE OLED INDICATOR
2 power-up
tones
Display the icon in
the screen
the icon will
disappear
2 alt
Display the icon in
the screen
2 undertone During the
connecting, the icon
will display in
the screen. After
connecting, the icon
will display in
the screen to
replace the icon
The icon
disappear.
.
will
Table 3: Call Functions
BlueTone
™
BTHF260 user manual
FUNCTION
CURRENT STATUS HANDSFREE INDICATOR
HANDSET HF
OPERATION
AUDIO TONE OLED INDICATOR
Answer Call Standby Standby Press the button Key Tone
Reject Call Standby Standby
Press and hold the ━
Key Tone
button for 3 seconds
End Call Talk Talk Press the button Key Tone
Redial Standby Standby
Press and hold the ╋
Key Tone
button for 3 seconds
Voice
Dialing
Cancel
Voice
Standby Standby
Voice
Voice Dialing
Dialing
Press and hold the ━
button for 3 seconds
Press the ━ button
Key Tone
Key Tone
Dialing
Volume up Talk Talk
Volume
Talk Talk
Press the ╋ button
Press the ━ button
Display current
Display current
down
Mute Talk Talk Press the button Key Tone
Unmute Talk Mute Press the button Key Tone
volume for 2
seconds.
volume for 2
seconds.
Display the icon
in the screen
The icon
will
disappear.
Table 4: Transfer Functions
FUNCTION
Call
CURRENT STATUS HANDSFREE INDICATOR
HANDSET HF
Talk Talk Press and hold the
Transfer
(handsfree
to handset)
Call
Talk Talk Press the
Transfer
(handset to
handsfree)
Table 5: Low Power Indication
FUNCTION
Low Power
Warning
CURRENT STATUS HANDSFREE INDICATOR
HANDSET HF
Except power
off
. 22
OPERATION
button for 3 seconds
button Key Tone
OPERATION
AUDIO TONE OLED INDICATOR
Key Tone
AUDIO TONE OLED INDICATOR
Beep every 20
seconds
Display ‘Low Power’
in the screen
Table 6: Advanced Call Functions
BlueTone
™
BTHF260 user manual
FUNCTION
Held Active
CURRENT STATUS HANDSFREE INDICATOR
HANDSET HF
Talk Call Waiting
Call and
Accept
Incoming
Call
End Active
Talk Call Waiting Press the
Call and
Answer
New Call
Reject the
new call
Toggle Held
Talk Call On Hold Press the button
Talk Call On Hold
Call and
Active Call
End Active
Talk Call On Hold Press the
Call and
Accept Hold
Call
Conference Talk Call On Hold
OPERATION
Press and hold the ╋
button for 3 seconds
button
Press and hold the ╋
button for 3 seconds
button
Press and hold the ╋
button for 3 seconds
AUDIO TONE OLED INDICATOR
Table 7: Work in with IVT and Windows Media Player
FUNCTION
Play IVT/Media
CURRENT STATUS HANDSFREE INDICATOR
HANDSET HF
OPERATION
Press the button
player on
Pause IVT/Media
Press the button
player on
Stop IVT/Media
Press the button
player on
Volume up IVT/Media
Press the ╋ button
player on
Volume
down
IVT/Media
player on
Forward IVT/Media
player on
Backward IVT/Media
player on
Press the ━ button
Press and hold the ━
button for 3 seconds
Press and hold the ╋
button for 3 seconds
AUDIO TONE OLED INDICATOR
. 23
BlueTone
™
BTHF260 user manual
7. Important Messages and Frequently Asked Questions
1. Display ‘Low Power’ in the screen
Low battery indicator; please recharge your battery as soon as possible.
2. Can't power up the device after charging more than 20 minutes：
For the first time, the device should be charged at least 40 minute prior tuning on, It is recommended that the
battery should be fully charged before using the device.
3. Can't hear anything on handsfree： you should check the followings
Handsfree is power on
Handsfree has paired with a handset
Handsfree should connected with a handset (except the handset only supports Handsfree Profile）
Handsfree and handset are within 10m
Handsfree and handset should have good single strength
4. Handsfree can not be found when a handset tries to pair with it：
Your handsfree may not be in the pairing mode, please refer section 2.4.1 for details.
5. Do the paired handsfree or the paired handset need to be repaired power off：
No. Please note that for the handset supports handsfree profile, the handsfree and the handset must be connected
first. Refer section 2.5.3 for details.
6. Voice dialing does not work：
First check the handset supports voice dialing function; make sure you have recorded the voice tag. Please note that
noisy environment will affect voice dialing.
. 24
BlueTone
™
BTHF260 user manual
8. Maintenance
BlueTone™ BTHF260 is well-designed communications devices, careful maintenance and proper use will extend
the product life and keep their elite performance in delivering voice. Following maintenance procedures may be
helpful to you：
Always turn off power and keep your device in a safe place when it is not in use
Keep the device dry, away from water, precipitation, humidity, moisture, and various liquids that may corrode
electronic circuits. If your device gets wet, turn it off immediately and wait until the device gets dry completely
before using it
Keep the device away from dusty and dirty places. Otherwise, the mechanic and electronic parts could be
damaged
Do not store the device in high temperatures (above 85 or 1℃ 85 ) or in direct sunlight. Extreme high ℉
temperature could degrade performance, reduce battery lifetime, and wrap or melt the certain plastics.
Do not store the device in too cold place (under -40℃ or 40℉). Moisture could form inside the device when
you take it to a warm place. This could damage the internal electronic circuits.
Avoid dropping, knocking, and shaking the device. The mechanical parts and the internal electronic circuits
could be broken.
Avoid using hash chemicals, cleaning solvents, and any other strong detergent to clean the device. You may
use a clean and slightly damp cloth to clean the device
Always take to device to the nearest authorized service facility for repairing if it is malfunctioning.
Disassembling, modifying, and replacing components yourself could degrade product performance, cause
damages, and terminate warranty
. 25
Loading...
