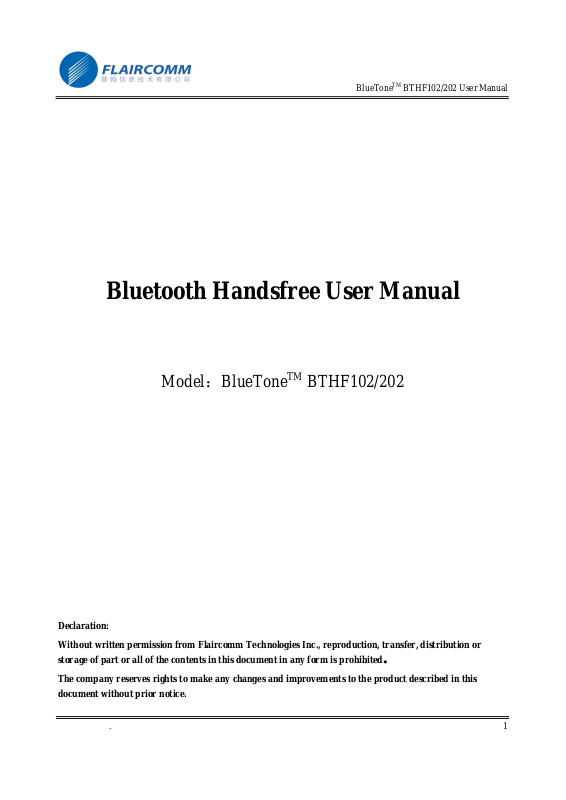

Flaircomm Technologies BTHF102, BTHF202 User Manual

BlueTone

TM

BTHF102/202 User Manual

Bluetooth Handsfree User Manual

Model：BlueToneTM BTHF102/202

Declaration:
Without written permission from Flaircomm Technologies Inc., reproduction, transfer, distribution or

storage of part or all of the contents in this document in any form is prohibited。
The company reserves rights to make any changes and improvements to the product described in this

document without prior notice.

. 1

BlueTone

Notice ：
Please make sure your mobile phone and network operator supports the functions described in this manual,

otherwise the relative funct i ons can not be realized on this Handsfree device.

TM

BTHF102/202 User Manual

Certification and Safety Approvals

This product has been tested and found to comply with Bluetooth BQB requirements, part 15 of FCC rules,
R&TTE Directive（99/5/EC） or CE marked r equirements.

Warning：Users should not make changes or modify the device in any way. Changes or modifications
without expressly approved by the original manufacturer will void the user’s authority to operate the device.

Federal Communications Commission (FCC) Statement

15.105(b)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC rules. These limits are des ig n ed to provide reasonable protection aga i nst harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measur es:

-Reorient or relocate the r eceiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from th at to whi ch the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Operation is subject to the following two conditions:

1) this device may not cause interference and 2) this device must accept any interference, including interference
that may cause undesired operation of the device.

FCC RF Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users
must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be
co-located or operating in conjunction with any other antenna or transmitter.

. 2

BlueTone

TM

BTHF102/202 User Manual

Safety

z Check the laws and regulations on the use of mobile p hones and handsfree equipment in th e areas where you

drive. Always give full attention to drivin g and pull off the road and par k before ma king or ans wering a cal l if
driving conditions require.

z Do not allow children to play with your Bluetooth car handsfr ee sinc e it contains s mall p arts that c ould be come

detached and create a choki n g hazard

z This device contains a Li-polymer battery. Please keep it away from fire anytime (including discarding the

device) or the ba ttery may explode

z The handsfree, especially the emb edded battery must be properly disposed or may be recycled, contact your

local recycling centers for disposal methods.

. 3

BlueTone

TM

BTHF102/202 User Manual

Contents：

1. INTRODUCTION.................................................................................................................................5

1.1 BLUETOOTH TECHNOLOGY ..................................................................................................................5

1.2 BLUETOOTH HANDSFREE CAR KIT.......................................................................................................5

1.3 PRODUCT FEATURES ............................................................................................................................5

1.4 PACKAGE CONTENT .............................................................................................................................6

1.5 OVERVIEW ...........................................................................................................................................6

1.6 KEY PRESS DURATION DEFINITIONS....................................................................................................7

2. USING YOUR HANDSFREE..............................................................................................................8

2.1 BATTERY CHARGING AND USAGE........................................................................................................8

2.1.1 Battery Charging .........................................................................................................................8

2.1.2 Battery Information.....................................................................................................................8

2.2 MOUNTING YOUR HANDSFREE .............................................................................................................8

2.3 TURN ON/OFF HANDSFREE ..................................................................................................................9

2.4 PAIRING/CONNECTING YOUR HANDSFREE WITH BLUETOOTH EQUIPMENT ........................................10

2.4.1 Pairing your Handsfree with Bluetooth handset........................................................................10

2.4.2 Pairing your Handsfree with Other Bluetooth Equipment.........................................................10

2.4.3 Erase all paired profiles.............................................................................................................11

2.4.4 Connecting/Disconnecting your Handsfree with Bluetooth Equipment....................................11

2.5 CALL FUNCTIONS...............................................................................................................................11

2.5.1 Call ............................................................................................................................................11

2.5.2 Adjusting Handsfree Volume....................................................................................................11

2.5.3 Mute...........................................................................................................................................12

2.5.4 Transferring Calls to/from Your Handset..................................................................................12

2.5.5 Voice Dialing.............................................................................................................................12

2.5.6 Advanced Call Functions...........................................................................................................12

3. QUICK USER GUIDE........................................................................................................................13

3.1 LED PATTERNS ..................................................................................................................................13

3.2 QUICK USER GUIDE............................................................................................................................13

4. MAINTENANCE................................................................................................................................16

5. IMPORTANT MESSAGES AND FREQUENTLY ASKED QUESTIONS...................................17

. 4

BlueTone

TM

BTHF102/202 User Manual

1. Introduction

1.1 Bluetooth Technol ogy

Bluetooth is an internationally standardized technology supporting short distance wireless communications. Any
two Bluetooth-compatible equipment, such as mobile ph one, PDA、PC, headset, mouse, keyboard, printer, etc. can
wirelessly communicate with each other via Bluetooth co nnection. To ensure worldwide compatibility, Bluetooth
operates on the globally avail able ISM (Industrial Scientific and Medical) frequency band. Within 2.4 GHz and

2.48 GHz, Bluetooth transmits data up to either 10 meters (CLASS II mode) or 100 meters (CLASS I mode) using
79 frequency hopping channels.

Though line-of-sight is not required, Bluetooth connections could be subject to interferences from obstructions such
as walls, human body, and other electronic devices. In addition, due to variations on product implementation, it is
likely that Bluetooth equipments from different manufactures have interoperability issues. In that case, you may
consult with manufactures to check product compatibility.

Note that, there could be some restrictions imposing on using Bluetooth devices in some countries. Please check
with your local authorities.

1.2 Bluetooth Ha ndsfree Ca r Ki t

Flaircomm’s Bluetooth product is a specially designed BlueToneTM series product allowing car drivers to make and
receive calls without holding a mobile phon e. It provides a clean wireless audio connection with your Bluetooth
mobile phone and PDA. The product can also be used in the office or home, besides of vehicle environment.

In addition to vehicle environment applications, this portable equipment, supported by an internal rechargeable Li­ion battery, can also be used in office environment as a normal handsfree equipment to make/receive phone calls
without bothering holding the mobile handset. It can also be placed beside a Bluetooth-enabled PC to make voice
calls over the Internet.

1.3 Product Features

z Bluetooth v1.2 compliant, interferen ce-tolerable with WLAN devices
z Class II, operation range up to 10 meters
z Best-in-class voice quality ensured by cutting-edge noise suppression and echo cancellation techniques
z Voice dialing and user friendly operation keys ideal for car drivers to make/receive calls
z Supports call waiting/conference functions
z Voice security ensured by using 128-bit encryption
z Better portability with internal rechargeable Li-ion battery
z Talk/standby time up to 10/900 for BTHF102 (5.5/500 for BTHF202) hours with internal battery
z Easy-to-mount with stylish mounting dock, hang-strip, and Double-side Sticker
z Robust performance, fast connection, accurate and sensible search of devices in range
z Stylish, portable, lightweight, mini-sized, suitable for vehicle and office environment

. 5

ed/Blue

r

1.4 Package Content

BlueTone

TM

BTHF102/202 User Manual

z BlueToneTM BTHF102 (or BlueToneTM BTHF202 )
z Mounting dock
z Double-side Sticker
z 12/24V Car Charger （or Traveling Charger）

TM

z Hanging Strip(for BlueTone
z User Manual

BTHF202)

1.5 Overview

1.Speaker

2.Red/Blue LED

3.Button K4

Figure 1 BlueToneTM BTHF102 Overview

1.Speake

8.ChargingPort

4.Button K3

5.Button K2

6. Button K1

7. Microphone

2.R

LED

1
1
1
1
1
1

8.Charging Port

5. Button K2

7. Microphone

Figure 2 BlueToneTM BTHF202 Overview

6. Button K1

1. Speaker

2. Red/Blue LED：for indicating device status

3. Button K4：for adjusting speaker volume down

4. Button K3：for adjusting speaker volume up

5. Button K2： for receive/end cal l

6. Button K1：for turning on/off device

7. Microphone：for picking up your voice

8. Charging Port：for connecting to the trav el (or car) charger to charge t he battery of device

. 6
