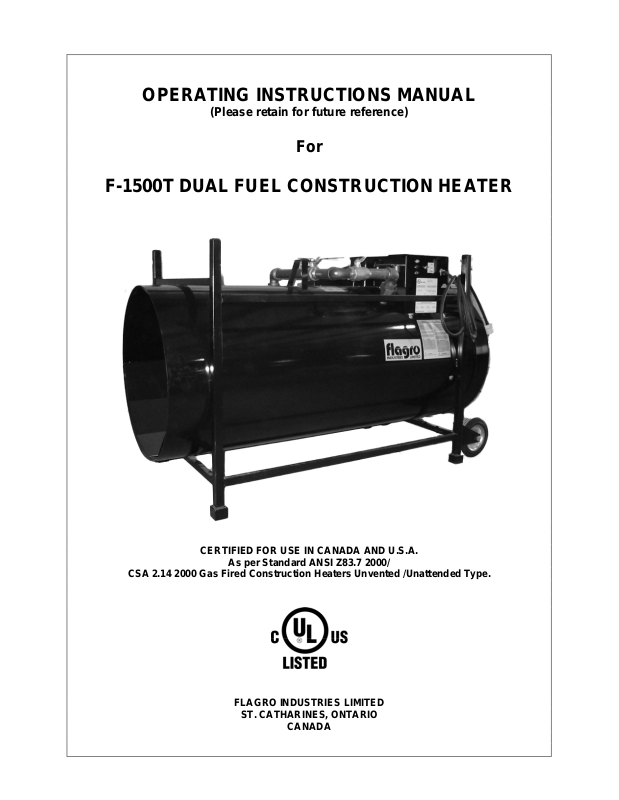

Page 1
OPERATING INSTRUCTIONS MANUAL
(Please retain for future reference)
For

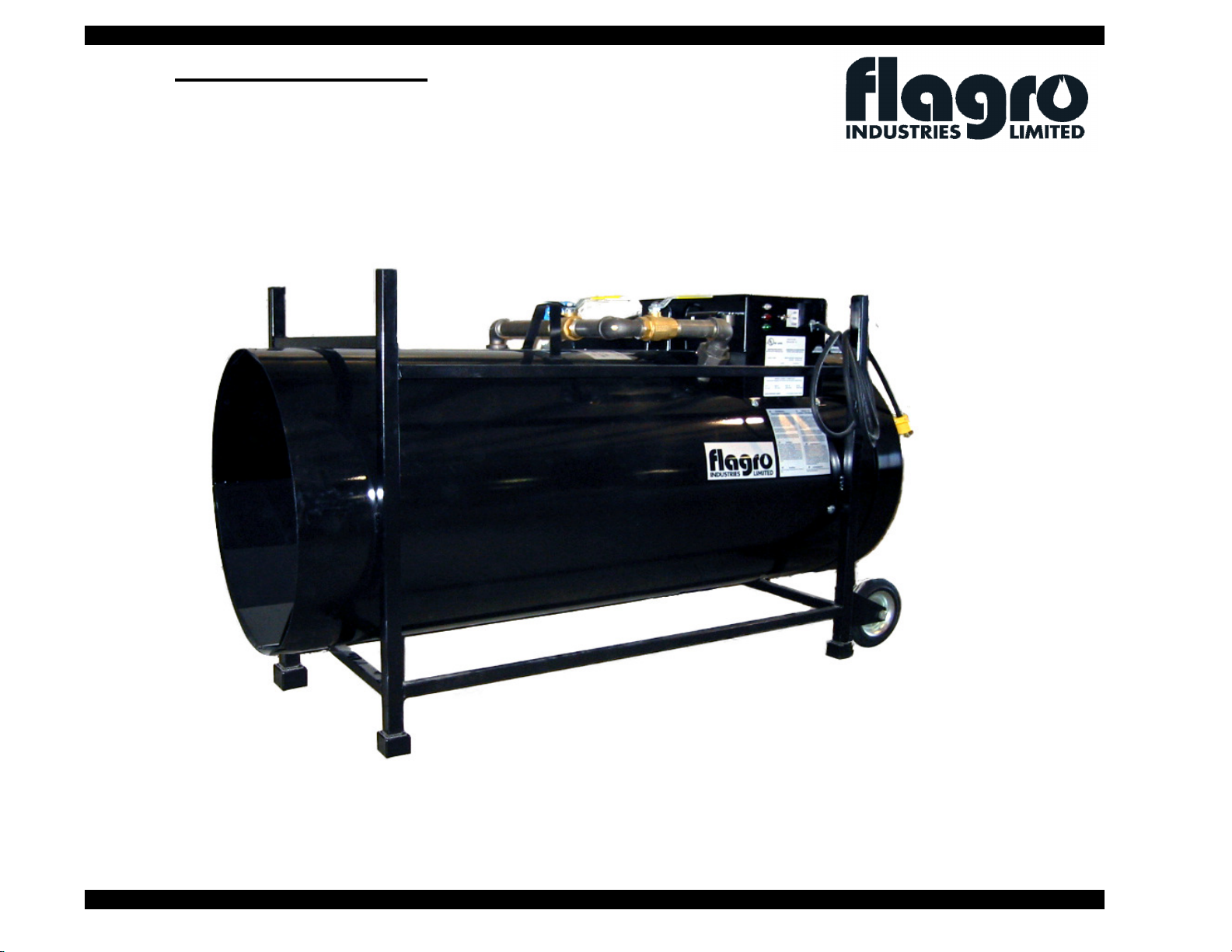

F-1500T DUAL FUEL CONSTRUCTION HEATER
CERTIFIED FOR USE IN CANADA AND U.S.A.
As per Standard ANSI Z83.7 2000/
CSA 2.14 2000 Gas Fired Construction Heaters Unvented /Unattended Type.
FLAGRO INDUSTRIES LIMITED
ST. CATHARINES, ONTARIO
CANADA
Page 2
GENERAL HAZARD WARNING:
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED
WITH THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND
PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN,
ASPHYXIATION, CARBON MONOXIDE POISONING, AND/OR ELECTRICAL
SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS
SHOULD USE OR SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN
INSTRUCTIONS MANUAL, LABELS, ETC. CONTACT THE MANUFACTURER.
WARNING:
FIRE, BURN, INHALATION, AND EXPLOSION HAZARD. KEEP SOLID
COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER OR CARDBOARD, A
SAFE DISTANCE AWAY FROM THE HEATER AS RECOMMENDED BY THE
INSTRUCTIONS. NEVER USE THE HEATER IN SPACES WHICH DO OR MAY
CONTAIN VOLATILE OR AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS
GASOLINE, SOLVENTS, PAINT THINNER, DUST PARTICLES OR UNKNOWN
CHEMICALS.
WARNING:
NOT FOR HOME OR RECREATIONAL VEHICLE USE.
WARNING:
INTENDED USE IS PRIMARILY THE TEMPORARY HEATING OF BUILDINGS
UNDER CONSTRUCTION, ALTERATION, REPAIR OR EMERGENCIES ONLY.
ALWAYS PROVIDE ADEQUATE VENTILATION. 1 SQ. IN. OF FRESH AIR MUST
BE SUPPLIED FOR EVERY 1000 BTUH OF HEAT.
THIS HEATER SHALL BE INSTALLED SUCH THAT IT IS NOT DIRECTLY
EXPOSED TO WATER SPRAY, RAIN AND/OR DRIPPING WATER.
- 2 -
Page 3
This heater is designed and approved for use as a
construction heater under ANSI Z83.7 2000 and
CSA 2.14 2000 Gas Fired Construction Heaters
We cannot anticipate every use which may be made
of our heaters. CHECK WITH YOU LOCAL FIRE
SAFETY AUTHORITY IF YOU HAVE QUESTIONS
ABOUT APPLICATIONS.
Other standards govern the use of fuel gases and heat
producing products in specific applications. Your local
authority can advise you about these.
SPECIFICATIONS
Model ……………………………………………………. F-1500T
Input ……………………………………………………... 650,000 to 1,500,000 btuh
Fuel ……………………………………………………….. Natural Gas or Propane
Inlet Pressure …………………………………………….. Natural Gas: 9.0” W.C.
…………………………………………………
…... Propane: 11” W.C.
Ignition …………………………………………………….. Direct Spark Ignition
.…………………………………………...….. Thermostat Control
Air Circulation …………………………………………….. 7000 cfm
Fuel Consumption ……………………………………...... 69 lbs/hr
……………………………………………... 1428 cfh
Approved ………………………………………………...... cULus listed
- 3 -
Page 4
INSTALLATION:
The installation of this heater for use with natural gas shall conform with local codes or,
in the absence of codes, with the National Fuel Gas Code ANSI Z223.1/NFPA 54 and
the Natural Gas and Propane Installation Code, CSA B149.1.
The installation of this heater for use with propane tank or cylinder shall conform with
Local codes or, in the absence of local codes, with the Standard for the Storage and
Handling of Liquefied Petroleum Gases, ANSI/NFPA 58 and the Natural Gas and
Propane Installation Code, CSA B149.
This heater must be located at least 10ft (3m) from any propane gas cylinder. This
heater shall not be directed toward any propane gas container within 20ft (6m).
CLEARANCE TO COMBUSTIBLES:
F-1500T TOP: 4 ft FRONT: 22 ft SIDES: 2 ft REAR: 2 ft
CONNECTING THE CYLINDER:
If cylinders are used to supply the heater, no cylinders smaller than 100lb capacity shall
be used. These cylinders must supply a vapor withdrawal only.
1. All cylinder connections must be made using a wrench to tighten the POL fitting.
2. Be sure that the cylinder valve is in the closed position when connection
or disconnecting the cylinder.
3. A soap and water solution must be applied to all connections in order to leak
check the system.
The gas must be turned off at the propane supply cylinder(s) when the heater is not in
use. When the heater is to be stored indoors, the connection between the propane
supply cylinder(s) and the heater must be disconnected and the cylinders removed from
the heater and stored in accordance with Standard for the Storage and Handling or
Liquefied Petroleum Gases, ANSI/NFPA 58 and CSA B149.1, Natural Gas and Propane
Installation Code.
PIPING: This heater must be installed by a qualified gas technician following
local codes published by the authority having jurisdiction. Sizing of
supply piping must be determined using the length of pipe run as
well as total btuh rating of the appliance(s). Appropriate piping
tables must be used to determine size of supply piping dependant
on the length of run from source.
- 4 -
Page 5
PRESSURES: MAXIMUM INLET PRESSURES: LP: 14.0 IN. WC.
NG: 14.0 IN. WC.
MINIMUM INLET PRESSURES: LP: 11.0 IN. WC.
NG: 9.0 IN. WC.
This heater must be supplied by pressures indicated on the
approval label. Over pressure may cause controls to fail.
DO NOT supply this unit with more than ½ psig (14.0 in. W.C.)
Note: A second stage regulator must be installed if the supply
pressure exceeds ½ psig.
FUEL: This heater will operate on propane or natural gas. The manifold
pressures are listed on the approval label. Ensure that the proper
pressure settings are achieved depending on the fuel being used.
A fuel selector valve is located on the manifold of the heater.
Ensure that this valve is in the proper position depending on the
fuel being used. DO NOT operate the heater with the valve in the
incorrect position.
HOSES: All hoses used to connect this heater of fuel supply must be Type 1
approved propane / natural gas hose assemblies.
ELECTRICAL: WARNING
Electrical Grounding Instructions
This appliance is equipped with a three-prong (grounding) plug for
your protection against shock hazard and should be plugged
directly into a properly grounded three-prong receptacle.
120v supply must be available. Please note that the motor on this
unit requires 20 amps. Ensure appropriate gauge extension cord is
used.
- 5 -
Page 6
MAINTENANCE:
1. Every construction heater should be inspected before each use, and at least
annually by a qualified service person.
2. The hose assembly shall be visually inspected prior to each use of the heater. If it is
evident there is excessive abrasion or wear, or the hose is cut, it must be replaced
prior to the heater being put into operation. The replacement hose assembly shall be
that specified by the manufacturer.
3. The appliance must be kept clear and free from combustible materials, gasoline and
other flammable vapors and liquids.
4. The flow of combustion and ventilation air must not be obstructed. Be sure to check
the fan assembly and ensure that the motor and blade are operating properly.
5. Compressed air should be used to keep components free of dust and dirt build up.
Note: Do not use the compressed air inside any piping or regulator components.
- 6 -
Page 7

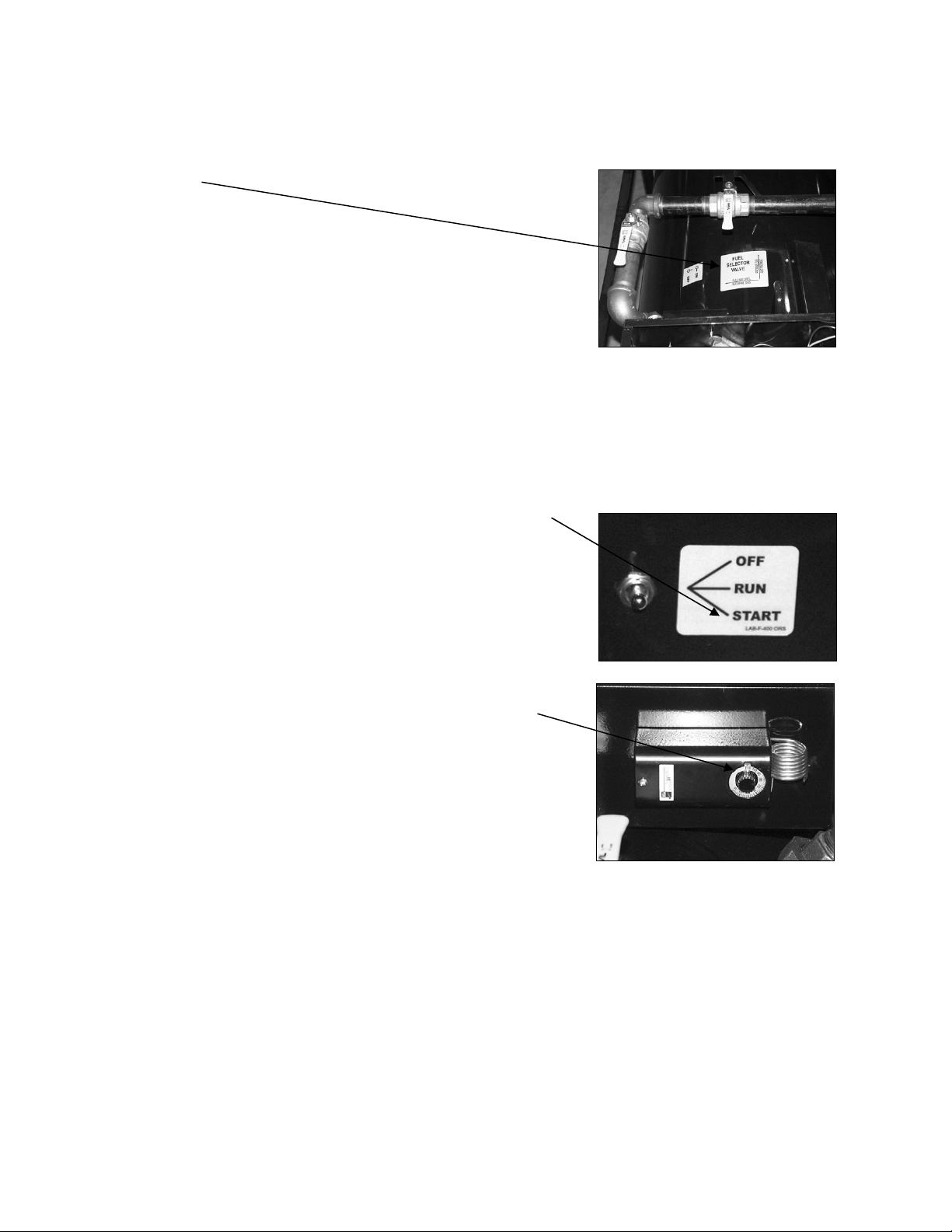

START UP INSTRUCTIONS:
1. Set fuel selector valve according to gas supply to be
used.
2. Connect construction heater to gas supply with
approved hose assembly.
3. Plug the electrical cord into a 20 amp supply.
4. Open all gas supply valves.
5. Depress the main switch to the “START” position.
The fan will start and the burner should ignite.
Release switch to “RUN” position.
6. Set the Thermostat to the desired temperature.
7. If heater fails to ignite after 3 attempts call your
supplier for service.
- 7 -
Page 8

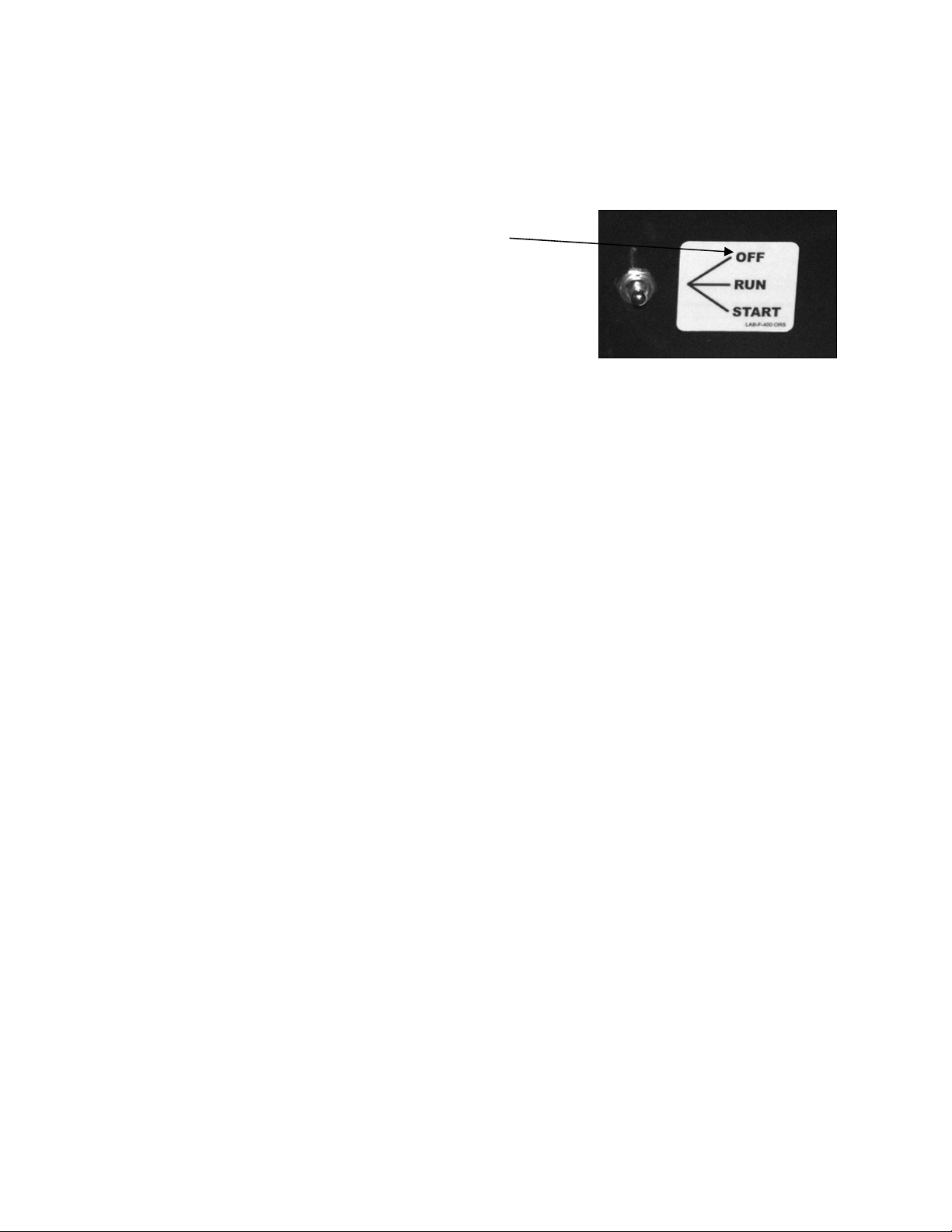

TO SHUT DOWN:
1. Close main gas supply valve while heater is
operating.
2. Move main switch to the “OFF” position.
3. Disconnect heater from gas supply.
- 8 -
Page 9

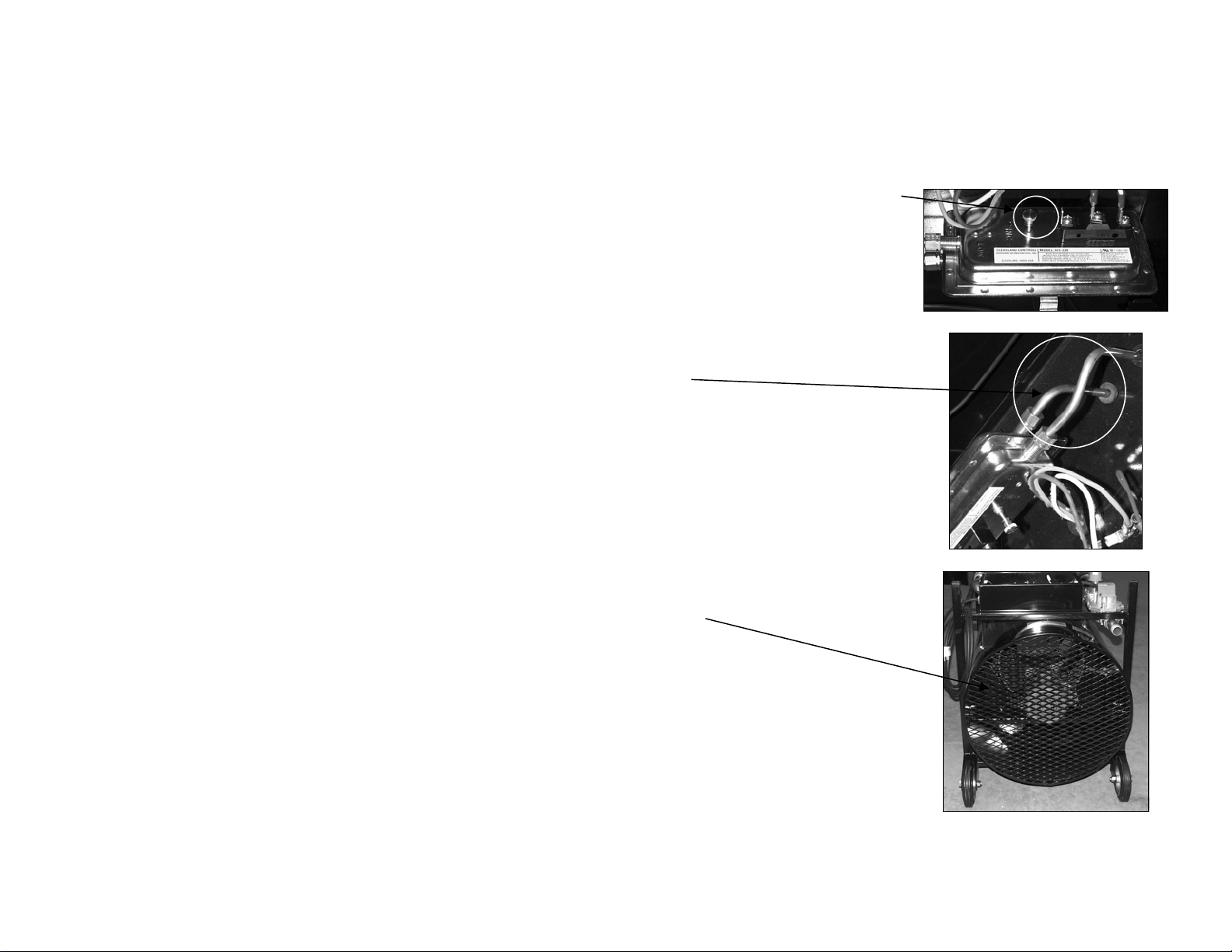

F-1500T TROUBLESHOOTING ANALYSIS
PROBLEM POSSIBLE CAUSES REMEDY
Heater will not light
Air switch improperly set
- use centre adjusting screw to set air switch.
Turn clockwise to increase sensitivity, turn
counter clockwise to decrease sensitivity.
Rear of heater blocked - ensure rear of heater is unobstructed and
Blockage in copper inlet
tubes
- disconnect tubes from air switch. Use high
pressure air to clean any debris that may
block airflow.
proper rear clearances are maintained (see
approval label)
- 9 -
Page 10
Faulty switch - replace switch
Gas supply - ensure required gas supply pressures
are supplied to the heater (see approval
label)

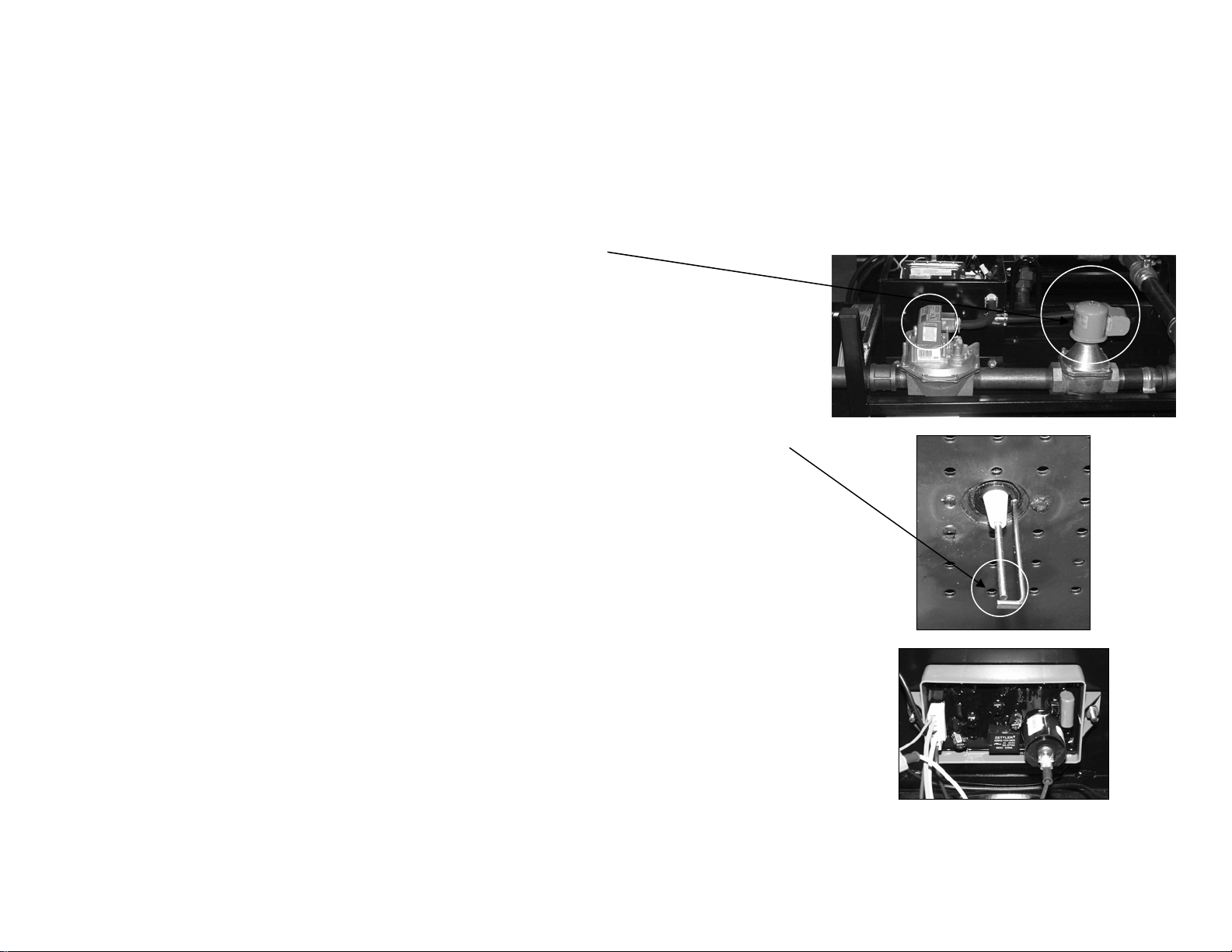

Solenoid - ensure solenoid is energized (use volt
meter)
- ensure plunger in solenoid is being
activated (use manometer at test point
after solenoid)
Spark Plug - ensure gap in spark plug is approx.
1/8”
- check spark plug wire connections
- ensure spark plug has good spark
- replace spark plug if necessary
Ignition Board - ensure electrical signals for both spark
plug and solenoid are present (use volt
meter)
- ensure ignition board is properly
grounded
- 10 -
Page 11

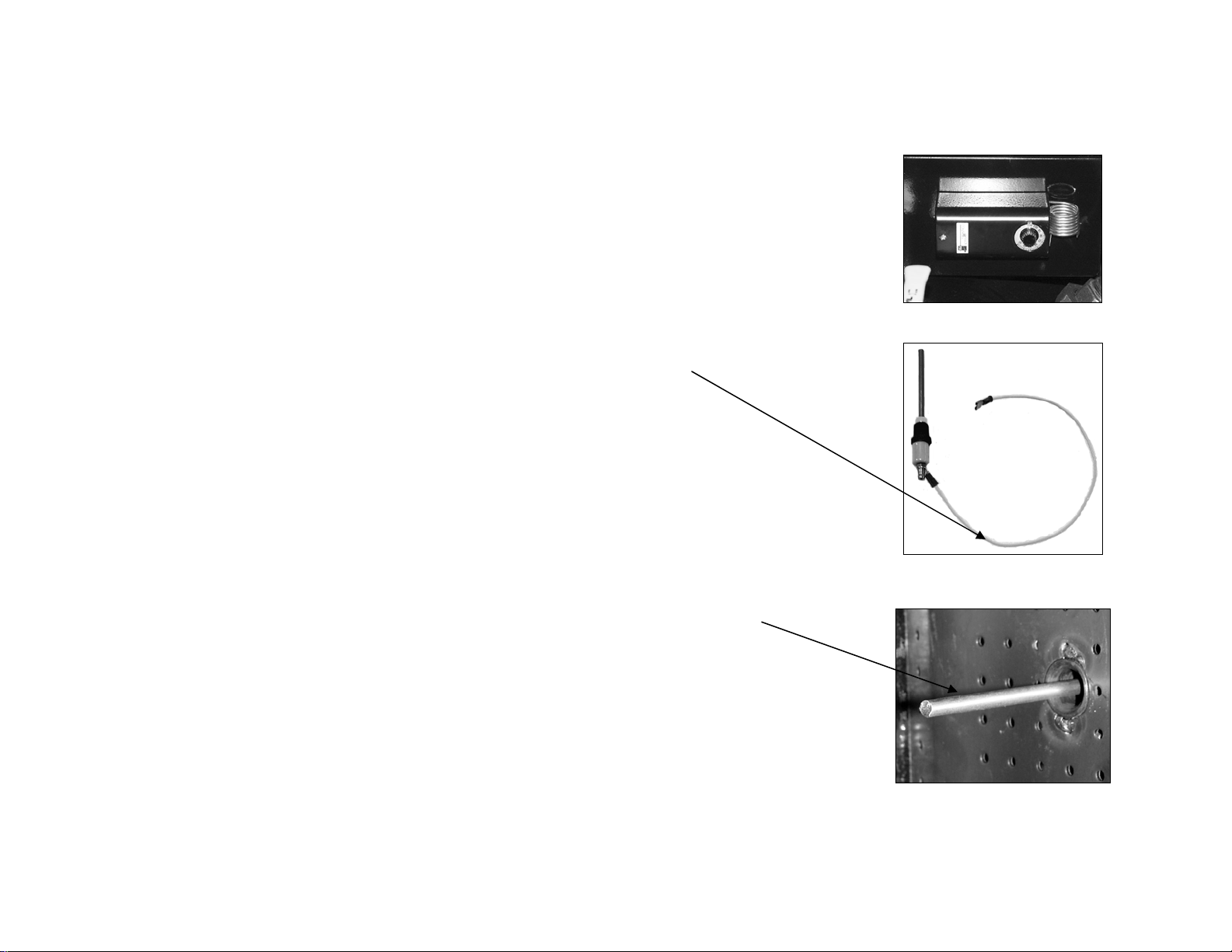

Thermostat - ensure thermostat is calli ng for heat
Heater will not remain lit after
start up
Faulty flamerod wire - check flamerod wire for any damage.
Replace if necessary.
Faulty flamerod -ensure connections are secure.
Replace flamerod if necessary.
- 11 -
Page 12

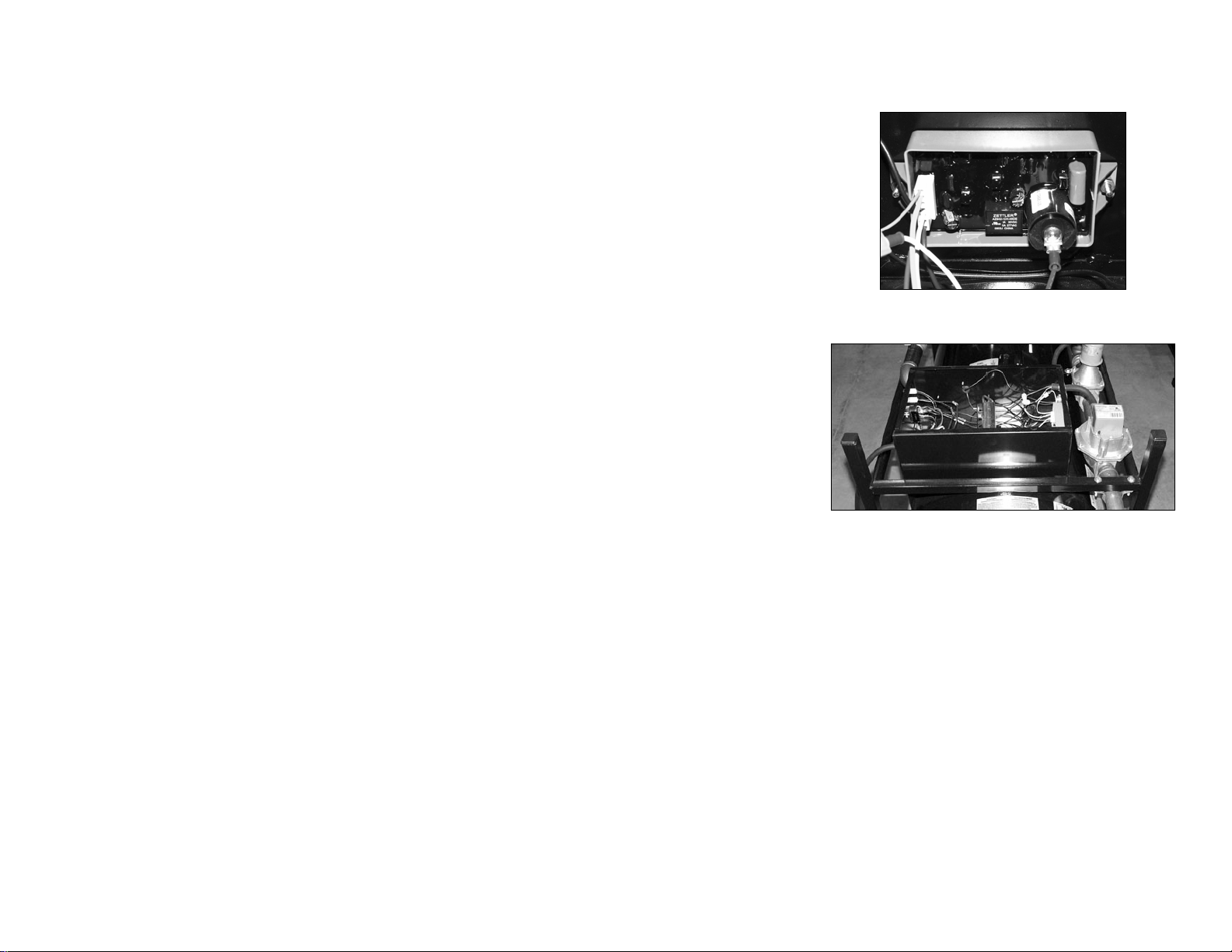

Ignition board - check ground wire for proper
connection
- check polarity of extension cord
compared to polarity of plug on the
heater
- replace faulty ignition board
Thermostat - ensure thermostat is calli ng for heat
Electrical All components - before replacing any component, all
connections must be checked to ensure
electrical circuit is complete. (use volt

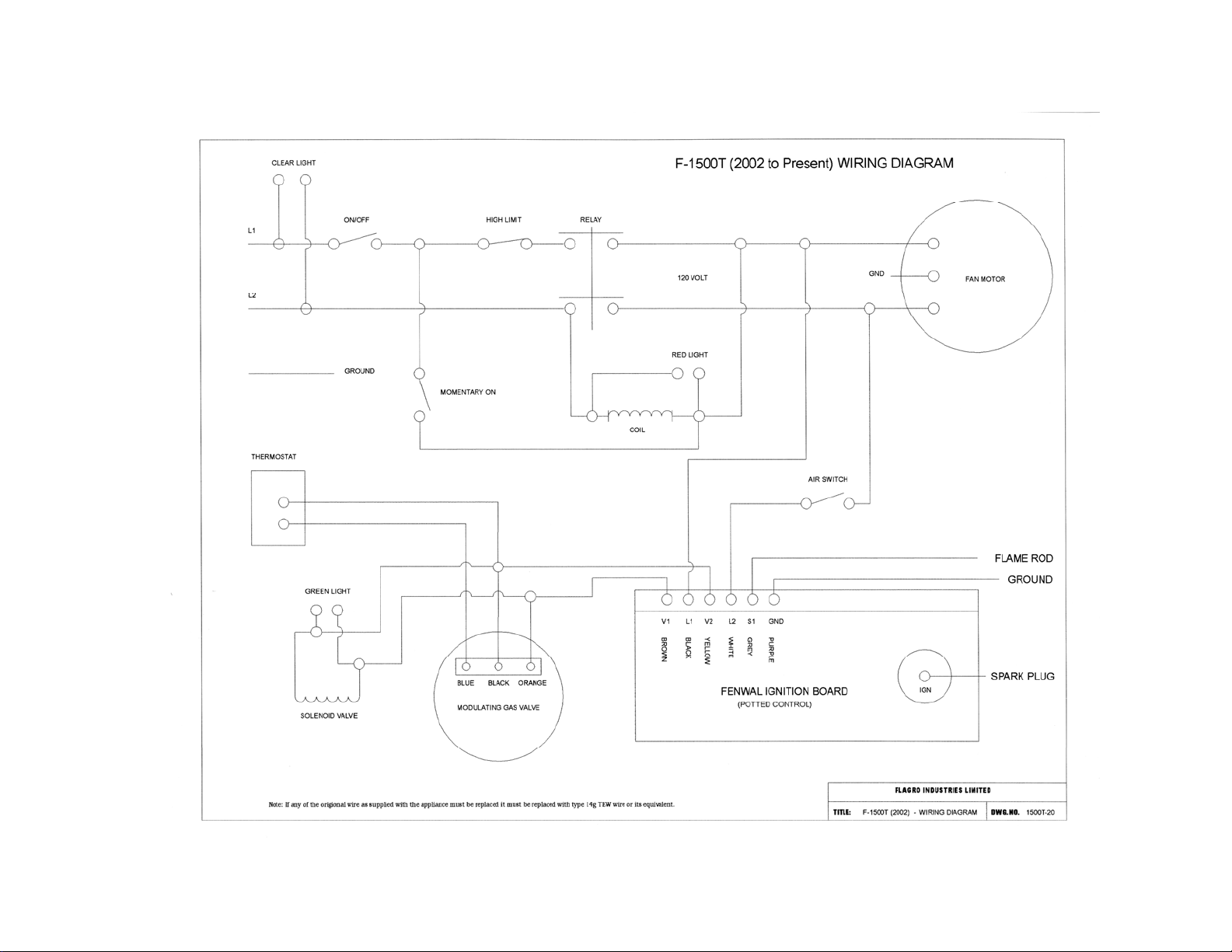

meter and enclosed wiring diagram).
- any point in the circuit where 120v is
not achieved indicates location of
problem and/or possible faulty
component.
Piping All pipe fittings - When loosened, tightened or
replaced, the complete fitting should be
removed and approved pipe dope
applied to all male threads before
reconnection.
- After a heater is serviced, the valve
train should be checked for leaks with a
soap and water solution or approved
leak detector solution.
- 12 -
Page 13
PARTS LIST
F-1500T CONSTRUCTION HEATERS
S-1000 1 HP Motor
S-1001 Fan blade
S-1502 Modulating Regulator Valve
S-1002FS S.S. Filter Screen
S-1002T Modulating regulator hi/low fire
S-1003 Fuel selector valve
S-1003A Fuel shut-off valve
67871A Solenoid valve cover
S-1004 Solenoid valve
S-1505 Burner
S-406 Flame rod (S-1006)
S-1007 Flame rod wire
S-408A Long reach igniter (S-1008)
S-1009 Ignition wire
S-410 High temperature limit (S-1010)
S-411 Off-run-start switch (S-1011)
S-412 Main relay (S-1012)
S-414 Air proving switch (S-1014)
S-415A Ignition control-120V (Fenwal) old (S-1015)
S-415P Potted ignition control 120V (Fenwal 02)
S-416 Thermostat (S-1016)
S-1019 Screen assembly
S-1020A Clear indicator light
S-1020B Red indicator light
S-1020C Green indicator light
S-1021 Power cord including plug
S-1022 Rubber wheel - 8"
B31R.125 1-1/4" Second Stage Regulator
S54180-20 1-1/4" x 15-ft Hose Assembly
- 13 -
Page 14
- 14 -
Page 15
- 15 -
Page 16

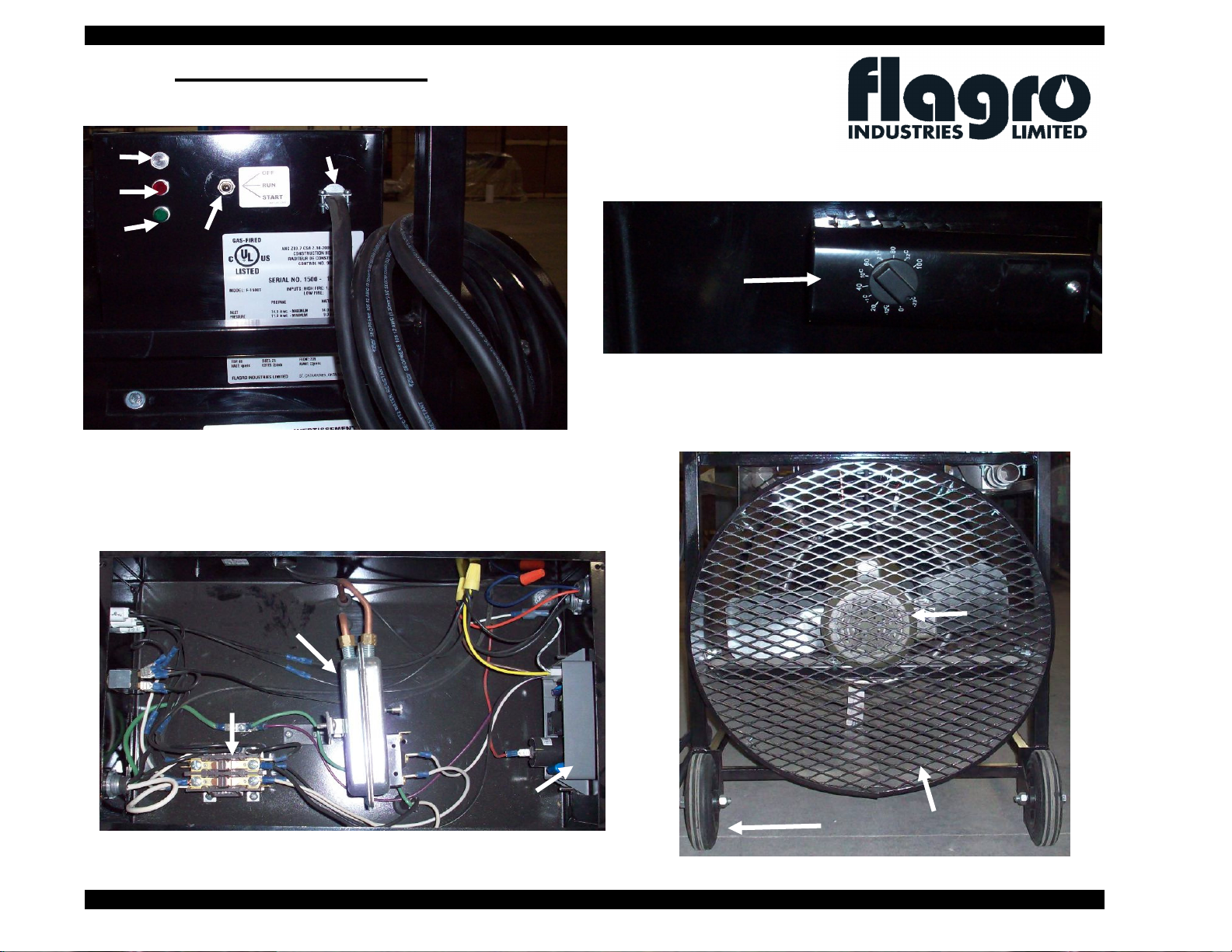

F-1500T Parts List

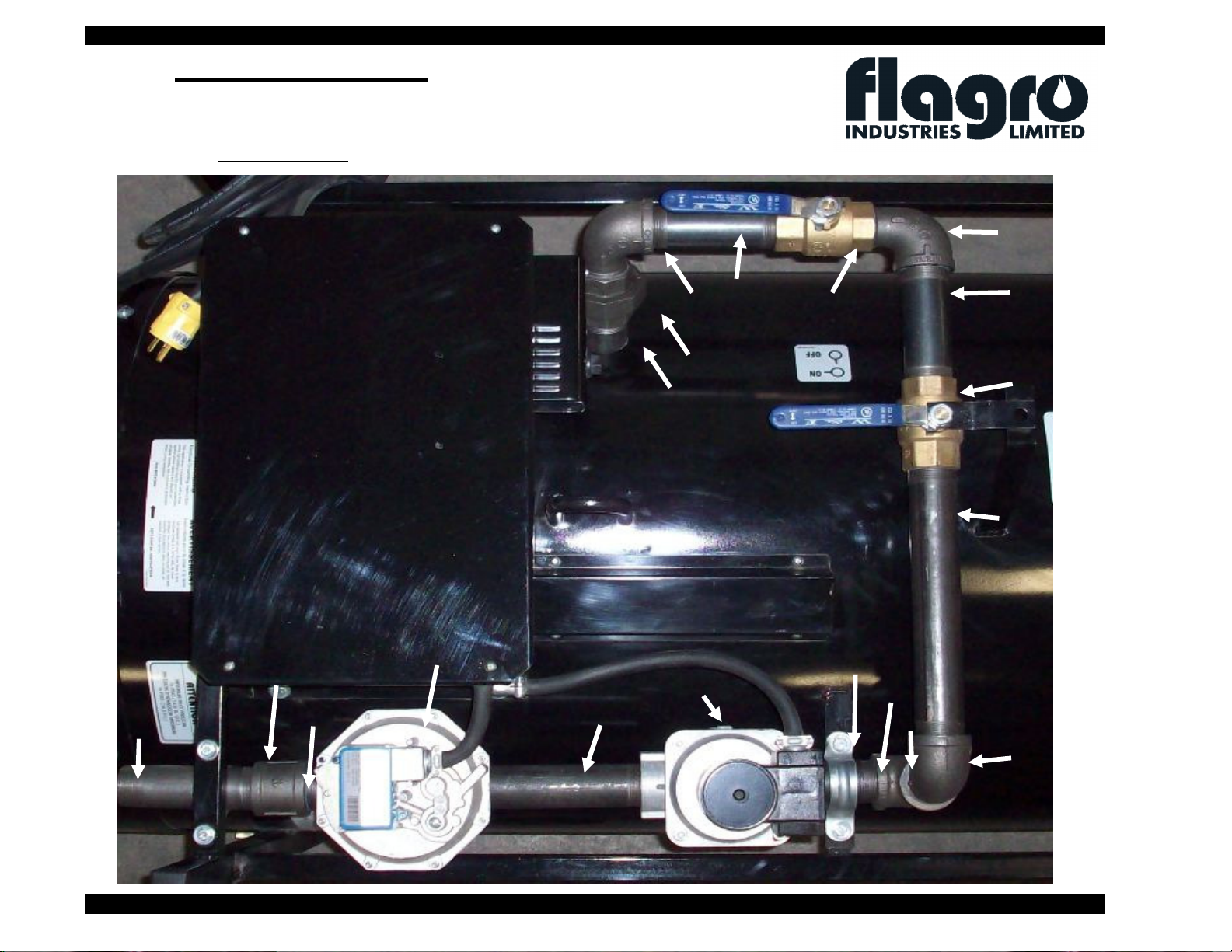

Page 17
F-1500T Parts List

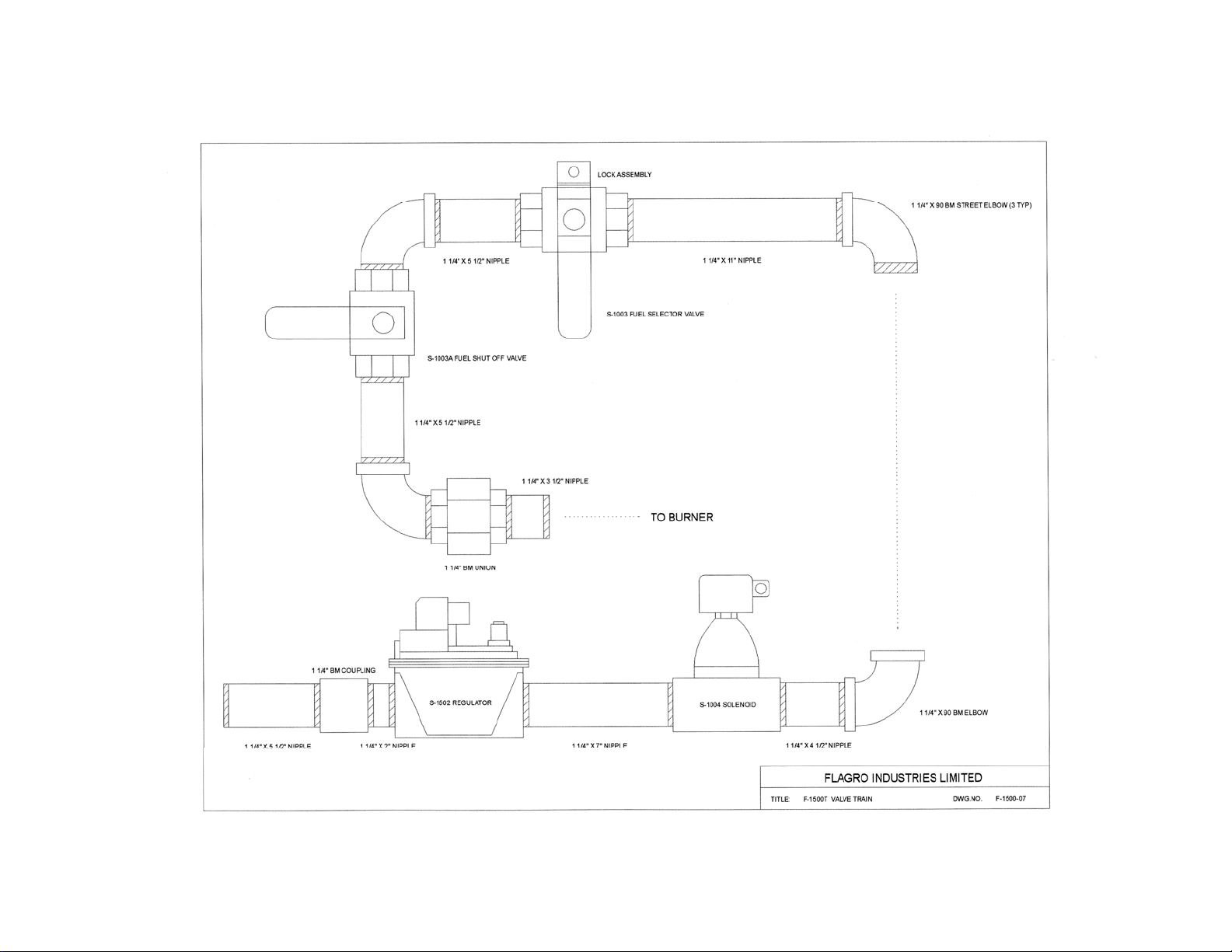

VALVE TRAIN
3
4
3
2
1
13
15
4
14
12
11
5
10
9
3
4
6
7
8
Page 18
F-1500T Parts List
16A
16B
16C
19
18
20
21
22
23
24
26
25

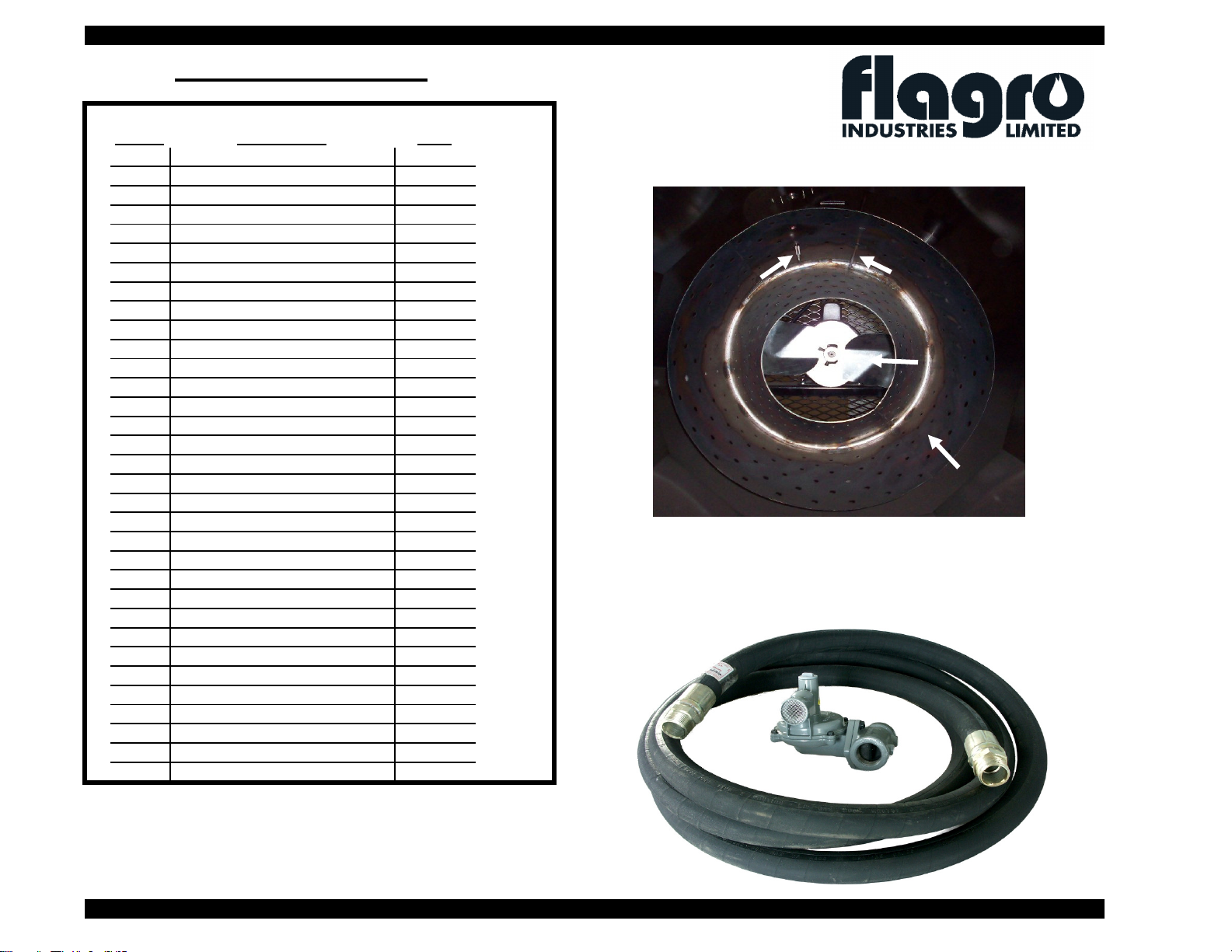

Page 19
F-1500T Parts List
32
Second Stage Regulator
B31R.125
Item # Description P/N
1 1 1/4" X 3 1/2" Nipple 40-113G3.5
2 1 1/4" BM Union 40-104-20
3 1 1/4" X 90 BM Street Elbow 40-116-20
4 1 1/4" X 5 1/2" Nipple 40-113G5.5
5 Fuel Shut Off Valve S-1003A
6 Fuel Selector Valve S-1003
7 1 1/4" X 11" Nipple 40-113G11
8
9 1 1/4" X 4 1/2" Nipple 40-113G4.5
10 Pipe Hanger S-1031
11 Solenoid S-1004
12 1 1/4" X 7" Nipple 40-113G7
13 Regulator S-1052
14 1 1/4" X 2" Nipple 40-113G2
15 1 1/4" Coupling 40-103-20
16A Clear Light Indicator S-1020A
16B Red Light Indicator S-1020B
16C Green Light Indicator S-1020C
18 On - Off - Start Switch S-411
19 Power Cord inc' plug S-1021
20 Thermostat S-416
21 Main Relay S-412
22 Air Proving Switch S-414
23 Potted Ignition Control S-415P
24 Rubber Wheel - 8" S-1022
25 Screen Assembly S-1019
26 1 H.P. Motor S-100
27 Long Reach Igniter S-408A
28 Flame Rod S-406
29 Fan Blade S-1001
30 Burner S-1505
31 1-1/4" 15FT Hose S54180-20
1 1/4" X 90 BM Street Elbow (type 3)
1-1/4"
40-116-20
27
32
28
29
30
31
Loading...
