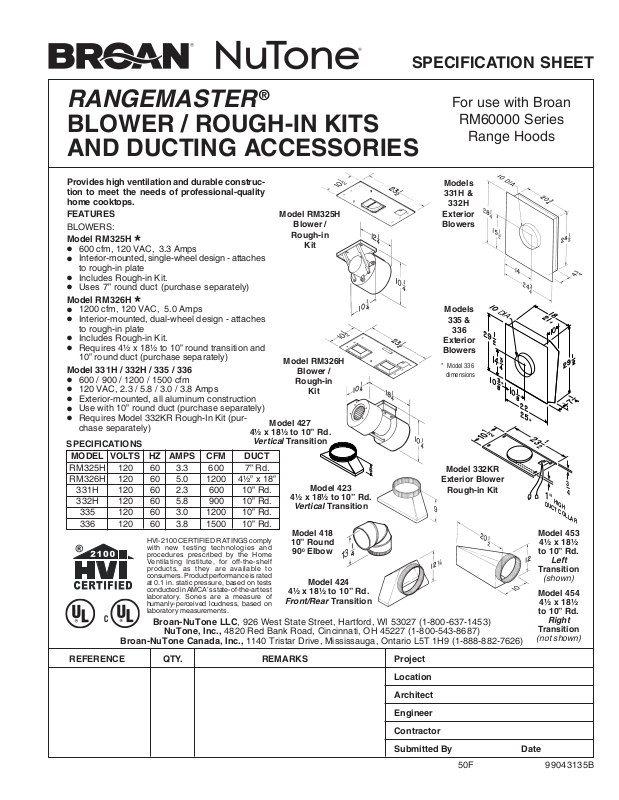

SPECIFICATION SHEET
RANGEMASTER
®
BLOWER / ROUGH-IN KITS
AND DUCTING ACCESSORIES
Provides high ventilation and durable construction to meet the needs of professional-quality
home cooktops.
FEATURES
BLOWERS:
Model RM325H
600 cfm, 120 VAC, 3.3 Amps
•
Interior-mounted, single-wheel design - attaches
•
to rough-in plate
Includes Rough-in Kit.
•
Uses 7” round duct (purchase separately)
•
Model RM326H
1200 cfm, 120 VAC, 5.0 Amps
•
Interior-mounted, dual-wheel design - attaches
•
to rough-in plate
Includes Rough-in Kit.
•
Requires 4½ x 18½ to 10” round transition and
•
10” round duct (purchase separately)
Model 331H / 332H / 335 / 336
600 / 900 / 1200 / 1500 cfm
•
120 VAC, 2.3 / 5.8 / 3.0 / 3.8 Amps
•
Exterior-mounted, all aluminum construction
•
Use with 10” round duct (purchase separately)
•
Requires Model 332KR Rough-In Kit (pur-
•
chase separately)
SPECIFICATIONS
MODEL VOLTS HZ AMPS CFM DUCT
RM325H 120 60 3.3 600 7” Rd.
RM326H 120 60 5.0 1200 4½” x 18”
331H 120 60 2.3 600 10” Rd.
332H 120 60 5.8 900 10” Rd.
335 120 60 3.0 1200 10” Rd.
336 120 60 3.8 1500 10” Rd.
*
*
HVI-2100 CERTIFIED RATINGS comply
with new testing technologies and
procedures prescribed by the Home
Ventilating Institute, for off-the-shelf
products, as they are available to
consumers. Product performance is rated
at 0.1 in. static pressure, based on tests
conducted in AMCA’s state-of-the-art test
laboratory. Sones are a measure of
humanly-perceived loudness, based on
laboratory measurements.
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
Broan-NuTone Canada, Inc., 1140 Tristar Drive, Mississauga, Ontario L5T 1H9 (1-888-882-7626)
NuTone, Inc., 4820 Red Bank Road, Cincinnati, OH 45227 (1-800-543-8687)
Model RM325H
Blower /
Rough-in
Kit
Model RM326H
Blower /
Rough-in
Kit
Model 427
4½ x 18½ to 10” Rd.
Vertical
Transition
Model 423
4½ x 18½ to 10” Rd.
Vertical
Model 418
10” Round
0
90
Elbow
Model 424
4½ x 18½ to 10” Rd.
Front/Rear
Transition
13
Transition
For use with Broan
RM60000 Series
Range Hoods
Models
331H &
332H
Exterior
Blowers
Models
335 &
336
Exterior
Blowers
* Model 336
dimensions
Model 332KR
Exterior Blower
Rough-in Kit
9
¼
DIA
*
*
*
Model 453
4½ x 18½
to 10” Rd.
Left
Transition
(shown)
Model 454
4½ x 18½
to 10” Rd.
Right
Transition
(not shown)
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted By Date
50F 99043135B
