Getting Started
Welcome and congrats on your
Zendo Smart Plug purchase! Using this
Quick Start Guide, you’ll walk through
the installation and initial setup of your
For the latest information, product
updates, and everything Zendo visit
Still have questions? Reach our Customer
Support@GoZendo.com or toll free
at 1-844-77-ZENDO (93636).
Smart Plug.
GoZendo.com/Support.
Experience team at
Included Setup Indicator Lights
After successful setup, the
LED light on the front of the Smart
Plug displays its current status. Power can
be turned on/o via the Zendo Home app,
Siri, or by manually toggling the outer, gray
ring clockwise.
Power On
Power O
Oine
Smart Plu g
Wristband
(Remove from cap)
1.
2.
3.
Ensure your iOS device is
on your Wi-Fi network and
Bluetooth is enabled.
Download the Zendo
Home app and sign up
for an account.
Plug your Smart Plug
into an outlet.
Wait until the LED light is
alternating white & amber.
4.
5.
6.
Open the Zendo Home
app, tap then tap + to
start setup.
Once available, select your
Smart Plug then tap “Add to
My Network.”
Ensure the Wi-Fi network
selected matches your iOS
device Wi-Fi connection.
7.
Enter the 8-digit HomeKit
setup code found on the
included Setup Code Card.
The LED light will flash
white during setup.
8.
Done! Your Smart Plug
will now appear in the
Zendo Home app.
The LED light will be solid
white after a successful setup.
A small package with
a big responsibility.
At Zendo, we use materials that help
us do our part in ensuring that today’s
smart home solutions are tomorrow’s
recycled resolutions.
FRONT
1 2 3 4 5 6 7
前面
Troubleshooting
Locate the gray ring on the outer
edge of the Smart Plug and rotate it
clockwise – hold in this position for five
seconds until the white and amber LED
lights are both on, then release the ring. This
will initiate the reset process. Do not restart the
setup process until the LED light alternates white
and amber.
Warning
Read this Quick Start Guide and
Product Usage Guidelines found at
GoZendo.com/Support carefully
before using this product. Failure to
follow precautions in these documents
can result in serious injury, death, and/or
property damage. Keep this guide for
future reference.
IMPORTANT
SAFETY INFORMATION
Do not use Smart Plug to control any
motor-operated device or heat sources. For
example, do not install Smart Plug to control your space
heater, circular saw or blender. Failure to follow this
precaution could cause serious injury or death to you or others.
Do not install near or inside any heat sources such as radiators,
heat registers, stoves or other apparatus (including amplifiers) that
Insert Smart Plug into electric socket before connecting attachments.
Do not use near water. Keep away from children. Install and use in
accordance with applicable electrical codes and regulations.
Each Smart Plug outlet is rated to a total current limit of 10 Amps if the
connecting cord is rated at 90C or greater. Do not exceed this value. If a direct
short is created on the output, the Smart Plug will be damaged and will no
longer function. If a load greater than 10 Amps is attached to the output, the
Smart Plug will be damaged and will no longer function.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: 1) This device may not
cause harmful interference and 2) this device must accept any
interference received, including interference that may cause
undesired operation. This equipment has been tested and
found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
produce heat.
RISK OF ELECTRIC SHOCK
AMP LIMIT
FCC NOTICE
These limits are designed to provide
reasonable protection against
harmful interference
in a
residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference by one or
more of the following measures: Reorient or relocate the receiving
antenna, increase the separation between the equipment and receiver,
connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected, consult the dealer or an experienced
radio/TV technician for help. To assure continued compliance, any changes or
modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment. This equipment must
be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter. End-users
and installers must be provided with antenna installation instructions and
transmitter operating conditions for satisfying RF exposure compliance.
Under Industry Canada regulations, this radio transmitter may
only operate using an antenna of a type and maximum (or
lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to
other users, the antenna type and its gain
should be so chosen that the equivalent
IC NOTICE
isotropically radiated power
(e.i.r.p.) is not
more
than that necessary for
successful communication. This
device complies with Industry Canada
license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept
any interference, including interference that may cause
undesired operation of the device. This device complies with RSS
247 of Industry Canada. This Class B device meets all the requirements
of the Canadian interference-causing equipment regulations.
For pluggable equipment, the socket-outlet shall be installed near the
equipment and shall be easily accessible. “Made for iPod,” “Made for iPhone,”
and “Made for iPad” mean that an electronic accessory has been designed to
connect specifically to iPod, iPhone, or iPad, respectively, and has been
certified by the developer to meet Apple performance standards. Apple is not
responsible for the operation of this device or its compliance with safety and
regulatory standards. Please note that the use of this accessory with iPod,
iPhone, or iPad may aect wireless performance. The Bluetooth
and logos are registered trademarks owned by Bluetooth SIG, Inc. and any
use of such marks by Zendo is under license. Wi-Fi
Wi-Fi CERTIFIED logo, and the Wi-Fi Alliance logo are trademarks of Wi-Fi
Alliance. All other product and service names mentioned herein are the
One year limited warranty. For expanded warranty information, visit
marks of their respective owners.
GoZendo.com/Support. Designed in South Florida. Made in
China. © 2015 Zendo. All rights reserved. Zendo is a
trademark of Five Interactive, LLC. Fort Lauderdale,
Florida. Use of the product is subject to your
registration with Zendo and your agreement
to the Terms of Service found at
GoZendo.com/Support.
®
word mark
®
, the Wi-Fi logo, the
Let’s Get Social
Want to give us a shout? Or stay
informed on the latest Zendo happenings?
Connect with us on social media.
@GoZendo/GoZendo @GoZendo
Quick Start Guide

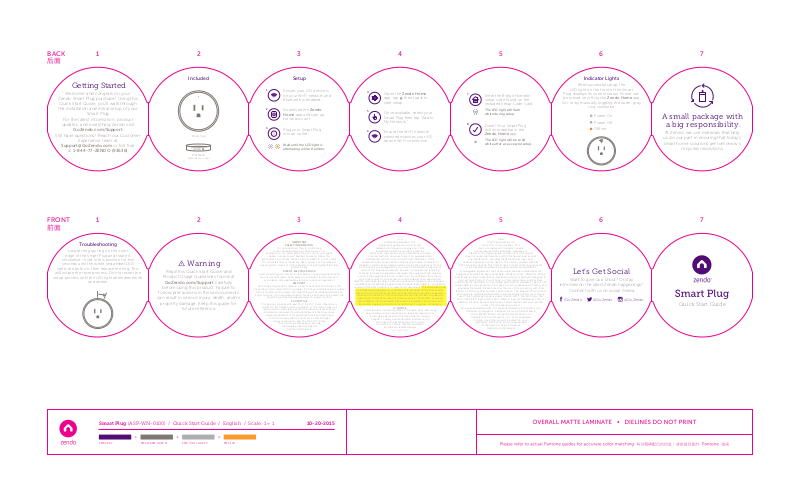

Smart Plug (ASP-WN-0100) / Quick Start Guide / English / Scale: 1 = 1
