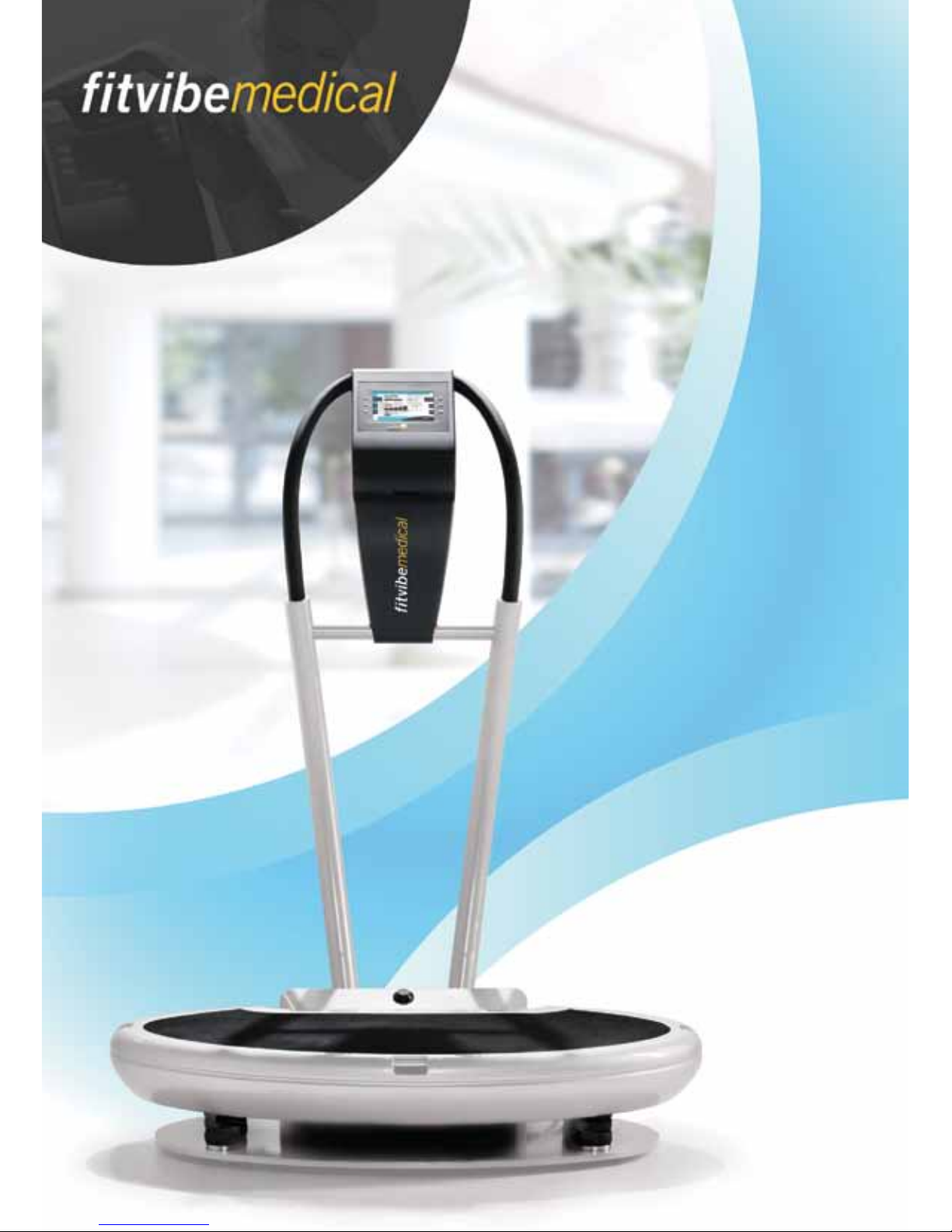

Fitvibe Medical Fitvibexcel Pro Medical User Manual

User Manual
Fitvibexcel Pro Medical

Art. nr. 328.882

Copyright Uniphy Elektromedizin GmbH & CO; KG 2008.
Fitvibexcel Pro Medical is a registered trademark of
Uniphy Elektromedizin GmbH & Co. KG 2008.
Unauthorised reproduction, either in whole or part, of the
software provided with this product is strictly prohibited
and is subject to prosecution.

All rights reserved.

Elektromedizin GmbH & Co. KG
Neuendorfstrasse 19b
D-16761 Hennigsdorf – Germany
www.Fitvibe.com

Item code: 54005311 Gebrauchsanleitung
Fitvibexcel Pro Medical® (11.05.2011)

User manual Fitvibexcel Pro Medical, V1.1 08/2013

- 4 -

User manual Fitvibexcel Pro Medical

Table of Content

1. Safety

1.1 Electrical safety 6

1.2. Explosion protection 6

1.3. Product safety 6

1.4. Environmental conditions for transport and storage 7

1.5. Using the Fitvibexcel Pro Medical 7

1.6 Conformity 7

1.7 Description of used marks and symbols 9

2. Components & assembly

2.1 Components and standard accessories 10

2.2 Optional accessories 10

2.3 Description of the control buttons and accessories 11

2.4 Inspection 12

2.5 Mains voltage 12

2.6 Removing the transportation lock and fitting the handlebar 12

2.7 Connecting and switching on the Fitvibexcel Pro Medical 14

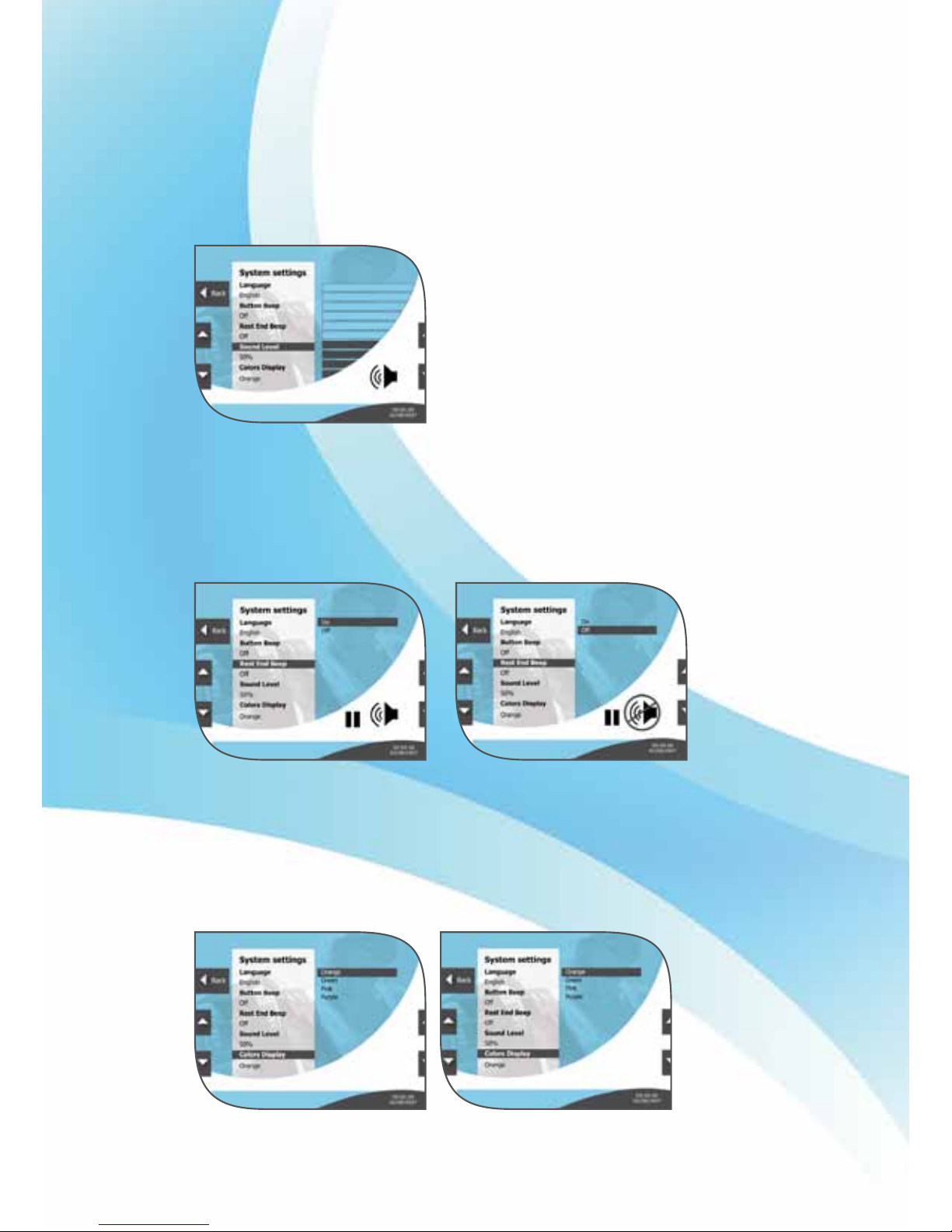

2.8 System settings 15

2.8.1 Language selection 15

2.8.2 Key beep tone 15

2.8.3 Volume 16

2.8.4. Rest Time – end beep 16

2.8.5. Colours display 16

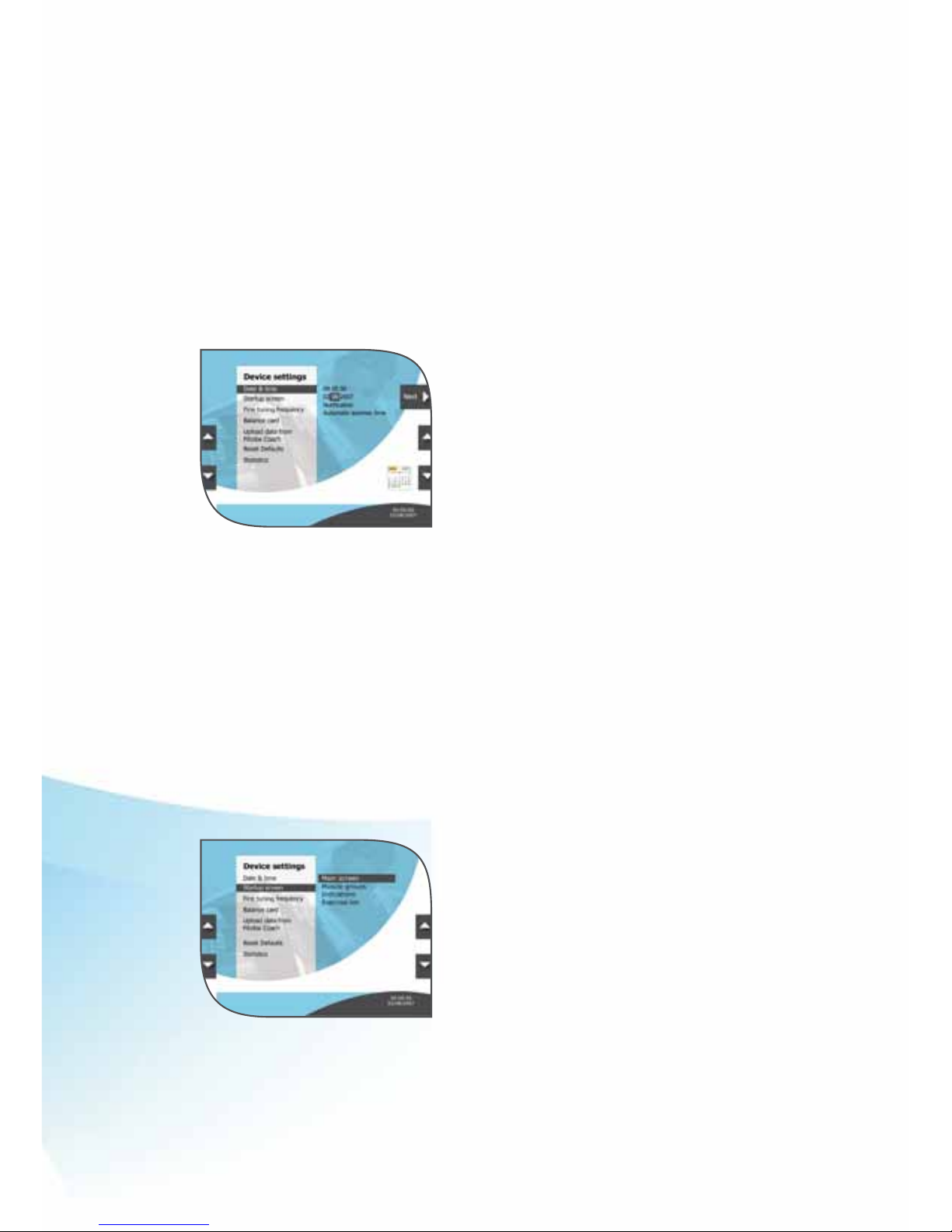

2.9. Device settings 17

2.9.1. Accessing the device settings menu 17

2.9.2. Start Screen* 17

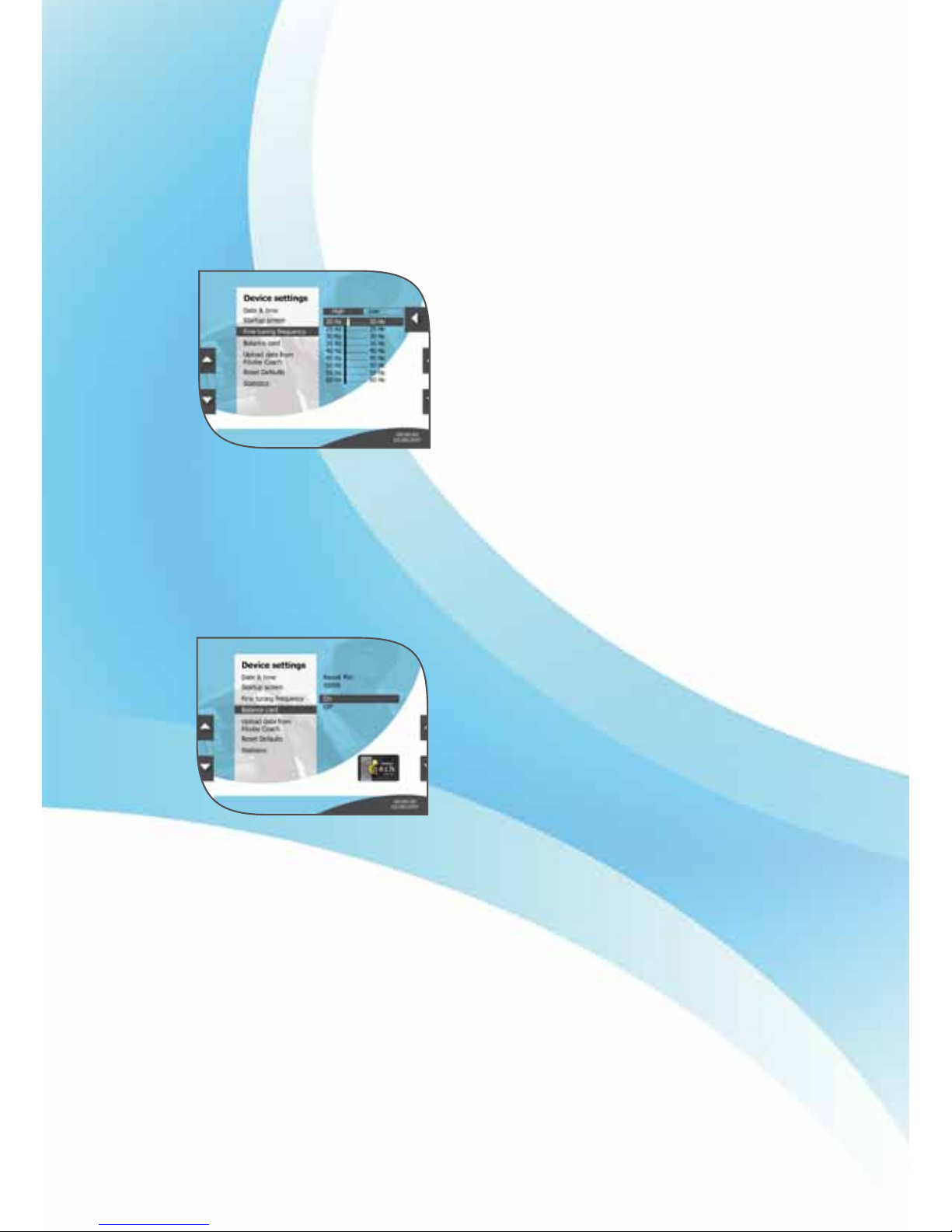

2.9.3. Fine tuning frequency 18

2.9.4. Balance card 18

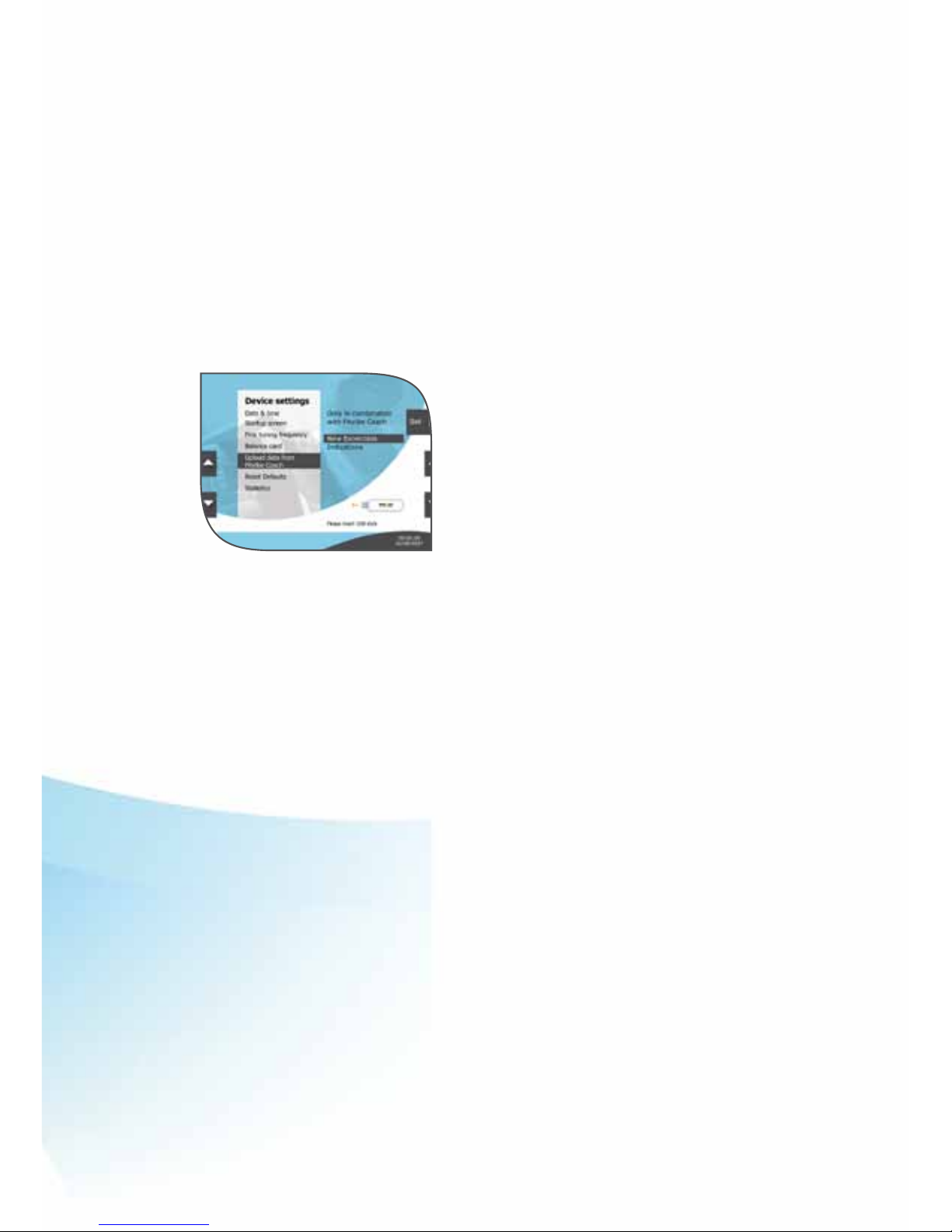

2.9.5. Upload data from Fitvibexcel Pro Medical
ITS software* 19

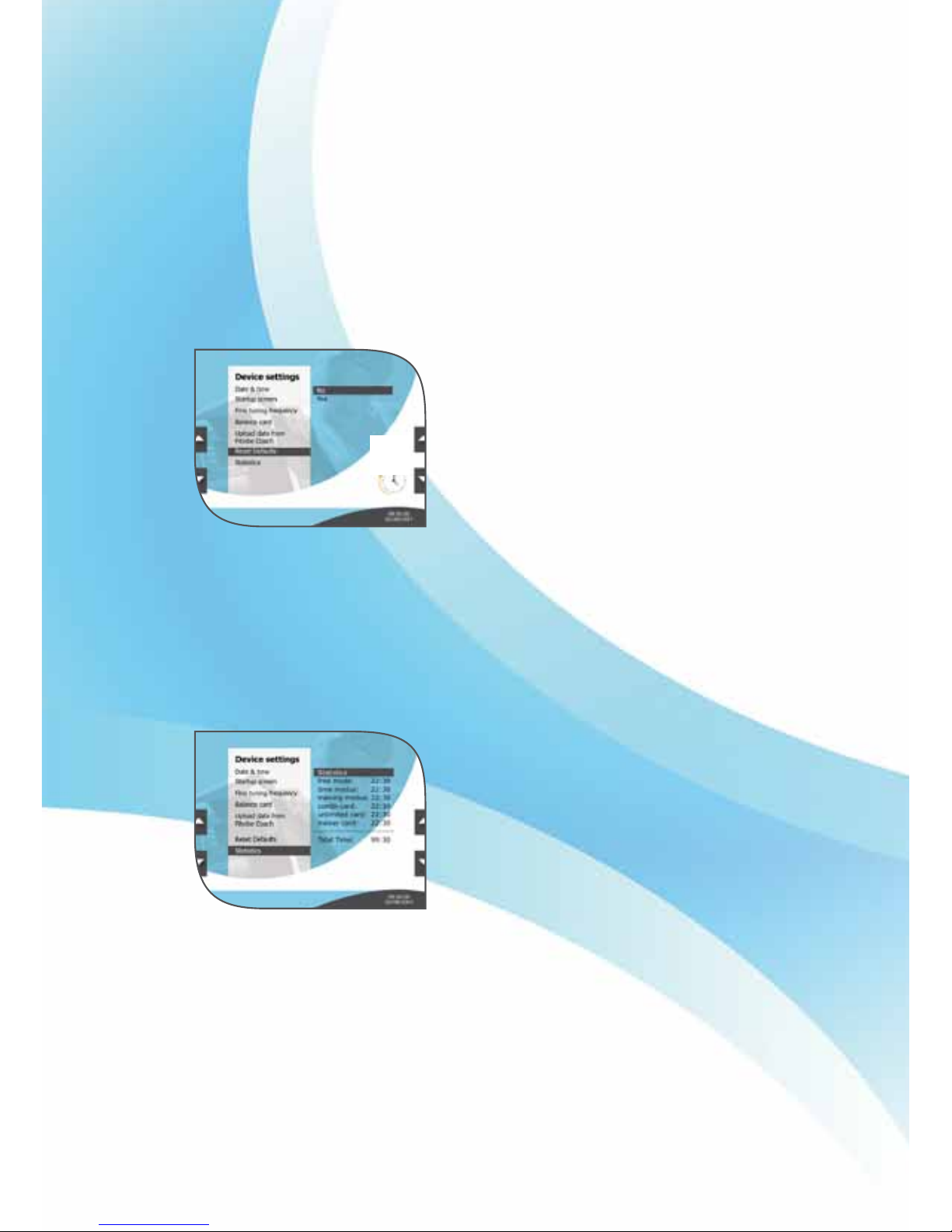

2.9.6. Reset default Settings* 20

2.9.7. Statistics 20

3. Important information

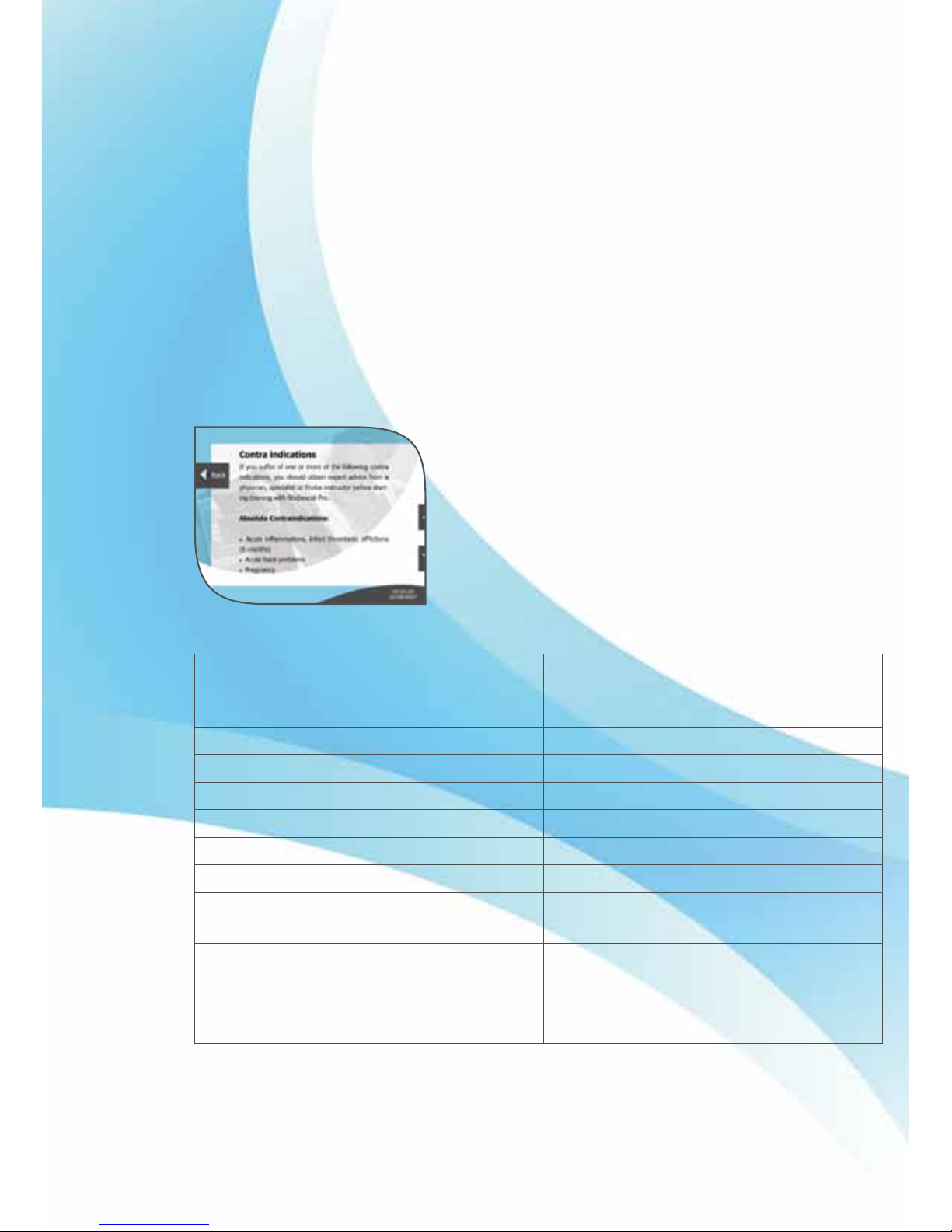

3.1. “When not to use” – Contra-indications 22

3.2. Indications 23

3.3. Important information before using the
Fitvibexcel Pro Medical 23

3.4. Using the softmat 24

3.5. Your first Fitvibexcel Pro Medical Work-Out 24

3.6. Stop exercising if you’re ... 25

- 5 -

User manual Fitvibexcel Pro Medical

4.

Application

4.1. General 26

4.2. Exercise on the Fitvibexcel Pro Medical 26

4.2.1. General operations 26

4.2.2. Start/Stop button 27

4.3. Using the hand and foot straps 27

4.4. Vibration training parameters 28

4.4.1 Main Screen 28

4.4.2. Free parameters 29

4.4.3 Indications 29

4.4.4. Training per muscle group 31

4.4.5. Exercise list 32

4.4.6 Exercise 32

4.4.7. Active Time and Rest Time 33

4.4.8. Increasing your exercise load 33

5. Operating

5.1. Operating the Fitvibexcel Pro Medical
using Chip Cards 34

5.2. Operating the Fitvibexcel Pro Medical
using Timecards 34

5.3. Operating the Fitvibexcel Pro Medical
using chip cards charged via the ITS Software 35

6. Errors, guarantee, maintenance and cleaning,
decommissioning

6.1 Errors 38

6.2. Guarantee 38

6.2.1. Terms of guarantee 38

6.2.2. Limitation of the manufacturer’s liability 39

6.3 Service 39

6.4. Maintenance 40

6.5. Cleaning 40

6.6. Decommissioning and disposal 40

7. Technical data 42

8. References to the electromagnetic comptability
requirements (EMC) 44

- 6 -

User manual Fitvibexcel Pro Medical

CAUTION

Before you start using the Fitvibexcel Pro Medical for the first time,
please make sure you have read and understood all information
provided in this operating manual.

1.1 Electrical safety

The Fitvibexcel Pro Medical must only be used in spaces and facilities
that comply with the relevant legal regulations. The unit must be fitted
with a safety plug.

1.2. Explosion protection

The unit is not suitable for use in spaces that contain flammable
gasses or vapours.

1.3. Product safety

• Persons suffering or likely to be suffering from one or more of the
contra-indications listed under the section “Do not use if…” (in the
start menu) may only use the Fitvibexcel Pro Medical following
consultation with a medical specialist. Section 3.1 of this User
Manual contains a comprehensive list of all contra-indications

• Every person using the Fitvibexcel Pro Medical must check
whether any of the listed contra-indications apply of could apply to
them (see 3.1)

• The unit is not suitable for use in damp spaces.

• Please keep this User Manual in close proximity to the unit.

1 Safety

!

- 7 -

User manual Fitvibexcel Pro Medical

1.4. Environmental conditions for transport and storage

While packaged, the Fitvibexcel Pro Medical can be transported and
stored (for a maximum of 15 weeks) under the following conditions:

• Temperature range: -20° C to +60° C

• Relative humidity: 10% - 100% including condensation. (please allow
device adjust to local temperature before switsching it on.)

• Atmospheric pressure: 500 hPa – 1060 hPa

1.5. Using the Fitvibexcel Pro Medical

The unit must only be operated by authorised personnel. Before you
start using the Fitvibexcel Pro Medical for the first time, please make
sure you have read and understood all information provided in this
User Manual.
Familiarity with the information and instructions contained in this
manual is an essential requirement to ensure efficient and optimal
use of the system, to avoid dangers to persons and to the equipment
and to obtain good results.
The Fitvibexcel Pro Medical vibration platform is designed solely for
vibration training and/or treatment. The Fitvibexcel Pro Medical can be
operated at ambient temperatures of +10° C to +40° C.

1.6 Conformity

The Fitvibexcel Pro Medical has been developed and is produced,
tested and sold according to the international quality management
standards EN ISO 9001 and EN ISO 13485. Furthermore, the
Fitvibexcel Pro Medical meets the strict requirements of European
Medical Device Directive 93/42/EWD, as indicated by the presence
of a CE mark (CE0197) on the apparatus. The Fitvibexcel Pro Medical
conforms to all of the relevant EMC directive and standard EN 60601­1-2 (IEC 60601-1-2) requirements when used in conjunction with
the accessories recommended by the manufacturer. This device

- 8 -

User manual Fitvibexcel Pro Medical

complies with the applicable standard EN 60601-1 (IEC 60601-1).
Furthermore, the notified body, TUV Rheinland LGA Products GmbH
also carries out checks regularly. This ensures that you are working
with equipment that meets all the requirements and provides you and
your clients the best possible level of safety.

Please refer to section 6 (ERRORS, WARRANTY, MANTENANCE AND
CLEANING) for information on the manufacturers liability.

- 9 -

User manual Fitvibexcel Pro Medical

1.7 Description of used marks and symbols

Applied part type B

CE mark with registration number of the
notified body

Serial Number

Article Number

Main Fuse

Year of manufacturing

Manufacturer

Do not dispose this electrical equipment
with general house hold waste

General warning sign (ISO 7010-W001)

- 10 -

User manual Fitvibexcel Pro Medical

2.1 Components and

standard accessories

• Vibrating platform with
power cable

• Soft mat

• Hand-held remote switch

• Pair of foot straps

• Pair of hand straps

• Assembly tools

• User manual

2.2 Optional accessories

• Fitvibexcel Pro Medical
Software

Art. Nr. picture article / description

300240

1 pair of foot straps

300235

1 pair of hand straps

327712

1 soft mat

300234

1 poster

with exercises

Art. Nr. picture article / description

337612

Fitvibexcel Pro

Medical ball

337634

Fitvibexcel Pro

Medical push up bars

337656

Fitvibexcel Pro

Medical comfort

cushion

337645

Fitvibexcel Pro

Medical back

cushion

337623

Fitvibexcel Pro

Medical straps

2 Components and Assembly

- 11 -

User manual Fitvibexcel Pro Medical

2.3 Description of the control buttons and accessories

The numerals used in the list below correspond to those used in the
diagram.

1. Vibrating platform

2. Foot strap

3. Foot switch (start/stop)

4. Handlebar

5. Hand strap

6. Control panel/display

7. “Start/Stop” button

8. Button

9. Button

10. Button

11. Display

12. Button

13. Button

14. Button

15. Card slot

16. Cushion (Optional)

17. Mat

18. Mains cable

19. Mains switch

20. Attachment point for arm or foot
strap

21. Connection socket for
hand-held remote switch

22. Hand-held remote switch

with Start/Stop button

- 12 -

User manual Fitvibexcel Pro Medical

2.4 Inspection

Please check the Fitvibexcel Pro Medical and accessories upon
delivery for any potential damage sustained during transport and
whether all of the accessories have been supplied (see section 2.1).
Please notify you supplier immediately in the event of transport
damage or missing items. Do not use the Fitvibexcel Pro Medical if
damaged.
In case of condensation wait for set in operation up to the unit is
adapted to the room temperature.

2.5 Mains voltage

The Fitvibexcel Pro Medical is suitable for use with a mains voltage
of either 230V, 50-60Hz or 115V, 50-60Hz. Check whether the mains
voltage in your area matches the unit’s voltage as stated on the label
on the rear of the control panel (any voltage higher than that stated
can cause irreversible damage to the machine).

2.6 Removing the transportation lock and fitting the handlebar

The transportation lock inside the electronic unit (30) must be
removed before starting up the Fitvibexcel Pro Medical. To do so,
remove the screws (34) on the base plate (33) of the electronic unit
(30) and pull the metal transportation lock (31) out of the unit.

figure 2

- 13 -

User manual Fitvibexcel Pro Medical

The handlebar can only be fitted to the base of the vibration platform
once the metal transportation lock has been removed (see figure 3).
The electronic unit (30) is fitted onto the base plate of the vibrating
unit (1) by using the open-end wrench (48), hexagon head screws
(44), spring washers (43) and washers (42). The electronic unit and
the vibrating platform are connected to one another using the plug
(40) and socket (41). Insert the plug into the socket and secure the
connection using the coupling ring of the plug. The two covers (47 and

49) are now fitted over the openings on the electronic unit (30) using
the screws (46) and washers (45).

figure 3

- 14 -

User manual Fitvibexcel Pro Medical

2.7 Connecting and switching on the Fitvibexcel Pro Medical

Connect the hand-held remote switch (22) to socket (21).
The power input (18) is located on the right side of the electronic unit
(30). You can now use the mains switch (19) to turn on the Fitvibexcel
Pro Medical. The unit can be used immediately after being switched
on.

After switching on the device, a screen mentioning the soft­and hardware revision on the Fitvibexcel Pro Medical appears
automatically, followed by a settings menu.

From this menu one can modify the system settings, consult the list of
contra-indications or continue to the main screen.

- 15 -

User manual Fitvibexcel Pro Medical

2.8 System settings

The Fitvibexcel Pro Medical vibration platform features a range of
system settings that enable you to customize the unit’s functions
to meet your specific requirements. We recommend using the
Fitvibexcel Pro Medical default settings when using the unit for the
first time and to customize settings afterwards. The system settings
menu can be accessed from the start menu. The arrow buttons in
the system settings menu are used to select from the various menu
items. The highlighted items show the activated settings.

2.8.1 Language selection

This function is used to select your language. You can set your
specific language after selecting the language item from the system
settings menu. The following languages are available: English;
Dutch; German; Spanish; French; Italian; Norwegian; Polish; Russian;
Swedish; Turkish and Portuguese.

2.8.2 Key beep tone

This function is used to turn the beep tone that is sounded when a
button is pressed on and off.

- 16 -

User manual Fitvibexcel Pro Medical

2.8.3 Volume

This is where you can adjust the volume of the key beep tone.

2.8.4. Rest Time – end beep

This is where you can turn the acoustic signal marking the end of the
Rest Time on and off.

2.8.5. Colours display

Via the field colours display one can switch the background colour of
the software as being displayed on screen

- 17 -

User manual Fitvibexcel Pro Medical

2.9. Device settings

2.9.1. Accessing the device settings menu

The device settings menu can be accessed by inserting the
configuration card in the card slot of the Fitvibexcel Pro Medical.

Via the button “Next” all “time parameters” are highlighted one after
each other. These parameters can be modified with the up and down
arrows at the right side.

Furthermore one can modify the time notification towards US or
European standards and allowing an automatic summer time setting.

2.9.2. Start Screen*

With this function a user can modify the sequence of the screens
depending the way the device is being used in his centre.

*This function is active from software version 3.01 only.

- 18 -

User manual Fitvibexcel Pro Medical

2.9.3. Fine tuning frequency

In order to avoid resonance in buildings Fitvibexcel Pro Medical has
the possibility in an up- or downwards shift of +/- 3Hz.

2.9.4. Balance card

By enabling the balance card, Fitvibexcel Pro Medical will only be
accessible when inserting a valid Fitvibexcel Pro Medical card in the
card slot (see also the user manual of Fitvibexcel Pro Medical ITS
software).

- 19 -

User manual Fitvibexcel Pro Medical

2.9.5. Upload data from Fitvibexcel Pro Medical® ITS software*

Via an USB connection it is possible transferring data from Fitvibexcel
Pro Medical® ITS to the device software. Via this menu it is possible
to integrate new exercises in the Fitvibexcel Pro Medical database, to
change the trainer or to manage the indications menu in the device
software.

• Select the data to be modified (exercises, trainer or indications)

• Unsert a, by Fitvibexcel Pro Medical® ITS software programmed
USB stick in the right USB slot (looking from the backside)

• Select “Set”

• Wait until a message appears indicating that the USB stick may
be removed

• Restart the Fitvibexcel Pro Medical

• Please notice that uploading data from Fitvibexcel Pro Medical®
ITS software is only possible with a modified version of Fitvibexcel

Pro Medical® Software.

* This function is active from software version 3.01 only

- 20 -

User manual Fitvibexcel Pro Medical

2.9.6. Reset default Settings*

This function is active from Fitvibexcel Pro Medical® software version

2.16 only.
With the optional Fitvibexcel Pro Medical® software it is possible to
modify the indications or insert new training programs. With resetting
all modifications, data will be reset to the default device settings.

2.9.7. Statistics

In the statistics Fitvibexcel Pro Medical® software menu a Fitvibexcel
Pro Medical owner can consult the counter working hours of the
Fitvibexcel Pro Medical; the total time Fitvibexcel Pro Medical has
vibrated, divided in the different operation modes.

*This function is active from software version 3.01 only

- 21 -

User manual Fitvibexcel Pro Medical

- 22 -

User manual Fitvibexcel Pro Medical

3.1. “When not to use” – Contra-indications

It is important to make sure that users of the Fitvibexcel Pro Medical
vibration platforms do not and are not likely to be suffering from
any of the contra-indications listed below before allowing them to
commence training. Any person suffering or likely to suffer from any
of the contra-indications listed below must not use the vibration
platform. Always consult a medical expert, your GP, a consultant or
the Fitvibexcel Pro Medical® instructor in case of doubt.
The list of contra-indications is accessible from the first screen.

Absolute contra-indications: Relative contra-indications

(use Fitvibexcel Pro Medical only after con­sulting a medical doctor.)

Acute inammations, infections and/ or fever Epilepsy

Acute arthropathy and arthrosis Gallstones, kidney stones, bladder stones

Acute rheumatoid arthritis Articular rheumatism and arthrosis

Acute headache Heart failure, insufciency NYHA III-IV

Postoperative wounds Cardiac dysrhythmia

Implants / Endoprotheses Cardiac affections

Metal or synthetic implants (e.g.. pacemaker,

articial cardiac valves, recent stents)

Metal or plastic implants (piercing or gyne-

cologic implants

Acute thromboses or increased thrombotic

afictions (6 months)

Chronic back pain (6 months after acute

appearing)

Acute back problems Severe diabetic mellitus with arterial circu-

lation disorders

3 Important information

- 23 -

User manual Fitvibexcel Pro Medical

3.2. Indications

• Postnatal training

• Osteoporoses

• Proprioception

• Lower back pain

• Blood circulation

• Cellulite

• Weight loss

3.3. Important information before using the Fitvibexcel Pro

Medical

• Always make sure that you/users do not suffer or are likely to
suffer from any of the contra-indications listed under 3.1 before
commencing training.

• Always wear sport shoes with flexible rubber soles.

• The first training session must be supervised by an instructor. See
section 3.4 “Your first Fitvibexcel Pro Medical workout”.

• Closely follow the instructions on the postures to assume on the unit,
on how to carry out the exercises and follow the recommended Rest
Times. This will ensure that you get the most out of your training
session and will protect you from injuring yourself.

Absolute contra-indications: Relative contra-indications

Pregnancy Tumors (in a period 5 years plus after

appearing, excluding metastases in the

musculoskeletal system)

Severe osteoporosis with BMD < 70mg/ml Spondylolisthesis without gliding

Spasticity M. Parkinson

Morbus Sudeck Stadium I (CRPS I) Chondromalasy of the joints of the lower

extremities, osteonecrosis and -chondrosis

Tumors with metastases in the musculoskel-

etal system

Arterial circulation disorders (Stadium

Fontaine III°)

Benign Paroxysmal Positional Vertigo (BPPV) Venous insufciency with ulcus cruris

Morbus Sudeck Stadium II (CRPS)

Lymphatic edema

- 24 -

User manual Fitvibexcel Pro Medical

•

Drink an isotonic sports drink or some water approx. ½ - 1 hour

before your training session.

• The Fitvibexcel Pro Medical vibration platform has been pre­programmed with a training programme specifically designed to
gradually get used to exercising on the unit. You may change your
exercise programmes following consultation with your Fitvibexcel
Pro Medical® instructor.

3.4. Using the softmat

When doing exercises which involve resting on the platform with parts
of your body – e.g. your hands, feet or bottom – you need to place
the softmat supplied with the Fitvibexcel Pro Medical on top of the
vibrating platform.

3.5. Your first Fitvibexcel Pro Medical Work-Out

Before using the Fitvibexcel Pro Medical actively, a first introduction
must have taken place to adapt to and get used to the vibrations.

One way to create this adaption is by following next steps:

1. In the Main screen; select “Free parameter”

2. Set the following intensity: 40Hz, Low Amplitude, 30 sec.

3. Put one foot on the platform (wearing sport shoes with no mat on
the platform or no sport shoes, with a mat on the platform).

4. Lift your heel from the platform, putting the tension on your calves
(always make sure that the muscle you want to train is under
pretension).

5. Press the start button

6. Repeat this procedure with the other foot.

- 25 -

User manual Fitvibexcel Pro Medical

With any position standing on the vibration platform, make sure about
the following points, before pressing the start button:

• Make sure the tension (leaning) is on the front of you feet, not on
your heels

• No locked or overstretched body parts (joints & ligaments)

• Muscles must be pretensioned. (Pretension is necessary to have
the muscles absorb the vibrations).

• That the position of the head is levelled.

These steps will make sure that the training or treatment will be
comfortable.

3.6. Stop exercising if you’re ...

• Feeling dizzy

• Experiencing pain

• Feeling unwell, tense or nauseous.

- 26 -

User manual Fitvibexcel Pro Medical

4.1. General

The Fitvibexcel Pro Medical vibration platform generates three­dimensional mechanical vibrations with its main vector being
vertical. The Fitvibexcel Pro Medical is extremely easy to use and
its operation is based on clear and logical principles. You can use
the unit as soon as you have familiarized yourself with the various
buttons and their functions. The Fitvibexcel Pro Medical has been
pre-programmed with exercise routines both in an “indication” menu
as in the menu “training per muscle group”. You can, however, also
specify your own exercise parameters using the “Free parameters”
menu or the exercise list. This chapter will guide you through all of
the options available.

If the card reader in your Fitvibexcel Pro Medical has been enabled
(see above) these menus will only be accessible when a valid, by
Fitvibexcel Pro Medical ITS software programmed card is inserted in
the card lock. Please see point 5 for more information on Fitvibexcel
Pro Medical ITS software!

4.2. Exercise on the Fitvibexcel Pro Medical

4.2.1. General operations

The Fitvibexcel Pro Medical vibration platform is operated using the
6 selector buttons and START/STOP button on the control panel.
The arrows on the display explain the function of the corresponding
button.

4 Application

- 27 -

User manual Fitvibexcel Pro Medical

4.2.2. Start/Stop button

The Fitvibexcel Pro Medical is equipped with 3 start/stop buttons that
can be used to start and stop the vibration mechanism at any time:

• An orange-coloured start/stop button (15), located in the centre
on the control panel beneath the display.

• A foot-operated start/stop switch (3), located on the handlebar, at
the same level as the vibrating platform.

• A hand-held remote switch (18), which is connected to the control
panel by a cable.

You can use any of these buttons to start and stop the vibration
mechanism from any posture and position.

4.3. Using the hand and foot straps

The straps are used to transfer the vibration to specific parts of the
body, such as the hamstrings, as shown in the illustration. When
using straps, the vibrations are transmitted to the relevant parts of the
body via the non-elastic strap material. Depending on the particular
exercise, the straps can be fastened to any of the fixation point
(20) on the vibration platform. The straps have differently coloured
reference lines, enabling a correct adjustment and an easier match of
their lengths.

- 28 -

User manual Fitvibexcel Pro Medical

4.4. Vibration training parameters

• Vibration frequency: 20 – 60 Hz

• Intensity (Amplitude): high / low

• Active Time: 0 – 180 sec

• Rest Time: 0 – 180 sec

• Exercise type static/dynamic*

*Dynamic exercises are shown dynamically or indicated with an
arrow.

4.4.1 Main Screen

The operating system is clear and self explanatory.
In the main screen a user can make a choice out of four options.

Free parameters

Start training immediately and enter your own parameters.

Indications

Select the indication and enter your level, 3D-exercise dynamic
pictures will guide you through the training protocol.

Training per muscle group

Select the zone of your body you want to strengthen up. 3D-exercise
dynamic pictures will guide you through the protocol.

Exercise list

Choose an exercise from a list and start your training.

All options are made via the up and down buttons followed by
“START/STOP”.

- 29 -

User manual Fitvibexcel Pro Medical

4.4.2. Free parameters

A user can:

• Change the amplitude between low and high (also during training
or treatment).

• Modify the frequency between 20 and 60 Hz, in steps of 5 Hz

• Change the running time between 0 and 180 seconds.

4.4.3 Indications

A user can:

• Make a choice of indication with the left side buttons

• Make a choice of level with the right side buttons

• Information about the number of exercises; exercise time and
total time is shown at the bottom of the display.

• When clicking the button “NEXT” the protocol will be displayed as
shown in the below chosen configuration

• The items listed in this screen are manageable via the optional
Fitvibexcel Pro Medical® ITS Software.

See also “Upload data from the Fitvibexcel Pro Medical® ITS
Software”.

- 30 -

User manual Fitvibexcel Pro Medical

4.4.4. Training per muscle group

When choosing the program “training a muscle group” in the first
screen one has to scroll until the wished muscle group is reached. By
clicking “NEXT” the following screen will be displayed.

A user can:

• Make a choice of level with the left side buttons

• Make a choice of week with the right side buttons

• Information about the number of exercises; exercise time and
total time is shown at the bottom of the display.

• When clicking the button “NEXT” the training protocol will be
displayed as shown below in the chosen configuration.

An overview shows how many exercises will have to be performed in
the given training menu.

- 31 -

User manual Fitvibexcel Pro Medical

4.4.5. Exercise list

In this menu, a user can scroll until the wished exercise is reached.
When the button “?” is clicked the exercise will be loaded. In this
menu, all training parameters can be modified. To start the exercise,
click on the Start/Stop button. Click on the button to go
back to the exercise list.

4.4.6 Exercise

By clicking on the Start/Stop button in the exercise list, a full colour,
high resolution 3-D image that is visually self-explanatory, show users
clearly how to assume the correct training postures on the Fitvibexcel
Pro Medical; additional explanations can also be viewed. Once
your training starts, the animated 3-D images display the precise
sequence of positions for maximum gain. At the bottom screen a
muscle man shows the trained muscle group. Start the exercise by
clicking the Start/Stop button again.

Click on the button to go back to the exercise list.

At the bottom frame one can consult the training parameters for the
given exercise. When working with the pre-programmed protocols,
these data are not changeable.

- 32 -

User manual Fitvibexcel Pro Medical

4.4.7. Active Time and Rest Time

When using the default training protocols, while the vibration is on,
the active time is shown on the display and being counted down
automatically to 0 sec. Once the active time is finished, the vibration
mechanism stops, the next exercise is displayed and the rest time is
being counted down.
Once the Rest Time has elapsed, the vibration can be started again
using the START/STOP button.

The Rest Time can be skipped by pushing the START/STOP button.

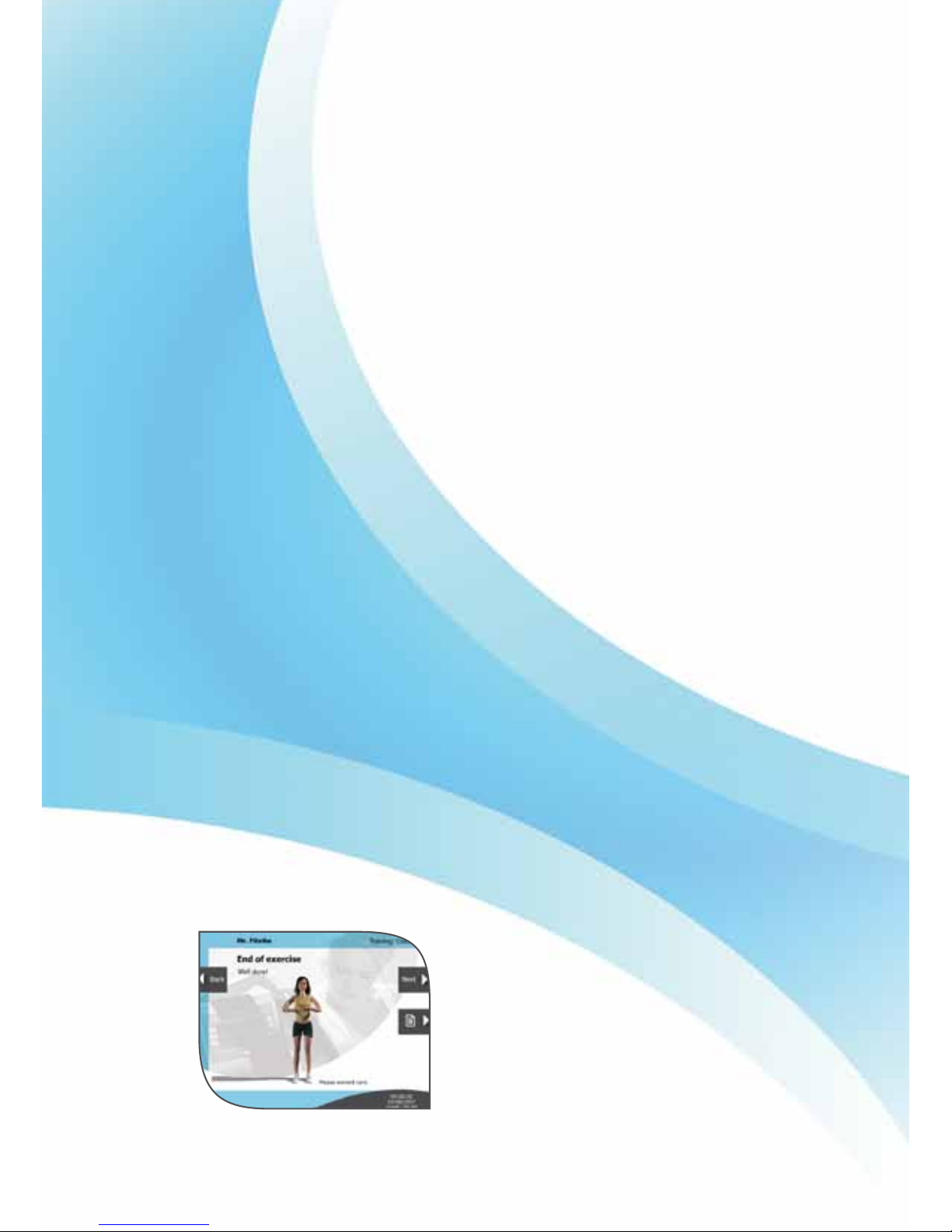

Once the last exercise has been completed, a picture shows “end of
exercise”.

4.4.8. Increasing your exercise load

Increasing the load of your training program can be done with
vibration training in the following steps:

Creating overload within a basic program (exercises) towards an
intermediate program as followed:

1. Increasing the duration of the exercises (Time)

2. Increasing the frequency of the exercises (Hz)

3. Increasing the amplitude of the exercises (Low/High)

Creating overload from an intermediate towards an advanced
program as followed:

1. Taking out the balance of the basic exercises.

2. Changing the planes of motion of basic exercises into new
movements.

- 33 -

User manual Fitvibexcel Pro Medical

- 34 -

User manual Fitvibexcel Pro Medical

5.1.

Operating the Fitvibexcel Pro Medical using Chip Cards

(See device settings, point 2.9.4: “balance card” must be “ON”)

The chip card reader (15) is located right below the control unit (11).
Insert the chip card into the reader (15) until it clicks into place. The
chip should be located on the top of the Fitvibexcel Pro Medical chip
card.

The chip card reader accepts different types of chip cards:

• The chip card, which is used in conjunction with the Fitvibexcel
Pro Medical® ITS software and stores all the data relevant to a
user.

• The Timecard, which is only used to limit the Active Vibration
Time of the Fitvibexcel Pro Medical in accordance with the credit
(minutes) available on the card.

The chip card reader recognizes the different types of cards and
selects the corresponding operating software automatically.

The “Insert Card” screen can display different types of error
messages:

• Chip card inserted incorrectly (insert card correctly – see above).

• Card validity expired (change card validity in the Fitvibexcel Pro
Medical® ITS software).

• No training on card.

5.2. Operating the Fitvibexcel Pro Medical using Timecards

A timecard limits the time that the Fitvibexcel Pro Medical vibrates
in accordance with the time credits (minutes) available on the chip
card. Example: If a Fitvibexcel Pro Medical chip card has a credit of
30 minutes of vibration training time, you can exercise on the unit for
a total of 30 minutes of vibration training time, i.e. any Rest Times are
not charged to the card. The exercise time credits on the card can
also be used on different days. When the time credits (minutes) on

5 Operating

- 35 -

User manual Fitvibexcel Pro Medical

the Fitvibexcel Pro Medical chip card have been used up, the card’s
credits can be topped up by using the card top-up unit.
The Fitvibexcel Pro Medical can still be operated even if the time
credits available on the chip card are insufficient for a particular
series of exercises. Should this be the case, the unit will continue to
operate and vibrate until the available time credits have been used
up. The Fitvibexcel Pro Medical chip card can be charged with a
maximum of 999 minutes of exercise time credits. Please refer to the
card top-up unit’s user instructions for more information on how to
operate the device.
Once the Timecard has been read by the Fitvibexcel Pro Medical
unit, it will open the “Main screen” page. From this point onwards,
Fitvibexcel Pro Medical’s that have their card readers enabled are
operated in the same way as Fitvibexcel Pro Medical whose card
readers are disabled (see point 4).

5.3. Operating the Fitvibexcel Pro Medical using chip cards charged via

the Fitvibexcel Pro Medical ITS Software

The chip cards carry the data for self-designed Fitvibexcel Pro
Medical exercise or treatment programmes. Use of the Fitvibexcel
Pro Medical® ITS software cards requires the easy Fitvibexcel Pro
Medical® ITS software to be installed on your computer and using
the associated writer.

Please refer to the associated Fitvibexcel Pro Medical® ITS Software
user instructions for information on how to use the software.

Once the Fitvibexcel Pro Medical® unit has read the Fitvibexcel Pro
Medical® ITS chip card, you will be shown the “Welcome” page.

- 36 -

User manual Fitvibexcel Pro Medical

On the “Welcome” page, you can choose whether to use the pre­programmed training protocols on the chip card or to deduct time
only in the free menu. If your chip card has been charged with extra
exercising time credits, you will be taken straight to the main menu
after having choosing “Timecard”. Please refer to point 5.1 and 4 of
this user manual for information on how to proceed from this point.

In addition to the other information, the screen will also display the
current exercise programme code, the total number of exercise
programmes stored on the Fitvibexcel Pro Medical® ITS chip card
and the name of the exercise programme.

If you select the pre-programmed training protocols on the
“Welcome” page, you will be taken straight to the diagram showing
the first exercise. You can now start the vibration plate by pressing the
START/STOP button.

You can skip exercises by using the “NEXT” (14) button and you can
go back to those exercises using the “BACK” (8) button.

It is not possible to return to a skipped exercise once you have
started on the next one.
Example: the exercise programme you have selected contains 6
individual exercises. You completed the first of those 6 exercises,
skipped the second and third, and are now starting on the fourth – this
means that you cannot now return to the second and third exercise.

If you accidentally skipped the last of a series of exercises, you will be
shown the “End of Exercise Programme” page.

- 37 -

User manual Fitvibexcel Pro Medical

Once you have removed the chip card from the card reader, you will
always be taken back to the “Welcome” page. When re-inserting the
chip card, you can continue your training programme by either starting
on the next exercise programme or the next exercise of an exercise
programme that you haven’t yet finished.

Following completion of all exercises, it is not possible to continue
using the chip card without re-programming it, unless the card was
issued without any “time limits”, in which case it can be used for an
infinite number of times.

- 38 -

User manual Fitvibexcel Pro Medical

6.1 Errors

• THE UNIT CANNOT BE SWITCHED ON
Check whether the mains power is on, the mains switch is turned
on and whether the power cable and the fuses are OK. You can
replace any faulty fuses yourself. Please only use fuses of the
type stated on the unit’s rating plate. Replacement fuses can be
ordered from your supplier.

• THE DISPLAY SHOWS MESSAGES IN A FOREIGN LANGUAGE.
Go to the system settings menu and select the required
language. Please get in touch with your supplier should this error
continue to occur.

• NONE OF THE CONTROL ELEMENTS WORK
Turn off the unit and turn it on again. Please get in touch with your
supplier should this error continue to occur.

6.2. Guarantee

6.2.1. Terms of guarantee

Guarantee period of the Fitvibexcel Pro Medical is 24 months and
begins at the date of purchase (the proof is the date on the invoice).
This guarantee includes all defects of materials and production
quality.

The guarantee applies only for using the unit according to the
intended purpose and observing the instructions for use.

The guarantee does not apply for cases of poor maintenance, wrong
implementation of an error and when maintenance and/or repair
work was performed by persons, who were not authorized by the
GymnaUniphy Company, and, of course, for accidents and damages
caused by the above-mentioned cases.

6 Errors, guarantee, maintenance
and cleaning, decommissioning

- 39 -

User manual Fitvibexcel Pro Medical

6.2.2. Limitation of the manufacturer’s liability

The manufacturer is not liable for possible follow-up damages/
injuries at therapists, instructors, users or the equipment used,
which are caused by wrong diagnosis, improper use of device
and/or accessories, misinterpretation or non-compliance with this
user manual, poor maintenance of the unit or when the unit was
maintained by persons that were not authorized by the manufacturer
for that purpose.

6.3 Service

• All repairs, modifications and upgrades must be performed/
implemented by authorised personnel only;

• The electrical wiring of the space in which the unit is set up must
comply with the relevant legal regulations;

• The unit must only be used for its intended purpose;

• The unit must be serviced regularly and in accordance with the
relevant instructions;

• The legal regulations regarding the use of the unit must be
observed at all times.

Uniphy Elektromedizin GmbH & Co. KG and its representatives shall
not be held responsible for damage, injuries, faults or malfunctions
caused as a result of improper use or failure to observe maintenance
instructions. Servicing and warranties are provided by your supplier.
The warranty becomes void if the unit is not used in accordance with
the above instructions.

Should you have any further questions or require additional
information, please feel frre to contact your dealer.

- 40 -

User manual Fitvibexcel Pro Medical

6.4. Maintenance

It is recommended that a specialist services the unit annually. When
doing so, the following areas need particular attention:

• Check all screws and mechanical clamp joints

• Visually check all cables and their connectors

• Check the functioning of the hand-held remote and foot switch

• Check the rubber springs for signs of mechanical damage

• Check the rubber O-ring inside the motors.

6.5. Cleaning

The vibrating platform, control unit and all accessories can be cleaned
using a damp cloth. Only use mild, non-abrasive cleaning agents!
The handlebar can be cleaned using a standard surface disinfectant.

6.6. Decommissioning and disposal

When you wish to dispose your Fitvibexcel Pro Medical unit, you can
follow two ways:

• You can bring the unit and its accessories to a disposal company
that specialises in electronic products or that has means of
forwarding the unit to such a company. If you live in a country
where suppliers are legally obliged to dispose of their products,
you can return the unit to your local supplier.

• Due to the type of plastic and electronic components they
contain, most countries prohibit disposal of these kinds of units
as ordinary household waste. For the event that you chose to
dispose of the unit yourself or are accepting responsibility for
its disposal, we would like to provide you with the following
environmental information:

- 41 -

User manual Fitvibexcel Pro Medical

The components of the Fitvibexcel Pro Medical vibration platform can
be divided into three categories:

• The vibration platform, control panel, cables, straps and soft
cover (mat) are classed as electronic or non-hazardous chemical
waste. Amongst other things, these components contain lead,
tin, copper, iron and various other metals and types of plastic. In
most countries, this type of waste is classed as non-hazardous
chemical waste and must be disposed of in accordance with the
relevant local regulations.

• Packaging materials and manuals are recyclable and can
be disposed of at recycling centres of as household waste,
depending on local waste disposal regulations.

• The information supplied above also applies to the unit’s
accessories.

The device complies with the essential requirements of the Waste
Electrical and Electronic Equipment (WEEE) directive 2003/108/EC of
the European parliament and of the oncil as most recently changed.

- 42 -

User manual Fitvibexcel Pro Medical

Vibration plate:

• Vertical vibration amplitude 1,5 & 3 mm

• Ergonomic handle

• Start / stop on plate

• Extra large exercise surface

• Frequency 20 – 60Hz adjustable per 5Hz

• 5 Fixation points for straps

Handle

• Integrated card reader

• Electronics insulated from vibration

• Start/stop on display

• Start/stop by remote control

Software

• Quick start

• Dynamic 3-D pictures

• Colour screen

• Integrated training software

• Indication & contra-indication list

• Training & Time card feature

Standard accessories

• Foot straps (1 pair)

• Hand straps (1 pair)

• Remote control

• Soft mat

• Exercise poster

Technical specifications:

• Weight: 120 kg

• Dimensions: 1050 x 990 x 1440 mm

• Maximal static load: 250 kg (dynamic proportions 20%)

• Noise level: max 71 dBa

• Standard colour: grey, white, black

7 Technical Data

- 43 -

User manual Fitvibexcel Pro Medical

• Supply voltage: 230V +/- 10%, 50/60Hz

115V +/- 10%, 50/60Hz

• External fuses: 10AT (local electric installation)

• Miniature fuses: T2AL for 230V

T4AH for 115V

• Power consumption: max 420 VA

• Protective system: I

• Type of protection: Type B

• Degree of protection: IP20

• Transport and storage conditions:
In the manufacturers package at following limits:

-20 °C to +60 °C

5% to 100% humidity including condensation
500 hPa to 1060 hPa atmospheric pressure

• Operating condition:

+10 °C to +40 °C ambient temperature
5% - 90% air humidity, non condensing

This medical device complies with the applicable standards EN
60601-1-1 a (IEC 60601-1) and EN 60601-1-2 (IEC 60601-1-2) and
with Medical Device Directive (MDD) 93/42/EEC. Classification in
accordance with MDD is IIa

- 44 -

User manual Fitvibexcel Pro Medical

The Fitvibexcel Pro Medical conforms to all of the relevant EMC
directive and standard EN 60601-1-2 (IEC 60601-1-2) requirements
when used in conjunction with the accessories recommended by the
manufacturer.
Please read and observe the information relating to the EMC in the
user instructions and in this and any other accompanying documents
before installing and using the Fitvibexcel Pro Medical.
You have acquired a device that was developed and produced in
accordance with the latest technological advances in conformity with
the above EMC directive. Fitvibexcel Pro Medical is protected against
interference and does not interfere with other electrical devices in
accordance with the standards it complies with.

8 References to the electro­ magnetic comptability
requirements (EMC)

EN 60601-1

- Type of protection against electric shocks:
class 1

- Degree of protection against electric shocks:
B

- 45 -

User manual Fitvibexcel Pro Medical

EMC guidance and manufacturer’s declaration

Guidance and manufacturer’s declaration – electromagnetic emissions

The model Fitvibexcel Pro Medical is intended to use in the electromagnetic environment
specified below.

The customer or the user of the Fitvibexcel Pro Medical should assure that it is used in such
an environment.

Emissions test Compliance

Electromagnetic environment ­guidance

RF emissions CISPR 11 Group 1

The Fitvibexcel Pro Medical uses RF
energy only for its internal function.
Therefore, its RF emissions are very
low and are not likely to cause any
interference in nearby electronic
equipment. According to IEC
60601- 2-36 this doesn’t comply
during the generation and release of
shockwaves.

RF emissions CISPR 11 Class B

The Fitvibexcel Pro Medical is
suitable for use in all establishments,
including domestic establishments
and those directly connected to the
public low-voltage power supply
network that supplies buildings used
for domestic purposes.

Harmonic emissions IEC
61000-3-2

Class A

Voltage fluctuations / flicker
emissions
IEC 61000-3-3

Complies

- 46 -

User manual Fitvibexcel Pro Medical

Guidance and manufacturer’s declaration – electromagnetic immunity

The model Fitvibexcel Pro Medical is intended to use in the electromagnetic
environment specified below. The customer or the user of the Fitvibexcel Pro
Medical should assure that it is used in such an environment.

Immunity test

IEC 60601 test
level

Compliance
level

Electromagnetic
environment ­guidance

Electrostatic discharge
(ESD)

IEC 61000-4-2

± 6kV contact

± 8kV air

± 6kV contact

± 8kV air

Floors should be
wood, concrete or
ceramic tile. If floors
are covered with
synthetic material,
the relative humidity
should be at least
30%.

Electrical fast transient
/ Bursts

IEC 61000-4-4

± 2kV for
power supply
lines

± 1kV for input/
output lines

± 2kV for
power supply
lines

± 1kV for input/
output lines

Mains power quality
should be that of a
typical commercial
or hospital
environment.

Surge

IEC 61000-4-5

± 1kV line(s) to
line(s)

± 2kV line(s) to
earth

± 1kV line(s) to
line(s)

± 2kV line(s) to
earth

Mains power quality
should be that of a
typical commercial
or hospital
environment.

Voltage dips, short
interruptions and
voltage variations on
power supply input
lines

IEC 61000-4-11

< 5% U

(> 95 % dip in )
for 0.5 cycle

40 % U
(60 % T in U )
for 5 cycles

70 % U
(30 % dip in U )
for 25 cycles

< 5 % U
(> 95 % dip in
U ) for 5 s

< 5% U

(> 95 % dip in U
) for 0.5 cycle

40 % U
(60 % dip in U )
for 5 cycles

70 % U
(30 % dip in U )
for 25 cycles

< 5 % U
(> 95 % dip in U
) for 5 s

Mains power quality
should be that of a
typical commercial
or hospital
environment. If
the user of the
Fitvibexcel Pro
Medical requires
continued operation
during power mains
interruptions, it
is recommended
that the Fitvibexcel
Pro Medical be
powered from an
uninterruptible
power supply or a
battery.

Power frequency
(50/60 Hz)
magnetic field

IEC 61000-4-8

3 A/m 3 A/m

The power frequency
magnetic field
should be that of a
typical commercial
or hospital
environment.

NOTE

U

T

is the a.c. mains voltage prior to application of the test level

- 47 -

User manual Fitvibexcel Pro Medical

Guidance and manufacturer’s declaration – electromagnetic immunity

The model Fitvibexcel Pro Medical is intended to use in the electromagnetic
environment specified below. The customer or the user of the Fitvibexcel Pro
Medical should assure that it is used in such an environment.

Immunity test

IEC 60601
test level

Cmpliance
level

Electromagnetic
environment - guidance

Portable and mobile RF
equipment should be
used no closer to any
part of the Fitvibexcel Pro
Medical, including cables,
than the recommended
separation distance
calculated from the
equation applicable to
the frequency of the
transmitter.
Recommended
separation distance:

Conducted RF

IEC 61000-4-6

3 Vrms
150 kHz to
80 MHz

3 Vrms
150 kHz to 80
MHz

d = 1,2√P

Radiated RF

IEC 61000-4-3

3 V/m
80 MHz to
2,5 GHz

3 V/m
80 MHz to 2,5
GHz

d = 1,2√P
80 MHz to 800 MHz

d = 2,3√P
800 MHz to 2,5 GHz

where P is the maximum
output power rating
of the transmitter in
watts [W] according
to the transmitter
manufacturer and d is the
recommended separation
distance in metres [m].
Field strengths from
fixed RF transmitters,
as determined by an
electromagnetic site
survey a, should be less
than the compliance level
in each frequency range
b.
Interference may occur in
the vicinity of equipment
marked with the
following symbol

- 48 -

User manual Fitvibexcel Pro Medical

NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.

NOTE 2 These guidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflection from structures, objects and
people.

a

Field strengths from fixed transmitters, such as base stations for radio (cellular/
cordless) telephones and land mobile radios, amateur radio, AM and FM radio
broadcast and TV broadcast cannot be predicted theoretically with accuracy.
To assess the electromagnetic environment due to fixed RF transmitters,
an electromagnetic site survey should be considered. If the measured field
strength.

b

Over the frequency range 150 kHz to 80 MHz, field strengths should be less
than 3 V/m.

- 49 -

User manual Fitvibexcel Pro Medical

Recommended separation distances between portable and mobile RF

communications equipment and the Fitvibexcel Pro Medical

The Fitvibexcel Pro Medical is intended for use in an electromagnetic environment
in which radiated RF disturbances are controlled. The customer or the user of the

Fitvibexcel Pro Medical can help prevent electromagnetic interference by maintaining
a minimum distance between portable and mobile RF communications equipment

(transmitters) and the Fitvibexcel Pro Medical as recommended below, according to
the maximum output power of the communications equipment.

Separation distance according to frequency of transmitter [m]

Rated maximum

output power of

transmitter [W]

150 kHz to 80

MHz

d = 1,2√P

80 MHz to 800 MHz

d = 1,2√P

800 MHz to 2,5

GHz

d = 2,3√P

0.01 0.12 0.12 0.23

0.1 0.38 0.38 0.73
1 1.2 1.2 2.3

10 3.8 3.8 7.3

100 12 12 23

For transmitters rated at a maximum output power not listed above, the
recommended separation distance d in metres [m] can be estimated using the
equation applicable to the frequency of the transmitter, where P is the maximum
output power rating of the transmitter in watts [W] according to the transmitter
manufacturer.

NOTE 1
At 80 MHz and 800 MHz, the separation distance for the higher frequency applies.

NOTE 2
These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reflection from structures, objects and people.

- 50 -

User manual Fitvibexcel Pro Medical

- 51 -

User manual Fitvibexcel Pro Medical

Fitvibexcel Pro Medical® is a division of GymnaUniphy NV

Fitvibexcel Pro Medical

Pasweg 6a  3740 Bilzen  Belgium

Your local supplier is:
