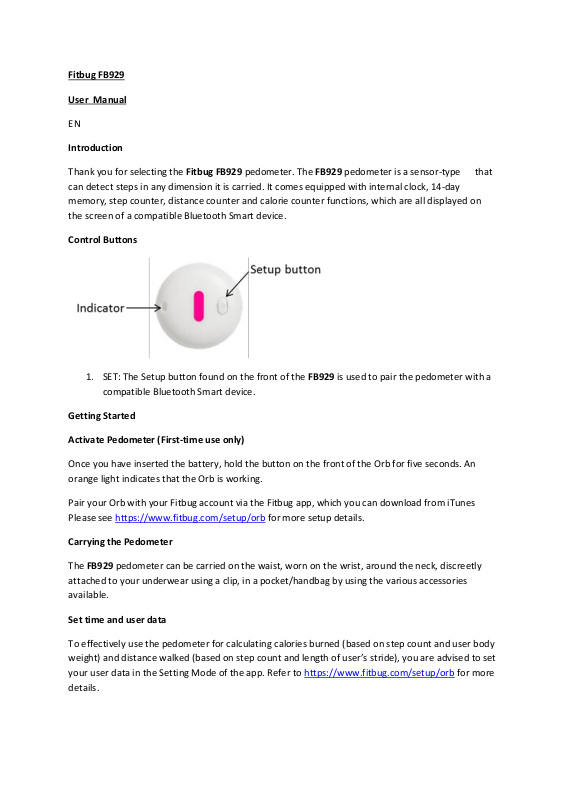

Fitbug FB929 User Manual

Fitbug FB929

User Manual

EN

Introduction

Thank you for selecting the Fitbug FB929 pedometer. The FB929 pedometer is a sensor-type that
can detect steps in any dimension it is carried. It comes equipped with internal clock, 14-day
memory, step counter, distance counter and calorie counter functions, which are all displayed on
the screen of a compatible Bluetooth Smart device.

Control Buttons

1. SET: The Setup button found on the front of the FB929 is used to pair the pedometer with a

compatible Bluetooth Smart device.

Getting Started

Activate Pedometer (First-time use only)

Once you have inserted the battery, hold the button on the front of the Orb for five seconds. An
orange light indicates that the Orb is working.

Pair your Orb with your Fitbug account via the Fitbug app, which you can download from iTunes
Please see https://www.fitbug.com/setup/orb for more setup details.

Carrying the Pedometer

The FB929 pedometer can be carried on the waist, worn on the wrist, around the neck, discreetly
attached to your underwear using a clip, in a pocket/handbag by using the various accessories
available.

Set time and user data

To effectively use the pedometer for calculating calories burned (based on step count and user body
weight) and distance walked (based on step count and length of user’s stride), you are advised to set
your user data in the Setting Mode of the app. Refer to https://www.fitbug.com/setup/orb for more
details.

Battery replacement

The pedometer uses a CR2032 3V battery, which you need to install prior to use. Insert into the back
of the FB929, replace the lid and twist back into place using a small coin.

A red light flashing three times after you have pressed the button to start a mode indicates battery
power is low. A low battery is also indicated on the app in the Device Setup tab.

To replace battery:

1. Use a small coin to remove the battery compartment lid at the back of the pedometer.

2. Remove the old battery and insert the new one, matching the polarities.

3. Replace the lid by twisting it back into place using a small coin.

NOTE: When the battery compartment is opened or battery is replaced, that day’s steps and all the
setting mode data in the pedometer will be reset. The device will not have to be paired again but all
the setting modes e.g. date, time, stride length will have to be reset within the Fitbug app.

Operation modes

The FB929 has 3 modes of operation. The Main Mode is displayed on the front page of the app. The
current step count and time are displayed on the app. To enter other modes, select the Settings tab
on the Fitbug app.

Main Mode

Once data has been sent from the FB929, in the Main Mode you can:

View the time and step count, calories burned, distance walked and walking speed.

To view the current total steps, aerobic steps, total time, aerobic time, calories burned and distance
walked, swipe between the two screens in the Today tab.

Setting Mode

In the Setting Mode - Device Setup on the app – you can set the stride length, weight, stride
extender ON/OFF, beaconing ON/OFF, beaconing interval.

Refer to https://www.fitbug.com/setup/orb for more information on how to pair and setup the

FB929.

REMARK

When the stride extender is turned on the device will adjust your stride length according to your
steps per minute rate.
