PHD15
Schematic
5 pgs
10.34 Mb
0
Table of contents
Loading...

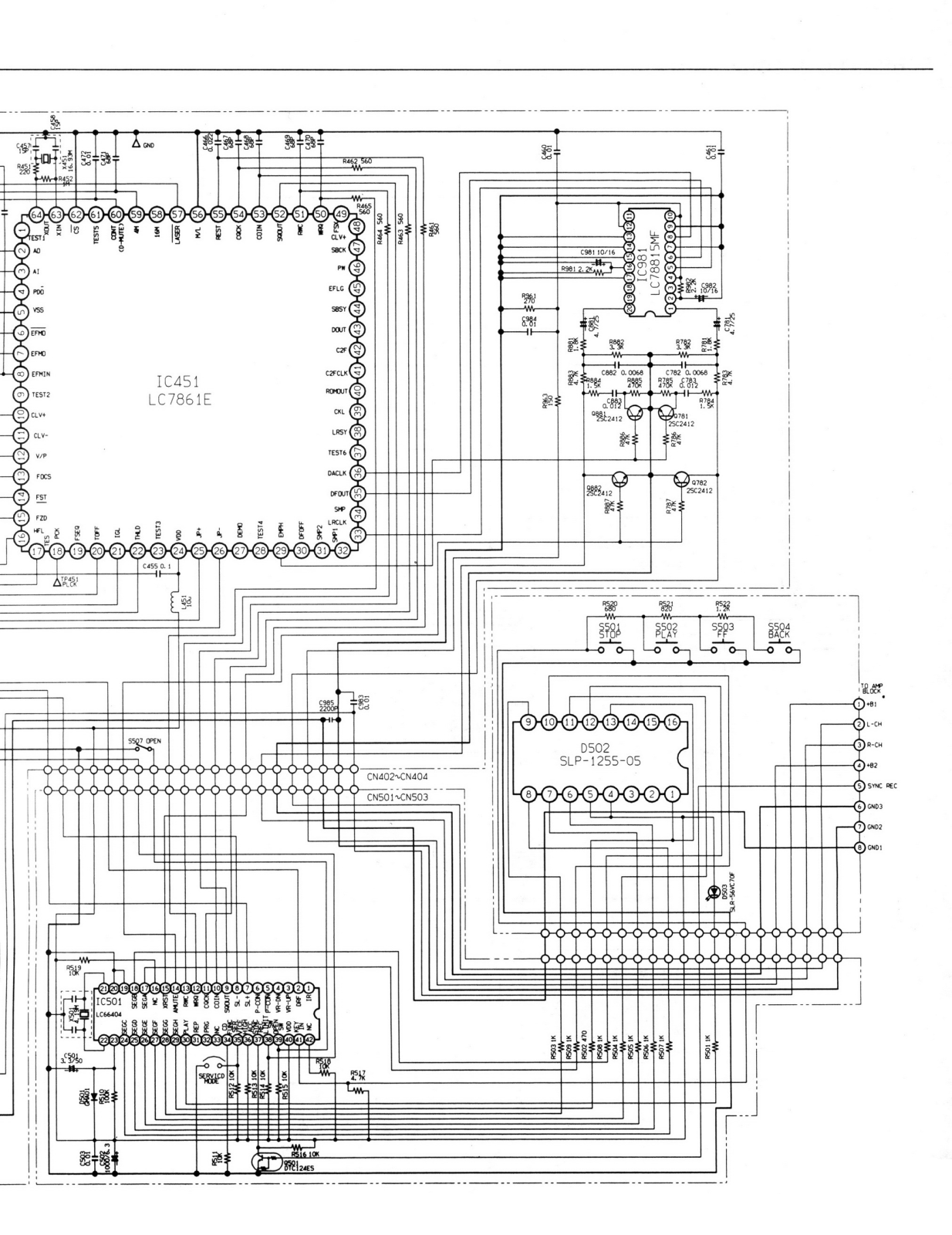

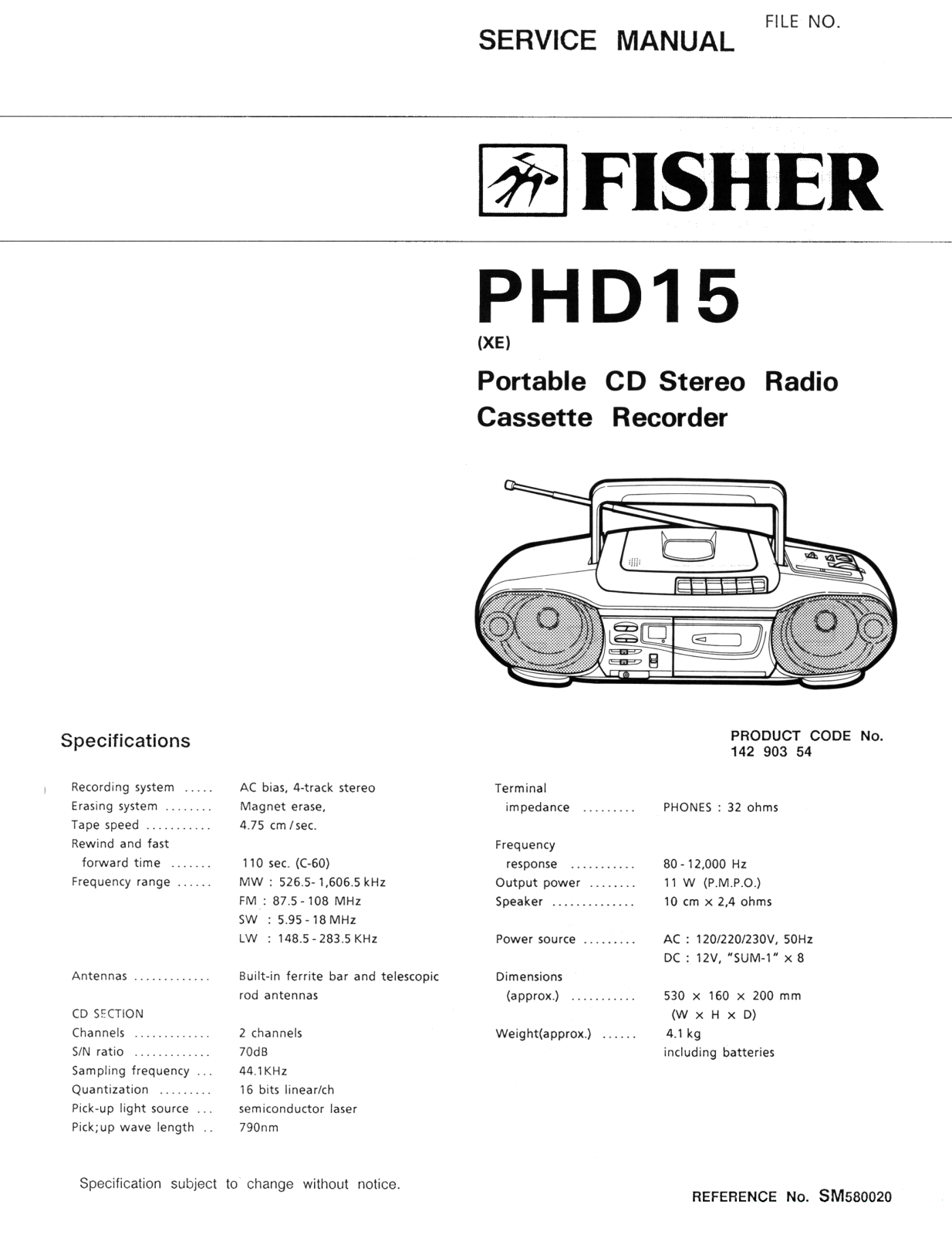

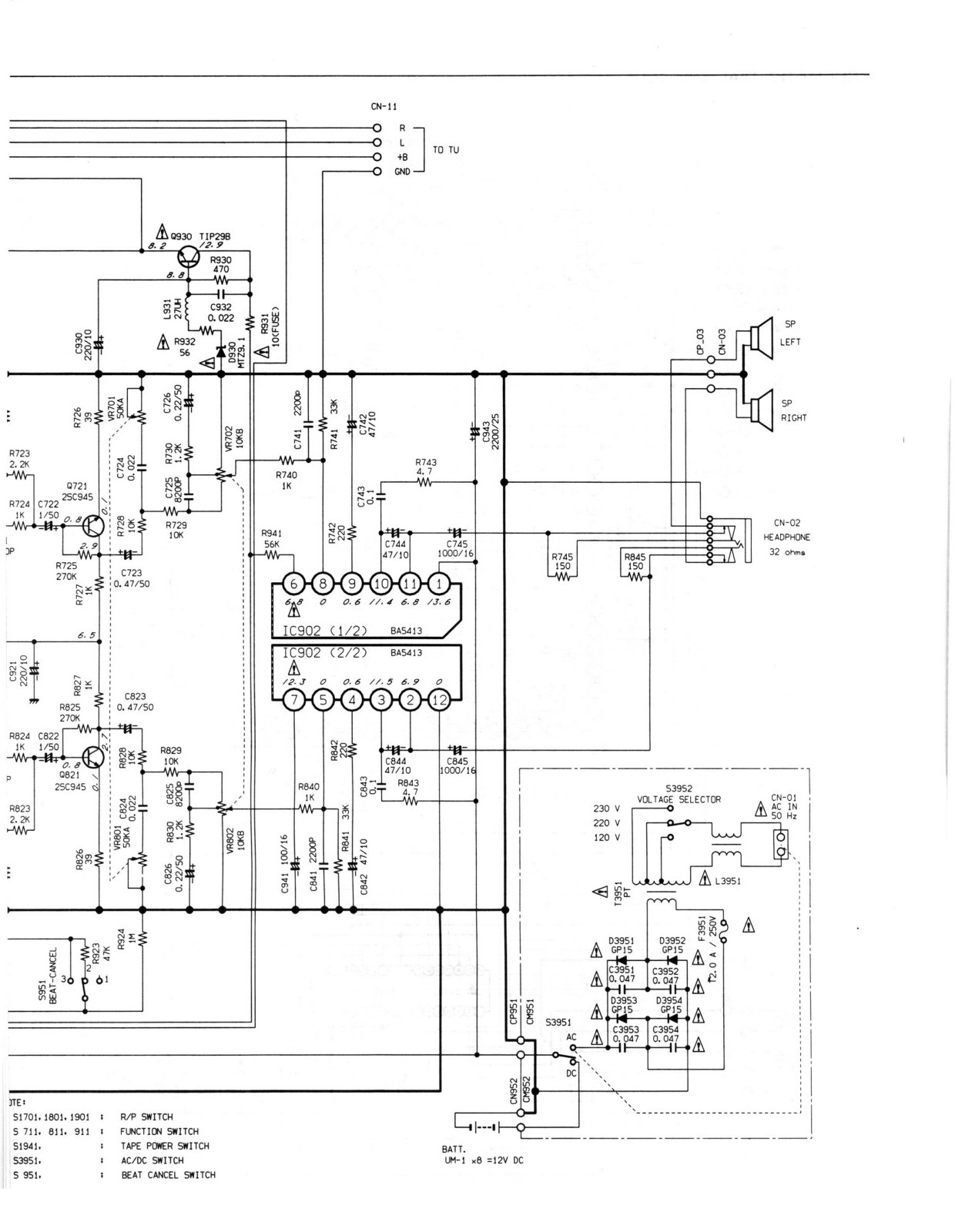

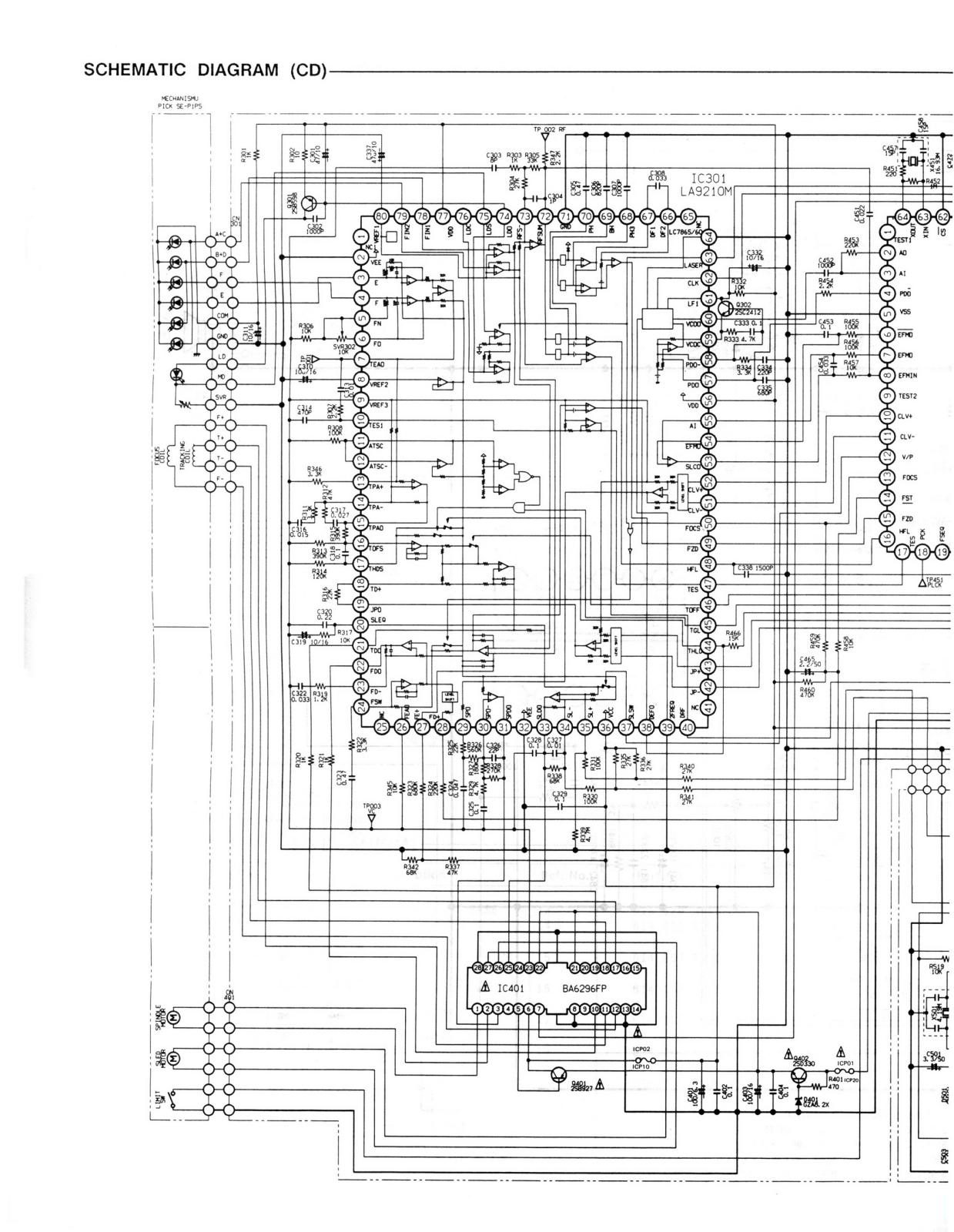

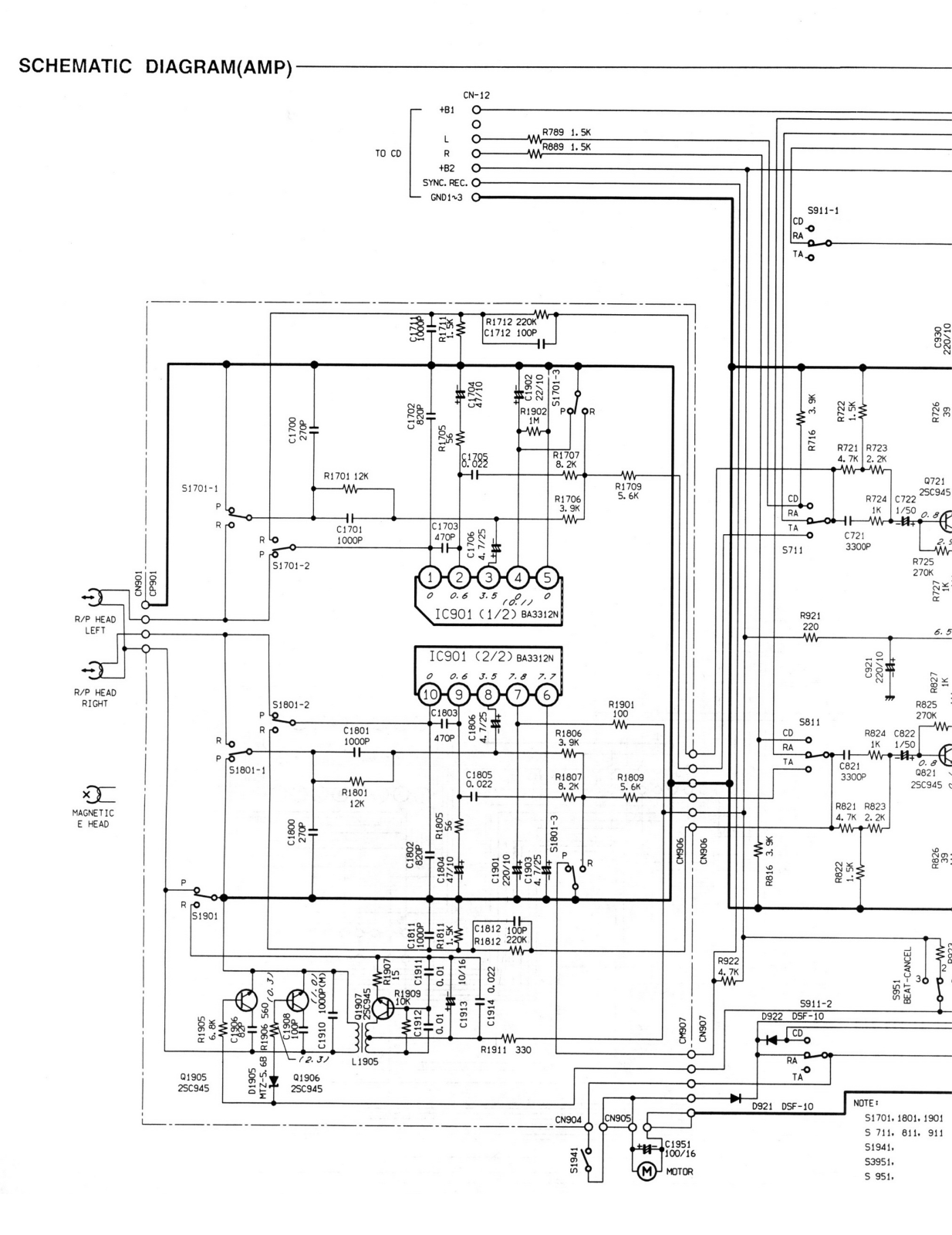

Fisher Radio PHD15 Schematic
...
Fisher Radio Schematic
Download
Specifications and Main Features
Frequently Asked Questions
User Manual
Download
Page 1
Page 2
Page 3
Page 4
Page 5
Loading...
+
hidden pages
Unhide
