Fisher-Price N8415 Instruction Sheet
Please read this manual and save it with your
original sales receipt.
Tool needed for assembly: Phillips Screwdriver
(not included).
Use only with a Power Wheels® 6 Volt (4.0 Amp/Hr.)
Rechargeable Battery with Built-in Thermal Fuse
and a Power Wheels® 6 Volt (4.0 Amp/Hr.) Charger
(both included).
Requires one "AA" (LR6) battery for sounds
and lights box operation (not included).
Product features may vary
from the picture above.
Owner's Manual
with Assembly Instructions
For Models N8415
TABLE OF CONTENTS
Important Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Parts Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Decoration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Battery Care and Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Safe Driving Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Vehicle Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Problems and Solutions Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
IMPORTANT INFORMATION
• Your new vehicle requires adult assembly. Please set aside at
least 20 minutes for assembly.
• You must charge your battery for 18 - 30 hours before you use
your vehicle for the first time. We recommend that you start
charging your battery before beginning assembly. Please see
Battery Charging beginning on page 6 for detailed instructions.
• Read this manual carefully for important safety information
and operating instructions before using your vehicle.
Keep this manual for future reference as it contains
important information.
• This vehicle is designed for use on: grass, asphalt, and other
hard surfaces; on generally level terrain; and by children
12 - 36 months of age.
• Use this vehicle ONLY outdoors. Most interior flooring can
be damaged by riding this vehicle indoors. Fisher-Price® will
not be responsible for damage to the floor if the vehicle is
used indoors.
• To prevent damaging the motors and gears, do not tow
anything behind the vehicle or overload it. Do not exceed
the maximum weight capacity of 40 lbs (18 kg).
• This vehicle has adjustable play seat belts. Please note that the
adjustable seat belts are designed to be a play feature and do
not function as protective safety restraints.
• In the United States, if you have any questions about your
Power Wheels® vehicle, please call our toll-free service lines
at 1-800-348-0751 from 9 AM to 7 PM (EST) Monday through
Friday and 11 AM to 5 PM (EST) Saturday. Trained customer
service representatives are available to take your call in English
or French. Habla Español? Si usted tiene alguna pregunta
ó necesita asistencia llame gratis 1-800-348-0755 para los
Estados Unidos. Tenemos representantes que hablan español
para atender su llamada.
• In the United States, for your convenience, Power Wheels®
maintains an Authorized Service Center Network with more than
300 independently owned and operated authorized service
centers nationwide. The authorized service centers will repair
or replace parts under warranty at no extra charge, and can
perform non-warranty repairs for a minimal charge. To find the
authorized service center nearest you, please visit us on-line at
www.powerwheels.com or call 1-800-348-0751.
• To register your vehicle, please visit us on-line at
www.powerwheels.com.
2
N8415pr-0920
WARNINGS AND CAUTIONS
ELECTRICAL HAZARD
WARNING
• Battery can fall out and injure a child if vehicle tips over. Always use battery retainer.
• PREVENT FIRE
- Never modify the electrical system. Alterations could cause a fire resulting in serious injury
and could also ruin the electrical system.
- Use of the wrong type battery or charger could cause a fire or explosion resulting in
serious injury.
- Use of Power Wheels
cause overheating, fire or explosion.
• The battery must be handled by adults only. The battery is heavy and contains sulfuric acid
(electrolyte). Dropping the battery could result in serious injury.
• Never allow children to charge the battery. Battery charging must be done by adults only.
A child could be injured by the electricity involved in charging the battery.
• Never lift or carry the battery by the wires or connector. This can damage the battery and
possibly cause a fire resulting in serious injury. Lift and carry the battery by the case only.
• Read the safety instructions on the battery.
• Examine the battery, charger and their connectors for excessive wear or damage each time
you charge the battery. If damage or excessive wear is detected, do not use the charger or the
battery until you have replaced the worn or damaged part.
• HOT motors. Handle carefully.
®
components in products other than Power Wheels® vehicles could
RIDING HAZARD
WARNING
• Prevent Injuries and Deaths
• Direct Adult Supervision Required.
• Never Ride At Night.
• Keep Children Within Safe Riding Areas.
These areas must be:
- Away from swimming pools and other bodies of water to prevent drownings
- Generally level to prevent tipovers
- Away from steps, steep inclines, cars, roads and alleys.
• Riding Rules
Make sure children know and follow these rules for safe driving and riding.
- Always sit on the seat.
- Always wear shoes.
- Only 1 (one) rider at a time.
CAUTION
• In the unassembled state, this package contains small parts. Adult assembly is required.
• Use the charger in dry locations only.
N8415pr-0920
3
PARTS
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751; rather than return this
product to the store.
• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts
are discarded.
• Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with a paper towel to remove
any excess lubricant.
2 Doll Seat Belts
2 Seat Belts
Vehicle
6 Volt Battery
Hint: Your 6 volt battery is located inside the battery
compartment in the vehicle. Please refer to page 11
in this manual to locate and remove the battery
compartment door on the back end of the vehicle.
6 Volt Charger
4
Sounds and Lights Box
Not Shown: Label Sheet
Steering Wheel
#8 x ½" (1,3 cm) Screw - 2
#8 x 1" (2,5 cm) Shoulder Screw - 2
Stop Sign
Both Shown Actual Size
*For your convenience, extra fasteners are included!
N8415pr-0920

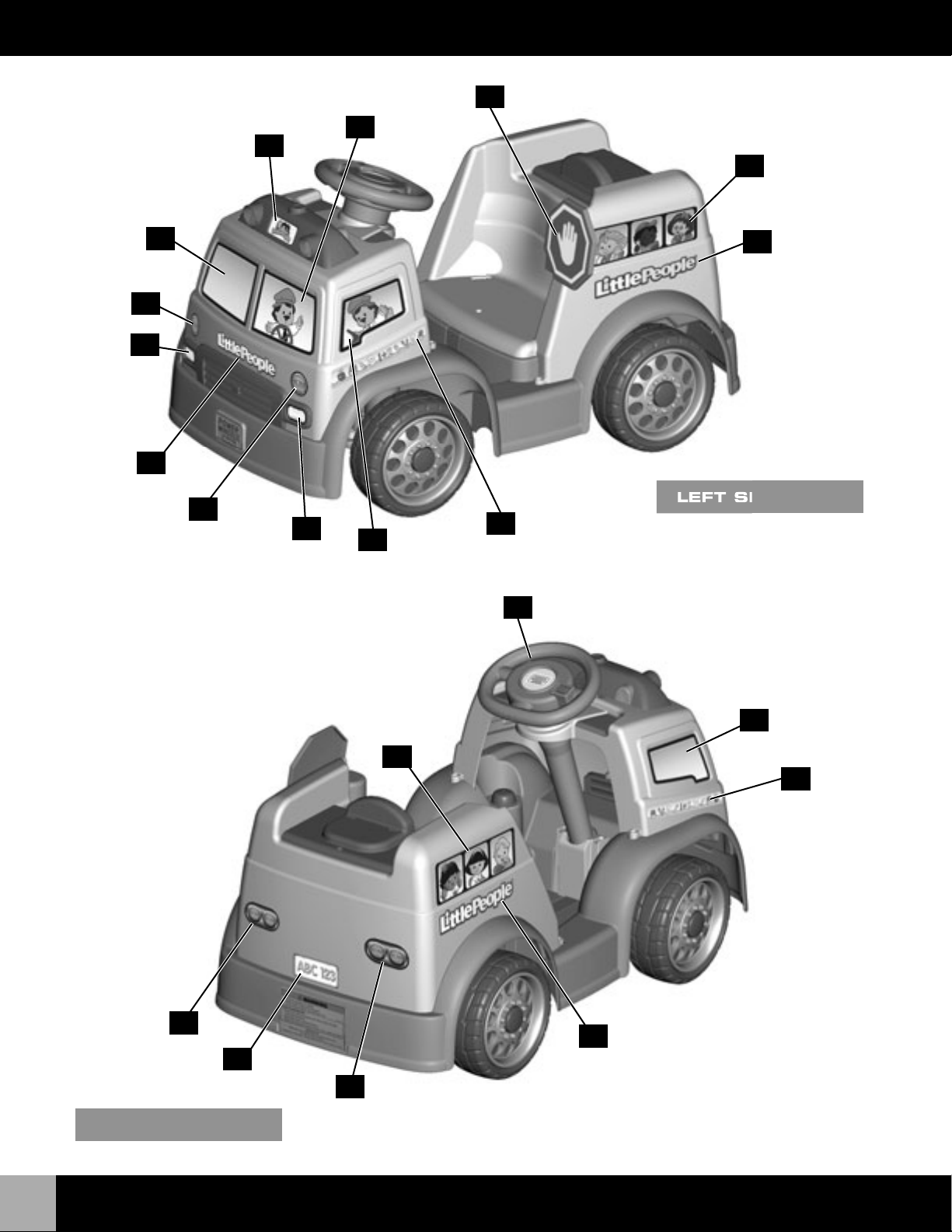

PARTS PICTURE
Seat Belt
Doll Seat Belts
Steering Wheel
Sounds and Lights Box
Vehicle
Stop Sign
Seat Belt
N8415pr-0920
5
BATTERY CHARGING
ELECTRICAL HAZARD
ELECTRICAL HAZARD
WARNING
•
Battery can fall out and injure a child if vehicle
tips over. Always use battery retainer.
• PREVENT FIRE
- Never modify the electrical system.
Alterations could cause a fire resulting
in serious injury and could also ruin the
electrical system.
- Use of the wrong type battery or charger
could cause a fire or explosion resulting
in serious injury.
- Use of Power Wheels
products other than Power Wheels
vehicles could cause overheating,
fire or explosion.
• The battery must be handled by adults
only. The battery is heavy and contains
sulfuric acid (electrolyte). Dropping the
battery could result in serious injury.
• Never allow children to charge the battery.
Battery charging must be done by adults
only. A child could be injured by the
electricity involved in charging the battery.
• Never lift or carry the battery by the wires
or connector. This can damage the battery
and possibly cause a fire resulting in
serious injury. Lift and carry the battery
by the case only.
• Read the safety instructions on the battery.
• Examine the battery, charger and their
connectors for excessive wear or damage
each time you charge the battery. If damage
or excessive wear is detected,
charger or the battery until you have replaced
the worn or damaged part.
®
components in
®
do not use the
CAUTION
Use the charger in dry locations only.
About Thermal Fuses
Your Power Wheels® 6 volt (4.0 Amp/Hr.) battery is equipped with
a built-in thermal fuse. The thermal fuse is a self-resetting safety
device which automatically “trips” and shuts down operation of
the vehicle if the vehicle is overloaded or the driving conditions
too severe. Once a fuse has “tripped”, release the button on
the steering wheel and wait approximately 25 seconds before
operating the vehicle again. To avoid repeated automatic shutdowns, do not overload the vehicle by exceeding the 40 lbs
(18 kg) maximum weight capacity or by towing anything behind
the vehicle. Avoid severe driving conditions, such as driving up
slopes or running into fixed objects, which can cause the wheels
to stop spinning while power is still being supplied to the motors.
If a thermal fuse in a battery continually trips under normal driving
conditions, please contact your local Power Wheels® Authorized
Service Center. For the location of the Authorized Service
Center nearest to you in the United States, visit us on-line at
www.powerwheels.com, or call 1-800-348-0751.
In Australia call 1300 135 312 and in New Zealand call 0800 174 063.
Important Notes
• Your new battery must be charged for at least 18 hours
before you use it in your vehicle for the first time.
• We recommend that you start charging your battery before
beginning assembly of your new vehicle.
• The battery must be upright while charging.
• The charger is not a toy.
• Do not short circuit the battery.
• You do not need to remove the battery from your vehicle to
recharge it.
• Before charging the battery, examine the battery case for cracks
and other damage which may cause sulfuric acid (electrolyte) to
leak during the charging process. If damage is detected, do not
charge the battery or use it in your vehicle. Battery acid is very
corrosive and can cause severe damage to surfaces it contacts.
•
Do not charge the battery on a surface (such as a kitchen
counter top)
inside the battery. Take precautions to protect the surface on
which you charge your battery.
• Use only a Power Wheels
(input 120VAC 60 Hz 6W) with an output of 6 VDC 2.4/7.2W
(400 mA) to charge your Power Wheels
(4.0 Amp/Hr.) battery.
• Adults Note: Regularly examine the charger for damage to the
cord, plug, housing or other parts that may result in the risk of
fire, electric shock or injury. In the event of any damage, do not
use the charger until the damage has been properly repaired.
Please call 1-800-348-0751.
• If your battery is old and will not accept a charge, do not leave
it in the vehicle. Always remove a dead battery from the vehicle.
which could be damaged by the acid contained
®
6 volt (4.0 Amp/Hr.) charger
®
6 volt
6
N8415pr-0920
