J5242
Product features and decoration
may vary from the photograph.
Please keep this instruction sheet for
future reference, as it contains important information.
Adult assembly is required.
Requires three "AA" batteries (included).
Tools needed for assembly: Phillips Screwdriver, Hammer and
Scrap Block of Wood (not included).
Age: 2 - 6 years; Weight Limit: 60 lbs (27 kg).
www.fi sher-price.com
Page 2
Parts
IMPORTANT!
•
Please save all packaging material until assembly
is complete to ensure that no parts are discarded.
• If you are missing a part, please call toll-free
1-800-432-5437, rather than return this product
to the store.
•
Please wipe each part with a clean, dry cloth
before assembly.
• Some parts shown are assembled to both sides
of the trike.
Part Not Shown: Label Sheet
Basket
Cap
CAUTION
This product contains small parts in its
unassembled state. Adult assembly is required.
#8 x 3/4" Screw – 6
#8 x 3" Screw – 1
FASTENERS ACTUAL SIZE
Handlebar
Cap Nut – 2
Seat
Fork
Frame
2 Fork Covers
Pedal Axle
2 Pedals
Seat Retainer
Straight
Axle
2 Covers
2 Rear Wheels
2 Hubcaps
4 Pedal Hubs
Front Wheel
© 2007 Viacom International Inc. All Rights Reserved. Nickelodeon, Nick Jr., Dora the Explorer
and all related titles, logos and characters are trademarks of Viacom International, Inc.
Fisher-Price, Inc., a subsidiary of Mattel, Inc. East Aurora, New York 14052, U.S.A. PRINTED IN MEXICO
© 2007 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. J5242a-0920
2
Page 3

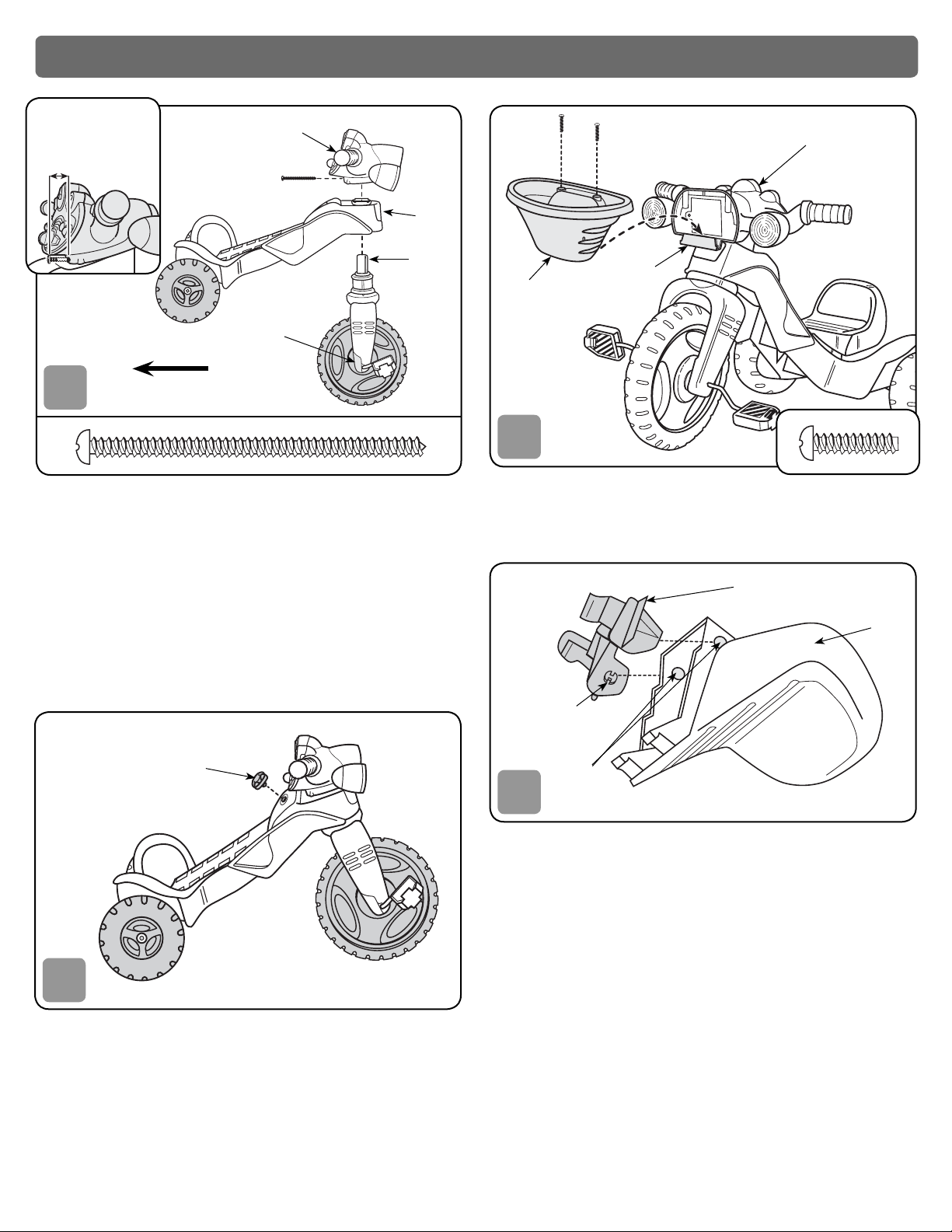

Assembly
Rear Wheel
(Indented Side Up)
Cap Nut
Straight Axle
Cap Nut
Rear Wheel
(Indented Side Down)
Cap Nut
Assembly Tool
Scrap Block
of Wood
Hubcap
(Peg Side Up)
Straight Axle
1
• Fit a cap nut into the cap nut assembly tool. Place one end
of the straight axle into the cap nut.
• Tap the end of the straight axle with a hammer. Make sure
the cap nut is securely attached to the straight axle.
• Slide a hubcap (peg side up) onto the straight axle.
• Slide a rear wheel (indented side down) onto the
straight axle.
Frame
Hubcap
(Peg Side Down)
Straight Axle
Cover
Hubcap
3
Frame
Assembled
Rear Wheel
Scrap Block
of Wood
Cap Nut
Assembly Tool
BOTTOM VIEW
• Turn the frame on its side with the exposed end of the
straight axle up.
• Place the cap nut assembly tool under the assembled rear
wheel and onto the cap nut.
• Slide a rear wheel (indented side up) onto the end of the
straight axle.
• Slide a hubcap (peg side down) onto the straight axle.
• Place a cap nut on the end of the straight axle. Tap the
cap nut with a hammer. Gently pull the rear wheel up
to be sure the cap nut is securely attached to the
straight axle.
• Insert one of the tabs on a cover into a slot in the hubcap.
Push to snap the cover into place. Repeat this procedure to
attach the other cover to the other hubcap.
Hole
Straight Axle
2
BOTTOM VIEW
• Turn the frame upside down.
• Insert the straight axle through the holes in the rear of
the frame.
Hole
Pedal Hub
Pedal Axle
Slot
Ta b
Ta b
Pedal Hub
4
• Fit two pedal hubs onto the pedal axle tabs. Make sure the
tabs fit into the slot in each pedal hub.
3
Page 4
Pedal Hubs
Assembly
Pedal Axle
Front Wheel
Hole
5
• While holding the pedal hubs
on the pedal axle, insert the
pedal axle through the hole in the center of the front wheel.
• Push the pedal hubs into the center of the front wheel until
they are flush with the surface of the front wheel.
Pedal Hub
Pedal
Pedal Axle
Scrap Block of Wood
7
• Fit a pedal on the pedal axle. Tap the pedal with a hammer
until it is secure.
• Pull the pedal up to be sure it is secure. If you can remove
it, you have not secured it properly. Tap it with the
hammer again.
• Repeat this procedure to attach the other pedal to the other
end of the pedal axle.
Fork Arms
Pedal Hub
6
• Turn the front wheel
assembly over.
• Insert the remaining pedal
hubs on top of and below the pedal axle and into the hole
in the center of the front wheel.
• Push the pedal hubs into the center of the front wheel until
they are flush with the surface of the front wheel.
Fork Cover
Groove
8
• Place the front wheel assembly between the fork arms.
Make sure the pedal axle fits into the groove at the bottom
of each fork arm.
• Place a fork cover over the pedal axle on one fork arm.
• Insert two #8 x 3/4" screws into the fork cover and tighten.
• Repeat this procedure to attach the other fork cover to the
other fork arm.
Pedal Axle
4
Page 5
Assembly
FIRST, Insert the
screw so that
visible. THEN,
tighten the screw.
3
/4"
3
/4" is
Handlebar
Frame
Neck
Fork
Post
Fork Cover
Rear of Trike
9
• Insert the fork post up through the hole in the neck of the
frame. Make sure the fork is positioned so that the fork
covers face the rear wheels.
• Place the handlebar onto the fork post and push it down
onto the frame. Make sure the handlebar is positioned so
that the screw hole faces the rear wheels and aligns with
the screw hole in the fork post.
Hint: You may need to rotate the handlebar to align the holes.
• Insert the #8 x 3" screw through the hole in the handlebar
and into the fork post so that part of the screw (about 3/4") is
still visible. Tighten the screw.
Handlebar
Ta b
Basket
11
• Fit the basket on the tab on the front of the handlebar.
• Insert two #8 x 3/4" screws into the top of the basket
and tighten.
Seat Retainer
Seat
Cap
10
• Insert and “snap” the cap into the hole in the frame.
Peg
Holes
12
• Position the seat upside down.
• Fit the small pegs on the seat retainer into the holes in
the seat.
5
Page 6

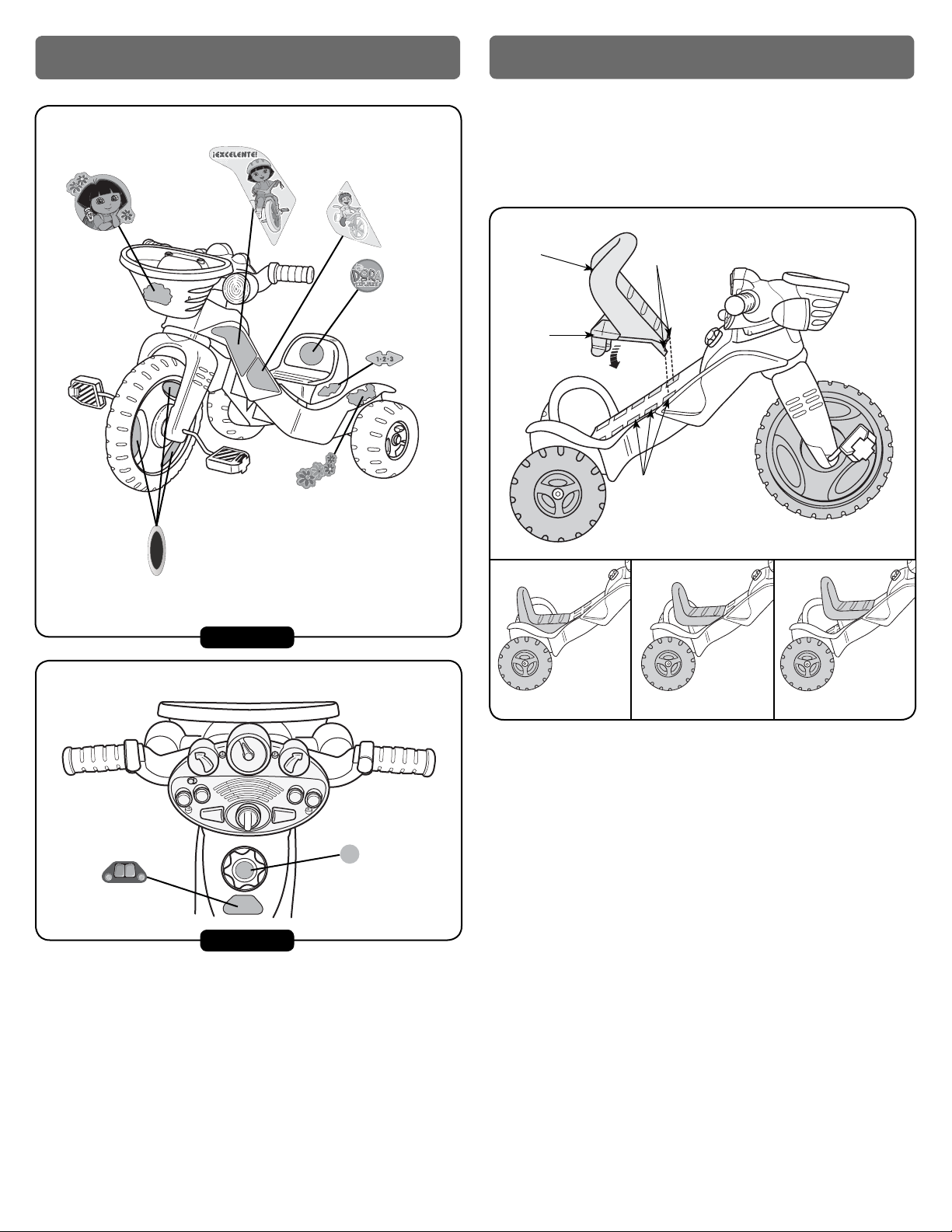

Label Decoration
Attaching the Seat
12
(Place label 4 on
opposite side)
3
10
(Place label 11
on opposite side)
(Place label 2 on
opposite side)
1
7
(Place label 6
on opposite side
of seat)
5
Helpful Hint: The seat can be attached to the frame in any
of three positions, depending on the size of your child. Check
your child’s fit on the trike by observing the seat to pedal
distance, as it is being ridden. If the pedals seem too far
away or too close for your child, move the seat up or down.
Seat
Seat
Retainer
Tabs
Slots
9
(Place remaining
label 9’s on
opposite side of
front wheel)
SIDE VIEW
8
13
DASH VIEW
Proper label application will help to keep the labels
looking their best!
• Wash your hands before applying the labels.
• Make sure the areas where the labels will be applied are
clean and dry. Wipe your vehicle with a clean, soft, dry cloth
to remove any dust or oils.
• For best results, avoid applying a label more than once.
• Apply the labels as shown in the illustration above.
• After applying the label, rub the label firmly with a cloth to
make sure the label is adhered to your vehicle.
Lower Position
Middle Position
Upper Position
• At an angle, insert the tabs on the seat into any of the top
three sets of slots for the lower, middle or upper position.
• Lower the seat so that the seat retainer inserts and snaps
into the slots in the frame.
• Pull up on the seat to be sure it is secure.
6
Page 7

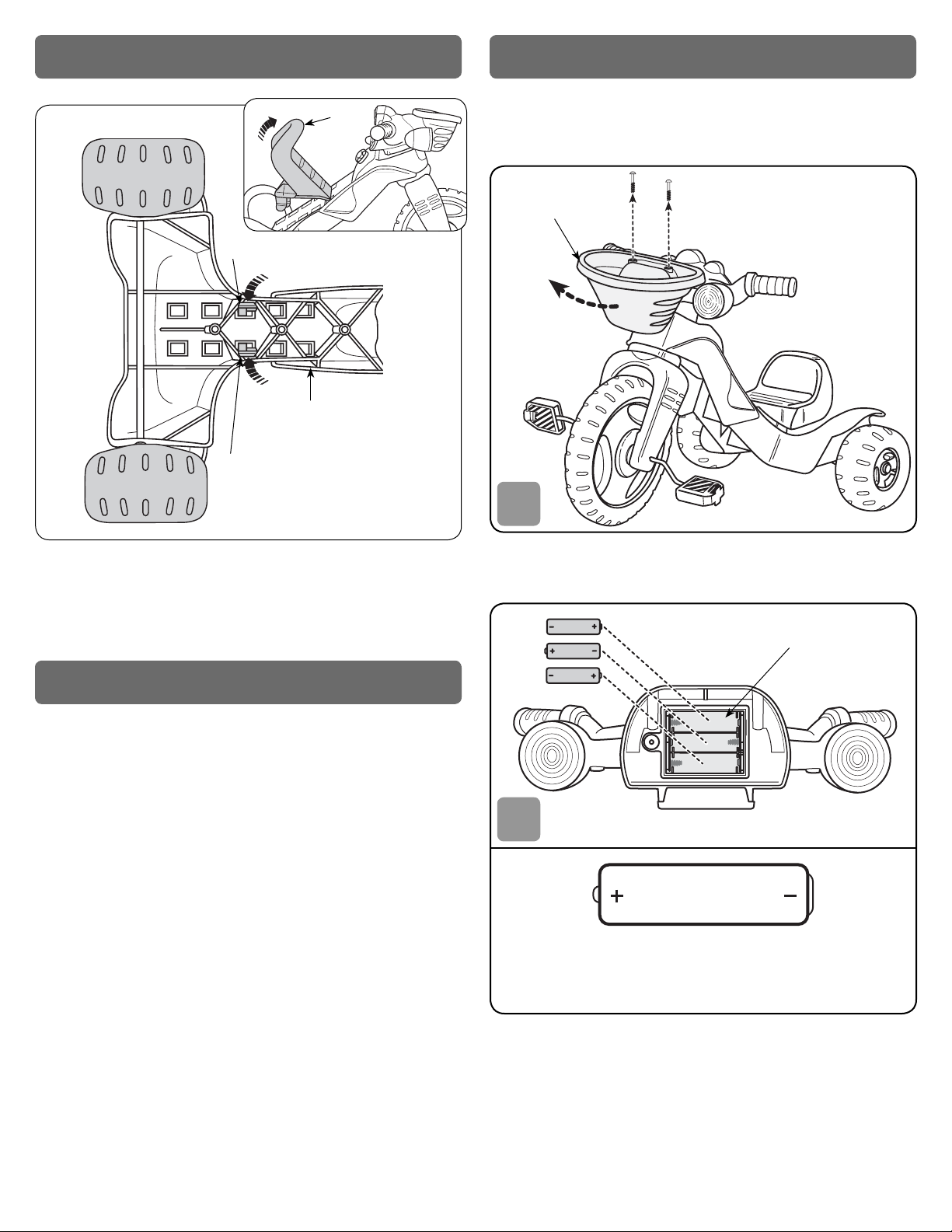

Removing the Seat
Battery Replacement
Seat
Seat Retainer Tab
Frame
Seat Retainer Tab
• Turn the frame on its side.
• Squeeze the seat retainer tabs toward one another and lift
the seat from the frame.
For best performance, we recommend replacing the batteries
that came with this trike with three, new alkaline "AA"
(LR6) batteries.
Basket
1
• Loosen and remove the two screws in the basket. Remove
the basket.
Battery Safety Information
In exceptional circumstances, batteries may leak fluids that
can cause a chemical burn injury or ruin your product. To
avoid battery leakage:
• Do not mix old and new batteries or batteries of different
types: alkaline, standard (carbon-zinc) or rechargeable
(nickel-cadmium).
• Insert batteries as indicated inside the battery
compartment.
• Remove batteries during long periods of non-use. Always
remove exhausted batteries from the product. Dispose of
batteries safely. Do not dispose of this product in a fire. The
batteries inside may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type
as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the product
before charging.
• If removeable, rechargeable batteries are used, they are
only to be charged under adult supervision.
Battery Compartment
2
1.5V x 3
“AA” (LR6)
SHOWN ACTUAL SIZE
Hint: When sound or lights become faint or stop, it's time
for an adult to replace the batteries. We recommend the
use of alkaline batteries for longer battery life.
• Loosen the screw in the battery compartment door. Open
the battery compartment door.
• Insert three "AA" (LR6) alkaline batteries.
• Close the battery compartment door and tighten the screw.
• Replace the basket. Replace the screws and tighten.
7
Page 8
Let's Go!
WARNING
To avoid serious injury:
• Adult supervision is required.
• Never use near cars and other motor vehicles,
near streets, steps, sloped driveways, hills,
roadways, alleys, swimming pools or other
bodies of water.
• Always wear shoes or sneakers.
• Never allow more than one rider.
Consumer Information
Left Turn
Signal
Powe r
Music
Horn
Weather
Report
Ignition
• Slide the power switch on .
• Turn the ignition, “VRROOOM!”
• Press the left or right turn signals for flashing blinkers.
• Press any of the buttons for fun sounds!
IMPORTANT! It is good practice to start training children very
young regarding the importance of helmet use. When children
are older and riding bicycles and faster vehicles, it is important that they use a helmet each and every time they ride.
For this reason, even while riding a tricycle, it is a good idea
to familiarize your child with helmet use, so that it becomes
a habit for life. Choose a helmet that complies with requirements of the applicable certifying agency for bicycle helmets.
Right Turn
Signal
Motorcycle
Sounds
Music
Horn
Fun Places
to Go!
• Check the plastic parts regularly and if broken or cracked,
dispose of them properly. Check all fasteners regularly to
be sure they are tight. If the fasteners are not tight, tighten
them as necessary.
• To clean, use a mild soap and water solution and a clean
cloth. Rinse clean with water to remove soap residue.
FCC Statement (United States Only)
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Consult the dealer or an experienced radio/TV technician
for help.
Note: Changes or modifications not expressly approved by
the manufacturer responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference and (2) this
device must accept any interference received, including interference that may cause undesired operation.
8
Loading...
