H7461, J1718

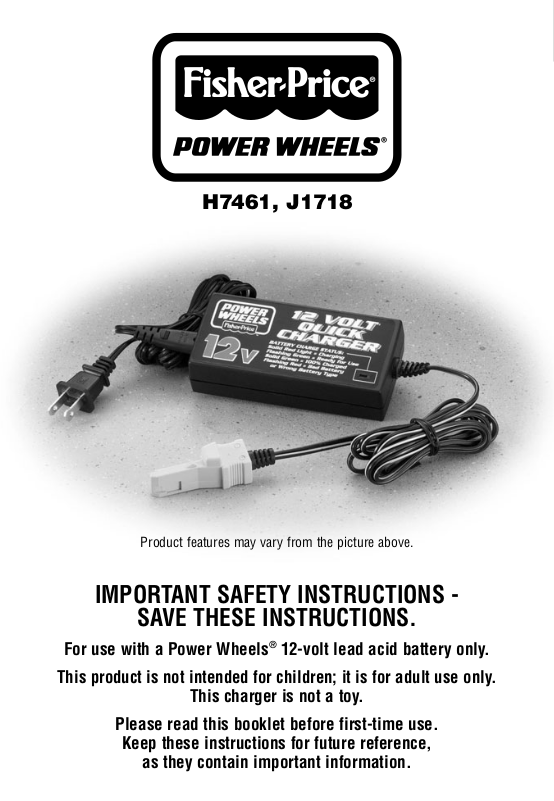

Product features may vary from the picture above.
IMPORTANT SAFETY INSTRUCTIONS
-
SAVE THESE INSTRUCTIONS.
For use with a Power Wheels® 12-volt lead acid battery only.
This product is not intended for children; it is for adult use only.
This charger is not a toy.
Please read this booklet before first-time use.
Keep these instructions for future reference,
as they contain important information.
IMPORTANT INFORMATION
DANGER
To reduce the risk of re or electric
shock, carefully follow these instructions.
To prevent electric shock, do not
immerse in water; wipe clean
with a damp cloth.
WARNING
Use of the wrong type battery or charger could
cause a re/explosion resulting in serious injury.
CAUTION
2
Use the charger in dry locations only.
IMPORTANT INFORMATION
• IMPORTANT! A battery can be severly damaged if it is not charged
after each use. For maximum battery life, charge batteries 100%
(solid green) every other charge.
• If your battery is new, charge the battery 100% (solid green).
• Do not charge the battery longer than 30 hours.
• Adults Note: Regularly examine the charger for damage to the cord,
plug, housing or other parts that may result in the risk of fire, electric
shock or injury. In the event of any damage, do not use the charger
until the damage has been properly repaired. Please call
1-800-348-0751.
• Before charging the battery, examine the battery case for cracks and
other damage which may cause sulfuric acid (electrolyte) to leak
during the charging process. If damage is detected, do not charge the
battery or use it in your vehicle. Battery acid is very corrosive and can
cause severe damage to the surfaces it contacts.
• Do not charge the battery on a surface (such as a kitchen counter top)
which could be damaged by the acid contained inside the battery. Take
precautions to protect the surface on which you charge the battery.
• Do not short circuit the battery.
• The battery must be upright while charging.
• Disconnect the charger before cleaning.
• Charger specifications are as follows:
Input 100-240 V AC 50/60Hz 50W
Output 12V DC 2.5A
3
IMPORTANT INFORMATION
WARNING
• PREVENT FIRE
- Use of the wrong type battery or charger
could cause a re or explosion resulting in
serious injury.
- Use of Power Wheels
products other than Power Wheels® vehicles
could cause overheating, re or explosion.
• The battery must be handled by adults only.
The battery is heavy and contains sulfuric
acid (electrolyte). Dropping the battery could
result in serious injury.
• Never allow children to charge the battery.
Battery charging must be done by adults only.
A child could be injured by the electricity
involved in charging the battery.
• Read the safety instructions on the battery.
• Examine the battery, charger and their
connectors for excessive wear or damage
each time you charge the battery. If damage
or excessive wear is detected, do not use the
charger or the battery until you have replaced
the worn or damaged part.
®
components in
4
CHARGING INSTRUCTIONS
Approximate
Status Charge
Solid Red Charging --
Flashing Green Ready for Use 2 hours
Solid Green 100% (Full)
Flashing Red No Charge
For maximum battery life, charge battery 100% (solid green) every
*
other charge.
Error - wrong or dead battery.
**
Time
6-8 hours
*
--
**
5
CUSTOMER SERVICE
www.powerwheels.com
If you have any questions about this product, please call our toll-free
service lines at 1-800-348-0751 from 9 AM to 7 PM (EST) Monday
through Friday, and 11 AM to 5 PM (EST) Saturday. You can also visit
us on-line at www.powerwheels.com.
For your convenience, Power Wheels
owned and operated Authorized Service Center Network with more
than 300 authorized service centers nationwide. The authorized service
centers will repair or replace parts under warranty at no extra charge,
and can perform non-warranty repairs for a minimal charge. To find the
authorized service center nearest to you, visit us on-line at
www.powerwheels.com or call 1-800-348-0751.
®
maintains an independently
Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A.
©2011 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.
PRINTED IN CHINA H7461c-0920
6

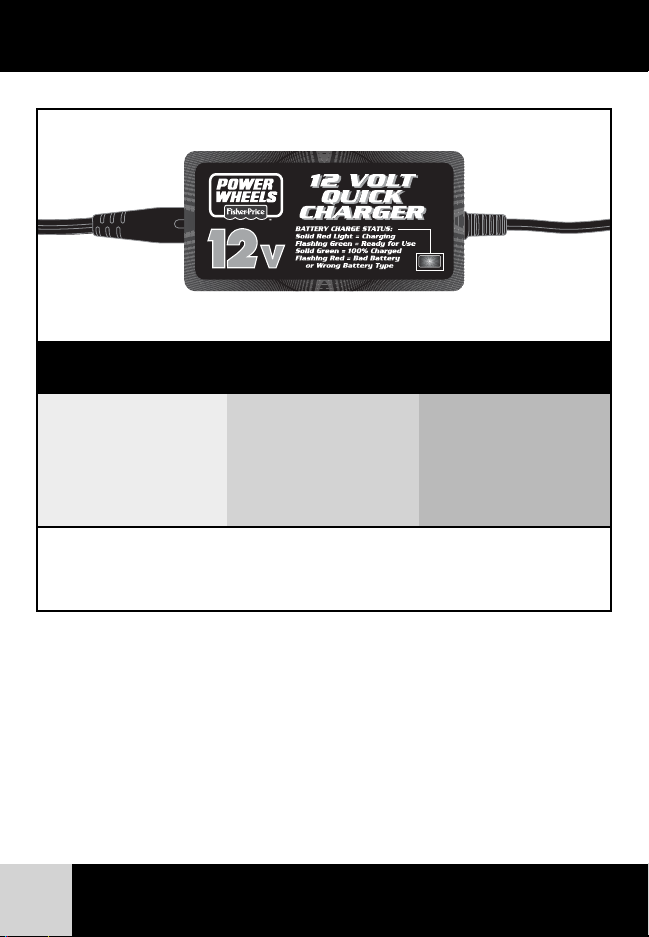

CHARGING INSTRUCTIONS
Charger
Power Cord
12 Volt Battery
Wall Outlet
Power Cord
Charger Connector
• Plug the power cord into the charger.
• Plug the charger connector into the 12-volt battery.
• Plug the power cord into a standard 120 volt wall outlet.
• To connect to a supply that is not in the United States, use an adapter
(not included and sold separately) with the proper configuration for the
power outlet.
Note: The charger may be hot to the touch while charging. New batteries
may make a “sizzling” or “bubbling” noise and swell slightly. These are
normal conditions and do not indicate a problem.
• Charge the battery 100% (solid green) or Ready for Use (flashing green).
For maximum battery life, charge battery 100% (solid green) every
other charge.
• Unplug the charger from the wall outlet when not in use.
7
PROBLEMS AND SOLUTIONS
Problem Possible Cause Solution
No status light No power Make sure power ow to the wall outlet
to charger is “ON”.
Loose connections Check connections of all plugs. Make
Bad charger There is no sure way to tell if your
Wrong battery This charger is intended for use only
Flashing red Loose connections Check connection of all plugs. Make sure
status light the charger connector is tightly plugged
Undercharged Battery needs a 100% (solid green)
battery charge every other use.
Battery dead Replace battery with a new,
Solid red Undercharged Charge battery 100% (solid green) or
status light battery Ready for Use ( ashing green).
sure the charger connector is tightly
plugged into the battery and the power
cord connector is tightly plugged into
both the charger and the wall outlet.
charger is working unless you have
a volt meter. If you suspect there is
a problem with your charger, contact
Power Wheels
with a Power Wheels
acid battery.
into the battery and the power cord
connector is tightly plugged into both the
charger and the wall outlet.
Power Wheels
®
Consumer Relations.
®
12-volt lead
®
12-volt lead acid battery.
8
PROBLEMS AND SOLUTIONS
Problem Possible Cause Solution
Battery is warm Normal while No action required.
while charging quick charging
Charger is hot Normal while No action required.
while charging quick charging
Short vehicle run Undercharged Charge battery 100% (solid green)
time or vehicle battery or Ready for Use ( ashing green).
runs sluggishly
Flashing green Battery dead In rare situations, a severely depleted
status light - (dead) battery will give a false, Ready
but vehicle does for Use ( ashing green) status.
not run Try charging the battery again for 6-8
Solid green Battery dead In rare situations, a severely depleted
status light - (dead) battery will give a false, 100%
but vehicle does (solid green) status. Try charging
not run the battery again for 6-8 hours. If your
Flashing green Battery may Unplug the charger from the battery and
status light does be dead wall outlet for at least 12 hours. Now,
not progress to charge the battery again for 6-8 hours.
a solid green If the status light ashes red, or you get
status light after the same results, replace the battery with
6-8 hours of a new, 12-volt lead acid battery.
charging and
vehicle does
not run
hours. If your vehicle still won’t run, you
will need to replace your battery with
a new, Power Wheels
lead acid battery.
vehicle still won’t run, you will need to
replace your battery with a new,
Power Wheels
®
12-volt
®
12-volt lead acid battery.
9
FCC STATEMENT
(United States Only)
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Note: Changes or modifications not expressly approved by the
manufacturer responsible for compliance could void the user's
authority to operate the equipment.
Operation is subject to the following two conditions: (1) this device
may not cause harmful interference and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
