Page 1
Activity Tunnel
H5703
Instructions
www.fisher-price.com
Please keep this instruction
sheet for future reference,
as it contains important
information.
Requires three “AA” (LR6)
alkaline batteries
(not included).
Adult assembly is required.
Tool required for assembly:
Phillips screwdriver
(not included).
™
Page 2
Assembly
Tunnel Top
Connector
Socket
• Locate the two legs with sockets in the top.
• Locate the two connector wires coming from the tunnel top.
• Insert and “snap” each connector into the matching socket,
as shown.
• Fully insert the two legs into the openings in the tunnel top.
• Turn the assembly around and insert two 2" screws through the
tunnel top and into each leg, as shown. Tighten the screws.
1
1
1
2
1
3
• Fully insert the other two legs into the openings in the tunnel top.
Hint: The legs will only fit one way.
1
4
Page 3
Assembly
• Insert two 3/8" screws into the holes in the end of each side rail.
Tighten the screws.
1
7
• Insert and “snap” each of the eight tabs on the mesh into the
matching slots in the legs to secure the mesh.
1
8
Ta b
1
5
• Fit the smaller end of one side rail into the hole in the tunnel.
• Push the side rail so that it slides through the fabric tube in the
tunnel and emerges at the other end.
• Repeat this procedure to insert the other side rail.
1
6
Side Rail
• Turn the assembly around again and insert two 2" screws
through the tunnel top and into each leg, as shown. Tighten
the screws.
Page 4
Battery Safety Information
Assembly
Battery Compartment Door
• Locate the battery compartment on the bottom of one leg.
• Loosen the screws in the battery compartment door with a
Phillips screwdriver. Remove the battery compartment door.
• Insert three “AA” (LR6) alkaline batteries, as indicated inside the
battery compartment.
Hint: We recommend using alkaline batteries for longer life.
• Replace the battery compartment door and tighten the screws
with a Phillips screwdriver. Do not over-tighten.
• When lights or sounds from this toy become faint or stop, it’s
time for an adult to change the batteries!
1.5V x 3
"AA" (LR6)
Battery Installation
Shown Actual Size
In exceptional circumstances batteries may leak fluids that can cause
a chemical burn injury or ruin your product. To avoid battery leakage:
• Do not mix old and new batteries or batteries of different types:
alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).
• Insert batteries as indicated inside the battery compartment.
• Remove batteries during long periods of non-use. Always remove
exhausted batteries from the product. Dispose of batteries safely.
Do not dispose of product in a fire. The batteries inside may explode
or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type, as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the product before charging.
• If removable, rechargeable batteries are used, they are only to be
charged under adult supervision.

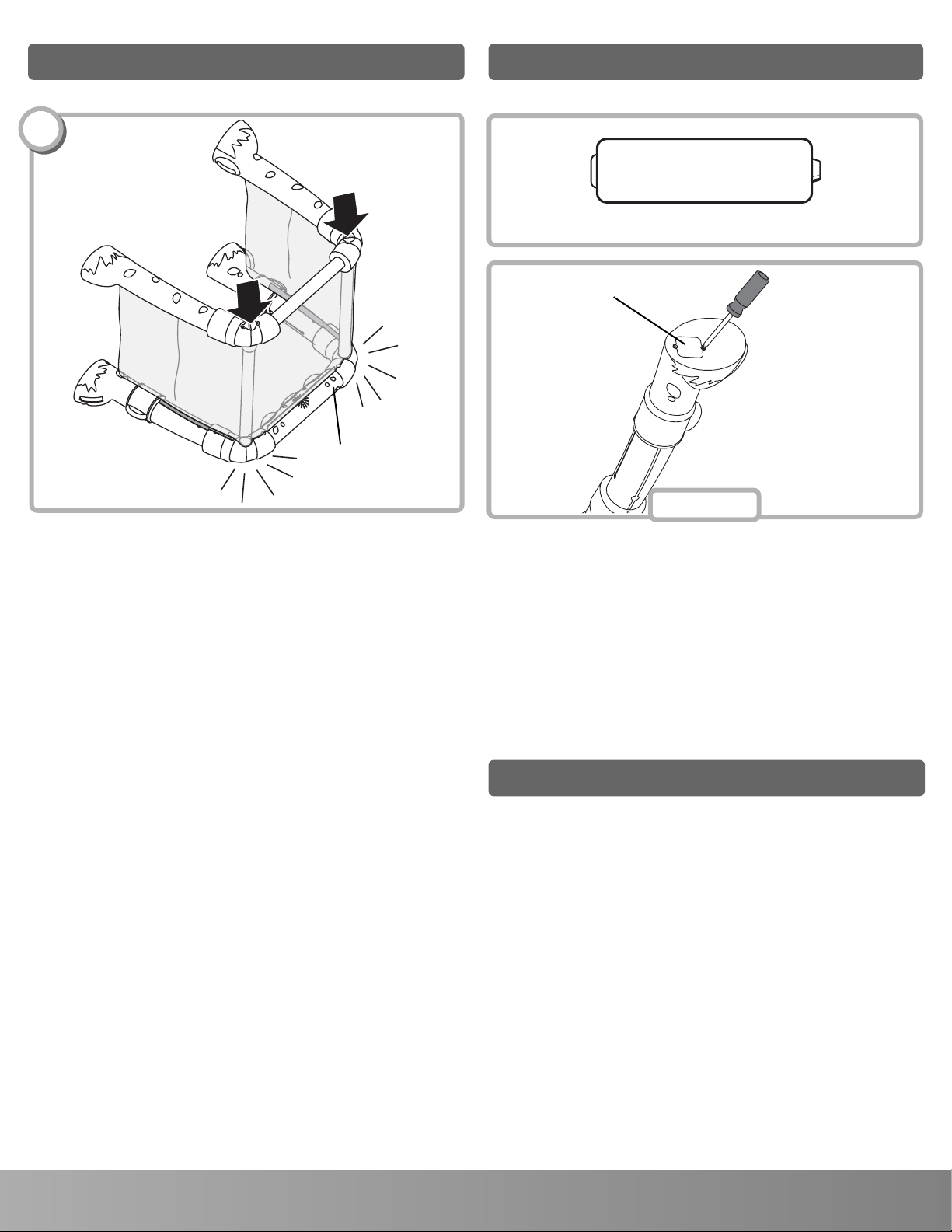

• Set the assembly on its side with the power/volume switch
side down.
• Press down firmly on the ends of the tunnel top to “snap” the
side rails in place.
Hint: This may require some force.
1
9
Bottom View
Power/Volume Switch
Page 5
Fun Music Lights and Activities!
• Locate the volume switch on the top of the toy.
• Slide the switch to the desired position: on with low volume ;
on with high volume ; or Off .
• A sensor in the tunnel also knows when baby crawls through and
activates dancing lights and lively music.
• Press the action button on the top of the tunnel for fun lights and music.
Note: After a few minutes of inactivity, the tunnel “goes to sleep.”
To “wake up” the tunnel, simply press the action button again.
Fit the three hanging toys into any of the
slots around the tunnel.
Hint: When baby is ready to crawl, move
the toys to the back of the tunnel to
encourage baby to crawl through!
Power/Volume
Switch
Action Button
Fisher-Price, Inc., a subsidiary of Mattel, Inc. East Aurora, New York 14052, U.S.A. PRINTED IN CHINA
©2005 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. H5703b-0920
Page 6
Parts
Consumer Information
This toy contains small parts
in its unassembled state.
Adult assembly is required.
#6 x 3/
8
"
Screw – 4
Care
• Wipe this toy with a clean cloth dampened with a mild soap
and water solution. Do not immerse this toy.
• This toy has no consumer serviceable parts. Do not take this
toy apart.
Visit us on-line at www.service.fisher-price.com.
Call Fisher-Price®Consumer Relations, toll-free at 1-800-432-5437,
8 AM - 6 PM EST Monday through Friday. Hearing-impaired
consumers using TTY/TDD equipment, please call 1-800-382-7470.
Or, visit us on line at www.service.fisher-price.com.
Or write to: Fisher-Price®Consumer Relations, 636 Girard Avenue,
East Aurora, New York 14052.
FCC Note (United States Only)
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Note: Changes or modifications not expressly approved by the
manufacturer responsible for compliance could void the user’s
authority to operate the equipment.
CAUTION
Not Shown: 3 Hanging Toys
Tunnel Top
#6 x 2"Screw – 4
Screws Shown Actual Size
Note: Tighten or loosen all screws with a Phillips screwdriver.
Do not over-tighten the screws.
2 Side Rails
4 Legs
For countries outside the United States:
CANADA
Questions? 1-800-432-5437. Mattel Canada Inc., 6155 Freemont Blvd., Mississauga,
Ontario L5R 3W2; www.service.mattel.com.
GREA
T BRITAIN
Mattel UK Ltd, Vanwall Business Park, Maidenhead SL6 4UB. Helpline: 01628 500303;
www.service.mattel.com/uk.
AUSTRALIA
Mattel Australia Pty. Ltd., 658 Church Street, Locked Bag #870, Richmond,Victoria 3121 Australia.
Consumer Advisory Service 1300 135 312.
NEW ZEALAND
16-18 William Pickering Drive, Albany 1331, Auckland.
ASIA
Mattel East Asia Ltd, Room 1106, South Tower, World Finance Centre, Harbour City,
Tsimshatsui, HK, China.
