Page 1

Owner's Manual

with Assembly Instructions

For Model C0532

Please read this manual and save it with your original sales receipt.

Tools needed for assembly:Phillips

Screwdriver and Adjustable Wrench

(tools not included).

Use only with a Power Wheels

12 Volt Lead-Acid Rechargeable

Battery and Power Wheels

12 Volt Charger with Type “12V”

Connector (included).

GT Racer

™

Kar

Kartt

www.powerwheels.com

Product features and decoration

may vary from the picture above.

Helmet not included.

™

Page 2

Important Information

A Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

B Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

C Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

D Parts Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

E Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

F Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

G Label Decoration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

H Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

I Battery Care and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

J Rules for Safe Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

K Ready...Set...Go! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

L Caring for Your Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

M Problems and Solutions Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

N Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

•Your new vehicle requires adult assembly. Please set

aside at least 60 minutes for assembly.

•You must charge your battery for 18 - 30 hours

before you use your vehicle for the first time. We recommend that you start charging your battery before beginning assembly. Please see Batter y Charging beginning on page 7 for detailed instructions.

• Read this manual carefully for impor tant safety

information and operating instructions before using your vehicle.Keep these instructions for future reference as they contain important information.

• This vehicle is designed for use on: concrete, asphalt

or other hard surfaces; on generally level terrain; by children 5 years of age and up who have mastered basic vehicle control skills.

•Make sure children know and follow these r ules for safe

driving and riding:

- always sit in the seat.

- always wear shoes.

- always wear a helmet.

-never ride at night.

- only one (1) rider at a time.

• Use this vehicle ONLY outdoors. Most interior floor-

ing can be damaged by riding this vehicle indoors. Fisher-Price

will not be responsible for damage to

the floor if the vehicle is used indoors.

• This vehicle is meant for outdoor use only, on private

property.It should not be used on streets, alleys or other public thoroughfares.

•Your child should not wear open toe shoes. Be sure your child keeps loose laces and pant legs away from the wheels.

•To prevent damaging the motors and gears, do not tow anything behind the vehicle or over load it. Do not exceed the maximum weight capacity of 120 lb.(54.4 kg).

• If you have any questions about your Power Wheels

vehicle, please call our toll-free service lines at 1-800-348-0751 from 8 AM to 6 PM (EST) Monday through Friday.Trained customer service representatives are available to take your call in English or French. Habla Español? Si usted tiene alguna pregunta ó necesita asistencia llame gratis 1-800-348-0755 para los Estados Unidos.Tenemos representantes que hablan español para atender su llamada.

•For your convenience, Power Wheels®maintains an independently owned and operated Authorized Service Center Network with more than 400 authorized service centers nationwide.The authorized service centers will repair or replace parts under warranty at no extra charge, and can perform non-warranty repairs for a minimal charge.To find the authorized service center nearest to you, visit us on-line at www.powerwheels.com or call 1-800-348-0751.

• If you would like to register your vehicle, please visit us on-line at www.powerwheels.com.

Table of Contents

Page 3

CA UTION

WARNING

•Batter y can fall out and injure a child if vehicle tips over. Always use batter y cover (clamp).

• PREVENT FIRE

- Never modify the electrical system.Alterations could cause a fire resulting in serious injury and could also ruin the electr ical system.

- Use of the wrong type battery or charger could cause a fire or explosion resulting in serious injury.

- Use of Power Wheels

components in products other than Power Wheels®vehicles

could cause overheating, fire or explosion.

• The battery must be handled by adults only.The battery is heavy and contains sulfuric acid (electrolyte). Dropping the battery could result in serious injury.

•Never allow children to charge the battery.Batter y charging must be done by adults only. A child could be injured by the electricity involved in charging the batter y.

•Never lift or carr y the batter y by the wires or connector.This can damage the battery and possibly cause a fire resulting in serious injury. Lift and carry the batter y by the case only.

• Read the safety instr uctions on the batter y.

• Examine the battery, charger and their connectors for excessive wear or damage each time you charge the battery. If damage or excessive wear is detected, do not use the charger or the battery until you have replaced the worn or damaged part.

• HOT motors. Handle carefully.

• In the unassembled state, this package contains small par ts. Adult assembly is required.

• Use the charger in dry locations only.

• Prevent Injuries and Deaths

• Direct Adult Supervision Required

• Keep Children Within Safe Riding Areas. These areas must be:

- away from swimming pools and other bodies of water to prevent drownings

- generally level to prevent tipovers

- away from steps, steep inclines, cars, roads and alleys.

RIDING HAZARD

ELECTRICAL HAZARD

Warnings and Cautions

Page 4

• If you experience a problem with this product, or are missing a par t, please call us at 1-800-348-0751, rather than return this product to the store.

• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.

• Metal parts have been coated with a lubricant to protect them during shipment.Wipe all metal parts with a paper towel to remove any excess lubricant.

Frame

Steering Wheel

Stopwatch

Pretend Motor

Battery Cover (Clamp)

Cowling

Steering T ube

Seat

Steering Linkage

Steering Column

Parts

Page 5

/4" Washer - 2

Parts not shown: Label Sheet, Hot Wheels

Racing Guide, Collapsible Pylons, Stencil, and Chalk.

Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten the screws.

All Fasteners Shown Actual Size

#8-32 x 7/8" Screw - 1

#8 x3/4" Screw - 35

.375" Washer - 1

(Attached to Steering Linkage)

/16" Washer - 2

/4 - 20 x 3" Screw - 2

/4"- 20 Lock Nut - 2

/8" - 16 Lock Nut - 2

#8 x 32 Lock Nut - 1

PbP

Wing

2 Flaps

(Left and Right)

12 V olt Battery

12 V olt Charger

4 Caps

Rear Bumper

2 Struts

(Left and Right)

Parts

For your convenience, we’ve included extra fasteners!

Page 6

1Frame 1 2Steering Linkage 1 3 Rear Bumper 1 4Steering Column 1 5Cowling 1 6Steering Tube 1 7Steering Wheel 1 8 Stopwatch 1 9 Batter y Cover (Clamp) 1

No. Part Quantity Parts Not Shown

10 Pretend Motor 1 11 Seat 1 12 Wing 1 13 Flap (Left and Right) 2 14 Strut (Left and Right) 2 15 Cap 4 16 12 V olt Charger 1 17 12 V olt Battery 1

/4"- 20 x 3" Screw 2

/4" Washer 2

/16" Washer 2

/4"- 20 Lock Nut 2

/8"- 16 Lock Nut 2 #8 x3/4" Screw 35 #8 - 32 x

/8" Screw 1 #8 - 32 Lock Nut 1 .375" Washer 1

Label Sheet 1 Hot Wheels

Racing Guide 1 Collapsible Pylons 7 Stencil 2 Chalk 2

Parts Diagram

No. Part Quantity

Page 7

CA UTION

Use the charger in dry locations only.

WARNING

About Thermal Fuses

Your Power Wheels®12 volt battery is equipped with a built-in thermal fuse. The thermal fuse is a self-resetting safety device which automatically “trips” and shuts down operation of the vehicle if the vehicle is overloaded or the driving conditions too severe.Once a fuse has “tripped”, it will automatically reset itself after approximately 25 seconds and allow the vehicle to resume normal operations.To avoid repeated automatic shutdowns, do not overload the vehicle by exceeding the 120 lb. (54.4 kg). maximum weight capacity or by towing anything behind the vehicle.Avoid severe driving conditions, such as driving up very steep slopes or running into fixed objects, which can cause the wheels to stop spinning while power is still being supplied to the motors.

If a thermal fuse in a battery continually trips under normal driving conditions, please contact your local Power Wheels®Authorized Service Center.For the location of the Authorized Service Center nearest to you, please visit us on-line at www.powerwheels.com or call 1-800-348-0751.

Important Notes

•Your new battery must be charged for at least 18 hours before you use it in your vehicle for the first time.

•You do not need to remove the battery from your vehicle to recharge it.

• The battery must be upright while charging.

• The charger is not a toy.

• Do not short circuit the battery.

•We recommend that you start charging your battery before beginning assembly of your new vehicle.

• Before charging the batter y, examine the battery case for cracks and other damage which may cause sulfuric acid (electrolyte) to leak during the charging process. If damage is detected, do not charge the battery or use it in your vehicle.Battery acid is very corrosive and can cause severe damage to surfaces it contacts.

• Do not charge the battery on a surface which could be damaged by the acid contained inside the battery. Take precautions to protect the surface on which you charge your battery.

• Use only a Power Wheels®12 volt charger with type 12V connector (120 VAC 60 Hz 28W with an output of 12 VDC 1200mA) to charge your Power Wheels

rechargeable 12 volt batter y.

• If your battery is old and will not accept a charge, do not leave it in the vehicle. Always remove a dead battery from the vehicle.

•Batter y can fall out and injure a child if vehicle tips over. Always use battery cover (clamp).

• PREVENT FIRE

- Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also r uin the electrical system.

- Use of the wrong type battery or charger could cause a fire or explosion resulting in serious injury.

- Use of Power Wheels

components in

products other than Power Wheels

vehicles could cause overheating, fire or explosion.

• The battery must be handled by adults only.The batter y is heavy and contains sulfuric acid (electrolyte). Dropping the battery could result in serious injur y.

•Never allow children to charge the battery. Battery charging must be done by adults only. A child could be injured by the electricity involved in charging the battery.

•Never lift or carr y the batter y by the wires or connector.This can damage the battery and possibly cause a fire resulting in serious injury.Lift and carr y the batter y by the case only.

• Read the safety instr uctions on the battery.

ELECTRICAL HAZARD

Battery Charging

Page 8

WARNING

Children can be harmed by small parts, sharp edges and shar p points in the vehicle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.

• Plug the charger connector into the battery .

• Plug the charger into a standard wall outlet . Note: If power flow to the wall outlet is controlled by a

switch, make sure the switch is “ON”.

• Before first-time use, charge the battery for at least 18

hours. Never charge the battery longer than 30 hours.

•Recharge the battery for at least 14 hours after each

use of your vehicle.Do not charge the battery longer than 30 hours.

•Once the battery is charged, pull firmly on the charger

connector to disconnect it from the battery. Unplug the charger from the wall outlet.The battery is now ready to be installed in your vehicle.Please see the Battery Installation section on page 16 for detailed instructions on installing your battery. If your battery is already installed in your vehicle, simply re-connect the motor harness connector to the battery and replace the battery cover (clamp).

Battery

Charger Connector

•Fit the steering column to the cowling.

Steering Column

Cowling

• Insert four #8 x3/4" screws into the pegs in the steering column, as shown.Tighten the screws.

Battery Charging Assembly

Page 9

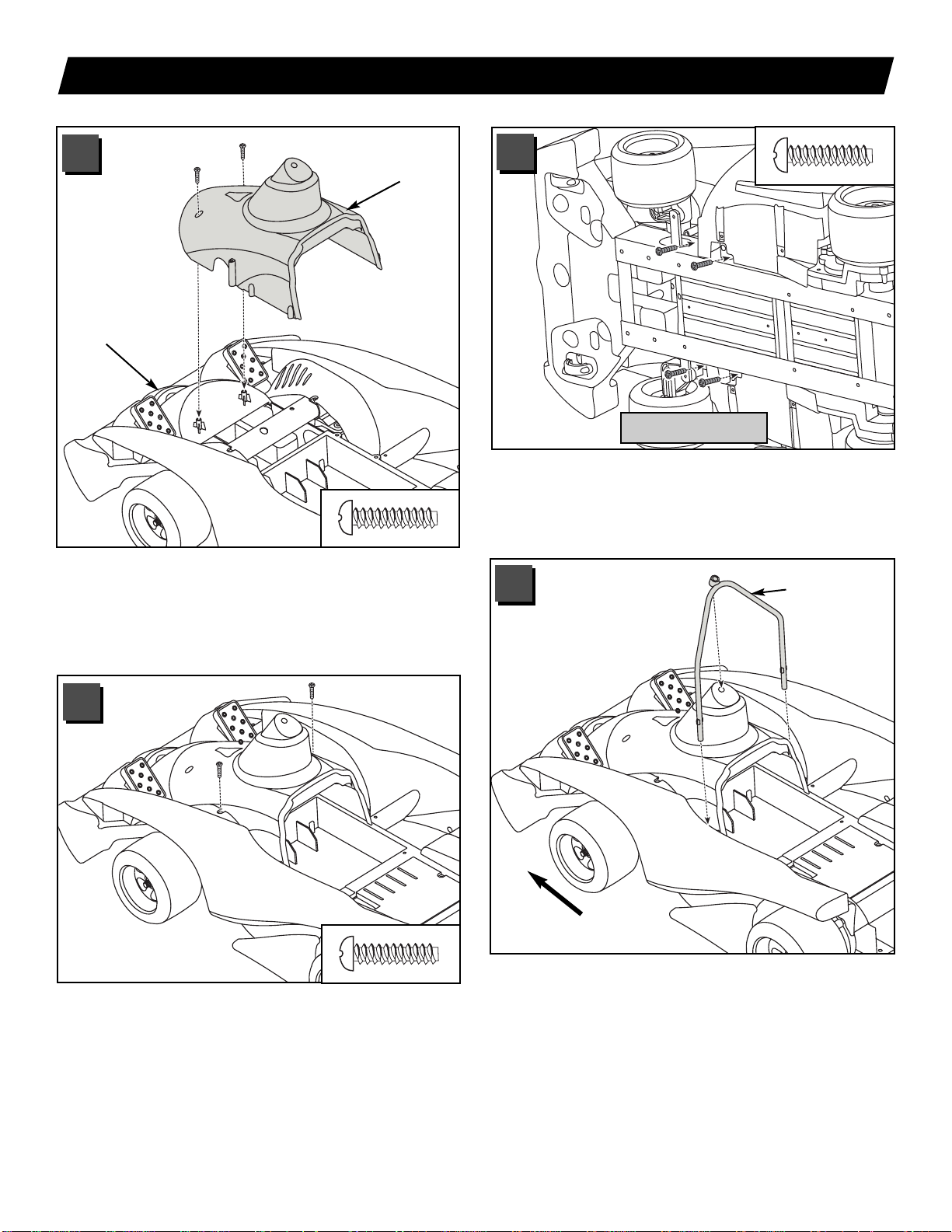

• Fit the cowling assembly into the front end of the frame.

Hint: Squeeze the cowling assembly slightly (on each side) to fit it inside the frame.

• Insert two #8 x3/4" screws into the front holes in the cowling.Tighten the screws.

•Turn the frame on its side.

• Insert four #8 x3/4" screws into the holes in the bottom of the frame and into the cowling assembly.Tighten the screws.

•Turn the frame upright.

•Position the steering tube so that the curve faces the front end of the frame.

• Fit the ends of of the steering tube into the holes in the frame on either side of the cowling.

Bottom View

Frame

Steering T ube Curve Faces Front End of Frame

Cowling

Assembly

Front of

Frame

• Insert two #8 x3/4" screws into the frame, as shown. Tighten the screws.

Assembly

Page 10

•Wipe the steering linkage with a paper towel to remove any excess lubricant.

•Remove and discard the tape that is holding the .375" washer on the steering linkage. Do not remove

the washer.

• Insert the straight end of the steering linkage up through the hole in the bottom of the frame, through the hole in the steering column and out the hole in the steering tube.

•Fit the curved end of the steering linkage through the hole in the steering rod.

Side View

Bottom View

•Turn the frame upright.

•Position the steering wheel so that the closed end faces the rear of the frame. Fit the steering wheel onto the steering linkage.

•Insert a #8-32 x 7/8" screw into the front hole in the steering wheel neck.

•Next, fit a #8-32 lock nut onto the end of the screw in the rear hole in the steering wheel neck. Make sure the lock nut rounded side is facing out.

• While holding the lock nut in place with an adjustable wrench, tighten the screw with a Phillips screwdriver.

•Turn the frame on its side.

• Tighten the

/8" - 16 lock nuts on each end of the steering

tube with an adjustable wrench.

Remove

and

Discard

Tape

Steering

Linkage

Completely

Tighten These

Lock Nuts

Hole in

Steering

Rod

Bottom View

•Turn the frame on it’s side. Fit a 3/8" - 16 lock nut onto each end of the steering tube. Make sure the rounded side is facing out.

• Hand-tighten the lock nuts.

Hint: You will fully-tighten these lock nuts in step 10.

Hand-tighten

Steering Wheel Closed End Faces Rear of Frame

Assembly

Steering Linkage

Page 11

•While holding the rear bumper in place, turn the frame on its side.

• Insert two 1/4" - 20 x 3" screw through the bottom of the frame and out through the top of the rear bumper.

•From the top side of the frame, attach a 1/4" washer and

/4" - 20 lock nut to each screw.

• While holding the 3" screws steady with a Phillips screwdriver, tighten the lock nuts with an adjustable wrench.

•Fit the rear bumper onto the rear end of the frame.

Bottom View

Top View

•Turn the frame upright.

• Fit the pretend motor to the top side of the rear bumper.

• Insert three #8 x 3/4" into the pretend motor and tighten.

Do not over-tighten these screws.

Rear

Bumper

Pretend

Motor

Assembly

Page 12

Hint: There is a left and right strut. Locate the L on the left strut and an R on the right strut.

•Position the left strut so that the L is facing inward.

• At an angle, fit the left strut between the retainers on the wing.

Hint:There is a left and right flap. Locate the L on the left flap and an R on the right flap.

•Turn the wing upside down. Fit the flaps to the sides of the wing.

• Insert two #8 x 3/4" screws into the inside edge of the wing and each flap.Tighten the screws.

• Fit a cap over each retainer.

• Insert a #8 x 3/4" screw through each cap and tighten.

• Repeat steps 16 and 17 to assemble the right strut and remaining caps to the wing.

• Fit the wing struts to the back of the seat.

• Insert four #8 x

/4" screws through the seat and into

each strut.Tighten the screws.

Wing

Cap

Left Strut

Seat

Struts

Retainers

Left Flap

Right Flap

Assembly

Page 13

• Fit the seat assembly into the frame.

• Insert six #8 x 3/4" screws through the seat and into frame, as shown.Tighten the screws

Seat

Assembly

• Slide a 3/16" washer onto two #8 x 3/4" screws.

• Insert the #8 x 3/4" screws with washers through the seat and into the wing.Tighten the screws.

Hint: The wing is designed to be adjustable. Please refer to the Hot Wheels™Racing Guide for information on how to adjust the wing.

Page 14

Assembly

• Slide the stopwatch into the groove in the steering wheel.

Hint: Please refer to the Hot Wheels™Racing Guide for information on how to use the stopwatch.

Stopwatch

Hint: The stopwatch comes with an alkaline button cell battery. Use the following instructions only to replace the button cell battery.

• Loosen the screws in the stopwatch batter y compartment door.

•Remove the battery compartment door and the worn LR44 button cell battery. Throw the worn batter y away.

• Insert a new, alkaline LR44 button cell battery into the battery compar tment.

Hint: We recommend the use of an alkaline battery for longer battery life.

• Replace the battery compartment door and tighten the screws.

Battery Safety Information

Batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage:

• Do not mix old and new batteries or batteries of different types: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).

• Insert batteries as indicated inside the battery compartment.

•Remove batteries during long periods of non-use. Always remove exhausted batteries from the product. Dispose of batteries safely. Do not dispose of batteries in a fire.The batteries may explode or leak.

•Never short-circuit the batter y ter minals.

• Use only batteries of the same or equivalent type as recommended.

• Do not charge non-rechargeable batteries.

•Remove rechargeable batteries from the product before charging.

• If removable, rechargeable batteries are used, they are only to be charged under adult supervision.

Shown Actual Size

Battery

Compartment

Door

Page 15

Right Front View

Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind:

•Wash your hands before applying the labels.

• Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils.

• Place the labels exactly as shown in the illustrations.

•For best results, avoid repositioning a label once it has been applied to the vehicle.

• After applying a label, rub the label firmly with a clean, dry cloth to make sure the label is adhered to your vehicle. Start at the center of a label, and smooth towards the outer edges to remove air bubbles.

Left Front View

Label Decoration

Page 16

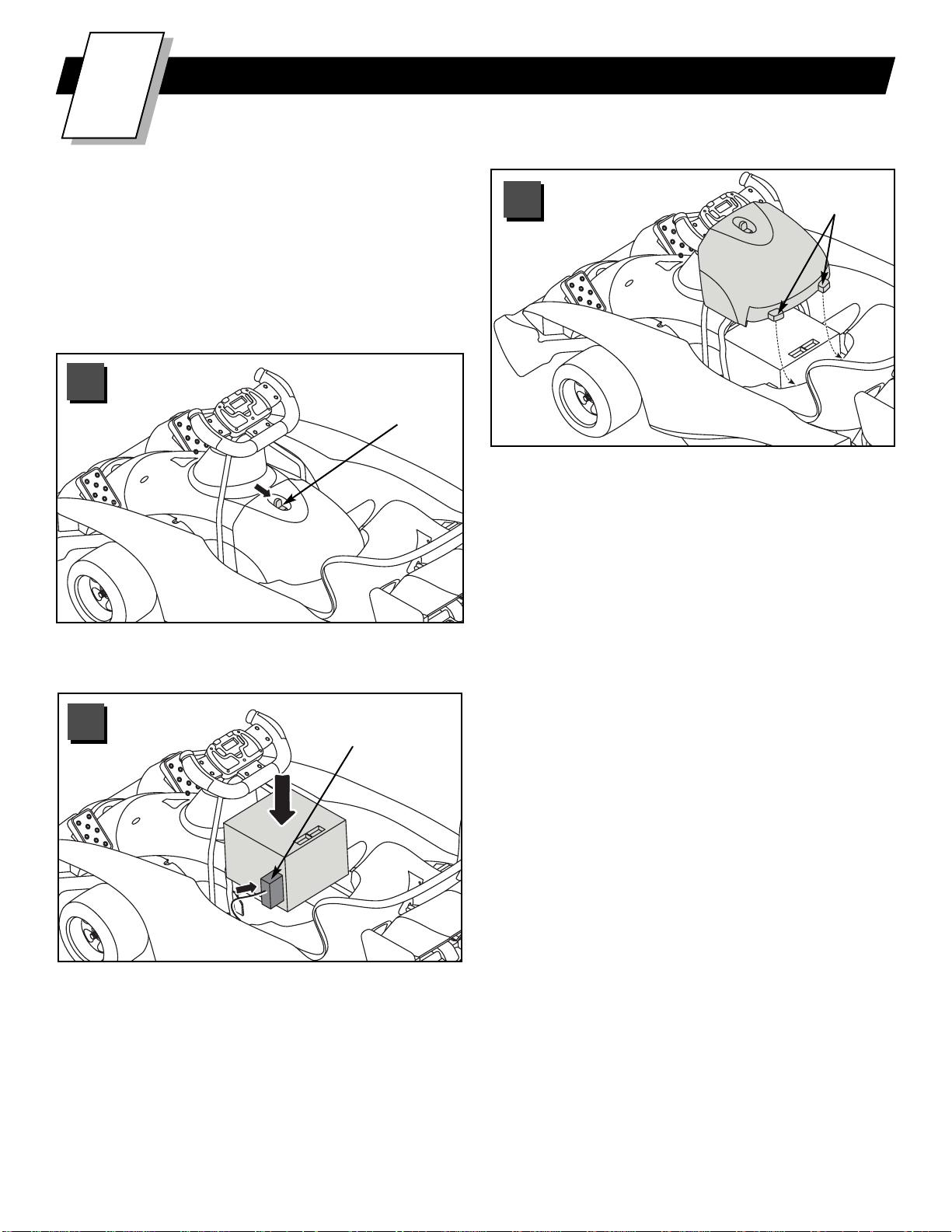

IMPORTANT! Use only a Power Wheels®12 volt battery. Use of any other battery will damage your vehicle.Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels®12 volt charger before operating your vehicle for the first time. Charge the battery for at least 14 hours after each use of the vehicle. Never charge the battery longer than 30 hours. Failure to follow these instructions may damage your battery and will void your warranty.It is easier to install the battery before assembling the hood to your vehicle.

•Plug the motor harness connector into the 12 volt battery. Push firmly to make sure the connector is

inserted properly.

•Fit the battery into the battery compartment, as shown.

• Fit the tabs on the battery cover (clamp) into the slots under the seat.

•Lower the battery cover (clamp) and “snap” into place.

• While pressing the release button on the battery cover (clamp), lift to remove the the battery cover (clamp).

Battery Installation

Battery Cover

(Clamp) Release

Button

Tabs

Motor

Harness

Page 17

If a battery leak develops, avoid contact with the leaking

acid and place the damaged battery in a plastic bag. Please refer to the information on this page for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician. If acid is internally ingested, give water, milk of magnesia or egg whites immediately. Never give emetics or induce vomiting.Call a physician.

• Charge a new battery for at least 18 hours before first

use. Never charge the battery longer than 30 hours. Overcharging or undercharging the battery may shorten battery life and decrease vehicle running time.

•After the first charge, recharge the battery for at least

14 hours after each use. Never charge the battery longer than 30 hours. Charge the battery after each use, regardless of how long the vehicle was used.

• The battery must be upr ight while charging.

• Do not allow the battery to run down completely

before charging.

• Charge the battery before storing the vehicle.

• Charge the battery at least once per month, even if the

vehicle has not been used.

• Leaving the battery in a discharged condition will

ruin it.

• If the vehicle will be stored for more than two months, be

sure to disconnect the motorharness from the battery.

• Do not store the battery in temperatures above 75° F

or below -10° F.

• Use only a Power Wheels®12 volt battery. Remember

to charge the new battery at least 18 hours before first time use.

• Prevent the battery from moving freely inside the battery

compartment. Always use the batter y clamp to secure the battery in the battery compartment.

• Examine the battery, charger and its connector for

excessive wear or damage each time you charge the battery. If damage is detected, do not use the charger or the battery until you have replaced the worn or damaged part.

• Always remove an exhausted batter y from the vehicle.

Battery leakage and corrosion can damage the vehicle.

•Your Power Wheels®battery is a sealed lead-acid battery. It must be recycled or disposed of in an environmentally sound manner.

• Do not dispose of a lead-acid batter y in your regular, household trash.The incineration, landfilling or mixing of sealed lead-acid batteries with household trash is prohibited by law in most areas.

• Do not dispose of a lead-acid batter y in a fire. The batter y may explode or leak.

• Return exhausted batteries to a federal or state approved lead-acid battery recycler, such as a Power Wheels®authorized service center, or a local seller of automotive batteries. For the service center location nearest you, please call 1-800-348-0751. Contact your local waste management officials for other infor mation regarding the environmentally sound collection, recycling and disposal of lead-acid batteries. If you live in the State of Florida or Minnesota, it is prohibited by law for anyone to throw away lead-acid batteries in the municipal waste stream.

Care

Disposal

Battery Care and Disposal

Page 18

Teach Safety Rules to Children

While children can quickly develop the skill necessar y to drive this vehicle, it is important to remember that their judgment skills are still very immature. Unsuper vised driving by children can lead to serious injury.Before children use this vehicle, an adult should carefully evaluate the driving area as well as the children’s skill level and ability to drive this vehicle safely. Children are not always able to recognize or anticipate hazards, even when they have been taught about them.THERE IS NO

ACCEPTABLE SUBSTITUTE FOR DIRECT ADULT SUPERVISION.

Teach appropriate safety rules to your child before allowing operation of this vehicle.These r ules should also be reviewed with neighborhood children or other playmates who want to drive this vehicle.

Riding Rules

Make sure children know and follow these r ules for safe driving:

1. Always sit on the seat.

2. Always wear shoes.

3. Always wear a helmet.

4. Never ride at night.

5. Only 1 (one) rider at a time. A child who is not sitting on

the seat or who is standing on the vehicle could fall off, cause a tip-over or block the dr iver’s view. A child could be seriously injured.

6. Do not allow any child to drive the vehicle in the street or near moving (motorized) vehicles.

7. Do not allow any child to drive near bodies of water (such as pools or creeks), obstructions (such as furniture, low tree limbs or play equipment), or drop-offs (such as stairs or decks).

8. Do not allow any child to drive the vehicle in the dark. A child could encounter unexpected obstacles and have an accident.Operate the vehicle only in the daytime or a well-lit area.

9. Do not allow your child to drive on steep inclines. Restrict your child’s driving to generally level ground ONLY!

10. Do not allow your child to drive down or across a steep slope.

- The vehicle may gain unsafe speed, even if the brake

pedal is pressed or the go pedal is released to stop.

- The vehicle may tilt and tip over.

- The wheels could lose traction, causing the vehicle

to slip.

11. Do not allow your child to drive up steep inclines.The motor may stop and the vehicle could roll backwards at an unsafe speed.

12. Use this vehicle only outdoors on private property. Do not use in streets, alleys or other public thoroughfares.

13. Never put anything near any moving par ts. Rotating parts such as motors, gear boxes and wheels can snag fingers, hair, etc., causing serious injury. Do not allow operation of the vehicle when it is on its side or in an upside-down position.

14. Do not operate the vehicle near flammable vapors (gasoline, paint thinner, acetone, liquid wax, etc.). The vehicle’s electr ical switches, like most electrical switches, emit an internal spark when first turned on or turned off.The presence of flammable liquids or vapors could cause an explosion or a fire.Keep all flammable products in tightly sealed containers and away from the vehicle.

15. Do not allow a child to operate the vehicle without direct adult supervision. To prevent unsupervised use of the vehicle, disconnect the motor harness from the battery when the vehicle is not in use.

To disconnect the motor harness connector and battery:

•Remove the battery cover (clamp).

• Unplug the motor harness connector from the battery.

• Replace the battery cover (clamp).

WARNING

Prevent Injuries and Deaths

• Direct Adult Supervision Required.

•Keep Children Within Safe Riding Areas These areas must be:

- away from swimming pools and other bodies of water to prevent drownings.

- generally level to prevent tipovers.

- away from steps, steep inclines, cars, roads and alleys.

RIDING HAZARD

Rules for Safe Driving

Page 19

• Press the right foot pedal to go! The vehicle moves up to 7 mph (depending on the rider’s weight)!

• Press the left foot pedal to stop.The vehicle will also stop when the right pedal is released.

• Help your child practice steering to learn how far and how quickly to turn the steering wheel when driving forward.

Hint: Please refer to the Hot Wheels™Racing Guide for racing tips and information on how to set-up a course!

• Check all screws, cap nuts and protective coverings regularly and tighten as required. Check plastic par ts on a regular basis for cracks or broken pieces.

• During snowy or rainy weather, the vehicle should be stored inside or under a protective cover. Remember to charge the battery at least once per month while your vehicle is not in regular use.

•Do not operate the vehicle in wet or snowy conditions. Never immerse any part of the product. Water or moisture in the motors or electrical switches can cause them to corrode and could cause switch or motor failure.

•Avoid operating the vehicle on sand, loose dirt or gravel. Sand, loose dirt or gravel in the motors or electrical switches can cause them to jam and could cause switch or motor failure.

• The vehicle can be wiped down with a soft, dry cloth. For a shiny finish, you can wipe plastic parts with a non-wax furniture polish applied to a soft-cloth. Do not use automotive wax.Do not use soap and water or spray the vehicle with a hose.

•To ensure that your vehicle stays in good operating order, we recommend that you periodically have your vehicle checked by a Power Wheels

authorized service center. For the location of the authorized service center nearest to you, visit us on-line at www.powerwheels.com.

Ready...Set...Go!

Caring

For Your Vehicle

Stop! Go!

Page 20

IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions

Guide below. If you still experience a problem, please contact Power Wheels®Consumer Relations, toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your local Power Wheels®authorized service center. For the location nearest you, please visit us on-line at www.powerwheels.com.

Problem Possible Cause Solution

Vehicle does not run Undercharged battery Charge the battery. A new battery should have been charged

for at least 18 hours before using the vehicle for the first time. After first-time use, recharge the battery for at least 14 hours after each use. Never charge the battery longer than 30 hours.

Check all connectors. Make sure the charger connector is plugged into the battery, and that the charger is plugged into the wall.

Make sure power flow to the wall outlet is “ON”.

Charger is not working There is no sure way to tell if your charger is working unless

you have a volt meter. If you suspect there is a problem with your charger, contact your local Power Wheels®authorized service center. They can test your charger for you.

Tripped thermal fuse Each Power Wheels®12 volt battery has a built-in thermal

fuse. A thermal fuse may “trip” and shut down operation of the vehicle if the vehicle is overloaded or the driving conditions too severe. The fuse will automatically reset itself after approximately 25 seconds, allowing the vehicle to resume normal operation. To avoid repeated automatic shutdowns, do not overload the vehicle by exceeding the 120 lb. maximum weight capacity or by towing anything behind the vehicle. Do not drive up hills or run into fixed objects, which can cause the wheels to stop spinning while power is still being supplied to the motors. If a thermal fuse continually trips, contact your local Power Wheels®authorized service center.

Loose wire or loose connectors Check all wires and connectors. Make sure the motor harness

connector is plugged into the battery, and that there are no loose wires around the motors.

Dead battery If your battery is old or if you have not followed Battery

Care instructions, your battery may be dead. If you are unsure whether or not the battery is dead, you can have it tested at your local Power Wheels®authorized service center.

Electrical switch damage The electrical switches can become corroded due to

exposure to water or moisture, or can jam due to loose dirt, sand or gravel. Contact your local Power Wheels®authorized service center for diagnosis and repair.

Motor damage Contact your local Power Wheels®authorized service center

for diagnosis and repair.

Vehicle was running but Loose wire or loose connectors Check all wires and connectors. Make sure the motor suddenly stopped harness connector is plugged into the battery, and that there

are no loose wires around the motors.

Tripped thermal fuse Each Power Wheels®12 volt battery has a built-in thermal

authorized service center.

Problems and Solutions Guide

Page 21

Short run time (Less than Undercharged battery Charge the battery. A new battery should have been 1 - 3 hours per charge) charged for at least 18 hours before using the vehicle for

the first time. After first-time use, recharge the battery for at least 14 hours after each use. Never charge the battery longer than 30 hours.

Check all wires and connectors. Make sure the charger connector is plugged into the battery, and that the charger is plugged into the wall.

Make sure power flow to the wall outlet is “ON”.

Overcharged battery Do not charge the battery longer than 30 hours. If you

suspect that your battery is damaged as a result of overcharging, contact your local Power Wheels®authorized service center. They can test your battery for you.

Battery is old and will not Even with proper care, a rechargeable battery does not accept full charge last forever. Average battery life is 1 to 3 years depending

on vehicle use and use conditions. Replace the battery with a new Power Wheels®12 volt rechargeable battery. Do not substitute parts.

Tripped thermal fuse Each Power Wheels®12 volt battery has a built-in thermal

authorized service center.

Vehicle runs sluggishly Undercharged battery Charge the battery. A new battery should have been

charged for at least 18 hours before using the vehicle for the first time. After first-time use, recharge the battery for at least 14 hours after each use. Never charge the battery longer than 30 hours.

Check all connectors. Make sure the charger connector is plugged into the battery, and that the charger is plugged into the wall.

Make sure power flow to the wall outlet is “ON”.

Battery needs charging Be sure to charge the battery after each use.

Battery is old and will not accept Even with proper care, a rechargeable battery does not last full charge forever. Average battery life is 1 to 3 years depending on

the vehicle use and use conditions. Replace the battery with a new Power Wheels®12 volt rechargable battery. Do not substitute parts.

Vehicle is overloaded Make sure you do not overload the vehicle by allowing

more than one rider at one time, by exceeding the 120 lb. maximum weight capacity, or by towing objects behind the vehicle.

Driving conditions are too stressful Use only on generally level ground.

Problem Possible Cause Solution

Problems and Solutions Guide

Page 22

Problem Possible Cause Solution

If, after reviewing the Problems and Solutions Guide, the vehicle still fails to operate, please contact your nearest authorized service center or contact Power Wheels®Consumer Relations toll-free at 1-800-348-0751.

Hint! For faster service when calling Consumer Relations, completely charge the battery before calling and have the following available by the phone:

•vehicle,

•vehicle model number (see label in battery compartment),

•vehicle production run number (see label in battery compartment).

Problems and Solutions Guide

Sometimes the vehicle doesn’t Loose wire or connector Check all wires around the motors and all connectors to run, but other times it does make sure they are tight.

Motor or electrical switch damage Contact your local Power Wheels®authorized service

center for diagnosis and repair.

When the go foot pedal is pres- Loose wire or connector Check all wires around the motors and all connectors sed, the vehicle won’t run without to make sure they are tight. a push

“Dead Spot” on motor Contact your local Power Wheels®authorized service

center for diagnosis and repair.

Loud clacking or grinding Broken gears Contact your local Power Wheels®authorized service noise from a motor-gearbox center for diagnosis and repair.

Charger gets warm during use It is normal for some chargers to get No action required.

warm during use and is not reason for concern. If your charger does not get warm during

use, it does not mean that it is not working properly.

Battery makes a sizzling or It is normal for some battery to No action required. gurgling noise when charging make noise and swell slightly while

charging and is not reason for If your battery does not make noise or swell slightly concern. during charging, it does not mean that it is

not accepting the charge.

Stopwatch display is faint or LR44 button cell battery is dead Replace the LR44 button cell battery in the stopwatch. stopwatch does not function at all.

Page 23

*One year limited warranty from the date of purchase on the Power Wheels®vehicle.

Six month limited warranty on the 12 volt battery.

For the original purchaser, this one year limited warranty covers the Power Wheels®ride-on vehicle (purchased from Power Wheels®) against defects in materials and workmanship.The six month limited warranty applies only to the 12 volt battery included by Power Wheels®with the original purchase of the vehicle.

This warranty covers normal use and does not cover the Power Wheels®vehicle or battery if damaged by unreasonable use, neglect, accident, abuse, misuse, improper service or other causes not arising out of defects in materials or workmanship. Evidence of any attempt at consumer repair will void this warranty.THIS WARRANTY DOES NOT COVER, AND IS INTENDED TO EXCLUDE, ANY LIABILITY ON THE PART OF POWER WHEELS®, WHETHER UNDER THIS WARRANTY OR IMPLIED BY LAW FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES FOR BREACH OF WARRANTY. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION SO THIS LIMITATION MAY NOT APPLY TO YOU.

Should you need service or assistance with your vehicle during the warranty period, do not return the vehicle to the store.Power Wheels®has provided a nationwide network of authorized service centers. Power Wheels®is continually expanding our Author ized Ser vice Center Network. If there is not an authorized service center in your area, please call Consumer Relations for information, 1-800-348-0751.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VA RY FROM STATE TO STATE.

PLEASE SAVE YOUR ORIGINAL SALES RECEIPT.

Bumper-to-Bumper* Limited Warranty

Page 24

PRINTED IN CHINA C0532pr-0920

IMPORTANT!

DO NOT use this vehicle

for the first time until you have

charged the battery for 18 hours.

Remember to…

✔Charg e the battery immediately after each use. ✔Charg e the battery once a month during storage, even if the

vehicle has not been used.

Failure to follow these instructions will permanently damage your battery and void your warranty. Please refer to the Battery Care Section in this manual for more information. For high speed operation, please refer to the "How to Operate Your Vehicle" section in this manual for more information.

Over 400

Authorized Service Centers!

Visit us on-line at

www.powerwheels.com

for the location

nearest you.

Or contact your local, independently owned and operated

Power Wheels®Authorized Service Center.

For the location nearest you,

visit us on-line at www.powerwheels.com.

Mattel, Flame Logo, and color “Hot Wheels Blue” and associated trademarks designated by a ™ are trademarks of

Mattel, Inc. in the U.S. and/or other countries.

Fisher-Price, Power Wheels, and Power Wheels by Fisher-Price, Power Lock and Power Stick are U.S. trademarks of Mattel, Inc.

Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A.

DO NOT Return your

Vehicle to the Store!

If you are missing parts or need assistance,

please call us toll-free:

Power Wheels®Consumer Relations

1-800-348-0751

8 AM - 6 PM EST, Monday through Friday.

Fisher-Price C0532 Instruction Sheet

Specifications and Main Features

Frequently Asked Questions

User Manual
