Fisher-Price C0530 User Manual

Driveway Racer

™

Please read this manual and save it with your original sales receipt.

Tools needed for assembly: Phillips

Screwdriver and Adjustable Wrench

(tools not included).

Use only with a Power Wheels

12 Volt Lead-Acid Rechargeable

Battery and Power Wheels

12 Volt Charger with Type “12V”

Connector (included).

Requires one LR44 alkaline

button cell battery for

Stopwatch operation (included).

Product features and decoration may vary from the

pictures above. Helmet not included.

Owner's Manual

with Assembly Instructions

For Models H2836, C0530, C0532

Model H2836

Model C0532

Model C0530

Important Information

A Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

B Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

C Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

D Parts Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

E Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

F Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

G Stopwatch Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

H Label Decoration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

I Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

J Battery Care and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

K Rules for Safe Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

L Go-Kart Racing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

M Caring for Your Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

N Problems and Solutions Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

O Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

P FCC Statement (United States Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

•Your new vehicle requires adult assembly. Please set

aside at least 60 minutes for assembly.

•You must charge your battery for 18 - 30 hours

before you use your vehicle for the first time. We recommend that you start charging your battery before beginning assembly. Please see Battery Charging beginning on page 7 for detailed instructions.

• Read this manual carefully for important safety

information and operating instructions before using your vehicle. Keep these instructions for future reference as they contain important information.

• This vehicle is designed for use on: concrete, asphalt

or other hard surfaces; on generally level terrain; by children 5 years of age and up who have mastered basic vehicle control skills.

• Make sure children know and follow these rules for safe

driving and riding:

- always sit in the seat.

- always wear shoes.

- always wear a helmet.

- never ride at night.

- only one (1) rider at a time.

• Use this vehicle ONLY outdoors. Most interior floor-

ing can be damaged by riding this vehicle indoors. Fisher-Price

will not be responsible for damage to

the floor if the vehicle is used indoors.

• This vehicle is meant for outdoor use only, on private

property. It should not be used on streets, alleys or other public thoroughfares.

•Your child should not wear open toe shoes. Be sure your child keeps loose laces and pant legs away from the wheels.

•To prevent damaging the motors and gears, do not tow anything behind the vehicle or overload it. Do not exceed the maximum weight capacity of 120 lb. (54.4 kg).

• If you have any questions about your Power Wheels

vehicle, please call our toll-free service lines at 1-800-348-0751 from 8 AM to 6 PM (EST) Monday through Friday. Trained customer service representatives are available to take your call in English or French. Habla Español? Si usted tiene alguna pregunta ó necesita asistencia llame gratis 1-800-348-0755 para los Estados Unidos. Tenemos representantes que hablan español para atender su llamada.

• For your convenience, Power Wheels®maintains an independently owned and operated Authorized Service Center Network with more than 400 authorized service centers nationwide. The authorized service centers will repair or replace parts under warranty at no extra charge, and can perform non-warranty repairs for a minimal charge. To find the authorized service center nearest to you, visit us on-line at www.powerwheels.com or call 1-800-348-0751.

• If you would like to register your vehicle, please visit us on-line at www.powerwheels.com.

Table of Contents

CAUTION

WARNING

• Battery can fall out and injure a child if vehicle tips over. Always use battery cover (clamp).

• PREVENT FIRE

- Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system.

- Use of the wrong type battery or charger could cause a fire or explosion resulting in serious injury.

- Use of Power Wheels

components in products other than Power Wheels®vehicles

could cause overheating, fire or explosion.

• The battery must be handled by adults only. The battery is heavy and contains sulfuric acid (electrolyte). Dropping the battery could result in serious injury.

• Never allow children to charge the battery. Battery charging must be done by adults only. A child could be injured by the electricity involved in charging the battery.

• Never lift or carry the battery by the wires or connector. This can damage the battery and possibly cause a fire resulting in serious injury. Lift and carry the battery by the case only.

• Read the safety instructions on the battery.

• Examine the battery, charger and their connectors for excessive wear or damage each time you charge the battery. If damage or excessive wear is detected, do not use the charger or the battery until you have replaced the worn or damaged part.

• HOT motors. Handle carefully.

• In the unassembled state, this package contains small parts. Adult assembly is required.

• Use the charger in dry locations only.

• Prevent Injuries and Deaths

• Direct Adult Supervision Required

• Keep Children Within Safe Riding Areas. These areas must be:

- away from swimming pools and other bodies of water to prevent drownings

- generally level to prevent tipovers

- away from steps, steep inclines, cars, roads and alleys.

RIDING HAZARD

ELECTRICAL HAZARD

Warnings and Cautions

• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store.

• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.

• Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with a paper towel to remove any excess lubricant.

Steering Wheel

Stopwatch

(with LR44 alkaline button

cell battery included)

Pretend Motor

Battery Cover (Clamp)

Cowling

Steering Tube

Seat

Steering Column

Cowling Cover

Frame - Model C0530

Frame - Models H2836, C0532

Parts

/4" Washer - 2

Parts not shown: Label Sheet, Collapsible Pylons, Stencil, and Chalk.

Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten the screws.

All Fasteners Shown Actual Size

3mm x 21 mm Screw - 1

#8 x3/4" Screw - 35

/16" Washer - 2

/4 - 20 x 3" Screw - 2

/4"- 20 Lock Nut - 2

/8" - 16 Lock Nut - 2

3mm Lock Nut - 1

Wing

2 Flaps

(Left and Right)

12 Volt Battery

12 Volt Charger

4 Caps

Rear Bumper

2 Struts

(Left and Right)

For your convenience, we’ve included extra fasteners!

.375" Washer - 1

(Attached to Steering Column)

Parts

1 Frame 1 2 Steering Column 1 3 Rear Bumper 1 4 Cowling Cover 1 5 Cowling 1 6 Steering Tube 1 7 Steering Wheel 1 8 Stopwatch 1 9 Battery Cover (Clamp) 1

No. Part Quantity Parts Not Shown

10 Pretend Motor 1 11 Seat 1 12 Wing 1 13 Flap (Left and Right) 2 14 Strut (Left and Right) 2 15 Cap 4 16 12 Volt Charger 1 17 12 Volt Battery 1

/4"- 20 x 3" Screw 2

/4" Washer 2

/16" Washer 2

/4"- 20 Lock Nut 2

/8"- 16 Lock Nut 2

#8 x

/4" Screw 35 3mm x 21 mm Screw 1 3mm Lock Nut 1 .375" Washer 1

Label Sheet 1 Collapsible Pylons 7

Stencil 2 Chalk 2

No. Part Quantity

Note: Model C0530 frame shown in illustration below.

Parts Diagram

CAUTION

Use the charger in dry locations only.

WARNING

About Thermal Fuses

Your Power Wheels®12 volt battery is equipped with a built-in thermal fuse. The thermal fuse is a self-resetting safety device which automatically “trips” and shuts down operation of the vehicle if the vehicle is overloaded or the driving conditions too severe. Once a fuse has “tripped”, it will automatically reset itself after approximately 25 seconds and allow the vehicle to resume normal operations. To avoid repeated automatic shutdowns, do not overload the vehicle by exceeding the 120 lb. (54.4 kg). maximum weight capacity or by towing anything behind the vehicle. Avoid severe driving conditions, such as driving up very steep slopes or running into fixed objects, which can cause the wheels to stop spinning while power is still being supplied to the motors.

If a thermal fuse in a battery continually trips under normal driving conditions, please contact your local Power Wheels®Authorized Service Center. For the location of the Authorized Service Center nearest to you, please visit us on-line at www.powerwheels.com or call 1-800-348-0751.

Important Notes

•Your new battery must be charged for at least 18 hours before you use it in your vehicle for the first time.

•You do not need to remove the battery from your vehicle to recharge it.

• The battery must be upright while charging.

• The charger is not a toy.

• Do not short circuit the battery.

•We recommend that you start charging your battery before beginning assembly of your new vehicle.

• Before charging the battery, examine the battery case for cracks and other damage which may cause sulfuric acid (electrolyte) to leak during the charging process. If damage is detected, do not charge the battery or use it in your vehicle. Battery acid is very corrosive and can cause severe damage to surfaces it contacts.

• Do not charge the battery on a surface which could be damaged by the acid contained inside the battery. Take precautions to protect the surface on which you charge your battery.

• Use only a Power Wheels®12 volt charger with type 12V connector (120 VAC 60 Hz 28W with an output of 12 VDC 1200mA) to charge your Power Wheels

rechargeable 12 volt battery.

• If your battery is old and will not accept a charge, do not leave it in the vehicle. Always remove a dead battery from the vehicle.

• Battery can fall out and injure a child if vehicle tips over. Always use battery cover (clamp).

• PREVENT FIRE

- Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system.

- Use of the wrong type battery or charger could cause a fire or explosion resulting in serious injury.

- Use of Power Wheels

components in

products other than Power Wheels

vehicles could cause overheating, fire or explosion.

• The battery must be handled by adults only. The battery is heavy and contains sulfuric acid (electrolyte). Dropping the battery could result in serious injury.

• Never allow children to charge the battery. Battery charging must be done by adults only. A child could be injured by the electricity involved in charging the battery.

• Never lift or carry the battery by the wires or connector. This can damage the battery and possibly cause a fire resulting in serious injury. Lift and carry the battery by the case only.

• Read the safety instructions on the battery.

ELECTRICAL HAZARD

Battery Charging

WARNING

Children can be harmed by small parts, sharp edges and sharp points in the vehicle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.

• Plug the charger connector into the battery .

• Plug the charger into a standard wall outlet . Note: If power flow to the wall outlet is controlled by a

switch, make sure the switch is “ON”.

• Before first-time use, charge the battery for at least 18

hours. Never charge the battery longer than 30 hours.

• Recharge the battery for at least 14 hours after each

use of your vehicle. Do not charge the battery longer than 30 hours.

• Once the battery is charged, pull firmly on the charger

connector to disconnect it from the battery. Unplug the charger from the wall outlet. The battery is now ready to be installed in your vehicle. Please see the Battery Installation section on page 17 for detailed instructions on installing your battery. If your battery is already installed in your vehicle, simply re-connect the motor harness connector to the battery and replace the battery cover (clamp).

Battery

Charger Connector

• Fit the cowling cover to the cowling.

Cowling Cover

Cowling

#8 x 3/4" Screws

• Insert four #8 x3/4" screws into the pegs in the cowling cover, as shown. Tighten the screws.

Note: The illustrations in the Assembly section show the model C0530 frame. Assembly is the same for all models (H2836, C0530 and C0532).

Battery Charging

Assembly

• Fit the cowling assembly into the front end of the frame.

Hint: Squeeze the cowling assembly slightly (on each side) to fit it inside the frame.

• Insert two #8 x3/4" screws into the front holes in the cowling. Tighten the screws.

•Turn the frame on its side.

• Insert four #8 x3/4" screws into the holes in the bottom of the frame and into the cowling assembly. Tighten the screws.

•Turn the frame upright.

• Position the steering tube so that the curve faces the front end of the frame.

• Fit the ends of of the steering tube into the holes in the frame on either side of the cowling.

Bottom View

Frame

Steering Tube Curve Faces Front End of Frame

Cowling

Assembly

Front of

Frame

• Insert two #8 x3/4" screws into the frame, as shown. Tighten the screws.

#8 x 3/4" Screws

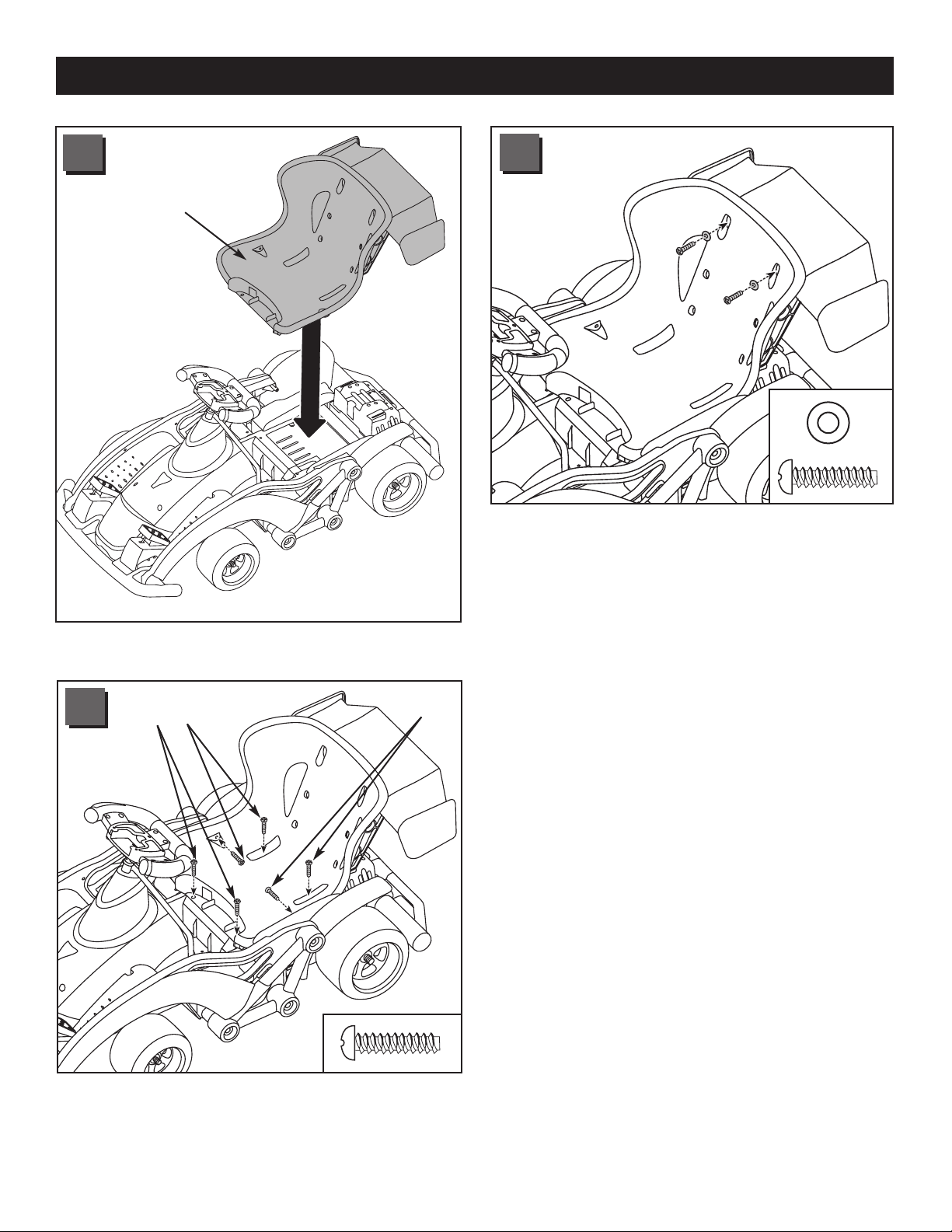

Assembly
