AIRBRUSH AUTO DESIGNER

PERFORMANCE TIPS

A. Take time to adjust the nozzle until the sprayed ink is fine and even. If ink is
blotchy, it will smear and spoil your design.

B. While spraying, point nozzle straight down so it is perpendicular to the vehicle.
Apply a thin coat of ink with smooth, back and forth strokes.

C. For a deeper color, airbrush additional thin coats of ink onto the vehicle after
drying.

D. Keep nozzle clean by wiping down occasionally during use or when there is ink
build-up.

E. Always keep pens stored cap side down in holder.

©2014 Mattel. All Rights Reserved. Mattel, Inc., 636 Girard Avenue, East Aurora, NY 14052, U.S.A. Consumer Relations 1-800-524-8697. Mattel U.K. Ltd.,
Vanwall Business Park, Maidenhead SL6 4UB. Helpline 01628 500303. Mattel Australia Pty., Ltd., Richmond, Victoria. 3121.Consumer Advisory Service ­1300 135 312. Mattel East Asia Ltd., Room 503-09, North Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. Diimport & Diedarkan Oleh:
Mattel SEA Ptd Ltd.(993532-P) Lot 13.5, 13th Floor, Menara Lien Hoe, Persiaran Tropicana Golf Country Resort, 47410 PJ. Malaysia.Tel:[phone],
Fax:[phone].

5+

service.mattel.com

PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE

REFERENCE AS THEY CONTAIN IMPORTANT INFORMATION.

PROTECT PLAY SURFACES BEFORE USE.

1107 8 9

PENS CONFORM TO ASTM D4236.

BFM93-0920G1

CONTENTS ASSEMBLY

a

b

BATTERY INSTALLATION

• Unscrew the battery cover with a Phillips head screwdriver (not included).

• Install 4 new “C” size (LR14) alkaline batteries (not included) in the orientation (+/-) shown.

• Replace battery cover and tighten screws.

• For longer life use alkaline batteries.

• Replace batteries when the
airbrush can no longer spray ink.

• When exposed to an electrostatic
source, the product may malfunction.

To resume normal operation, remove

and re-install the batteries.

1.

SIDE VIEW

3.

1

a

2

CLICK

BACK VIEW

b

BACK VIEW

5. 6.

2. 1. 2.

SIDE VIEW

4.

4.

SET UP

a

b

Remove cap and insert pen into airbrush until it clicks in.

1.

CLICK

a

2.

Rotate switch to select airbrush ( ).

b

Place a piece of paper (not included) under airbrush. Pull trigger and spray
ink between half an inch and 1.5 inches from paper.

a

TO PLAY 1 - FREE HAND

a

Load vehicle inside chamber and center on the platform.
Lift handle to raise vehicle.

b

a

3.

Hold airbrush between half an inch and 1.5 inches away,
then pull trigger to spray.

Rotate platform to spray other sides.

b

b

3. Adjust nozzle until sprayed ink is fine and even.

NOTE: You must re-adjust the nozzle every time a new ink pen is loaded.

TO PREVENT INK FROM DRYING, RECAP PENS AFTER USE AND REPLACE IN HOLDER.
PENS MAY STAIN FABRICS AND OTHER SURFACES.
AVOID CONTACT WITH CARPET, CLOTHING, WALLS AND FURNITURE.

42 3 5 6

If little or no ink comes out,
turn dial slightly toward .

If ink foams at the tip,
turn dial slightly toward .

4.

When finished spraying, rotate the platform so the vehicle
faces you.

a

5. 6.

Press handle down halfway to lower the platform.
Rotate switch to fan ( ) and dry for at least 30 seconds.

b

a

Rotate switch to OFF ( ).

b

Press handle down all the way to release vehicle.

b

+

-

TO PLAY

a

NOT FOR USE WITH SOME HOT WHEELS® VEHICLES.

TO PLAY 2 - SPRAY PATTERN

1. 2. 2.

Attach spray pattern to frame
as shown.

4.

Load vehicle inside and center on the platform.

a

Lift handle to raise vehicle into the spray pattern.

b

Attach to platform with tabs
facing down.

3.

Press frame down to bottom position for shorter vehicles.

Lift frame up to top position for taller vehicles.

Hold airbrush between half an inch and 1.5 inches away and pull trigger to

5.

spray pattern onto vehicle.

b

a

6.

Repeat steps 4-6 under TO PLAY 1 to dry vehicle.

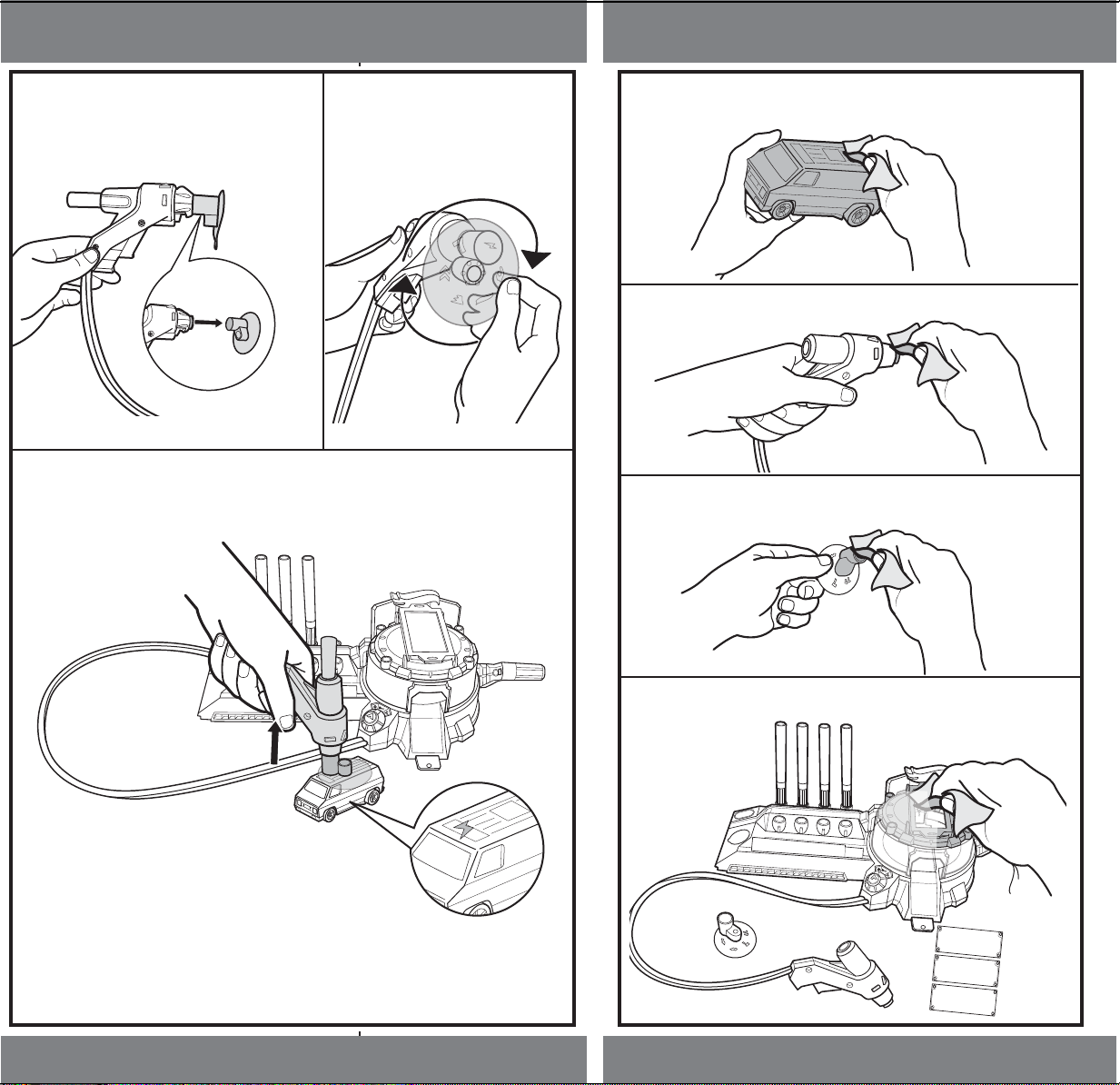

TO PLAY 3 - STENCIL TOOL CLEAN UP MORE WAYS TO PLAY
