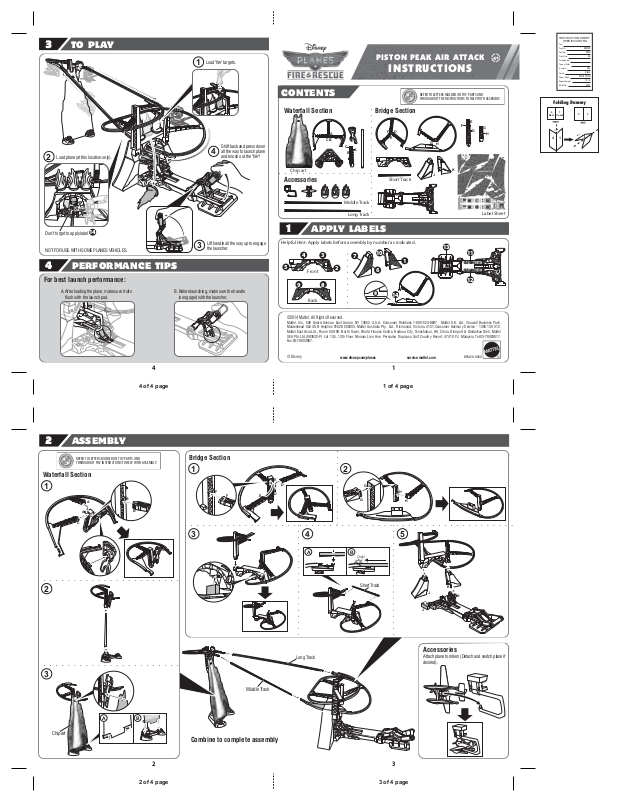

Fisher-Price BFM28 Instruction Sheet
3
TO PLAY
Load plane (at this location only).
2
Load "fire" targets.
1
4
Shift back and press down
all the way to launch plane
and knock out the "fire"!
CONTENTS
Waterfall Section
A
C B
Chip art
Accessories
PISTON PEAK AIR ATTACK
4
INSTRUCTIONS
REFER TO LETTERS MOLDED ON TOY PARTS AND
THROUGHOUT THE INSTRUCTIONS TO HELP WITH ASSEMBLY.
Bridge Section
E
F
D
F
E
G
C
A
B
Short Track
H
K
J
G
D
H
Don’t forget to apply label .
NOT FOR USE WITH SOME PLANES VEHICLES.
4
PERFORMANCE TIPS
14
For best launch performance:
A. After loading the plane, make sure it sits
flush with the launch pad.
Lift handle all the way up to engage
3
the launcher.
B. Before launching, make sure the handle
is engaged with the launcher.
Middle Track
Long Track
1
Helpful Hint: Apply labels before assembly by number as indicated.
APPLY LABELS
Label Sheet
13
4
3
7
10
11
1
5
Front
2
6
12
89
14
Back
