Futura 20/60
™
Car Seat
with 5-Point Restraint
OWNER’S MANUAL
Model 79015
Thank you for choosing the Fisher-Price
®
Futura 20/60™Car Seat. Before you use this
car seat, please take time to read and understand this manual completely. DO NOT allow
others to use this car seat until they understand
these instructions for proper use. Your child’s
safety depends on you!
To reduce injuries in a crash, stricter Federal
safety regulations require all forward-facing
car seats, such as this one, to meet certain
standards to minimize forward motion. Most
other car seats require a tether strap to meet
these standards, but the Futura 20/60
™
Car
Seat meets these standards without an added
tether strap.
No one can predict when the use
of a car seat
will prevent injury or death. When this car seat
is used properly, it will reduce the risk of injury
in a sudden stop or crash.
Message to Parents
Futura 20/60™ Car Seat
1
Table of Contents
WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
IMPORTANT! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
What Kind of Vehicle Belt System Do You Have? . . . . . . . . . . . . . . . . .8
NEVER USE These Vehicle Belt Systems . . . . . . . . . . . . . . . . . . . . . . . .10
OK to USE These Vehicle Belt Systems . . . . . . . . . . . . . . . . . . . . . . . .11
Selecting a Vehicle Seating Location for Your Car Seat . . . . . . . . . . . . .12
Assembly and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Futura 20/60™ Car Seat
2
Table of Contents
Installing Your Car Seat in a Vehicle . . . . . . . . . . . . . . . . . . . . . . . . .21
Restraining Your Child . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Removing Your Child . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Aircraft Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Registering Your Car Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Cleaning and Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Consumer Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Futura 20/60™ Car Seat
3
WARNING
Proper installation and use depends on you! If you do
not follow the instructions in this manual and the labels
on the car seat, paying particular attention to the warning statements, your child could be at risk of striking the
vehicle’s interior during a sudden stop or crash, resulting
in serious injury or death.
ALWAYS secure this car seat with your vehicle belt system
exactly as described in this manual. Refer also to your vehicle
owner’s manual for specific information on your vehicle belt
system and specific instructions on how to install a car seat
in your vehicle.
NEVER leave an unsecured car seat in your vehicle. If left
unsecured, even when not occupied, the car seat could
injure other occupants in a sudden stop or crash.
Futura 20/60™ Car Seat
4
NEVER dress your child in clothing that interferes with positioning the crotch strap between your child’s legs. If the crotch
strap is not positioned between your child’s legs, your child
could eject from the car seat in a crash.
NEVER allow the shoulder straps to be loose around your
child. If the shoulder straps are not snug against your child,
your child will not be properly restrained.
NEVER use the car seat after it is involved in a crash. A crash
can cause damage to the car seat that you cannot see.
WARNING
Futura 20/60™ Car Seat
5
IMPORTANT!
• Please read this entire manual carefully before using this car seat. Keep this
manual under the tab on the back side of the car seat for easy reference.
• This child restraint system conforms to all applicable Federal Motor Vehicle
Safety Standards (FMVSS) and the Society of Automotive Engineers
(SAE) J1819 for child restraint systems; and is certified for use in motor
vehicles and aircraft.
• This car seat is intended for use by children who: are at least 1 year old;
weigh between 20 and 60 lbs. (9 and 27 kg); and are between 28” and
48” (71 and 122 cm) tall. If your child does not meet these criterion, DO
NOT use this car seat.
•The American Academy of Pediatrics recommends that a child be at
least 1 year old and 20 lbs. to ride in a forward-facing car seat.
• This car seat is NOT a belt positioning booster car seat. Always use this
car seat’s shoulder and crotch straps to properly secure your child.
Futura 20/60™ Car Seat
6
IMPORTANT!
• Adult assembly is required to attach the pad and plastic grommets to
the car seat shell. A hammer and screwdriver, or other blunt ended tool
(not included) are needed for assembly. Please refer to page 14 for
assembly instructions.
• If your child weighs between 20 and 60 lbs. (9 and 27 kg), but cannot sit
upright unassisted, please contact your physician to determine how best to
use a car seat.
• This car seat includes a locking clip (stored with this manual) for use with
a particular vehicle belt system. Always attach the locking clip to a vehicle
lap and shoulder belt system with sliding latch plate. Please refer to
page 11 to help identify this type of vehicle belt system and instructions
beginning on page 27 for locking clip use.
• Store the locking clip within the pages of this manual. Replace the manual
under the tab on the back side of the car seat for future use.
Futura 20/60™ Car Seat
7
What Kind of Vehicle Belt System Do You Have?
There are many different types of vehicle belt systems. Some vehicle belt systems
can never be used with this car seat. Check to determine which type of vehicle
belt system or systems you have in your vehicle.
Many vehicles have more than one type of vehicle belt system. For example,
you may find lap only belts in the center seating locations and lap and shoulder
belts in side seating locations. If you are not sure which type of vehicle belt
system you have, contact your vehicle dealer or manufacturer.
The illustrations on pages 10 and 11 show vehicle belt systems that can never
be used with this car seat and vehicle belt systems that are acceptable for use.
If you do not have a seating location with a usable vehicle belt system, DO NOT
use this car seat. Contact your vehicle manufacturer. The vehicle manufacturer
may be able to install a vehicle belt system that can restrain your child properly
in this car seat. NEVER alter your vehicle belt system yourself.
Futura 20/60™ Car Seat
8
What Kind of Vehicle Belt System Do You Have?
WARNING
ALWAYS secure this car seat with your vehicle belt system
exactly as described in this manual. Refer also to your
vehicle owner’s manual for specific information on your
vehicle belt system and specific instructions on how to
install a car seat in your vehicle.
Futura 20/60™ Car Seat
9
Explanation – This lap and shoulder belt system is attached
to the vehicle’s door and moves when the door is opened.
You will not be able to keep the car seat secure.
NEVER USE
NEVER USE These Vehicle Belt Systems
D
oor Mounted Lap and Shoulder Belt
Explanation – Usually, the lap belts with these systems
cannot be tightened for a firm fit. Also, the shoulder belt
moves along a track and may become entangled with the
car seat when the door is opened.
Motorized Shoulder Belt
NEVER USE
Futura 20/60™ Car Seat
10
OK to USE These Vehicle Belt Systems
OK
✔
Manual Lap Belt
Explanation
Pulling the free
end tightens the
lap belt.
Automatic Locking
Retractor Lap Belt
Explanation
The lap belt slack
retracts automatically and locks.
It can be further
tightened by pushing the belt in near
the retractor.
OK
✔
OK
✔
OK
✔
Lap and Shoulder
Belt with Sliding
Latch Plate
Explanation
Pull the shoulder portion of the belt to
tighten. The shoulder
belt retracts automatically. Use the enclosed locking clip
with this type of lap
and shoulder belt.
Lap and Shoulder
Belt with Locking
Latch Plate
Explanation
Pull the shoulder
portion of the belt
to tighten.
Futura 20/60™ Car Seat
11
Selecting a Vehicle Seating Location for Your Car Seat
Accident statistics show that children are
safer
when restrained properly
in rear vehicle seating locations than in front seating locations.
Only use the front seat when no acceptable rear seating location is available. If the front seating location is equipped with an airbag but must be
used, adjust the vehicle seat as far back from the dashboard as possible.
Please refer to your vehicle owner’s manual regarding front seat child
restraint use.
IMPORTANT!
Futura 20/60™ Car Seat
12
Selecting a Vehicle Seating Location for Your Car Seat
The rear seating locations
are ALWAYS preferred.
ALWAYS use vehicle seats that
face the front of the vehicle.
Front of Vehicle
NEVER use vehicle seats that
face the side of the vehicle.
NEVER use vehicle seats that
face the rear of the vehicle
.
Front of Vehicle
Front of Vehicle
Futura 20/60™ Car Seat
13

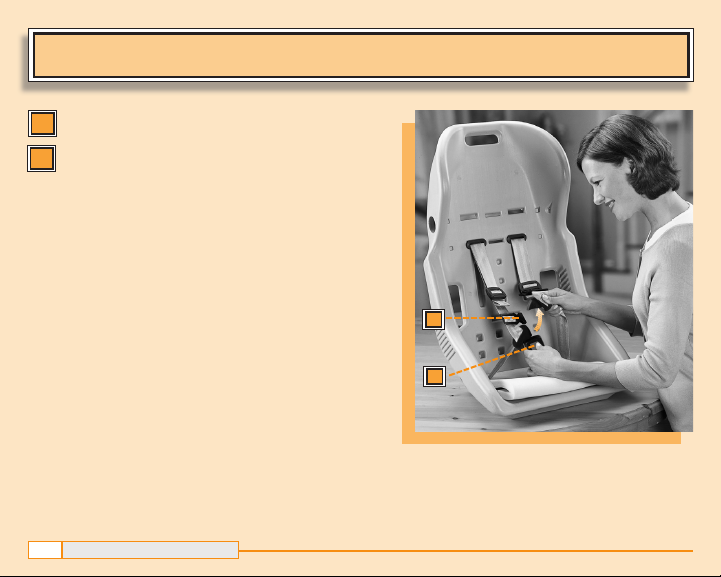

Unfasten the chest clip.
Press the button on the crotch strap
buckle and remove the shoulder straps
from the buckle.
2
1
Assembly and Setup
Futura 20/60™ Car Seat
14
2
1
Assembly and Setup
Fit the end of a blunt object, such
as a screwdriver, into the end of the
metal tube on the back of the car
seat. Pry the metal tube from the
groove in the shell.
Remove the metal tube from the
shoulder straps. Set the metal
tube aside.
3
4
3
Futura 20/60™ Car Seat
15
4
Assembly and Setup
Fit the top of the pad over the top
edge of the shell.
Lift the bottom of the pad and insert
the pad’s elastic loops through the
slots in the shell.
Fit the shoulder straps up through the
slots in the pad.
Fit the crotch strap buckle up through
the slot in the pad.
5
6
7
5
6
Futura 20/60™ Car Seat
16
8
8
7
Assembly and Setup
Fit the bottom of the pad over
the bottom edge of the shell.
Attach the pad’s elastic loops (on
the bottom of the shell) to the clip
on each side of the pad.
9
10
9
Futura 20/60™ Car Seat
17
10
Assembly and Setup
Place your child in the car seat to
select the appropriate shoulder
strap slots.
- If your child’s shoulders are even
with or below the lower strap slots,
insert the plastic grommets into the
lower strap slots in the car seat.
- If your child’s shoulders are above
the lower strap slots, insert the
plastic grommets into the upper
strap slots.
Note: Be sure to position the
grommets so that the hooked
end is up.
Futura 20/60™ Car Seat
18
Upper Strap Slots
11
11
Hooked End Up
Lower Strap Slots
11
Grommet
®
®
Remove your child from the car seat.
Insert the shoulder straps through the
plastic grommets and slots in the shell.
Make sure the shoulder straps are
not twisted.
Fasten the chest clip. Insert the shoulder strap latch plates into the crotch
strap buckle. Make sure the shoulder
straps are not twisted.
Assembly and Setup
Futura 20/60™ Car Seat
19
12
12
13
13
Assembly and Setup
Turn the car seat around so that the back
is facing you. Fit the metal tube through
the loops in the shoulder straps.
While pushing the plastic grommets
from the front of the car seat (one
at a time) tap the metal tube (near
each plastic grommet) into the groove
in the shell. Make sure the metal tube
“snaps” into place. The metal tube
should be completely inserted into
the groove so that it is below the
surrounding shell outer surface.
Note: If the metal tube does not “snap”
into place or if the plastic grommets
are not secured to the shell, you
probably have not inserted the plastic
grommets with the hooked end up.
Please re-read pages 18 and 19.
Futura 20/60™ Car Seat
20
14
15
15
14
Installing Your Car Seat in a Vehicle
Once you have selected an acceptable seating location (see pages
12-13), place the car seat on the
vehicle seat firmly against the vehicle
seat back.
Pull the pad away from the shell.
From the front of the car seat, insert
the vehicle belt though the slot in
the shell.
1
2
1
2
Futura 20/60™ Car Seat
21
Note: For clarity, this
illustration shows the shell
without the pad and shoulder and crotch straps.
2
Front of Vehicle
Installing Your Car Seat in a Vehicle
Continue to route the vehicle belt
behind the car seat shell.
Pull the vehicle belt out through the
slot in the opposite side of the car
seat shell.
Note: DO NOT route the
vehicle belt on the front
middle section of the car
seat shell.
3
Futura 20/60™ Car Seat
22
4
Note: For clarity, these
illustrations show the
shell without the pad
and shoulder and
crotch straps.
3
4
Installing Your Car Seat in a Vehicle
WARNING
ALWAYS secure this car seat with your vehicle belt system
exactly as described in this manual. Refer also to your
vehicle owner’s manual for specific information on your
vehicle belt system and specific instructions on how to
install a car seat in your vehicle.
Futura 20/60™ Car Seat
23
Installing Your Car Seat in a Vehicle
Buckle the vehicle belt.
Note: Be sure the vehicle belt
is over the edge of the car
seat shell.
5
5
Futura 20/60™ Car Seat
24
Installing Your Car Seat in a Vehicle
For a manual lap belt system:
With the vehicle belt buckled,
push down on the car seat with
your knee and pull the free end
of the vehicle belt for the tightest
possible fit.
6
A
Futura 20/60™ Car Seat
25
6A
Front of Vehicle
Installing Your Car Seat in a Vehicle
For a lap and shoulder belt system:
With the vehicle belt buckled,
push down on the car seat with
your knee and pull the shoulder
belt for the tightest possible fit.
6
B
Futura 20/60™ Car Seat
26
6B
Front of Vehicle
Some vehicle belt systems have
labels with instructions for use with car
seats. Read the instructions on your vehicle’s belt or refer to your vehicle owner’s
manual for specific instructions on how to
tighten and lock your vehicle belt system.
HINT
Installing Your Car Seat in a Vehicle
Check to see if the lap portion
of the vehicle lap and shoulder
belt system loosens. Move the
car seat from side to side. If you
can loosen the lap portion of the
lap and shoulder vehicle belt
system, the lap portion probably
d
oes not have a locking mode
and you will need a locking clip.
(Included with your car seat.)
If the lap portion of the lap and
shoulder vehicle belt system does
not loosen, please proceed to
step 11, page 30.
Futura 20/60™ Car Seat
27
7
7
If you do not need a locking clip,
store it within the pages of this manual.
Replace the manual under the tab on the
back side of the car seat for future use.
HINT
To install the locking clip:
Re-tighten the vehicle lap and
shoulder belt system (see page
26). Hold the lap and shoulder
belts together just behind the
tongue and unbuckle the vehicle
belt. Continue to hold the lap and
shoulder belts together.
8
8
Installing Your Car Seat in a Vehicle
Futura 20/60™ Car Seat
28
While holding the belts together,
tuck the edges of the vehicle
belts under the arms of the locking clip. Make sure the locking
clip is positioned approximately
1
/2” from the sliding tongue (but
no more than 3”).
While pushing down on the car
seat with your knee, buckle the
vehicle belt system.
Note: Make sure the locking
clip does not rest on the front
edge of the car seat shell.
9
Installing Your Car Seat in a Vehicle
Futura 20/60™ Car Seat
29
10
10
9
Arms
1"
2
Installing Your Car Seat in a Vehicle
Test your installation of the car seat again, this
time by rocking the car seat forward and backward. You should NOT be able to pull the back
of the car seat away from the vehicle seat more
than one inch.
Note: Regularly check to be sure your car seat
installation is secure.
CORRECT
CORRECT
INCORRECT
INCORRECT
Futura 20/60™ Car Seat
30
11
11
11
IMPORTANT!
Installing Your Car Seat in a Vehicle
If the lap belt continues to loosen after testing your installation, choose
another vehicle seating location to install this car seat. If there is not a position which will keep this car seat secured with a lap belt, contact your vehicle manufacturer. The vehicle manufacturer may be able to install a vehicle
belt system that can restrain your child properly in this car seat. NEVER alter
your vehicle belt system yourself.
IMPORTANT!
Futura 20/60™ Car Seat
31
Note: This forward-facing car seat does not require the use of a tether strap
to pass applicable Federal regulations. If, however, you cannot find a seating
location in your vehicle to tightly install this car seat (determined after rocking
the car seat forward and backward - see page 30, step 11), you may require
a tether strap to achieve a tight installation. Please call Fisher-Price®Consumer
Relations at 1-800-432-KIDS to obtain a tether strap kit.
After installing the car seat in your
vehicle, unfasten the chest clip. Press
the button on the crotch strap and
remove the shoulder straps.
1
1
Restraining Your Child
Futura 20/60™ Car Seat
32
The metal and plastic parts of the car
seat may become very hot when exposed to
the sun. When not in use, cover the car seat
with a blanket if it will be exposed to the sun
for prolonged periods of time.
Before placing your child in the car seat,
remove the blanket and check to be sure the
metal and plastic parts are not too hot.
HINT
Place your child in the car seat.
Make sure your child’s lower back
is against the car seat. This will allow
you to position the car seat restraint
around your child properly.
Position the shoulder straps over
your child’s shoulders. Make sure
the shoulder straps are not twisted.
Insert the shoulder strap latch plates
into the crotch strap buckle. Make
sure you hear a “click” for each
latch plate.
2
3
4
2
3
4
Restraining Your Child
Futura 20/60™ Car Seat
33
Restraining Your Child
WARNING
NEVER dress your child in clothing that interferes with positioning the crotch strap between your child’s legs. If the crotch
strap is not positioned between your child’s legs, your child
could eject from the car seat in a crash.
Futura 20/60™ Car Seat
34
Restraining Your Child
To tighten the shoulder straps:
Pull the attached shoulder strap
up to remove slack. Then, pull the
free end of the shoulder strap
down to tighten. If necessary,
repeat this procedure to comfortably tighten the shoulder straps.
To loosen the shoulder straps:
Fit your finger through the loop
and press the metal plate on the
adjuster . Pull the attached
shoulder strap down.
5
5
Futura 20/60™ Car Seat
35
1
2
1
To Loosen
A
B
A
B
To Tighten
A
B
A
B
A
B
A
B
Fasten the chest clip. Slide the chest
clip up so that it is level with your
child’s underarm area; or up against
the adjusters.
6
6
Restraining Your Child
Futura 20/60™ Car Seat
36
Check to be sure the shoulder straps
are snug against your child. Pull the
shoulder straps away from your child’s
chest. They should not move more than
one inch (two fingers) from your child’s
chest. If the shoulder straps are loose,
tighten them (refer to page 35, step 5.)
7
7
Restraining Your Child
Futura 20/60™ Car Seat
37
WARNING
NEVER allow the shoulder straps
to be loose around your child. If
the shoulder straps are not snug
against your child, your child
will not be properly restrained.
Removing Your Child
Unfasten the chest clip.
Press the button on the crotch strap
buckle and remove the shoulder straps
from the buckle.
Note: Insert the shoulder strap latch
plates into the crotch strap buckle.
1
2
1
2
Futura 20/60™ Car Seat
38
Aircraft Use
You can install this car seat in aircraft seats that face forward. Before bringing the car
seat on board:
• Notify the airline of your intent to bring this car seat on board. The airline may
have restrictions regarding its use.
• The width of the car seat is 17". You may need to lift an armrest out of the way to
provide added room for the car seat. Check with the airline to be sure this car seat
will fit in the aircraft seat.
Install the car seat in aircraft seats that face forward and follow the instructions of the
flight attendant regarding placement of the car seat. For specific instructions, please
see pages 21-38.
Futura 20/60™ Car Seat
39
Registering Your Car Seat
Child restraints could be recalled for safety reasons. You must register
this restraint to be reached in a recall. Send your name, address,
the restraint’s model number and manufacturing date (located on
the back side of the seat) to: Fisher-Price, Inc., 636 Girard Avenue,
East Aurora, New York 14052, or call 1-800-432-5437. For recall information,
call the U.S. Government’s Auto Safety Hotline at 1-800-424-9393 (202-366-0123
in the Washington D.C. area).
N
O
P
O
S
T
A
G
E
N
E
C
E
S
S
A
R
Y
I
F
M
A
I
L
E
D
I
N
T
H
E
U
N
I
T
E
D
S
T
A
T
E
S
P
O
S
T
A
G
E
W
I
L
L
B
E
P
A
I
D
B
Y
A
D
D
R
E
S
S
E
E
BUSINESS REPLY MAIL
F
I
R
S
T
C
L
A
S
S
M
A
I
L
P
E
R
M
I
T
N
O
.
1
0
6
W
E
B
S
T
E
R
,
N
Y
Cleaning and Washing
• Machine wash the seat pad in cold water and mild detergent. Do not use
bleach. Tumble dry on low heat.
• To clean the shell and harness, use a mild cleaning agent and damp cloth.
Rinse with clean water to remove soap residue.
To remove the pad:
• Fit the end of a blunt object, such as a screwdriver, into the end of the metal
tube on the back of the car seat. Pry the metal tube from the groove in the shell.
• Remove the metal tube from the shoulder straps. Set the metal tube aside.
• Remove the plastic grommets and set aside.
• Remove the elastic loops from the clips on each side of the car seat.
• Remove the top and bottom of the pad from the edge of the shell.
• Feed the crotch strap down through the slot in the pad.
To replace the pads:
• Please see the assembly instructions beginning on page 14.
Futura 20/60™ Car Seat
40
Futura 20/60™ Car Seat
41
Consumer Information
Fisher-Price®recommends that child restraints be replaced after eight years to
provide the best assurance that the child restraint is: in reliable working condition; well-suited for use in constantly changing automobile interior designs; and
reasonably current in relation to Federal regulations. When you replace your
car seat for any reason, make sure that another child can no longer use it by
disposing of it properly.
If you have any questions about proper use of your car seat or would like to
order replacement parts, please call Fisher-Price®Consumer Relations, toll-free
at 1-800-432-KIDS, between 8 AM and 6 PM EST, Monday through Friday.
Hearing impaired consumers using TTY/TDD equipment, please call
1-800-382-7470. Or, write to: Fisher-Price®Consumer Relations, 636 Girard
Avenue, East Aurora, New York 14052.
1-800-432-KIDS
Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052, U.S.A.
©2000 Mattel, Inc. All Rights Reserved.
®
and ™ designate U.S. trademarks of Mattel, Inc.
Printed in U.S.A. 79015pr-0920
S
HOULDER HEIGHT
of child is at or below desired shoulder strap slots.
A
FTER
buckling and tightening your vehicle belt system, check to see if you
require a locking clip (for lap and shoulder belts with sliding latch plates).
F
ASTEN
the 5-point harness and tighten the shoulder straps against child.
Fasten the chest clip.
E
VALUATE
your car seat installation and the shoulder strap fit against child.
Safe Check
✔
✔
✔
✔
✔
Loading...
