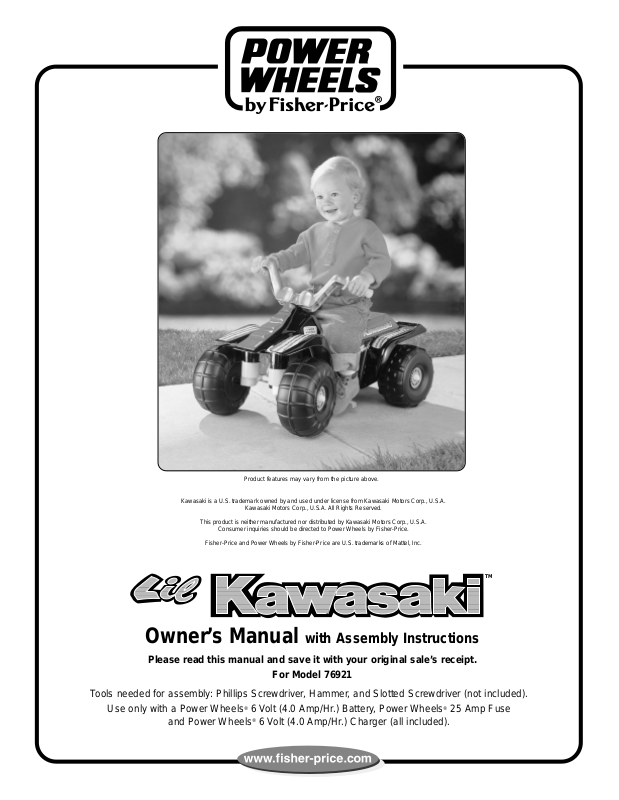

Fisher-Price 76921 User Manual

Owner’s Manual

with Assembly Instructions

Please read this manual and save it with your original sale’s receipt.

For Model 76921

Tools needed for assembly:Phillips Screwdriver, Hammer, and Slotted Screwdriver (not included).

Use only with a Power Wheels®6 Volt (4.0 Amp/Hr.) Battery, Power Wheels®25 Amp Fuse

and Power Wheels®6 Volt (4.0 Amp/Hr.) Charger (all included).

Product features may vary from the picture above.

TM

Kawasaki is a U.S.trademark owned by and used under license from Kawasaki Motors Corp., U.S.A.

Kawasaki Motors Corp., U.S.A.All Rights Reserved.

This product is neither manufactured nor distributed by Kawasaki Motors Corp., U.S.A.

Consumer inquiries should be directed to Power Wheels by Fisher-Price.

Fisher-Price and Power Wheels by Fisher-Price are U.S. trademarks of Mattel, Inc.

2

Table of Contents

Important Information

A Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

B Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

C Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

D Parts Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

E Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

F Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

G Label Decoration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

H Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

I Battery Care and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

J Car ing For Your Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

K Rules For Safe Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

L How to Operate Your Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

M Problems and Solutions Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

N Statement of Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

O Authorized Service Centers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

• Your new vehicle requires adult assembly.Please set
aside at least 45 minutes for assembly.

• You must charge your battery for 18 - 30 hours before
you use your vehicle for the first time.We recommend
that you start charging your battery before beginning
assembly. Please see Battery Charging beginning on
page 6 for detailed instructions.

• Read this manual carefully for important safety informa­tion and operating instructions before using your vehicle.
Please keep this manual for future reference as it con­tains important information.

• This vehicle is designed for use:on grass, asphalt and
other hard surfaces; on generally level terrain; and by
children 12 - 36 months of age.

• Make sure children know and follow these r ules for safe
driving and riding:

- always sit on the seat.

- always wear shoes.

- only 1 (one) rider at a time.

• To prevent damaging the motors and gears, do not tow
anything behind the vehicle or overload it. Do not exceed
the maximum weight capacity of 40 lb.(18 kg).

• If you have any questions about your Power Wheels

®

vehicle, please call our toll-free service lines at
1-800-348-0751 from 8 AM to 6 PM (EST) Monday
through Friday.Trained customer ser vice representatives
are available to take your call in English or French.Habla
Español? Si usted tiene alguna pregunta ó necesita asis­tencia llame gratis 1-800-348-0755 para los Estados
Unidos.Tenemos representantes que hablan español
para atender su llamada.

• For your convenience, Power Wheels®maintains an
Authorized Service Center Network with more than 400
authorized service centers nationwide. Our authorized
service centers will repair or replace parts under warranty
at no extra charge, and can perform non-warranty repairs
for a minimal charge.Please see the Authorized Service
Center list beginning on page 22 to find the authorized
service center nearest you, or call 1-800-348-0751.

• Please complete and return the enclosed Registration
Card today, or call 1-800-348-0751 to register your
vehicle by phone.

A

CAUTION

• In the unassembled state, this package contains small parts. Adult assembly is required.

• Use the charger in dry locations only.

WARNING

WARNING

• Battery can fall out and injure a child if vehicle tips over. Always use battery clamp.

• PREVENT FIRE

- Do not bypass a Power Wheels®fuse.It is a safety device.

- Use only a Power Wheels

®

25 Amp fuse.

- Never modify the electrical system.Alterations could cause a fire resulting in serious injury
and could also ruin the electrical system.

- Use of the wrong type battery, fuse or charger could cause a fire or explosion resulting in
serious injury.

- Use of Power Wheels

®

components in products other than Power Wheels®vehicles could

cause overheating, fire or explosion.

• The battery must be handled by adults only.The battery is heavy and contains sulfuric acid
(electrolyte). Dropping the battery could result in serious injury.

• Never allow children to charge the battery. Battery charging must be done by adults only.
A child could be injured by the electricity involved in charging the battery.

• Never lift or carry the battery by the wires or connector.This can damage the battery and
possibly cause a fire resulting in serious injury. Lift and carry the battery by the case only.

• Read the safety instructions on the battery.

• Examine the battery, charger and their connectors for excessive wear or damage each time
you charge the battery. If damage or excessive wear is detected, do not use the charger or the
battery until you have replaced the worn or damaged part.

• HOT motors. Handle carefully.

Warnings and Cautions

B

3

ELECTRICAL HAZARD

RIDING HAZARD

• Prevent Injuries and Deaths

• Direct Adult Supervision Required

• Keep Children Within Safe Riding Areas.

These areas must be:

- away from swimming pools and other bodies of water to prevent drownings

- generally level to prevent tipovers

- away from steps, driveways, roads and alleys.

Footrest

Handlebar Wire Harness

Handgrip - 2

Steering Column

Bushing

Wheel Bushing - 2

Cap Nut - 4*

Washer - 2

25 Amp Fuse - 1*

Round Bushing - 2

#8 x

3

/4" Screw - 3#10 x

7

/

8

" Screw - 2

All Shown Actual Size

Not Shown: Label Sheet

*For your convenience, an extra cap nut and an extra 25 amp fuse are included.

Vehicle Body

Front Wheel - 2

6 V olt Battery

6 Volt Battery Charger

Steering Column

Steering Linkage

Handlebar

Grille

Seat

Parts

C

• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return
this product to the store.

• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no
parts are discarded.

• Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with a paper towel to
remove any excess lubricant.

4

IMPORTANT! Some parts were placed under the seat for shipment. Unlock the seat lock fastener, using a slotted
screwdriver to rotate the lock fastener 1/4turn to the unlocked position . Lift the seat to access the battery compar tment.

2

3

4

5

6

6

7

10

13

1

16

15

15

20

19

18

17

6

1. Vehicle Body

2. Steering Column

3. Handlebar

4. Handgrip - 2

5. Steering Column Bushing

6. Cap Nut - 4

7. 6 Volt Battery (4.0 Amp/Hr.)

8. 6 V olt Charger

9. Footrest

10. Seat

11. Handlebar Wire Harness

12

21

14

14

11

8

9

12. Battery Clamp

13. Grille

14. #10 x 7/8" Screw - 2

15. #8 x 3/4" Screw - 3

16. Steering Linkage

17. Washer - 2

18. Wheel Bushing - 2

19. Round Bushing - 2

20. Front Wheel - 2

21. 25 Amp Fuse

Not Shown: Label Sheet

Parts Diagram

D

5

Note: Some parts shown are assembled
on both sides of the vehicle.

IMPORTANT! Some parts were placed under the seat for shipment. Unlock the seat lock fastener,
using a slotted screwdriver to rotate the lock fastener 1/4turn to the unlocked position . Lift the
seat to access the battery compartment.

CA UTION

Use the charger in dry locations only.

WARNING

Battery Charging

E

• Battery can fall out and injure a child
if vehicle tips over.Always use
battery clamp.

• PREVENT FIRE

- Do not bypass a Power Wheels

®

fuse.

It is a safety device.

- Use only a Power Wheels®25 Amp fuse.

- Never modify the electrical system.
Alterations could cause a fire resulting in
serious injury and could also ruin the
electrical system.

- Use of the wrong type battery, fuse
or charger could cause a fire or
explosion resulting in serious injury.

- Use of Power Wheels

®

components in

products other than Power Wheels

®

vehicles could cause overheating,
fire or explosion.

• The battery must be handled by adults only.
The battery is heavy and contains sulfuric
acid (electrolyte). Dropping the battery
could result in serious injury.

• Never allow children to charge the battery.
Battery charging must be done by adults
only. A child could be injured by the
electricity involved in charging the battery.

• Never lift or carry the battery by the wires or
connector.This can damage the battery and
possibly cause a fire resulting in
serious injury.Lift and carry the battery
by the case only.

• Read the safety instructions on
the battery.

• Examine the battery, charger and their
connectors for excessive wear or damage
each time you charge the battery. If damage
or excessive wear is detected, do not use
the charger or the battery until you have
replaced the worn or damaged part.

Important Notes

• Your new battery must be charged for at least
18 hours before you use it in your vehicle for the
first time.

• We recommend that you start charging your battery
before beginning assembly of your new vehicle.

• The battery must be upright while charging.

• The charger is not a toy.

• Do not short circuit the battery.

• The battery must be removed from your vehicle for
the initial charge in order to complete assembly.You
do not need to remove the battery from the vehicle to
recharge it.

• Before charging the battery, examine the battery case
for cracks and other damage which may cause sulfuric
acid (electrolyte) to leak during the charging process.
If damage is detected, do not charge the battery or use
it in your vehicle.Battery acid is very corrosive and can
cause severe damage to surfaces it contacts.

• Do not charge the battery on a surface which could be
damaged by the acid contained inside the battery. Take
precautions to protect the surface on which you charge
your battery.

• Use only a Power Wheels®6 volt charger (4.0 Amp/Hr.)
and 25 amp fuse to charge your Power Wheels

®

rechargeable 6 volt battery (4.0 Amp/Hr.).

• If your battery is old and will not accept a full charge, do
not leave it in the vehicle. Always remove a dead battery
from the vehicle.

6

ELECTRICAL HAZARD

3

• Insert a 25 amp fuse into the batter y.
Note: The top of the fuse will not be flush with the top of the

battery when properly installed.

• Plug the charger connector into the battery connector.

• Plug the charger into a standard 120 volt wall outlet.
Note: If power flow to the wall outlet is controlled by a

switch, make sure the switch is “ON”.

• Before first time use, charge the battery for at least

18 hours. Never charge the battery longer than 30 hours.

• Recharge the battery for at least 14 hours after each use
of your vehicle.Do not charge the battery longer than
30 hours.

• Once the battery is charged, disconnect the charger
connector from the battery connector.Unplug the charger
from the wall outlet.The battery is now charged and is
ready to be installed in your vehicle.Please see "Battery
Installation" on page 14 for detailed battery installation
instructions.

2

1

Battery
Connector

Charger
Connector

Battery
Clamp

25 Amp Fuse

Charger

Battery Charging

7

IMPORTANT! The batter y must be removed from your vehi­cle for the initial charge in order to complete assembly.You
do not need to remove the battery from your vehicle to
recharge it.

• Using a Phillips screwdriver, loosen the screws in the
battery clamp. Remove the battery clamp from the
vehicle body.

• Remove the Power Wheels

®

6 Volt (4.0 Amp/Hr.) battery

from the battery compartment.

T

N

A

T

R

O

T

P

S

U

IM

M

E

P

S

O

U

T

F

N

P

I

M

E

D

A

R

E

L

5

O

L

2

F

A

E

A

T

B

E

S

G

Y

N

I

R

R

A

E

E

T

H

B

T

C

A

E

B

R

F

L

L

O

I

E

W

T

Y

A

O

R

T

E

P

O

R

O

Children can be harmed by small parts,
sharp edges and sharp points in the vehicle’s
unassembled state, or by electrical items.
Care should be taken in unpacking and
assembly of the vehicle. Children should not
handle parts, including the battery, or help in
assembly of the vehicle.

WARNING

• Apply label #13 to the recessed circle on each front wheel,
as shown. Please see “Label Decoration” on page 13 for
application guidelines.

13

Wheel Bushing

• Fit a washer onto one end of the front axle.

• Slide the front wheel, bushing side first, onto the front axle.

• Turn the vehicle body upside down.

• Fit the steering linkage onto the fork on the front of the
vehicle body. Make sure the center axle is toward the rear
of the vehicle.

Front
Wheel

Front
Axle

Front Wheel

Washer

Wheel Bushing

Fork

Steering
Linkage

Center Axle

Vehicle
Body

Vehicle
Body

Assembly

8

4

2

1

3

F

• Turn the front wheels over.

• Fit a wheel bushing into the rectangular opening in each
front wheel.

IMPORTANT! Some parts were placed under the seat for shipment. Unlock the seat lock fastener,
using a slotted screwdriver to rotate the lock fastener 1/4turn to the unlocked position .
Lift the seat to access the battery compartment.

Handgrip

Handgrip

Handlebar

• Position the handlebar upright.

• Fit a handgrip onto each end of the handlebar.

Hint: If the handgrips are difficult to slide onto the handle­bar, moisten the handgrips with warm water before fitting
them onto the handlebar.

• Slide a round bushing onto the front axle and press it into
the center of the front wheel.

• Fit a cap nut onto the end of the front axle.

• Tap the cap nut with a hammer to secure it on the
front axle.

• Repeat assembly steps 4 and 5 to assemble the other
front wheel to the other side of the front axle.

Cap
Nut

Front Axle

Round
Bushing

• Insert the connector end of the handlebar wire har ness
into the rectangular opening in the handlebar.

• Feed the handlebar wire harness through the handlebar.

• Push firmly on the button end of the handlebar wire har­ness to snap it into the rectangular opening.

Rectangular
Opening

Handlebar

Button End

Connector
End

Handlebar
Wire Harness

Handlebar
Wire Harness

Handlebar

• Turn the handlebar upside down.

• Align the handlebar wire harness with the guides on the
underside of the handlebar.

• Push firmly on the handlebar wire harness near each
of the guides to secure the wire in the underside
of the handlebar.

Guides

Assembly

9

8

6

5

7

Steering
Column

Steering Column
Bushing

Vehicle
Body

Rectangular
Opening

• Position the vehicle body upright.

• Insert the curved end of the steering column through the
rectangular opening in the vehicle body.

• Rotate the steering column bushing 1/4turn and fit it into
the rectangular opening in the vehicle body.

Steering
Column

Steering
Linkage

Hole

Guides

• Turn the vehicle body on its side.

• Insert the curved end of the steering column into the hole
in the steering linkage. Make sure the steering column

is positioned between the guides on the underside of
the vehicle body.

FUEL

EF

RPM x 100

FUEL

EF

RPM x 100

Handlebar

• Apply labels #7 and #8 to the handlebar, as shown.

Steering
Column

Steering Column
Bushing

• Wipe the steering column with a paper towel to remove
any dirt or oils.

• Fit the steering column bushing onto the straight end of
the steering column.

7

8

Assembly

10

10

9

11

12

Bottom View

• Insert the wire connector on the main wire har ness
through the large opening in the center of the
vehicle body.

• Plug the main wire harness connector and the handlebar
wire harness connector together.

Main Wire
Harness
Connector

Opening

Handlebar Wire
Harness
Connector

• Position the vehicle body upright.

• Fit the front tabs on the grille into the slots in the front of
the vehicle body .Press firmly to snap the front tabs
into the slots.

• Press firmly on the middle of the grille to snap the middle
tabs into the slots .

• Press firmly near the back of the grille to snap the back
tabs into the slots .

C

B

A

Grille

Front
Tabs

Middle
Tabs

Back Tabs

Slots

A

B

C

Steering
Column

Cap Nut

Handlebar

Hole

Handlebar
Wire
Harness

• Position the vehicle body upright.

• While fitting the handlebar onto the end of the steering
column, insert the end of the handlebar wire harness
through the hole in the front of the vehicle body.

• Fit a cap nut onto the end of the steering column.

• Tap the cap nut with a hammer to secure it on the end of
the steering column.

Cap Nut

End of Steering
Column

• Turn the vehicle body on its side.

• Fit a cap nut on the end of the steering column.

• Tap the cap nut with a hammer to secure it on the end
of the steering column.

Assembly

11

14

13

16

15

Bottom View

Bottom View

• Insert three # 8 x 3/4" screws through the battery com­partment in the vehicle body and into the footrest.

Footrest

Vehicle Body

Peg

Footrest

• Fit the footrest to the peg on the underside of the
vehicle body.

Assembly

12

17

18

Seat

Lock
Fastener

19

Lock Fastener

Lock Fastener

LOCKED

UNLOCKED

Note: If you have already charged your Power Wheels

®

6 Volt (4.0 Amp/Hr.) battery for at least 18 hours, you may
want to install it in the battery compartment before assem­bling the seat to your vehicle. Please refer to the Battery
Installation section beginning on page 14 for instructions.

• Insert the tabs on the front of the seat into the slots in the
vehicle body.

• Press down on the back of the seat to snap the tabs on
the back of the seat into the slots in the vehicle body.

• Using a slotted screwdriver turn the lock fastener a
quarter turn to lock seat into place.

• Once the seat is assembled to the vehicle body, use a
slotted screwdriver to rotate the lock fastener 1/

4 turn to

the locked position .

• To unlock the lock fastener, use a slotted screwdriver
to rotate the lock fastener

1

/

4 turn to the unlocked

position .

IMPORTANT! Remember to keep the lock fastener
locked at all times to prevent children from accessing
the vehicle battery.

13

Proper label application will help to keep the labels looking their best! When applying labels, keep the fol­lowing guidelines in mind:

• Wash your hands before applying the labels.

• Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils.

• Place the labels exactly as shown in the illustrations.

• For best results, avoid repositioning a label once it has been applied to the vehicle.

• After applying a label, rub the label firmly with a clean, dry cloth to make sure the label is adhered to your
vehicle. Start at the center of a label, and smooth towards the outer edges to remove air bubbles.

Left Side

Right Side

1

2

3

Label Decoration

G

Front View

9

10

11

12

2

16

14

4

3

14

16

1

6

15

13 13

15

5

®

®

• Using a Phillips screwdriver, loosen the screws in the
battery clamp. Remove the battery clamp from the
vehicle body.

• Place the Power Wheels®6 Volt (4.0 Amp/Hr.) battery
upright in the battery compar tment. Make sure the bat­tery connector extends toward the rear of the vehicle.

• Make sure a Power Wheels®25 amp fuse, in good
condition, is installed in the battery.

Battery

Battery

Clamp

• To unlock the lock fastener, use a slotted screwdriver
to rotate the lock fastener 1/

4 turn to the unlocked

position .

• Push firmly on one of the back fenders while pulling up on
the same side of the back of the seat to release the tab
on the seat from the slot in the vehicle body.

• Repeat this procedure on the other side of the seat.

• Lift the seat to remove it from the vehicle body.

Battery

Push and

LIft Here

Push and

LIft Here

Motor
Harness
Connector

Battery
Connector

Battery
Connector

14

1

Battery Installation

2

3

Lock
Fastener

Seat

4

H

• Position the battery clamp over the battery with the ends
of the battery clamp aligned with the screw holes in the
vehicle body.

• Insert two #10 x 7/8" screws through the ends of the
battery clamp and into the vehicle body.

• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.

• Plug the battery connector into the motor harness connector.

Note: If the battery connector will not plug into the motor
harness connector, turn it over and try again! Do not force
the battery connector into the motor harness connector.

• Re-assemble the seat to the vehicle body. (See assembly
step 19 on page 12.)

IMPORTANT! Always remember to keep the lock fastener
locked at all times to prevent children from accessing
the battery.

IMPORTANT! Use only a Power Wheels

®

6 V olt(4.0Amp/Hr .)

battery with a Power Wheels

®

25 amp fuse installed. Use of
any other battery or fuse will damage your vehicle.Make
sure that you charge the battery for at least 18 hours using
the enclosed Power Wheels®6 Volt charger before operating
your vehicle for the first time. Charge the batter y for at least
14 hours after each use of the vehicle.Never charge the
battery longer than 30 hours. Failure to follow these instruc­tions may damage your battery and will void your warranty.

If a battery leak develops, avoid contact with the leaking
acid and place the damaged battery in a plastic bag. See
information below for proper disposal.

If acid comes in contact with skin or eyes, flush with
cool water for at least 15 minutes and call a physician.

If acid is internally ingested, give water, milk of
magnesia or egg whites immediately. Never give emetics
or induce vomiting. Call a physician.

• Charge a new battery for at least 18 hours before first use.

Never charge the battery longer than 30 hours.
Overcharging or undercharging the battery may
shorten batter y life and decrease vehicle running time.

• After the first charge, recharge the battery for at least

14 hours after each use. Never charge the battery longer
than 30 hours. Charge the battery after each use, regard­less of how long the vehicle was used.

• The battery must be upright while charging.

• Do not allow the battery to run down completely

before charging.

• Charge the battery before storing the vehicle.

• Charge the battery at least once per month, even if

the vehicle has not been used.

• Leaving the battery in a discharged condition will

ruin it.

• Always remove an exhausted battery from the vehicle.

Battery leakage and corrosion can damage the vehicle.

• Do not store the battery on a surface which could be

damaged by the acid contained inside the battery.
Take precautions to protect the surface on which you
store the battery.

• Do not store the battery in temperatures above 75° F or

below -10° F.

• Prevent the battery from moving freely inside the

battery compar tment. Always use the battery clamp to

secure the battery in the battery compartment.

• Examine the battery, charger and their connectors for

excessive wear or damage each time you charge the bat­tery. If damage is detected, do not use the charger
or the battery until you have replaced the worn or
damaged part.

15

Care Disposal

Battery Care
and Disposal

I

Battery Care and Disposal

Caring
For Y our Vehicle

J

• Check all screws, cap nuts and their protective coverings
regularly and tighten as required. Check plastic parts on a
regular basis for cracks or broken pieces.

• During snowy or rainy weather, the vehicle should be stored
inside or under a protective cov er. Remember to charge the
battery at least once per month while your vehicle is not in
regular use.

• Avoid oper ating the vehicle in wet or snowy conditions, and
do not spray the v ehicle with a hose .Do not wash the
vehicle with soap and water.Water or moisture in the motors
or electrical switches can cause them to corrode, and could
cause switch or motor failure.

• Avoid oper ating the vehicle on sand, loose dirt or gravel.
Sand, loose dirt or gravel in the motors or electrical
switches can cause them to jam, and could cause switch
or motor failure.

• The vehicle can be wiped with a soft, dry cloth.For a shiny
finish, you can wipe plastic parts with a non-wax furniture
polish applied to a soft-cloth.Do not use automotive wax.
Do not use soap and water or spray the vehicle with a hose.

• To ensure that your vehicle sta ys in good oper ating order,
we recommend that you periodically have your vehicle
checked by a Power Wheels®authorized service center.
See page 22 for the list of authorized service centers or call
1-800-348-0751 for the location of the authorized service
center nearest you.

• Your Power Wheels®battery is a sealed lead-acid battery.
It must be recycled or disposed of in an environmentally
sound manner.

• Do not dispose of a lead-acid battery in your regular,
household trash.The incineration, landfilling or mixing
of sealed lead-acid batteries with household trash is
prohibited by law in most areas.

• Return exhausted batteries to a federal or state approved
lead-acid battery recycler, such as a Power Wheels

®

authorized service center, or a local seller of automotive
batteries. For the service center location nearest you,
please call 1-800-348-0751. Contact your local waste
management officials for other information regarding the
environmentally sound collection, recycling and disposal
of lead-acid batteries. If you live in the State of Florida or
Minnesota, it is prohibited by law for anyone to throw away
lead-acid batteries in the municipal waste stream.

16

Teach Safety Rules to Children

While children can quickly develop the skill necessar y to
drive this vehicle, it is important to remember that their
judgment skills are still very immature. Unsupervised dr i­ving by children can lead to serious injury. Before children
use this vehicle, an adult should carefully evaluate the
driving area as well as the children’s skill level and ability
to drive this vehicle safely.Children are not always able to
recognize or anticipate hazards, even when they have
been taught about them. THERE IS NO ACCEPTABLE

SUBSTITUTE FOR DIRECT ADULT SUPERVISION.

Teach appropriate safety rules to your child before
allowing operation of this vehicle. These rules should also
be reviewed with neighborhood children or other playmates
who want to drive this vehicle.

Riding Rules

Make sure children know and follow these rules for

safe driving:

1. Always sit on the seat.

2. Always wear shoes.

3. Only 1 (one) rider at a time. A child who is not sitting on

the seat or who is standing on the vehicle could fall off,
cause a tip-over or block the driver’s view. A child could
be seriously injured.

4. Do not allow any child to drive the vehicle in the street
or near moving (motorized) vehicles.

5. Do not allow any child to drive near bodies of water
(such as pools or creeks), obstructions (such as furni­ture, low tree limbs or play equipment), or drop-offs
(such as stairs or decks).

6. Do not allow any child to drive the vehicle in the dark.
A child could encounter unexpected obstacles and have
an accident. Operate the vehicle only in the daytime or
a well-lit area.

7. Do not allow your child to drive on sloped or inclined
surfaces. Restrict your child’s driving to generally

level ground ONLY!

8. Do not allow your child to drive down or across a

steep slope.

- The vehicle may gain unsafe speed, even if the but-

ton is released to stop.

- The vehicle may tilt and tip over.

- The wheels could lose traction, causing the vehicle

to slip.

9. Do not allow your child to drive up steep inclines.The
motor may stop and the vehicle could roll backwards at
an unsafe speed.

10. Never put anything near any moving parts. Rotating
parts such as motors, gear boxes and wheels can snag
fingers, hair, etc., causing serious injury. Do not allow
operation of the vehicle when it is on its side or in an
upside-down position.

11. Do not operate the vehicle near flammable vapors
(gasoline, paint thinner, acetone, liquid wax, etc.).
The vehicle’s electrical switches, like most electrical
switches, emit an internal spark when first turned on or
turned off.The presence of flammable liquids or vapors
could cause an explosion or a fire.Keep all flammable
products in tightly sealed containers and away from
the vehicle.

12. Do not allow a child to operate the vehicle without
direct adult supervision. To prevent unsupervised use of
the vehicle, disconnect the motor harness from the bat­tery when the vehicle is not in use.

WARNING

Prevent Injuries and Deaths

• Direct Adult Supervision Required

• Keep Children Within Safe Riding Areas
These areas must be:

- away from swimming pools and other
bodies of water to prevent drownings

- generally level to prevent tipovers

- away from steps, driveways, roads
and alleys.

Rules for Safe Driving

K

Use vehicle on generally level ground ONLY!

RIDING HAZARD

Your vehicle can be used either as a motorized vehicle or as a free-wheeling foot-to-floor vehicle.It has
been pre-assembled at the factory for free-wheeling fun and converts easily for use as a motorized
vehicle simply by switching the selector lever located under the seat.

• Remove the seat.

• Press the handlebar button and at the same time switch
the selector lever to the MOTORIZED position.

• Re-assemble the seat.

• Follow the instructions for "Motorized Use" on this page.

FREEWHEEL

MOTORIZED

• Remove the seat.

• Bend the tab on the motor cover toward the front of
the vehicle while switching the selector lever to the
FREE-WHEEL position.

• Re-assemble the seat.

• Seat your child on the vehicle with both hands on the
handgrips and watch your child go!

1

FREEWHEEL

MOTORIZED

Press Here

Press Here

2 mph

Selector
Lever

Selector Lever

Selector Lever

Handlebar
Button

Selector
Lever

• Seat your child on the vehicle, with both hands on the
handgrips and both feet on the footrests.

• Press the handlebar button.The vehicle moves forward at
a maximum of 2 mph.

• Help your child practice steering to learn how far and how
quickly to turn the handlebar.

Tab

Tab

17

Motorized UseMotorized Use

How to Operate Your Vehicle

L

Free-Wheeling Fun!

Handlebar
Button

HEEL

FREEW

OTORIZED
M

MOTORIZED

FREEWHEEL

Problem Possible Cause Solution

Vehicle does not run Undercharged battery Charge the battery. A new battery should have been

charged for at least 18 hours before using the vehicle for
the first time. After first-time use, recharge the battery for at
least 14 hours after each use. Never charge the battery
longer than 30 hours.

Check all connectors. Make sure the battery connector is
tightly plugged into the charger connector, and that the
charger is plugged into the wall.

Make sure power flow to the wall outlet is “ON”.

Charger is not working There is no sure way to tell if your charger is working unless

you have a volt meter. If you suspect there is a problem with
your charger, contact your local Power Wheels®authorized
service center. They can test your charger for you.

Wrong type or improperly installed fuse Make sure that the battery has a properly installed

Power Wheels®25 amp fuse before charging. Do not
substitute parts.

Blown fuse Make sure that the fuse in the battery is in good

condition. Replace a blown fuse with a Power Wheels

®

25 amp fuse. Do not substitute parts.

Loose wire or loose connectors Check all wires and connectors. Make sure the battery

connector is tightly plugged into the motor harness
connector, and that there are no loose wires around
the motor.

Dead battery If your battery is old or if you have not followed Battery

Care instructions, your battery may be dead. If you are
unsure whether or not the battery is dead, you can have
it tested at your local Power Wheels®Authorized
Service Center.

Electrical switch damage The electrical switches can become corroded due to

exposure to water or moisture, or can jam due to loose dirt,
sand or gravel. Contact your local Power Wheels

®

Authorized Service Center for diagnosis and repair.

Motor damage Contact your local Power Wheels®Authorized Service Center

for diagnosis and repair.

Selector lever in FREEWHEEL position Make sure the selector lever under the seat is set to the

MOTORIZED position.

Vehicle was running but Loose wire or loose connectors Check all wires and connectors. Make sure the battery
suddenly stopped connector is tightly plugged into the motor harness

connector, and that there are no loose wires around
the motor.

Wrong type or improperly installed fuse Make sure that the battery has a properly installed

Power Wheels

®

25 amp fuse installed before charging.

Do not substitute parts.

Blown fuse Make sure that the fuse in the battery is in good

condition. Replace a blown fuse with a Power Wheels

®

25 amp fuse. Do not substitute parts.

18

Problems and Solutions Guide

IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions

Guide below. If you still experience a problem, please contact Power Wheels®Consumer Relations,
toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your
local Power Wheels®authorized service center.For the location nearest you, please refer to the
Authorized Service Center list beginning on page 22.

M

Vehicle was running but Vehicle is overloaded Make sure you do not overload the vehicle by allowing more
suddenly stopped (cont.) than 1 rider at one time, by exceeding the 40 lbs. (18 kg)

maximum weight capacity, or by towing objects behind
the vehicle.

Driving conditions are too stressful Use only on generally level ground. Extreme temperatures

can also affect run time.

Short run time Undercharged battery Charge the battery. A new battery should have been

charged for at least 18 hours before using the vehicle for
the first time. After first-time use, recharge the battery for
at least 14 hours after each use. Never charge the
battery longer than 30 hours.

Check all wires and connectors. Make sure the battery
connector is tightly plugged into the charger connector,
and that the charger is plugged into the wall.

Make sure power flow to the wall outlet is “ON”.

Overcharged battery Do not charge the battery longer than 30 hours. If you

suspect that your battery is damaged as a result of
overcharging, contact your local Power Wheels®Authorized
Service Center. They can test your battery for you.

Battery is old and will not Even with proper care, a rechargeable battery does not
accept full charge last forever. Average battery life is 1 to 3 years depending

on vehicle use and use conditions. Do not substitute parts.

Wrong type or improperly installed fuse Make sure that the battery has a properly installed

Power Wheels®25 amp fuse before charging.
Do not substitute parts.

Driving conditions are too stressful Use only on generally level ground. Extreme temperatures

can also affect run time.

Vehicle runs sluggishly Undercharged battery Charge the battery. A new battery should have been

charged for at least 18 hours before using the vehicle for
the first time. After first-time use, recharge the battery for at
least 14 hours after each use. Never charge the battery
longer than 30 hours.

Check all connectors. Make sure the battery connector is
tightly plugged into the charger connector, and that the
charger is plugged into the wall.

Make sure power flow to the wall outlet is “ON”.

Battery needs charging Be sure to charge the battery after each use.

Wrong type or improperly installed fuse Make sure that the battery has a properly installed

Power Wheels®25 amp fuse installed before charging.
Do not substitute parts.

Battery is old and will not accept Even with proper care, a rechargeable battery does not last
full charge forever. Average battery life is 1 to 3 years depending on

the vehicle use and use conditions. Replace the battery
with a Power Wheels®6 Volt (4 Amp/hr.) battery. Do not
substitute parts.

Vehicle is overloaded Make sure you do not overload the vehicle by allowing

more than 1 rider at one time, exceeding the 40 lbs. (18 kg)
maximum weight capacity, or by towing objects behind
the vehicle.

Driving conditions are too stressful Use only on generally level ground. Extreme temperatures

can also affect run time.

Problem Possible Cause Solution

19

Problems and Solutions Guide

Problem Possible Cause Solution

Sometimes the vehicle doesn’t Loose wire or connector Check all wires around the motor and all connectors to
run, but other times it does make sure they are tight.

Motor or electrical switch damage Contact your local Power Wheels®Authorized Service

Center for diagnosis and repair.

When the handlebar button is Loose wire or connector Check all wires around the motor and all connectors
pressed,the vehicle won’t run to make sure they are tight.
without a push

“Dead Spot” on motor Contact your local Power Wheels®Authorized Service

Center for diagnosis and repair.

Vehicle constantly blows fuses Wrong type of fuse used Your vehicle requires a Power Wheels®25 amp

fuse in the battery. Make sure the Power Wheels

®

25 amp fuse is properly installed in the battery. Do not
substitute parts.

Loud clacking or grinding Broken gears Contact your local Power Wheels®Authorized Service
noise from motor-gearbox Center for diagnosis and repair.

Charger gets warm during use It is normal for some chargers to get No action required.

warm during use and is not reason
for concern. Some chargers do not If your charger does not get warm during
get warm during use. use, it does not mean that it is not working properly.

Battery makes a sizzling or It is normal for some batteries to No action required.
gurgling noise when charging make noise and swell slightly while

charging and is not reason for If your battery does not make noise or swell slightly
concern. Some batteries do not during charging, it does not mean that it is
make noise or swell while charging. not accepting the charge.

20

If, after reviewing the Problems and Solutions Guide, the vehicle still fails to operate, please contact your nearest Authorized
Service Center (see page 22) or contact Power Wheels®Consumer Relations toll-free at 1-800-348-0751.

Hint: For faster service when calling Consumer Relations, completely charge the battery before calling and have the
following available by the phone:

• vehicle,

• vehicle model number (see sticker on underside of vehicle body),

• vehicle production run number (see sticker on underside of vehicle body),

• Phillips screwdriver, slotted screwdriver and needle-nose pliers with plastic or rubber handles,

• an extra Power Wheels®25 amp fuse is helpful.

Problems and Solutions Guide

21

*One year limited warranty from the date of purchase on the Power Wheels®vehicle.
Six month limited warranty on 6 volt battery.

For the original purchaser, this one year limited warranty covers the Power Wheels®ride-on vehicle (purchased from
Pow er Wheels

®

) against defects in materials and workmanship.The six month limited warranty applies only to the 6 volt

battery included by Power Wheels®with the original purchase of the vehicle.
This warranty covers normal use and does not cover the Power Wheels®vehicle or battery if it has been damaged by

unreasonable use, neglect, accident, abuse, misuse, improper service or other causes not ar ising out of defects in materials
or workmanship.Evidence of any attempt at consumer repair will void this warranty.

THIS WARRANTY DOES NOT COVER, AND IS INTENDED TO EXCLUDE, ANY LIABILITY ON THE PART OF POWER
WHEELS®, WHETHER UNDER THIS WARRANTY OR IMPLIED BY LAW, FOR ANY INDIRECT OR CONSEQUENTIAL
DAMAGES FOR BREACH OF WARRANTY. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION, SO THIS
LIMITATION MAY NOT APPLY TO YOU.

Should you need service or assistance with your vehicle during the warranty period, do not return the vehicle to the store.
Pow er Wheels®has provided a nationwide network of authorized service centers. Please refer to the list in this manual.
Pow er Wheels®is continually expanding our Author ized Service Center Networ k. If there is not an authorized service center
in your area, please call Consumer Relations for information, 1-800-348-0751.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY
VARY FROM STATE TO STATE.

PLEASE SAVE YOUR ORIGINAL SALES RECEIPT.

Bumper-to-Bumper*

Limited W arranty

N

Authorized Service Centers

O

We are continually expanding our Authorized Service Center Network. Please check this listing
for the Authorized Service Center nearest you.If there is not one in your area, please call
Power Wheels®Consumer Relations at 1-800-348-0751.

ALABAMA

BIRMINGHAM - Frigid Service & Sales,

701 Graymont Ave. North, 35203, [phone]
BIRMINGHAM - Frigid Service & Sales,

1861 Centerpoint Rd., 35215, [phone]
BIRMINGHAM (HOMEWOOD) - Frigid Appliance

Center, 154 West Valley Ave., 35209, [phone]
DECATUR - Peddler II, 1000 B Beltline Road, 35603,

[phone]
DOTHAN - Bill’s Appliance Service, 208 Bic Road,

P.O.Box 1192, 36303, [phone]
DOUGLAS - Brown Hardware, Highway 75, 35964,

[phone]
HUNTSVILLE - C & G Appliance, 307 Jordan Lane,

35805, [phone]
MOBILE - Foster’s Appliance Repair, 1660 South

Beltline Highway, 36693, [phone]
NORTHPORT - Appliance Connection,

2703 McFarland Blvd, 35476, [phone]
TROY - Specialty Batteries, 1317 S.Brundidge St.,

P.O.Box 1045, 36081, [phone], [phone]

ALASKA

ANCHORAGE - Ken’s Electronics Service,

360 E.Inter-national, Ste. 8, 99518, [phone]
FAIRBANKS - Appliance Service Co.Inc.,

700 23rd Ave., 99701, [phone]

ARIZONA

COTTONW OOD - Blac khills Auto Electric,

951 Blackhills Dr.Suite D, 86326, [phone]
GLENDALE - Elliott Electric Appliance Service,

6242 N.43rd Avenue, 85301, [phone]
SCOTTSDALE - Elliott Electric, 7515 E.McDowell

Road, 85257, [phone]
TUCSON - Arizona Small Appliance Service Co.,

5033 E 5th Street, 85711, [phone]

ARKANSAS

FT.SMITH - Bromley Appliance Service,

614 North 10th Street, 72901, [phone]
GLENWOOD - Gardening Plus, 110 North 2nd Street,

71943, [phone]
JONESBORO - Best Sewing & Vacuum & Repair,

2235 S.Caraway Road, 72401, [phone],
[phone]

LITTLE ROCK - C & W Tool Repair,
1303 W. Markham, 72201, [phone]

ROGERS - Kressel’s Vacuum & Repair, 115 North 5th
Street, 72756, [phone]

STUTTGART - Davis Lumber Company,
301 East Michigan, 72160, [phone]

CALIFORNIA

ANDERSON - Hardware Express/ Do It Best,

2681 Balls Ferry Road, 96007, [phone]
BAKERSFIELD - Southwest TV, 6300 White Lane,

Suite B, 93309, [phone]
CONCORD - California Electric Service Center,

1170-G Burnett Avenue, 94520, [phone]
COVINA - California Electric Service Center,

612 Shoppers Lane, 91723, [phone]
FORT JONES - Ft.Jones Frontier Hardware,

11911 Main Street, 96032, [phone]

FRESNO - Valley Small Appliance, 4005 E. Ashlan
Avenue, 93726, [phone]

FULLERTON - California Electric Service Center,
1208 E.Ash Avenue, 92631-5020, [phone]

LAKE FOREST- California Electric Service, 22500
Muirlands Suite B, 92630, [phone]

LOS ALAMITOS - Calif ornia Electric Service Center,
11284 Los Alamitos Blvd., 90720, [phone]

OAKLAND - California Electric Service Center,
1139 E.12th Street, 94606, [phone]

P ASADENA - California Electric Service Center,
2594 E.Colorado Blvd., 91107, [phone]

SACRAMENTO - Calif ornia Electric Service Center,
1821 “Q”Street, 95814, [phone]

SALINAS - SRS Hobbies, 1038A North Davis Road,
93907, [phone], [phone]

SAN DIEGO - California Electric Service Center,
3430 El Cajon Blvd., 92104, [phone]

SAN JOSE - California Electric Service Center,
481 So.Bascom, 95126, [phone]

SANTA R OSA- Hardisty’s Inc., 710 Farmers Lane,
95405, [phone]

SKY FOREST - Sky Forest Electrical, 28670 Highway
18 P.O.Box 496, 92385, [phone]

TEMECULA - California Electric Service Center,
41715 Enterprise Circle North, Suite 101, 92590,
[phone]

VAN NUYS- California Electric Service Center,
14753 Oxnard Blvd., 91411, [phone]

WEST LOS ANGELES - California Electric Service
Center, 2314 S.Westwood Blvd., 90064,
[phone]

YUCAIP A- Aire-Rite Heating & A/C, 34724 Yucaipa
Blvd., 92399, [phone]

COLORADO

COLORADO SPRINGS - Nelson Appliance

Repair, Inc., 1220 E.Fillmore, 80907, [phone],
[phone]

DENVER - Appliance Service, 4272 Lowell
Blvd., 80211, [phone], [phone]
(CO, WY only)

GRAND JUNCTION - V & L Appliance Service,
591 25 Road Suite A6, 81506, [phone]

PUEBLO - Direct Maytag Home Appliance,
1407 Santa Fe Drive, 81006, [phone]

CONNECTICUT

HARTFORD - Hartford Element & Appliance Service,

1500 Albany Ave.,06112, [phone],
(800) 787- 7977

NEW HAVEN (HAMDEN)- New Haven Appliance
Service Center, 1627 Dixwell Ave., 06514,
[phone]

SHELTON - Jeff’s Appliance, Inc., 500A Ho we
Avenue, 06484, [phone]

STAMFORD - Appliance Servicenter of Stamford,
15 Cedar Heights Road, 06905, [phone]

WATERBURY - P.J.Appliance Repair, 935 South Main
Street, 06706, [phone]

DELAWARE

WILMINGTON - Lyons Hardw are , Inc., 2021 Kirkwood

Highway, 19805, [phone]

FLORIDA

ATLANTIC BEACH - First Coast Repair, 25 Seminole

Road, 32233, [phone]
BOYNTON BEACH - Mister FixIt Small Appliance,

1865 W. W oolbright Road, 33425, [phone]
CALLAHAN -Arc Electronic Repair, 951 Blackhills Dr .

Suite D, 32011, [phone]
CAPE CORAL - Family Hardware/Do-It Express,

622 SE 47th Terrace, 33904, [phone]
DELRAY - Mister Fix It, 209 S.E. 2nd Av enue, 33483,

[phone]
GAINESVILLE - Authorized Appliance Service Co.,

2614 S.W .34th Street, 32608, [phone]
HIALEAH - S-O Service Co., 925 Hialeah Drive,

33010, [phone]
HOMESTEAD - C.M. S., Inc.,1996 N.E.Campbell

Drive, 33033, [phone]
JACKSONVILLE - Authorized Appliance Service Co.,

6120-5 Powers Avenue, 32217, [phone]
LAKECITY - S&S Mowers Inc., RT. 10 Box 35916,

32025, [phone]
LAKELAND - Electric Shaver & Small Appliance,

4243 S.Florida Avenue, 33813, [phone]
MIAMI - Goodman’s Sales & Service, 13130 SW 128

Street # 3, 33186, [phone]
NORTH PALM BEACH - Appliance Doctors,

450 Northlake Blvd., 33408, [phone]
OCALA - Vacuums Center and Gifts, 422 South Pine

Street, #103, 34474, [phone]
ORLANDO - Pine Hills Appliance Svc. Co.,

6100-4 W. Colonial Drive, 32808, [phone]
ORLANDO - Southern Electric Co., 510 N. Parramore

Avenue, 32801, [phone], [phone]
P ANAMA CITY- Callaway Vacuum & Sewing,

221 N.Tyndall Prkwy., 32404, [phone]
PENSACOLA - Foster’s Appliance Repair,

3836 N.Davis Highway, 32503, [phone]
POMP ANO BEACH - Authorized Appliance Service

Co., 2171 N.Dixie Highway, 33060, [phone]
PORT ST .LUCIE - Appliance Doctors, 10632 South

Federal Hwy, 34952, [phone]
SARASOTA - Sunray Small Appliances,

8371 N.Tamiami, 34243, [phone],
[phone]

SEBRING - Ace Hardware Of Sebring, 305 U.S.27
North, 33870, [phone]

SPRING HILL - Ace Hardware #5304F,
5350 Spring Hill Dr., 34606, [phone]

SPRING HILL - National Floor Care,
5588 Commercial Wa y, 34606, [phone],
[phone]

ST.PETERSBURG - Keystone Electric, 4604 Central
Avenue, 33711, [phone]

STUART - Appliance Doctors, 3166 S.E.Dixie
Highway, 34997, [phone]

SUNRISE - Muller Appliance Service, 2116 North
University Drive, 33322, [phone]

22

Authorized Service Centers

23

VERO BEACH - Hoppe’ s Authorized Vacuum and
Appliance, 1872 Commerce Ave., 32960,
[phone]

WEST P ALM BEA CH - Satisf action TV Video,
1980 South Congress Ave., 33406, [phone],
[phone]

WILLISTON - Future Electronics, 10 SW 7th Street,
32696, [phone], [phone]

GEORGIA

ATLANTA - Georgia Service Center, 5366 Buford Hwy.,

30340, [phone], [phone]
AUGUSTA - A & A Appliance Parts & Service,

1708 Walton Way , 30904, [phone]
BRUNSWICK - Arco Hardware & Supply,

3711 Community Road, 31520, [phone]
COLUMBUS - Burrell’s National Appliance Service,

1728 Warm Springs Road, 31904, [phone]
NORCROSS - Appliance Connection, 5172-C Brook

Hollow Parkway, 30071, [phone],
[phone]

GAINESVILLE - Bike Town USA, 1604 Dawsonville
Highway, 30501, [phone]

LOGANVILLE - Loganville Lawn Mower ,
157 C.S. Floyd Road, 30052, [phone]

SAVANNAH - Hagins Appliance Service,
3 West Victory Drive, 31405, [phone]

THOMASVILLE - Carroll Hill Auto,
115 Albany Road, 31799, [phone]

VALDOSTA- Harry B. Anderson, Inc.,
204 E.Central Avenue, 31601, [phone]

WOODSTOCK - All City Appliance Inc.,
8477 Highway 92 Suite 110, 30189, [phone]

HAWAII

HONOLULU - McCully Bicycle & Sporting Goods,

932 Hausten Street, 96826, [phone]
WAILUKU (MA UI) - Tom’s Appliance Sales & Service,

1816 Mill Street, Suite 104 , 96793, [phone]
WAIPAHU - Gary’s Bike World, 94-910 Moloalo Street,

96797, [phone]

IDAHO

BOISE - Boise Appliance, 1503 Main Street, 83702,

[phone]
IDAHO FALLS - Rossiter Electric, 1501 South Capital

Avenue, 83402, [phone]

ILLINOIS

CHAMP AIGN - Appliance Parts & Service Center,

905 Francois, 61821, [phone]
CHICAGO (BERWYN) - Brand Service Center ,

6739 West Cermak, 60402, [phone]
CHICAGO (DO WNER’S GR OVE) - Authorized

Appliance Service Co., 1644 W. Ogden Av enue , 60515,
[phone]

CHICAGO (MORT ON GROVE) - Brand Service Center,
Inc., 5618 Dempster Street, 60053, [phone]

DECATUR - Rexx Battery of Decatur, Inc.,
1330 East Eldorado, 62521, [phone]

FAIRVIEW HEIGHTS - Rapid Rentals, 720 L:incoln
Highway, 62087, [phone]

GRANITE - Midwest Golf Car & Equipment Co,
904 Thorngate Road, 62040, [phone]

HAMILTON - Discount Battery Sales, #80 S 2nd Rte.
136, 62341, [phone]

JACKSONVILLE - Rexx Battery Specialists,
847 South Main Street, 62650, [phone]

LINCOLN - Rexx Battery Specialists, 504 Keokuk,
62656, [phone]

LOVES PARK - Hi-Tech Controls Inc., 2198 Nimtz
Road, 61111, [phone]

MT.VERNON - Battery Specialists, 1018 South 10th
Street, 62864, [phone]

NASHVILLE - Kesel Hardware,173 West St. Louis,
62263, [phone]

NILES - Household Appliance Sales & Serv.,
7411 N.Milwaukee Ave., 60714, [phone]

PEORIA - Brand Service Center, 6926-I N.University
Street, Tanglewood Center, 61614, [phone]

SPRINGFIELD - Bannon Electronics,1224 N.Franklin,
62702, [phone]

TAYLORVILLE - Battery Specialists + Golf Cars,
800 Springfield Road, 62568, [phone]

INDIANA

EVANSVILLE - Electro Hygiene Co., 1614 S Kentucky,

47714, [phone]
FT.WAYNE - HWI Hardware & Paint, 6043 Stellhorn

Road, 46815, [phone]
FT.WA YNE - Southside Vacuum Co.Inc.,

3702 South Calhoun Street, 46807, [phone],
[phone]

INDIANAPOLIS - Brand Service Center,
1827 N.Meridian Street, 46202, [phone]

INDIANAPOLIS - Sullivan Hardware Do-It Center,
7021 N.Keystone, 46220, [phone]

NEW ALBANY - Wells Hardware, Inc., 1011 Vincennes
Street, 47150, [phone]

SOUTH BEND - Ray’s TV and Appliance, 60717 US 31
South, 46614, [phone]

SOUTH BEND (OSCEOLA) - AAA Appliance Service
Co., 11868 Lincoln Way West, 46561, [phone]

TERRE HAUTE - Corey Electronics,1101 S.8th Street,
47802, [phone], [phone]

IOWA

BETTENDORF - K & K True Value Hardw are ,

1818 Grant Street, 52722, [phone]
CEDAR RAPIDS - Stalker Electric, Inc.,110 3rd Ave.

SW, 52404, [phone]
COUNCIL BLUFFS - Millard Television Inc.,

1840 Madison Avenue, 51501, [phone]
DES MOINES - Quality Appliance Repair Center,

1417 Walnut Street, 50309, [phone]
DUBUQUE - Shaver’s Plus, 450 Central Avenue, 52001,

[phone]
FT DODGE - Messerly Electronics, 614 1st Avenue

South, 50501, [phone]
GRINNELL - Bikes To You Inc., 921 Broad Street,

50112, [phone]
MARSHALLTOWN - Blink Electric Motors, Inc.,

Rear 116 N 1st Avenue, 50158, [phone]
NORTH LIBERTY - Ace Electric, Inc., 165 Hwy 965 NE,

52317, [phone], [phone]
SIOUX CITY - Millard Television Inc., 1419 Hamilton

Blvd., 51103, [phone]

KANSAS

CHANUTE - Zimmerman Electric Service,

1202 West Beech, P.O .Box 533, 67720,
[phone], [phone]

COLBY - Gavon’s Electronics , 1870 South Range ,
67701, [phone]

JUNCTION CITY - R/C Hobbies, 115 W. 7th Street,
66441, [phone]

KANSAS CITY (OVERLAND PARK) - Mar-Beck
Appliance Service Co., 8471 West 95th Street, 66212,
[phone]

SPEARVILLE - Quality Parts, P.O .Box 126,
406 North Main, 67876, [phone]

WICHITA - Alan Appliance Service, Inc.,
1300 E.Central, 67214, [phone],
[phone]

KENTUCKY

GREENVILLE – Malone Lumber Do-It Center,

204 W. Depot Street, 42345, [phone]
LEXINGTON - AutoHobby Model Race way,

1474 Anniston Drive, 40505, [phone]
LOUISVILLE - Maury’s Fluorescent & Appliance

Service, 1521 Bardstown Road, 40205, [phone]
OWENSBORO - Kuester’s Hardware, 1210 Carter

Road, 42301, [phone]
P ADUCAH - Hank Brothers True Value, 3101 Lone Oak

Rd., 42003, [phone]

LOUISIANA

BAKER - Gayle Battery Distributors, 16555 Plank Road,

70714, [phone]
BATON ROUGE - Home Appliance Service, Inc.,

10781 Florida Blvd., 70815, [phone]
HAMMOND - Battery Depot, 2323 Hwy 190 East

Suite #4, 70401, [phone]
LAFAYETTE - Cullen’s Playland, 4498 Johnston Street,

70503, [phone]
LAKE CHARLES - Capitol Schwinn Cyclery,

722 E.Prien Lake Road, 70605, [phone]
NEW IBERIA - Voorhies Supply Company,

401 W. St.Peter Street, 70560, [phone]
NEW ORLEANS (METAIRIE) - Le Jouet, Inc.,

1700 Airline Hwy., 70001, [phone]
SHREVEPORT - Shreveport Shaver and Appliance,

9750 St.Vincent, Burt Kouns Ind. Loop, 71106,
[phone], [phone]

MAINE

GREENE - Brule’s Auto Clinic & Sales, 968 Sawy er

Road, 04236, [phone]
PERU - Mountain Valley Sports, 58 Ridge Road, 04290,

[phone]
PORTLAND - Colonial Electronics, Inc., 259 St.John

Street, 04102, [phone]

MARYLAND

ABERDEEN - Burkheimer Garden Equipment,

651 Gilbert Road, 21001, [phone]
BALTIMORE - Colgate Hardware, 6711 Holabird Ave.,

21222, [phone]
BERLIN - Myers Auto-Po w er Tool Rental Co., Inc.,

10714 Ocean Gateway, 21811, [phone]
GAITHERSBURG - Waters Appliance Service,

216 E.Diamond Avenue, 20877, [phone],
[phone]

GLEN BURNIE - Taylor Rental, 7389 Baltimore
Annapolis Blvd., 21061, [phone], [phone]

LOVEVILLE - Hancock Refrigeration Co Inc, 28650
Point Lookout Rd, 20656, [phone]

Authorized Service Centers

24

MASSACHUSETTS

BOSTON (MEDFIELD) - Wills Hardware,

5 Janes Avenue , 02052, [phone]
LOWELL - Lowell Appliance Service Center, Inc.,

564 Dutton Street, 01854, [phone]
MAYNARD - Gramp’s Garage, 16 Main Street, 01754,

[phone]
NEEDHAM - Suburban Applicance Service Center,

34 We xford Street, 02492, [phone]
QUINCY - Appliance Service and Parts, Inc.,

582 Wash-ington Street, Rt.3A, 02169, [phone]
SALEM - Fix Master, Inc., 190 North Street, 01970,

[phone]
SPRINGFIELD - Utility Electric Service, Inc.,

810 Main Street, 01101, [phone]

MICHIGAN

ALMA - JTS Electronics, LLC, 306 East Center Street,

48801, [phone]
ALMONT - Almont Do It Center #5336, 4545 V andyke,

48003, [phone]
BAY CITY - Bay Vac & Pedal, 805 Columbus Ave .,

48708, [phone]
BRIGHTON - Complete Battery Source,

8023 West Grand Riv er, 48116, [phone]
DEARBORN - McNichols Electric Service,

1836 Grindley Park, 48124, [phone]
DETROIT - McNichols Electric Service,

13725 W. McNichols, 48235, [phone],
[phone]

DETROIT (RO YAL OAK) - McNichols Electric Service,
4115 West 13 Mile Road, 48072, [phone]

FLINT (DAVISON) -Gill-Roy’s Hardware,
8405 E Davison, 48423, [phone]

FLINT (SWARTZ CREEK) - Gill-Ro y’s Hardware,
9061 Miller Road, 48473, [phone]

GAYLORD - Alpine Electronics, 604 West Main,
49735, [phone], [phone]

GRAND RAPIDS - Superior Appliance Service Co.,
1050 Scribner Avenue, NW, 49504, [phone]

JACKSON - Hammond Hardware, 1800 Francis St.,
P.O.Box 7, 49204, [phone]

LANSING - Rapid Appliance Service, Inc.,
1454 E.Michigan Avenue, 48912, [phone]

MARLETTE - Thumb Appliance and Retail Center,
3441 Main Street, 49684, [phone]

MIDLAND - Gill-Roy's Complete Hardware,
3128 Jefferson Ave ., 48640, [phone]

PRUDENVILLE - Ford’s Do-It Center,
841 W. Houghton Lake Drive, 48651,[phone]

ROYAL OAK- McNichols Electric Service,
4115 Thirteen Mile Road, 48072, [phone]

TRAVERSE CITY- Gil-Ro y's Hardw are ,
2701 Zimmerman Road, 49684, [phone]

MINNESOTA

BLAINE - Barness #1, 8701 Central Ave.NE, 55434,

[phone]
BRAINERD-Git A’Round,4299 Hwy.371North,56401,

[phone]
DULUTH - All Brand Mr.Fixit, 16 West First Street,

55802, (218)-722-1499
ST.PAUL - Barness, 1573 University Avenue, 55104,

[phone]

MISSISSIPPI

HATTIESB URG - Champion Cycle & Fitness,

2625 Lincoln Road, 39402, [phone]
IUKA - W. H.Fairless Hardware Co., Inc., 117 Fulton

Street, 38852, [phone], [phone]
JACKSON (RIDGELAND) - Propeller Service,

291 Hwy .51, Suite D6, 39157, [phone]
MERIDIAN - Broadmoor Home Center,

2420 Old North Hills Street, P.O. Box 3280,
39305, [phone]

SALTILLO - Polaris Outdoor World, 3463 Tom Watson
Drive, 38866, [phone]

STARKVILLE - East Mississippi Lumber Co.,
300 Russell Street, 39759, [phone]

MISSOURI

GLADSTONE - Mar-Beck Appliance Service Co.,

6559 North Oak Traffic Way, 64118, [phone]
HANNIBAL - Williams Equipment & Electric Motor,

124 Corporate Square, 63401, [phone],
[phone]

INDEPENDENCE - Mar-Beck Appliance Service Co.,
4476 South Noland Road, 64055, [phone]

KANSAS CITY - Mar-Beck Appliance Service Co.,
303 W. 79th Street, 64114, [phone]

POPLAR BLUFF - Mills Iron & Supply,
1919 S.Westwood Blvd., 63901, [phone]

ST.LOUIS - Authorized Appliance, Inc.,
2355 Hampton Avenue, 63139, [phone]

MONTANA

BILLINGS - Radio Equipment Company , 1120 16th

Street West, 59104, [phone], [phone]

NEBRASKA

GRAND ISLAND - Mundt’s Small Appliance

& Vacuum Repair, 1822 W .Northfront Street, 68803,
[phone]

LINCOLN - CB Small Appliance, 432 South 11th
Street, 68508, [phone]

LINCOLN - Sperry TV, 1115 North 47th St., 68503,
[phone]

LINCOLN - Sperry TV, 3201 Pioneer, Suite 33
[phone]

NORTH PLA TTE - Sperry TV, 1855 West A Street,
Westfield Shopping Center, 69010, [phone]

OMAHA - Myers Electric Co., 7342 Farnam, 68114,
[phone], [phone]

NEVADA

LAS VEGAS - Burney’s Commercial Service, Inc.,

4480 Aldebaran Avennue, 89103, [phone]
MINDEN - Valley Home & Sport Center, 1587 Highway

395, 89423, [phone]

NEW HAMPSHIRE

MARLBOROUGH- Electronics Aid Inc., 32 Roxbury

Road P.O.Box 325, 03455, [phone]

NEW JERSEY

DENVILLE- Ranft's Denville Vacuum & Appliance,

12 Broadway, 07834, [phone]
HAWTHORNE - Ter Kuile, Inc., 206 Diamond Bridge

Avenue, 07506, [phone]
HIGHLAND P ARK- Dash Electronics,

10 North Second Ave, 08904, [phone]
HOWELL - South Jersey TV Service, Inc., 4232 Rt.9

South, 07731, [phone], [phone]

MAPLEWOOD - Kiss Electrical, 36 Newark Way,
07040, [phone]

SOUTHAMPTON - Southampton Auto Center ,
1831 Rt.206, 08088, [phone], [phone]

SICKLERVILLE - Sicklerville Hardware,
540 Williamstown Road, 08081, [phone]

TOMS RIVER - South Jersey TV Service, Inc., Stella
Towne Center, 1258 Rt.166, 08753, [phone]

TRENTON - Tattersall, Inc., 309 N.Willow Street,
08618, [phone]

NEW MEXICO

ALBUQUERQUE - Appliance Service Center,

5505 Silver Avenue , SE, 87108, [phone]
CLOVIS - Burns Hardware, 1511 N.Prince, 88101,

[phone]

NEW YORK

ALBANY - Lake Electronic Service, 1650 Central

Avenue, 12205, [phone], [phone]
BAYSHORE, L.I. - Turnpike Appliance of Suffolk, Inc.,

1253 Sunrise Highway, 11706, [phone]
BINGHAMTON - Hardware Fare DO-IT Center,

1139 Front Street, Nimmonsburg Square, 13905,
[phone]

BRONX - Home Appliance Vacuum Word,
5902 Riverdale Avenue , 10471, [phone]

BUFFALO (WILLIAMSVILLE) - Hector’s Hardware,
876 Maple Road, 14221, [phone]

BUFFALO (HAMB URG) - K-Technologies,
5424 Abel Road, 14075, [phone]

COMMACK,L.I. - Turnpike Appliance Service,
6181 Jericho Turnpike, 11725, [phone]

EAST AURORA - Sem-Fab of Western New York,
455 Olean Road, 14052, [phone]

ELMIRA - Capabilities, Inc., 1149 Sullivan Street,
14901, [phone]

HOWARD BEACH- Crossbay Appliance Service,
158-34 Crossbay Blvd, 11414, [phone]

HUDSON - Sweeps Vacuum & Repair Center, Inc.,
705 Warren Street, 12534, [phone]

MONTICELLO - Wa yne’s Small Engine, 79 St. John
Street, 12701, [phone]

OCEANSIDE - Turnpike Appliance Service,
3495A Lawson Boulevard , 11572, [phone]

POUGHKEEPSIE - S & S Appliance Sales & Service,
390 Violet Avenue, 12601, [phone]

RICHMOND HILL - Lockdoctor Locksmiths,
104-37 Atlantic Ave., 11418 [phone]

ROCHESTER - Benfante Appliance Service,
1286 Mt.Hope Avenue, 14620, [phone]

STATEN ISLAND - Springstead Lumber 6232,
4255 Amboy Road, 10308, [phone]

SYRACUSE - County Wide Appliance, 1001 N.State
Street, 13208, [phone], [phone]

TUCKAHOE - Authorized Appliance of Westchester,
26 Columbus Ave ., 10707, [phone]

WAR WICK - Wadeson Home Center, 60 Forester Av e .,
10990, [phone], [phone] (NY only)

YORKVILLE - Yorkville Battery Inc., 126 Whitesboro
Street, 13495, [phone]

Authorized Service Centers

25

NORTH CAROLINA

ANDREWS - Smoky Mountain Hobbies, 200 Stewart

Road, 28901, [phone]
ASHEVILLE - Skyland Hardware, 3179 Sweeten

Creek Road, 28803, [phone]
CHARLOTTE - Authorized Appliance Servicenter,

1020 Tuckaseegee Road, 28208, [phone],
[phone]

CLINTON - Danny’ s Service Center , 119 Vance Street,
28328, [phone]

ELIZABETH CITY - Coastal Office Equipment Co.,
501 East Church Street, 27909, [phone]

JACKSONVILLE- Discount Sales and Service,
468-B Western Blvd., 28456, [phone]

RALEIGH - Authorized Appliance Service Center,
800 North Person Street, 27604, [phone]

WINSTON-SALEM - Authorized Appliance Service
Center, 904 S.Marshall Street, 27117, [phone]

NORTH DAKOTA

BISMARCK - Guitarland, 210 E Main Street, 58501,

[phone]
DICKINSON - Fix It Shop, 316 21st Street E, 58601,

[phone]
FARGO - General Parts & Supply Co.,10 S. 18th St.,

58103, [phone], [phone]

OHIO

AKRON - Advanced Appliance Service Company,

73 W. Exchange Street, 44308, [phone]
BROOKLYN HEIGHTS - Philips Consumer,

950 Keynote Circle, 44131, [phone],
[phone]

CANTON - Appliance Parts Co., 1267 Dueber A venue,
SW, 44706, [phone]

CINCINNATI - H&S Service, 458 Cincinnati Batavia
Pike, 45244, [phone]

CLEVELAND (MENTOR) - Lake Erie Lawn & Garden,
7833 Munson Rd., 44060, [phone]

CLEVELAND (P ARMA)- Majors Appliance,
5785 Ridge Road, 44129, [phone]

CLEVELAND (WESTLAKE) - Philips Consumer
Electronics, 24090 Detroit Avenue, 44145,
[phone], [phone]

DAYTON - Layer Electric, 603 South Ludlow Street,
45402, [phone]

DAYTON (NEW CARLISLE) - Ballweg Do-It Center,
3300 South Dayton, Lakeview Rd., 45344,
[phone]

GALION - Allied Electrical Repair, 1404 Harding W ay
East, 44833, [phone], [phone]

LIMA - Crouse Lumber Do-It Center, 333 E.Market
Street, 45801, [phone], [phone]

MANSFIELD -Boliantz Hardware, 860 Ashland Road,
44905, [phone]

PORTSMOUTH - Market St Hardware & Toy Town,
217 Market Street, 45662, [phone]

STRYKER - Short’s Hardware, 115 N.Depot Street,
43557, [phone]

TOLEDO - Broadway Sales and Appliance Repair, 1621
Broadway, 43609, [phone],
[phone]

WELLINGTON - Travelite Inc., 100 Industrial Avenue,
P.O.Box 60, 44090, [phone], [phone]

YOUNGSTOWN - O’Connor’s, 3224 Market Street,
44507, [phone]

OKLAHOMA

ADA - Bert's Supply Co, Hwy 99, 74820,

[phone], [phone]
McCALESTER - Quality Upholstery, 803 East Gene

Stipe Blvd., 74501, [phone]
OKLAHOMA CITY - Appliance Services by CK,

101 East Madison, 73105, [phone]
OKLAHOMA CITY - Oaklahoma Service Center,

1940 North May Street, 73107, [phone]
TULSA - H.L.Moss, Inc., 1714 E. 15th Street, 74104,

[phone], [phone]

OREGON

EUGENE - Oldfield’s, 1465 West 7th, 97402,

[phone], [phone]
PORTLAND - Appliance Repair Central,

2033 N.E. Columbia Blvd, 97211, [phone],
[phone]

PENNSYLVANIA

ALTOONA - Frye’s Sweeper & Sewing Center , Inc.,

1400 Valley View Boulevard, 16602, [phone],
[phone]

BUTLER - Battery Warehouse, 469 Cunningham
Street, 16001, [phone]

CRANBERRY - Batteries Plus North, Cranberry
Towne Plaza 20808 Route 19, 16066, [phone]

ERIE - Parke T.Morrow Inc., 627 West 26th Street,
16508, [phone]

GROVE CITY - Battery Warehouse, 620 East Main
Street, 16127, [phone]

HARRISBURG - C.A.Juillard, Inc., 2301 North
Seventh Street, 17110, [phone],
[phone]

JOHNSTOWN - Cambria True Value Hardware,West
Hills Square, Goucher Street, 15905, [phone]

KINGSTON - Vac-Way Appliance & Service,
595 Market Street, 18704, [phone]

LANCASTER - Colonial Electronics Inc., 241 West
Roseville Suite #2t, 17601, [phone]

McDONALD - Small Engine World, 130 East O’Hara
Street, 15057 [phone]

MOSCOW - Vac-Way Appliance & Service,RR #6 Box
6237, 18444, [phone]

ORANGEVILLE - Hess Do-It Center & Market, Route
487, Box 4 M, 17859, [phone]

PHILADELPHIA - Appliance Care/Service Corp.,
6407 Rising Sun Ave., 19111, [phone]

PHILADELPHIA (COLLINGDALE) - J.F.Kenney
Electric, 920 MacDade Blvd, 19023, [phone]

PITTSBURGH - Batteries Plus, 3912 Library Road,
15234, [phone]

READING - Electric Repair Co., 502-504 N.9th Street,
19604, [phone], [phone] (PA only)

SCRANTON - Vac-Way Appliance and Service,
601 Cedar Avenue, 18505, [phone]

SHAMOKIN DAM - Willard Battery Outlet,
138 S.Old Trail, 17876, [phone]

SHIPPENVILLE - Battery Warehouse, 11105 Rt 322
Riverhill, 16254, [phone]

TROY - Hoo ver Hardware, 9 Canton, 16947,
[phone], [phone]

WILKES-BARRE - W alter Hardw are DO-IT Center,
57 N.Welles Street, 18702, [phone]

PUERTO RICO

MAYAGUEZ - Cardona Appliance Service,

8 San Vicente Street, 00680, [phone]
MAYAGUEZ - AAA Melendez Rental, Calle Post 319

Sur, 00680, [phone]
PONCE - Ferreteria Vivian, Centro Comercial,

Los Caobos #7, 00731, [phone]
PUERTO NUEV O - Buckeye Service, 1013 Jesus T.

Pinero Avenue, 00920, [phone]

SOUTH CAROLINA

AIKEN - Dunagan’s Sewing & Vacuum,

1536 Whiskey Road, 29803, [phone]
BELTON - American Pro Office Equipment,

309 Forest Lane, 29627, [phone]
CHARLESTON HEIGHTS - Dorchester Electric

Service, 3575 Dorchester Avenue, 29405,
[phone]

COLUMBIA - Authorized Appliance Servicenter,
1811 Taylor Street, 29202, [phone]

DARLINGTON - Hobbies and More, 1570 South Main
Street, 29532, [phone], FAX [phone]

EASLEY - Trails End Bicycles, 110 Pendleton Street,
29640, [phone]

FORT MILL - Service Engines Inc., 3356 SC Highway
51, 29715, [phone], [phone]

GREENWOOD - Bikes & Boards & Mopeds,
203A Montague Avenue, 29646, [phone]

HILTON HEAD ISLAND - Bikes Kites & More,
2 E Southwood Park Drive, 29926, [phone],
[phone]

SENECA - Seneca Micronics, 110 East North First,
29678, [phone]

SOUTH DAKOTA

RAPID CITY - Mick's Electric, Inc, 1304 Oregon

Street, 57701, [phone]
WINNER - Nelson’s Electronics Inc., 422 W est 2nd

Street P.O.Box 369, 57580, [phone],
[phone]

TENNESSEE

CHATTANOOGA - Consumer Service Company,

2607 E 47th Street, 37407, [phone]
DANDRIDGE- Save More Sales, 1291 W Hwy 25-70,

37725, [phone]
KNOXVILLE - Appliance & Electric Service Company ,

4816-M Kingston Pike, 37919, [phone],
[phone]

KNOXVILLE - Authorized Appliance Service Center,
1206 North Central Street, 37917, [phone]

MEMPHIS - Camp Electric Co., 647 Madison Avenue ,
38103, [phone], [phone]

NASHVILLE - Webb’s Appliance Service Center, Inc.,
1519 Church Street, 37203, [phone],
[phone]

PINEY FLATS- Appalachian Small Engines,
6192 Hwy 11E, 37686, [phone]

TEXAS

AMARILLO - Reid’s Appliance Service, Inc.,

906 Georgia, 79102, [phone]
AUSTIN - Harrell Supply and Service, Inc.,

5435 Burnet Road, 78756, [phone],
[phone] (TX only)

AUSTIN - Harrell Supply and Service, Inc.,
1409 West Oltorf, 78704, [phone]

Authorized Service Centers

26

CORPUS CHRISTI - Brand Appliance & Microwave,
2751 South Staples, 78404, [phone]

DALLAS - All Type Sales and Service Co., Inc.,
2835 Irving Blvd., 75207, [phone],
[phone]

DALLAS - Pearsol Appliance Co., 3127 Main Street,
75226, [phone]

FT.WORTH - Ft.Worth Shaver and Appliance Center,
1900 Montgomery Street, 76107, [phone],
[phone]

HOUSTON - Brand Service Center, 5727 Richmond
Avenue, 77057, [phone]

HOUSTON - Brand Service Center, 1970 FM 1960,
77090, [phone]

KILLEEN - Master Tech Repairs, 501 West Elms Road
Suite #10, 76542, [phone]

LONGVIEW - Foster’s, 3315 Gilmer Road, 75604,
[phone]

LUBBOCK - Minter’s, 4409 50th Street, 79414,
[phone]

LUFKIN - STS Audio and Video, 1505 South First
Street, 75901, [phone]

MC ALLEN - All-In-One Repair Shop, 2313 Lark
Avenue, 78504, [phone]

MIDLAND - Midland Tool Specialty, 918 South Main,
79701, [phone], [phone]

P ASADENA - Larry’ s TV Service, 3520 Fairmont
Parkway, 77504, [phone],

ROMA - True Value Hardware, 1004 E. Highway 83,
[phone]

SAN ANTONIO - Texas Shav er & Appliances,
8121 Callaghan Road, 78230, [phone]

TEMPLE - Master Tech Repairs, 2819 West A venue
North, 76504, [phone]

WICHITA FALLS - Burke’s Appliance Service,
2410 10th Street, 76309, [phone]

UTAH

OREM - The Mending Shed, 1735 South State Street,

84058, [phone], [phone]
SALT LAKE CITY - Appliance Service Center, Inc.,

210 East 6th South, 84111, [phone]
WILLARD - Peak Electric Co Inc, 780 N 200 W,

84340, [phone]

VIRGINIA

ALEXANDRIA - D & S Repair Service, 20 South Dove

Street., 22314 [phone]
BLACKSTONE - Be vell’s True Value Hardware ,

109 North High Street, 23824, [phone],
[phone]

FREDERICKSBURG - Fredericksburg Electrical
Repair, Inc., 10825-D Houser Drive, 22408,
[phone]

HARRISONBURG (PENN LAIRD) - J.L.Maintenance
& Repair, Inc., Rt 2, Box 308, 22846, [phone]

LOUISA - Lakeside Electric Const., 4344 Davis
Highway Suite 2, 23093, [phone]

RICHMOND - Wells Inc., 3502 Jefferson Da vis
Highway, 23234, [phone]

ROANOKE - Commonwealth Shaver & Appliance
Service, 5524 Williamson Road, NW, 24012,
[phone]

SOUTH BOSTON - South Boston True Value,
307 Broad Street, 24592, [phone]

VIRGINIA BEACH - Commonwealth Electric Shav er,
549 Newton Road #108, 23462, [phone]

WINCHESTER - Battery Mart of Winchester, Inc.,
1 Battery Dr., 22601, [phone]

WASHINGT ON

ARLINGTON - Cordz Limited, 105 North Olympic

Avenue, 98223, [phone]
FEDERAL WA Y - Martha Lake Electronics,

2118 South 314th Street, 98003, [phone]
KENNEWICK - At Home Electronic Service,

313 East First Avenue, 99336, [phone]
LYNNWOOD - Martha Lake Electronics,

16521 13th Avenue West, 98037, [phone]
RENTON - Martha Lake Electronics, 212 South West

43rd, 98055, [phone]
SEATTLE - Action Small Appliance, 2125 2nd Avenue,

98121, [phone]
SEATTLE (BELLEVUE)- Action Small Appliance

Service, 1500 145th Place, SE, 98007,
[phone]

SPOKANE - Aalwaco Applaince, N 3007 Argonne
Road, 99212, [phone]

TACOMA - Martha Lake Electronics, 2913 South 38th
Street, 98409, [phone]

WENATCHEE - Motor Mart, 150 Marr, 98801,
[phone]

WEST VIRGINIA

BECKLEY - Jerry’s Detectors, Vacuum & Appl. Svc.,

411 Second Street. 25801, [phone]
CHARLESTON - Sneed’s Vacuum & Sewing Center,

2614 7th Avenue, 25312, [phone],
[phone] (WV only)

HARRISVILLE - Western Auto , 1107 E.Main St.,
26362, [phone]

HUNTINGTON - Mike’ s Appliance and Service,
212 20th Street, 25703, [phone]

MARTINSBURG - Battery Mart, 1161-3 Winchester
Avenue, 25401, [phone], [phone]

P ARKERSB URG - Battery Mart, 656 Seventh Street,
26101, [phone]

VIENNA - T & S Lawn - Landscape & Power
Equipment, 1100 10th Street, 26105, [phone]
[phone]

WHEELING - Fast Service Center, 1058 Main Street,
26003, [phone] [phone]

WISCONSIN

ELK MOUND - Epp Electronics, E9485-A County

Road EE, 54739, [phone]
GREENBAY - Kastle Carts, Inc., 2301 N.Irwin Ave.,

54313, [phone]
LACROSSE - P aul’s Shaver Service, 1224 Caledonia

Street, 54603, [phone]
MILWAUKEE - Brand Appliance Repair, Inc.,

6601 W Oklahoma Av en ue , 53219, [phone]
MONONA - Kiefers Shaver & Appliance, 4511 Monona

Drive, 53716, [phone]

Printed in the Mexico 76921a-0920

If you are missing parts or need assistance,

please call us toll-free:

P ower Wheels®Consumer Relations

1-800-348-0751

8 AM - 6 PM EST, Monday through Friday.

Over 400 Authorized

Service Centers

Or contact your local Power Wheels®Authorized Service Center.

For the location nearest you, refer to the

Authorized Service Center list in this manual.

Fisher-Price and Power Wheels by Fisher-Price are U.S. trademarks of Mattel, Inc.
Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A.

©2001 Mattel, Inc. All Rights Reserved.

IMPORTANT!

DO NOT Return your

Vehicle to the Store !

DO NOT use this vehicle

for the first time until you have

charged the battery for 18 hours.

Remember to…

✔Inser t a 25 amp fuse (included) into the battery.
✔Charge the battery immediately after each use.
✔Charge the battery once a month during storage , even if the

vehicle has not been used.

Failure to follow these instructions will permanently damage your battery and void your
warranty. Please refer to the Battery Care Section in this manual for more information.
