Fisher-Price 75320 User Manual

Owner’s Manual with Assembly Instructions

Please read this manual and save it with your original sales receipt.

For Model 75320

Tools needed for assembly:Phillips Screwdriver, Hammer, and Slotted Screwdriver (not included).

Use only with a Power Wheels®6 Volt (4.0 amp/Hr.) Battery, Power Wheels®25 amp Fuse

and Power Wheels®6 Volt (4.0 amp/Hr.) Charger (all included).

Product features may vary from the picture above.

™

2

Table of Contents

Important Information

A Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

B Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

C Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

D Parts Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

E Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

F Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

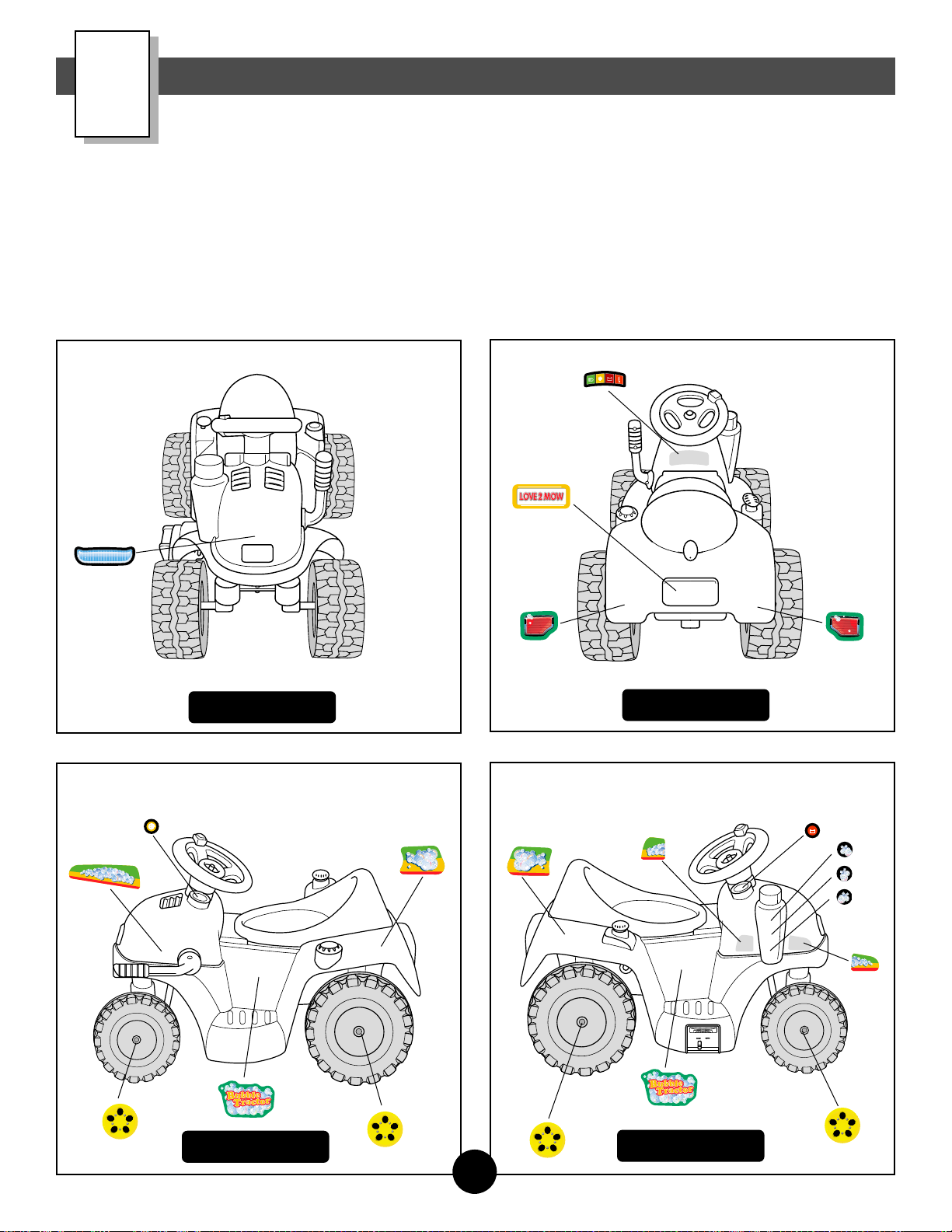

G Label Decoration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

H Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

I Battery Care and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

J Car ing For Your Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

K Rules For Safe Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

L How to Operate Your Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

M Bubblin’Fun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

N Problems and Solutions Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

O Statement of Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

P Authorized Service Centers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

• Your new vehicle requires adult assembly.Please set
aside at least 45 minutes for assembly.

• You must charge your battery for 18 - 30 hours before
you use your vehicle for the first time.We recommend
that you start charging your battery before beginning
assembly. Please see Battery Charging beginning on
page 6 for detailed instructions.

• Read this manual carefully for important safety informa­tion and operating instructions before using your vehicle.
Please keep this manual for future reference as it con­tains important information.

• This vehicle is designed for use:on grass, asphalt and
other hard surfaces; on generally level terrain; and by
children 12 - 36 months of age.

• Make sure children know and follow these r ules for safe
driving and riding:

- always sit on the seat.

- always wear shoes.

- only 1 (one) rider at a time.

• To prevent damaging the motors and gears, do not tow
anything behind the vehicle or overload it. Do not exceed
the maximum weight capacity of 40 lb.(18 kg).

• If you have any questions about your Power Wheels

®

vehicle, please call our toll-free service lines at
1-800-348-0751 from 8 AM to 6 PM (EST) Monday
through Friday.Trained customer ser vice representatives
are available to take your call in English or French.Habla
Español? Si usted tiene alguna pregunta ó necesita asis­tencia llame gratis 1-800-348-0755 para los Estados
Unidos.Tenemos representantes que hablan español
para atender su llamada.

• For your convenience, Power Wheels®maintains an
Authorized Service Center Network with more than 400
authorized service centers nationwide. Our authorized
service centers will repair or replace parts under warranty
at no extra charge, and can perform non-warranty repairs
for a minimal charge.Please see the Authorized Service
Center list beginning on page 24 to find the authorized
service center nearest you, or call 1-800-348-0751.

• Please complete and return the enclosed Registration
Card today, or call 1-800-348-0751 to register your
vehicle by phone.

A

CAUTION

• In the unassembled state, this package contains small parts. Adult assembly is required.

• Use the charger in dry locations only.

WARNING

WARNING

• Battery can fall out and injure a child if vehicle tips over. Always use battery clamp.

• PREVENT FIRE

- Do not bypass a Power Wheels®fuse. It is a safety device.

- Use only a Power Wheel

®

25 Amp fuse.

- Never modify the electrical system.Alterations could cause a fire resulting in serious injur y
and could also ruin the electrical system.

- Use of the wrong type battery, fuse or charger could cause a fire or explosion resulting in
serious injury.

- Use of Power Wheels

®

components in products other than Power Wheels®vehicles could

cause overheating, fire or explosion.

• The battery must be handled by adults only.The battery is heavy and contains sulfuric acid
(electrolyte). Dropping the battery could result in serious injur y.

• Never allow children to charge the battery. Battery charging must be done by adults only.
A child could be injured by the electricity involved in charging the batter y.

• Never lift or carry the batter y by the wires or connector.This can damage the battery and
possibly cause a fire resulting in serious injury. Lift and carr y the batter y by the case only.

• Read the safety instructions on the batter y.

• Examine the battery, charger and their connectors for excessive wear or damage each time
you charge the battery. If damage or excessive wear is detected, do not use the charger or
the battery until you have replaced the worn or damaged part.

• HOT motors.Handle carefully.

Warnings and Cautions

B

3

ELECTRICAL HAZARD

RIDING HAZARD

• Prevent Injuries and Deaths

• Direct Adult Supervision Required

• Keep Children Within Safe Riding Areas.

These areas must be:

- away from swimming pools and other bodies of water to prevent drownings

- generally level to prevent tipovers

- away from steps, driveways, roads and alleys.

Vehicle Frame

Wheel - 2

Parts

C

• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return
this product to the store.

• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no
parts are discarded.

• Some parts were placed under the seat for shipment. Unlock the seat lock fastener, using a slotted screwdriver to rotate
the lock fastener 1/4 turn to the unlocked position . Lift the seat to access the batter y compartment.

• Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with a paper towel to
remove any excess lubricant.

Steering Wheel Top

Steering Wheel Bottom

Steering Linkage

Bubble Blower

Steering Column

Cowling

Handle
Bottom

Handle

Top

4

25 Amp Fuse - 1*

6 V olt Battery

6 Volt Battery Charger

Washer - 2

#8 x 3/4" Screw - 14

All Shown Actual Size

*For your convenience, an extra cap nut

and 25 amp fuse have been included.

Not Shown: Label Sheet

Exhaust Pipe

Front

Power Button Har ness

Round Bushing - 2

Long Bushing - 2

Bubble Solution

Dipstick

Exhaust Pipe

Back

.354 Cap Nut - 6*

1. Vehicle Frame

2. Power Button Har ness

3. Cap Nut - 6

4. Steering Wheel Top

5. Steering Wheel Bottom

6. Steering Column

7. 6 V olt (4.0 Amp/Hr.) Battery

8. 6 V olt (4.0 Amp/Hr.) Charger

9. Cowling

10. Seat

11. Battery Clamp

12. Exhaust Pipe Front

13. Exhaust Pipe Back

14. #8-18 x

7

/8" Screw

15. #8 x 3/4" Screw - 14

16. Steering Linkage

17. Bubble Solution

18. Handle Bottom

19. Handle T op

20. Wheel - 2

Parts Diagram

D

5

Note: Some parts shown are assembled
on both sides of the vehicle.

21. 25 Amp Fuse

22. Dipstick

23. Front Axle - 2

24. Steering Bushing - 2

25. Long Bushing - 2

26. Washer - 2

27. Bubble Blower

28. Reservoir

29. Reservoir Cover

30. Round Bushing - 2

Not Shown: Label Sheet - 2

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

30

15

15

3

15

15

3

29

3

CA UTION

Use the charger in dry locations only.

WARNING

Battery Charging

E

• Battery can fall out and injure a child
if vehicle tips over. Always use
battery clamp.

• PREVENT FIRE

- Do not bypass a Power Wheels

®

fuse.

It is a safety device.

- Use only a Power Wheels®25 Amp fuse.

- Never modify the electrical system.
Alterations could cause a fire resulting in
serious injury and could also r uin the
electrical system.

- Use of the wrong type battery, fuse
or charger could cause a fire or explo­sion resulting in serious injury.

- Use of Power Wheels

®

components in

products other than Power Wheels

®

vehicles could cause overheating,
fire or explosion.

• The battery must be handled by adults only.
The battery is heavy and contains sulfuric
acid (electrolyte). Dropping the battery
could result in serious injury.

• Never allow children to charge the battery.
Battery charging must be done by adults
only. A child could be injured by the
electricity involved in charging the battery.

• Never lift or carry the batter y by the wires
or connector.This can damage the battery
and possibly cause a fire resulting in
serious injury.Lift and carry the batter y
by the case only.

• Read the safety instructions on
the battery.

• Examine the battery, charger and their
connectors for excessive wear or damage
each time you charge the battery. If dam­age or excessive wear is detected, do not
use the charger or the battery until you
have replaced the worn or damaged part.

• HOT motors.Handle carefully.

Important Notes

• Your new battery must be charged for at least
18 hours before you use it in your vehicle for the
first time.

• We recommend that you start charging your battery
before beginning assembly of your new vehicle.

• The battery must be upright while charging.

• The charger is not a toy.

• Do not short circuit the battery.

• The battery must be removed from your vehicle for
the initial charge in order to complete assembly.You
do not need to remove the battery from the vehicle
to recharge it.

• Before charging the battery, examine the battery case
for cracks and other damage which may cause sulfuric
acid (electrolyte) to leak during the charging process.
If damage is detected, do not charge the battery or use
it in your vehicle.Battery acid is very corrosive and can
cause severe damage to surfaces it contacts.

• Do not charge the battery on a surface which could be
damaged by the acid contained inside the battery. Take
precautions to protect the surface on which you charge
your battery.

• Use only a Power Wheels®6 volt (4.0 Amp/Hr.) charger
with an input of 120 VAC, 60Hz 6W and an output of
6V DC, 400 mA and a 25 amp fuse to charge your
Pow er Wheels®rechargeable 6 volt (4.0 Amp/Hr.) battery.

6

ELECTRICAL HAZARD

3

• If you are charging the battery for the first time, insert a
25 amp fuse into the battery.

Note: The top of the fuse will not be flush with the top of the
battery when properly installed.

• Fit the charger connector and the battery connector
together.

• Plug the charger into a standard 120 volt wall outlet.

Note: If power flow to the wall outlet is controlled by a
switch, make sure the switch is “ON”.

• Before first time use, charge the battery for at least
18 hours. Never charge the batter y longer than 30 hours.

• Recharge the battery for at least 14 hours after each use
of your vehicle.Do not charge the battery longer than
30 hours.

• Once the battery is charged, disconnect the charger
connector from the battery connector.Unplug the charger
from the wall outlet.The battery is now charged and is
ready to be installed in your vehicle.Please see "Battery
Installation" on page 15 for detailed battery installation
instructions.

2

1

Battery
Connector

Charger
Connector

25 Amp
Fuse

Charger

Battery Charging

7

IMPORTANT! The batter y must be removed from your
vehicle for the initial charge in order to complete assembly.
After assembly is complete, you do not need to remove the
battery from your vehicle to recharge it.

• Using a Phillips screwdriver, loosen the screw in the
battery clamp. Remove the battery clamp from the
vehicle frame.

• Remove the Power Wheels®6 Volt (4.0 Amp/Hr.) battery
from the battery compartment.

• Discard any cardboard that may have been used to
protect the battery during shipping.

Battery Clamp

• Fit a round bushing, barrel end first, onto the end of a
front axle. Push the round bushing into the wheel.

• Fit a cap nut onto the end of the front axle.

• Tap the cap nut with a hammer to secure it on the
front axle.

• Repeat this procedure to secure the other wheel to the
other front axle.

• While lifting the front of the vehicle frame, fit the steering
linkage onto the fork on the front of the vehicle frame.
Make sure the center axle is toward the rear of the vehicle.

• Position the handle bottom so that the smooth side
is upright.

• Insert the handle bottom peg into the hole in the side of
the vehicle frame, near the front end .

• Turn the handle over so that the grooved side is
upright .

3

2

4

Round Bushing

Cap Nut

Fork

Center Axle

Handle
Bottom

Vehicle Frame

Children can be harmed by small parts,
sharp edges and shar p points in the vehi­cle’s unassembled state, or by electrical
items. Care should be taken in unpacking
and assembly of the vehicle. Children
should not handle parts, including the
battery, or help in assembly of the vehicle.

WARNING

• Slide a washer onto the steering linkage front axles.

• Slide a long bushing, long end first, onto each front axle.

• Slide a wheel, indented side first, onto each front axle.

Assembly

8

1

F

Long Bushing

Front Axle

Wheel

Indented Side

Flat Side

Washer

Wheel Front Axle

Steering Linkage

Smooth
Side

Grooved
Side

Front View

T op View

Front of Vehicle Frame

A

A

B

B

Steering Linkage

• Position the handle top so that the smooth side is upright.

• Insert the handle top peg into the hole in the side of the
vehicle frame, near the front end.

• Fit the handle top and handle bottom together.

• Insert three screws through the handle top and into the
handle bottom.Tighten the screws with a Phillips screw­driver.Do not over-tighten.

Assembly

5

9

Handle Bottom

Handle
Top

T op View

Peg

• Fit the nine tabs on the cowling into the nine slots in the
top of the vehicle.Make sure all nine tabs are in all

nine slots.

• Push down on the front, back and both sides of the
cowling to permanently secure the nine tabs into the nine
slots in the vehicle frame.

7

6

Cowling

Vehicle
Frame

Cowling

PUSH

PUSH

PUSH

PUSH

• Position the steering wheel top – right side up.

• Fit the power button harness down through the
rectangular opening in the steering wheel top.

• Insert and snap the power button into the steering
wheel top.

8

Steering Wheel Top

Power Button Har ness

Rectangular Opening

Power Button
