Please keep these instructions for future reference. Please read
these instructions before assembly and use of this product.
•
Adult assembly is required.
•
Allen wrench (included) required for assembly.
•
•
Product features and decorations may vary from illustrations.
Do not use power drills or drivers.
Bulletin no.: 123701-01
EN
Page 2
A. Mattress support
B. Left
Corner Post
C. Right
Corner Post
D. Headboard Bottom
I. Headboard Top
E. Stabilizer Bar
F. Footboard
G. Left Side
H. Right Side
Part Lists
2
Assembly instruction
Page 3
Part Lists
3
M
N
O
P
X 8
2-3/8”Allen head Bolt X 4
2-1/8”Allen head Bolt X 4
5/8
X 4 X 12
X 1
J
K
L
X 2
Metal Dowel
Page 4
4
Page 5
5
BACK PAGE
Page 6
NEVER PLACE ADDITIONAL PADDING UNDER INFANT.
6
BIVONA & COMPANY , LLC 125 JACKSON AVENUE SUITE 1; EDISON, NJ 08837.
®
Page 7
Assembly step 1
7
N
O
X 4
X 4
X 1
D. Headboard Bottom
B. Left
Cornerpost
C. Right
Cornerpost
J
J
J
J
J
N
N
N
N
D
Page 8
Assembly step 2
8
N
O
J
X 2
X 2
X 1
I. Headboard Top
B. Left
Cornerpost
C. Right
Cornerpost
(Backside of Headboard)
J
N
P
J
P
P
X 2
Metal Dowel
I
Page 9
Assembly step 3
9
N
O
X 4
X 4
X 1
G. Left Side
H. Right Side
2-3/8
K
K
K
N
N
N
N
K
G
H
Page 10
10
O
L
L
L
X 2
X 1
E. Stabilizer Bar
2-1/8
Assembly step 4
E
Page 11
Assembly step 5
11
M
O
X 4
X 1
A. Mattress support
M
M
M
5/8
M
O
M
A
A
Assembly Instruction
Assembly Instruction
Page 12
Assembly step 6
12
N
J
L
O
X 2
X 1
F. Footboard
2-1/8”Allen head Bolt X 2
X 2
N
J
J
L
L
F
N
J
J
Page 13
13
Step 1
Step 2
Step 3
Assembly Instruction
Assembly Instruction
L
J
L
N
N
F
J
A one piece Guardrail (sold separately)
can be attached to the crib as shown
in the figure.
Remove bolts
with a thickness not exceeding 6 in.(152 mm)
Page 14
14

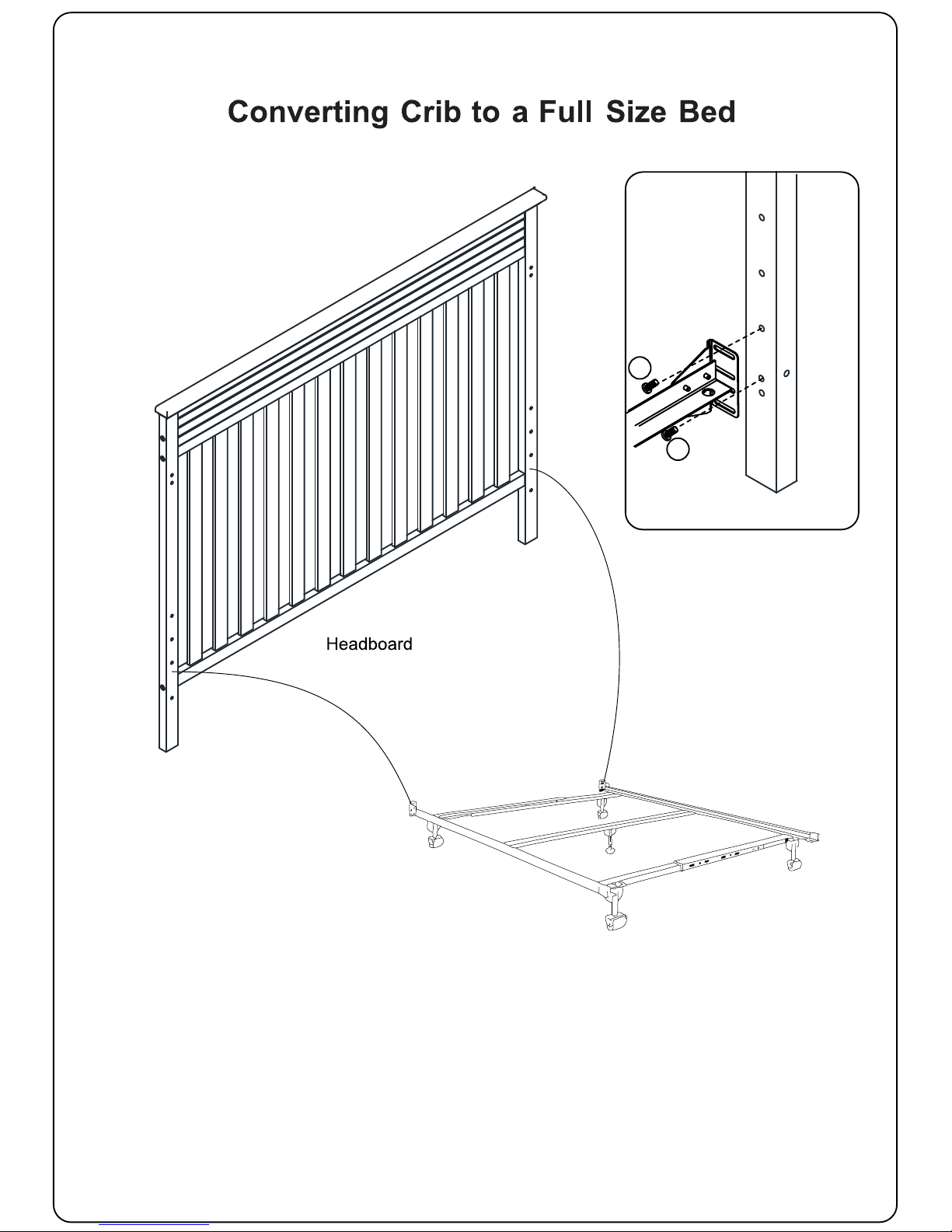

(Full size Bed Frame Sold Separately; Styles may vary)
Note: Use 5/8 " Allen head Bolts (M) used on Mattress support to
attach Bed Frame as shown in Figure.
M
M
Page 15
Most inquiries can be answered by visiting our website www.bivonaco.com
There, you can order parts, find assembly instructions, and get answers
to frequently asked questions on all of our brands.
You can also email us at info@bivonaco.com
In order for us to provide you with the best service possible, please include the
following information in your email:
1. Your Name
2. Address
3. Phone Number
4. Item Number and description of your product
5. PO#
6. Production Date
All product information will be on the product label located on the back of
all dressers and other furniture, and on either the inside bottom of the headboard, crib
ends, or stabilizer bar of your crib, depending on which model you have.
Someone will contact you via e-mail or phone to help you with your issues.
If you do not have internet access, you can fax your information to 732-527-0664
If you do not have internet or fax access, please call us at our toll free number 1-888-963-8125.
Be sure to have all of the above information ready to give to your Customer Service Specialist.
15
FISHER-PRICE and associated trademarks are owned by and used
under license from Mattel.
©2017 Mattel. All Rights Reserved.
Manufactured for and distributed by Bivona & Company , LLC
MADE IN CHINA
125 Jackson Avenue Suite 1,Edison, NJ 08837
®
