ACTIVESMART™ REFRIGERATOR
ICE & WATER, AUTOMATIC ICE
AND NON-ICE & WATER MODELS
E72B, E402B, E442B, E522B, RF72B, RF402B, RF442B,
RF522B, RF522W, RF522A, RF610A & RF540A models
INSTALLATION GUIDE/USER GUIDE
NZ AU GB IE EU AE HK SG
CONTENTS
Introduction 2
Safety and warnings 3
Installation instructions 12
Moving or storing your appliance 25
ActiveSmart™ operating instructions 26

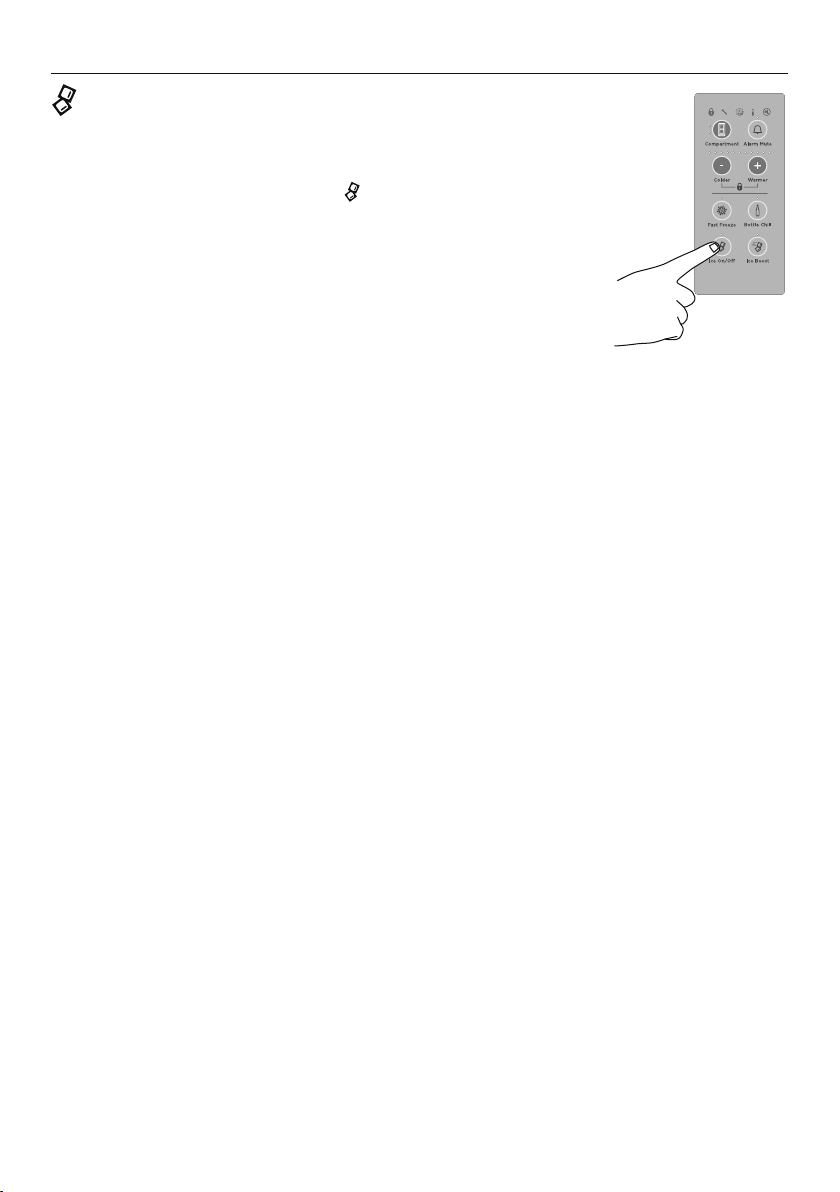

All about the external display (Ice & Water models only) 30

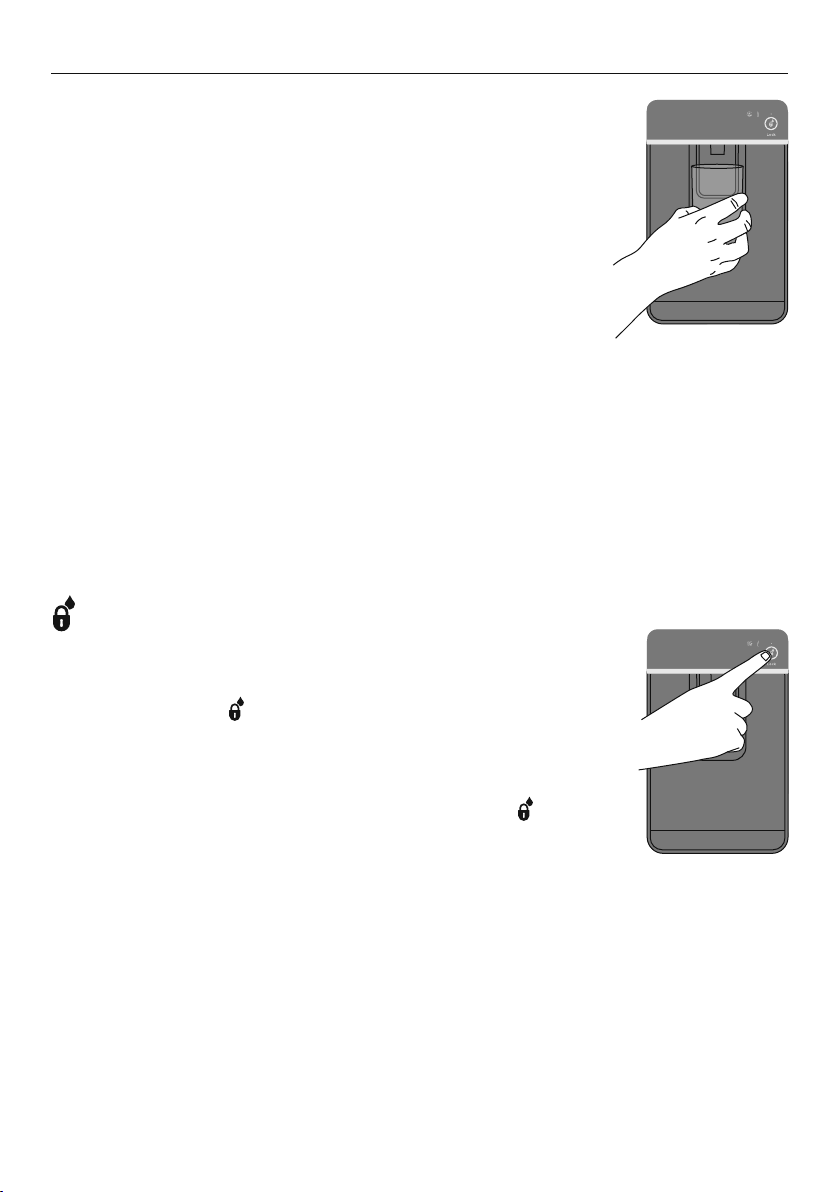

Using your water dispenser (Ice & Water models only) 31

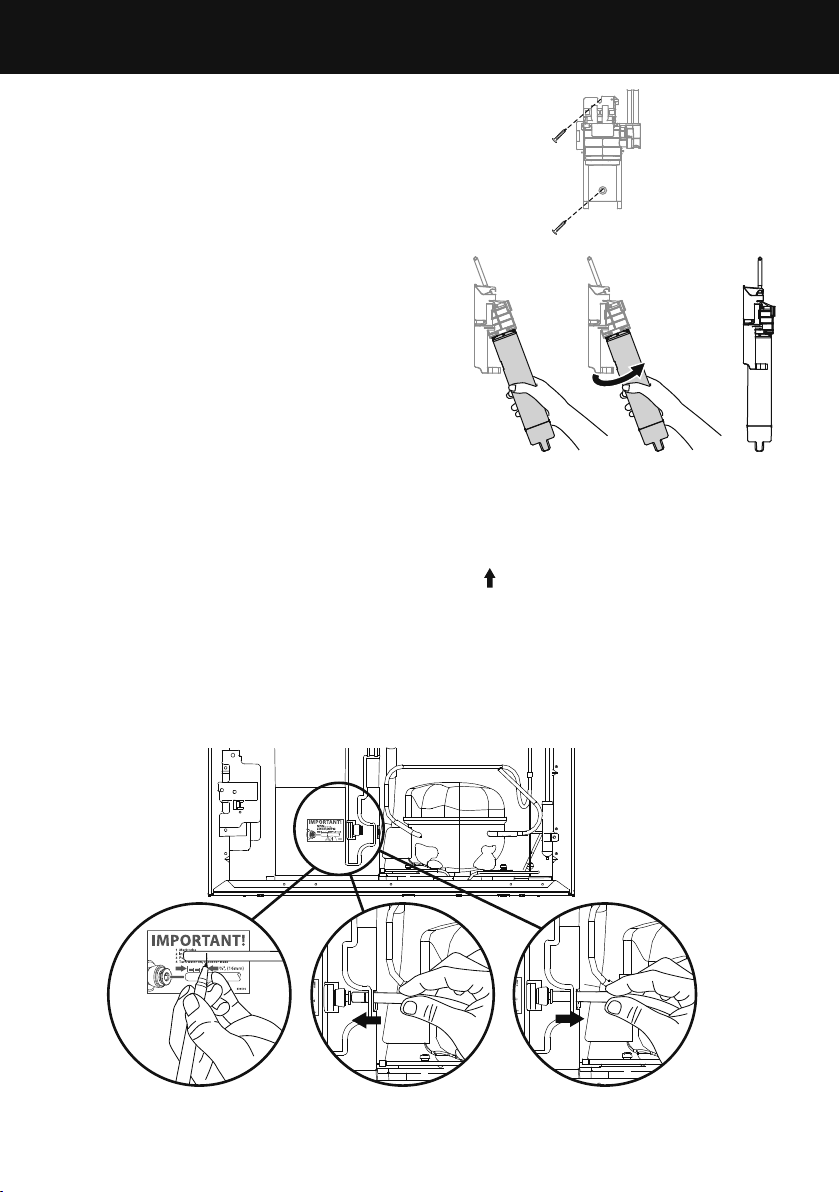

Water filter (Ice & Water and Automatic Ice models only) 32

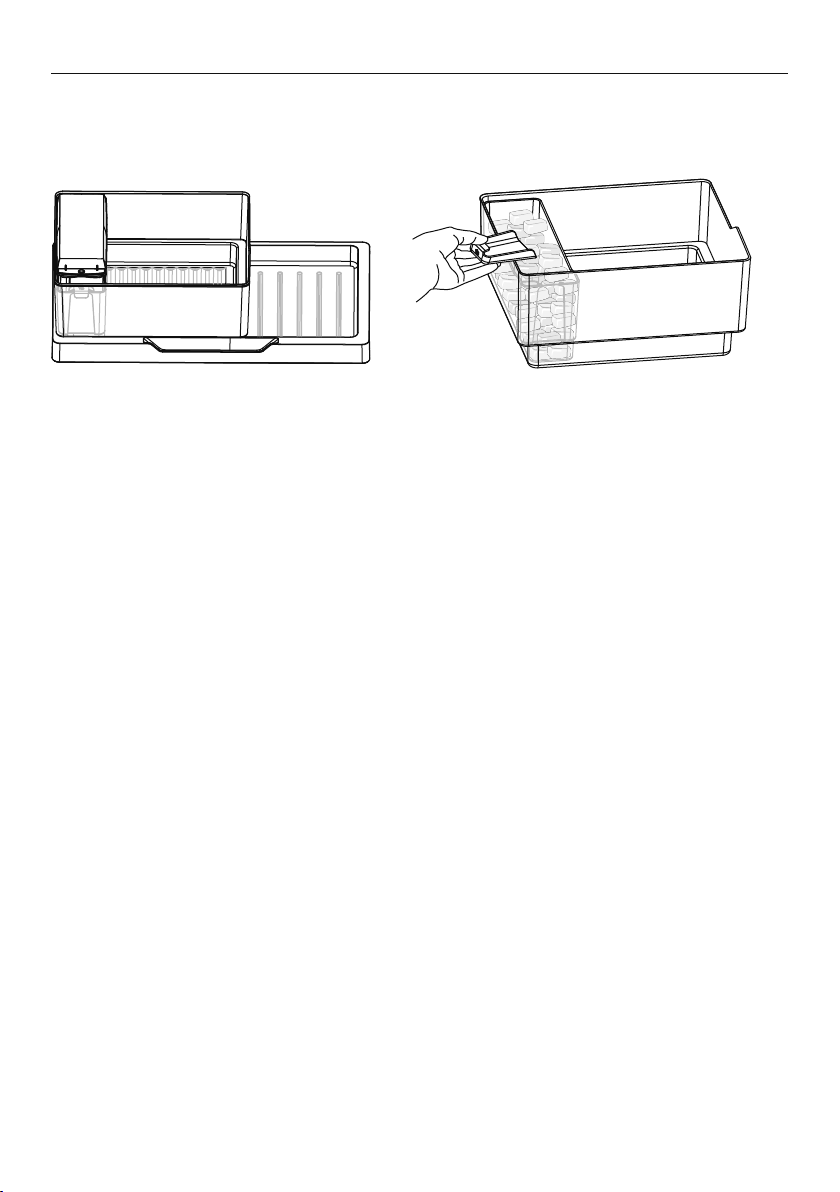

Using your ice maker (Ice & Water and Automatic Ice models only) 33
ActiveSmart™ special features 34

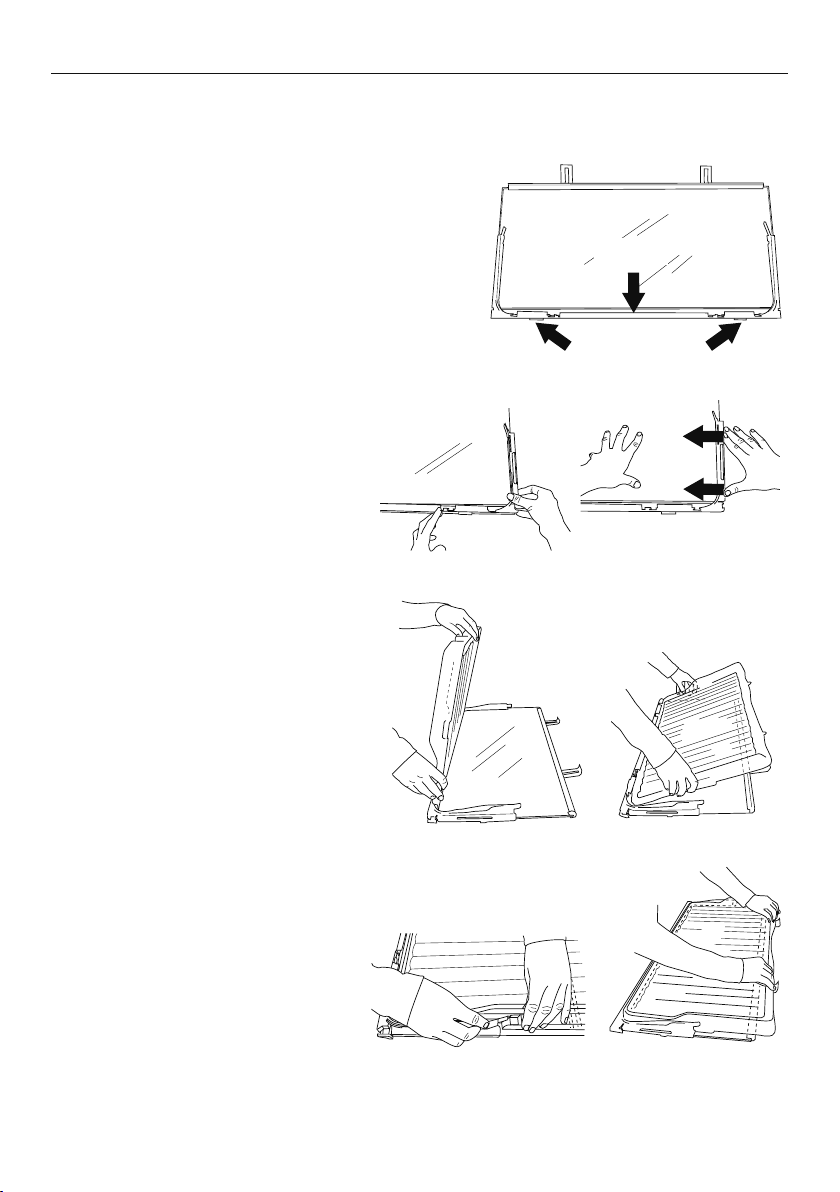

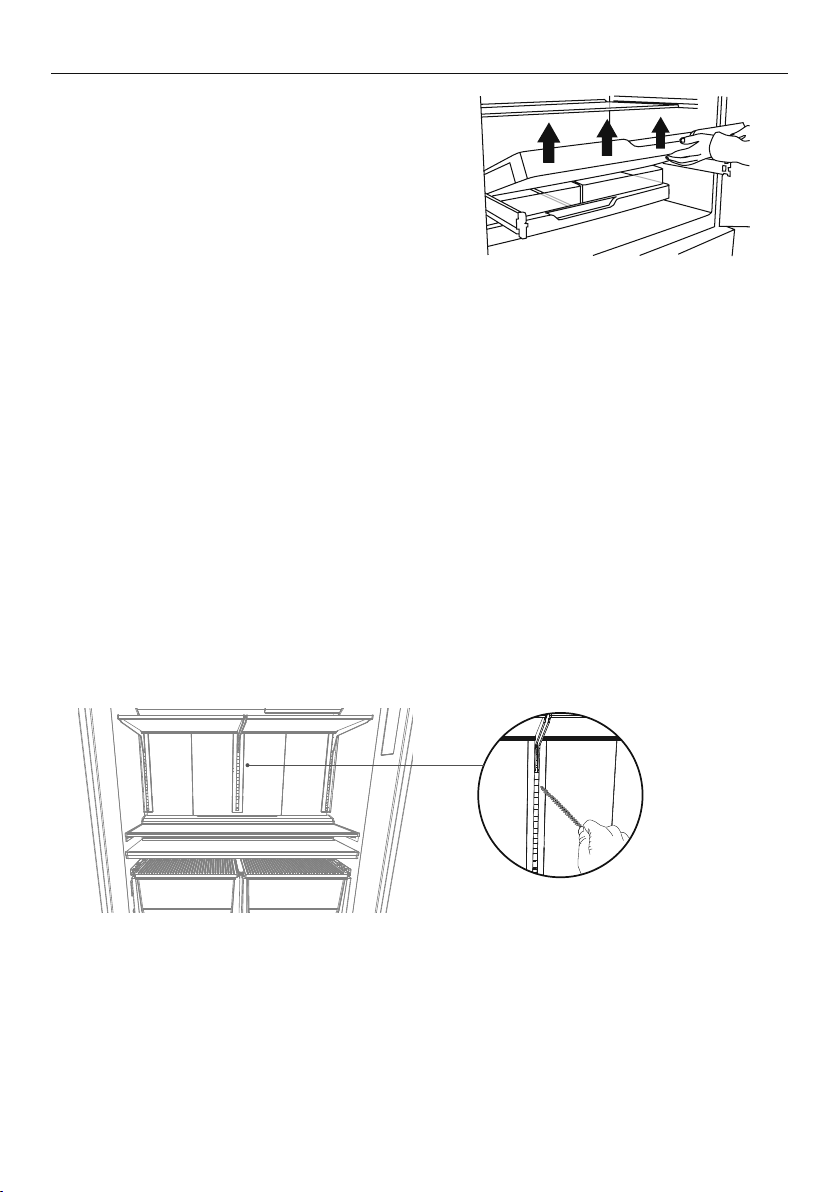

Cleaning and caring for your refrigerator 37
Foodcare 41
Moving or storing your appliance 42
ActiveSmart™ user warnings and sounds 43
Troubleshooting 44
Manufacturer’s Service & Warranty 49
European Directive 2012/19/EU on
Waste Electrical and Electronic Equipment (WEEE) 50
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not
be available in all markets and are subject
to change at any time. For current details
about model and specification availability
in your country, please go to our website
fisherpaykel.com or contact your local
Fisher & Paykel dealer.
Note: the word ‘refrigerator’, throughout this
user guide, refers to the combination
of refrigerator/freezer products.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
1
INTRODUCTION
Thank you for buying a Fisher & Paykel ActiveSmart™ refrigerator.
At Fisher & Paykel we are very proud of this refrigerator. This refrigerator combines size and
storage space with the latest features and functions.
Thousands of hours of food care research and refrigeration experience has been
programmed into your refrigerator to give you the best possible performance.
We hope you enjoy your new refrigerator.
Refrigerator French door
and freezer drawer
Refrigerator door
and freezer drawer
Refrigerator door
and freezer door
Note: Automatic Ice and non-Ice & Water models do not have an external water dispenser.
ActiveSmart™ refrigerators have two handle
options, shown below.
Pocket handlesDesigner handles
2
SAFETY AND WARNINGS
!
WARNING!
Electric Shock Hazard
Read and follow the safety and warnings
outlined in this User guide before operating
this appliance.
Failure to do so can result in death, electric
shock, fire or injury to persons.
WARNING: Risk of fire/flammable material
This refrigerator contains flammable
refrigerant isobutane (R600a).
Use this appliance only for the intended purpose as
described in the user guide.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic safety
precautions including the following:
• This appliance can be used by children aged 8years
and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
• Children aged 3 to 8 years may load and unload this
appliance under supervision.
• Children should be supervised to ensure that they do
not play with the appliance.
• Cleaning and user maintenance shall not be made by
children without supervision.
3
SAFETY AND WARNINGS
• The manufacturer’s installation instructions for
product and cabinetry ventilation must be followed
when installing the appliance.
• To avoid hazard due to instability of the
appliance, it must be fixed in accordance with
installation instructions.
• WARNING: Keep ventilation openings, in the
appliance enclosure or the built-in structure, clear
of obstruction.
• WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• In case of damage to the refrigerant circuit, ventilate
the area by opening all windows. Do not operate
electrical equipment or any other equipment that
may produce arcs, sparks or flames in the area.
Contact your Fisher & Paykel trained and supported
service technician immediately to arrange for the
appliance to be repaired.
• It is hazardous for anyone other than a Fisher &
Paykel trained and supported service technician to
service thisappliance.
• In Queensland the authorised service person
must hold a gas work licence or authorisation for
hydrocarbon refrigerants to carry our service or
repairs which involve removal of covers.
• Opening the door for long periods can cause a
significant increase of the temperature in the
compartments of the appliance.
• WARNING: Connect to safe drinking water only.
4
SAFETY AND WARNINGS
Electrical WARNING
• This appliance must be installed in accordance with
the installation instructions before use.
• To allow disconnection of the appliance from the
supply after installation, incorporate a switch in the
fixed wiring in accordance with the wiring rules.

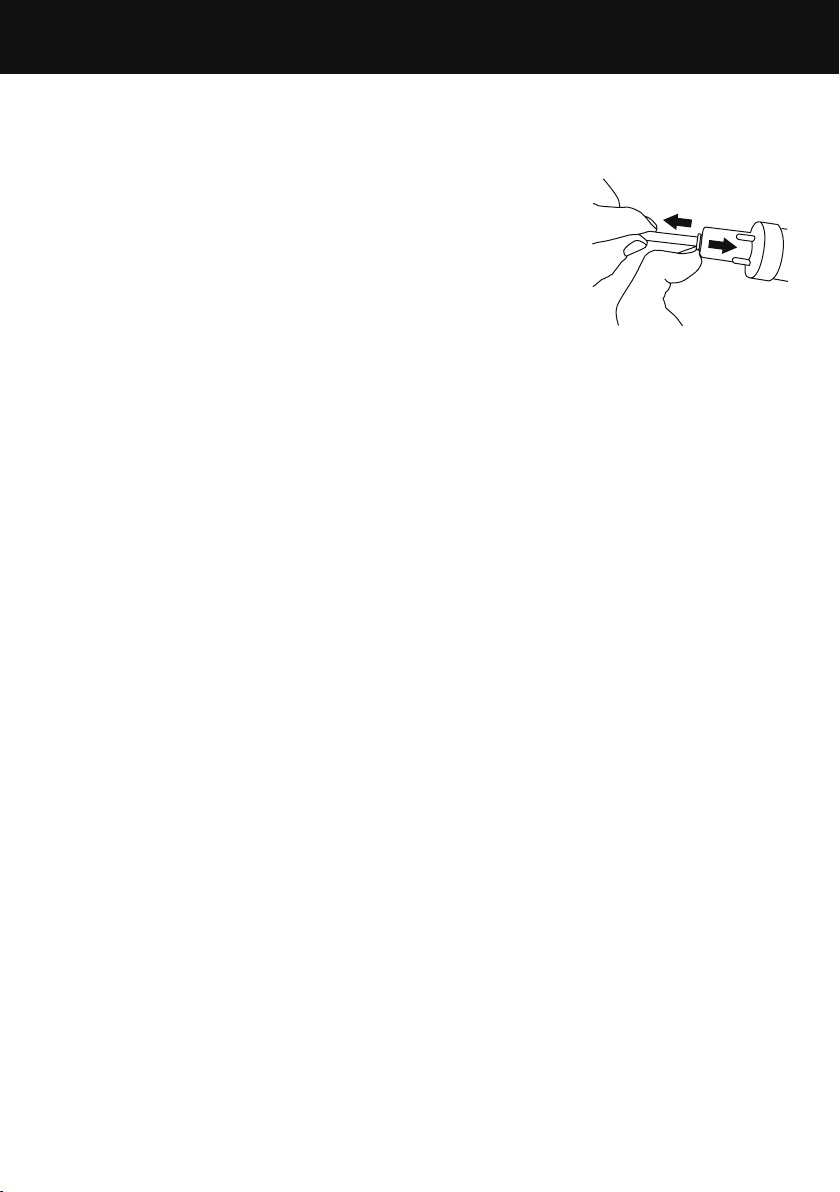

• Never unplug your refrigerator by pulling on the
power cord. Always grip the plug firmly and pull
straight out from the outlet.
• Do not plug in any other appliance at the same
power point as your refrigerator or use extension
cords or double adapters.
• Repair or replace immediately all electric service
cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or
abrasion along its length or at either the plug or
appliance end.
• If the power supply cord is damaged, it must only
be replaced by your Fisher & Paykel trained and
supported service technician because special
purpose tools are required.
• When moving your appliance away from the wall, be
careful not to roll over or damage the power cord.
• Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
5
SAFETY AND WARNINGS
• When positioning the appliance, ensure the power
cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
IMPORTANT!
Your refrigerator is designed to operate for many years
without the need for service checks. However, if your
refrigerator is malfunctioning, have it attended to by
your Fisher & Paykel trained and supported service
technician as soon as possible. All electrical repairs
must be carried out by an adequately trained service
technician or qualified electrician.
Cleaning
• Many commercially available cleaning products
contain solvents that may attack the plastic
components of your refrigerator and cause them
tocrack.
• Avoid using anti-bacterial cleaning products on
either the interior or exterior of the cabinet as they
may cause rusting of metal components and cracking
of plastic components.
• Please refer to the ‘Cleaning and caring for
your refrigerator’ section of this user guide for
further information.
Disposal
• Extreme care must be taken when disposing of your
old appliance to avoid hazards:
– The flammable refrigerant gas must be
safely removed.
6
SAFETY AND WARNINGS
– The thermal insulation foam in this appliance
contains flammable insulation blowing gases, any
exposed foam may be highly flammable and must
be carefully treated during disposal.
– The doors and panels should be removed and
the shelves left in place so that children may not
easily climb inside.
• Your Fisher & Paykel trained and supported
service technician will be able to give advice on
environmentally friendly methods of disposing of
your old refrigerator or freezer.
Food Safety
• Regularly clean accessible draining systems and
surfaces that come in contact with food.
• Store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip
onto other food.
• If the appliance will be left empty for long periods,
switch off, defrost, clean, dry, and leave the
door open to prevent mould developing within
the appliance.
Storing food and drinks
• Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
• Never store volatile or flammable materials in your
refrigerator as they may explode.
• Never freeze liquids in glass containers. Liquid
expands during freezing, which may cause the
container to explode.
7
SAFETY AND WARNINGS
• Never freeze carbonated drinks. They may explode.
• Do not consume food if it is too cold. Food removed
from the freezer compartment may be cold enough
to cause damage when brought into contact with
bare skin, eg frozen ice cubes.
Power failure — food safety
• Do not refreeze frozen foods that have thawed
completely. The food may be dangerous to eat.
Follow the recommendations below if you discover
food in your freezer has thawed:
– Ice crystals still visible—food may be refrozen
but should be stored for a shorter period
than recommended.
– Thawed but refrigerator cold—refreezing
generally not recommended. Fruits and some
cooked food can be refrozen but use as soon as
possible. Meat, fish, poultry—use immediately or
cook then refreeze. Vegetables—discard as they
usually go limp and soggy.
– Thawed and warmer than 5°C—discard all food.
8
SAFETY AND WARNINGS
Water filter
IMPORTANT!
• The water connection to your Ice & water refrigerator
must be installed by a qualified plumber or Fisher &
Paykel trained and supported service technician and
comply with all state and local laws.
• Installation and use MUST comply with all state
and local plumbing codes. Checkwith your local
public works department for plumbing codes. You
must follow their guidelines as you install the water
filtration system.
• To avoid serious illness or death, only connect your
water filter to safe drinking water.
• The water filter cartridge needs to be changed when
the replacement indicator icon illuminates. This will
happen every 6 months.
• If the water filtration system has been allowed to
freeze, replace filter cartridge. Failure to replace
the disposable filter at recommended intervals may
lead to reduced filter performance and failure of the
filter, causing property damage from water leakage
or flooding.
• In cases of excessively reduced filter life—we
recommend that you consult a local plumber or
your water supplier for advice on suitable filtration
requirements for the water supplied to your home.
• Filter replacement is the consumer’s responsibility
and will not be covered by the warranty except
in the case of faulty parts or materials within the
filter cartridge.
9
SAFETY AND WARNINGS
• If the water has not created ice for some time or ice
has an unpleasant taste or odour dispose of ice and
refer to ‘Before you start using the Ice & Water or
Automatic Ice function’ for flushing instructions. If
unpleasant taste or odour persists, you may wish to
fit a new filter cartridge.
• Use new tubing supplied with the refrigerator.
DO NOT reuse old tubing from old water
and ice connections.
• Your water filtration system can withstand up to
120psi (827kPa) of water pressure. Ensure the
supplied pressure reducing valve is installed before
installing the water filtration system. DO NOT install
if water pressure exceeds 120psi (827kPa).
• To reduce the risk associated with property damage
due to water leakage or flooding:
• DO NOT install systems in areas where ambient
temperatures may go above 100°F (38°C) or drop
below 33°F (0.6°C).
• DO NOT install on hot water supply lines. The
maximum operating water temperature of this filter
system is 100°F (38°C).
• DO NOT install where water hammer conditions may
occur. If water hammer conditions exist, you must
install a water hammer arrester.
• Clean the water tanks if they have not been used for
48 hours. Flush the water system connected to the
water supply if water has not been used for 5 days.
10
SAFETY AND WARNINGS
Ice making
IMPORTANT!
• Avoid contact with the moving parts of the ice maker
ejector mechanism, and do not place your fingers
on the automatic ice-making mechanism while the
appliance is inoperation.
• Do not use ice cubes that may have become
discoloured, usually with a green-blue colour. If such
discolouration is noted, discard the ice cubes and
contact your Fisher&Paykel trained and supported
service technician.
11
INSTALLATION INSTRUCTIONS
Please follow the installation steps below to ensure your appliance operates correctly.
1. Power
z
The appliance must be installed so the plug is accessible.
z
To ensure that the appliance is not accidentally switched off, connect your refrigerator
to its own power point. Do not plug in any other appliance at this power point or use
extension cords and double adaptors, as the combined weight of both power cords can
pull the double adaptor from a wall outlet socket.
z
For power requirements, refer to the information on the serial plate located at the front
bottom right-hand side of the refrigerator when the door is open.
z
It is essential that the appliance is properly grounded (earthed).
2. Location
z
Your refrigerator should not be located in direct sunlight or next to any heat generating
appliance such as a cooktop, oven or dishwasher.
3. Ice & Water and Automatic Ice models
z
Your Ice & Water and Automatic Ice refrigerator must be installed by an authorised
plumber or Fisher & Paykel trained and supported service technician as incorrect
plumbing can lead to water leaks.
z
Fisher & Paykel Appliances does not accept responsibility for damage (including water
damage) caused by faulty installation or plumbing.
12
INSTALLATION INSTRUCTIONS
4. Product and cabinetry dimensions
If integrating your refrigerator, please follow installation instructions provided with the
integration kits.
Freezer door models (E372B, RF372B, E402B, RF402B, E442B, RF442B, E522B, RF522B)
(Ice & Water, Automatic Ice and non-Ice & Water models)
O
O
P
A
D
N
F
Flush with refrigerator
chassis — full door rotation
Q
B C
I
N
K
J
Flush with refrigerator
door — 90° door rotation
N
N
GE
KK
H
Flush with refrigerator
door — full door rotation
M
LK
R
13
INSTALLATION INSTRUCTIONS
E372B
RF372B
E402B
RF402B
E442B
RF442B
E522B
RF522B
PRODUCT DIMENSIONS MM
A Overall height of product 1620 1720 1720 1720
B Overall width of product 1620 1720 1720 1720
C Overall depth of product
(excl. handle, includes evaporator)
n/a 695 695 695
CABINETRY DIMENSIONS (incl. minimum clearances) MM
D Inside height of cavity 1645 1735 1735 1735
Flush with refrigerator chassis—full door rotation
E Inside width 675 675 720 830
F Inside depth 620 620 620 620
Flush with refrigerator door—full door rotation
G Inside width 790 790 835 945
H Inside depth flush to door n/a 695 695 695
Flush with refrigerator door—90° door rotation
(for full drawer/shelf access, the doors need to be open past 90°)
I Inside width 745 74 5 790 900
J Inside depth flush to door n/a 695 695 695
MINIMUM CLEARANCES MM
K Side clearance 20 20 20 20
L Side clearance — hinge side flush with
door — full rotation
M Side clearance — hinge side flush with
door — 90° rotation
N Rear clearance
O Vent — around top of cupboard
(incl. evaporator tray) 30 30 30 30
(optional) 50 50 50 50
135 135 135 135
90 90 90 90
P Top clearance — above refrigerator cabinet 50 50 50 50
Q Door clearance — hinge side flush with
chassis — full rotation
R Door clearance — hinge side flush with
door — full rotation
14
520 520 555 645
405 405 440 530
INSTALLATION INSTRUCTIONS
4. Product and cabinetry dimensions
If integrating your refrigerator, please follow installation instructions provided with the
integration kits.
Freezer drawer models (RF522W, RF522A, RF610A/RF540A)
(Ice & Water, Automatic Ice and non-Ice & Water models)
O
O
O
O
P P
A A
D D
RF522A, RF610A/RF540ARF522W
B
E
N
K
F F
Flush with refrigerator chassis — full door rotation Flush with refrigerator chassis — full door rotation
G
N N
K L
H H
C
N
B
E
K
N
K
Q
G
L L
R
Q
K
C
R
N
Flush with refrigerator door — full door rotation
I
N
K
M
J J
Flush with refrigerator door — 90° door rotation
Flush with refrigerator door — full door rotation
I
N
Flush with refrigerator door — 90° door rotation
L
M
15
Loading...
