Fisher & Paykel RF522ADUSX5 Specifications Sheet

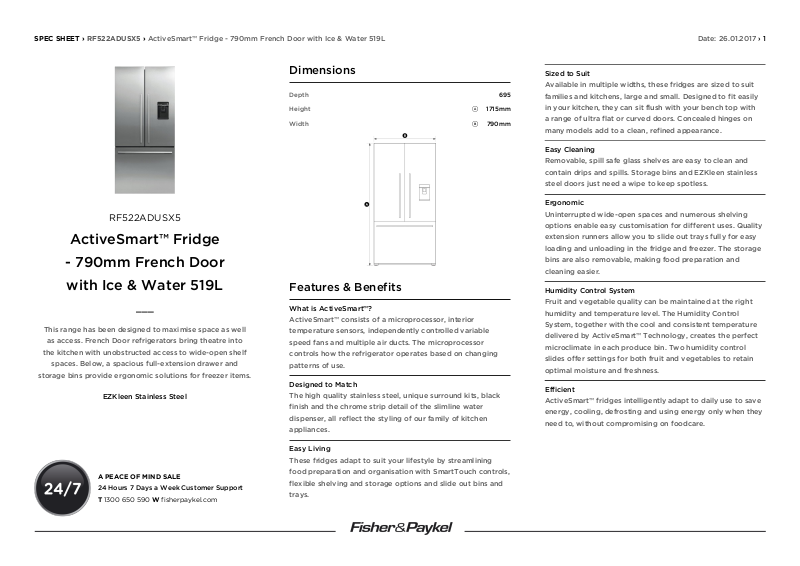

SPEC SHEET › RF522ADUSX5 › ActiveSmart™ Fridge - 790mm French Door with Ice & Water 519L Date: 26.01.2017 › 1
RF522ADUSX5
ActiveSmart™ Fridge
- 790mm French Door
with Ice & Water 519L
___
This range has been designed to maximise space as well
as access. French Door refrigerators bring theatre into
the kitchen with unobstructed access to wide-open shelf
spaces. Below, a spacious full-extension drawer and
storage bins provide ergonomic solutions for freezer items.
EZKleen Stainless Steel
Dimensions
Depth 695
Height
Width
A 1715mm
B 790mm
Features & Benefits
What is ActiveSmart™?
ActiveSmart™ consists of a microprocessor, interior
temperature sensors, independently controlled variable
speed fans and multiple air ducts. The microprocessor
controls how the refrigerator operates based on changing
patterns of use.
Designed to Match
The high quality stainless steel, unique surround kits, black
finish and the chrome strip detail of the slimline water
dispenser, all reflect the styling of our family of kitchen
appliances.
Sized to Suit
Available in multiple widths, these fridges are sized to suit
families and kitchens, large and small. Designed to fit easily
in your kitchen, they can sit flush with your bench top with
a range of ultra flat or curved doors. Concealed hinges on
many models add to a clean, refined appearance.
Easy Cleaning
Removable, spill safe glass shelves are easy to clean and
contain drips and spills. Storage bins and EZKleen stainless
steel doors just need a wipe to keep spotless.
Ergonomic
Uninterrupted wide-open spaces and numerous shelving
options enable easy customisation for different uses. Quality
extension runners allow you to slide out trays fully for easy
loading and unloading in the fridge and freezer. The storage
bins are also removable, making food preparation and
cleaning easier.
Humidity Control System
Fruit and vegetable quality can be maintained at the right
humidity and temperature level. The Humidity Control
System, together with the cool and consistent temperature
delivered by ActiveSmart™ Technology, creates the perfect
microclimate in each produce bin. Two humidity control
slides offer settings for both fruit and vegetables to retain
optimal moisture and freshness.
Efficient
ActiveSmart™ fridges intelligently adapt to daily use to save
energy, cooling, defrosting and using energy only when they
need to, without compromising on foodcare.
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1300 650 590 W fisherpaykel.com
Easy Living
These fridges adapt to suit your lifestyle by streamlining
food preparation and organisation with SmartTouch controls,
flexible shelving and storage options and slide out bins and
trays.
SPEC SHEET › RF522ADUSX5 › ActiveSmart™ Fridge - 790mm French Door with Ice & Water 519L Date: 26.01.2017 › 2
Efficient
Alarms on the refrigerator and freezer alert you if the door
has been left open. Adaptive defrost means that there is no
need for ‘holiday mode’ settings. ActiveSmart™ will select
the best time to defrost based on how the appliance is being
used. When you are away, it will recognise lower levels of
use and defrost less often, therefore requiring less energy.
Safe
Secure glass shelving contains drips and spills and prevents
them from falling on items stored below.
Ergonomic
Quality extension runners allow you to slide out trays fully
for easy loading and unloading in the fridge and freezer. The
storage bins are removable, making food preparation and
cleaning easier.
Design
Concealed hinges create a seamless finish, while flat,
vertically brushed EZKleen stainless steel doors will add
sophistication and complement any kitchen.
Specifications
Capacity
Freezer 159 L
Refrigerator 360 L
Total gross capacity 519 L
Total net volume 440L
Consumption
Energy Star rating 3.5
Energy usage 414 kWh/year
Design
Concealed hinges
EZKleen stainless steel
Flat door design
French Door refrigerator
Freezer
Bottle chill
Built-in ice maker
Clear plastic bins 3
Ice Boost
Ice bin and scoop
Measurements
Depth - door closed not including handle 695mm
Depth - including handle 735mm
Height - incl. feet and hinge cap 1715mm
Minimum air clearance - at rear (incl.
compressor tray)
Minimum air clearance - each side 20mm
Minimum air clearance - on top 50mm
30mm
Performance
•
•
•
•
•
ActiveSmart™ Foodcare
Adaptive defrost
Fast freeze
Frost free
Humidity control system
Humidity-controlled crisper bins 2
Inverter controlled compressor
•
•
•
•
•
•
•
R600a refrigerant
•
•
Refrigerator
Adjustable glass shelves 3
Adjustable roller feet
Covered door shelves 2
Door alarm
Front levelling feet
Full extension freezer drawer
Full extension runners
Full width door shelves 2
Gallon bottle door shelf
Half width adjustable door shelves 4
LED lighting
Rear rollers
Roll out Freezer drawer
Single bottle holders 4
SmartTouch control panel
Soft-close doors
Ultra slim water dispenser
•
•
•
•
•
•
•
•
•
•
•
•
•
