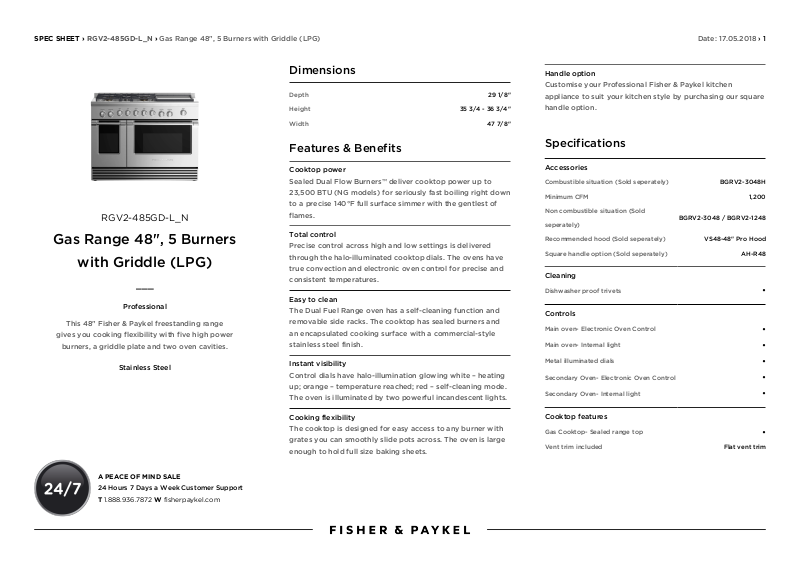

SPEC SHEET › RGV2-485GD-L_N › Gas Range 48", 5 Burners with Griddle (LPG) Date: 17.05.2018 › 1
RGV2-485GD-L_N
Gas Range 48", 5 Burners
with Griddle (LPG)
___
Professional
This 48" Fisher & Paykel freestanding range
gives you cooking flexibility with five high power
burners, a griddle plate and two oven cavities.
Stainless Steel
Dimensions
Depth 29 1/8"
Height 35 3/4 - 36 3/4"
Width 47 7/8"
Features & Benefits
Cooktop power
Sealed Dual Flow Burners™ deliver cooktop power up to
23,500 BTU (NG models) for seriously fast boiling right down
to a precise 140°F full surface simmer with the gentlest of
flames.
Total control
Precise control across high and low settings is delivered
through the halo-illuminated cooktop dials. The ovens have
true convection and electronic oven control for precise and
consistent temperatures.
Easy to clean
The Dual Fuel Range oven has a self-cleaning function and
removable side racks. The cooktop has sealed burners and
an encapsulated cooking surface with a commercial-style
stainless steel finish.
Instant visibility
Control dials have halo-illumination glowing white – heating
up; orange – temperature reached; red – self-cleaning mode.
The oven is illuminated by two powerful incandescent lights.
Handle option
Customise your Professional Fisher & Paykel kitchen
appliance to suit your kitchen style by purchasing our square
handle option.
Specifications
Accessories
Combustible situation (Sold seperately) BGRV2-3048H
Minimum CFM 1,200
Non combustible situation (Sold
seperately)
Recommended hood (Sold seperately) VS48-48" Pro Hood
Square handle option (Sold seperately) AH-R48
Cleaning
Dishwasher proof trivets
Controls
Main oven- Electronic Oven Control
Main oven- Internal light
Metal illuminated dials
Secondary Oven- Electronic Oven Control
Secondary Oven- Internal light
BGRV2-3048 / BGRV2-1248
•
•
•
•
•
•
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W fisherpaykel.com
Cooking flexibility
The cooktop is designed for easy access to any burner with
grates you can smoothly slide pots across. The oven is large
enough to hold full size baking sheets.
Cooktop features
Gas Cooktop- Sealed range top
Vent trim included Flat vent trim
•
SPEC SHEET › RGV2-485GD-L_N › Gas Range 48", 5 Burners with Griddle (LPG) Date: 17.05.2018 › 2
Cooktop performance
Max burner power 19000 BTU
Power back left 11500 BTU
Power back right 11500 BTU
Power centre 19000 BTU
Power front left 15000 BTU
Power front right 15000 BTU
Power griddle 24000 BTU
Sealed Dual Flow Burners™ 5
Simmer on all burners 140 °F
Total cooktop power 96000 BTU
Gas requirements
Fitting and pipe ½ NPT, min. ⅝" ∅ flex line
Supply Pressure LPG Pressure 11" to 14" W.C
Oven features
Main oven- Broil pan
Main oven- Infrared Broiler
Secondary Oven- 3/4 extention racks 2
Oven functions
Main oven functions 3
Main oven- Bake
Main oven- Broil
Main oven- Clean
Main oven- Convection Bake
Main oven- Convection Broil
Main oven- Proof
Main oven- True Convection
Secondary Oven- Bake
Secondary Oven- Broil
Secondary Oven- Clean
Secondary Oven- Convection Bake
Secondary Oven- Convection Broil
Secondary Oven- Fan Forced
•
•
Secondary Oven- Proof
Secondary oven functions 2
•
•
°
•
°
°
°
•
°
°
°
°
°
•
Oven performance
Main oven- Bake 22000 BTU
Main oven- Broil 19000 BTU
Main oven- Shelf positions 5
Main oven- Total Capacity (AHAM) 5.3 cu ft
Main oven- Usable Capacity (AHAM) 3.9 cu ft
Secondary Oven- Bake 18500 BTU
Secondary Oven- Capacity total (AHAM) 2.4 cu ft
Secondary Oven- Capacity usable (AHAM) 1.7 cu ft
Secondary Oven- Shelf positions 5
Total oven capacity 7.7 cu ft
Power requirements
Electric circuit 3 wire
Rated current 15
Supply frequency 60
Supply voltage 120
Product dimensions
Depth (excluding handle and dials) 29 1/8 "
Height (excluding vent trim) 35 3/4 - 36 3/4 "
Width 47 7/8 "
Safety
Full extension telescopic racks 3
Style And Series
Product Style Professional
SKU 71345
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model
currently available. © © Fisher & Paykel Appliances Ltd 2018
Other product downloads available at fisherpaykel.com
