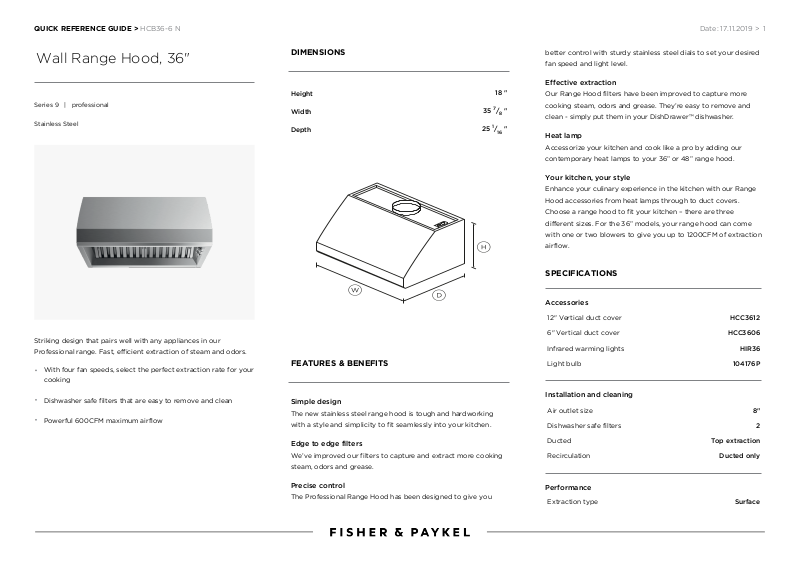

Fisher & Paykel FPRERADWRH589 Quick Reference manual
QUICK REFERENCE GUIDE > HCB36-6 N Date: 17.11.2019 > 1
Wall Range Hood, 36"
Series 9 | professional
Stainless Steel
Striking design that pairs well with any appliances in our
Professional range. Fast, efficient extraction of steam and odors.
With four fan speeds, select the perfect extraction rate for your
cooking
Dishwasher safe filters that are easy to remove and clean
Powerful 600CFM maximum airflow
DIMENSIONS
Height
Width
Depth
18 "
35 7/8 "
25 1/16 "
FEATURES & BENEFITS
Simple design
The new stainless steel range hood is tough and hardworking
with a style and simplicity to fit seamlessly into your kitchen.
Edge to edge filters
We’ve improved our filters to capture and extract more cooking
steam, odors and grease.
better control with sturdy stainless steel dials to set your desired
fan speed and light level.
Effective extraction
Our Range Hood filters have been improved to capture more
cooking steam, odors and grease. They’re easy to remove and
clean - simply put them in your DishDrawer™ dishwasher.
Heat lamp
Accessorize your kitchen and cook like a pro by adding our
contemporary heat lamps to your 36” or 48” range hood.
Your kitchen, your style
Enhance your culinary experience in the kitchen with our Range
Hood accessories from heat lamps through to duct covers.
Choose a range hood to fit your kitchen – there are three
different sizes. For the 36” models, your range hood can come
with one or two blowers to give you up to 1200CFM of extraction
airflow.
SPECIFICATIONS
Accessories
12" Vertical duct cover HCC3612
6" Vertical duct cover HCC3606
Infrared warming lights HIR36
Light bulb 104176P
Installation and cleaning
Air outlet size 8"
Dishwasher safe filters 2
Ducted Top extraction
Recirculation Ducted only
Precise control
The Professional Range Hood has been designed to give you
Performance
Extraction type Surface
QUICK REFERENCE GUIDE > HCB36-6 N Date: 17.11.2019 > 2
Fan speeds 4
Filter type SS Baffle
Other product downloads available at fisherpaykel.com
User Guide
Power requirements
Lighting power 2 x 50W
Motor power 455W
Supply voltage 120V
Total Power 555W
Product dimensions
Depth 25 1/16 "
Height 18 "
Width 35 7/8 "
Product information
Control type Rotary switch
Ventilation features
Dimmable lights / number of
Light type 2 x Halogen spot
Service & Warranty Booklet
Installation Guide
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1300 650 590 W www.fisherpaykel.com
•
SKU 50103
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel's Customer Care Centre to ensure this page correctly describes the model
currently available. © Fisher & Paykel Appliances Ltd 2019.
