Fisher & Paykel FPRERADWRH1079 User Manual
Designer canopy
HC36DTXB1 & HC48DTXB1 model
Installation instructions
and User guide (EN)
Campana extractora decorativa
HC36DTXB1 & HC48DTXB1 modelo
Hotte aspirante décorative
HC36DTXB1 & HC48DTXB1 modèle
Instrucciones para la instalación
y su uso (ES)
Conseils d’installation
et guide d’utilisation (FR)
US CA
EN English Page 3 – 13
ES Español Page 15 – 25
FR Français Pág 27 – 37
Contents
Safety and warnings 4
Installation instructions 6
Four-speed control panel with digital indicator 9
Cleaning and maintenance 10
Limited warranty 11
EN
3
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
EN
4
Safety and warnings
Installation instructions
READ AND SAVE THESE INSTRUCTIONS.
WARNING – to reduce the risk of fire, electric shock or injury to persons,
observe the following:
WARNING!
Electrical Shock Hazard
Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
Read and follow the SAFETY AND WARNINGS outlined in this User Guide
before operating this appliance.
Failure to do so can result in death, electric shock, fire or injury to persons.
Sufficient air is needed for proper combustion and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as those published by the National
Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and
Air Conditioning Engineers (ASHRAE) and local code authorities.
When cutting or drilling into wall or ceiling, do not damage electrical wiring or other
hidden utilities.
Ducted fans must always be vented to the outdoors.
Use only metal ductwork.
WARNING: To reduce risk of fire and to properly exhaust air, be sure to duct air outside.
– Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces
or garages.
Important safety instructions
WARNING: Disconnect the rangehood from power supply before servicing.
WARNING – to reduce the risk of fire, electric shock or injury to persons,
observe the following:
Do not use this fan with any solid state speed control device.
Use this unit only in the manner intended by the manufacturer. If you have questions, contact
the manufacturer. For residential use only.
Before servicing or cleaning unit, switch power off at service panel and lock service panel to
prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag to the service panel.
Safety and warnings
CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive
materials and vapors.
CAUTION:
WARNING – to reduce the risk of a range top grease fire:
Never leave surface units unattended at high settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or medium settings.
Always turn hood
Cherries Jubilee, Peppercorn Beef Flambé).
Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
Use proper pan size. Always use cookware appropiate for the size of the surface element.
WARNING – to reduce the risk of injury to persons in the event of a range top
grease fire, observe the following:
Smother flames with a close-fitting lid, cookie sheet or metal tray, then turn off the burner.
Be careful to prevent burns. If the flames do not go out immediately, evacuate and call the
fire department.
Never pick up a flaming pan
Do not use water
Use an extinguisher
– You know you have a Class ABC extinguisher, and you already know how to operate it.
– The fire is small and contained in the area where it started.
– The Fire Department is being called.
– You can fight the fire with your back to an exit.
To reduce the risk of fire, use only metal duct work.
on when cooking at high heat or when flambeing food (i.e. Crepes Suzette,
– you may be burned.
, including wet dishclothes or towels – a violent steam explosion will result.
only if:
EN
5
WARNING – sufficient air is needed for proper combustion and exhausting of gases through
the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating
equipment manufacturer’s guidelines and safety standards such as those published by National
Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air
Conditionning Engineers (ASHRAE) and local code authorities.
The manufacturer declines all liability in cases where the instructions for the appropriate
installation, maintenance and use of the extractor hood are not observed.
6
EN
Installation instructions
Decorative extractor hoods
Dear client:
We are sure that the purchase of our rangehood
will fully satisfy all of your needs. Please read this
instruction manual carefully in order to obtain the best
results from the use of the hood.
Important
Proof of purchase is required before a warranty claim
will be accepted.
General indications
Before installing and using the hood, be sure
that the voltage (V) and the frequency (Hz)
indicated on the feature plate match the voltage
and frequency at the installation site.
The feature plate and technical data are shown
on the inside of the product.
This hood is equipped with an adjustable
chimney cover which allows it to be adjusted to
the height of the ceiling.
Fig.1 HC36DTXB1 Designer canopy
Wall mounting
1
Please remove the polyfoam protection piece
(from behind the motor) before use.
2
Connect the outlet adapter supplied with
the hood (6“ diameter) to an exhaust duct
connected directly to the outside (Fig.2).
3
Screw on the connection box following (Fig.2a)
with the two /” x /” screws supplied in the
box of accessories.
4
The accessories needed to install the hood are
inside the hood.
5
Drill holes in the wall using a ¼” drill bit.
6
The anchors and screws needed to hang the
hood are contained in the bag of accessories
supplied with the hood.
7
This fan shall be mounted a minimum of 22“
above the heat source.
Fig.2a

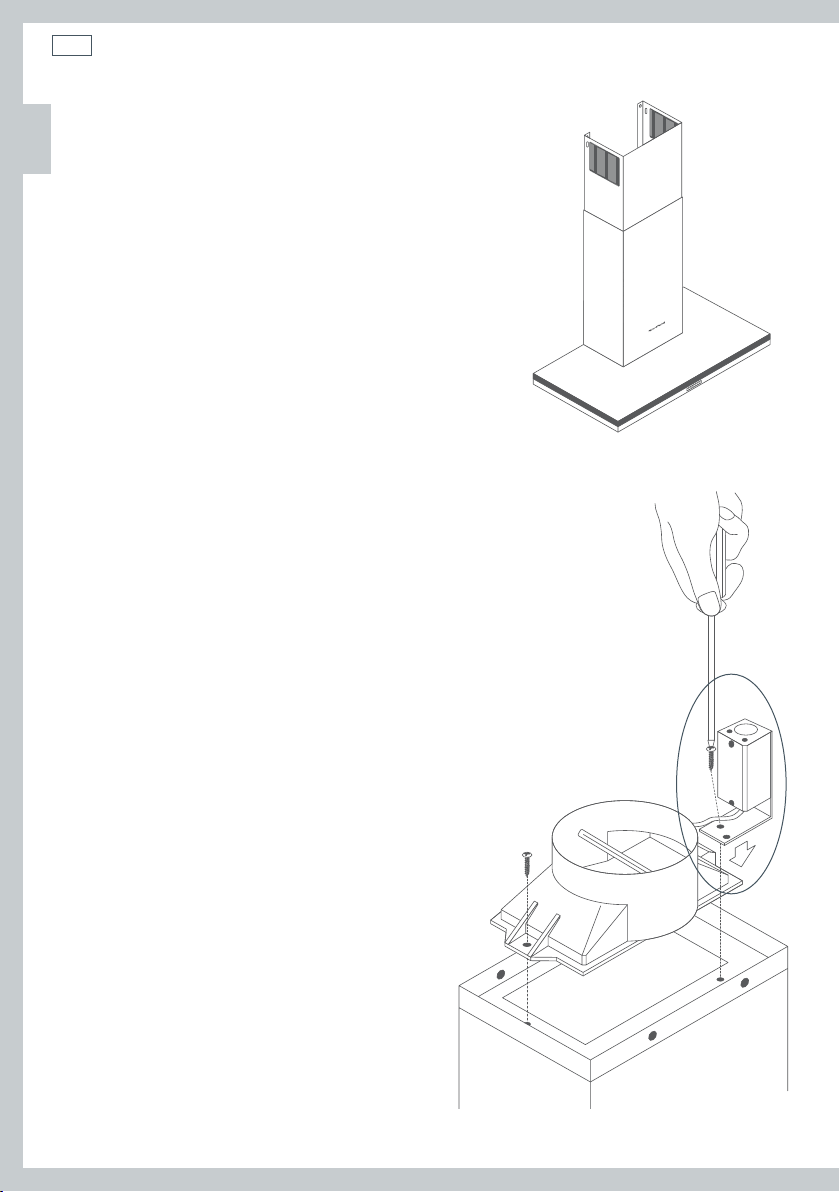

Fig.2 Connect the outlet adapter to the exhaust duct
7
EN
Installation instructions

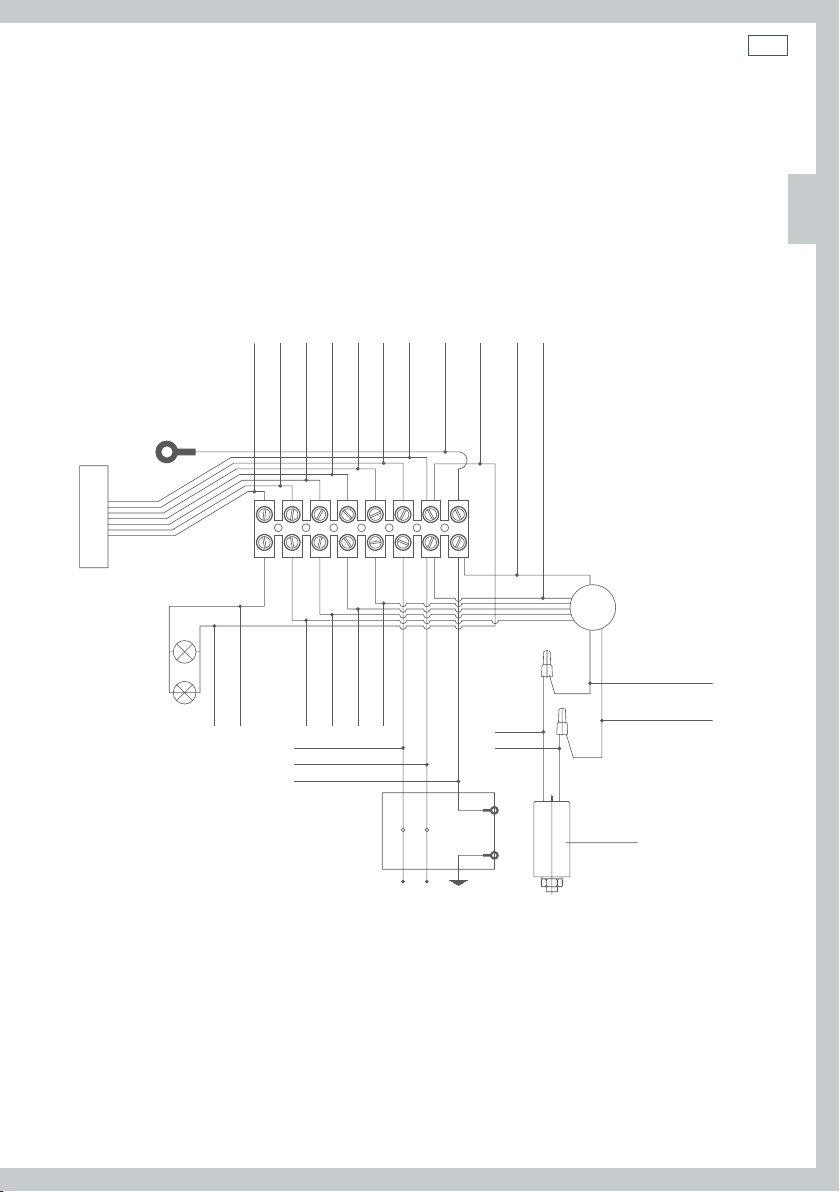

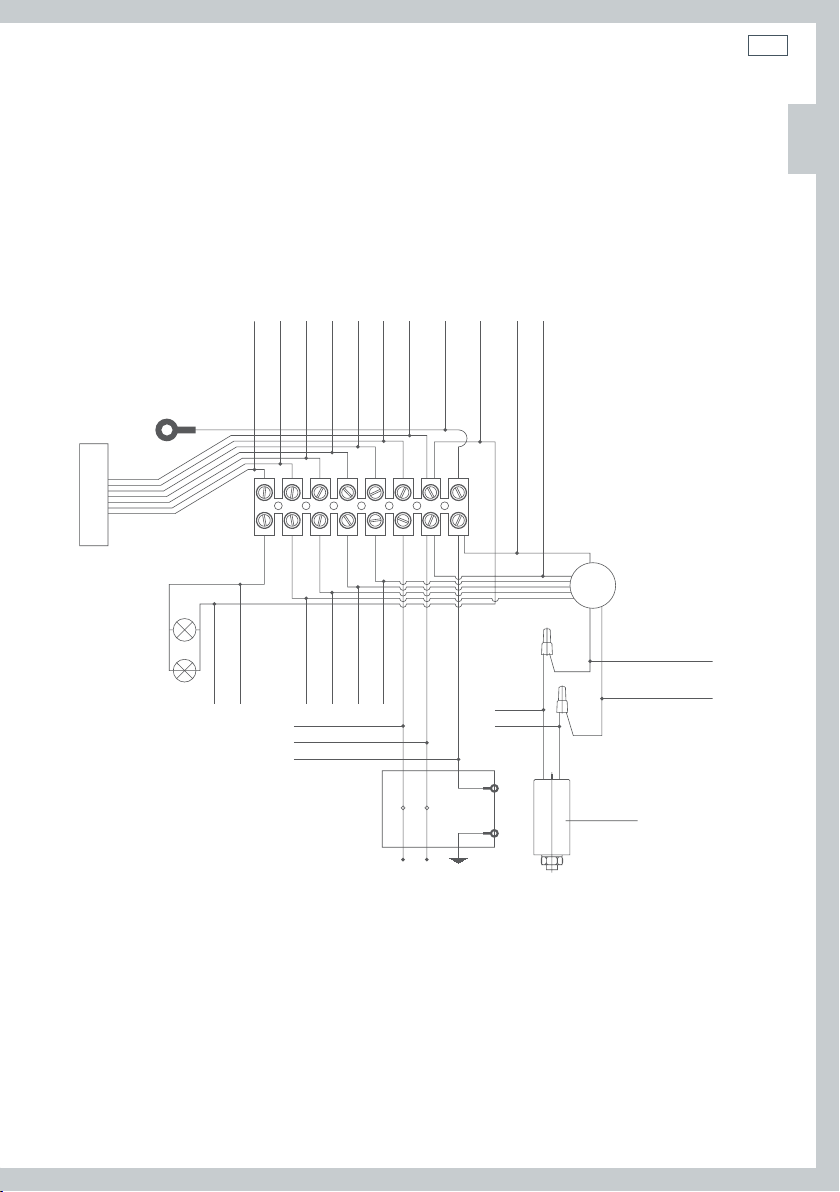

Electrical connection
Important!
Be certain all wiring complies with local codes and the unit is properly grounded.
1
Run three wires, two for the power supply and the ground wire, from the connection box on the
canopy to a power connection point near the installation.
2
Using approved wiring connectors, connect the power conductors to the conductors for the fan:
black to black and white to white.
3
Connect the grounding wire (green or bare) to the Ground conductor (green) of the fan
distribution box.
EN
9.84”
25”
7”
0.92”
9.84”
10.4”
10.26”
MIN 25.98”
8
Installation instructions
Assembly of chimney cover
1
Mark the wall at the location of support C (Fig.4a) according to the heights and specifications
shown on the mounting template.

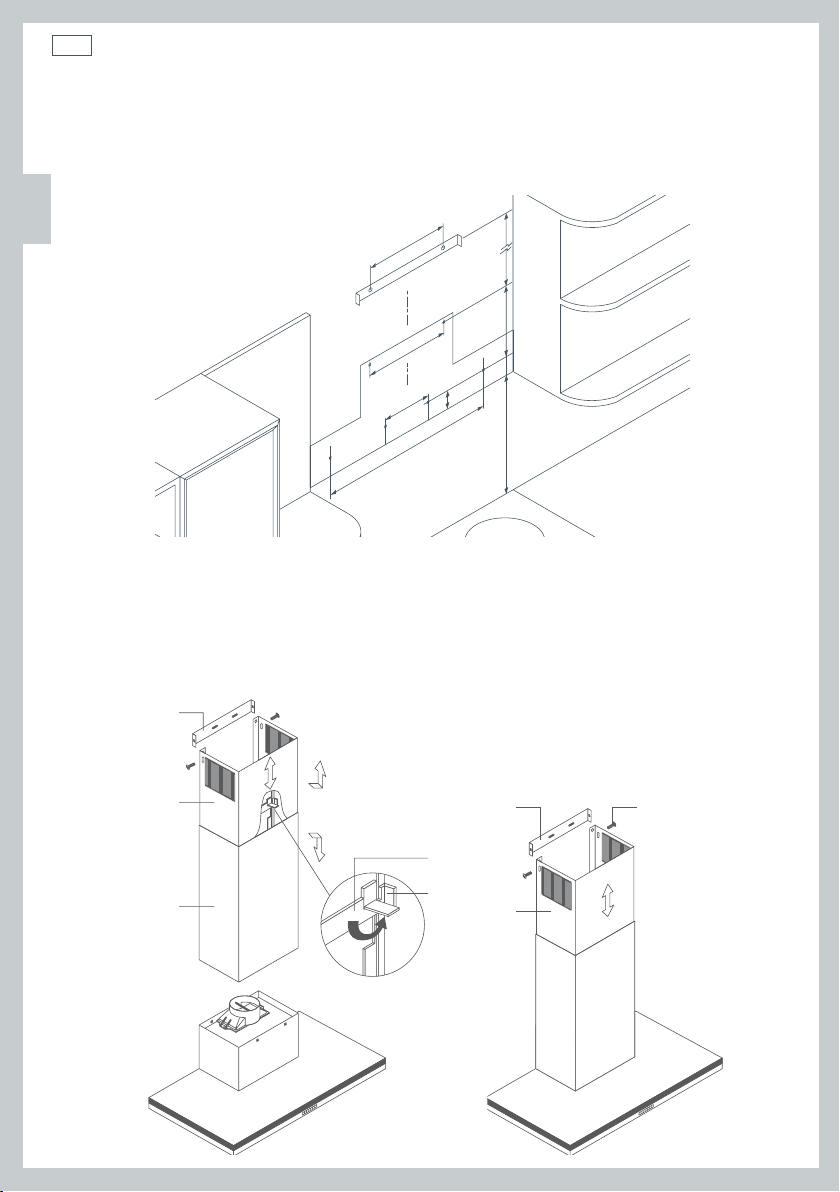

Fig.3 Mounting template
2
Drill holes in the wall, place anchors in the holes and attach support C with screws (Fig.4a).
3
Place tube A with the extendible part B hanging on the inside, making sure that flange D is
correctly lodged in the support
4
Next, secure support E to the upper end of the wall, making sure that it is properly aligned with
the extendible tube. Extend the movable part of tube
to the support with the two side screws
C
(Fig.4a).
F
(Fig.4b).
B
until it reaches support E and connect
E
B
C
A

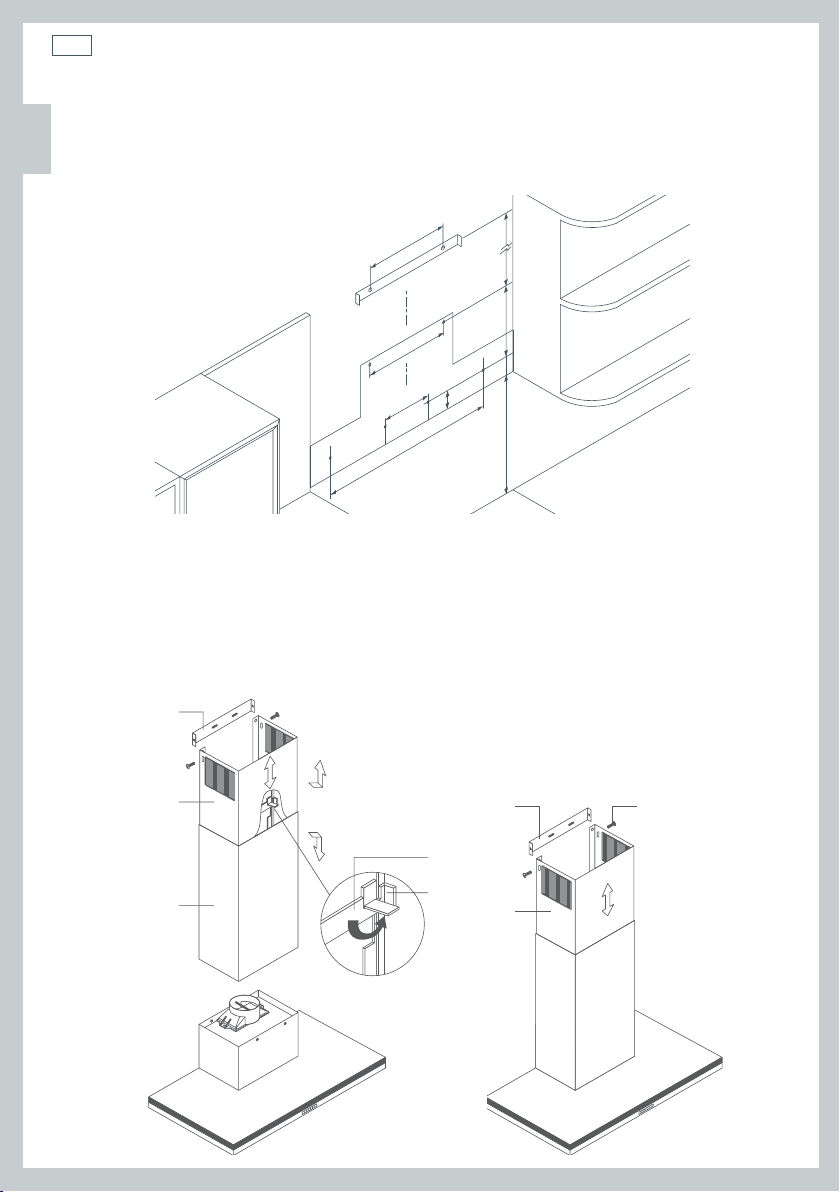

Fig.4 Assembly of chimney cover
D
E
B
F
Fig.4bFig.4a

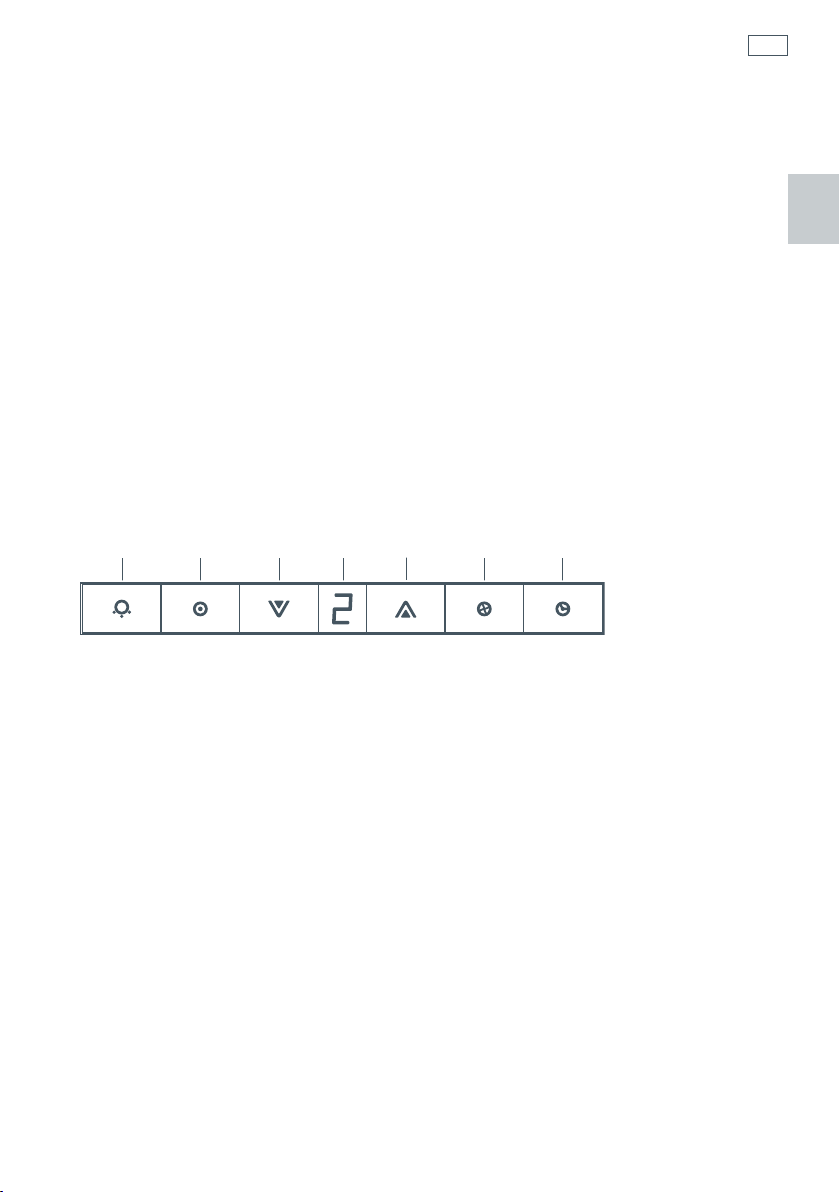

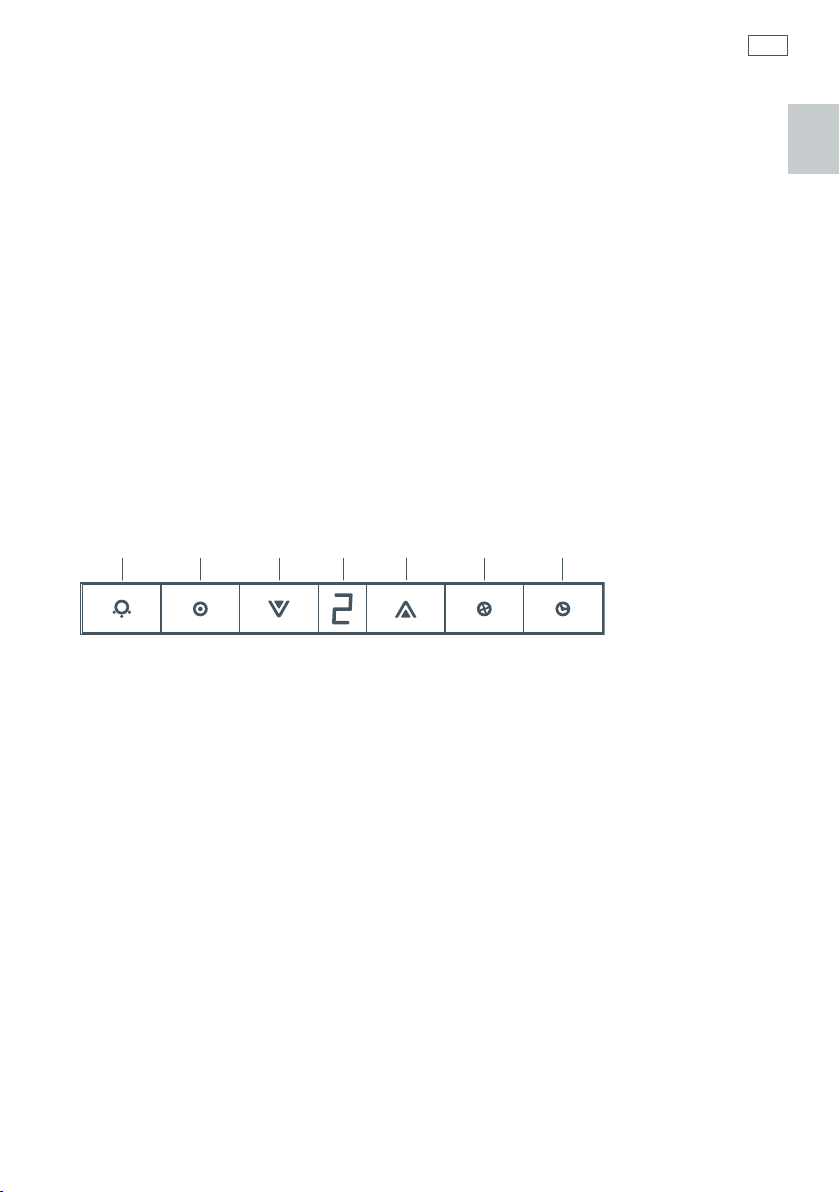

Four-speed control panel with digital indicator
This panel is situated on the front of the rangehood and includes:
Button for the light (ref. A).
On/off button of the motor (ref. B).
Button for reducing the motor speed (ref. C).
Motor speed indicator (ref. D).
Button for increasing the motor speed (ref. E).
Button for directly activating the TURBO speed of the motor (ref. F).
Button for setting the timer of the motor (ref. G).
The hood will operate for 5 minutes at the current speed and 5 minutes at each of the lower
speeds until coming to a complete stop.
A B C D E F G
EN
9
Fig.4 Four-speed control panel
Important!
During an electrostatic discharge (ESD) it is possible that the device will stop working.
By switching the device OFF an ON the device will again work as intended. There is no risk and
no risk will appear.
EN
10
Cleaning and maintenance
IMPORTANT!
Disconnect the power before cleaning or servicing.
Cleaning
Clean the external part with a mild, liquid detergent and avoid the use of abrasive
cleaning products.
Changing the light
1
Before changing the light make sure that the hood is not operating.
2
Remove the grease filter.
3
Replace the light with a light bulb no more powerful than that specified in the Technical
Characteristics.
4
Place the grease filter back into position.
IMPORTANT!
If the halogen lamps need replacing, they must be replaced by lamps with an aluminium
reflector, never dichroic lamps, to avoid unnecessary overheating in the lamp holders.

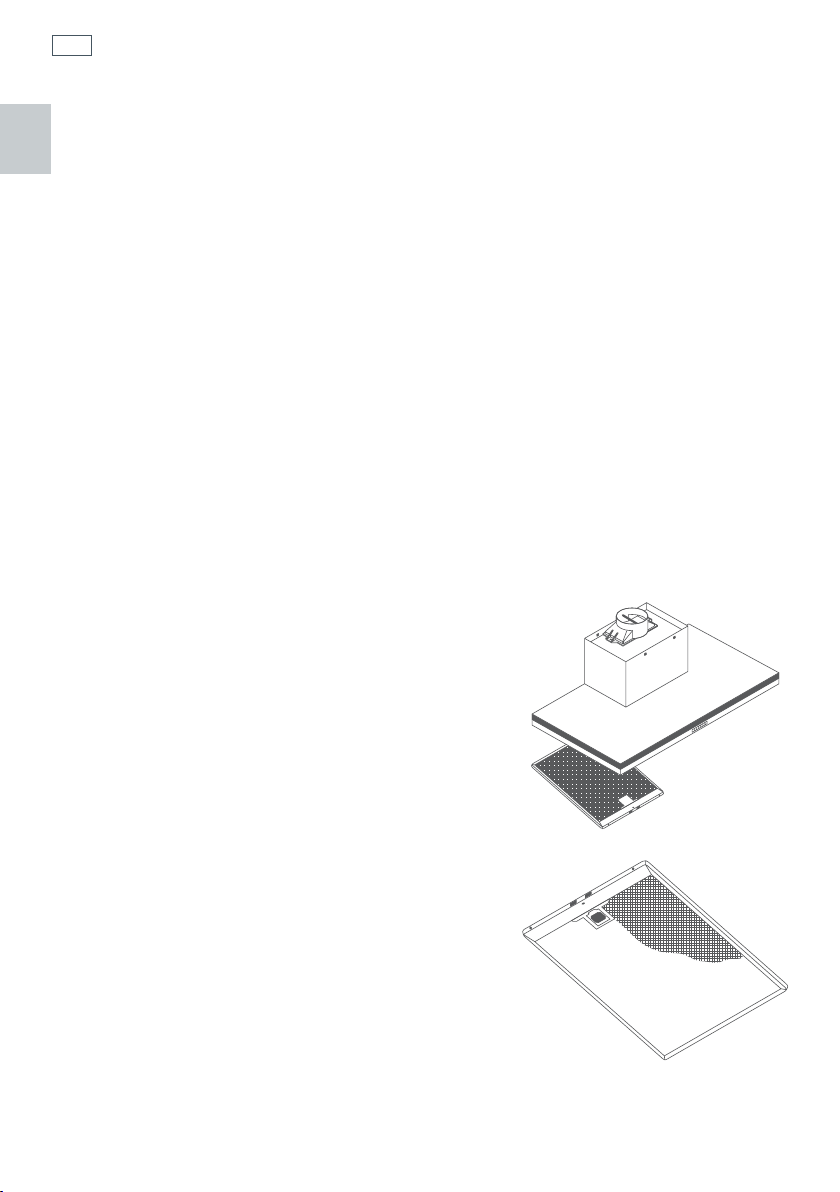

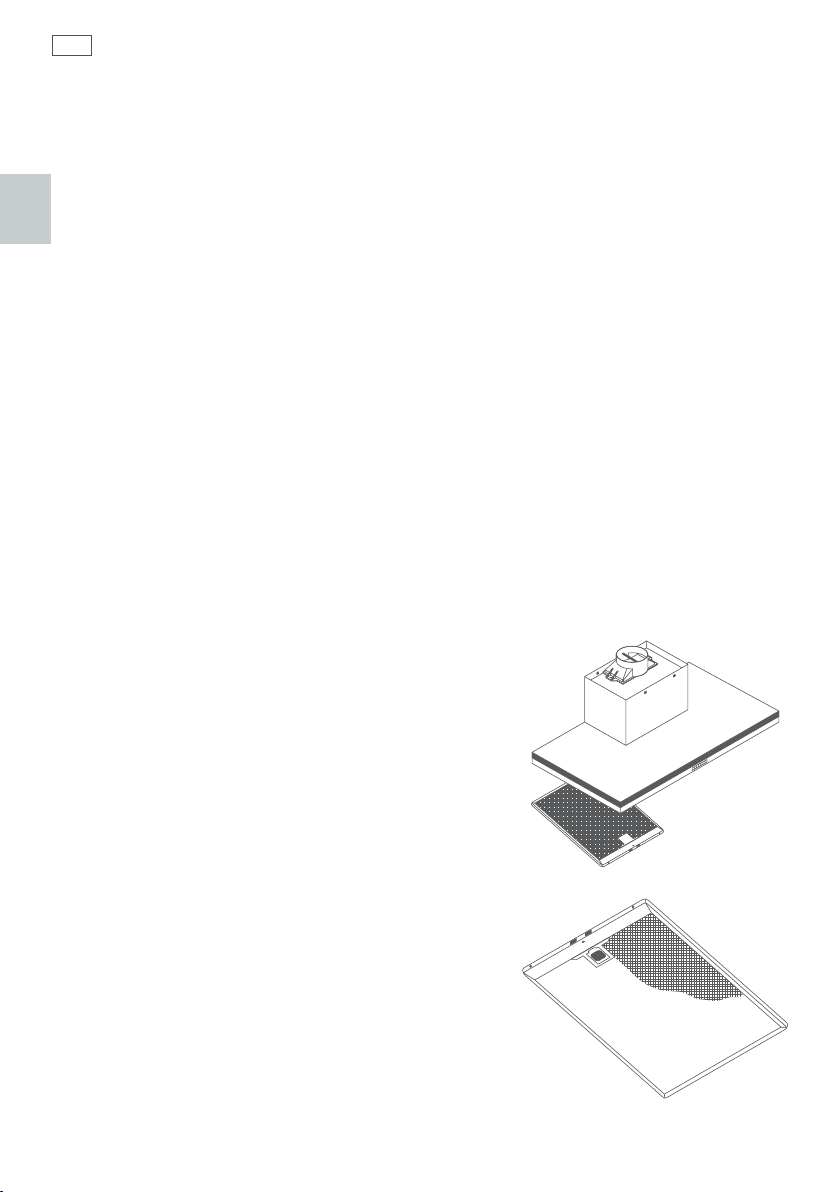

Cleaning the grease filter
Depending on use, and at least once a month, the grease
filters should be disassembled (Fig.5) and cleaned in
a dishwasher or with hot soapy water. If washed in a
dishwasher they should be placed in an upright position
to prevent food remains from falling on them.
After rinsing and drying, replace the filters by following
the steps for disassembly in reverse order.
Fig.5 Grease filters
