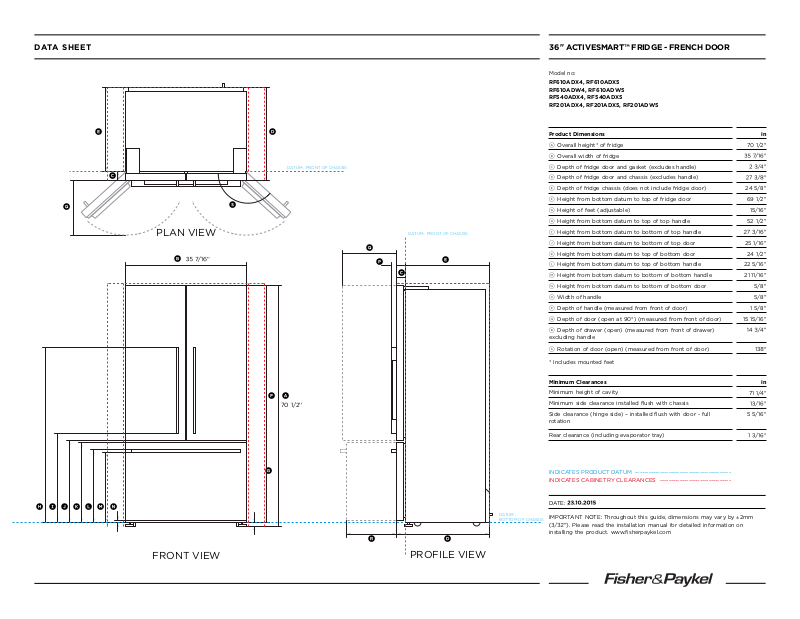

DATA SH EET

ACTIVESMART™ FRIDGE - FRENCH DOOR

Model no:

RF610ADX4, RF610ADX5 RF610ADW4, RF610ADW5 RF540ADX4, RF540ADX5 RF201ADX4, RF201ADX5, RF201ADW5

PLAN VIEW

DATUM : FRONT OF CHASSIS

70 1/2''

Product Dimensions in

a Overall height* of fridge

B Overall width of fridge

c Depth of fridge door and gasket (excludes handle)

d Depth of fridge door and chassis (excludes handle)

E Depth of fridge chassis (does not include fridge door)

F Height from bottom datum to top of fridge door

G Height of feet (adjustable)

H Height from bottom datum to top of top handle

DATUM : FRONT OF CHASSIS

I Height from bottom datum to bottom of top handle

J Height from bottom datum to bottom of top door

K Height from bottom datum to top of bottom door

L Height from bottom datum to top of bottom handle

M Height from bottom datum to bottom of bottom handle

N Height from bottom datum to bottom of bottom door

O Width of handle

P Depth of handle (measured from front of door)

Q Depth of door (open at 90°) (measured from front of door)

R Depth of drawer (open) (measured from front of drawer)

excluding handle

S Rotation of door (open) (measured from front of door)

* Includes mounted feet

Minimum Clearances in

Minimum height of cavity

Minimum side clearance installed ﬂush with chassis

Side clearance (hinge side) – installed ﬂush with door - full rotation

Rear clearance (including evaporator tray)

70 1/2''

24 5/8''

69 1/2''

15/16''

52 1/2''

25 1/16''

24 1/2''

22 5/16''

21 11/16''

5/8''

1 5/8''

15 15/16''

71 1/4''

5 5/16''

NMLKJ

FRONT VIEW

PROFILE VIEW

DATUM : BOTTOM OF CHASSIS

INDICATES PRODUCT DATUM -------------------------------------------

INDICATES CABINETRY CLEARANCES --------------------------------

DATE:

IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm

). Please read the installation manual for detailed information on

installing the product. www.ﬁsherpaykel.com
