Page 1
22274-B
Parts Manual
Refrigerator/Freezer
Model:
E402BRXFDU G FP SX
Product Code:
22274-B
Page 2
22274-B
2
Page 3
22274-B - NOVRMBER 2009
Fisher & Paykel Appliances Ltd
78 Springs Road,
East Tamaki
Manukau 2013
PO Box 58-732, Botany,
Mankau 2163,
Auckland, New Zealand
Telephone: 09 273 0600
Facsimile: 09 273 0656
Fisher & Paykel Customer Services Pty Ltd
PO Box 798, Cleveland, QLD 4163
A.C.N. 003 3335 171
19 Enterprise Street
Cleveland, QLD 4163
Australia
Telephone: (07) 3826 9100
Facsimile: (07) 3826 9164
COPYRIGHT
©
FISHER & PAYKEL LTD 2009 - ALL RIGHTS RESERVED
3
PRODUCT
Brand Fisher & Paykel
Voltage 220-240V 50Hz
Model E402BRXFDU G FP SX
Product Code 22274-B
Page 4
22274-B
4
Page 5
22274-B
GUIDE TO USING THIS MANUAL
The model covered by this manual is listed on the front cover.
The information detailed in this manual is subject to change without notice. The latest version is indicated by
the reprint date and replaces any earlier editions.

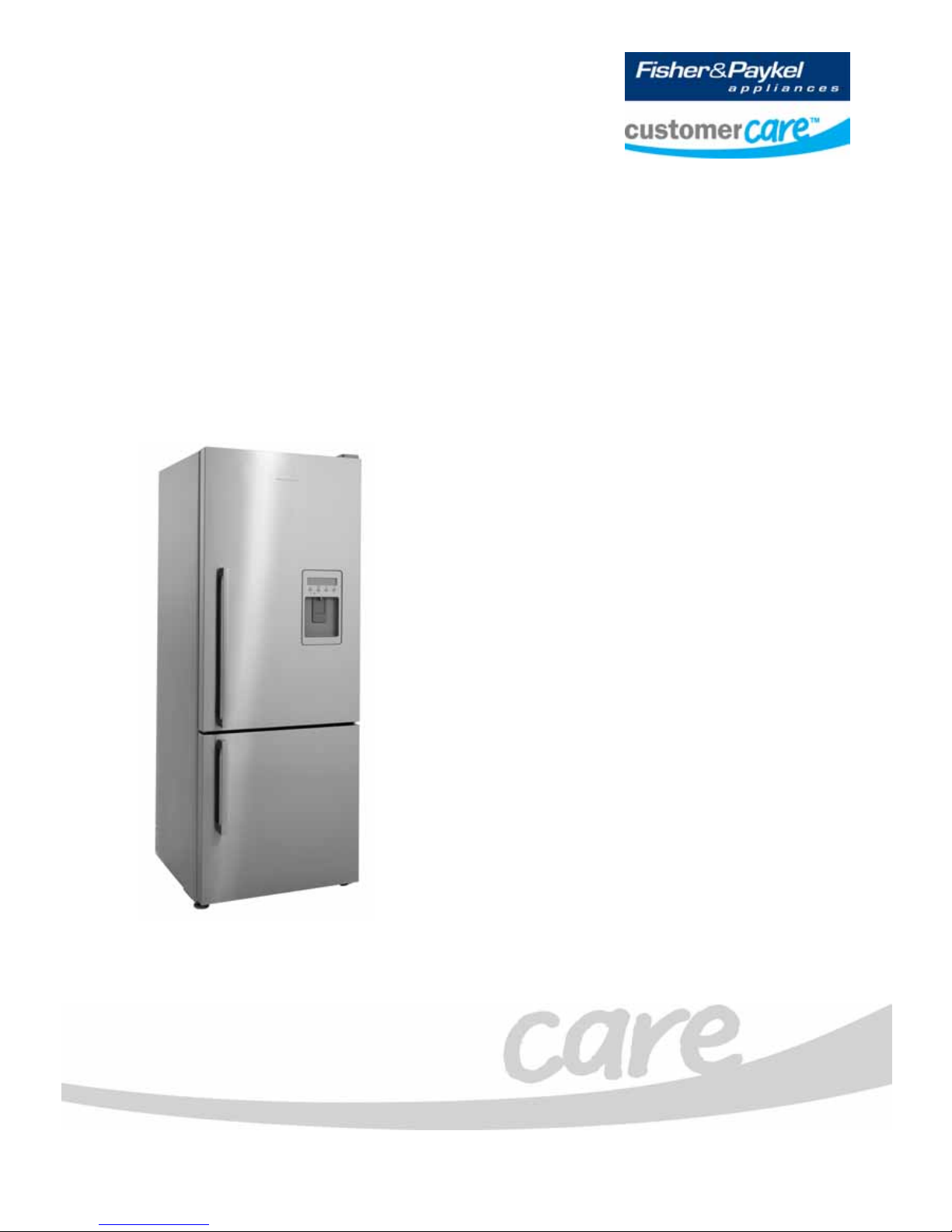

The front cover picture shows the type of product and may not necessarily be an exact image of the model
covered by the manual.
Kit Parts
Kit components are shown in italics.
Where a part number is shown against the descriptions for these kit
components, they are also available as separate items. In addition, some parts may be supplied with these
kits that are not available as separate items, and are therefore either not listed, or a part number is not
shown against the part description in this manual.
Parts List Key
italics
Kit components or parts included are shown in italics. Refer to above notes: Kit Parts.
NI As a part reference, indicates the part is not illustrated on the diagram.
NOT USED As a part number, indicates the diagram part reference is not used in this manual.
5
CONTENTS
DOOR ASSEMBLY & COMPONENTS.............................................................................................6
WATER DISPENSER HOUSING AND MODULE CONTROL ........................................................10
CABINET COMPONENTS.............................................................................................................. 12
ICEMAKER COMPONENTS AND ICE BIN.................................................................................... 16
FAN, COVERS AND EVAPORATOR ASSEMBLIES...................................................................... 18
WATER TANK AND DUCT COVERS.............................................................................................20

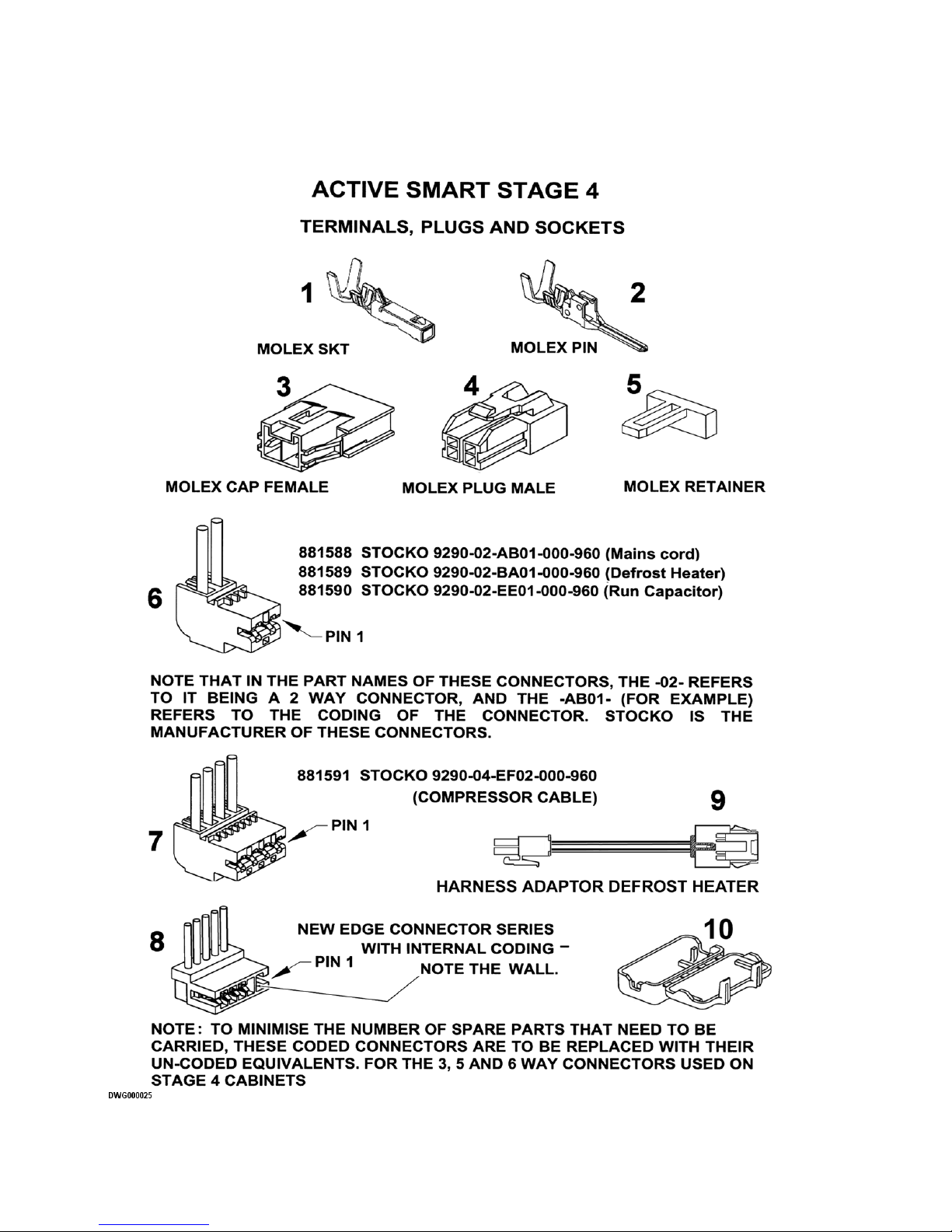

ACTIVE SMART ST4 TERMINALS PLUGS & SOCKETS..............................................................22

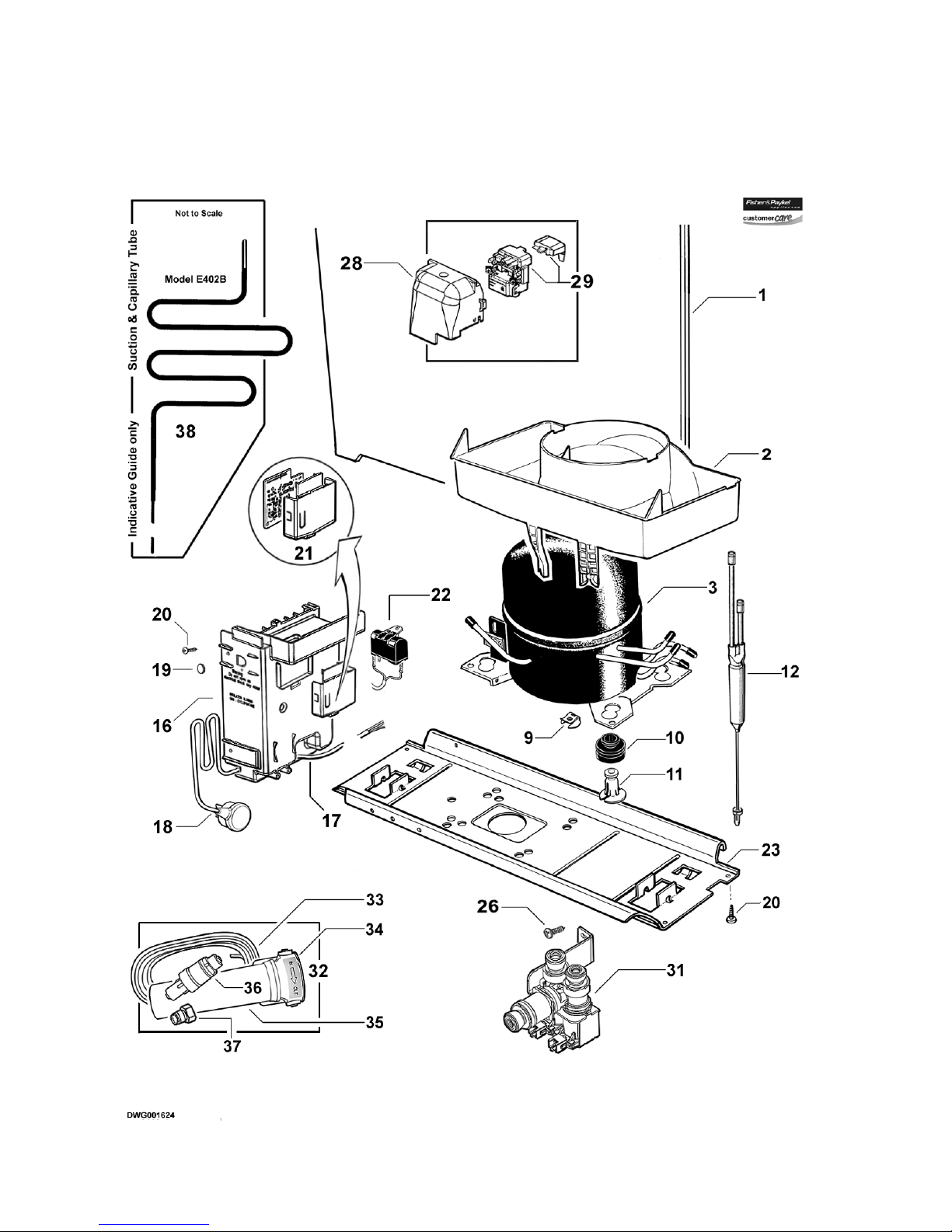

COMPRESSOR, ANCILLARY COMPONENTS & CONTROL MODULE .......................................24
NOTES............................................................................................................................................26
REFRIGERATION ABBREVIATION KEY.......................................................................................27
Page 6
22274-B
6

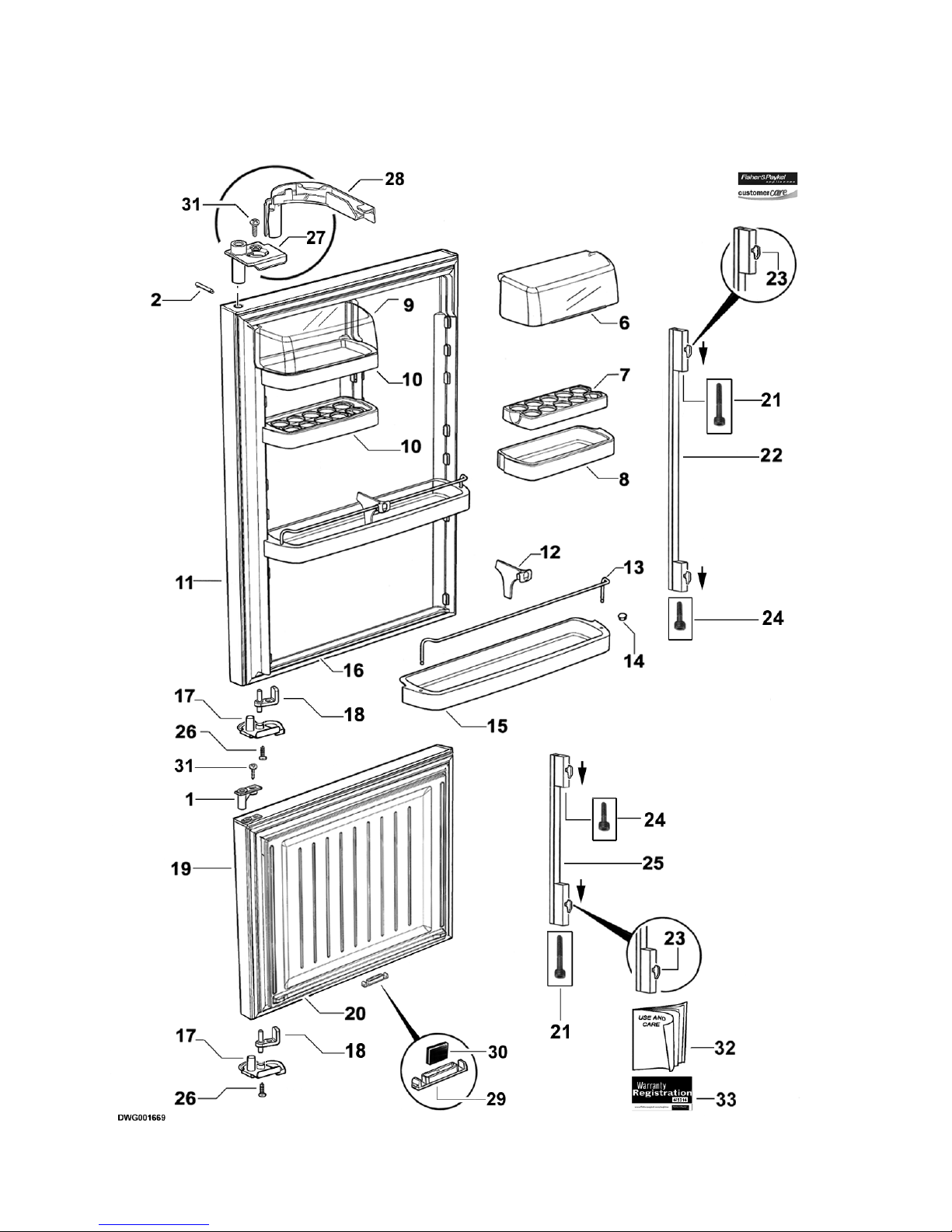

DOOR ASSEMBLY & COMPONENTS
Page 7
22274-B
7
DOORS ASSEMBLY AND COMPONENTS
REF PART DESCRIPTION
1 813931 HINGE TOP DOOR FLAT
2 813926 TRIM CORNER DOOR FLAT
6 315017 KIT COVER DOOR SHELF 635
Includes 876503 COVER DOOR SHELF CLEAR LH
Includes 876504 COVER DOOR SHELF CLEAR RH
7 876719 SHELF EGG RACK 635
8 874974 SHELF DOOR SMALL WHITE RH
9 315017 KIT COVER DOOR SHELF 635
Includes 876503 COVER DOOR SHELF CLEAR LH
Includes 876504 COVER DOOR SHELF CLEAR RH
10 874973 SHELF DOOR SML LH 635 WHITE
11 836880P DOOR PC G SXFU 635X1030 B RH
Includes
HOUSING INTERFACE REAR
Includes 836904 SPIGOT WATER DISPENSER
Includes 813928 COVER MAGNET DOOR FLAT
Includes 836895 INSERTER HARNESS DOOR (Assembly Aid)
Includes 883315 MAGNET DOOR SWITCH ST4
Includes
INSTRUCTION SHEET I&W PC DOOR REPLACEMENT
Includes 860795 BOSS HANDLE FLAT (2)
Includes 820319 SHEET INSTRUCTION HANDLE BOSS
12 883121 DIVIDER B/RAIL WHITE
13 881339 RAIL BOTTLE SUPPORT SATIN CHROME 635
14 876281P PLUG DOOR SHELF WHITE (2)
15 883941 SHELF DOOR LGE 635 WHITE
16 883063P GASKET DOOR PUSHIN 635X1003 LG
17 814621 CLOSING HOOK DOOR STOP RH
18 814537 DOOR STOP ASSEMBLY
19 374019P DOOR FC G SZF 635X610 RH
Includes 813928 COVER MAGNET DOOR FLAT
Includes 883315 MAGNET DOOR SWITCH ST4
Includes 860795 BOSS HANDLE FLAT (2)
Includes 820319 SHEET INSTRUCTION HANDLE BOSS
20 883059P GASKET DOOR PUSHIN 635X 585 LG
21 819646 SCREW M5X40 CAP
22 818903 HANDLE D2 612 BRUSHED
Includes 819646 SCREW M5X40 CAP
Includes 819647 SCREW M5X16 CAP
23 860795P BOSS HANDLE FLAT PKD
24 819647 SCREW M5X16 CAP
25 818904 HANDLE D2 374 BRUSHED
Includes 819646 SCREW M5X40 CAP
Includes 819647 SCREW M5X16 CAP
Continued next page
Page 8
22274-B
8

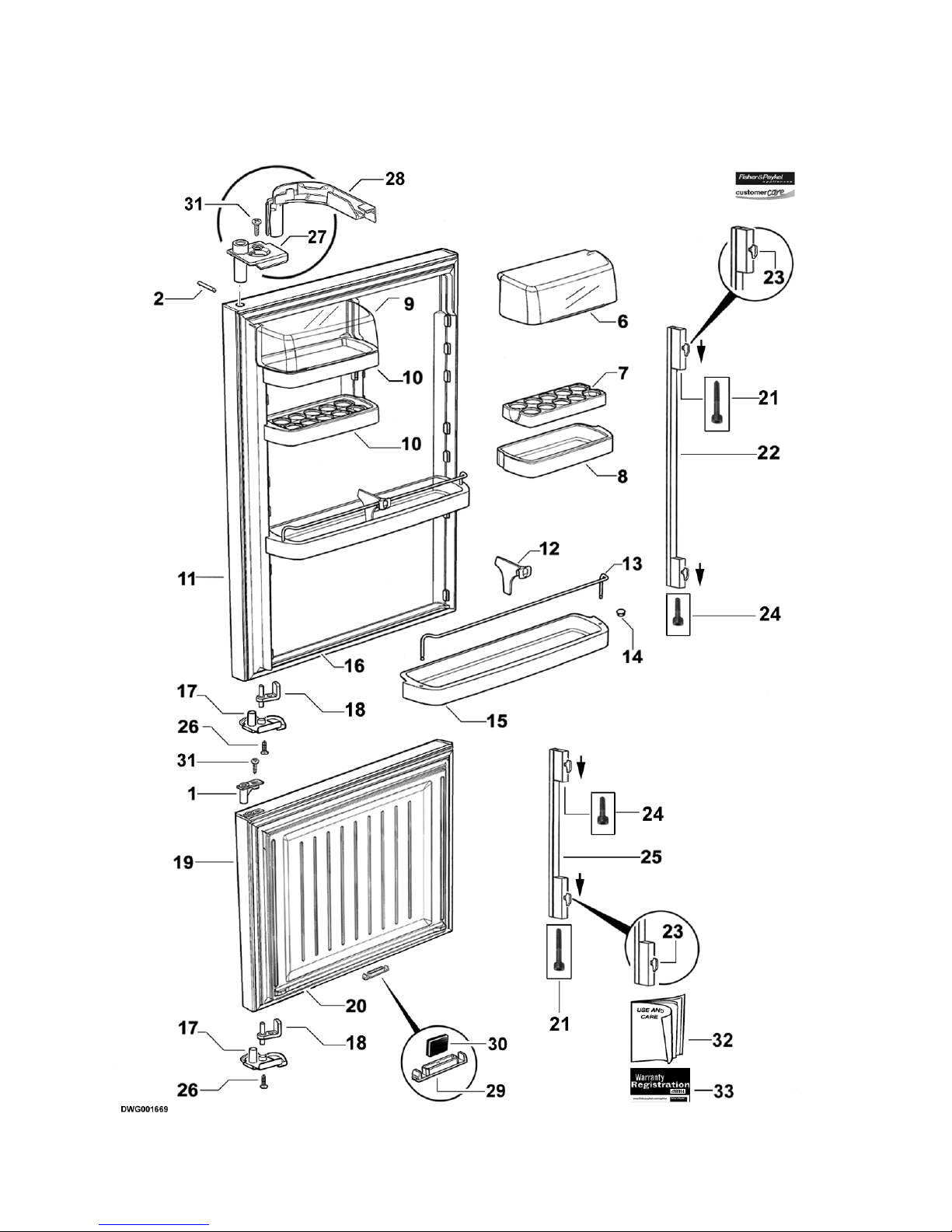

DOORS ASSEMBLY AND COMPONENTS
Page 9
22274-B
9
DOORS ASSEMBLY AND COMPONENTS
REF PART DESCRIPTION
26 817825P SCREW 8X22 WAFER PHIL ST TV (PKT 10)
27 836832 BEARING HINGE WATER FLAT
28 836829 GUIDE SERVICES DOOR
29 813928 COVER MAGNET DOOR FLAT
30 883315 MAGNET DOOR SWITCH ST4
31 836948P SCREW 6X1/2 PAN PH SS (PKT 10)
32 819258 BOOKLET U&C I&W AA/UK/HK/IS
33 820303 CARD REGISTRATION FP AA
Page 10
22274-B
10

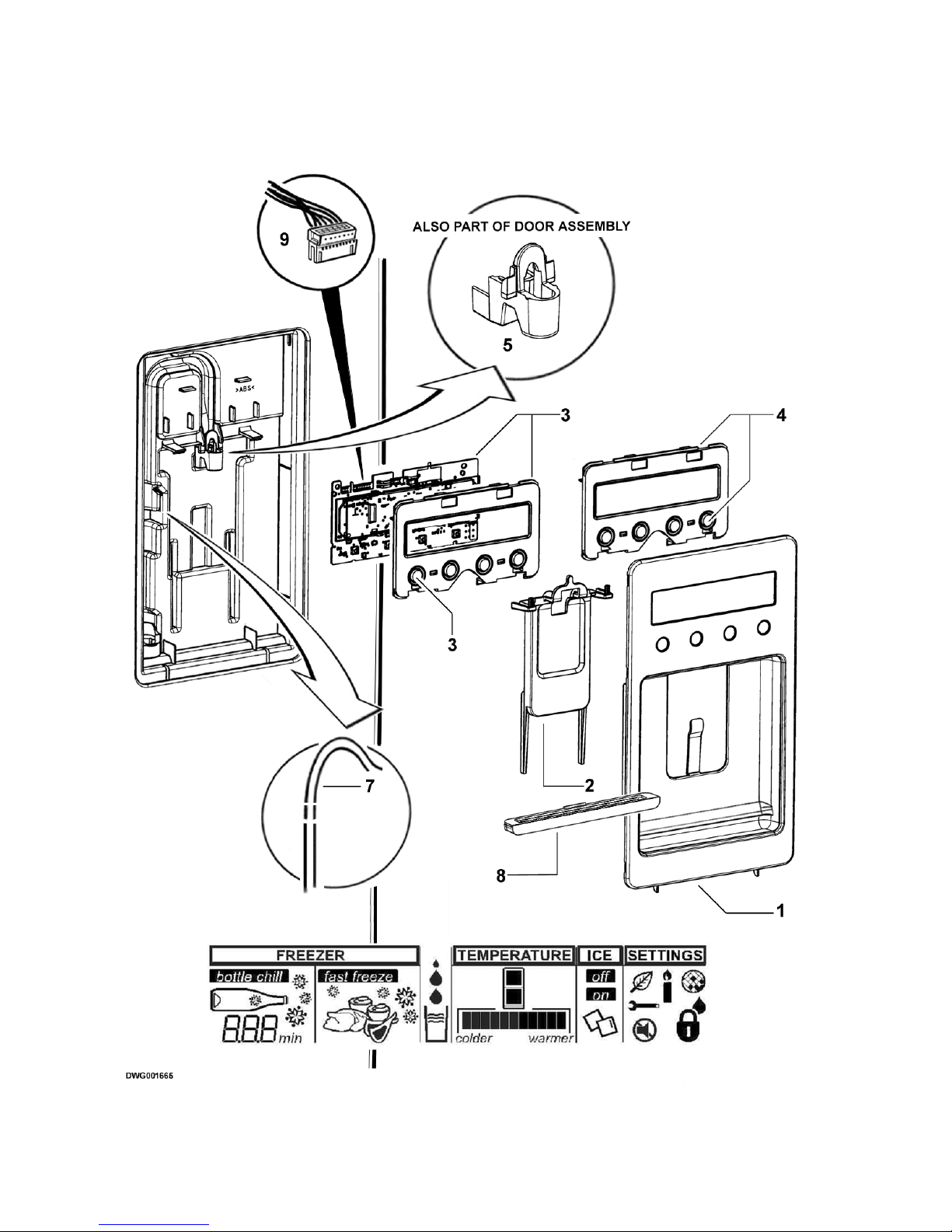

WATER DISPENSER HOUSING AND MODULE CONTROL
Page 11
22274-B
11
WATER DISPENSER HOUSING AND CONTROL MODULE
REF PART DESCRIPTION
1 819740P COVER DISPLAY NMF SX SPARES
Includes
HOUSING INTERFACE FRONT
2 836905 LEVER WATER DISPENSER
3 819415P MODULE DISPLAY I&W NMF SPARES
Includes
MODULE ELECTRONIC DISPLAY
Includes
WINDOW DISPLAY
Includes
BUTTONS CONTROL DISPLAY
Includes
HOLDER BUTTONS
4 312200 WINDOW DISPLAY ASSEMBLY
Includes
WINDOW DISPLAY
Includes
BUTTONS CONTROL DISPLAY
Includes
HOLDER BUTTONS
5 836904 SPIGOT WATER DISPENSER
7 836838 TUBE WATER-DOOR 1/4” OD WHITE
8 836771 TRAY DRIP ASSEMBLY I & W
Includes
CONTAINER TRAY DRIP I&W
Includes
COVER TRAY DRIP I&W
9 814416 HARNESS LOOM DOOR I & W
Page 12
22274-B
12

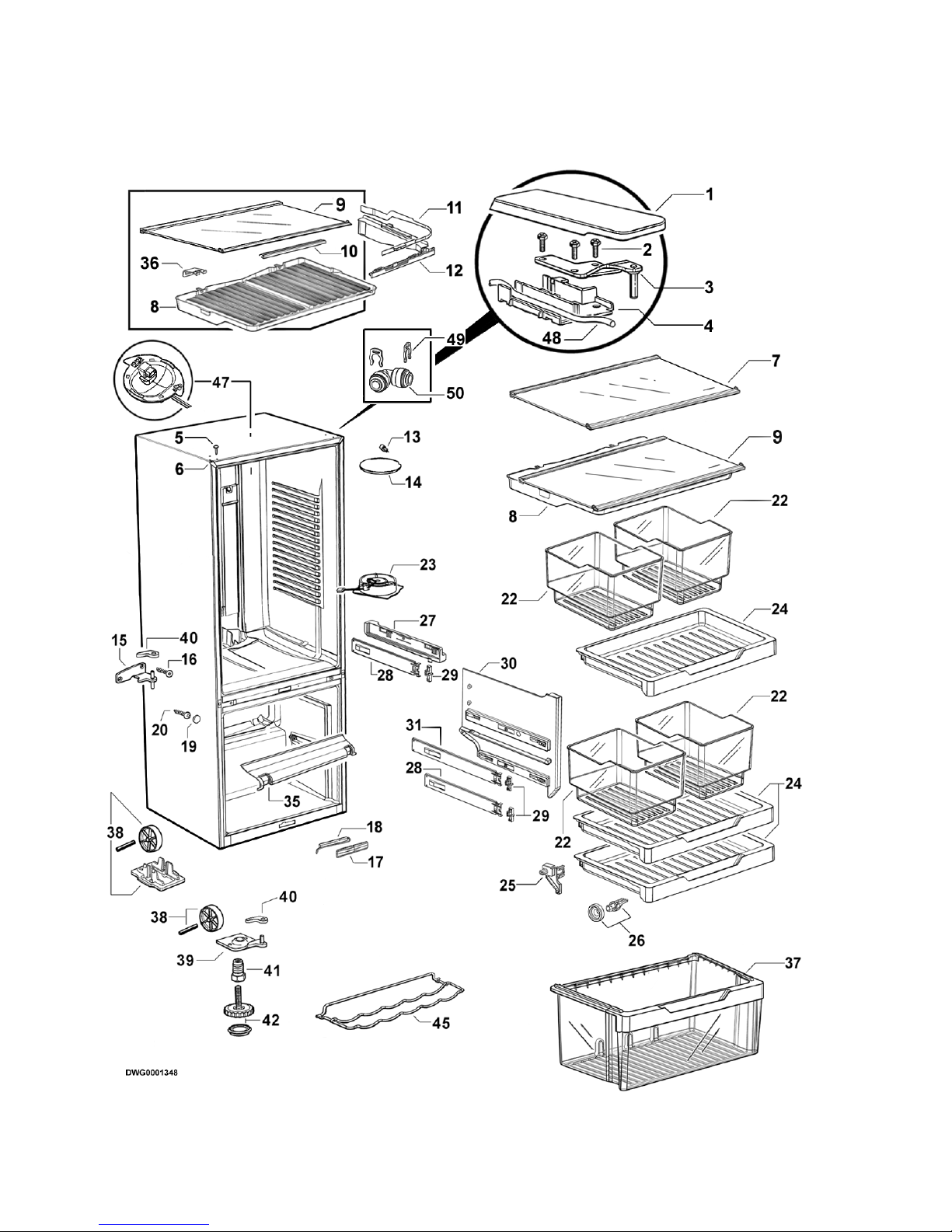

CABINET COMPONENTS
Page 13
22274-B
13
CABINET COMPONENTS
REF PART DESCRIPTION
1 836825 COVER TOP HINGE I&W
2 817818P SCREW M5X20 HEX PH ST TV (PKT 10)
3 836834 BRACKET HINGE I&W RH ASSY
4 837276 SUPPORT HINGE TOP RIGHT
5 883948 PLUG TAPPED HOLE SILVER
6 883947 TRIM CORNER SILVER
7 836806 SHELF GL PC 635 ASSY SC
Includes 836567 PLUG TRIM SHELF RH (FRONT)
Includes 836568 PLUG TRIM SHELF LH (FRONT)
Includes 836851 STIFFENER SHELF PLASTIC PC 635 SC
Includes
TRIM SHELF PC FRONT 635 SC
Includes
SHELF GLASS PC 635
8 836729 LID HUMIDITY CTRL 635B
9 836852 SHELF GL HCL 635B ASSY SC
Includes 836567 PLUG TRIM SHELF RH (FRONT)
Includes 836568 PLUG TRIM SHELF LH (FRONT)
Includes 819177 RETAINER HCL FRONT 635
Includes 836729 LID HUMIDITY CTRL 635B
Includes 836851 STIFFENER SHELF PLASTIC PC 635 SC
Includes
TRIM SHELF HCL 635 SC
Includes
SHELF GLASS PC 635
10 819177 RETAINER HCL FRONT 635
11 836631 SLIDE CONTROL HUMIDITY RH
836633 SLIDE CONTROL HUMIDITY LH
12 836632 GUIDE CONTROL HUMIDITY RH
836634 GUIDE CONTROL HUMIDITY LH
13 874017P LAMP HALOGEN PC 12V/10W
14 875318 COVER LAMP PC
15 881283P BRACKET CTR HINGE RH PLATED
Includes 883988 CAP DOOR CLOSING HINGE BKT RH
16 880656P SCREW 10GX25CSK SQ SS (PKT 10)
17 884011 COVER REED SWITCH ST4 SILVER
18 814443P SWITCH REED FIELD FIX KIT ST4
Includes
HEATSHRINK 1/8’’ MW ADHESIVE LINED
19 883953 CAP SCREW CROSS RAIL SILVER
20 817822P SCREW #10X19 AB #2 SQ TV (PKT 10)
22 836522 BIN SMALL 635
23 884518P FAN & HOUSING PC ASSY
Includes
CONNECTOR IDC UP2 (2)
Includes
LABEL WARNING 12 VOLT DC
Includes
FAN & HOUSING PC ASSY
Continued next page
Page 14
22274-B
14
CABINET COMPONENTS
Page 15
22274-B
15
CABINET COMPONENTS
REF PART DESCRIPTION
24 836512 TRAY 635
25 836585 SKID TRAY RH
836586 SKID TRAY LH
26 836517 WHEEL & CHASSIS ASSEMBLY (PKT 2)
27 814928 RETAINER & SLIDE 680 RH ASSY
Includes
RETAINER SLIDE PC B RH
Includes 814912 SLIDE 305 RH ASSEMBLY
Includes 836520 CLIP SLIDE
814929 RETAINER & SLIDE 680 LH ASSY
Includes
RETAINER SLIDE PC B LH
Includes 814913 SLIDE 305 LH ASSEMBLY
Includes 836520 CLIP SLIDE
28 814912 SLIDE 305 RH ASSEMBLY
Includes 836520 CLIP SLIDE
814913 SLIDE 305 LH ASSEMBLY
Includes 836520 CLIP SLIDE
29 836520P CLIP SLIDE (PKT 2)
30 836545 RETAINER SLIDE FC RH
836546 RETAINER SLIDE FC LH
31 814914 SLIDE 355 RH ASSEMBLY
Includes 836520 CLIP SLIDE
814916 SLIDE 355 LH ASSEMBLY
Includes 836520 CLIP SLIDE
35 836593 DUCT RETURN AIR FC 635
36 NOT USED ITEM NOT USED IN THIS MODEL
37 836659 BIN LARGE 635 ASSEMBLY
Includes
HANDLE BIN LARGE
38 315090P KIT WHEEL BRACKET CLIP
Includes
PIN ROLLER PLATED
Includes
ROLLER FOOT FRONT
Includes
CLIP WHEEL BRACKET
39 818614P BRACKET HINGE BASE RH ASSY NZ
Includes 883988 CAP DOOR CLOSING HINGE BKT RH
40 883988P CAP DOOR CLOSING LTGY RH HGE BRKT
41 817824 BOLT BTTM HINGE BRKT TV
42 818535 FOOT LEVELLING ASSEMBLY RC
Includes
WHEEL LEVELLING FOOT ASSY
Includes
BASE LEVELLING FOOT
45 884159 RACK BOTTLE 635
47 814415 HOUSING & LIGHT 12V ASSEMBLY
48 836838 TUBE WATER-DOOR 1/4” OD WHITE
49 837193P COLLET LOCKING CLIP PIC1808R (PKT 2)
50 837192
CONNECTOR WATER ELBOW C
Ι 0308W
NI 819264 KIT JOINER SILVER
Page 16
22274-B
16

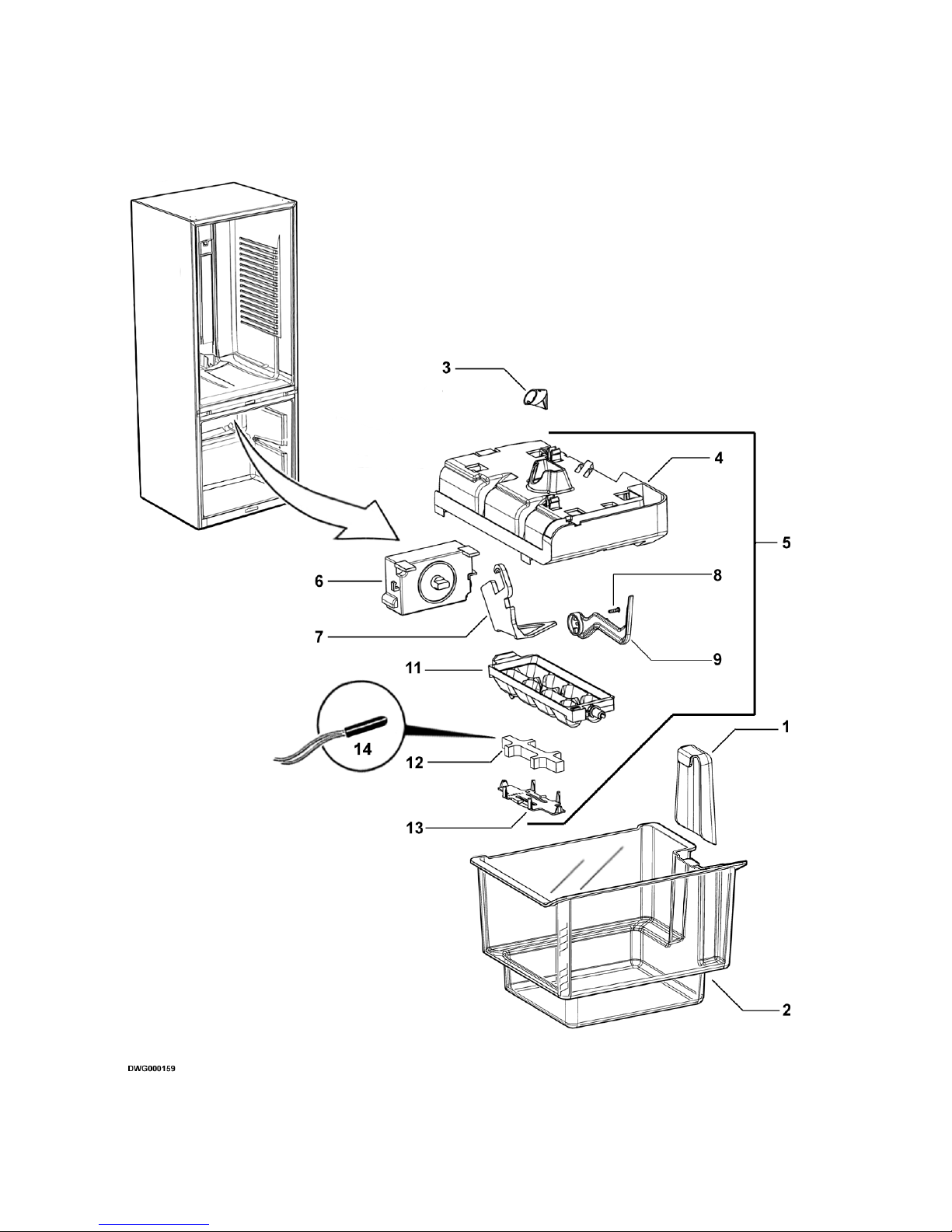

ICEMAKER COMPONENTS AND ICE BIN
Page 17
22274-B
17
ICEMAKER COMPONENTS AND ICE BIN
REF PART DESCRIPTION
1 836929 SCOOP ICE
2 836886 BIN AND SCOOP ASSEMBLY
Includes 836928 BIN ICE
Includes 836929 SCOOP
3 836936 SPIGOT FILL ICE MAKER
4 836915 HOUSING ICE MAKER
5 836884 ICE MAKER ASSEMBLY
Includes 836907 TRAY ICE AUTO
Includes 836910 LEVER GEAR BOX ICE
Includes 836915 HOUSING ICE MAKER
Includes 836934 GEARBOX ICE MAKER
Includes 836948 SCREW 6X1/2 PAN PH SS
6 836934 GEARBOX ICE MAKER
7 836912 LEVER BIN DETECT
8 836948P SCREW 6X1/2 PAN PH SS (PKT 10)
9 836910 LEVER GEAR BOX ICE
11 836907 TRAY ICE AUTO
12 836909 FOAM – CLIP SENSOR
13 837180 CLIP – SENSOR ICE TRAY
14 321107 ICE MAKER SENSOR LEAD WIRE KIT
Includes
SENSOR THERMISTOR ICE MAKER
Includes
CONNECTOR IDC UY2 – 3MS
Includes
INSTRUCTIONS ICE SENSOR KIT
Page 18
22274-B
18

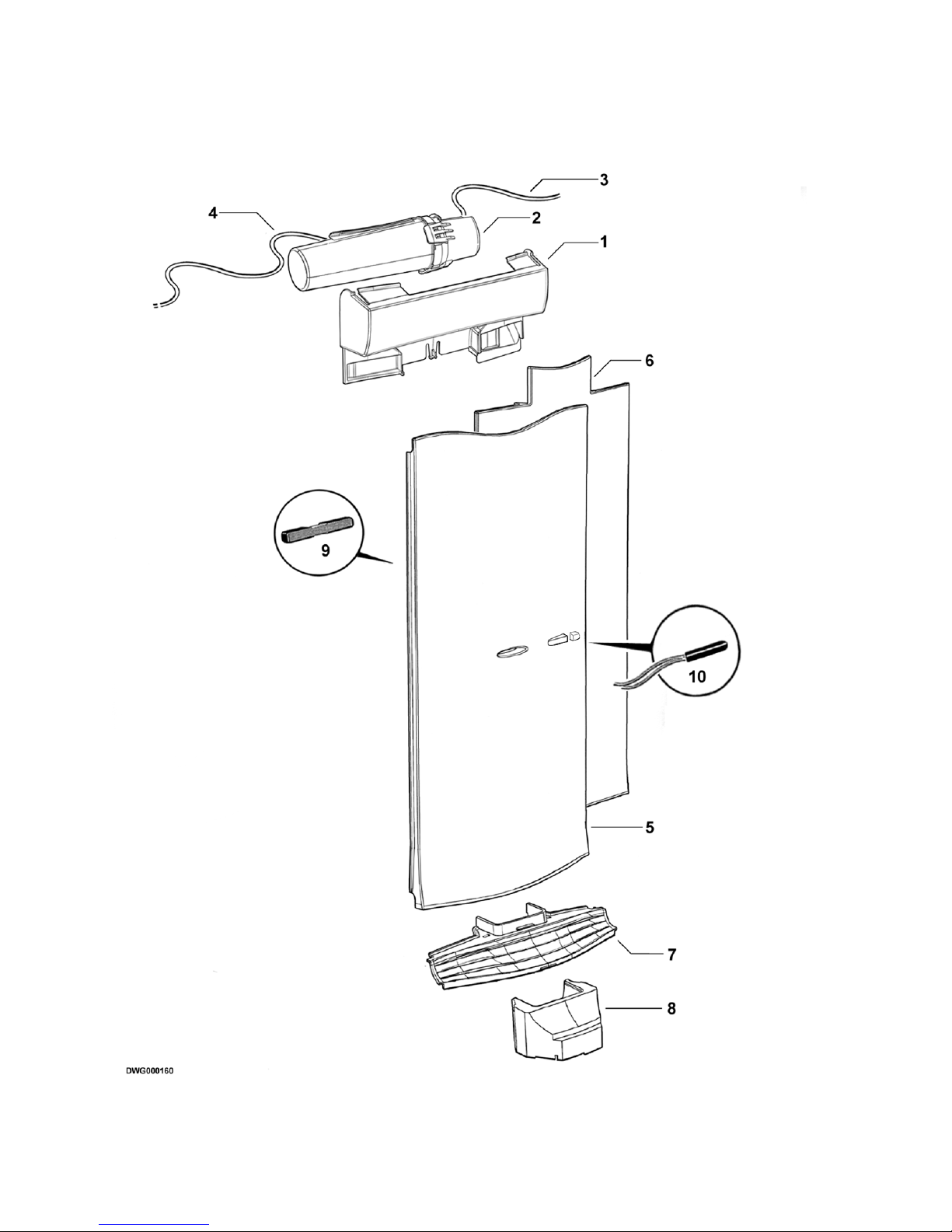

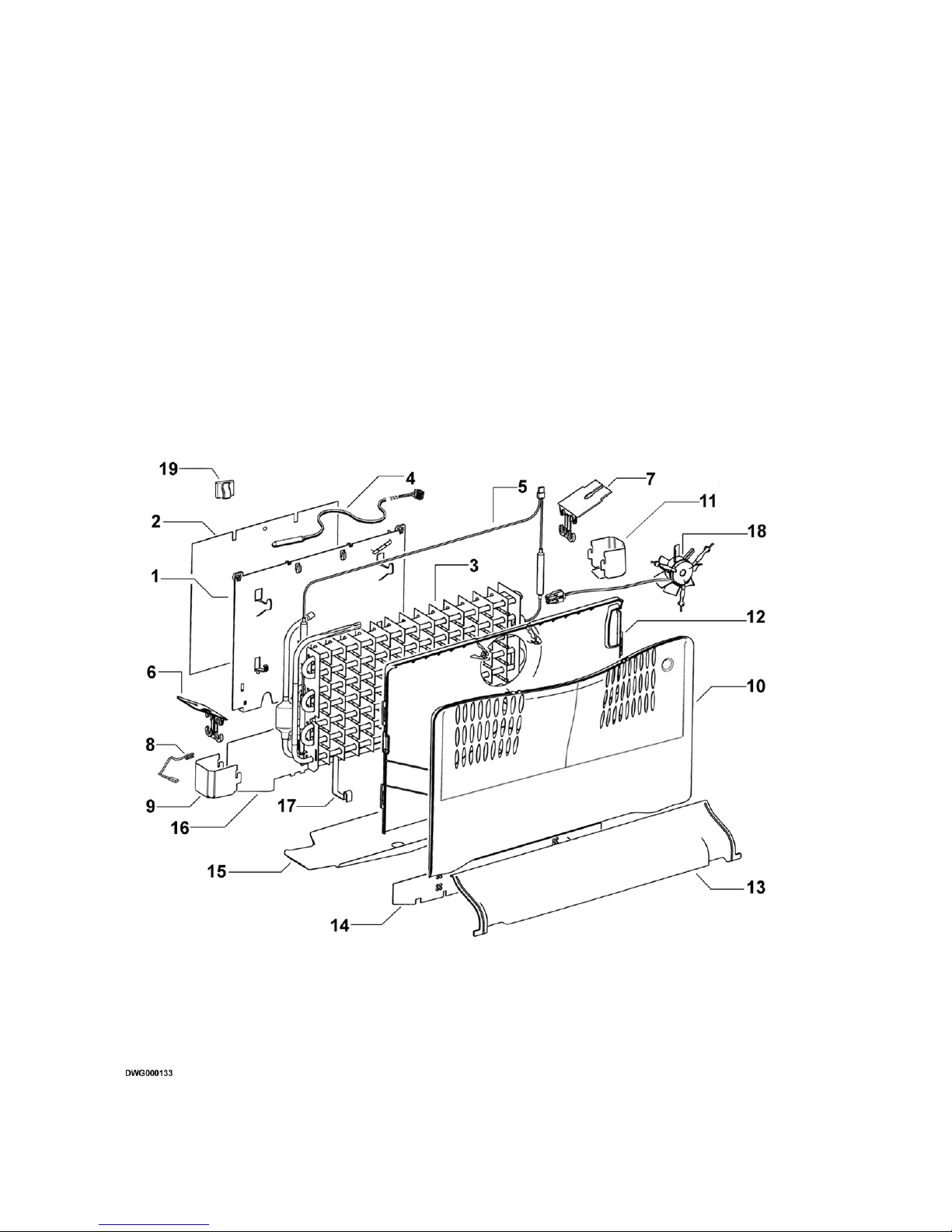

FAN, COVERS AND EVAPORATOR ASSEMBLIES
Page 19
22274-B
19
FAN, COVERS AND EVAPORATOR ASSEMBLIES
REF PART DESCRIPTION
1 814446 CHASSIS EVAP B
2 880423 DEFLECTOR CHASSIS HTR B 635 P4
3 814703P EVAP ASSY 635B 230V
Includes
EVAPORATOR FINNED 635
Includes 818971 HEATER DEFROST 230V 636
Includes 813992 CLIP ACTIVE SMART BAFFLE
Includes 814426 CLIP EVAP BAFFLE 60MM
Includes 814446 CHASSIS EVAP B
Includes 814631 SHIELD EVAP B CHASSIS
Includes 880423 DEFLECTOR CHASSIS HTR B
Includes 814653 CLIP DEF HEATER B EVAP
Includes 814460 HARNESS EARTH 100MM
4 855203P SENSOR KIT ASSY ACTV SM
Includes
HEATSHRINK 25MM
Includes
HARNESS SENSOR PC
Includes
CONNECTOR BUTT (2)
Includes
SHEET INSTRUCTN BUTT CONNECTORS
5 818971P HEATER DEFROST 230V 635
6 813992 CLIP ACTIVE SMART BAFFLE
7 814426 CLIP EVAP BAFFLE 60MM
8 814460 HARNESS EARTH 100MM
9 814708 SHIELD HEATER LEFT HAND
10 883289 COVER FAN FC FRONT B
11 814709 SHIELD HEATER RIGHT HAND
12 306094P FAN FC KIT 635 SERIES A to D
Includes 880409 COVER HEAT SHEILD ALUM 635
Includes
COVER FAN FC REAR 635
Includes
CONNECTOR IDC UP2 (2)
Includes
LABEL WARNING 12 VOLT DC
Includes
FAN DC SUSPENDED FC ASSY
13 836593 DUCT RETURN AIR FC 635
14 880409 COVER HEAT SHIELD ALUM 635 P42
15 872831 SHIELD DRAIN HTR DEFROST 635B
16 814631 SHIELD EVAP B CHASSIS
17 814653 CLIP DEF HEATER B EVAP
18 306094P FAN FC KIT 635 SERIES A to D
Includes 880409 COVER HEAT SHEILD ALUM 635
Includes
COVER FAN FC REAR 635
Includes
CONNECTOR IDC UP2 (2)
Includes
LABEL WARNING 12 VOLT DC
Includes
FAN DC SUSPENDED FC ASSY
19 NOT USED ITEM NOT USED IN THIS MODEL
Page 20
22274-B
20
WATER TANK AND DUCT COVERS
Page 21
22274-B
21
WATER TANK AND DUCT COVERS
REF PART DESCRIPTION
1 836849 COVER DUCT TOP WATER
Includes
TAPE FOAM 440X6X3 S/CELL P3
2 836846 TANK DISPENSER ASSEMBLY
Includes
CAP TANK DISPENSER
Includes
BASE TANK DISPENSER
Includes
BAFFLE TANK DISPENSER
3 836838 TUBE WATER-DOOR 1/4” OD WHITE
4 837162 TUBE WATER TANK INLET 5/16” OD BLUE
5 836861 COVER DUCT PC B LONG WATER
6 873950 INSULATION COVER DUCT LG B
7 813287 GRILLE PC RETURN AIR B MODEL
8 872833 INSULATION INSERT PID 635B
9 NOT USED ITEM NOT USED IN THIS MODEL
10 855203P SENSOR KIT ASSY ACTV SM
Includes
HEATSHRINK 25MM
Includes
HARNESS SENSOR PC
Includes
CONNECTOR BUTT (2)
Includes
SHEET INSTRUCTN BUTT CONNECTORS
Page 22
22274-B
22
ACTIVE SMART ST4 TERMINALS PLUGS & SOCKETS
Page 23
22274-B
23
ACTIVE SMART ST4 TERMINALS PLUGS & SOCKETS
REF PART DESCRIPTION
1 881595 SOCKET 16-22AWG 50597-8100 MLX
881596 SOCKET 20-26AWG 50598-8100 MLX
2 881597 PIN 16-22AWG 50599-8100 MLX
881598 PIN 20-26AWG 50600-8100 MLX
3 881592 CAP FEMALE 51139-0200 MLX
4 881593 PLUG MALE 51138-0200 MLX
5 881594 RETAINER 51140-0205 MLX
6 881588 CONNECTOR RAST 9290-02-AB01
881589 CONNECTOR RAST 9290-02-BA01
881590 CONNECTOR RAST 9290-02-EE01
7 881591 CONNECTOR RAST 9290-04-EF02
8 873243 CONNECTOR RAST 7234-012-500
873247 CONNECTOR RAST 7234-006-500
873248 CONNECTOR RAST 7234-010-500
873250 CONNECTOR RAST 7234-004-500
873251 CONNECTOR RAST 7234-003-500
873279 CONNECTOR RAST 7234-008-500
881135 CONNECTOR RAST 7234-005-500
881136 CONNECTOR RAST 7234-014-500
881137 CONNECTOR RAST 7234-017-502
9 855305 HARNESS ADAPTOR DEFROST HEATER
10 884412 COVER PLUG MLX
NOTE: THE NUMBERS IN THE DESCRIPTION OF THE RAST CONNECTOR DENOTES THE NUMBER
OF CONNECTIONS
EXAMPLE: 7234-017
-502 =17 WAY CONNECTOR
Page 24
22274-B
24
COMPRESSOR, ANCILLARY COMPONENTS & CONTROL
MODULE
Page 25
22274-B
25
COMPRESSOR, ANCILLARY COMPONENTS & CONTROL
MODULE
REF PART DESCRIPTION
1 874881 PANEL BACK & CONDENSER ASSY
2 814879 TRAY WATER EVAP TOP HAT
3 207216P COMPR MAT DHS73C10RAW 220-240V 50HZ
Includes
COMPRESSOR DHS73C10RAW
Includes 207223 RELAY-OVERLOAD MAT WS2104 DHS73
Includes
OVERLOAD MAT 222NFBYY DHS73
Includes 207227 COVER PROTECTOR MAT DHS-230V
Includes 814809 CAPACITOR RUN 4uF 450VAC RAST5 P2
Includes 813394 HARNESS COMPRESSOR 4 CORE EGZ
Includes 881443 GROMMET COMPRESSOR MOUNTING TALL (4)
Includes 881444 POST COMPRESSOR MOUNTING TALL (4)
Includes 855270 CLIP FOOT COMPRESSOR (4)
Includes 814843 FILTER DRIER LONG TAIL XH9 12 GRM
9 855270P CLIP FOOT COMPRESSOR (PKT 4)
10 881443P GROMMET COMPRESSOR MOUNTING TALL (PKT 4)
11 881444 POST COMPRESSOR MOUNTING TALL
12 814843P FILTER LONG TAIL XH9 12GRM
16 814534P MODULE CNTRL I&W 220-240V SPARES
17 813394 HARNESS COMPRESSOR 4 CORE EGZ
18 884336 CORD POWER SUPPLY 220-240V ST4.1
19 875861 PLUG PLASTIC LT GREY
20 817829P SCREW 8X16 SP PAN NIB PH TV (PKT 10)
21 814856P MODULE ICE P42 I&W
22 814809P CAPACITOR RUN 4uF 450VAC RAST5 P2
23 814903 TRAY COMP MOUNTING 635
28 207227 COVER PROTECTOR MAT DHS-230V
29 207223 RELAY-OVERLOAD MAT WS2104 DHS73
Includes
RELAY MAT WS2104 DHS73
Includes
OVERLOAD MAT 222NFBYY DHS73
31 814859 VALVE DUAL I&W
32 836854 KIT FILTER WATER NON-USA
Includes 836848 CARTRIDGE FILTER WATER
Includes 836855 HEAD FILTER WATER
Includes 836857 TUBE FILTER WATER 1/4" OD WHITE 4m
Includes 836859 VALVE REDUCING WATER AU_NZ
Includes 312197 ADAPTOR TAP-TUBE 1/4" OD X 1/2" BSP
Includes 814940 BOOKLET U&C I&W NZ/AU
33 836857 TUBE FILTER WATER 1/4" OD WHITE 4m
34 836855 HEAD FILTER WATER
35 836848 CARTRIDGE FILTER WATER
36 836859 VALVE REDUCING WATER AU NZ
37 312197 ADAPTOR TAP-TUBE 1/4" OD X 1/2" BSP
38 817862 TUBE SUCTION & CAPILLARY FORMED ASSY B RC
Page 26
22274-B
26
NOTES
Page 27
22274-B
27
REFRIGERATION ABBREVIATION KEY
10W 10 WATTS
12V 12 VOLTS
BS “B” SERIES CABINET
CH CHARCOAL COLOUR
DC DIRECT CURRENT
DF DEFROST
DK GY DARK GREY
F&P FISHER & PAYKEL
FC FREEZER COMPARTMENT
GL GLASS
HC HUMIDITY COMPARTMENT
HCL HUMI DITY C ONTROL LID
HS HOT STAMPED
I & W ICE & WATER
LH LEFT HAND
LHB LEFT HAND BOTTOM
LHT LEFT HAND TOP
LT GY / LG LIGHT GREY
M5 5 MILLIMETER
MD GY MID GREY
PC PROVISION COMPARTMENT
PUSHIN PUSHIN TYPE GASKET
RH RIGHT HAND
RHB RIGHT HAND BOTTOM
RHT RIGHT HAND TOP
SA or S/STONE SANDSTONE COLOUR
SATIN OR SC SATIN CHROME FINISH
SL or SIL SILVER
SML SMALL
SS STAINLESS STEEL
X/RAIL CROSS RAIL
XH9 TYPE OF DESSICANT WITHIN A FILTER DRIER
Loading...
