Fisher & Paykel DD60DHB7, DD60DCW7, DD60DHW7, DD60DCM7, DD60DDFX7 Installation Instructions Manual

NZ AU GB IE

590200D 04.13

DD60D 7 models

INSTALLATION INSTRUCTIONS

DishDrawer

TM

dishwasher

2

FOLLOW THE INSTALLATION SEQUENCE RELEVANT TO YOUR MODEL

1

PRODUCT & CABINETRY

DIMENSIONS

DD60DC(H)X7
DD60DC(H)W7
DD60DC(H)B7
DD60DCM7

PARTS SUPPLIED

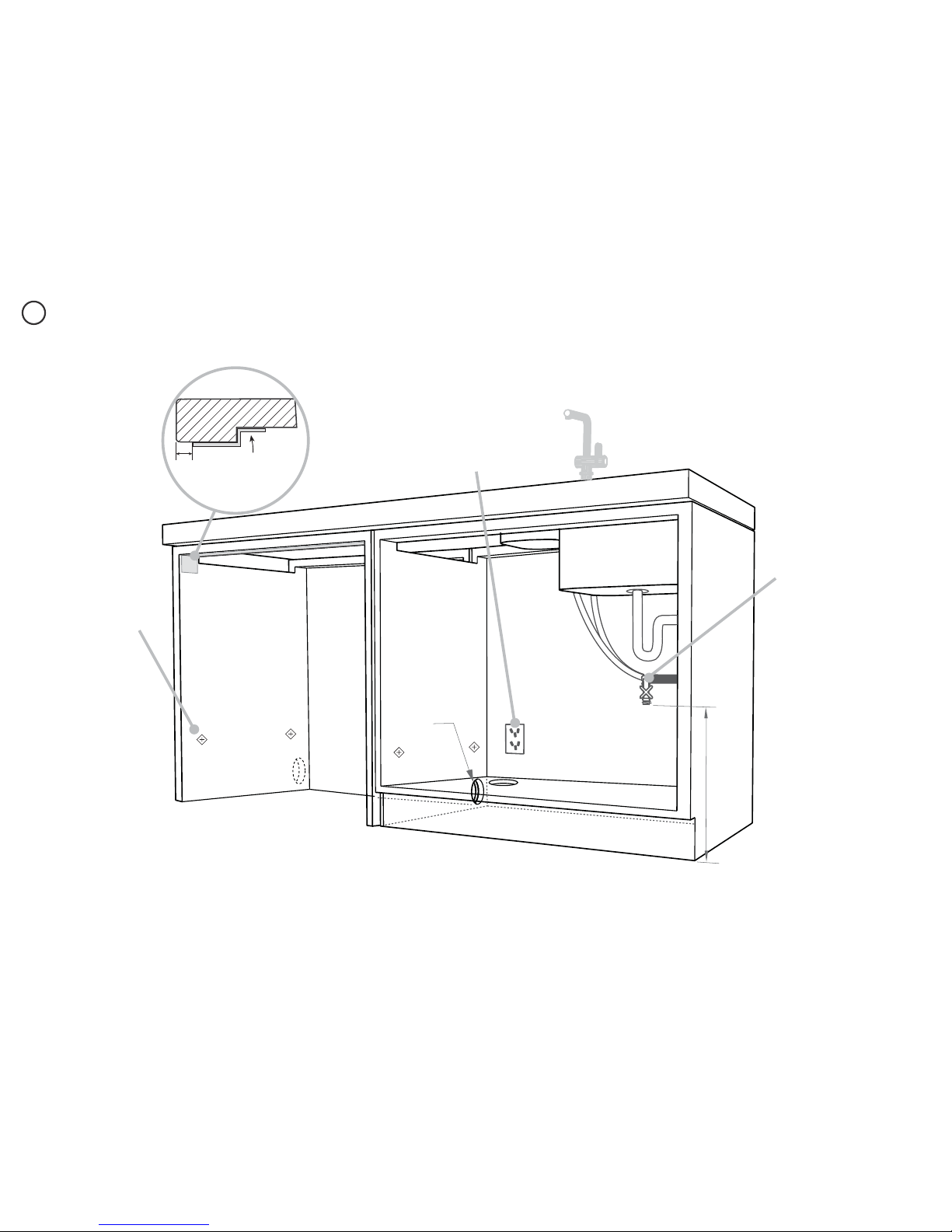

CAVITY PREPARATION

MAXIMUM DISTANCE OF HOSES

& CORD FROM CHASSIS EDGE

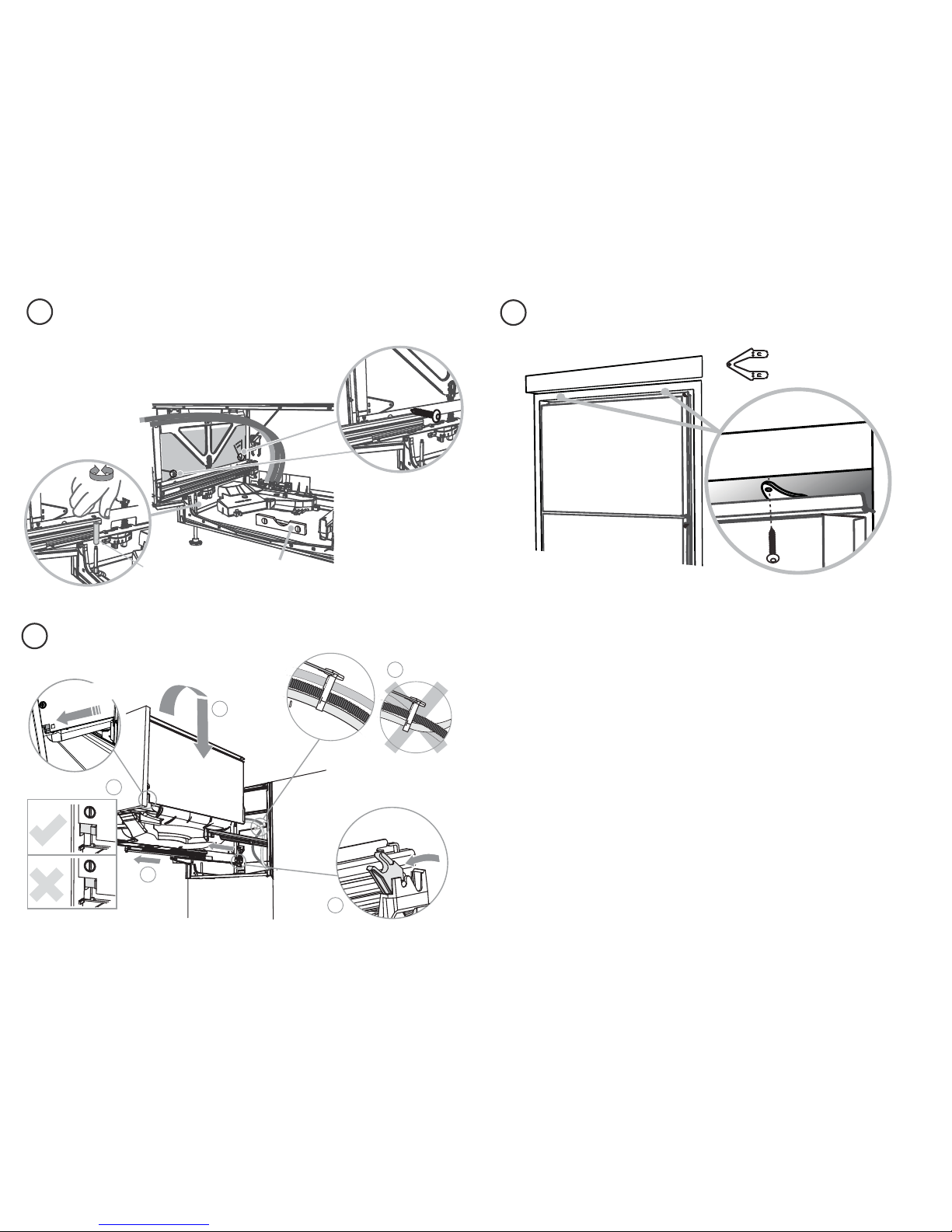

SECURE WITHOUT

DRAWER REMOVAL

RECOMMENDED

METHOD (a)

ALTERNATIVE

METHOD (b)

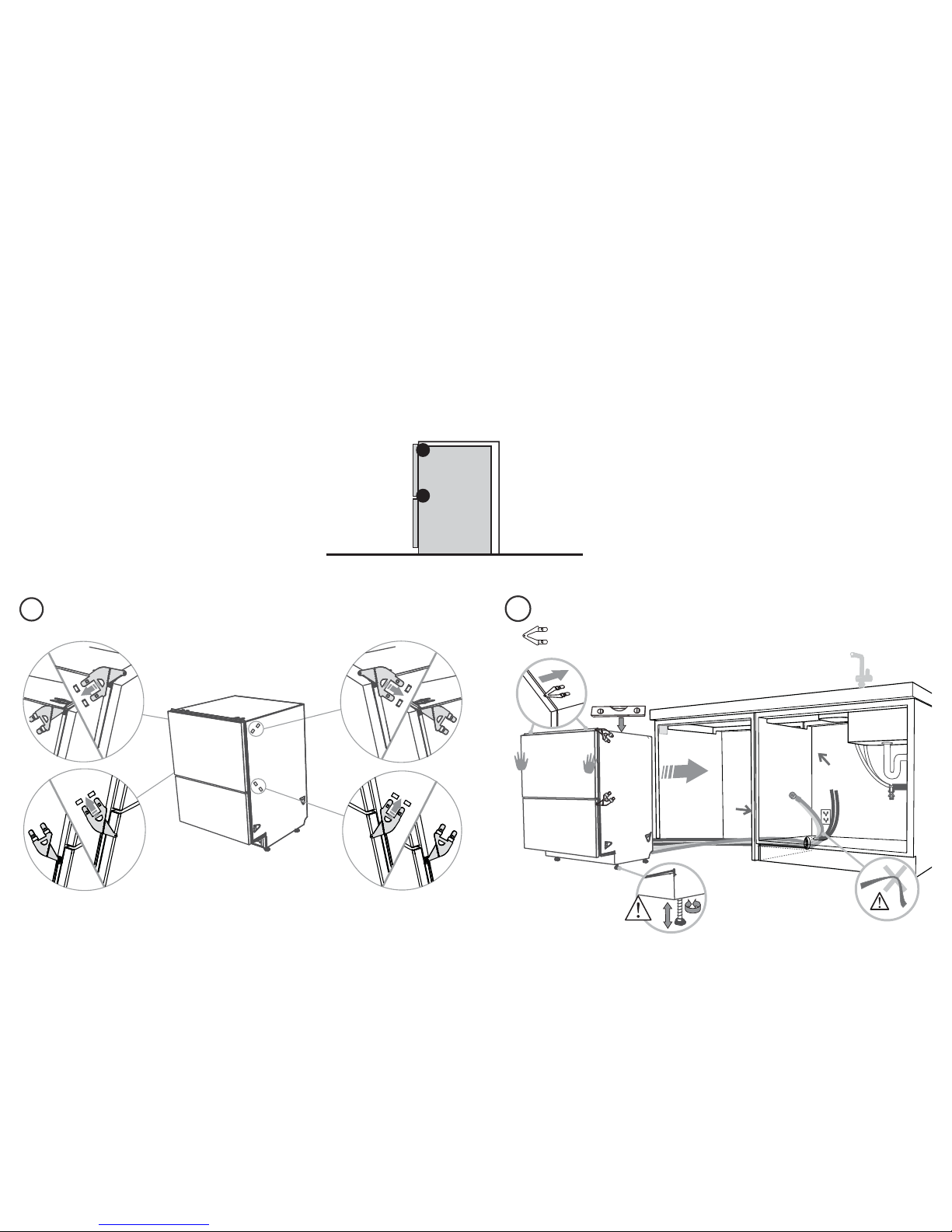

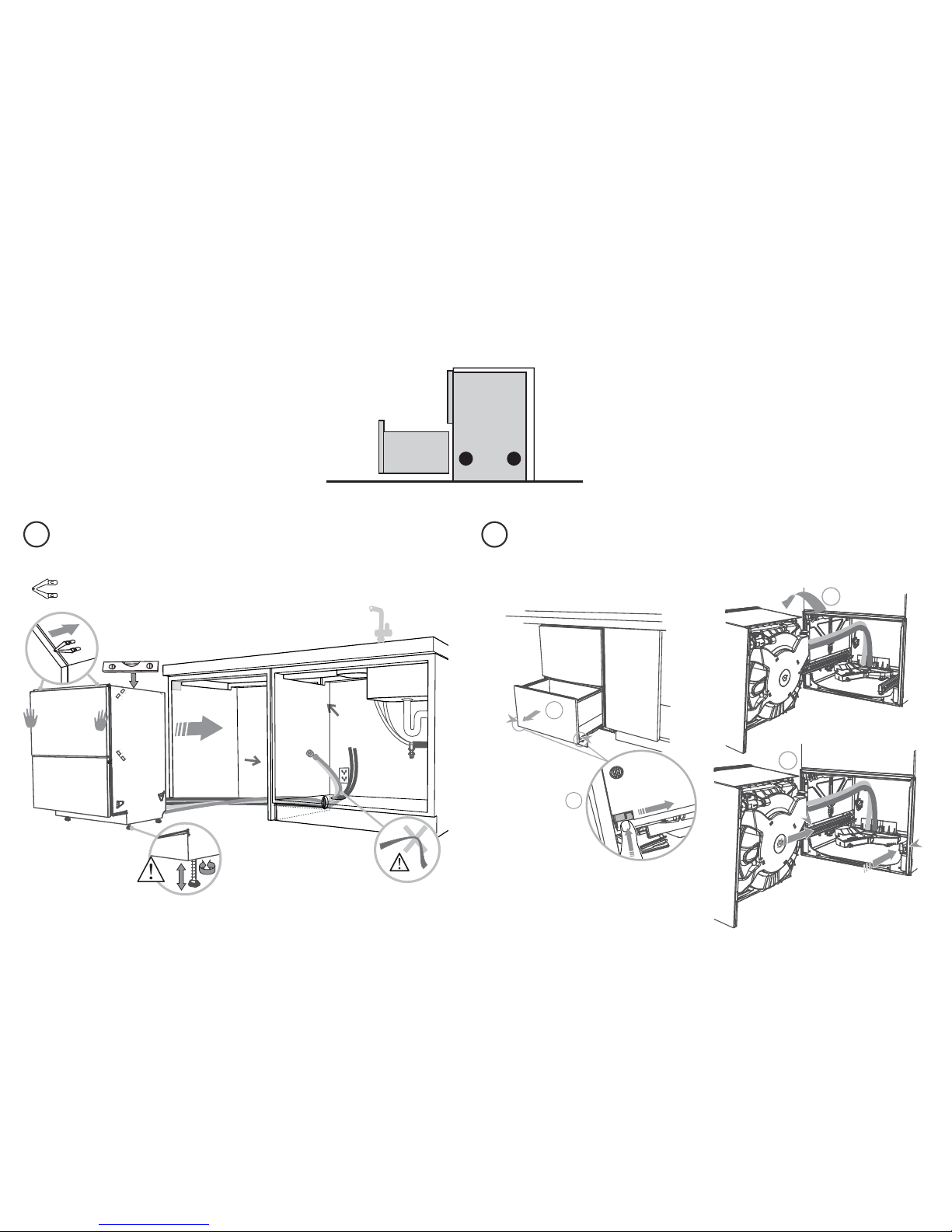

SECURE BY

DRAWER REMOVAL

CHOOSE

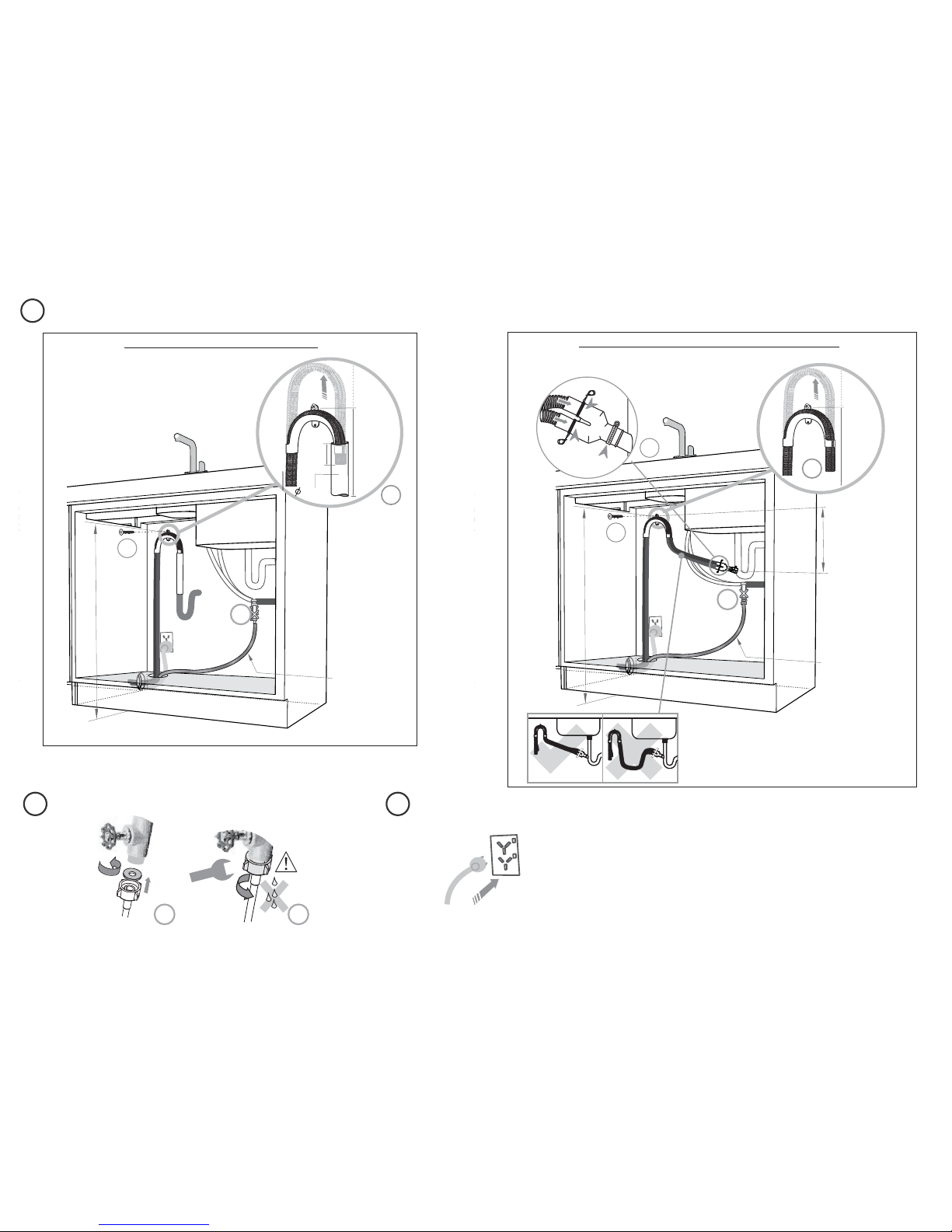

DRAINAGE OPTION

FINAL CHECKLIST

CONNECT TO WATER & ELECTRICITY

TROUBLESHOOTING

Classic

PRODUCT & CABINETRY

DIMENSIONS

DD60DDF(H)X7
DD60DDFM7

CHOOSE

DRAINAGE OPTION

FINAL CHECKLIST

CONNECT TO WATER & ELECTRICITY

PARTS SUPPLIED

CAVITY PREPARATION

MAXIMUM DISTANCE OF HOSES

& CORD FROM CHASSIS EDGE

SECURE WITHOUT
DRAWER REMOVAL

RECOMMENDED

METHOD (a)

ALTERNATIVE

METHOD (b)

SECURE BY

DRAWER REMOVAL

TROUBLESHOOTING

Designer

DD60DI7

PRODUCT & CABINETRY

DIMENSIONS

CUSTOM PANEL CALCULATIONS

PARTS SUPPLIED

CHOOSE

DRAINAGE OPTION

FINAL CHECKLIST

CONNECT TO WATER & ELECTRICITY

CAVITY PREPARATION

MAXIMUM DISTANCE OF HOSES

& CORD FROM CHASSIS EDGE

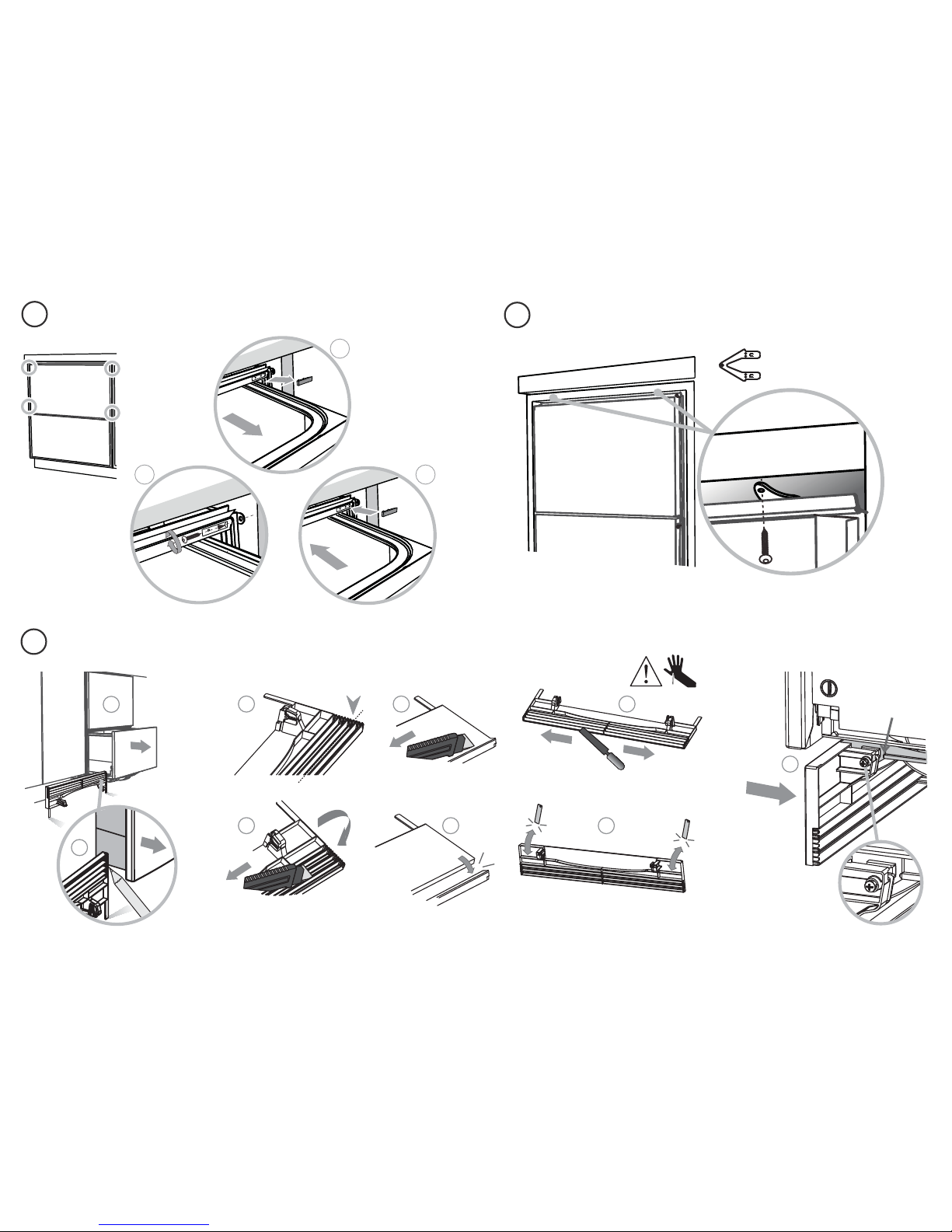

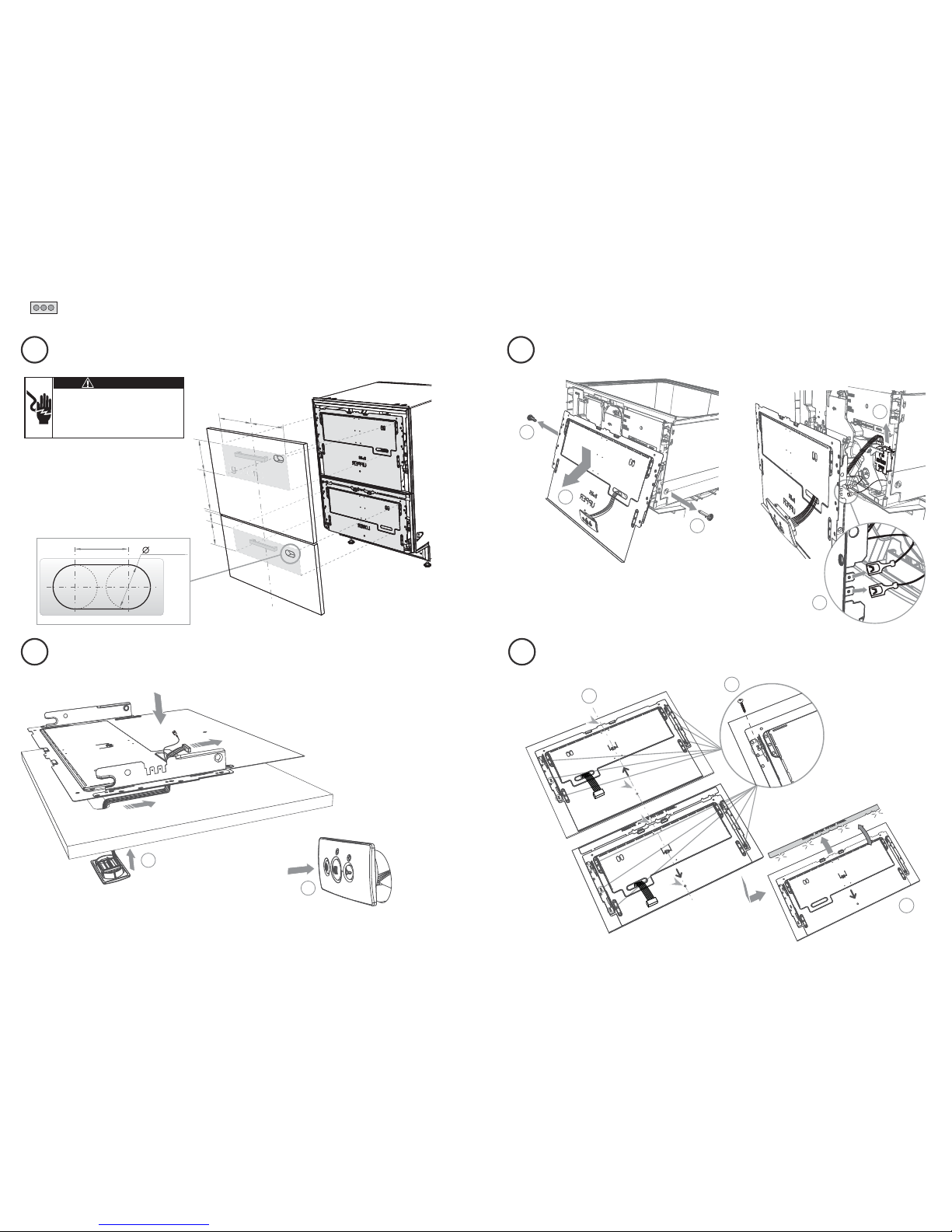

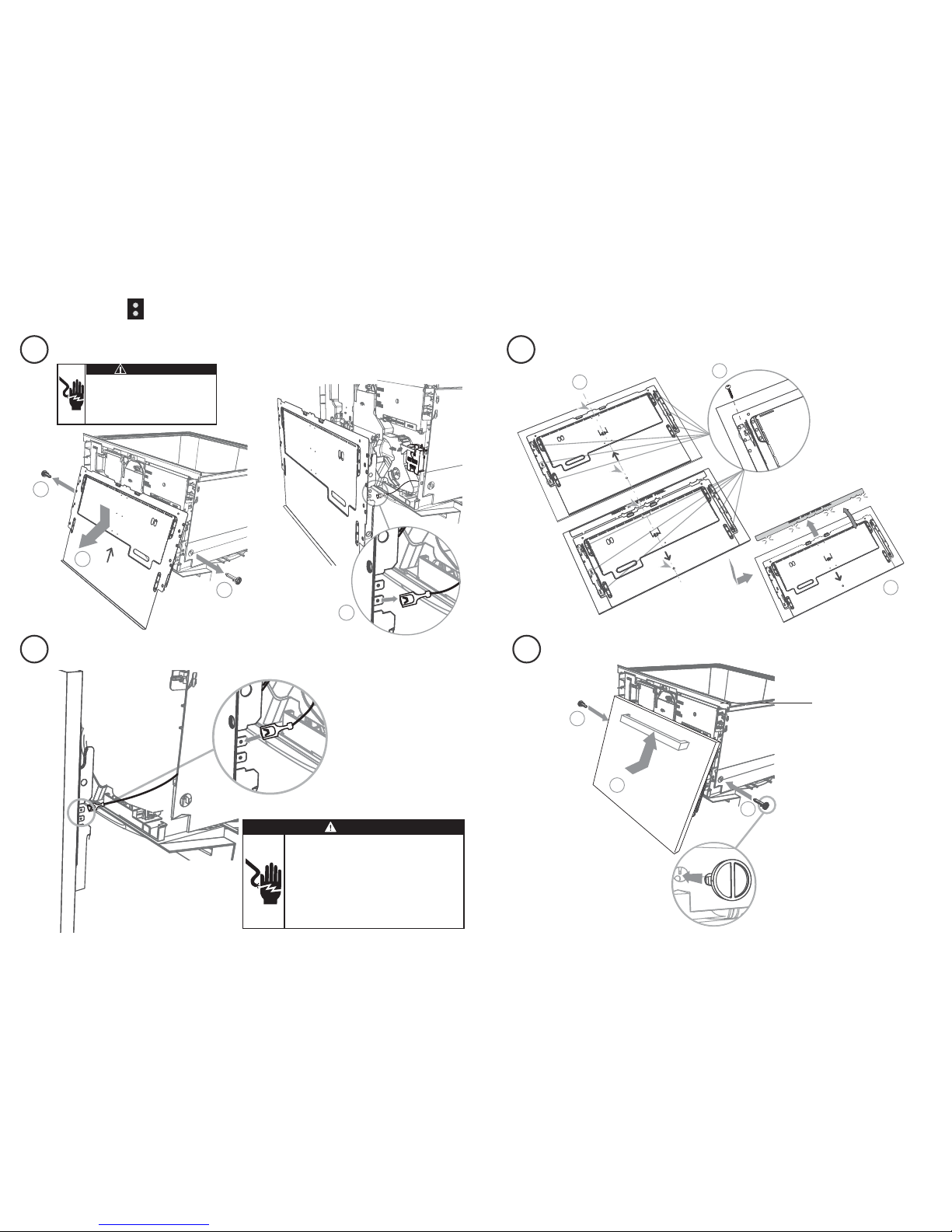

INSTALL THE FRONT PANELS

TROUBLESHOOTING

SECURE WITHOUT

DRAWER REMOVAL

RECOMMENDED

METHOD (a)

ALTERNATIVE

METHOD (b)

SECURE BY

DRAWER REMOVAL

Integrated with remote control

CHOOSE

DRAINAGE OPTION

FINAL CHECKLIST

CONNECT TO WATER & ELECTRICITY

DD60DHI7

PRODUCT & CABINETRY

DIMENSIONS

CUSTOM PANEL CALCULATIONS

PARTS SUPPLIED

CAVITY PREPARATION

MAXIMUM DISTANCE OF HOSES

& CORD FROM CHASSIS EDGE

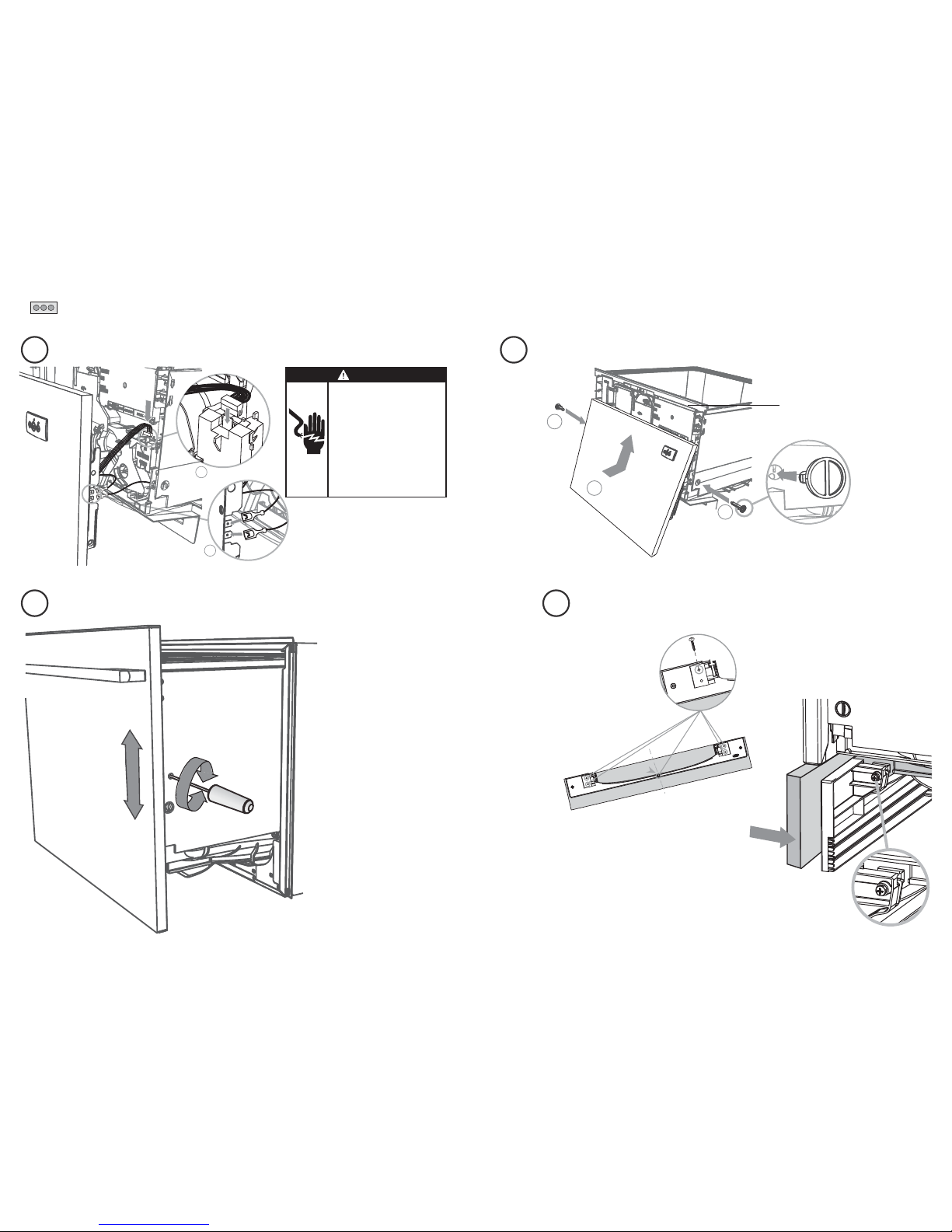

INSTALL THE FRONT PANELS

& BADGE CONTROLS

TROUBLESHOOTING

SECURE WITHOUT

DRAWER REMOVAL

RECOMMENDED

METHOD (a)

ALTERNATIVE

METHOD (b)

SECURE BY

DRAWER REMOVAL

Integrated with badge controls

ONLY AVAILABLE IN NZ AU ONLY AVAILABLE IN GB IE

3

SAFETY AND WARNINGS - ALL MODELS

ADDITIONAL SAFETY AND WARNINGS - INTEGRATED MODELS ONLY

2a

2b

WARNING!

Electrical shock hazard

Before installing the dishwasher, remove the house fuse or open the circuit

breaker.

This appliance must be earthed. In the event of a malfunction or breakdown,
earthing will reduce the risk of electric shock by providing a path of least
resistance for electric current. This appliance is equipped with a cord having an
equipment-earthing conductor and an earthing plug. The plug must be plugged
into an appropriate outlet that is installed and earthed in accordance with all
local codes and ordinances. WARNING- Improper connection of the equipment­earthing conductor can result in a risk of electric shock. Check with a qualified
electrician or service representative if you are in doubt as to whether the
appliance is properly earthed.

Do not modify the power supply plug provided with the appliance - if it will not
fit the outlet, have a proper outlet installed by a qualified electrician. Do not use
an extension cord, adapter plug or multiple outlet box.

Failure to follow this advice may result in electrical shock or death.

WARNING!

Cut hazard

Take care - panel edges are sharp.

Failure to use caution could result in injury or cuts.

IMPORTANT SAFETY INSTRUCTIONS!

Installation of this dishwasher requires basic mechanical and electrical skills.
Be sure to leave these Instructions with the Customer.
Installation must comply with your local building and electricity regulations.
At the completion of the dishwasher installation, the Installer must perform the Final Checklist.
Remove all packaging materials supplied with the dishwasher.
This dishwasher is manufactured for indoor use only.
Ensure all water connections are turned OFF. It is the responsibility of the plumber and
electrician to ensure that each installation complies with all Codes and Regulations.
The dishwasher MUST be installed to allow for future removal from the enclosure if service is required.

The switched power outlet must be outside the dishwasher cavity, so that it is accessible after

installation.

Care should be taken when the appliance is installed or removed to reduce the likelihood of damage to
the power supply cord and hoses.
If the dishwasher is to be relocated from one installation to another it must be kept upright to avoid
damage from water spillage.

Make sure only new hoses are used for connection (supplied with the dishwasher). Old hoses should

not be reused.
Failure to install the dishwasher correctly could invalidate any warranty or liability claims.

If the product is installed in a motor vehicle, boat or similar mobile facility, you must bring the vehicle,

boat or mobile facility containing the product to the service shop at your expense or pay the service
technician’s travel to the location of the product.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS!

Read these instructions completely and carefully.
Ensure the product is not plugged in.
Installation of custom panels requires basic mechanical and electrical skills.
Installation must comply with your local building and electricity regulations.
Failure to install the custom panels correctly could invalidate any warranty or liability claims.

SAVE THESE INSTRUCTIONS

Electrical Shock Hazard

WARNING: To reduce the risk of electrical shock, fire, or injury to persons, the
installer must ensure that the dishwasher is completely enclosed at the time
of installation.
Before fitting the front panels and connecting the integrated badges (where
present), the installer must ensure that the dishwasher is disconnected from
the power supply.
After installing the front panels, the installer must ensure that the following
components are electrically earthed: the panel bracket, the integrated badge
(where present) and any custom metal component (e.g. handle) that extends
past the rubber seal.

Failure to follow these warnings may result in electrical shock, injury or fire.

WARNING!

Fitting integrated front panels requires access to electrical service areas.
This work must be performed and certified by a qualified electrical service technician.

4

PARTS SUPPLIED - ALL MODELS

3a

If the Drain hoses supplied are not long enough to reach your services, you must use a Drain Hose Extension Kit P/N 525798 which will extend the drain hoses by 3.6 m.
The kit is available from the nearest Fisher & Paykel Authorised Service Centre or our local website listed at the end of this document.

Clamp (1)
(for securing

Drain hose joiner)

Wire clip (2)
(for securing

Drain hose joiner)

Phillips
16 mm
screws (9)

Drain hose
support (1)

Moisture protection
tape (1)

(to prevent moisture
damage)

Drain hose
joiner (1)

Top
mounting
brackets (2)

OPTIONAL

Prefinished toekick (1)Rubber
washer for
inlet hose (1)

(comes already
fitted)

Hexagonal
socket for feet
adjustment (2)

(long & short)

Side mounting
bracket kit
(A and B) (2)

OPTIONAL

5

ADDITIONAL PARTS SUPPLIED WITH INTEGRATED MODELS

3b

Panel bracket (2)
(attached to product)

Panel mounting
screws (12)

Toekick
mounting
screws (5)

Toekick mounting bracket (1)

(A custom toekick panel of any
material with thickness
9 - 19 mm can be screwed to the
plastic toekick mounting bracket)

Integrated rectangular
badge (2)

(Satin chrome supplied)

supplied with Integrated
models with badge (GB IE)
only

6

H

K

M

NA

O

O

I

Side

Plan

G

F

J

L

B

CED

4

PRODUCT DIMENSIONS

Product dimensions (mm)

Classic

Designer

Integrated

Remote

control

Integrated

Badge

controls

A

overall height1 of product 820-880

2

820-880

2

820-880

2

820-880

2

B

overall width of product 599 599 599 599

C

overall depth of product (excl. handle) 582 571 571

3

571

3

D

depth of chassis (to back of front panel) 553 553 553 553

E

maximum extension of drawer (excl. handle) 556 545 545

3

545

3

F

depth of front panel (excl. handle) 29 18 16 -20 16 -20

G

height1 of chassis 811 811 811 811

H

height of levelling feet 9-69

2

9-69

2

9-69

2

9-69

2

I

depth of handle n/a 41 n/a n/a

J

depth of toekick recess (to back of front panel)

4

30-50 30-50 30-84

5

30-84

5

K

height of upper front panel 394 398 min. 398 min. 398

L

ventilation gap between front panels 5 8 min. 8 min. 8

M

height of toekick panel (adjustable) 70 - 120 70 - 120 70 - 120 70 - 120

N

height of drawer fronts 711 717 min. 717 min. 717

O

height from top of handle to top of front panel n/a 64 n/a n/a

1

includes 2mm high bracket slots 2depending on adjustment of levelling feet 3assuming front panel thickness of 18 mm 4adjustable to match toekick recess on adjoining cabinetry

5

assuming custom toekick panel thickness of 18 mm; if recess is between 50 and 84 mm deep, the panel will need to be cut out - see step ‘Custom panel calculations’

7

5

CABINETRY DIMENSIONS

Plan

Side

P

Q

R

S

T

Minimum clearances from adjacent cabinetry

min. 13 mm
clearance
from a corner
cupboard

min. 2 mm
clearance
to adjacent
cupboard door

Cabinetry dimensions (mm)

Classic

Designer

Integrated

Remote control

Integrated

Badge controls

P

inside height of cavity* min. 820 min. 820 min. 820 min. 820

Q

inside width of cavity 600 600 600 600

R

inside depth of cavity min. 560 min. 560 min. 560 min. 560

S

recommended height of adjacent cabinet space 720 720 min. 720 min. 720

T

height of toekick space* 100 - 160 100 - 160 100 - 160 100 - 160

*depending on adjustment of levelling feet

8

The following calculations assume the top of the upper panel is
aligned with the top of the adjacent cabinetry. The  nal
panel/cabinetry alignment is achieved by adjusting the feet:

WIDTH OF ALL PANELS

Measure

A (

the width between adjacent door/drawer fronts)

and write it in the  rst box below, then complete the equation.

HEIGHT OF THE LOWER PANEL

Measure

C (

door/drawer height (or equivalent)) and write it in the

 rst box below, then complete the equation.

HEIGHT OF THE TOEKICK PANEL

Measure

D (

height from the top of adjacent cabinet door fronts to the  oor)

and write it in the  rst box below, then complete the equation.

HEIGHT OF THE UPPER PANEL

min. 2 mm

min. 12 mm
clearance to floor

min. 2 mm

min. 8 mm ventilation gap

min. 2 mm

55 mm

432 mm

30-50 mm

50-84 mm

R 12.7 mm

min. 2 mm

WIDTH OF ALL PANELS

HEIGHT OF
UPPER PANEL

HEIGHT OF
LOWER PANEL

HEIGHT OF
TOEKICK PANEL

A

D

C

J

J

B

A

C

D

B

B

clearance to adjacent

cabinet front

(min. 2 mm)

height of

upper panel

ventilation gap

(min. 8 mm)

height from top

of product to
toekick panel

mounting point

clearance

to floor

(min. 12 mm)

upper panel extension

(0 mm recommended)

upper panel

extension

(0 mm recommended)

(min 717 mm + B)

minimum

height

WIDTH OF PANEL

(min. 596 mm)

HEIGHT OF LOWER PANEL

(min. 311 mm)

HEIGHT OF TOEKICK PANEL

(min. 70 mm)

HEIGHT OF UPPER PANEL

- - 735 mm

+

-

-

-

398 mm

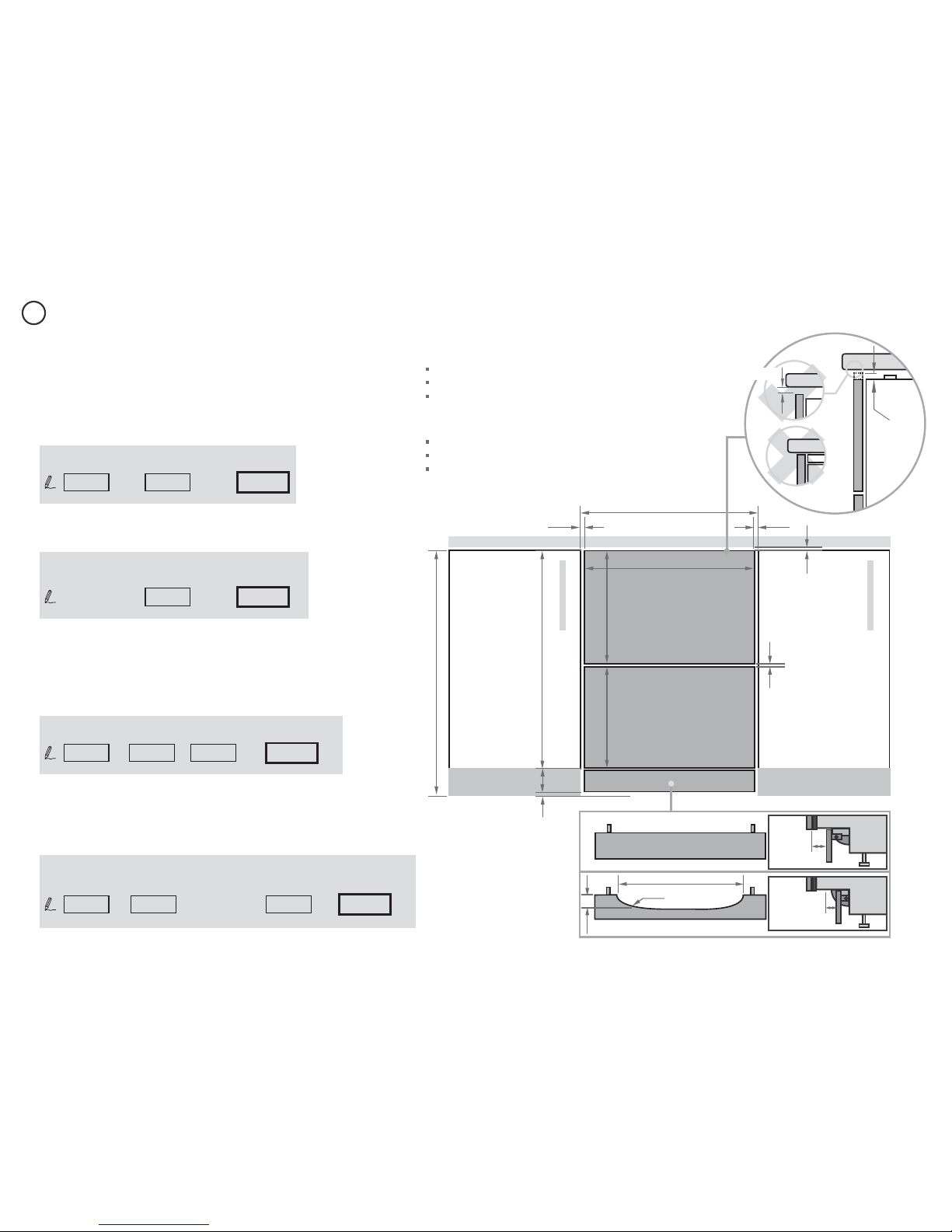

INTEGRATED MODELS ONLY - CUSTOM PANEL CALCULATIONS

6

Note: The ‘upper panel extension’ B allows for the top of the upper
panel to extend above the chassis where required.

If the toekick recess (dimension
J under ‘Product dimensions’) is
between 50 and 84 mm deep,
the toekick panel will need to be
modi ed for  tting around the
underside of the product. See
illustration for details on the
shape of the cutout required.

- 2x =

=

=

=

FRONT PANEL SPECIFICATIONS

16 -20 mm panel thickness
Adequately sealed to withstand moisture (50

O

C @ 80% RH)

Maximum weight of panel: 9 kg

TOEKICK PANEL SPECIFICATIONS

min. 9 mm panel thickness if using supplied screws
Adequately sealed to withstand moisture (50

O

C @ 80% RH)

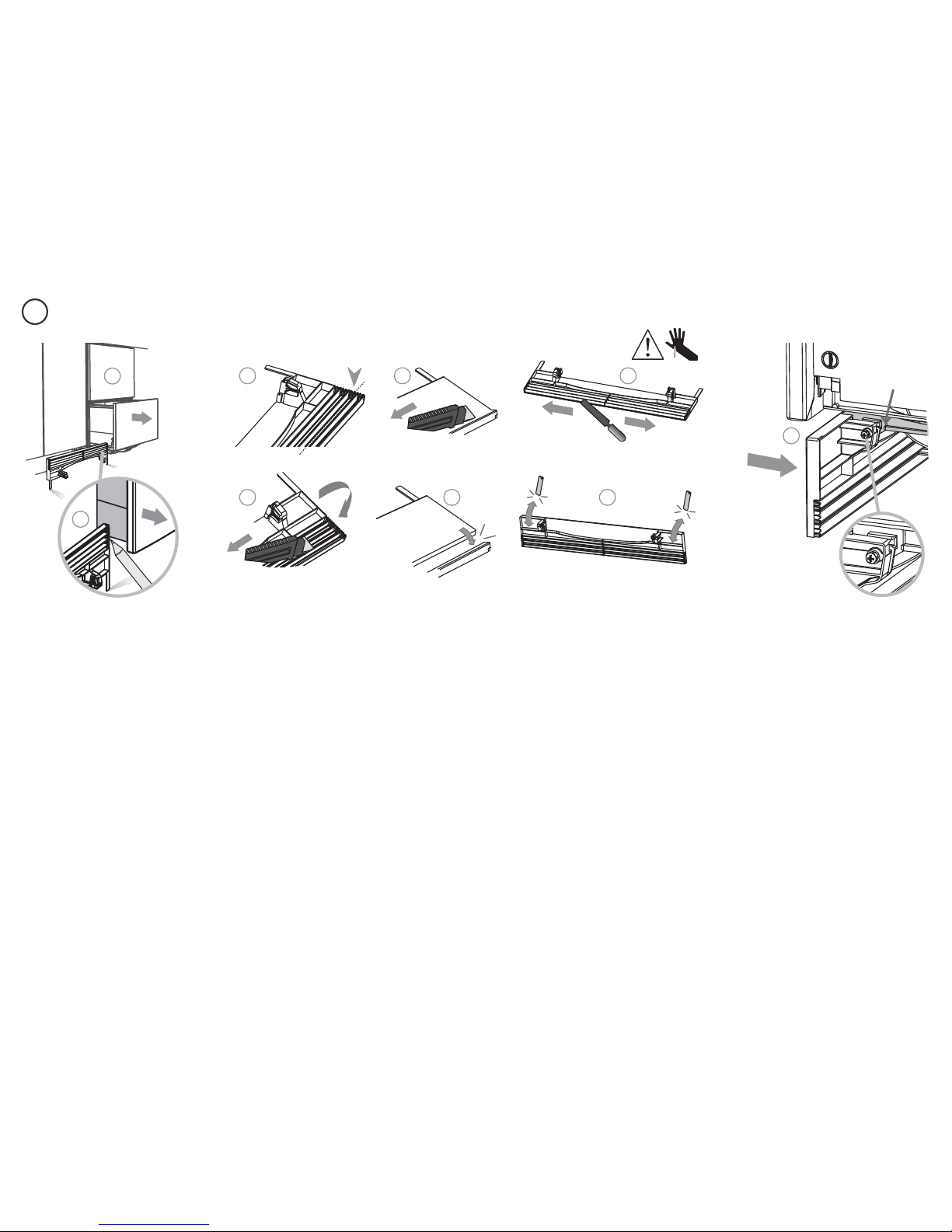

You may choose to affix your custom toekick panel either by
screwing it to the supplied mounting bracket or gluing it on
the supplied prefinished toekick panel.

Side

Side

9

7

CAVITY PREPARATION

Water Connection

Recommended COLD
(Maximum 60°C).

¾ “ BSP (GB20) to
suit flat washer.

Kosher requirements

Drains will need to be
separated to satisfy
kosher requirements.
We suggest you confirm
acceptability with your
local rabbi in respect to
kosher installations.

Water Pressure

Water softener models

Max. 1 MPa (145 psi)
Min. 0.1 MPa (14.5 psi)

Models without water softener

Max. 1 MPa (145 psi)
Min. 0.03 MPa (4.3 psi)

Important!

The power outlet must be
located in a cabinet adjacent
to the dishwasher cavity.

220-240 VAC min. 9.5 A

ø

60 mm

min. 200 mm

Moisture
protection
tape must
be applied.

Services can be
located either side
of dishwasher.

These marks indicate
formed bracket screw
locations, if securing
by drawer removal.

10 mm

BENCHTOP

10

8

MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE

Drain hoses - 1800 mm

Inlet hose - 1250 mm

Power cord

(excl. plug)

- 1650 mm

Drain hoses - 2000 mm

Inlet hose - 1650 mm

Power cord

(excl. plug)

- 1650 mm

Left hand side

Right hand side

11

10a

9a

ATTACH SIDE MOUNTING BRACKETS

PULL THROUGH HOSES & PUSH INTO THE CAVITY

(x2)

As you push product in, pull

through hoses and cord,

ensuring they don’t get

kinked or twisted.

optionally attach the
two top mounting brackets

Ensure the product is level

A

A

A

B

B

Clip all four side mounting brackets into
their slots using a flat-bladed screwdriver.
Ensure they’re securely fitted before
sliding product into cavity.

The mounting slots are in pairs, one on each side
diagonally across the product. A bracket must
match A slot and B bracket must match B slot.

B

AB

You can raise or lower the product

by twisting the feet. Then take

care when pushing the product

into the cavity that you do not

bend the feet.

RECOMMENDED METHOD (a) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY)

NOW CHOOSE WHICH INSTALLATION METHOD (a) or (b)

IS MORE SUITABLE FOR YOUR CABINETRY...

12

13a

FIT THE SUPPLIED TOEKICK PANEL (OPTIONAL FOR INTEGRATED MODELS)

3

4 6 8

5 7

9

1

2

19

19

Important!

Do not overtighten screw.

Where the toekick
meets the bottom
of the tub is the
cut-off point

Mark this point
on the toekick
with a pencil

Lay the toekick face down on
a chopping board or similiar

Smooth the edge with a file.
Be careful of sharp edges.

Snap off the two end tabs

Slide the toekick onto
the mounting rails
either side and screw
the toekick onto the
bottom of tub on
either side.

Mounting rail

Score along with a knife

Turn the toekick over and
score along the same line

Gently snap off the excess

11a

SECURE TO THE CABINETRY ON THE SIDES

1

32

Open the

drawer halfway.

Using a flat-bladed

screwdriver, prise

the grey

rubber plug out

of the trim moulding.

Replace the grey
rubber plug back into
the trim moulding
and ensure the trim
seal is facing forward.

Repeat for all
four brackets.

Using a small Philips

screwdriver,

screw through the trim

moulding, securing the

side mounting bracket

to the cabinetry.

Do not damage the

rubber trimseal.

12a

OPTIONALLY SECURE TO THE CABINETRY ABOVE

(x2)

The top mounting
brackets will only
bend upwards a
maximum of 10 mm.

13

10b

REMOVE THE LOWER DRAWER

100 mm

2

4

5

1

100 mm

To prevent kinked hoses, we recommend
rotating the drawer anti-clockwise and resting it
on its side after removal.

Press the release tabs in on either
side and push back to release
drawer from runners.

Push drawer runners back in.

9b

PULL THROUGH HOSES & PUSH INTO THE CAVITY

optionally attach the
two top mounting brackets

You can initially level the product

You can raise or lower the

product by twisting the

feet. Then take care when

pushing the product into

the cavity that you do not

bend the feet.

ALTERNATIVE METHOD (b) - SECURE BY DRAWER REMOVAL

As you push product in, pull

through hoses and cord,

ensuring they don’t get

kinked or twisted.

(x2)

3

4

14

x4

13b

REFIT THE DRAWER ONTO THE RUNNERS

2

1

4

5

3

Before refitting the drawer,
ensure the hoses are not
twisted and the latches at
the rear of each drawer
runner are facing forward.

Ensure the release tabs on
both sides are reset fully.

Ensure the drawer
is now rotated
clockwise back.

11b

To access the side brackets,
you might have to push aside
the insulation. After securing,
ensure the sound insulation is
repositioned correctly.

Secure using two
pairs of formed
brackets. Repeat on
the other side of the
chassis.

12b

OPTIONALLY SECURE TO THE CABINETRY ABOVE

(x2)

The top mounting
brackets will only
bend upwards a
maximum of 10 mm.

SECURE TO THE CABINETRY ON THE SIDES

For further adjustment,
using the most appropriate
length Hexagonal socket
supplied, fully extend
levelling feet up to
required distance by hand.

Ensure product is level and
aligning with cabinetry.

Hexagonal
socket

Pull forward the release tabs
on both sides 100

mm

15

14b

FIT THE SUPPLIED TOEKICK PANEL (OPTIONAL FOR INTEGRATED MODELS)

3

4 6 8

5 7

9

1

2

19

19

Important!

Do not overtighten screw.

Where the toekick
meets the bottom
of the tub is the
cut-off point

Mark this point on the
toekick with a pencil

Lay the toekick face down on
a chopping board or similiar

Smooth the edge with a file.
Be careful of sharp edges.

Snap off the two end tabs

Slide the toekick onto
the mounting rails
either side and screw
the toekick onto the
bottom of tub on
either side.

Mounting rail

Score along with a knife

Turn the toekick over and
score along the same line

Gently snap off the excess

16

3

1

1

2

INTEGRATED MODELS WITH REMOTE (NZ AU) ONLY - INSTALLING THE FRONT PANELS

REMOVE BRACKETS FROM PRODUCT

ATTACH PANELS TO PRODUCTEARTH THE PANELS

ATTACH PANELS TO PANEL BRACKETS

15a

17a 18a

16a

There must be at least

3 screws used each side

Align bottom of panels

with bottom of brackets

When refitting the
door pins,
ensure they are
orientated as shown.

2

2

1

1

2

3

16 mm x6

Important!

Ensure the rubber seal
between the drawer
and panels is kept in
place.

Repeat for the other drawer

Repeat for the other drawer

Electrical Shock Hazard

Before continuing, ensure that the product is
disconnected from the power supply.

Failure to follow this warning may result in
electrical shock, injury or re.

WARNING!

WARNING!

Important!

Break off and discard the tab
at the top of the Lower Panel
Bracket.

WARNING!

To earth the panel bracket, connect the earth
wire from the product to one of the tabs.
Any custom metal component (e.g. handle)
that extends past the rubber seal must be
earthed too.

Failure to follow these warnings may result
in electrical shock, injury or  re.

Electrical Shock Hazard

Repeat for the other drawer

17

INTEGRATED MODELS WITH REMOTE (NZ AU) ONLY - INSTALLING THE FRONT PANELS

ADJUST PANEL HEIGHT TO ALIGN THE CABINETRY GAPS FITTING A CUSTOM TOEKICK PANEL

19a 20a

You can optionally glue your
custom toekick panel onto the
supplied panel

With the front panels fitted, insert an appropriately
sized Philips screwdriver into the hole above the door
pin and rotate the panels up or down to align the gaps
in your cabinetry.

Repeat on the other side if necessary.

Each panel has a maximum travel of 2 mm up or down.

Important!

Ensure that you maintain a minimum of 8 mm ventilation
gap between the upper and lower panels.

+ or - 2 mm

16 mm x5

18

1

2

3

16 mm x6

INTEGRATED MODELS WITH BADGE (GB IE) ONLY - INSTALLING THE FRONT PANELS & BADGE CONTROLS

DETERMINE BADGE CUTOUT LOCATIONS

ROUTE BADGE WIRING THROUGH PANEL ATTACH PANELS TO PANEL BRACKETS

REMOVE BRACKETS & DISCONNECT BADGES

15b

17b 18b

16b

There must be at least

3 screws used each side

Align bottom

of panels

with bottom

of brackets

1

3

4

1

2

1

2

Badge zone

228.5 mm

228.5 mm

127 mm

211 mm

54 mm

127 mm

30 mm

25 mm

d

g

e

z

o

n

e

Repeat for the other drawer

Repeat for the other drawer

Badge zone

Important!

Break off and discard the tab
at the top of the Lower Panel
Bracket.

Electrical Shock Hazard

Before continuing, ensure that the product is
disconnected from the power supply.

Failure to follow this warning may result in
electrical shock, injury or re.

WARNING!

19

INTEGRATED MODELS WITH BADGE (GB IE) ONLY - INSTALLING THE FRONT PANELS & BADGE CONTROLS

2

2

1

REATTACH BADGES & EARTH THE PANELS ATTACH PANELS TO PRODUCT

ADJUST PANEL HEIGHT TO ALIGN THE CABINETRY GAPS FITTING A CUSTOM TOEKICK PANEL

19b

21b 22b

20b

Push the panel in

then up to locate.

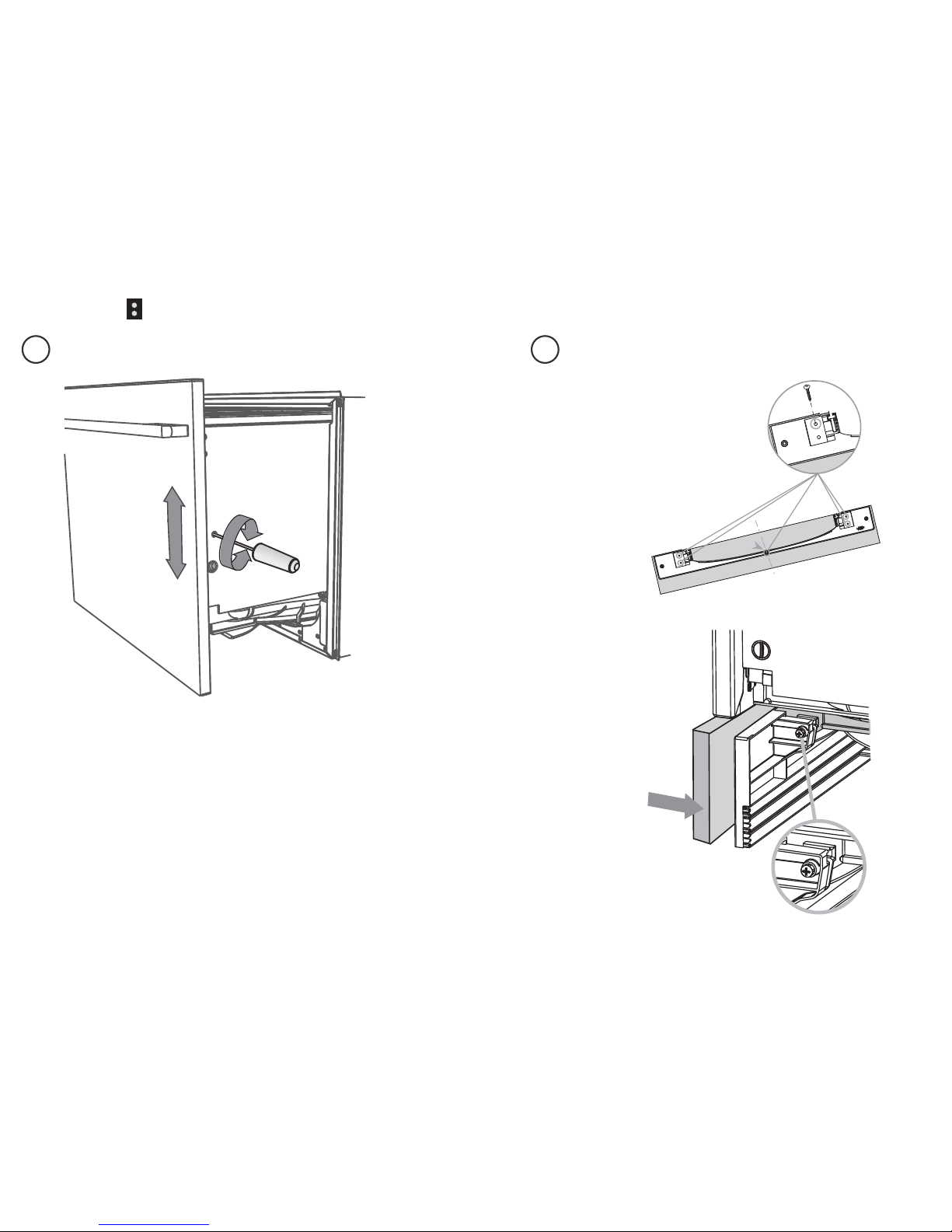

With the front panels fitted, insert
an appropriately sized Philips
screwdriver into the hole above the
door pin and rotate the panels up
or down to align the gaps in your
cabinetry.

Repeat on the other side if
necessary.

Each panel has a maximum travel of
2 mm up or down.

Important!

Ensure that you maintain a minimum
of 8 mm ventilation gap between the
upper and lower panels.

+ or - 2 mm

1

2

Important!

Ensure the rubber seal
between the drawer
and panels is kept in
place.

When refitting the
door pins, ensure
they are orientated
as shown.

Repeat for the other drawer

Repeat for the other drawer

16 mm x5

You can optionally glue your
custom toekick panel onto the
supplied panel

WARNING!

Electrical Shock Hazard

Connect the integrated badge
earth wire to one of the two tabs
provided on the panel bracket.

To earth the panel bracket,
connect the earth wire from the
product to the other tab.
Any custom metal component
(e.g. handle) that extends past the
rubber seal must be earthed too.

Failure to follow these warnings
may result in electrical shock,
injury or  re.

20

THERE ARE TWO DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE.

23

3

1

750-882.5 mm

2

*

1

2

38 mm

max.
120
mm

750-882.5 mm

*

If space is limited

for fixing, push

hose through drain

hose support

to required height

If space is limited

for fixing, push

hose through drain

hose support

to required height

Dishwasher using sink trap with drain hose joiner

750 - 882.5 mm

750 - 882.5 mm

min. R 200 mm

min. R 200 mm

Supplied drain
hose joiner
19 mm
waste tee

Ensure drain hose is routed
straight to joiner. Remove
excess drain hose material if
necessary.

Do not shorten the inlet
hose.

Dishwasher and Standpipe Ø 38 mm

HIGHLOOP
min. 150 mm

24

24

3 4

5

Ensure the
supplied
rubber
washer is
fitted inside
the coupling.

Tighten coupling with spanner.

180

o

No leaks!

CONNECT INLET HOSE TO COLD WATER PLUG PRODUCT IN

24 25

1 2

see

see

Important!

Do not connect the
drain hoses to a waste
disposal unit, as this
type of connection
may lead to a blockage
in the drain hoses.

21

27

26

FINAL CHECKLIST TROUBLESHOOTING

Check all parts are installed.
Ensure that all panels and parts thereof are secure and final electrical tests have

been conducted in accordance with local electrical regulations.

Ensure product is level, securely fastened to the cabinetry and opens and

closes freely. The drawers must be free to fully close with no resistance from the

cabinetry.

Ensure inlet hose to water supply has supplied rubber washer fitted, and that

it’s tightened a further half turn after seal contact.

Ensure any knockouts or plugs in drain connection have been drilled out and

drain connection has been made.

The drain hose joiner must not support the weight of excess hose material.

Keep drain hose as fully extended as possible to prevent sagging. Any excess

length of drain hose should be kept on the dishwasher side of the highloop.

If connecting the drain hose to the sink trap, ensure the Highloop is a minimum

150 mm higher than the drain hose joiner.

Ensure any packaging or tape securing the racks is removed from the drawers.

Turn on the power and water supplies, then open the drawers. You should hear

a beep and see a program indicator light up on the internal control panel.

Check the spray arms are in place and free to rotate.

Add three cups of water into the drawer. Press

on the internal control panel

until the indicator of the ‘Rinse’ program lights up. Close the drawer and press

to start the program. Repeat for the other drawer.

After the Rinse program has finished, ensure the dishwasher has run and

drained correctly.

Check water supply and drainage connection for leakage.

Spray arm

Excessive water remaining above the filter plate, after the rinse cycle

Check for a kinked drain hose, blocked waste connection, highloop not
properly installed, drain hose not routed correctly or spray arms not in place.

No water supply (This is displayed as a ‘U1’ fault -- see section ‘If there is a
fault’ in the User guide for how to recognise this fault on models without a
display.)

Check water is connected and turned on.

The dishwasher is beeping continuously

There is a fault. See section ‘If there is a fault’ in the User guide for further

information and instructions.

No program indicator lights up when the drawer is opened

Ensure power is connected and is switched on. If it is and still no indicator
ligths up, see the ‘Preference options’ section of the ‘Quick start guide’. An
option called ‘Open drawer auto power-on’ may need to be turned on.

Water around water supply and drainage connections

Check connections, existing plumbing and hoses for leaks. Check rubber
washer and hose clamp are correctly fitted.

If product is tipping

Ensure the product is secured to the cabinetry.

If front panels are misaligned

Check and relevel product. Check the cabinetry is square. For Integrated
models, check and adjust front panel alignment if necessary.

Drawer doesn’t close properly

Ensure nothing is obstructing the drawer from closing properly eg sound
insulation, hoses or drawer latches.
If a problem occurs, consult the ‘Troubleshooting’ section of the User guide.
If after checking these points you still need assistance, please refer to the
Service & Warranty book for warranty details and your nearest Authorised
Service Centre, or contact us through our website, listed below.

Important!

SAVE THESE INSTRUCTIONS

The models shown in this document may not be available in all markets and are subject to change
at any time. For current details about model and specification availability in your country, please
visit our website listed at the end of this document or contact your local Fisher & Paykel dealer.

www. sherpaykel.com
