Installation instructions

DishDrawer®

DD60D models

NZ AU GB IE

Important!

SAVE THESE INSTRUCTIONS

The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local website listed at the end of this document or contact your local Fisher & Paykel dealer.

1

SAFETY AND WARNINGS

Important safety instructions!

Installation of this DishDrawer® requires basic mechanical and electrical skills. Be sure to leave these Instructions with the Customer. Installation must comply with your local building and electricity regulations. At the completion of the DishDrawer® installation, the Installer must perform the Final Checklist. Remove all packaging materials supplied with the DishDrawer®. This DishDrawer® is manufactured for indoor use only. Ensure all water connections are turned OFF. It is the responsibility of the plumber and electrician to ensure that each installation complies with all Codes and Regulations. The DishDrawer® MUST be installed to allow for future removal from the enclosure if service is required.

The switched power outlet must be outside the DishDrawer® cavity, so that it is accessible after

installation.

Care should be taken when the appliance is installed or removed to reduce the likelihood of damage to the power supply cord. If the DishDrawer® is to be relocated from one installation to another it must be kept upright to avoid damage from water spillage.

Make sure only new hoses are used for connection (supplied with DishDrawer®). Old hoses should not

be reused. Failure to install the DishDrawer® correctly could invalidate any warranty or liability claims.

If the product is installed in a motor vehicle, boat or similar mobile facility, you must bring the vehicle,

boat or mobile facility containing the product to the service shop at your expense or pay the service technician’s travel to the location of the product.

WARNING!

Electrical shock hazard

Before installing the DishDrawer®, remove the house fuse or open the circuit

breaker.

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances. WARNING- Improper connection of the equipmentearthing conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt as to whether the appliance is properly earthed.

Do not modify the power supply plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Do not use an extension cord, adapter plug or multiple outlet box.

Failure to follow this advice may result in electrical shock or death.

WARNING!

Cut hazard

Take care - panel edges are sharp.

Failure to use caution could result in injury or cuts.

(1,2) -1- 599684B DD60D installA2 NZGB.indd 6/7/09 11:49:15 AM

23

PRODUCT DIMENSIONS CABINETRY DIMENSIONS

Installation diagrams for illustration purposes only

C

D

N

I

K

B

G

H

E

L

O

A

F

C

N

G

M

J

Product dimensions (mm)

overall height* of product 819.5- 879.5 819.5- 879.5 819.5- 879.5

A

overall width of product 599 599 599

B

overall depth of product (excl. curvature/handle) 570 570 570

C

depth of drawer (open) (excl. curvature/handle) 538 538 538

D

height* of chassis 809 809 809

E

height range of levelling feet 60 60 60

F

depth of chassis (incl. trimseal) 552 552 552

G

depth of drawer front panel (excl. curvature/handle) 18 18 18

H

depth of curvature or handle 11 41 n/a

I

depth of toekick 50 - 65 50 - 65 67 - 127**

J

height of upper drawer front 394 398 398 min

K

height of lower drawer front 312.5 311.5 311.5 min

L

height of toekick panel (adjustable) 70 - 120 70 - 120 70 - 120

M

height of installation bracket slots (on top of chassis) 22 2

N

height of drawer fronts 719.5 717.5 717.5 min

O

DD60D

LCD

Pre nished

I

Flat door

DD60D

Pre nished

Integrated

DD60D

Installation diagrams for illustration purposes only

B

C

Cabinetry dimensions (mm)

inside height of cavity 820- 882.5 820- 882.5 820- 882.5

A

inside width of cavity 600 600 600

B

inside depth of cavity (inside) 580 580 580

C

height of adjacent cabinetry 720 720 min. 720

D

height of toekick space 100 - 160 100 - 160 100 - 160

E

DD60D

LCD

Pre nished

Flat door

DD60D

Pre nished

Minimum clearances (mm)

2.5 mm

D

A

E

Integrated

DD60D

* Chassis heights include bracket slots

** Pre nished 50-65 mm; Integrated 67 mm less the Toekick Panel thickness (Minimum Panel thickness using the supplied screws is 9 mm). Note: for Pre nished Flat door models, height from top of handle to top of drawer - 64 mm.

2.5 mm

13 mm

(2,1) -1- 599684B DD60D installA2 NZGB.indd 6/7/09 11:49:15 AM

4

PARTS SUPPLIED

Drain hose support (1)

If the Drain hoses supplied are not long enough to reach your services, you must use a Drain Hose Extension Kit P/N 525798 which will extend the drain hoses by 3.6 m. The kit is available from the nearest Fisher & Paykel Authorised Service Centre or our local website listed at the end of this document.

5

CAVITY PREPARATION



These marks indicate mounting bracket screw locations

Drain hose joiner (1)

Wire clip (2)

Clamp (1)

Top mounting brackets (2)

OPTIONAL

Phillips 16 mm screws (9)

Rubber washer for inlet hose (1)

10 mm

Moisture protection tape (1)

(to prevent moisture damage)

Moisture protection tape must be applied.

Hexagonal socket (2)

(long & short)

Prefinished toekick (1)

white or black

Preferred position. If adequate clearance, services hole can be higher to

*

clear toekick space. If hole is higher, ensure drain hoses are routed straight into the waste connection.

Water Connection

Note: Services can be located either side of DishDrawer®.

Recommended COLD (Maximum 60°C). ¾ “ BSP (GB20) to suit flat washer.

Water Pressure Max Min

Water softener models 1 MPa (145 psi) 0.1 MPa (14.5 psi) Other models 1 MPa (145 psi) 0.03 MPa (4.3 psi)

Drains will need to be separated to satisfy kosher requirements. We suggest you confirm acceptability with your local rabbi in respect to kosher installations.

min. ø60 mm

max. 450 mm

*

Water supply

min. 200 mm

220-240 VAC min. 9 A

(2,2) -1- 599684B DD60D installA2 NZGB.indd 6/7/09 11:49:15 AM

Max. distance of hoses and cord from chassis edge

Drain hose

Inlet hose

Power cord

(excl. plug)

Left hand

side

Right hand

side

2000 mm 1800 mm

1650 mm 1250 mm

1650 mm 1650 mm

Left hand

side

Right hand

side

(1,1) -2- 599684B DD60D installA2 NZGB.indd 6/7/09 11:49:38 AM

6

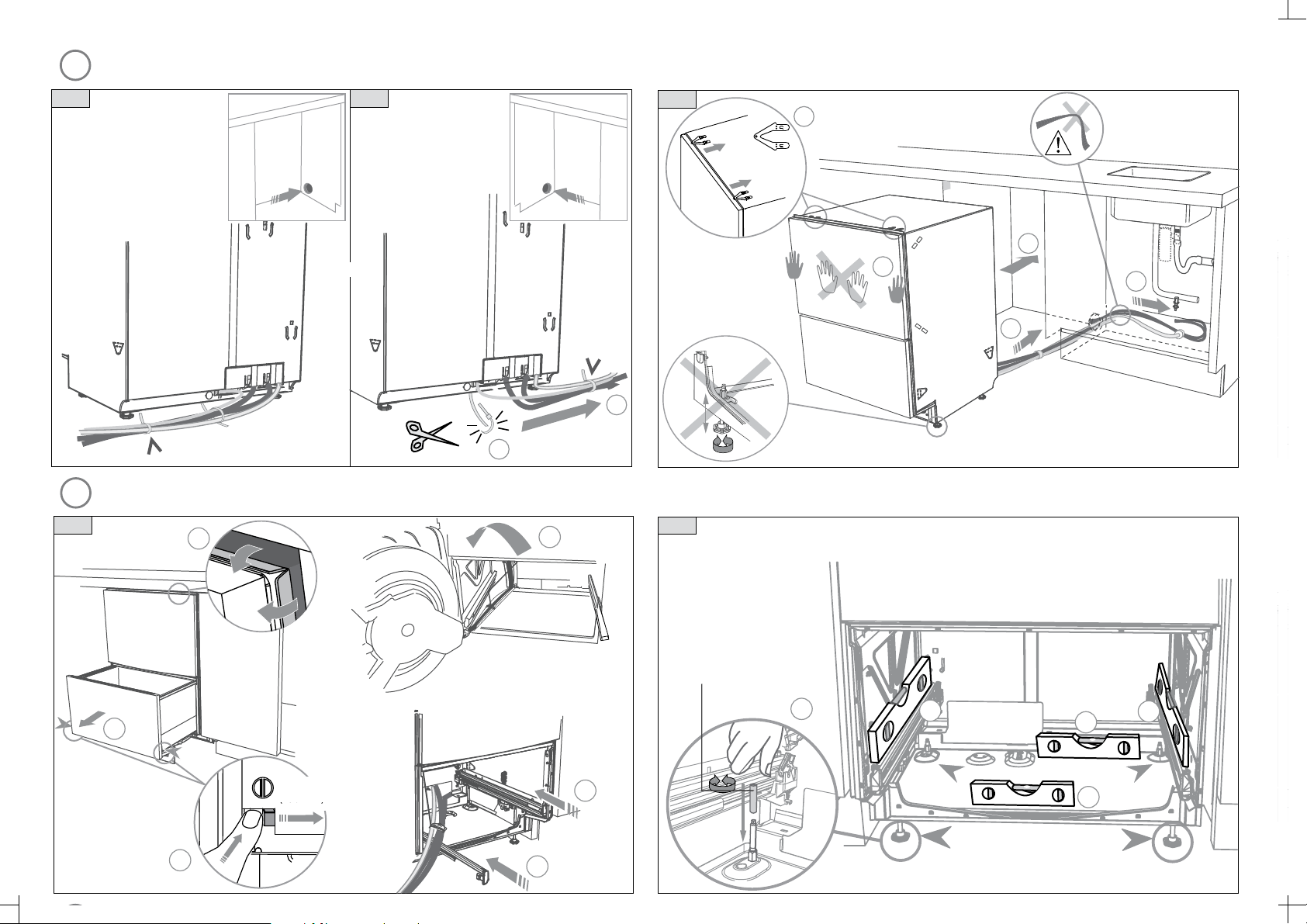

ROUTE THE HOSES AND MOVE INTO THE CAVITY

AA

OR

2

Tie together to avoid kinking.

7

REMOVE THE DRAWER AND LEVEL THE PRODUCT

A

1

4

B

optional

(x2)

Loosen feet only and take care when pushing the product into the cavity that you do not bend the feet.

B

If top mounting brackets are being used, ensure they’re securely fitted

2

before sliding product into cavity.

3

Ensure product is level and aligning with cabinetry. Using the most appropriate length Hexagonal socket supplied, fully extend levelling feet up to required distance by hand.

Ensure hoses and cord are not kinked or twisted.

3

1

Ensure the drawer is removed and then rotated anti-clockwise to prevent kinked hoses.

2

5 ”

150 mm

150 mm)

(

30 mm

3

5

Hexagonal socket

1

2

4

3

5

x 4

(1,2) -2- 599684B DD60D installA2 NZGB.indd 6/7/09 11:49:38 AM

8

SECURE THE PRODUCT AND REFIT THE DRAWER

A

The product has three pairs of mounting brackets: a pair of optional brackets on the top (C) and two pairs of formed brackets in the side of the chassis (A,B). Use at least two out of the three pairs to secure the product.

Ensure the sound insulation is

repositioned correctly.

9

FIT THE TOEKICK

A

max.

optional

19 mm

B

Ensure the drawer clips on

5

C

both sides are reset.

4

Before refitting the drawer, ensure the hoses are not twisted and the latches at the rear of each drawer runner are facing forward.

3

4

BB

A

Ensure the drawer is now rotated clockwise back.

1

2

B

4 5 6 7

Where the toekick meets the bottom of the tub is the cut-off point

19

8 9

1

Important!

2

3

D o not overtighten screw.

10

(2,1) -2- 599684B DD60D installA2 NZGB.indd 6/7/09 11:49:38 AM

10

PLUMBING AND DRAINAGE OPTIONS

A

DishDrawer® and Standpipe Ø 38 mm

2

If space is limited for fixing, push hoses through drain hose support to required height

max. 120 mm

38 mm

1

Waste Disposal (optional)

Do not connect to DishDrawer®

750 - 882.5 mm

min. R 200 mm

750-

882.5 mm

DishDrawer® using sink trap

B

with drain hose joiner

Waste Disposal (optional)

Do not connect to DishDrawer®

1

750 - 882.5 mm

2

HIGHLOOP min. 150 mm

min. R 200 mm

Supplied drain hose joiner 19 mm waste tee

750-

882.5 mm

3

Fit the supplied rubber washer

180

3

Ensure hoses are routed

4

o

straight to joiner. Remove excess hose material if necessary.

Fit the supplied rubber washer

5

6

7

180

4

5

o

6

(2,2) -2- 599684B DD60D installA2 NZGB.indd 6/7/09 11:49:38 AM

11

FINAL CHECKLIST

Check all parts are installed.

Ensure product is level, securely fastened to the cabinetry and opens and closes

freely. The DishDrawer® must be free to fully close with no resistance from the

cabinetry.

Ensure inlet hose to water supply has supplied rubber washer fitted and that it

is tightened a further half turn after seal contact.

Ensure any knockouts or plugs in drain connection have been drilled out and

drain connection has been made.

The drain hose joiner must not support the weight of excess hoses. Keep hoses

as fully extended as possible to prevent sagging. Any excess length of hose

should be kept on the dishwasher side of the highloop.

If using Plumbing and Drainage OPTION B, ensure the Highloop is a minimum

150 mm higher than the drain hose joiner.

Turn on the power and water supply. Then press the Power (

the DishDrawer® on. The DishDrawer® should beep and Wash Programme lights

light up.

Check the spray arm is in place and free to rotate.

Spray arm

Add three cups of water into the DishDrawer®. On the Wash Programme

Selector Panel press Rinse and close the drawer(s). Start the programme by

pressing the Start/Pause (

After the Rinse programme has finished, ensure machine has run and drained

correctly.

Check water supply and drainage connection for leakage.

) button.

) button to turn

12

TROUBLESHOOTING

Excessive water remaining above the filter plate, after the rinse cycle

Check for kinked drain hoses or blocked waste connection, high loop not

properly installed or drain hoses not routed correctly.

No water supply ( shows on display-models with LCD only)

Check water is connected, turned on and the spray arm(s) are correctly fitted

and free to rotate.

No lights come on when the drawer is opened

Ensure power is connected and is switched on. Check if Auto Power option is

on.

Water around water supply and drainage connections

Check connections, existing plumbing and hoses for leaks. Check rubber

washer and hose clamps are correctly fitted.

If product is tipping

Ensure the product is secured to the cabinetry.

If front panels are misaligned

Check and relevel product. Check the cabinetry is square.

Drawer(s) don’t close properly

Ensure nothing is obstructing the drawer(s) from closing properly eg sound

insulation, hoses or drawer latches.

If a problem occurs, consult the Troubleshooting section of the User Guide.

If after checking these points you still need assistance, please refer to the

Service & Warranty book for warranty details and your nearest Authorised

Service Centre, or contact us through our website, listed below.

Repeat for each drawer.

www. sherpaykel.co.nz www. sherpaykel.com.au www. sherpaykel.co.uk www. sherpaykel.ie 599684B NZ AU GB IE 06.09
