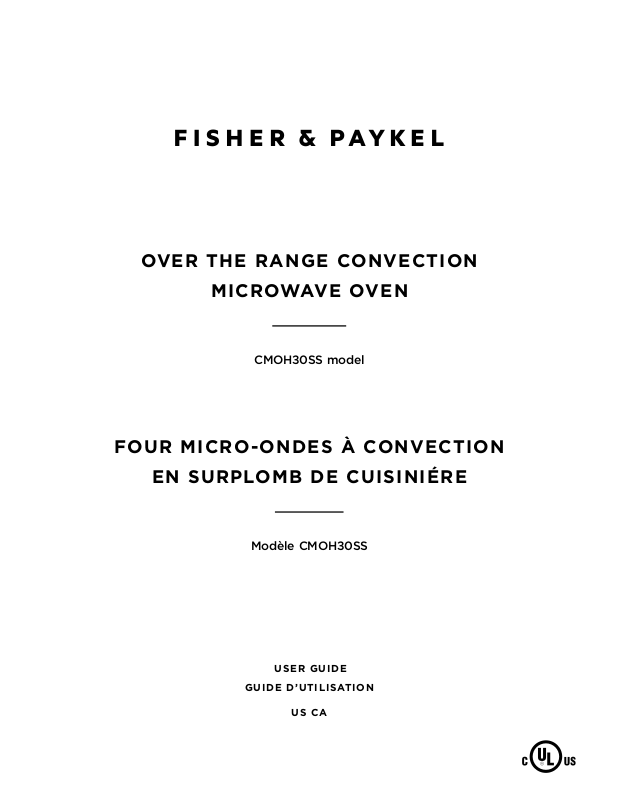

Fisher Paykel CMOH30SS2Y User Guide

OVER THE RANGE CONVECTION

MICROWAVE OVEN

CMOH30SS model

FOUR MICRO-ONDES À CONVECTION

EN SURPLOMB DE CUISINIÉRE

Modèle CMOH30SS

USER GUIDE

GUIDE D’UTILISATION

US CA

A MESSAGE TO OUR CUSTOMERS

Thank you for selecting this Over the Range Convection Microwave Oven. Because of this appliance’s unique features we have developed this Use and Care Guide. It contains valuable information on how to properly operate and maintain your new appliance for years of safe and enjoyable cooking.

To help serve you better, fill out and submit your Product Registration by visiting our website: www.fisherpaykel.com and selecting 'PRODUCT REGISTRATION'

In addition, keep this guide handy, as it will help answer questions that may arise as you use your new appliance.

For your convenience, product questions can be answered by a Customer Care Representative at 1-888-936-7872, or email: usa.customercare@fisherpaykel.com

NOTE: Write the Model and Serial Numbers on this page for references (can be found on bottom left corner of the cavity face).

MODEL NUMBER __________________________ SERIAL NUMBER ____________________________

NOTE: Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper and initiate a damage claim. Fisher & Paykel is not responsible for shipping damage.

DO NOT discard any packing material (box, pallet, straps) until the unit has been inspected.

PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY

Do not attempt to operate this microwave oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

Do not place any object between the microwave oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

Do not operate the microwave oven if it is damaged. It is particularly important that the microwave oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.

The microwave oven should not be adjusted or repaired by anyone except properly qualified service personnel.

RETAIN THIS MANUAL FOR FUTURE REFERENCE.

2

CONTENTS



A Message to Our Customers....................................

2

Precautions to Avoid Possible Exposure



to Excessive Microwave Energy................................

2

Important Safety Instructions...................................

4

Unpacking and Examining Your Oven...................

6

Grounding Instructions...............................................

6

Information You Need to Know................................

7

About Your Microwave Oven ...............................

7

About Microwave Cooking ...................................

7

About Utensils and Coverings .............................

8

About Children and the Microwave................

10

About Food..............................................................

10

About Safety............................................................

11

Part Names....................................................................

12

Before Operating........................................................

14

To Set the Clock .....................................................

14

Stop/Clear ................................................................

14

Manual Microwave Operation ...............................

15

Turntable On/Off ..................................................

15

Fan / Light ................................................................

15

Time Cooking -Microwave..................................

15

Keep Warm...............................................................

16

To Set Power Level ................................................

16

Microwave Features...................................................

17

Defrost.......................................................................

17

Defrost Chart...........................................................

17

Manual Defrost.......................................................

18

Sensor Cooking ......................................................

18

Sensors ......................................................................

19

Sensor Reheat.........................................................

19

Popcorn.....................................................................

19

Sensor Chart............................................................

20

Sensor Cook.............................................................

21

Sensor Cook Chart.................................................

21

Sensor Cook Recipes ............................................

22

Manual Convection and



Automatic Mix Operation........................................

23

Convection Cooking.............................................

23

To Cook with Convection....................................

23

To Preheat and Cook with Convection ..........

23

Broil.............................................................................

23

Slow Cook.................................................................

24

Automatic Mix Cooking .....................................

24

To Cook with Automatic Mix .............................

24

To Preheat and Cook with Automatic Mix....

24

Convection Automatic Mix Features ...................

25

Auto Broil .................................................................

25

Auto Broil Chart......................................................

25

Auto Roast................................................................

26

Auto Roast Chart....................................................

26

Auto Bake .................................................................

27

Auto Bake Chart .....................................................

27

Other Convenient Features.....................................

28

Multiple Sequence Cooking ..............................

28

More or Less Time Adjustment.........................

28

Extra Minute ............................................................

28

Help (Display Indicator).......................................

28

Help Menu................................................................

29

Start ............................................................................

30

Kitchen Timer..........................................................

30

Demonstration Mode...........................................

30

Cleaning and Care......................................................

31

Exterior ......................................................................

31

Door............................................................................

31

Touch Control Panel .............................................

31

Interior - After Microwave Cooking.................

31

Interior - After Convection,



Mix or Broil Cooking .............................................

31

Waveguide Cover ..................................................

31

Odor Removal.........................................................

31

Turntable/Turntable Support...........................

31

Oven Racks...............................................................

32

Grease Filters...........................................................

32

Fan...............................................................................

32

Light ...........................................................................

32

Oven Light................................................................

33

Charcoal Filter.........................................................

34

Service Call Check ......................................................

35

Specifications...............................................................

36

Warranty ........................................................................

37

INTERACTIVE COOKING SYSTEM

The Interactive Cooking System offers step-by-step instructions in the display for using the oven, from setting the clock to programming each feature. It also includes Help Menu for instructions on using Safety Lock, Audible Signal Elimination, Start and Help. There is a choice of English, Spanish or French and a choice of U.S. Customary Unit-pound or Metric-kilograms. Touch HELP MENU and follow the directions displayed or check page 29.

3

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1.Read all instructions before using the appliance.

2.Read and follow the specific 'PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY' on page 2.

3.This appliance must be grounded. Connect only to properly grounded outlet. See 'GROUNDING INSTRUCTIONS' on page 6 and INSTALLATION INSTRUCTIONS.

4.Install or locate this appliance only in accordance with the provided installation instructions.

5.Some products such as whole eggs and sealed containers—for example, closed glass jars—are able to explode and should not be heated in this microwave oven.

6.Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of microwave oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

7.As with any appliance, close supervision is necessary when used by children.

8.Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.

9.This appliance should be serviced only by qualified service personnel.

10.Do not cover or block any openings on the appliance.

11.Do not store or use this appliance outdoors. Do not use this product near water—for example, near a kitchen sink, in a wet basement or near a swimming pool, or similar locations.

12.Do not immerse cord or plug in water.

13.Keep cord away from heated surfaces.

14.Do not let cord hang over edge of table or counter.

15.See door surface cleaning instructions on page 31.

16.To reduce the risk of fire in the microwave oven cavity:

a.Do not overcook food. Carefully attend to appliance when paper, plastic or other combustible materials are placed inside the microwave oven to facilitate cooking.

b.Remove wire twist-ties from paper or plastic bags before placing bag in microwave oven.

c.If materials inside the microwave oven ignite, keep microwave oven door closed, turn microwave oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel.

d.Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

4

IMPORTANT SAFETY INSTRUCTIONS

17.Liquids, such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons:

a.Do not overheat the liquid.

b.Stir the liquid both before and halfway through heating it.

c.Do not use straight-sided containers with narrow necks. Use a wide-mouthed container.

d.After heating, allow the container to stand in the microwave oven at least for 20 seconds before removing the container.

e.Use extreme care when inserting a spoon or other utensil into the container.

18.Clean ventilation openings and grease filters frequently—grease should not be allowed to accumulate on ventilation openings, hood (louver) or grease filters.

19.Use care when cleaning the louver and the grease filters. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the louver and the grease filters.

20.When flaming food under the hood, turn the fan on.

21.This appliance is suitable for use above both gas and electric cooking equipment 36” wide or less.

SAVE THESE INSTRUCTIONS

5

UNPACKING AND EXAMINING YOUR OVEN

Carefully remove microwave oven from carton. SAVE THE CARTON AS IT MAY MAKE INSTALLATION EASIER.

Remove:

1.All packing materials from inside the microwave oven cavity; however, DO NOT REMOVE THE WAVEGUIDE COVER, which is located on the ceiling in the microwave oven cavity. Check to see that there are Installation Instructions, Wall Template and Top Template. Read enclosures and SAVE the Use and Care Guide.

2.The feature sticker from the outside of the door, if there is one.

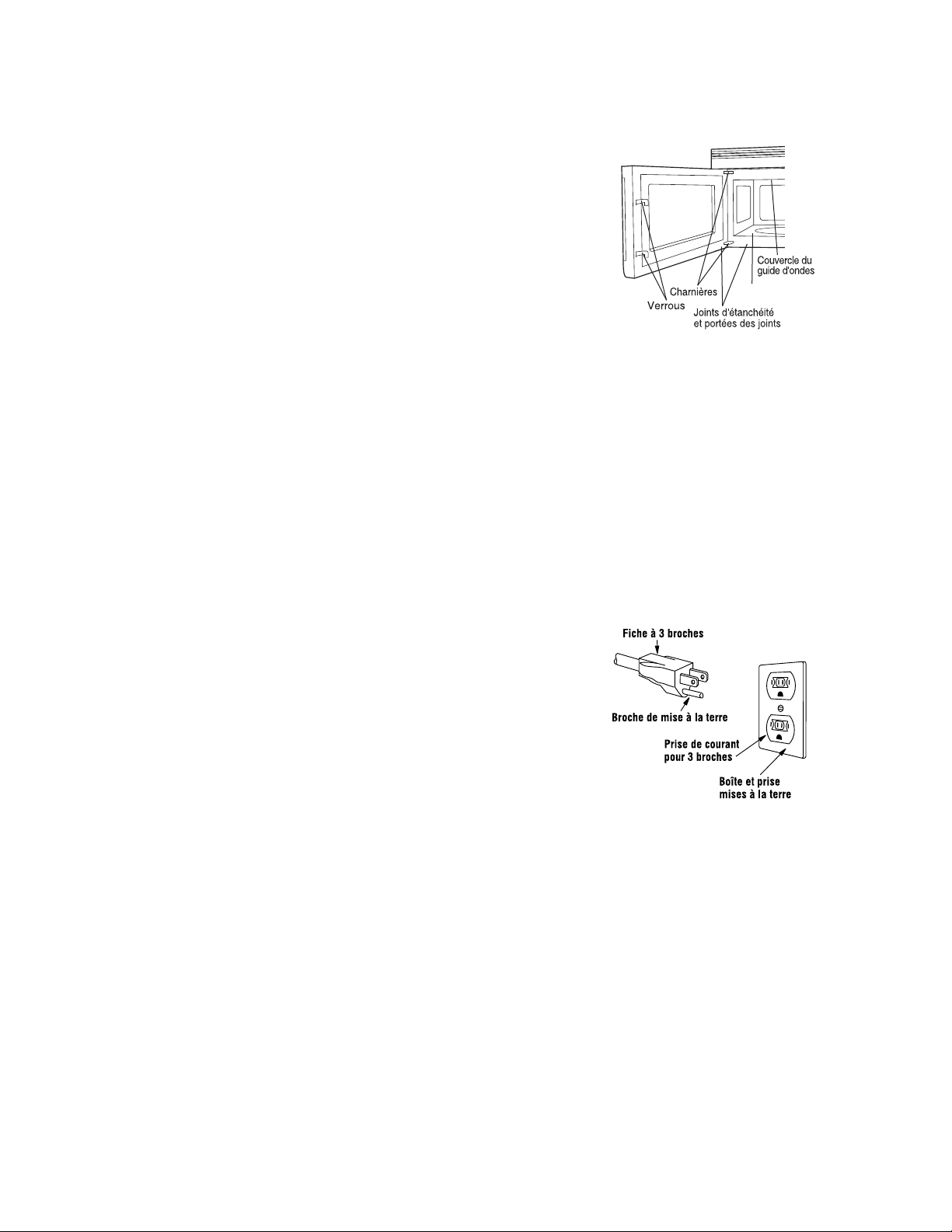

Waveguide cover

Oven Hinges cavity

Latches Door seals and sealing surfaces

Check the microwave oven for any damage, such as misaligned or

bent door, damaged door seals and sealing surfaces, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the microwave oven and contact your dealer or Fisher & Paykel AUTHORIZED SERVICER.

See Installation Instructions for more details.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This microwave oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged

into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current.

Warning – Improper use of the grounding plug can result in a risk of electric shock. DO NOT USE AN EXTENSION CORD. If the power supply cord is too short, have a qualified electrician or serviceperson install an outlet near the appliance.

ELECTRICAL REQUIREMENTS

Check Installation Instructions for proper location for the power supply.

The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more protected electrical supply. It is recommended that a separate circuit serving only the microwave oven be provided.

The microwave oven is equipped with a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE GROUNDING PIN FROM THE PLUG.

Notes:

1.If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

2.Neither Fisher & Paykel nor the dealer can accept any liability for damage to the microwave oven or personal injury resulting from failure to observe the correct electrical connection procedures.

RADIO OR TV INTERFERENCE

Should there be any interference caused by the microwave oven to your radio or TV, check that the microwave oven is on a different electrical circuit, relocate the radio or TV as far away from the microwave oven as feasible or check position and signal of receiving antenna.

6

INFORMATION YOU NEED TO KNOW

ABOUT YOUR MICROWAVE OVEN

This Use and Care Guide is valuable: read it carefully and always save it for reference.

NEVER use the microwave oven without the turntable and support nor turn the turntable over so that a large dish could be placed in the microwave oven. The turntable will turn both clockwise and counterclockwise.

ALWAYS have food in the microwave oven when it is on to absorb the microwave energy.

When using the microwave oven at power levels below 100%, you may hear the magnetron cycling on and off.

The fan will automatically start when heat rises from range surface units or burners and when convection, high mix, low mix or the broil settings are used.

Condensation is a normal part of microwave cooking. Room humidity and the moisture in food will influence the amount of moisture that condenses in the microwave oven. Generally, covered foods will not cause as much condensation as uncovered ones. Ventilation openings must not be blocked.

The microwave oven is for food preparation only. It should not be used to dry clothes or newspapers.

Your microwave oven is rated 850 watts by using the IEC Test Procedure. In using recipes or package directions, check food a minute or two before the minimum time and add time accordingly.

ABOUT MICROWAVE COOKING

Arrange food carefully. Place thickest areas towards outside of dish.

Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.

Cover foods while cooking. Check recipe or cookbook for suggestions: - paper towels, wax paper, microwave plastic wrap (shouldn't touch food) or a lid. Covers prevent spattering and help foods to cook evenly.

Shield with small flat pieces of aluminum foil any thin areas of meat or poultry to prevent overcooking before dense, thick areas are cooked thoroughly.

Stir foods from outside to center of dish once or twice during cooking, if possible.

Turn foods over once during microwaving to speed cooking of foods such as chicken and hamburgers. Large items like roasts must be turned over at least once.

Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

Add standing time. Remove food from microwave oven and stir, if possible. Cover for standing time which allows the food to finish cooking without overcooking.

Check for doneness. Look for signs indicating that cooking temperatures have been reached. Doneness signs include:

-Food steams throughout, not just at edge.

-Center bottom of dish is very hot to the touch.

-Poultry thigh joints move easily.

-Meat and poultry show no pinkness.

-Fish is opaque and flakes easily with a fork.

7

INFORMATION YOU NEED TO KNOW

ABOUT UTENSILS AND COVERINGS

It is not necessary to buy all new cookware. Many pieces already in your kitchen can be used successfully in your new microwave convection oven. The chart below will help you decide what utensils and coverings should be used in each mode.

UTENSILS AND

MICROWAVE ONLY

CONVECTION,

HIGH MIX/ROAST

COVERINGS



BROIL, SLOW COOK

LOW MIX/BAKE









Aluminum foil

YES - Small flat pieces

YES - For shielding

YES - For shielding



of aluminum foil placed







smoothly on food can be







used to shield areas from







cooking or defrosting too







quickly. Keep foil at least 1







inch from walls of oven.





Aluminum

YES - Can be used if 3/4 filled

YES - Broil. No cover.

YES - Can be used if

containers

with food. Keep 1 inch away



3/4 filled with food.



from walls and do not cover



Keep 1 inch away from



with lid.



walls and do not cover







with foil.









Browning dish

YES - Do not exceed

NO

NO



recommended preheating







time. Follow manufacturer’s







directions.













Glass ceramic

YES - Excellent

YES - Excellent

YES - Excellent

(Pyroceram®)







Glass,

YES - Excellent.

YES - Excellent

YES - Excellent

heat-resistant















Glass, non-heat-

NO

NO

NO

resistant







Lids, glass

YES

YES - Broil. No cover.

YES









Lids, metal

NO

YES - Broil. No cover.

NO









Metal cookware

NO

YES

YES - Do not use metal







covering.

Metal, misc.: dishes

NO

NO

NO

with metallic trim,







screws, bands,







handles. Metal







twist ties















Oven cooking

YES - Good for large meats or

YES - Broil. No cover.

YES - Do not use metal

bags

foods that need tenderizing.



twist ties.



DO NOT use metal twist ties.













Paper plates

YES - For reheating.

NO

NO

Paper towels

YES - To cover for reheating

NO

NO



and cooking. Do not use







recycled paper towels which







may contain metal fillings.













Paper, ovenable

YES

YES - For temperatures

YES - For temperatures





up to 400˚F. Do not use

up to 400˚F.





for broiling.











8

INFORMATION YOU NEED TO KNOW

UTENSILS AND

MICROWAVE ONLY

CONVECTION,

HIGH MIX/ROAST

COVERINGS



BROIL, SLOW COOK

LOW MIX/BAKE

Microwave-safe

YES - Use for reheating and

NO

NO

plastic containers

defrosting. Some microwave-







safe plastics are not suitable







for cooking foods with high







fat and sugar content. Follow







manufacturer’s directions.













Plastic, Thermoset®

YES

YES - Are heat resis-

yes





tant up to 425˚F. Do







not use for broiling.











Plastic wrap

YES - Use brands specially

NO

NO



marked for microwave use. DO







NOT allow plastic wrap to touch







food. Vent so steam can escape.





Pottery, porcelain

YES - Check manufacturer’s

YES

YES - Must be

stoneware

recommendation for being



microwave safe



microwave safe.



AND ovenable.









Styrofoam

YES - For reheating

NO

NO









Wax paper

YES - Good covering for cooking

NO

NO



and reheating.





Wicker, wood, straw

YES - May be used for short

NO

NO



periods of time. Do not use with







high fat or high sugar content







foods. Could char.













DISH CHECK. If you wish to check if a dish is safe for microwaving, place the empty dish in the microwave oven and microwave on HIGH for 30 seconds. If the dish becomes very hot, DO NOT use it for microwaving.

ACCESSORIES There are many microwave accessories available for purchase. Evaluate carefully before you purchase so that they meet your needs. A microwave-safe thermometer will assist you in

determining correct doneness and assure you that foods have been cooked to safe temperatures. Fisher & Paykel is not responsible for any damage to the oven when accessories are used.

9

INFORMATION YOU NEED TO KNOW

ABOUT CHILDREN AND THE MICROWAVE

Children below the age of 7 should use the microwave oven with a supervising adult very near to them. Between the ages of 7 and 12, the supervising adult should be in the same room.

The child must be able to reach the microwave oven comfortably; if not, he/she should stand on a sturdy stool.

At no time should anyone be allowed to lean or swing on the microwave oven door.

Children should be taught all safety precautions: use potholders, remove coverings carefully, pay special attention to packages of crisp food because they may be extra hot.

Don’t assume that because a child has mastered one cooking skill he/she can cook everything.

Children need to learn that the microwave oven is not a toy. See page 29 for Safety Lock feature.

ABOUT FOOD

FOOD



DO



DON'T











Eggs, sausages,

Puncture egg yolks before cooking

Cook eggs in shells.

nuts, seeds,



to prevent 'explosion'.

Reheat whole eggs.

fruits &





• Pierce skins of potatoes, apples,

Dry nuts or seeds in shells.

vegetables



squash, hot dogs and sausages so













that steam escapes.















Popcorn

Use specially bagged popcorn for

Pop popcorn in regular brown bags or





the microwave oven.



glass bowls.



Listen while popping corn for the

Exceed maximum time on popcorn





popping to slow to 1 or 2 seconds



package.





or use special POPCORN pad.















Baby food

Transfer baby food to small dish

Heat disposable bottles.





and heat carefully, stirring often.

• Heat bottles with nipples on.





Check temperature before serving.





• Heat baby food in original jars.



• Put nipples on bottles after heating











and shake thoroughly. 'Wrist' test









before feeding.















General

Cut baked goods with filling after

Heat or cook in closed glass jars or air





heating to release steam and avoid



tight containers.





burns.

• Can in the microwave as harmful









• Stir liquids briskly before and after



bacteria may not be destroyed.





heating to avoid 'eruption'.

Deep fat fry.









• Use deep bowl, when cooking

• Dry wood, gourds, herbs or wet





liquids or cereals, to prevent







papers.





boilovers.





















10

INFORMATION YOU NEED TO KNOW

ABOUT SAFETY

Check foods to see that they are cooked to the United States Department of Agriculture’s recommended temperatures.

TEMP

FOOD





160˚F

For fresh pork, ground meat, boneless white poultry, fish, seafood, egg dishes and frozen



prepared food.





165˚F

For leftover, ready-to-reheat refrigerated, and deli and carry-out 'fresh' food.





170˚F

White meat of poultry.





180˚F

Dark meat of poultry.





To test for doneness, insert a meat thermometer in a thick or dense area away from fat or bone. NEVER leave the thermometer in the food during cooking, unless it is approved for microwave use.

ALWAYS use potholders to prevent burns when handling utensils that are in contact with hot food. Enough heat from the food can transfer through utensils to cause skin burns.

Avoid steam burns by directing steam away from the face and hands. Slowly lift the farthest edge of a dish’s covering and carefully open popcorn and oven cooking bags away from the face.

Stay near the oven while it’s in use and check cooking progress frequently so that there is no chance of overcooking food.

NEVER use the cavity for storing cookbooks or other items.

Select, store and handle food carefully to preserve its high quality and minimize the spread of foodborne bacteria.

Keep waveguide cover clean. Food residue can cause arcing and/or fires.

Use care when removing items from the oven so that the utensil, your clothes or accessories do not touch the safety door latches.

11

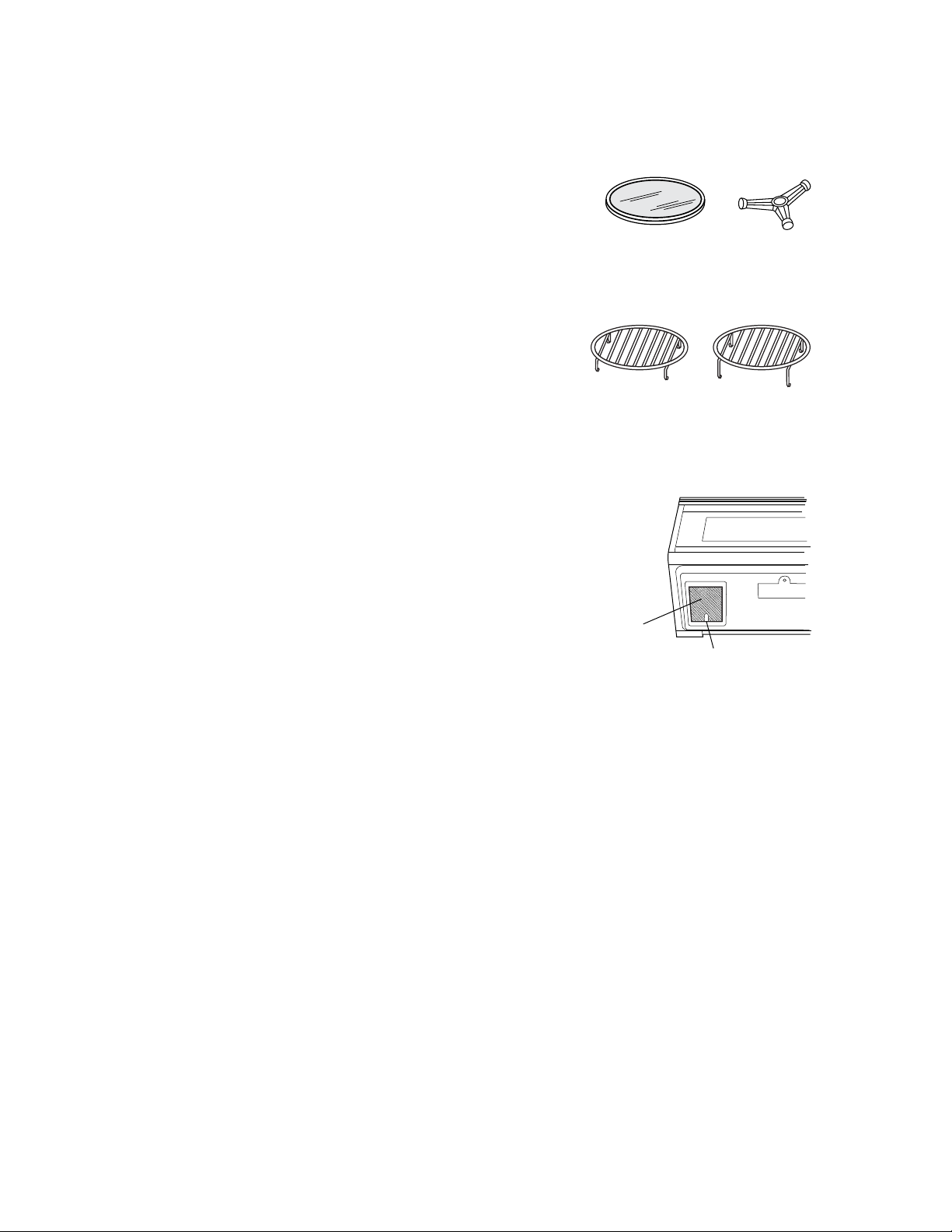

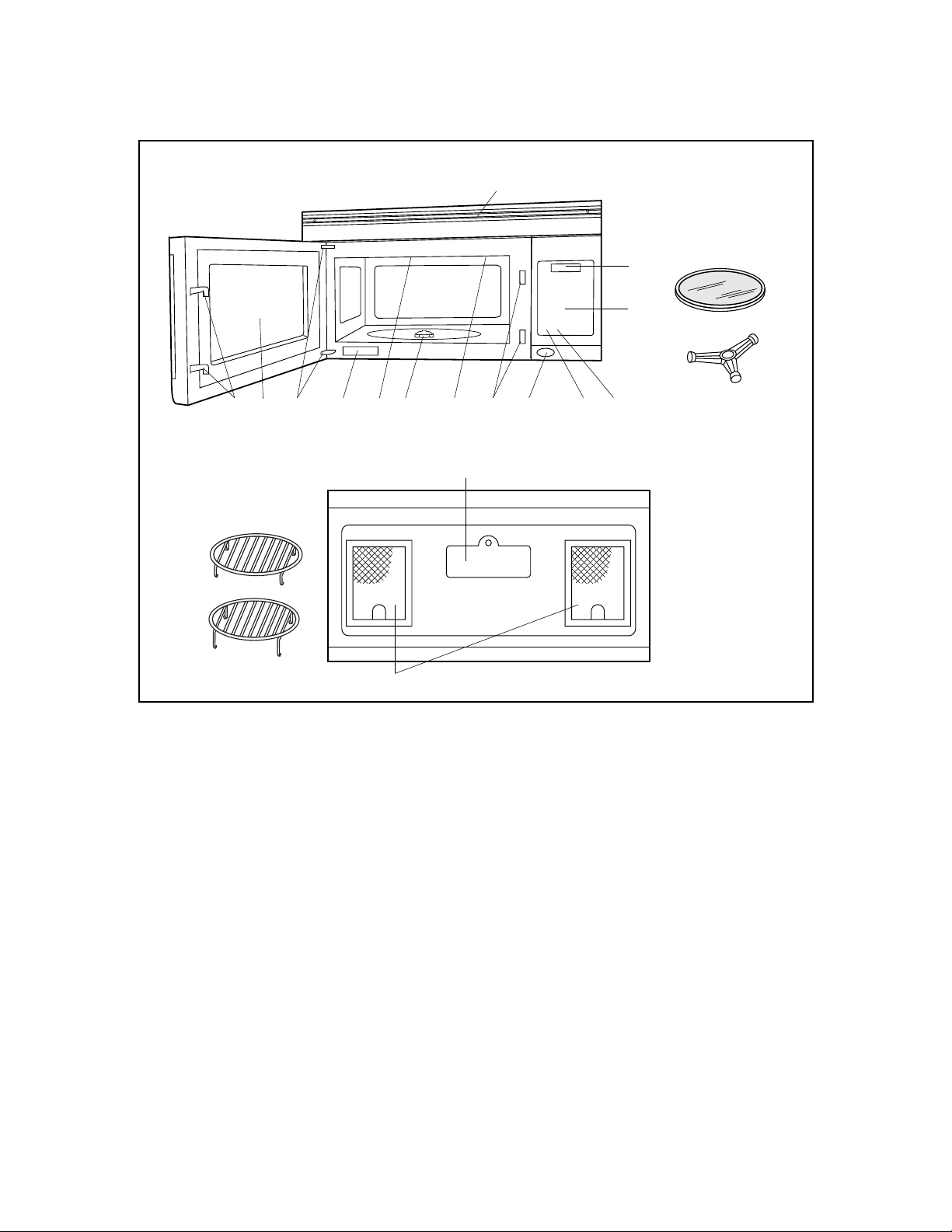

PART NAMES













FRONT VIEW



















12



























11





















15





















10





















16

6

1

2

19

3

4

5

6

7

8

9













BOTTOM VIEW



















13





(Front of Microwave)





















17





















18































14









(Rear of Microwave)





















1.Oven door with see-through window.

2.Door hinges.

3.Waveguide cover DO NOT REMOVE.

4.Turntable motor shaft.

5.Oven light.

It will light when oven is operating or door is open.

6.Safety door latches.

The oven will not operate unless the door is securely closed.

7.One touch DOOR OPEN button. Push to open door.

8.FAN HI / LO button. Push for high/low/off.

9.LIGHT button. Push for on/off.

10.Auto-Touch control panel.

11.Time display: Digital display, 99 minutes 99 seconds.

12.Ventilation openings.

13.Light cover.

14.Grease filters.

15.Removable ceramic turntable.

The turntable will rotate clockwise or counterclockwise. Only remove for cleaning.

16.Removable turntable support.

Place the turntable support on the floor of the oven cavity and the turntable on the turntable support.

17.Removable low rack for broiling and meat and poultry roasting.

18.Removable high rack for two level baking.

19.Rating label

12

Fisher Paykel CMOH30SS2Y User  Guide

PART NAMES

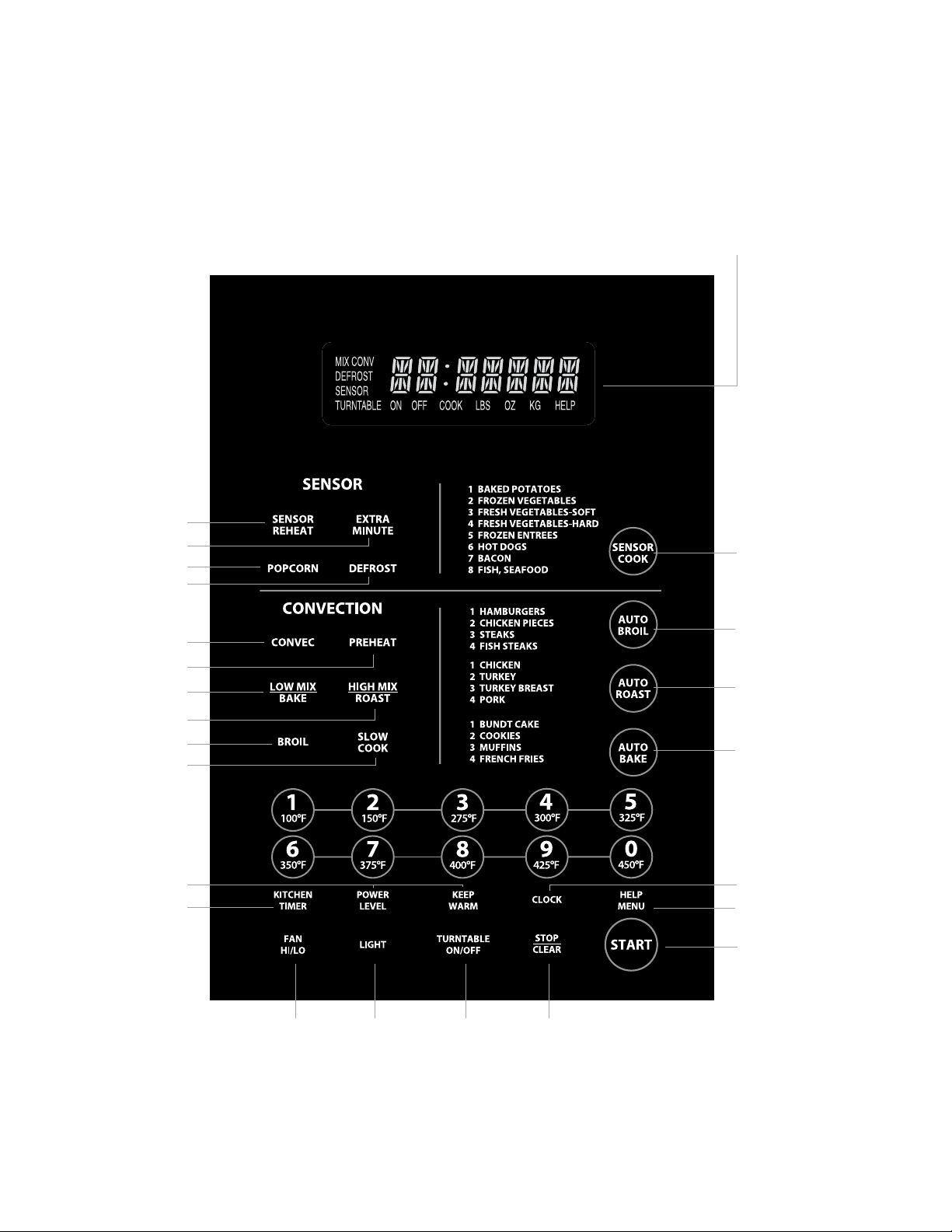

CONTROL PANEL

19

28

19

17

23

23

24

24

23

24

16

30

INTERACTIVE DISPLAY

Words will light in the display to indicate features and cooking instructions.

18-21

25

26

27

14

29

30

15

15

15

14

Number next to the control panel illustration indicates page on which

there are feature descriptions and usage information.

13

BEFORE OPERATING

Before operating your new microwave oven make sure you read and understand this use and care guide completely.

Before the microwave oven can be used, follow these procedures:

1.Plug in the microwave oven. Close the door. The microwave oven display will show WELCOME PRESS CLEAR AND PRESS CLOCK.

2.Touch the STOP/CLEAR pad. : will appear.

3.Touch CLOCK and follow directions to set.

TO SET THE CLOCK

1.Touch CLOCK pad.

2.Enter the correct time of day by touching the numbers in sequence.

3.Touch CLOCK pad again.

This is a 12 hour clock. If you attempt to enter an incorrect clock time, ERROR will appear in the display. Touch the STOP/CLEAR pad and re-enter the time.

If the electrical power supply to your microwave oven should be interrupted, the display will intermittently show WELCOME PRESS CLEAR AND PRESS CLOCK after the power is reinstated. If this occurs during cooking, the program will be erased. The time of day will also be erased. Simply touch STOP/CLEAR pad and reset the clock for the correct time of day.

Note: Your oven can be programmed with the door open except for START, EXTRA MINUTE, SENSOR REHEAT and POPCORN.

STOP/CLEAR

Touch the STOP/CLEAR pad to:

1.Erase if you make a mistake during programming.

2.Cancel KITCHEN TIMER.

3.Stop the microwave oven temporarily during cooking.

4.Return the time of day to the display.

5.Cancel a program during cooking, touch twice.

14

MANUAL MICROWAVE OPERATION

TURNTABLE ON/OFF

For most cooking, the turntable should be on; however the turntable can be turned off so that it does not rotate when extra large dishes, such as the popular 13”x9”x2” glass utility casserole, are used. The casserole should be placed on the turntable so that it is level.

• Suppose you want to cook lasagna in a 13”x9”x2” casserole for 45 minutes on 40% power.

1.Touch TURNTABLE ON/OFF pad and note TURNTABLE OFF in the display.

2.Enter cooking time by touching the number pads 4500.

3.Touch POWER LEVEL pad and the number 4.

4.Touch START.

Notes:

The door can be opened for checking food and the turntable will stay in the off position. After checking, close door and touch START.

The turntable will stay off for one minute after door is opened when time-of-day appears in the display. It is possible to reprogram the oven during that minute without touching the TURNTABLE ON/OFF pad. The display always indicates whether the turntable is off or on.

THE TURNTABLE SHOULD ALWAYS BE ON WHEN USING THE SPECIAL FEATURES. On/Off function can be used with manual cooking modes and Sensor Reheat. Turntable off condition will automatically change to on condition when you select auto cooking except Sensor Reheat and Auto Bake.

When cooking large quantities of food which cannot be stirred, it is best to use a lower power level such as 40 or 50%. You may speed cooking of large amounts by programming 5 to 10 minutes on 100% power (HIGH) followed by the desired time on lower power. See page 28 for how to program multiple sequences. You may wish to reverse a large casserole once during cooking; simply open door, reposition casserole, close door and touch START.

FAN / LIGHT

Your oven is equipped with a light and a fan which can be used whether the door is open or closed.

To turn the light on, touch the LIGHT pad once. To turn the light off, touch the LIGHT pad again.

To turn the fan on, touch the FAN HI/LO pad once for high speed. To turn the fan to low speed, touch pad twice and touch the pad three times to turn the fan off. When fan is manually turned on, 'H' will be shown on the display. When the fan is turned off, 'H' will disappear from display.

TIME COOKING -MICROWAVE

Your oven can be programmed for 99 minutes 99 seconds (99.99). Always enter the seconds after the minutes, even if they are both zeros.

• Suppose you want to cook for 5 minutes at 100%.

1.Enter cooking time by touching the number pads 500.

2.Touch START pad.

15

MANUAL MICROWAVE OPERATION

KEEP WARM

KEEP WARM can only be programmed with manual cooking or as a separate program.

Suppose you want to cook a baked potato for 4 minutes at 100% power and you want to keep it warm after cooking for 30 minutes.

1.Touch the desired cook time 400 for 1 baked potato.

2.Touch KEEP WARM pad.

3.Touch START pad.

At the end of cook time, KEEP WARM is displayed warming food until end of 30 minutes.

To use KEEP WARM as a separate program, touch KEEP WARM pad within 1 minute after cooking, closing the door or touching the STOP/CLEAR pad.

TO SET POWER LEVEL

There are eleven preset power levels.

Using lower power levels increases the cooking time which is recommended for foods such as cheese, milk and long slow cooking of meats. Consult cookbook or recipes for specific recommendations.

POWER LEVEL

100%

High

9

90%









8

80%









7

70%

Medium High

6

60%









5

50%

Medium







4

40%



3

30%

Med Low/Defrost







2

20%









1

10%

Low

0

0%









• Suppose you want to defrost for 5 minutes at 30% with the turntable on.

1.Enter defrosting time by touching the number pads 500.

2.Touch POWER LEVEL pad and number 3.

3.Touch START pad.

16

MICROWAVE FEATURES

DEFROST

DEFROST automatically defrosts ground meat, steaks, chicken pieces.

• Suppose you want to defrost a 2.0 pound steak.

1.Touch DEFROST pad once. Then touch DEFROST pad two more times to select steak.

2.Enter weight by touching the number 20 pads.

3.Touch START pad.

The oven will stop and directions will be displayed. Follow the indicated message.

4. After the 1st stage, open the door. Turn steak over and shield any warm portions. Close the door. Touch START pad.

5.After the 2nd stage, open the door. Shield any warm portions. Close the door. Touch START pad.

6.After defrost cycle ends, cover and let stand as indicated in chart below.

Notes:

1.The weight can be entered in increments of 0.1 lb. If you attempt to enter more or less than the allowed amount as indicated in chart, an error message will appear in the display

2.Defrost can be programmed with More or Less Time Adjustment. See page 28.

3.To defrost other foods or foods above or below the weights allowed on Defrost Chart see Manual Defrost on page 18.

DEFROST CHART

TOUCH

FOOD

AMOUNT

PROCEDURE

DEFROST PAD*















Once

Ground Meat

.5 - 3.0 lb.

Remove any thawed pieces after each stage. Let







stand, covered, 5 to 10 minutes.









Twice

Steaks

.5 - 4.0 lb.

After each stage of defrost cycle, rearrange and if



(chops, fish)



there are warm or thawed portions, shield with small







flat pieces of aluminum foil. Remove any meat or







fish that is nearly defrosted. Let stand, covered, 10 to







20 minutes.









3 times

Chicken pieces

.5 - 3.0 lb.

After each stage of defrost cycle, if there are warm







or thawed portions, rearrange or remove. Let stand,







covered, 10–20 minutes.









* Number of touches AFTER initial touch to access DEFROST.

Notes:

Check foods when oven signals. After final stage, small sections may still be icy. Let stand to continue thawing. Do not cook until all ice crystals are thawed.

Shielding prevents cooking from occurring before the center of the food is defrosted. Use small smooth strips of aluminum foil to cover edges and thinner sections of the food.

17

MICROWAVE FEATURES

MANUAL DEFROST

If the food that you wish to defrost is not listed on the Defrost Chart or is above or below the limits in the 'Amount' column on the chart, you need to defrost manually.

You can defrost any frozen food, either raw or previously cooked, by using power level 3. Follow the exact 3-step procedure found under To Set Power Level on page 16. Estimate defrosting time and press number 3 for 30% when you select the power level.

For either raw or previously cooked frozen food, the rule of thumb is approximately 5 minutes per pound. For example, defrost 5 minutes for 2-3 cups of casserole or 1 pound of frozen spaghetti sauce.

Always stop the oven periodically to remove or separate the portions that are defrosted. If food is not defrosted at the end of the estimated defrosting time, program the oven in 1 minute increments on power level 3 until totally defrosted.

When using plastic containers from the freezer, defrost only long enough to remove from the plastic in order to place food in a microwave-safe dish.

SENSOR COOKING

The Sensor is a semi-conductor device that detects the vapor (moisture and humidity) emitted from the food as it heats. The Sensor adjusts the cooking times and power level for various foods and quantities. It takes the guesswork out of microwave cooking.

Using SENSOR Settings:

1.Room temperature should not exceed 95˚F.

2.Be sure the exterior of the cooking container and the interior of the oven are dry. Wipe off any moisture with a dry cloth or paper towel.

3.Sensor cooking can only be entered within 1 minute after cooking, opening and closing the door or touching the STOP/CLEAR pad.

4.During the first part of sensor cooking, SENSOR REHEAT, POPCORN REGULAR SENSOR, BAKED POTATO, FROZEN VEG, SOFT FRESH VEG, HARD FRESH VEG, FROZEN ENTREE, HOT DOGS, BACON or

FISH will appear on display. Do not open oven door or touch STOP/CLEAR during this part of the cooking cycle. The measurement of vapor will be interrupted. If this occurs, ERROR will appear and sensor cooking will be interrupted. To continue cooking, touch the STOP/CLEAR pad and select cooking time and power. When sensor detects the vapor emitted from the food, remainder of cooking time will appear. Door may be opened when remaining cooking time appears on display. At this time, you may stir or season food, as desired.

5.Check food for doneness after cooking with sensor settings. If additional time is needed, continue to cook with variable power and time.

6.If the sensor does not detect vapor, ERROR will appear and the oven will shut off.

7.At the end of any cycle, open oven door or touch STOP/CLEAR pad. The time of day will reappear on the display.

8.Any sensor setting can be programmed with More or Less Time Adjustment. See page 28.

Selecting Foods:

1.The sensor works with foods at normal storage temperature. For example, foods for reheating would be at refrigerator temperature and potatoes for baking would be room temperature.

2.More or less food than the quantity listed in the charts should be cooked by time and variable power.

18

MICROWAVE FEATURES

Covering Foods:

Some foods work best when covered. Use the cover recommended in the Sensor Cooking chart for these foods.

1.Casserole lid.

2.Plastic wrap: Use plastic wrap recommended for microwave cooking. Cover dish loosely; allow approximately 1/2 inch to remain uncovered to allow steam to escape. Plastic wrap should not touch food.

3.Paper towel: Use paper towels to absorb excess fat and moisture when cooking bacon and potatoes. Line the turntable when baking potatoes.

4.Wax paper: Cover dish completely; fold excess wrap under dish to secure. If dish is wider than paper, overlap two pieces at least one inch to cover.

SENSORS

Your oven has Popcorn and Sensor Reheat. To use any of the Sensors, simply touch the chosen pad. The microwave oven will start automatically. Any sensor setting can be programmed with More or Less Time Adjustment. See page 28.

SENSOR REHEAT

Turntable on:

You can reheat many foods by touching just one pad. You don’t need to calculate reheating time or power level. To reheat food with turntable on, simply touch the SENSOR REHEAT pad.

Touch SENSOR REHEAT pad. (Note : Sensor Reheat can be programmed with turntable on or off ). SENSOR REHEAT will be displayed repeatedly. When sensor detects the vapor emitted from the food, remainder of cooking time will appear. After cooking, LET STAND COVER will be displayed.

Turntable off:

You may reheat using a 11”x8”x2” or 13”x9”x2” casserole with the turntable off. First touch TURNTABLE ON/OFF and note indicator. Then touch SENSOR REHEAT. The display will indicate turntable off and oven will start automatically. After cooking, LET STAND COVER will be displayed.

POPCORN

• Suppose you want to pop a 3.5 oz. bag of popcorn.

Touch POPCORN pad once. SENSOR POPCORN REGULAR be displayed repeatedly. After cooking, END will be displayed.

This sensor setting works well with most brands of microwave popcorn. You may wish to try several and choose your favorite. Pop only one bag at a time. Unfold the bag and place in oven according to directions.

19

MICROWAVE FEATURES

SENSOR CHART

FOOD

AMOUNT

PROCEDURE







Leftovers such as

4-32 oz.

Place in dish or casserole slightly larger than amount to be

rice, potatoes,



reheated. Flatten, if possible. Cover with lid, plastic wrap

vegetables



or wax paper. Use covers such as plastic wrap or lids with

casserole



larger quantities of more dense foods such as stews.

Soups

1-4 cups

After reheating, stir well, if possible. Foods should be very





hot. If not, continue to heat with variable power and time.





After stirring, recover and allow to stand 2 to 3 minutes.

Canned entrees

4-16 oz.

Use less Time Adjustment by touching POWER LEVEL pad

and vegetables



twice for small quantities of canned vegetables.







Dinner Plate

3-6 oz. of meat plus

Use this pad to reheat precooked foods from the refrigera-

1 plate

vegetables and/or

tor. Place meaty portions and bulky vegetables to outside of



potato/rice

plate. Cut large items like baked potatoes in smaller pieces.





Flatten foods such as mashed potatoes and other dense





foods. Cover with wax paper or plastic wrap. ONE PLATE





ONLY. After cooking, check that food is very hot through-





out and that the bottom center of the plate is very hot. If





not, continue heating using time and power level. Allow to





stand, covered, 2 to 3 minutes.







Popcorn

Only 1 package

Use only popcorn packaged for microwave oven use. Try



at a time

several brands to decide which you like best. Do not try to





pop unpoped kernels. More or Less Time Adjustment can





be used to provide adjustment needed for older popcorn or





individual tastes.



3.0-3.5 oz. bag

Touch POPCORN pad once. This setting works well with



(Regular size)

most 3.0-3.5 oz. bags of microwave popcorn.



1.5-1.75 oz. bag

Touch POPCORN pad twice for snack size bags.



(Snack size)









20

MICROWAVE FEATURES

SENSOR COOK

• Suppose you want to cook a baked potato:

1.Touch SENSOR COOK pad.

2.Select desired sensor setting. Example: Touch number pad 1 to cook baked potatoes.

3.Touch START pad. When sensor detects the vapor emitted from the food, the remainder of cooking time will appear.

Open oven door or touch STOP/CLEAR pad. The time of day will appear in the display.

SENSOR COOK CHART



FOOD

AMOUNT

PROCEDURE









1.

BAKED

1-6 medium

Pierce. Place on paper-towel-lined turntable.



POTATOES



After cooking, remove from oven, wrap in aluminum







foil and let stand 5 to 10 minutes.









2.

FROZEN

1-6 cups

Cover with lid or plastic wrap. After cooking, stir and let



VEGETABLES



stand 3 minutes, covered.









3.

FRESH VEGETABLES-SOFT



Wash and place in casserole. Add no water if vegetables



Broccoli

0.25-2.0 lb.

have just been washed. Cover with lid for tender



Brussels sprouts

0.25-2.0 lb.

vegetables. Use plastic wrap for tender-crisp vegetables.



Cabbage

0.25-2.0 lb.

Stir before standing, if possible. After cooking, let stand,



Cauliflower (flowerets)

0.25-2.0 lb.

covered, 2 to 5 minutes.



Cauliflower (whole)

1 medium





Spinach

0.25-1.0 lb.





Zucchini

0.25-2.0 lb.





Baked apples

2-4 medium











4.

FRESH VEGETABLES-HARD



Place in casserole. Add 1-4 tbsp. water. Cover with lid for



Carrots, sliced

0.25-1.5 lb.

tender vegetables. Use plastic wrap cover for tender-



Corn on the cob

2-4 pcs

crisp vegetables. Stir before standing, if possible. After



Green beans

0.25-1.5 lb.

cooking, let stand, covered, 2 to 5 minutes.



Winter squash: diced

0.25-1.5 lb.





halves

1-2











5.

FROZEN ENTREES

6-17 oz.

Use for frozen convenience food. It will give satisfactory







results for most brands. You may wish to try several







and choose your favorite. Remove package from outer







wrapping and follow package directions for covering.







After cooking, Iet stand, covered, for 1 to 3 minutes.









6.

HOT DOGS

1-4 servings

Place hot dog in bun and wrap in paper towel or paper







napkin.









7.

BACON

2-6 slices

Place bacon on paper plate, lined with paper towel.







Bacon should not extend over the rim of plate.







Cover with paper towel.









8.

FISH, SEAFOOD

0.25-2.0 lb.

Arrange in ring around shallow glass dish (roll fillet with







edges underneath). Cover with vented plastic wrap.







After cooking, let stand, covered, 3 minutes.









21

MICROWAVE FEATURES

SENSOR COOK RECIPES

Cranberry Fluff

Makes 6 to 8 servings

2cups fresh cranberries

1cup water ¾ cup sugar

1carton (3 oz.) orange-flavored gelatin ½ pint whipping cream, whipped or

1carton (8 oz.) non-dairy whipped topping

1.Combine cranberries, water and sugar in a 2-quart casserole dish. Cover with wax paper. Microwave using SENSOR COOK for FRESH VEGETABLES-SOFT. Drain cranberries and reserve liquid.

2.Add enough hot water to reserved liquid to make 2 cups. Stir gelatin into hot liquid until it dissolves. Cover with wax paper. Microwave using SENSOR REHEAT Less.

3.Add berries and cool. Refrigerate until thickened. Fold whipped cream into cooled cranberry mixture. Spoon into serving dishes and garnish with extra whipped cream. Refrigerate until ready to serve.

Glazed Apple Slices

Makes 6 to 8 servings

¼cup firmly-packed brown sugar

3tablespoons butter or margarine 2 tablespoons apricot preserves ½ teaspoon ground nutmeg

¼ teaspoon salt ½ cup sugar

¾ cup orange juice

1 tablespoon cornstarch

4 baking apples (about 1½ lbs), peeled and sliced into 8 pieces each

3tablespoons chopped green pistachios

1.Combine brown sugar, butter and apricot preserves in a small bowl. Microwave at HIGH (100%) 45 seconds to 1 minute, until butter melts and preserves soften. Stir in nutmeg, salt, sugar, orange juice and cornstarch. Microwave at HIGH (100%), 4 to 6 minutes or until thickened, stirring several times.

2.Arrange apple slices in a large microwave serving dish. Spread hot sauce over apples. Cover well with vented wax paper. Microwave using FRESH VEGETABLES-SOFT. Allow to cool 5 minutes before serving.

3.Sprinkle with pistachios. Serve alone or over vanilla ice cream or sponge cake.

Savory Flounder Fillets

Makes 4 servings

¾cup corn flake crumbs

3 tablespoons chopped parsley

2 teaspoons grated lemon peel

½teaspoon paprika

1pkg. (1 lb.) flounder fillets

1egg, slightly beaten

Tarter or cocktail sauce, optional

1.On wax paper, combine crumbs, parsley, lemon peel and paprika. Dip fillets in beaten egg, then coat with crumb mixture.

2.Place fish in a covered, microwave-safe baking dish. Microwave using FISH, SEAFOOD.

3.Serve with tartar or cocktail sauce, if desired.

22

MANUAL CONVECTION AND

AUTOMATIC MIX OPERATION

This section gives you specific cooking instructions and procedures. The oven should not be used without the turntable in place, and it should never be restricted so that it cannot rotate. You may remove the turntable when preheating the oven and when preparing food to be cooked directly on the turntable.

Caution: The oven cabinet, cavity, door, turntable, turntable support, racks and dishes will become hot. To PREVENT BURNS, use thick oven gloves when removing the food or turntable from the oven.

CONVECTION COOKING

During convection heating, hot air is circulated throughout the oven cavity to brown and crisp foods quickly and evenly. This oven can be programmed for ten different convection cooking temperatures for up to 99 minutes, 99 seconds.

TO COOK WITH CONVECTION

• Suppose you want to cook at 350˚F for 20 minutes.

1. Touch CONVEC pad.

2.Select temperature by touching number pad 350˚F6 .

3.Enter cooking time by touching number pads 2000.

4.Touch START pad.

TO PREHEAT AND COOK WITH CONVECTION

Your oven can be programmed to combine preheating and convection cooking operations. You can preheat at the same temperature as the convection temperature or change it to a higher or lower temperature.

• Suppose you want to preheat until 350˚F and then cook 25 minutes at 375˚F convection.

1.Touch PREHEAT pad.

2.Select temperature by touching number pad 350˚F6 .

3.Touch CONVEC pad.

4.Select temperature by touching number pad 375˚F7 .

5.Enter cooking time by touching number pads 2500.

6.Touch START pad.

When the oven reaches the programmed temperature, it will automatically hold at the preheat temperature for 30 minutes and then the display will change to time of day. Whenever STOP/CLEAR pad is touched during this 30 minute period, press CONVEC or press MIX will be displayed and cooking mode and time can be entered.

Note: To preheat and cook with the same temperature, enter same temperature in steps 2 and 3.

BROIL

In the BROIL setting, preheating is automatic. Just enter the actual broiling time and wait for preheat to be over before adding food. (Preset 450˚F). Oven temperature cannot be changed.

• Suppose you want to broil a ham steak for 15 minutes.

1.Touch BROIL pad.

2.Enter cooking time by touching number pads 1500.

3.Touch START pad.

23

MANUAL CONVECTION AND

AUTOMATIC MIX OPERATION

SLOW COOK

Slow Cook is a preset at 300˚F. Slow Cook is programmed for 4 hours. Oven temperature can be changed to temperature below 300˚F. Simply touch the SLOW COOK pad and touch the desired numbered pad with temperature below 300˚F.

1. Touch SLOW COOK pad.

2. Touch START pad. The oven begins counting and continues to 4 hours.

AUTOMATIC MIX COOKING

This oven has two pre-programmed settings that make it easy to cook with both convection heat and microwave automatically.



OVEN TEMPERATURE

MICROWAVE POWER







HIGH MIX

325˚F

30%







LOW MIX

325˚F

10%

With the exception of those foods that cook best by convection heating alone, most foods are well suited to mix cooking using either LOW MIX/BAKE or HIGH MIX/ROAST.

The marriage of these two cooking methods produces juicy meats, moist and tender cakes and fine textured breads, all with just the right amount of browning and crispness.

The temperature can be changed; however, the microwave power cannot.

The oven temperature can be changed from 100˚F to 450˚F. To change the temperature, first touch HIGH MIX or LOW MIX, then touch the same pad again. When the display says SELECT TEMP, touch desired temperature pad. Ex: HIGH MIX, HIGH MIX, pad 7. The mix temperature will change automatically.

TO COOK WITH AUTOMATIC MIX

• Suppose you want to bake a cake at low mix for 20 minutes.

1. Touch LOW MIX/BAKE pad.

2.Enter cooking time by touching number pads 2000.

3.Touch START pad.

TO PREHEAT AND COOK WITH AUTOMATIC MIX

Your oven can be programmed to combine preheating and automatic mix cooking operations. You can preheat at the same temperature as the preset combination temperature or change it to a different temperature.

• Suppose you want to preheat to 350˚F and then cook 25 minutes on 300˚F LOW MIX/BAKE:

1.Touch PREHEAT pad.

2.Touch temperature pad 350˚F6 .

3.Touch LOW MIX pad. Touch LOW MIX pad once more to change the cooking temperature.

4.Touch temperature pad 300˚F4 .

5.Enter cooking time by touching number pads 2500.

6.Touch Start pad.

At the end of the baking time, 1 long tone will sound and END will be displayed.

24

Loading...
+ 56 hidden pages
