Fisher Paykel CI304DTB2 User Manual

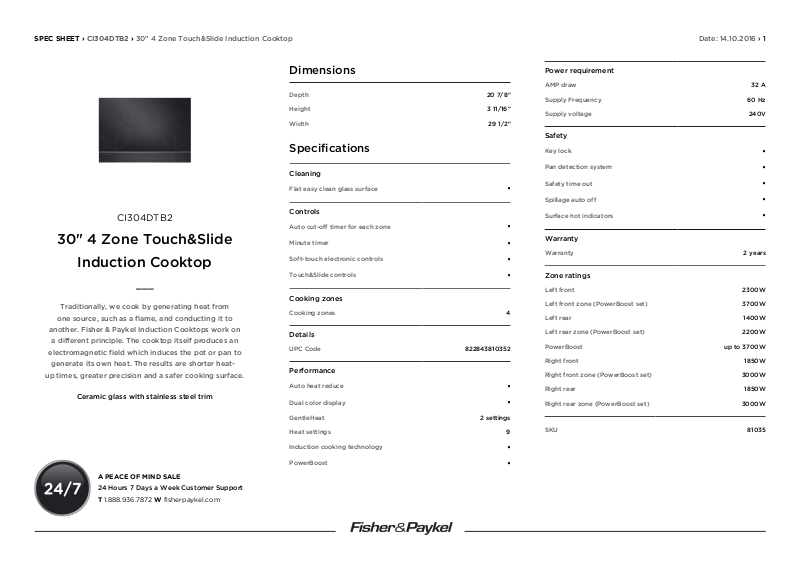

SPEC SHEET › CI304DTB2 › 30" 4 Zone Touch&Slide Induction Cooktop Date: 14.10.2016 › 1
CI304DTB2
30" 4 Zone Touch&Slide
Induction Cooktop
___
Traditionally, we cook by generating heat from
one source, such as a flame, and conducting it to
another. Fisher & Paykel Induction Cooktops work on
a different principle. The cooktop itself produces an
electromagnetic field which induces the pot or pan to
generate its own heat. The results are shorter heat-
up times, greater precision and a safer cooking surface.
Ceramic glass with stainless steel trim
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W fisherpaykel.com
Dimensions
Depth 20 7/8"
Height 3 11/16"
Width 29 1/2"
Specifications
Cleaning
Flat easy clean glass surface
Controls
Auto cut-off timer for each zone
Minute timer
Soft-touch electronic controls
Touch&Slide controls
Cooking zones
Cooking zones 4
Details
UPC Code 822843810352
Performance
Auto heat reduce
Dual color display
GentleHeat 2 settings
Heat settings 9
Induction cooking technology
PowerBoost
Power requirement
AMP draw 32 A
Supply Frequency 60 Hz
Supply voltage 240V
Safety
Key lock
Pan detection system
•
Safety time out
Spillage auto off
Surface hot indicators
•
•
•
•
•
•
•
•
•
•
•
Warranty
Warranty 2 years
Zone ratings
Left front 2300W
Left front zone (PowerBoost set) 3700W
Left rear 1400W
Left rear zone (PowerBoost set) 2200W
PowerBoost up to 3700W
Right front 1850W
Right front zone (PowerBoost set) 3000W
Right rear 1850W
Right rear zone (PowerBoost set) 3000W
SKU 81035
•
•
SPEC SHEET › CI304DTB2 › 30" 4 Zone Touch&Slide Induction Cooktop Date: 14.10.2016 › 2
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model
currently available. © © Fisher & Paykel Appliances Ltd 2016
Other product downloads available at fisherpaykel.com
