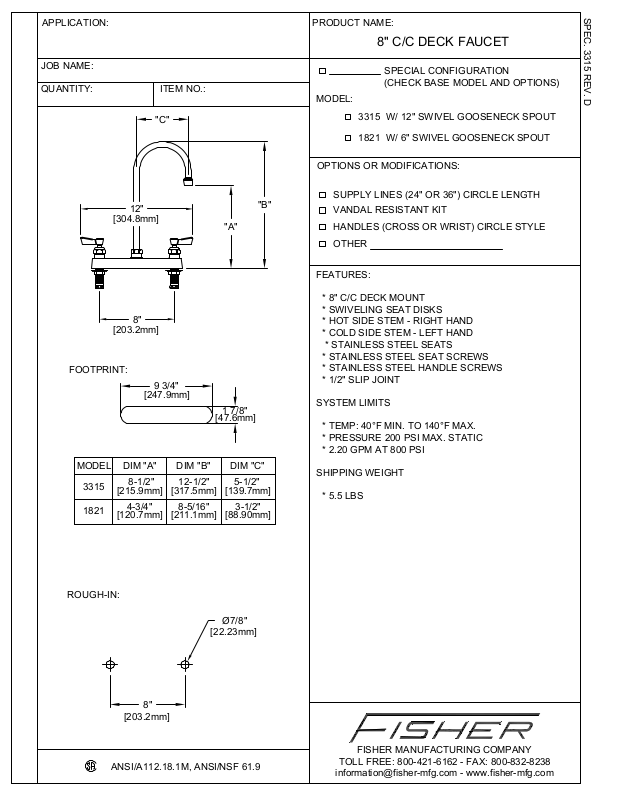

APPLICATION:
PRODUCT NAME:
8" C/C DECK FAUCET
SPEC. 3315 REV. D
JOB NAME:
QUANTITY:
FOOTPRINT:
MODEL
3315
1821
12"
[304.8mm]
8"
[203.2mm]
[247.9mm]
DIM "A"
8-1/2"
[215.9mm]
4-3/4"
[120.7mm]
ITEM NO.:
"C"
9 3/4"
DIM "B"
12-1/2"
[317.5mm]
8-5/16"
[211.1mm]
"A"
1 7/8"
[47.6mm]
DIM "C"
5-1/2"
[139.7mm]
3-1/2"
[88.90mm]
"B"
SPECIAL CONFIGURATION
(CHECK BASE MODEL AND OPTIONS)
MODEL:
W/ 12" SWIVEL GOOSENECK SPOUT
3315
W/ 6" SWIVEL GOOSENECK SPOUT
1821
OPTIONS OR MODIFICATIONS:
SUPPLY LINES (24" OR 36") CIRCLE LENGTH
VANDAL RESISTANT KIT
HANDLES (CROSS OR WRIST) CIRCLE STYLE
OTHER
FEATURES:
* 8" C/C DECK MOUNT
* SWIVELING SEAT DISKS
* HOT SIDE STEM - RIGHT HAND
* COLD SIDE STEM - LEFT HAND
* STAINLESS STEEL SEATS
* STAINLESS STEEL SEAT SCREWS
* STAINLESS STEEL HANDLE SCREWS
* 1/2" SLIP JOINT
SYSTEM LIMITS
* TEMP: 40°F MIN. TO 140°F MAX.
* PRESSURE 200 PSI MAX. STATIC
* 2.20 GPM AT 800 PSI
SHIPPING WEIGHT
* 5.5 LBS
ROUGH-IN:
ANSI/A112.18.1M, ANSI/NSF 61.9
Ø7/8"
[22.23mm]
8"
[203.2mm]
FISHER MANUFACTURING COMPANY
TOLL FREE: 800-421-6162 - FAX: 800-832-8238
information@fisher-mfg.com - www.fisher-mfg.com
APPLICATION:
SPEC. 3316 REV. D
PRODUCT NAME:
8" C/C DECK FAUCET
JOB NAME:
3-3/8"
[84.8mm]
[50.8mm]
FOOTPRINT:
2"
ITEM NO.:QUANTITY:
12" (MAX)
[304.8mm]
8"
[203.2mm]
9-3/4"
[247.9mm]
"C"
1-7/8"
[47.6mm]
"A"
"B"
SPECIAL CONFIGURATION
(CHECK BASE MODEL AND OPTIONS)
MODEL:
WITH 12" RIGID GOOSENECK SPOUT
3316
WITH 6" RIGID GOOSENECK SPOUT
1848
OPTIONS OR MODIFICATIONS:
SUPPLY LINES (24" OR 36") CIRCLE LENGTH
VANDAL RESISTANT KIT
HANDLES (CROSS OR WRIST) CIRCLE STYLE
OTHER
FEATURES:
* 8" C/C DECK MOUNT
* SWIVELING SEAT DISKS
* HOT SIDE STEM - RIGHT HAND
* COLD SIDE STEM - LEFT HAND
* STAINLESS STEEL SEATS
* STAINLESS STEEL SEAT SCREWS
* STAINLESS STEEL HANDLE SCREWS
* 1/2" SLIP JOINT
SYSTEM LIMITS
* TEMP: 40°F MIN. TO 140°F MAX.
* PRESSURE 200 PSI MAX. STATIC
* 2.20 GPM AT 80 PSI
MODEL
3316
1848
ROUGH-IN:
DIM "A"
8-1/2"
[215.9mm]
4-3/4"
DIM "B"
12-1/2"
[317.5mm]
8-3/8"
DIM "C"
5-1/2"
[139.7mm]
3-1/2"
[88.9mm][120.7mm] [212.7mm]
Ø7/8"
[22.2mm]
8"
[203.2mm]
ANSI/A112.18.1M, ANSI/NSF 61.9
SHIPPING WEIGHT
* 5.5 LBS
FISHER MANUFACTURING COMPANY
TOLL FREE: 800-421-6162 - FAX: 800-832-8238
information@fisher-mfg.com - www.fisher-mfg.com
