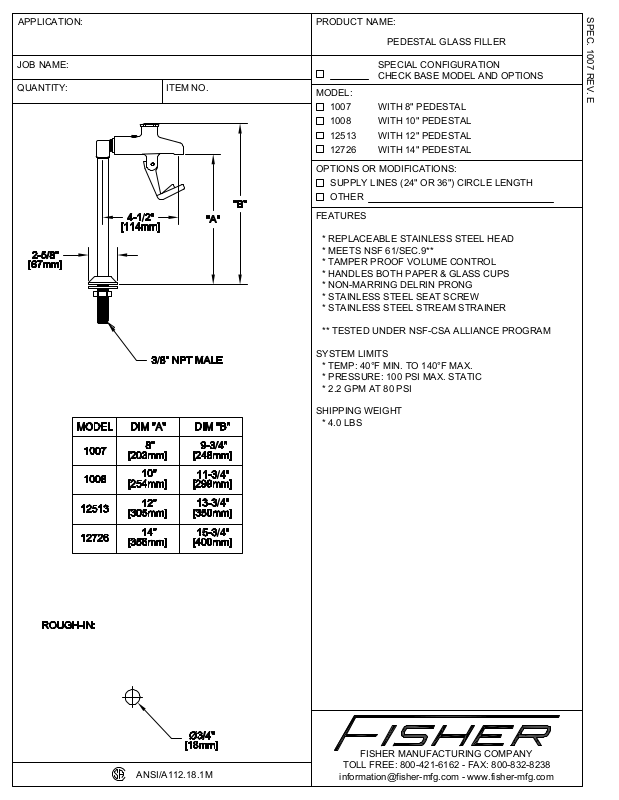

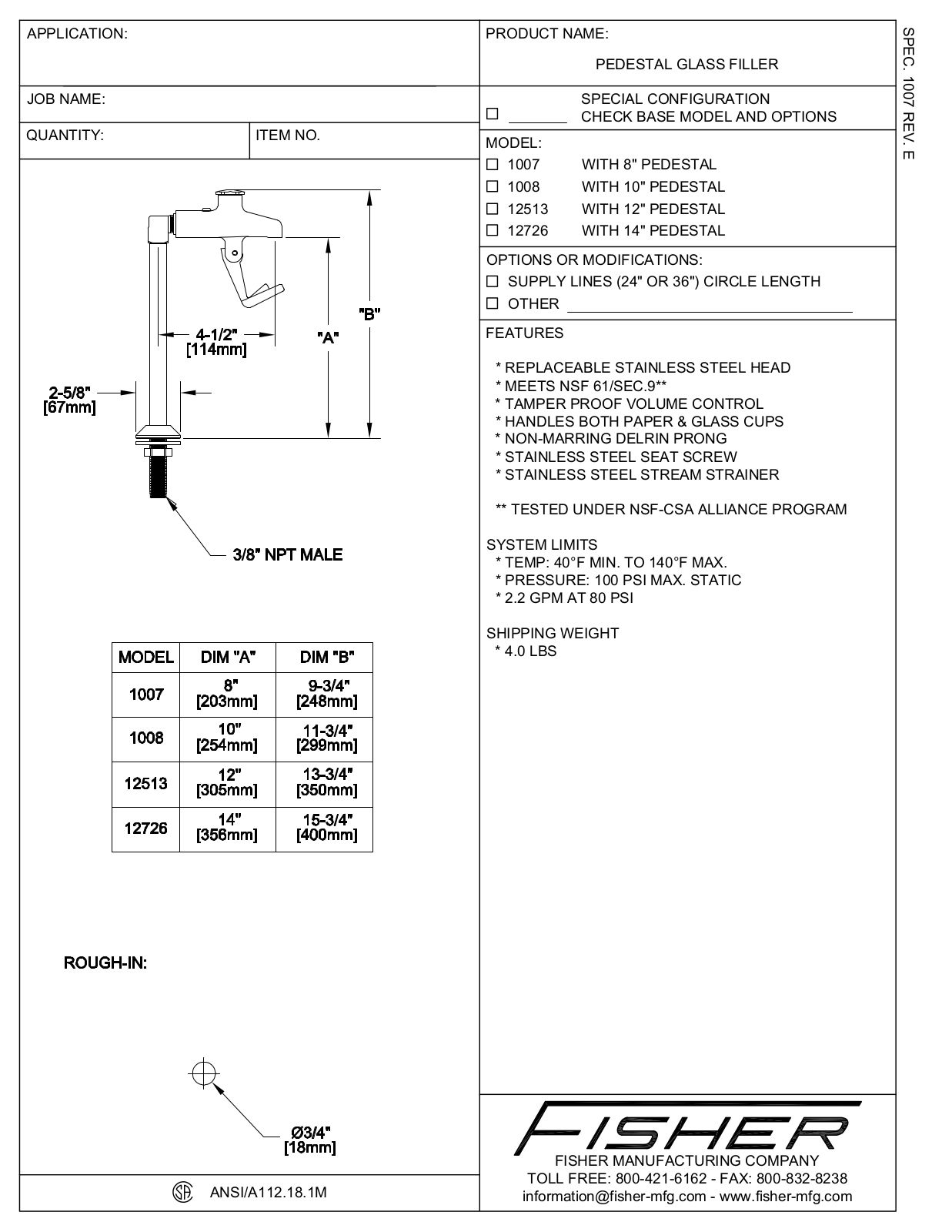

Fisher Manufacturing 1007 Shematics

APPLICATION:

PRODUCT NAME:

PEDESTAL GLASS FILLER

SPEC. 1007 REV. E

JOB NAME:

QUANTITY:

ITEM NO.

SPECIAL CONFIGURATION
CHECK BASE MODEL AND OPTIONS

MODEL:

1007

1008

12513

12726

WITH 8" PEDESTAL

WITH 10" PEDESTAL

WITH 12" PEDESTAL

WITH 14" PEDESTAL

OPTIONS OR MODIFICATIONS:

SUPPLY LINES (24" OR 36") CIRCLE LENGTH

OTHER

FEATURES

* REPLACEABLE STAINLESS STEEL HEAD
* MEETS NSF 61/SEC.9**
* TAMPER PROOF VOLUME CONTROL
* HANDLES BOTH PAPER & GLASS CUPS
* NON-MARRING DELRIN PRONG
* STAINLESS STEEL SEAT SCREW
* STAINLESS STEEL STREAM STRAINER

** TESTED UNDER NSF-CSA ALLIANCE PROGRAM

SYSTEM LIMITS

* TEMP: 40°F MIN. TO 140°F MAX.
* PRESSURE: 100 PSI MAX. STATIC
* 2.2 GPM AT 80 PSI

SHIPPING WEIGHT

* 4.0 LBS

ANSI/A112.18.1M

FISHER MANUFACTURING COMPANY

TOLL FREE: 800-421-6162 - FAX: [phone]

[e-mail] - www.fisher-mfg.com
