INSTRUCTION MANUAL
I
index
SRC-850A
Video Cassette Recorder English
Magnétoscope à Cassette Français
Videograbador Español
Please read this manual and accompanying “IMPORTANT SAFETY INSTRUCTIONS” sheet carefully before connecting your VCR and operating it for the first time. Be sure to read carefully and follow all the PRECAUTIONS on page 1 and 2. Keep the manual in a safe place for future reference.
PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
CAUTION:
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
To reduce the risk of fire or electric shock, do not expose this appliance to rain or other moisture.
CAUTION:
Changes or modifications not expressly approved by the manufacturer may void the user’s authority to operate this equipment.
For customers in Canada
This class B digital apparatus complies with Canadian ICES-003.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generated, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
œ Reorient or relocate the receiving antenna. œ Increase the separation between the equipment
and receiver.
œ Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
œ Consult the dealer or an experienced radio/TV
technician for help.
English
1
PRECAUTIONS
Location
For safe operation and satisfactory performance of your VCR, keep the following in mind when selecting a place for its installation:
œ Shield it from direct sunlight and keep it away from
sources of intense heat.
œ Avoid dusty or humid places. œ Avoid places with insufficient ventilation for proper
heat dissipation. Do not block the ventilation holes of the VCR. Do not place the unit on a carpet because this will block the ventilation holes.
œ Install the VCR in a horizontal position only. œ Avoid locations subject to strong vibrations. œ Avoid moving the VCR between cold and hot
locations (see “Moisture Condensation Problems”, this page).
œ Do not place the VCR directly on top of the TV, as this
may cause playback or recording problems.
Avoiding Electrical Shock and Fire
œ Do not handle the power cord with wet hands. œ Do not pull on the power cord when disconnecting it
from an AC wall outlet. Grasp it by the plug.
œ If any liquid is spilled on the VCR, unplug the power
cord immediately and have the unit inspected at a factory-authorized service center.
œ Do not place anything directly on top of this VCR.
Moisture Condensation Problems
Cause:
When the VCR is first installed, moved from a cold area to a warm area or placed in a location with high humidity, dew (moisture) may form in the unit. The Dew indicator (À) blinks. If you operate the VCR with dew inside, damage may result.
Prevention:
Do not operate the VCR for approximately 2 hours.
1
When the VCR reaches room temperature, the Dew indicator (À) will turn off and the VCR will be ready for operation.
2
English
CONTENTS
FEATURES
PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
ACCESSORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
LOCATIONS OF CONTROLS AND INDICATORS . . . . 4
CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ON-SCREEN MENU. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
SETTING THE LANGUAGE AND CLOCK. . . . . . . . . . 11
SUPERIMPOSE DISPLAY . . . . . . . . . . . . . . . . . . . . . . 13
VIDEO CASSETTE TAPES . . . . . . . . . . . . . . . . . . . . . 14
TAPE MANAGEMENT . . . . . . . . . . . . . . . . . . . . . . . . . 16
NORMAL RECORDING . . . . . . . . . . . . . . . . . . . . . . . . 19
AUTOREPEAT RECORDING . . . . . . . . . . . . . . . . . . . 22
ALARM RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . 23
SERIES RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . 26
PLAYBACK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
DAY/TIME SEARCH. . . . . . . . . . . . . . . . . . . . . . . . . . . 28
SECURITY LOCK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
œ Tape management function œ High-speed Fast Forward/Rewind œ Field recording/playback œ Audio recording œ Autorepeat recording œ Series recording function œ Alarm recording function œ On-screen mode setting œ Integrated time date generator œ Day/Time search function œ Alarm scan/search function œ Forward/Reverse field advance function œ 30-day memory backup œ Security lock œ Automatic head cleaning function œ Thread check function œ 8-hour mode recording œ Controllable through an RS-485 interface connection
ACCESSORY
SETTING THE BUZZER. . . . . . . . . . . . . . . . . . . . . . . . 29
CLOCK ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . 30
SETTING THE CASSETTE EJECT MODE . . . . . . . . . 31
SETTING FOR RS-485 USE . . . . . . . . . . . . . . . . . . . . 32
CHECKING POWER FAILURE, FAILURE DUE TO
CONDENSATION AND USAGE DURATION . . . . 33
OUTPUT TERMINALS . . . . . . . . . . . . . . . . . . . . . . . . . 34
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . 40
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
1
Power cord
English
3
LOCATIONS OF CONTROLS AND INDICATORS
Front Panel
EJECT
1
EJECT button
2
Cassette loading slot
3
STILL/PAUSE button
SEARCH button
MENU EXIT button
4
REW (rewind) button
5
PLAY button
6
FF (fast forward) button
7
STOP button
8
REC (record) button
9
POWER indicator
F
TAPE END indicator
Flashes during output from the TAPE END OUT
terminal.
21 3
STILL/PAUSE
SEARCH
X I
E
4 5 6 7 89F
REW FF
PLAY
ON SCREENMENU
T
OFF ON
MENU
G H I
TRACKING SHIFT
CLEAR ENTER
MENU RESET button ALL RESET button COUNTER RESET button
j button
J
l button
K
TRACKING + button SHIFT « button ENTER button
L
TRACKING – button SHIFT ] button CLEAR button
M
MENU button Press this button to display the menu. Buttons I, J, K and L are used for menu control.
N
ON SCREEN switch
STOP
(
)
c
(
)
b
POWER
TAPE END
REC
COUNTER
RESET
MENU
RESET
ALL
RESET
GHIJKLMNOP
O
Front door
P
Digital display panel
4
English
LOCATIONS OF CONTROLS AND INDICATORS
Digital Display
2
AL
PT/D
M
OFF
5
1
Mode display
œ Warning display
N flashes: Mode changed to non-recording
mode while recording was in progress. M flashes: Problem with mechanism. V flashes: Video loss has occurred. A flashes: Alarm recording in progress.
When alarm recording finishes, AL
lights.
AL flashes during alarm recording.
NOTES:
œ The warning details appear according to the
(WARNING OUT/EJECT SET) menu setting.
œ The warning display has priority over other
types of display. (Refer to “WARNING OUT Terminal” on page 36.)
œ To cancel the display press the STOP button.
AL
œ Time display (No tape)
31
46
œ Linear time counter
display (Tape inserted)
œ Dew display
œ Tracking control
display
œ Data transfer speed
setting display
œ Address setting display
2
Power failure indicator Lights after a power failure.
NOTE:
œ To cancel the “P” display, press the MENU
RESET button.
3
Security lock indicator Lights when the security lock is engaged.
œ Recording/playback
speed mode
œ Alarm search
setting display
œ Alarm scan setting
display
œ Day/Time search
setting display
English
AL
AL
T/D
5
LOCATIONS OF CONTROLS AND INDICATORS
4
Operation Indicators
œ
LOCATIONS OF CONTROLS AND INDICATORS
1
Back Panel
PUSH OPEN
AC IN
X W
1
Battery compartment
2
SHORT FOR TERMINATION terminal
3
SHORT FOR TERMINATION terminal
4
Do not use
5
Do not use
6
COM terminal
7
RS485 A terminal
8
RS485 B terminal
OPEN COLLECTOR
1=500mA(Max.) 2= 50mA(Max.)
MIC IN
RS485 ASHORT FOR
COM
COM
AUDIO VIDEO
OUT
TERMINATION.
CLOCK IN EJECT IN WARNING OUT 1 TAPE END
ALARM IN SERIES IN
REMOTE
V
CLOCK OUT
IN
RS485 B
COM RS485 B
(
SERIES) OUT 2
RS485 A
SW OUT
EJECT OUT
IN
OUT
STU R
3
4
2
SHORT FOR
TERMINATION.
CLOCK IN EJECT IN WARNING OUT 1
ALARM IN SERIES IN
O
Q
P
M
COM terminal
N
EJECT IN (eject trigger input) terminal
O
SERIES IN (series recording trigger input) terminal
P
CLOCK IN (external clock set trigger input) terminal
Q
ALARM IN (alarm trigger input) terminal
R
VIDEO IN (video input) jack
S
VIDEO OUT (video output) jack
T
AUDIO OUT (audio output) jack
5
N
6
COM
COM
M
7
8
RS485 B RS485 A
CLOCK OUT
L
9
COMRS485 A RS485 B
TAPE END
(SERIES) OUT 2
K
J
G
F
EJECT OUT
I
H
SW OUT
9
COM terminal
F
RS485 A terminal
G
RS485 B terminal
H
SW OUT (switch output) terminal
I
EJECT OUT (eject trigger output) terminal
J
TAPE END OUT (tape end output) terminal SERIES OUT (series recording trigger output) terminal
K
CLOCK OUT (external clock set trigger output) terminal
L
WARNING OUT (warning output) terminal œ Signals are output when an alarm, video loss,
non-recording or mechanism problem occurs.
U
AUDIO IN (audio input) jack
V
MIC IN (microphone input) jack
W
REMOTE (remote control input) jack
X
AC power input
NOTE:
œ The terminal may be damaged by a torque of 0.49
N.m (5kg.cm) or more and by using screwdriver with a tip with a diameter of 6 mm or more.
English
7
CONNECTIONS

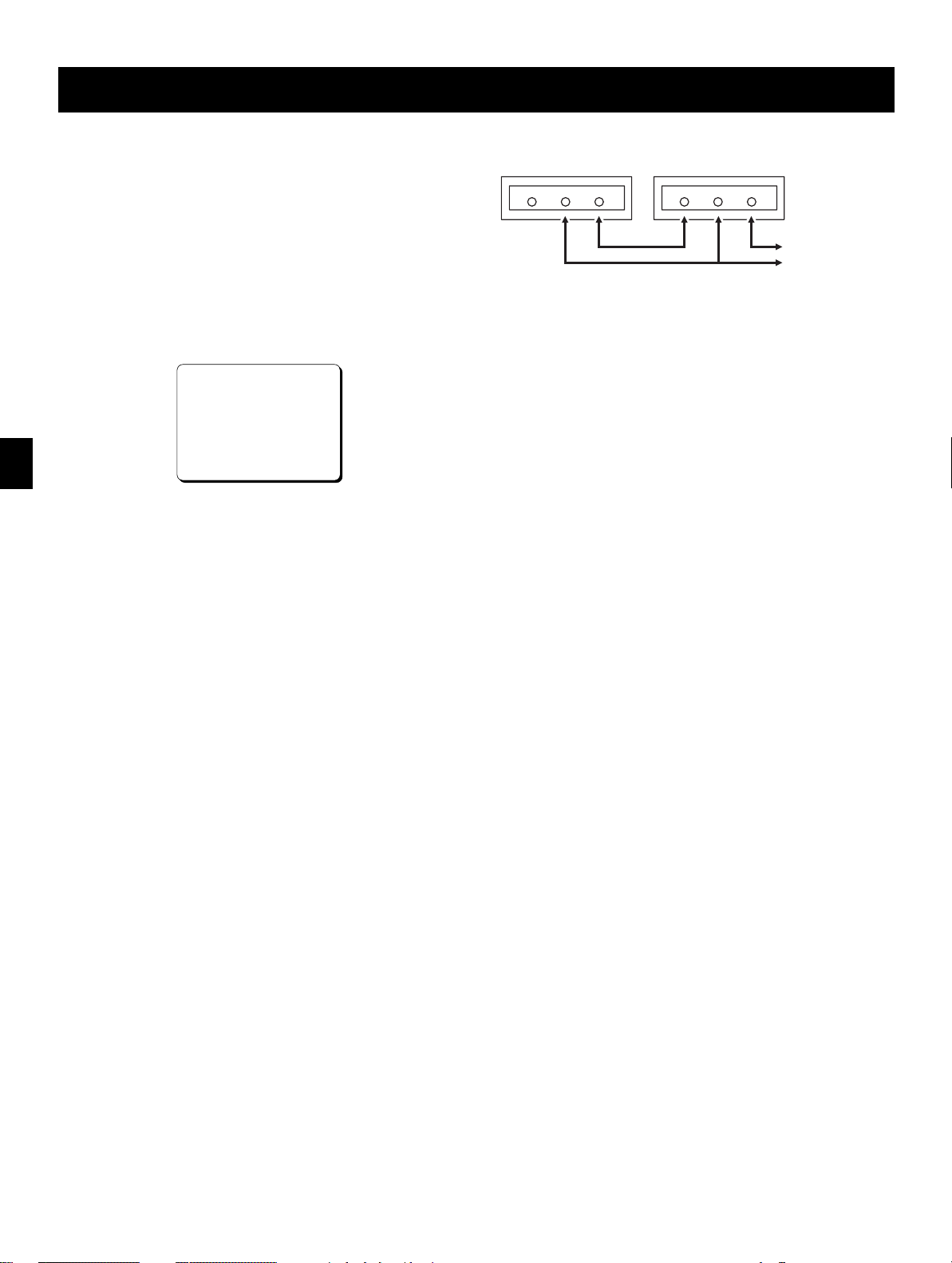

Connect the video camera and TV monitor as shown in the figure below.
NOTE:
Before making the connections, make sure the devices are disconnected from the power outlet.
TV Monitor (sold separately)
Video camera (sold separately)
PUSH OPEN
Power cord
From an external audio source
AC IN
To outlet
RS485 ASHORT FOR
TERMINATION.
OPEN COLLECTOR
1=500mA(Max.) 2= 50mA(Max.)
COM
CLOCK IN EJECT IN WARNING OUT 1 TAPE END
ALARM IN SERIES IN
COM
REMOTE
To remote control
(sold separately)
COM RS485 B
RS485 B
RS485 A
(
SERIES) OUT 2
EJECT OUT
CLOCK OUT
AUDIO VIDEO
IN
IN
OUT
OUT
SW OUT
To VIDEO IN jack
To VIDEO OUT jack
Coaxial cable (sold separately)
ON-SCREEN MENU
Main Menu
To access on-screen menu
When no menu is displayed on-screen, press the
1
MENU button.
ø The MAIN MENU appears.
MAIN MENU
<MAIN@MENU>
1.LANGUAGE/CLOCK@SET
2.DISPLAY/SW@OUT@SET
3.BUZZER@SET
4.GENERAL@SET
5.WARNING@OUT/EJECT@SET
6.ALARM/SERIES@REC@SET
7.TAPE@MANAGEMENT
8.OTHERS
2 Press the MENU EXIT (or MENU) button to return to
the monitor screen.
Using the l, j, ENTER and CLEAR buttons for setting
l (or j) button
œ When the display is highlighted in a MAIN MENU,
select a sub-menu.
œ When the display is highlighted in a sub-menu, select
a setting item.
œ While the display is flashing, the selected data setting
will change or the selected setting value will increase or decrease.
Sub-menus
To enter or modify settings within a sub-menu
When a MAIN MENU is being displayed, press the l
1
(or j) button to select one of the sub-menus, then press the ENTER button.
ø The selected sub-menu appears.
Press the l (or j) button to move the selection to
2
the desired setting, then press the ENTER button.
ø The selected item flashes.
Press the l (or j) button to enter or modify the
3
setting. Press the MENU EXIT button to save the settings
4
and return to the monitor screen.
LANGUAGE/CLOCK SET menu
<LANGUAGE/CLOCK@SET> *LANGUAGE-LANGUE-IDIOMA @@@@@@@@@@@@@@@ENGLISH
*CLOCK@SET @01-01-2002@TUE@00:00:00
*DAYLIGHT@SET@@@@@NO@USE @@@@@@WEEK@@@MONTH@TIME @ON@@@1ST-SUN@@04@@02:00 @OFF@@LST-SUN@@10@@02:00
DISPLAY/SW OUT SET menu
<DISPLAY@SET>@@@@SET@UP DATE@@@@@@@@@@@@@Y TIME@@@@@@@@@@@@@Y ALARM@COUNT@@@@@@Y
ENTER button
œ After making the setting, press this button to save the
setting and move to the next setting.
œ When a MAIN MENU is being displayed, press this
button and the sub-menu for selection will appear.
œ When a menu is being displayed, press this button to
change the selected setting item from highlighted to flashing.
œ If there are several items on one line, press this
button to confirm the setting and move to the next item (on the right).
CLEAR button
œ When a sub-menu is being displayed, press this
button and the MAIN MENU will appear.
œ If there are several items on one line, press this
button to move to the previous item (on the left).
<SW@OUT@SET> TIMING@@@@@@@@@@@FIELD FIELD@@@@@@@@@@@@1 OUTPUT@@@@@@@@@@@Y
BUZZER SET menu
<BUZZER@SET>@@@@@SET@UP ALARM@@@@@@@@@@@@Y TAPE@END@@@@@@@@@Y KEY@IN@@@@@@@@@@@N WARNING@@@@@@@@@@Y NON@REC@@@@@@@@@@N
GENERAL SET menu
<GENERAL@SET> TAPE@IN@MODE@@@@@STOP TAPE@END@MODE@@@@REW CLOCK@ADJUST@@@@@01:00 THREAD@CHECK@@@@@N VIDEO@LOSS@@@@@@@N REMOTE@@@@@@@@@@@MENU VIDEO@@@@@@@@@@@@COLOR
English
9
ON-SCREEN MENU
WARNING OUT/EJECT SET menu
<WARNING@OUT@SET>SET@UP
ALARM@@@@@@@@@@@@Y
NON@REC@@@@@@@@@@N
MECHA.PROBLEM@@@@Y
VIDEO@LOSS@@@@@@@Y
<EJECT@SET>
EJECT@MODE@@@@@@@EJECT1
OPERATION@@@@@@@@SLAVE
NOTE:
œ The “VIDEO LOSS” line does not appear if “VIDEO
LOSS” is set to “N” in the (GENERAL SET) menu.
ALARM/SERIES REC SET menu
<ALARM/SERIES@REC@SET>
*ALARM@SET
@@MODE@@@@@@@@@@@Y
@@DURATION@@@@@@@20S
*SERIES@REC@@@@@@N
*TAPE@END@OUT@@@@8:00
TAPE MANAGEMENT menu
<TAPE@MANAGEMENT>
*TAPE@MANAGEMENT@@@@N
*PROTECT@DAY@@@@@@@30
*REC@PASS@SET@@@@@@10
*GROUP@NO.SET@@@@@OFF
*OVERRIDE@@@@@@@@@@@N
OTHERS menu
<OTHERS>
*ALARM@LOG
*POWER@FAILURE/DEW
*RS-485@SET
@@STATUS@INFO.@@@Y
@@ALARM@INFO.@@@@Y
NOTES:
œ Setting items are highlighted (appear in blue
characters) when they are selected.
œ Settings flash while they are being changed. œ When a menu is displayed, recording will not be
possible.
œ During recording or playback the menus cannot be
displayed.
œ To reset the settings of a menu to their original
values, select the desired menu and then press the MENU RESET button.
œ The USED TIME data in the (POWER
FAILURE/DEW/USED TIME) menu cannot be cleared even when the MENU RESET button is pressed.
œ Press the MENU button to save any settings made
and switch menu screens. To display the (ALARM LOG) menu or (POWER FAILURE/DEW/USED TIME) menu, select the “ALARM LOG” or “POWER FAILURE/DEW” line in the (OTHERS) menu and then press the ENTER button.
œ Press the CLEAR button while a setting item is
highlighted (appears in blue characters) to return to the main menu. In the case of the (ALARM LOG) menu or the (POWER FAILURE/DEW/USED TIME) menu, to return to the (OTHERS) menu.
ALARM LOG menu
<ALARM@LOG>@@@@@@@@@000
@@@001@@@-----@--:--
@@@002@@@-----@--:--
@@@003@@@-----@--:--
@@@004@@@-----@--:--
@@@005@@@-----@--:--
@@@006@@@-----@--:--
@@@007@@@-----@--:--
@@@008@@@-----@--:--
@@@009@@@-----@--:--
@@@010@@@-----@--:--
POWER FAILURE/DEW/USED TIME menu
<POWER@FAILURE>
000@FAILURE@@-----@--:--
@@@@RECOVERY@-----@--:--
<DEW>
000@FAILURE@@-----@--:--
@@@@RECOVERY@-----@--:--
<USED@TIME>
@@VIDEO@@@@@@@@@00000H
@@POWER@@@@@@@@@00000H
10
English
SETTING THE LANGUAGE AND CLOCK
Language Setting
English, French, Spanish or Portuguese can be selected by the user.
Turn the power on to all devices used.
1
Press the MENU button to display the MAIN MENU.
2
ø The “1.LANGUAGE/CLOCK SET” line appears
highlighted.
<MAIN@MENU>
1.LANGUAGE/CLOCK@SET
2.DISPLAY/SW@OUT@SET
3.BUZZER@SET
4.GENERAL@SET
5.WARNING@OUT/EJECT@SET
6.ALARM/SERIES@REC@SET
7.TAPE@MANAGEMENT
8.OTHERS
Press the ENTER button.
3
ø The (LANGUAGE/CLOCK SET) menu appears. ø “ENGLISH” is highlighted (appears in blue
characters).
<LANGUAGE/CLOCK@SET>
*LANGUAGE-LANGUE-IDIOMA
@@@@@@@@@@@@@@@ENGLISH
*CLOCK@SET
@01-01-2002@TUE@00:00:00
*DAYLIGHT@SET@@@@@NO@USE
@@@@@@WEEK@@@MONTH@TIME
@ON@@@1ST-SUN@@04@@02:00
@OFF@@LST-SUN@@10@@02:00
Press the ENTER button.
4
ø The display color for the selected item returns
to the original color and flashes.
Press the l (or j) button to select the language of
5
your choice. œ To set the next item, press the ENTER button,
then press the l (or j) button to select the next setting.
When finished, press the MENU EXIT button to
6
return to the monitor screen.
Clock setting
Example: To set the clock to October 15, 2002 at 3:20
PM (15:20).
Follow steps 1 to 3 under “Language Setting”.
1
Press the l (or j) button until the “CLOCK SET”
2
setting is highlighted (appears in blue characters). Press the ENTER button.
3
ø The month position starts flashing.
Press the l (or j) button to set the month (10), then
4
press the ENTER button.
ø The day of week is set automatically.
Press the l (or j) button to set the day (15), then
5
press the ENTER button. Press the l (or j) button to set the year (2002),
6
then press the ENTER button. Press the l (or j) button to set the hours (15 for 3
7
PM), then press the ENTER button.
ø Unit uses 24hours format.
Press the l (or j) button to set the minutes (20),
8
then press the ENTER button.
<LANGUAGE/CLOCK@SET> *LANGUAGE-LANGUE-IDIOMA @@@@@@@@@@@@@@@ENGLISH
*CLOCK@SET @10-15-2002@TUE@15:20:00
*DAYLIGHT@SET@@@@@NO@USE @@@@@@WEEK@@@MONTH@TIME @ON@@@1ST-SUN@@04@@02:00 @OFF@@LST-SUN@@10@@02:00
œ If a wrong setting has been entered, press the
CLEAR button to move to the setting to be changed, then press the l (or j) button to enter the correct setting.
For accurate clock setting, press the l button timed
9
with a time broadcast or other accurate time signal. This will start the seconds counting from 00.
œ To set the next item, press the ENTER button,
then press the l (or j) button to select the next setting.
Press the MENU EXIT button to return to the monitor
F
screen.
English
NOTE:
œ In STOP mode, press and hold the STOP button then
press the TRACKING – button to reset the minutes and seconds to 00 (to the closest hour). For example, between 13:30:00 and 14:29:59 the clock is reset to 14:00:00.
11
SETTING THE LANGUAGE AND CLOCK
Automatic Daylight Saving Time Adjustment
1 Follow steps 1 to 3 under “Language Setting” on
page 11.
<LANGUAGE/CLOCK@SET>
*LANGUAGE-LANGUE-IDIOMA
@@@@@@@@@@@@@@@ENGLISH
*CLOCK@SET
@10-15-2002@TUE@15:20:00
*DAYLIGHT@SET@@@@@NO@USE
@@@@@@WEEK@@@MONTH@TIME
@ON@@@1ST-SUN@@04@@02:00
@OFF@@LST-SUN@@10@@02:00
Press the l (or j) button until the “DAYLIGHT SET”
2
setting is highlighted (appears in blue characters), then press the ENTER button.
Press the l (or j) button to set the auto daylight
3
saving time/standard time adjustment, then press the ENTER button.
NO USE . . . . . . . . . . . . No daylight saving
time/standard time adjustment is made.
USE . . . . . . . . . . . . . . . The auto daylight saving
time/standard time adjustment is made.
ø If using the USE setting, continue with steps
4 to 7.
4 Press the l (or j) button to select the “ON” line
setting, then press the ENTER button.
ø The 1ST of the ON line flashes.
Set the day the daylight saving time adjustment is
5
made. œ Press the l (or j) button to set the week, then
press the ENTER button. 1ST, 2ND, 3RD, 4TH or LST (first, second, third,
fourth or last)
œ Press the l (or j) button to set the day of week,
then press the ENTER button.
SUN, MON, TUE, ...... SAT (Sunday, Monday,
Tuesday....Saturday)
œ Press the l (or j) button to set the month the
daylight saving time adjustment is made, then press the ENTER button.
01, 02,.....11, 12 (for January,
February......November, December)
œ Press the l (or j) button to set the time (hour)
the daylight saving time adjustment is made, then press the ENTER button.
œ Press the l (or j) button to set the time
(minutes) the daylight saving time adjustment is made, then press the ENTER button.
Press the l (or j) button to select the “OFF” line
6
setting, then press the ENTER button.
ø The LST of the OFF line flashes.
7 Following the same procedure as above (step 5),
set when the time is changed back from daylight saving time to standard time.
Press the MENU EXIT button.
8
Factory setting:
WEEK MONTH TIME ON 1ST-SUN 04 02:00 (AM) OFF LST-SUN 10 02:00 (AM)
12
English
SUPERIMPOSE DISPLAY
Selecting the Superimpose Display
You can select to display or not the date, time and number of alarm recordings.
Turn the power on to all devices used.
1
Press the MENU button to display the MAIN MENU.
2
Press the l (or j) button to select the
3
“2.DISPLAY/SW OUT SET” line, then press the ENTER button.
ø The (DISPLAY/SW OUT SET) menu appears.
<DISPLAY@SET>@@@@SET@UP DATE@@@@@@@@@@@@@Y TIME@@@@@@@@@@@@@Y ALARM@COUNT@@@@@@Y
<SW@OUT@SET> TIMING@@@@@@@@@@@FIELD FIELD@@@@@@@@@@@@1 OUTPUT@@@@@@@@@@@Y
4 Press the ENTER button.
Press the l (or j) button to select the desired
5
mode, then press the ENTER button.
SET UP . . . . . . . . . . . . Set each item (Individual)
ALL Y . . . . . . . . . . . . . . To set all items to “Y”
ALL N . . . . . . . . . . . . . . To set all items to “N”
ø If using the “SET UP setting, continue with
steps 6 to 8.
Press the l (or j) button until the item to be
6
changed is highlighted, then press the ENTER button.
Press the l (or j) button to set “Y” (displayed) or
7
“N” (not displayed), then press the ENTER button.
DATE . . . . . . . . . . . . . . The date appears
TIME. . . . . . . . . . . . . . . The time appears
ALARM COUNT. . . . . . The number of alarm
recordings appears
Repeat steps 6 and 7 when setting other items.
8
Changing the Superimpose Display Position
Turn the power on to all input devices to the VCR.
1
Set the ON SCREEN switch to the “ON” position.
2
ø The superimpose display appears.
10-15-2002@TUE@000 15:20:00
3 To change the display position, press the SHIFT «
(or ]) button.
ø The display will move towards the right (or the
bottom).
NOTES:
œ If the SHIFT « (or ]) button is kept pressed for 1
second or more, the display will move at a faster speed.
œ The display position cannot be changed during
recording.
When finished, press the MENU EXIT button.
9
NOTE:
œ If the ON SCREEN switch is set to the “ON” position,
the items for which “Y” have been set are recorded. The items for which “N” was set at step 7 above are not recorded.
English
13
Loading...
+ 30 hidden pages
